Kubota L3000DT Tractor Illustrated Master Parts List Manual

Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

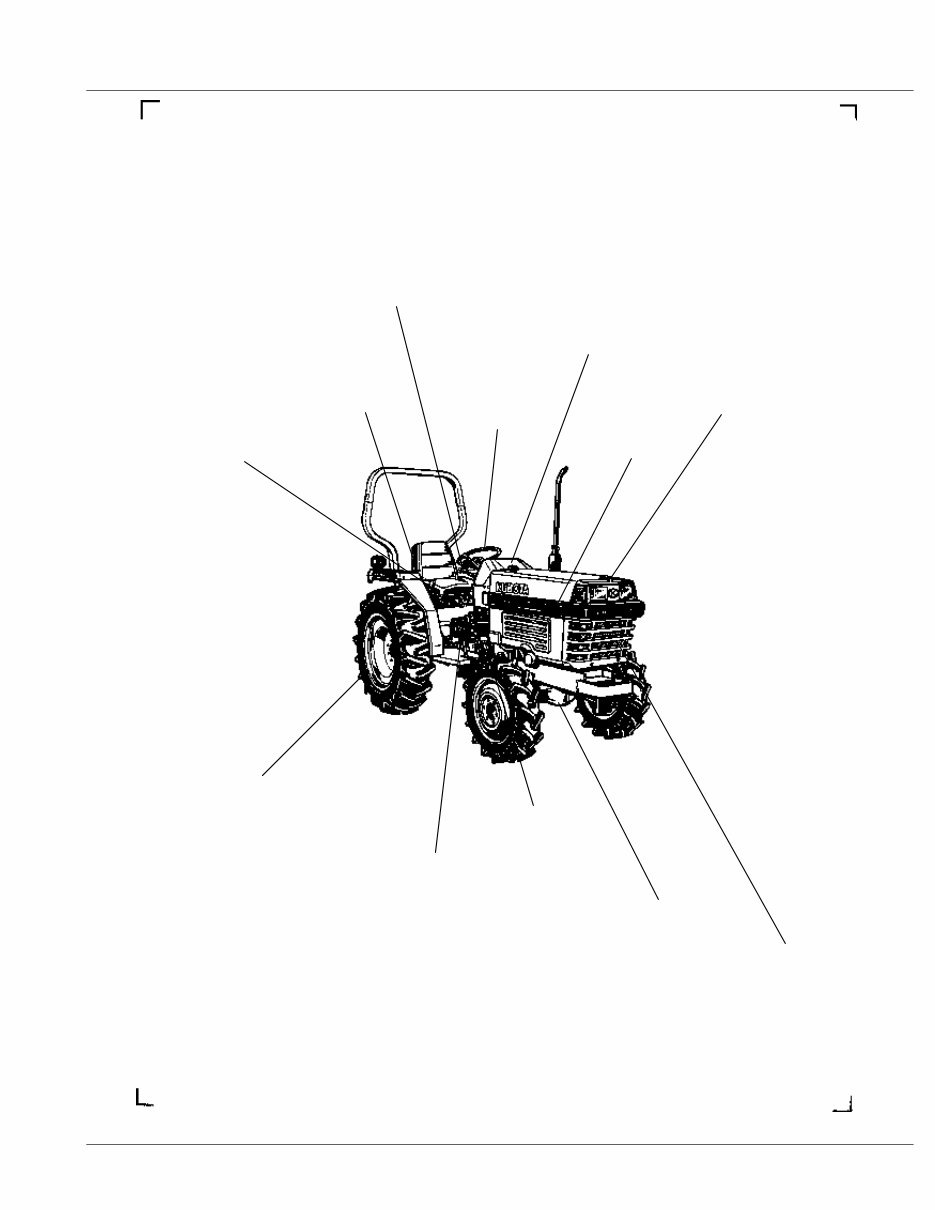

|ALL PRODUCT INDEX L3000DT Ref. L3000DT Page 12048 ENGINE FUEL SYSTEM COOLING WATER SYSTEM ELECTRICAL SYSTEM TRANSMISSION/CLUTCH/REAR AXLE SPEED CHANGE LEVER/BRAKE STEERING HYDRAULIC SYSTEM HITCH/DRAWBAR HOOD(BONNET)/ROPS FRONT WHEEL/REAR WHEEL LABELS ACCESSORIES OPTION FRONT AXLE/CHASSIS

Ref. L3000DT Page 12048 Item Part No. Description Book ENGINE 01000101 CRANKCASE 100K0572 010002 OIL PAN 100K0572 010003 CYLINDER HEAD 100K0572 010004 GEAR CASE 100K0572 010005 HEAD COVER 100K0572 010100 MAIN BEARING CASE 100K0572 010101 CAMSHAFT AND IDLE GEAR SHAFT 100K0572 010102 PISTON AND CRANKSHAFT 100K0572 01010302 FLYWHEEL 100K0572 01010502 FUEL CAMSHAFT 100K0572 010200 ENGINE STOP LEVER 100K0572 01020202 INJECTION PUMP 100K0572 010204 GOVERNOR 100K0572 010205 SPEED CONTROL PLATE 100K0572 010206 NOZZLE HOLDER AND GLOW PLUG 100K0572 010207 NOZZLE HOLDER [COMPONENT PARTS] 100K0572 010500 WATER FLANGE AND THERMOSTAT 100K0572 010501 WATER PUMP 100K0572 010600 VALVE AND ROCKER ARM 100K0572 010601 INLET MANIFOLD 100K0572 010602 EXHAUST MANIFOLD 100K0572 010604 AIR CLEANER 100K0572 010606 MUFFLER 100K0572 01090102 UPPER GASKET KIT 100K0572 01090202 LOWER GASKET KIT 100K0572 01A003 ENGINE STOP ROD 100K0572 01A01003 ACCELERATOR LEVER [OLD TYPE] 100K0572 01A01004 ACCELERATOR LEVER [NEW TYPE] 100K0572 01A025 ACCELERATOR LINKAGE 100K0572 01A02501 ACCELERATOR LINKAGE 100K0572 FUEL SYSTEM 01A101 FUEL TANK 100K0572 01A11002 FUEL PIPE AND FUEL FILTER 100K0572 01A130 FUEL FILTER [COMPONENT PARTS] 100K0572 COOLING WATER SYSTEM 01A401 FAN 100K0572 01A410 WATER PIPE 100K0572 01A420 RADIATOR 100K0572 ELECTRICAL SYSTEM 01A51502 ALTERNATOR 100K0572 01A520 ALTERNATOR [COMPONENT PARTS] 100K0572 01A525 STARTER 100K0572 01A530 STARTER [COMPONENT PARTS] 100K0572 01A535 BATTERY 100K0572 01B102 SWITCH 1 100K0572 01B10302 SWITCH 2 100K0572 01B115 PANEL BOARD 100K0572 01B120 PANEL BOARD [COMPONENT PARTS] 100K0572 01B301 LIGHT [OLD TYPE] 100K0572 01B30101 LIGHT [NEW TYPE] 100K0572 01B50103 ELECTRICAL WIRING 100K0572 TRANSMISSION/CLUTCH/REAR AXLE 01C10102 CLUTCH 100K0572 01C20102 CLUTCH LEVER 100K0572 01C30103 CLUTCH PEDAL 100K0572 01C40102 CLUTCH HOUSING 100K0572 01C42002 TRANSMISSION CASE 100K0572 01D10102 MAIN SHAFT 100K0572 01D10502 COUNTERSHAFT 100K0572 01D116 REVERSE SHAFT 100K0572 01D117 RANGE GEAR SHAFT 100K0572 01D12502 SPIRAL BEVEL PINION 100K0572 01D12702 REAR DIFFERENTIAL 100K0572

Ref. L3000DT Page 12048 Item Part No. Description Book TRANSMISSION/CLUTCH/REAR AXLE 01D13004 PTO COUNTERSHAFT 100K0572 01D135 PTO SHAFT 100K0572 01D20102 MAIN GEAR SHIFT FORK 100K0572 01D217 RANGE GEAR SHIFT FORK 100K0572 01D22002 PTO GEAR SHIFT FORK 100K0572 01D30102 REAR AXLE 100K0572 SPEED CHANGE LEVER/BRAKE 01D40102 BRAKE 100K0572 01D415 HAND BRAKE 100K0572 01E10102 MAIN GEAR SHIFT LEVER 100K0572 01E110 RANGE GEAR SHIFT LEVER 100K0572 01E12502 PTO GEAR SHIFT LEVER 100K0572 01E140 FRONT WHEEL DRIVE LEVER 100K0572 01E201 BRAKE PEDAL 100K0572 01E205 DIFFRENTIAL LOCK PEDAL 100K0572 FRONT AXLE/CHASSIS 01F10504 FRONT AXLE FRAME 100K0572 01F107 FRONT AXLE BRACKET 100K0572 01F120 PROPELLER SHAFT 100K0572 01F122 FRONT WHEEL DRIVE SHAFT 100K0572 01F125 FRONT DIFFERENTIAL CASE 100K0572 01F135 FRONT DIFFERENTIAL 100K0572 01F14001 FRONT AXLE CASE 100K0572 01F145 DIFFERENTIAL GEAR SHAFT 100K0572 01F150 FRONT AXLE 100K0572 STEERING 01G10103 STEERING HANDLE [PS] 100K0572 01G11202 STEERING [PS] [COMPONENT PARTS] 100K0572 01G11902 STEERING LINKAGE (DRAG LINK) 100K0572 01G12002 STEERING LINKAGE (TIE ROD) 100K0572 HYDRAULIC SYSTEM 01H12002 HYDRAULIC PUMP 100K0572 01H12502 HYDRAULIC PUMP [COMPONENT PARTS] 100K0572 01H215 HYDRAULIC OIL LINE (PS) 100K0572 01H22503 HYDRAULIC OIL LINE 100K0572 01H30102 HYDRAULIC CYLINDER 100K0572 01H303 CYLINDER FRONT COVER 100K0572 01H320 LIFT ARM 100K0572 01H330 FEED BACK LEVER 100K0572 01H405 CONTROL VALVE 100K0572 01H410 CONTROL VALVE [COMPONENT PARTS] [OLD TYPE] 100K0572 01H41001 CONTROL VALVE [COMPONENT PARTS] [NEW TYPE] 100K0572 01H440 POSITION CONTROL LEVER 100K0572 01J101 TOP LINK HOLDER 100K0572 01J105 TOP LINK 100K0572 01J110 3-POINT LINKAGE 1 (LOWER LINK) 100K0572 01J115 3-POINT LINKAGE 2 (LIFT ROD) 100K0572 HITCH/DRAWBAR 01K105 DRAWBAR 100K0572 01K125 PTO PROTECTOR 100K0572 HOOD(BONNET)/ROPS 01L10102 FRONT GRILLE 100K0572 01L105 HOOD(BONNET) 100K0572 01L110 HOOD(BONNET) SIDE 100K0572 01L13002 SHUTTER PLATE 100K0572 01L20103 PANEL FRAME 100K0572 01L210 FENDER 100K0572 01L213 FENDER SUPPORT 100K0572 01L21702 FLOOR SEAT COVER 100K0572 01L220 SEAT 100K0572 01L22503 STEP 100K0572 01L301 ROPS (RIGID TYPE) [OLD TYPE] 100K0572 01L30101 ROPS (RIGID TYPE) [NEW TYPE] 100K0572

Ref. L3000DT Page 12048 Item Part No. Description Book HOOD(BONNET)/ROPS 01L30102 ROPS (FOLDABLE TYPE) 100K0572 01L501 SMV EMBLEM 100K0572 FRONT WHEEL/REAR WHEEL 01P10105 FRONT WHEEL (6-14) 100K0572 01P10106 FRONT WHEEL (7-16) 100K0572 01P10107 FRONT WHEEL (24*8.50-14) 100K0572 01P10108 FRONT WHEEL (27*8.50-15) [OPTION] 100K0572 01P11001 REAR WHEEL (9.5-24) 100K0572 01P11002 REAR WHEEL (11.2-24) 100K0572 01P11003 REAR WHEEL (13.6-16) 100K0572 01P11005 REAR WHEEL (15-19.5) [OPTION] 100K0572 LABELS 01R10502 LABEL 1 (FRONT) 100K0572 01R11002 LABEL 2 (REAR) 100K0572 ACCESSORIES 01S105 ACCESSORIES AND SERVICE PARTS 100K0572 OPTION 01T104 UNDER MUFFLER [OPTION] 100K0572 01T127 CONTROL VALVE (WITH DRAFT) [OPTION] 100K0572 01T128 CONTROL VALVE (WITH DRAFT) [COMPONENT PARTS] [OLD TYPE] [OPTION] 100K0572 01T12801 CONTROL VALVE (WITH DRAFT) [COMPONENT PARTS] [NEW TYPE] [OPTION] 100K0572 01T135 DRAFT CONTROL LEVER (WITH DRAFT) [OPTION] 100K0572 01T136 DRAFT CONTROL VALVE (WITH DRAFT) [COMPONENT PARTS] [OPTION] 100K0572 01T140 TOP LINK HOLDER (WITH DRAFT) [OPTION] 100K0572

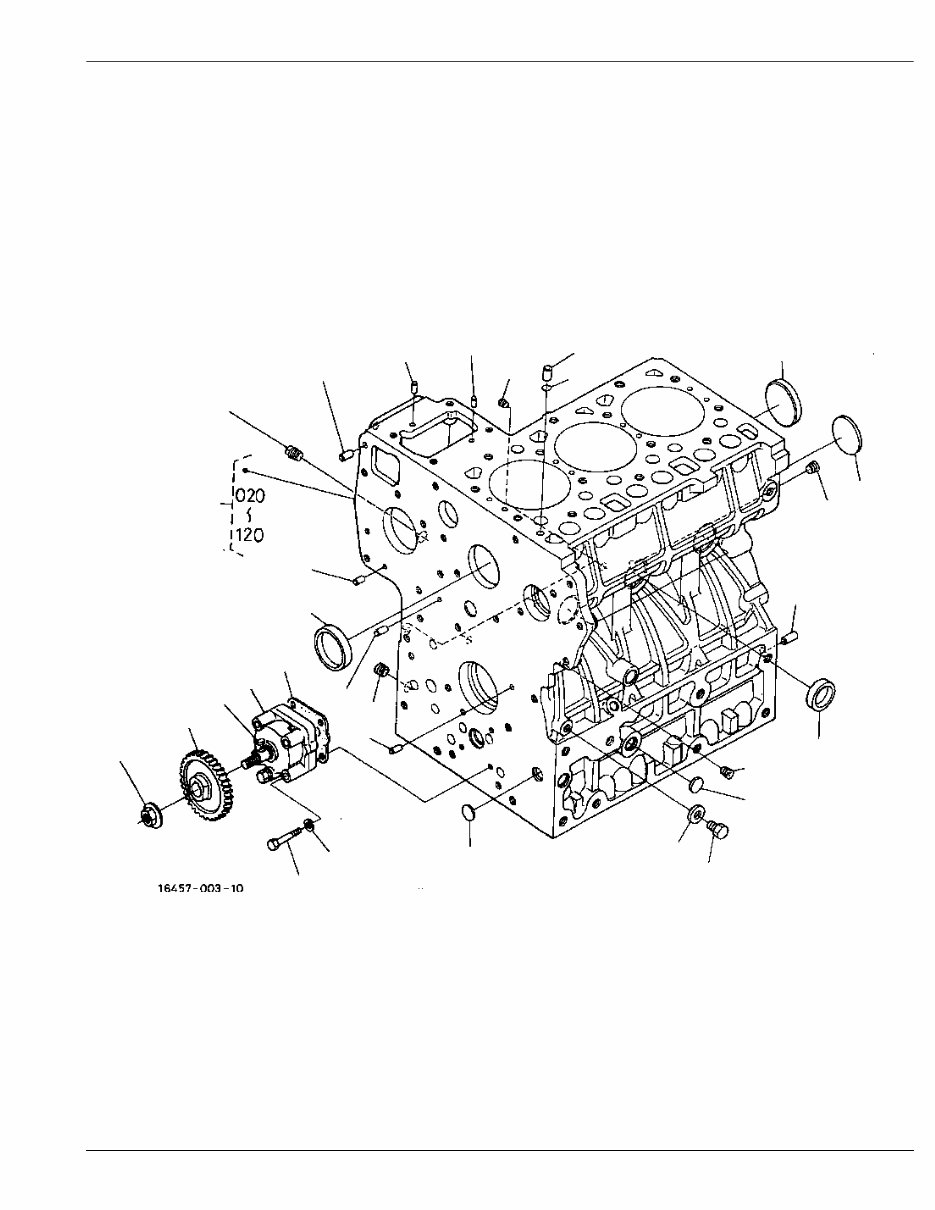

CRANKCASE Reference: 01000101 Page: 1 010 020 020 030 030 040 040 050 060 070 070 080 080 090 090 100 100 110 120 140 150 160 170 180 190 200 210 220 230 240

CRANKCASE Reference: 01000101 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 16495-01015 COMP.CRANKCASE 1 >=2A0001 ← 48.5 106.7 010 16495-01016 COMP.CRANKCASE 1 >=3S0001 ≠ 48.5 106.7 020 15521-96020 PLUG 5 0.003 0.0066 030 15521-96030 PLUG 2 0.007 0.0154 040 17391-96160 PLUG EXPANSION 3 0.003 0.0066 050 06311-75045 PLUG EXPANSION 1 <=3G0964 0.026 0.0572 050 16271-96160 PLUG EXPANSION 1 >=3J0001 ≠ 0.025 0.055 060 15221-03380 CAP SEALING 5 0.017 0.0374 070 15221-03390 CAP SEALING 2 0.03 0.066 080 05012-00408 PIN STRAIGHT 2 0.001 0.0022 090 05012-00609 PIN STRAIGHT 2 0.003 0.0066 100 05012-00612 PIN STRAIGHT 2 0.003 0.0066 110 05012-01018 PIN STRAIGHT 1 0.012 0.0264 120 15221-33650 PIN PIPE 1 0.004 0.0088 130 99999-99999 BLANK 0 0 0 140 15221-33610 PLUG 1 0.009 0.0198 150 15021-33660 GASKET 1 0.001 0.0022 160 15221-33700 O RING 1 0.001 0.0022 170 15471-35012 ASSY PUMP OIL 1 0.55 1.21 180 15296-35150 GASKET OIL PUMP 1 0 0 180 1A021-35150 GASKET OIL PUMP 1 ↔ 0.001 0.0022 190 01053-50650 BOLT 4 0.011 0.0242 200 04512-60060 WASHER SPRING 4 0.001 0.0022 210 19202-35660 GEAR OIL PUMP DRIVE 1 0.23 0.506 220 05712-00410 KEY FEATHER 1 0.001 0.0022 230 15221-35682 NUT FLANGE 1 0.014 0.0308 240 06312-10020 PLUG 1 0.016 0.0352

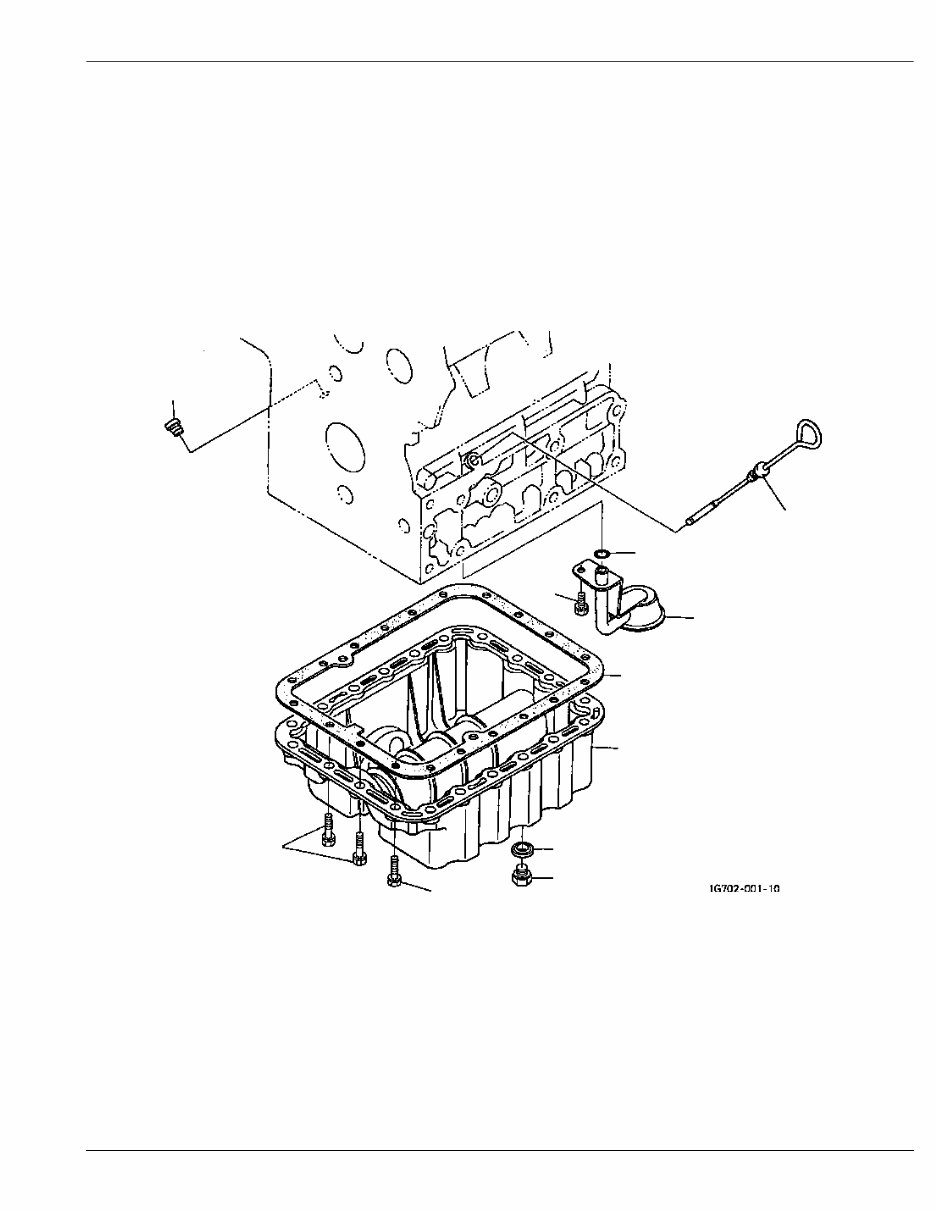

OIL PAN Reference: 010002 Page: 2 010 020 030 040 050 060 070 080 090 100 110

OIL PAN Reference: 010002 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 15521-01610 OIL PAN 1 2.8 6.16 020 17326-01620 GASKET OIL PAN 1 0 0 020 1A021-01620 GASKET OIL PAN 1 ↔ 0.014 0.0308 030 01133-51028 BOLT 18 0.027 0.0594 040 01133-51025 BOLT 2 0.023 0.0506 050 15261-33750 PLUG 2 <=YJ0538 0.034 0.0748 050 16427-33750 PLUG DRAIN 2 >=YL0001 ← 0.03 0.066 060 6C090-58960 GASKET 2 0.002 0.0044 070 16427-32110 FILTER OIL 1 0.2 0.44 080 01123-60814 BOLT 1 0.01 0.022 090 04816-00160 O RING 1 0.003 0.0066 090 04817-00160 O RING 1 ← 0.001 0.0022 100 16427-36410 GAUGE OIL 1 0.035 0.077 110 16414-33640 PLUG OIL GAUGE 1 >=2A0001 0.003 0.0066
