Kubota L295DT L295 DT Tractor Illustrated Master Parts List Manual

Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

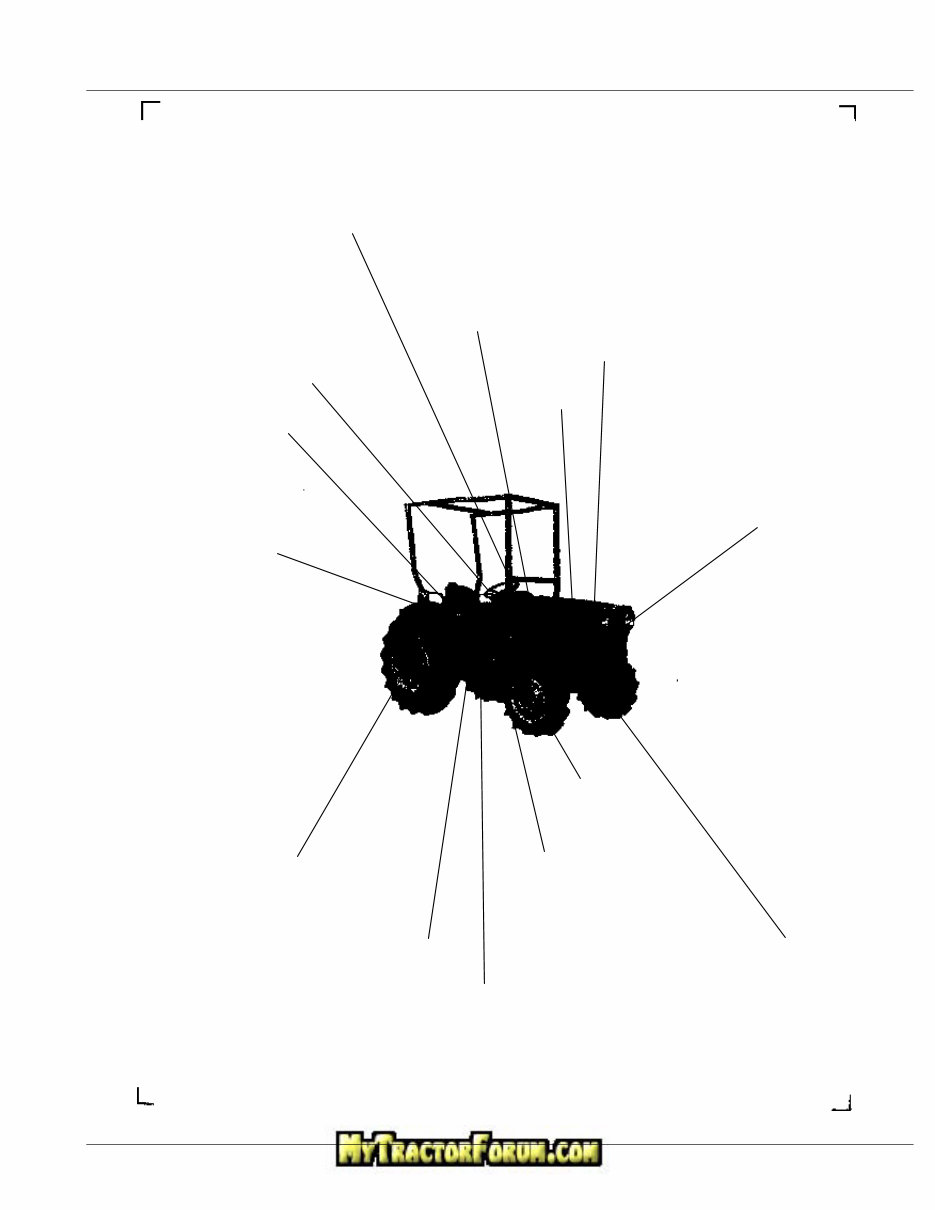

|ALL PRODUCT INDEX L295DT Ref. L295DT Page 12044 ENGINE FUEL SYSTEM COOLING WATER SYSTEM ELECTRICAL SYSTEM CLUTCH TRANSMISSION SPEED CHANGE LEVER REAR AXLE AND REAR WHEEL BRAKE FRONT AXLE AND FRONT WHEEL STEERING HYDRAULIC SYSTEM DRAWBAR HOOD(BONNET) AND CHASSIS LABELS ACCESSORIES AND SERVICE PARTS

Ref. L295DT Page 12044 Item Part No. Description Book ENGINE 01T001 CRANKCASE 100K0125 01T002 OIL PAN 100K0125 01T003 PISTON AND CRANKSHAFT 100K0125 01T004 MAIN BEARING CASE 100K0125 01T005 FLY WHEEL 100K0125 01T006 CYLINDER HEAD 100K0125 01T007 VALVE AND ROCKER ARM 100K0125 01T008 NOZZLE HOLDER AND GLOW PLUG 100K0125 01T009 NOZZLE HOLDER [COMPONENT PARTS] 100K0125 01T010 CYLINDER HEAD COVER 100K0125 01T011 BREATHER 100K0125 01T012 INLET MANIFOLD 100K0125 01T01301 AIR CLEANER 100K0125 01T01302 AIR CLEANER (DOUBLE) 100K0125 01T014 EXHAUST MANIFOLD 100K0125 01T01501 MUFFLER 100K0125 01T01502 UNDER MUFFLER 100K0125 01T016 CAMSHAFT 100K0125 01T017 GEAR CASE 100K0125 01T018 OIL FILTER [COMPONENT PARTS] 100K0125 01T019 WATER PUMP 100K0125 01T020 WATER FLANGE 100K0125 01T021 INJECTION PUMP AND FUEL CAMSHAFT 100K0125 01T022 INJECTION PUMP [COMPONENT PARTS] 100K0125 01T023 SPEED CONTROL PLATE 100K0125 01T024 GOVERNOR 100K0125 COOLING WATER SYSTEM 01T028 RADIATOR 100K0125 ELECTRICAL SYSTEM 01T029 DYNAMO AND FRONT PTO(OPTION) 100K0125 01T030 DYNAMO [COMPONENT PARTS] 100K0125 ENGINE 01T025 HAND ACCELERATOR 100K0125 FUEL SYSTEM 01T026 FUEL TANK 100K0125 01T027 FUEL FILTER 100K0125 ELECTRICAL SYSTEM 01T031 STARTER 100K0125 01T03201 STARTER [COMPLNENT PARTS] 100K0125 01T03202 STARTER [COMPONENT PARTS] 100K0125 01T033 BATTERY 100K0125 01T034 PANEL 1 100K0125 01T035 PANEL 2 100K0125 01T036 PANEL 3 100K0125 01T03701 LIGHT [EXCEPT EUROPE] 100K0125 01T039 WORK LIGHT 100K0125 CLUTCH 01T041 CLUTCH 100K0125 01T042 CLUTCH LEVER 100K0125 01T043 CLUTCH PEDAL 100K0125 01T044 CLUTCH HOUSING 100K0125 TRANSMISSION 01T045 TRANSMISSION CASE 100K0125 01T046 MAIN SHAFT 100K0125 01T047 COUNTER SHAFT 100K0125 01T048 PTO COUNTER SHAFT 100K0125 01T049 REVERSE SHAFT 100K0125 SPEED CHANGE LEVER 01T050 MAIN GEAR SHIFT LEVER AND PTO GEAR SHIFT LEVER 100K0125 01T051 MAIN SHIFT FORK 100K0125 01T052 HI-LO GEAR SHIFT LEVER 100K0125 01T053 CREEP GEAR SHIFT LEVER 100K0125 01T054 PTO SHIFT FORK 100K0125 REAR AXLE AND REAR WHEEL 01T055 SPIRAL BEVEL GEAR 100K0125 01T056 DIFFERENTIAL SYSTEM 1 100K0125 01T057 DIFFERENTIAL SYSTEM 2 100K0125 01T058 DIFF.LOCK PEDAL 100K0125

Ref. L295DT Page 12044 Item Part No. Description Book REAR AXLE AND REAR WHEEL 01T059 REAR AXLE 100K0125 01T060 AXLE CASE 100K0125 01T06101 REAR WHEEL(12.4-24) 100K0125 BRAKE 01T062 BRAKE 100K0125 01T063 BRAKE PEDAL 100K0125 01T064 PARKING BRAKE LEVER 100K0125 FRONT AXLE AND FRONT WHEEL 01T068 FRONT AXLE BRACKET 100K0125 01T071 DIFF.GEAR SHAFT 100K0125 01T072 DIFF.GEAR CASE 100K0125 01T073 FRONT AXLE SUPPORT 100K0125 01T074 PROPELLER SHAFT 100K0125 01T075 DRIVE CASE 100K0125 01T076 FRONT WHEEL(7-16) 100K0125 01T077 DRAG LINKAGE 100K0125 01T078 TIE ROD 100K0125 STEERING 01T079 MANUAL STEERING 100K0125 01T080 MANUAL STEERING [COMPONENT PARTS] 100K0125 HYDRAULIC SYSTEM 01T081 HYDRAULIC PUMP 100K0125 01T08201 HYDRAULIC PUMP [COMPONENT PARTS] 100K0125 01T08202 HYDRAULIC PUMP [COMPONENT PARTS] 100K0125 01T083 HYDRAULIC OIL LINE 100K0125 01T084 HYDRAULIC OIL FILTER 100K0125 01T085 CONTROL VALVE 100K0125 01T086 CONTROL VALVE [COMPONENT PARTS] 100K0125 01T087 RELIEF VALVE 100K0125 01T088 RELIEF VALVE [COMPONENT PARTS] 100K0125 01T089 DRAFT CONTROL VALVE 100K0125 01T090 DRAFT CONTROL VALVE [COMPONENT PARTS] 100K0125 01T091 HYDRAULIC CYLINDER 100K0125 01T092 LIFT ARM 100K0125 01T093 3-POINT LINKAGE 100K0125 01T094 TOP LINKAGE BRACKET 100K0125 DRAWBAR 01T095 DRAWBAR AND HITCH 100K0125 01T096 PTO SHAFT PROTECTOR 100K0125 HOOD(BONNET) AND CHASSIS 01T097 HOOD (BONNET) 100K0125 01T098 REARVIEW MIRROR 100K0125 01T099 UPPER FRAME 100K0125 01T10001 FENDER 100K0125 01T10002 FENDR 100K0125 01T101 TOOLS CASE 100K0125 01T10201 SEAT 100K0125 01T10202 SEAT [OPTION] 100K0125 01T103 S.M.V.EMBLEM BRACKET 100K0125 01T104 STEP 100K0125 LABELS 01T105 LABEL 1 100K0125 01T106 LABEL 2 100K0125 ACCESSORIES AND SERVICE PARTS 01T107 ACCESSORIES AND SERVICE PARTS 100K0125

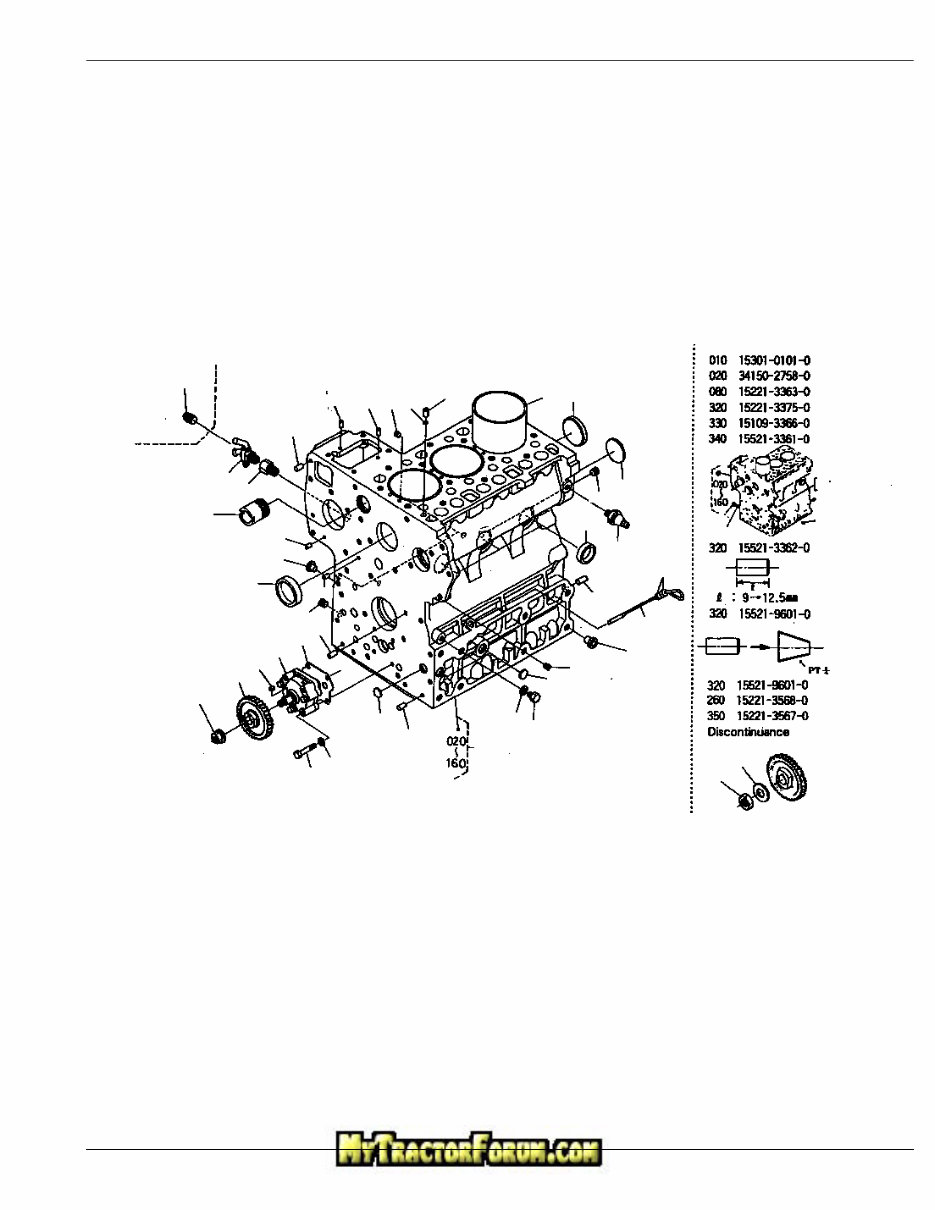

CRANKCASE Reference: 01T001 Page: 1 010 010 020 020 030 040 040 050 060 060 070 080 080 080 090 090 100 100 110 110 120 120 130 130 140 150 160 170 180 190 200 210 220 230 240 250 260 260 270 280 290 290 300 310 320 330 340 350

CRANKCASE Reference: 01T001 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 15301-01010 COMP.CRANKCASE 1 <=3550 0 0 010 15301-01012 COMP.CRANKCASE 1 >=3551 ≠ 50 110 010 15301-01012 COMP.CRANKCASE 1 <=11099 SOUTH WEST ASIA & ALGERIA 50 110 010 16111-01010 COMP.CRANKCASE 1 >=11100 ↔ SOUTH WEST ASIA & ALGERIA 55 121 020 34150-27580 PLUG 6 <=3550 0.001 0.0022 020 34150-27580 PLUG 1 >=3551 0.001 0.0022 030 32210-27580 PLUG BLIND 9 >=3551 0.001 0.0022 040 06311-75015 PLUG 3 <=8279 0.002 0.0044 040 06311-75018 PLUG 3 >=8280 ≠ 0.004 0.0088 050 15221-03380 CAP SEALING 5 0.017 0.0374 060 15221-03390 CAP SEALING 2 0.03 0.066 060 15221-03390 CAP SEALING 2 <=11099 SOUTH WEST ASIA & ALGERIA 0.03 0.066 060 16111-03390 CAP SEALING 2 >=11100 ↔ SOUTH WEST ASIA & ALGERIA 0.027 0.0594 070 06311-75045 PLUG 1 0.026 0.0572 080 15221-33630 PLUG PIN 5 <=3550 0.001 0.0022 080 15221-33630 PLUG PIN 4 >=3551 0.001 0.0022 080 15521-96020 PLUG 5 >=4654 ≠ 0.003 0.0066 090 15221-33640 PLUG 1 <=4653 0.003 0.0066 090 15521-96030 PLUG 2 >=4654 ≠ 0.007 0.0154 100 05012-00408 PIN STRAIGHT 2 0.001 0.0022 110 05012-00609 PIN STRAIGHT 2 0.003 0.0066 120 05012-00612 PIN STRAIGHT 2 0.003 0.0066 130 05012-01018 PIN STRAIGHT 3 0.012 0.0264 140 15221-33650 PIN PIPE 1 0.004 0.0088 150 15221-72840 PIPE WATER 1 0.078 0.1716 160 15201-02310 LINER CYLINDER 3 0.57 1.254 170 15221-33610 PLUG 1 0.009 0.0198 180 15021-33660 GASKET 1 0.001 0.0022 190 15221-33700 O RING 1 0.001 0.0022 200 15321-35010 ASSY PUMP OIL 1 0.525 1.155 210 15221-35150 GASKET OIL PUMP 1 0 0 220 01053-50648 BOLT 4 0.01 0.022 230 04512-50060 WASHER SPRING 4 0 0 240 15221-35660 GEAR OIL PUMP DRIVE 1 <=3550 0 0 240 15521-35660 GEAR OIL PUMP DRIVE 1 >=3551 ↔ 0 0 240 19202-35660 GEAR OIL PUMP DRIVE 1 >=6474 ↔ 0.23 0.506 250 05712-00410 KEY FEATHER 1 0.001 0.0022 260 15221-35680 NUT 1 <=11885 0 0 260 15221-35682 NUT FLANGE 1 >=11886 ← 0.014 0.0308 270 15221-36410 GAUGE OIL 1 0.028 0.0616 280 04811-00050 O RING 2 0.001 0.0022 290 14412-73110 COCK DRAIN 1 <=7235 0.09 0.198 290 15575-73100 COCK DRAIN 1 >=7236 ↔ 0.065 0.143 290 06312-10020 PLUG 1 SOUTH WEST ASIA & ALGERIA 0.015 0.033 300 15291-73160 JOINT DRAIN COCK 1 >=3551 0.04 0.088 310 15221-39013 SWITCH OIL 1 0.035 0.077 320 15221-33750 PLUG PIN 1 <=3550 0.032 0.0704 320 15521-33630 PLUG PIN 1 >=3551 ≠ 0.003 0.0066 320 15521-33620 PLUG PIN 1 >=4057 ≠ 0.004 0.0088 320 15521-96010 PLUG 1 >=4187 ≠ 0.01 0.022 320 15521-96010 PLUG PIN 1 <=4653 0.01 0.022 330 15109-33660 GASKET 1 <=3550 0.001 0.0022 340 15521-33610 PLUG.PIN 1 >=3551 0.002 0.0044 340 15521-33610 PLUG PIN 1 <=4653 0.002 0.0044 350 15221-35670 WASHER 1 <=11885 0.005 0.011

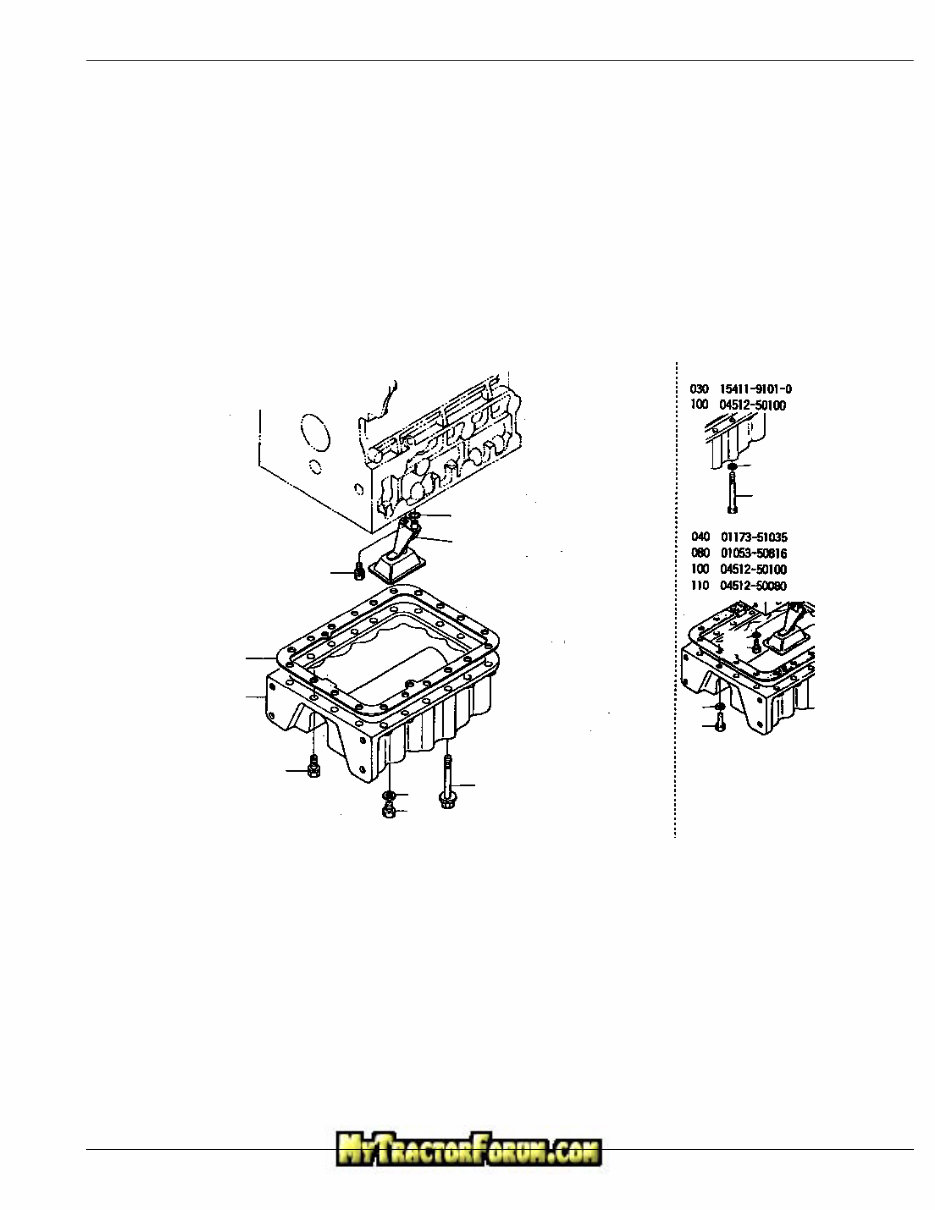

OIL PAN Reference: 01T002 Page: 2 010 020 030 030 040 040 050 060 070 080 080 090 100 100 110

OIL PAN Reference: 01T002 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 15301-01610 OIL PAN 1 11.4 25.08 020 15301-01620 GASKET OIL PAN 1 0 0 030 15411-91010 BOLT 4 <=11861 0 0 030 17377-91010 BOLT 4 >=11862 ≠ 0.08 0.176 040 01173-51035 BOLT 16 <=3550 0.025 0.055 040 01133-51035 BOLT 16 >=3551 ↔ 0.03 0.066 050 15221-33750 PLUG 2 0.032 0.0704 060 15109-33660 GASKET 2 0.001 0.0022 070 15301-32110 FILTER OIL 1 0.23 0.506 080 01053-50816 BOLT 1 <=3550 0.011 0.0242 080 01123-50816 BOLT 1 >=3551 ↔ 0.011 0.0242 090 04811-00140 O RING 1 0.001 0.0022 100 04512-50100 WASHER SPRING 20 <=3550 0 0 100 04512-50100 WASHER SPRING 4 >=3551 0 0 100 04512-50100 WASHER SPRING 4 <=11861 0 0 110 04512-50080 WASHER SPRING 1 <=3550 0 0

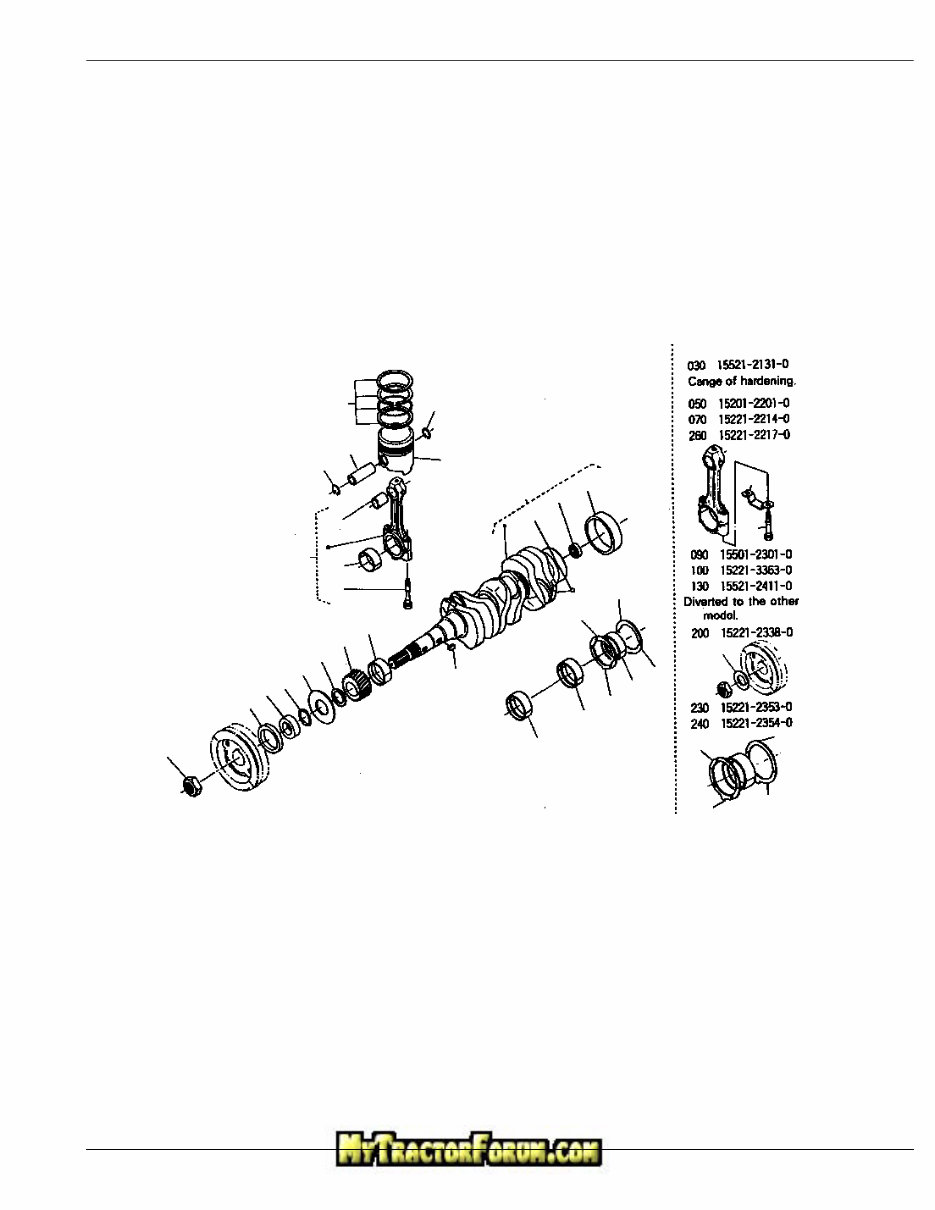

PISTON AND CRANKSHAFT Reference: 01T003 Page: 3 010 020 030 040 040 050 060 070 070 080 090 100 110 120 130 140 150 160 170 180 190 200 210 220 220 220 230 230 230 230 240 240 240 240 250 260

PISTON AND CRANKSHAFT Reference: 01T003 Page: 3 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 15201-21110 PISTON 3 STD 0.54 1.188 010 15201-21910 PISTON 3 +0.5MM 0.545 1.199 020 15201-21052 ASSY PISTON RING 3 STD 0.06 0.132 020 15201-21092 ASSY PISTON RING 3 +0.5MM 0.06 0.132 030 15221-21310 PIN PISTON 3 <=3550 0 0 030 15521-21310 PIN PISTON 3 >=3551 ↔ 0.156 0.3432 040 15221-21330 CIR-CLIP PISTON PIN 6 0.002 0.0044 050 15201-22010 ASSY CONNECTING ROD 1 <=3550 0 0 050 15521-22010 ASSY CONNECTING ROD 3 >=3551 ↔ 0 0 050 15471-22012 ASSY CONNECTING ROD 3 >=11886 ↔ 0.76 1.672 060 15221-21980 BUSH PISTON PIN 3 0 0 070 15221-22140 BOLT CONNECTING ROD 6 <=3550 0 0 070 15521-22140 BOLT CONNECTING ROD 6 >=3551 ↔ 0 0 080 15221-22310 METAL CRANKPIN 3 <=11885 STD 0 0 080 15471-22310 METAL CRANKPIN 3 >=11886 ← STD 0.03 0.066 080 15221-22970 METAL CRANKPIN 3 <=11885 -0.2MM 0.04 0.088 080 15471-22970 METAL CRANKPIN 3 >=11886 ← -0.2MM 0.04 0.088 080 15221-22980 METAL CRANKPIN 3 <=11885 -0.4MM 0.04 0.088 080 15471-22980 METAL CRANKPIN 3 >=11886 ← -0.4MM 0.04 0.088 090 15321-23010 COMP.CRANKSHAFT 1 <=3550 13 28.6 090 15501-23010 COMP.CRANKSHAFT 1 >=3551 ← 13.42 29.524 090 15568-23010 COMP.CRANKSHAFT 1 >=6984 ≠ 13.04 28.688 100 15131-01380 PLUG PIN 3 <=3550 0.001 0.0022 100 15221-33630 PLUG PIN 3 >=3551 ← 0.001 0.0022 100 07715-03209 BALL 3 >=11755 ↔ 0.002 0.0044 110 08121-06002 BEARING BALL 1 0.03 0.066 120 19202-23280 SLEEVE CRANKSHAFT 1 >=6984 0.09 0.198 130 15221-24110 GEAR CRANKSHAFT 1 <=3550 0 0 130 15521-24110 GEAR CRANKSHAFT 1 >=3551 ≠ 0.34 0.748 140 05712-00720 KEY FEATHER 1 0.008 0.0176 150 15221-24130 COLLAR 1 0.015 0.033 160 15221-23310 SLINGER OIL 1 <=11885 0 0 160 15471-23312 SLINGER OIL 1 >=11886 ← 0.008 0.0176 170 15221-23250 COLLAR CRANKSHAFT 1 <=6983 0 0 170 19202-23250 COLLAR CRANKSHAFT 1 >=6984 ≠ 0.065 0.143 180 04811-10300 O RING 1 0.001 0.0022 190 15221-23360 NUT CRANKSHAFT 1 0.11 0.242 200 15221-23380 WASHER CRANKSHAFT 1 <=11885 0.02 0.044 210 15221-23470 METAL CRANKSHAFT 1 <=11885 STD 0 0 210 17331-23470 METAL CRANKSHAFT 1 >=11886 ← STD 0.06 0.132 210 15221-23910 METAL CRANKSHAFT 1 -0.2MM 0 0 210 15221-23920 METAL CRANKSHAFT 1 -0.4MM 0 0 220 15221-23480 METAL CRANKSHAFT 3 <=11885 STD 0 0 220 17331-23480 METAL CRANKSHAFT 3 >=11886 ← STD 0.05 0.11 220 15221-23930 METAL CRANKSHAFT 3 -0.2MM 0.055 0.121 220 15221-23940 METAL CRANKSHAFT 3 -0.4MM 0.056 0.1232 230 15221-23530 METAL SIDE 2 <=3550 STD 0 0 230 15521-23530 METAL SIDE 2 >=3551 ↔ STD 0.01 0.022 230 15221-23950 METAL SIDE 2 +0.2MM 0 0 230 15221-23960 METAL SIDE 2 +0.4MM 0 0 240 15221-23540 METAL SIDE 2 <=3550 STD 0 0 240 15521-23540 METAL SIDE 2 >=3551 ↔ STD 0 0 240 19202-23540 METAL SIDE 2 >=7144 ↔ STD 0.01 0.022 240 15221-23970 METAL SIDE 2 <=3550 +0.2MM 0.009 0.0198 240 19202-23970 METAL SIDE 2 >=3551 ← +0.2MM 0.01 0.022 240 15221-23980 METAL SIDE 2 <=3550 +0.4MM 0.009 0.0198 240 19202-23980 METAL SIDE 2 >=3551 ← +0.4MM 0.01 0.022 250 09550-00001 SEAL OIL 1 0.015 0.033
