Kubota L2900DT-GST Tractor Illustrated Master Parts List Manual

Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

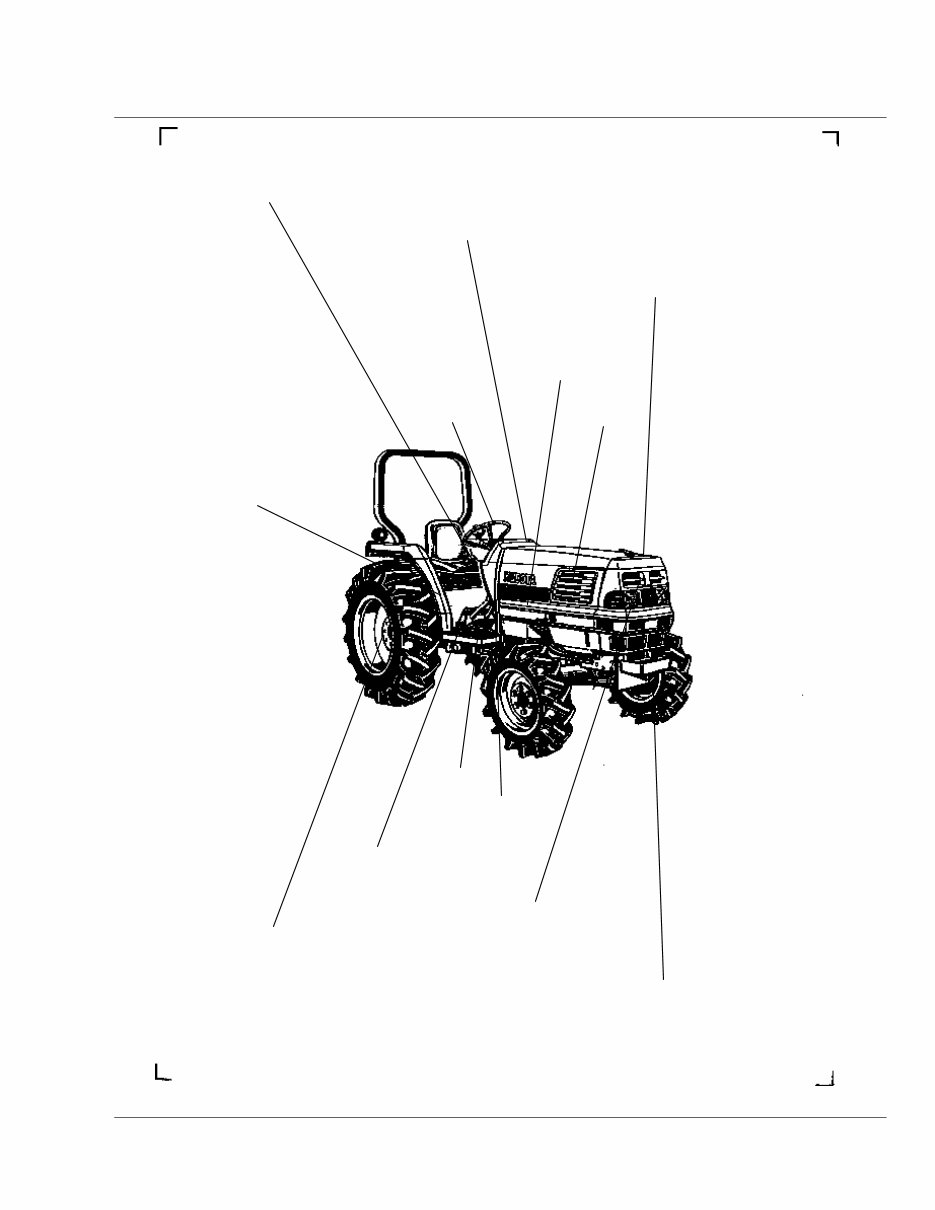

|ALL PRODUCT INDEX L2900DT Ref. L2900DT Page 12037 ENGINE FUEL SYSTEM COOLING WATER SYSTEM ELECTRICAL SYSTEM CLUTCH TRANSMISSION SPEED CHANGE LEVER REAR AXLE AND REAR WHEEL BRAKE FRONT AXLE AND FRONT WHEEL AND CHASSIS STEERING HYDRAULIC SYSTEM HOOD(BONNET) AND ROPS LABELS ACCESSORIES

Ref. L2900DT Page 12037 Item Part No. Description Book ENGINE 01T001 CRANKCASE 100K0369 01T002 OIL PAN 100K0369 01T003 PISTON AND CRANKSHAFT 100K0369 01T004 MAIN BEARING CASE 100K0369 01T00501 FLYWHEEL [W/O IND-PTO] 100K0369 01T00502 FLYWHEEL [WITH IND-PTO] 100K0369 01T006 CYLINDER HEAD 100K0369 01T007 VALVE AND ROCKER ARM 100K0369 01T008 NOZZLE HOLDER/GLOW PLUG 100K0369 01T009 NOZZLE HOLDER [COMPONENT PARTS] 100K0369 01T010 CYLINDER HEAD COVER 100K0369 01T011 INLET MANIFOLD 100K0369 01T014 CAMSHAFT 100K0369 01T015 GEAR CASE 100K0369 01T016 WATER PUMP 100K0369 01T017 WATER FLANGE AND THERMOSTAT 100K0369 01T018 FUEL CAMSHAFT 100K0369 01T019 INJECTION PUMP 100K0369 01T020 INJECTION PUMP [COMPONENT PARTS] 100K0369 01T021 ENGINE STOP LEVER 100K0369 01T022 SPEED CONTROL PLATE 100K0369 01T023 GOVERNOR 100K0369 01T02401 UPPER GASKET KIT 100K0369 01T025 LOWER GASKET KIT 100K0369 02T01201 AIR CLEANER 100K0369 02T01202 DOUBLE AIR CLEANER [OPTION] 100K0369 02T013 EXHAUST MANIFOLD AND MUFFLER 100K0369 02T026 STOP SOLENOID AND ENGINE STOP WIRE 100K0369 02T027 ACCELERATOR LEVER 100K0369 02T028 ACCELERATOR LINKAGE 100K0369 02T029 ACCELERATOR ROD 100K0369 FUEL SYSTEM 02T030 FUEL TANK 100K0369 02T031 FUEL PIPE AND FUEL FILTER 100K0369 02T032 FUEL FILTER [COMPONENT PARTS] 100K0369 COOLING WATER SYSTEM 02T033 FAN 100K0369 02T034 WATER PIPE 100K0369 02T035 RADIATOR 100K0369 02T036 RESERVE TANK 100K0369 ELECTRICAL SYSTEM 02T037 ALTERNATOR 100K0369 02T038 ALTERNATOR [COMPONENT PARTS] 100K0369 02T039 STARTER 100K0369 02T040 STARTER [COMPONENT PARTS] 100K0369 02T041 BATTERY 100K0369 02T042 SWITCH 100K0369 02T043 PANEL BOARD 100K0369

Ref. L2900DT Page 12037 Item Part No. Description Book ELECTRICAL SYSTEM 02T044 PANEL BOARD [COMPONENT PARTS] 100K0369 02T045 LIGHT 100K0369 02T046 ELECTRICAL WIRING 100K0369 CLUTCH 02T047 CLUTCH 100K0369 02T048 CLUTCH LEVER 100K0369 02T049 CLUTCH PEDAL 100K0369 02T05001 CLUTCH HOUSING [MANUAL T/M TYPE] 100K0369 02T05101 MID CASE [MANUAL T/M TYPE] [WITH IND-PTO] 100K0369 TRANSMISSION 02T052 TRANSMISSION CASE 100K0369 02T05302 MAIN SHAFT [WITH IND-PTO] 100K0369 02T054 COUNTERSHAFT 100K0369 02T05601 SHUTTLE SHAFT [MANUAL T/M TYPE] 100K0369 02T05701 RANGE GEAR SHAFT [MANUAL T/M TYPE] 100K0369 02T05801 PTO COUNTERSHAFT [WITH IND-PTO] 100K0369 02T05901 PTO CLUTCH [WITH IND-PTO] 100K0369 02T06001 PTO SHAFT [W/O MID-PTO] 100K0369 02T06002 PTO SHAFT [WITH MID-PTO] 100K0369 02T061 MID PTO [WITH MID-PTO] 100K0369 SPEED CHANGE LEVER 02T06201 MAIN GEAR SHIFT LEVER [MANUAL T/M TYPE] 100K0369 02T06301 MAIN GEAR SHIFT FORK [MANUAL T/M TYPE] 100K0369 02T064 SHUTTLE SHIFT LEVER 100K0369 02T06501 SHUTTLE SHIFT FORK [MANUAL T/M TYPE] 100K0369 02T06601 RANGE GEAR SHIFT LEVER [MANUAL T/M TYPE] [W/O CREEP] 100K0369 02T06602 RANGE GEAR SHIFT LEVER/CREEP GEAR SHIFT LEVER [MANUAL T/M TYPE] [WITH CREEP] 100K0369 02T06701 RANGE GEAR SHIFT FORK AND CREEP GEAR SHIFT FORK [MANUAL T/M TYPE] 100K0369 02T068 MID PTO SHIFT LEVER [WITH MID-PTO] 100K0369 02T06901 PTO CLUTCH CONTROL LEVER [WITH IND-PTO] 100K0369 02T06902 PTO GEAR SHIFT LEVER [W/O IND-PTO] 100K0369 02T07001 SPIRAL BEVEL PINION [W/O CREEP] 100K0369 02T07002 SPIRAL BEVEL PINION AND CREEP [WITH CREEP] 100K0369 02T071 REAR DIFFERENTIAL 100K0369

Ref. L2900DT Page 12037 Item Part No. Description Book SPEED CHANGE LEVER 02T072 DEFFERENTIAL LOCK SHIFT FORK 100K0369 REAR AXLE AND REAR WHEEL 02T073 REAR AXLE 100K0369 02T07401 REAR WHEEL (11.2-24) 100K0369 02T07402 REAR WHEEL (12.4-24) 100K0369 02T07403 REAR WHEEL (420/70-24) 100K0369 02T07404 REAR WHEEL (13.6-16) 100K0369 02T07405 REAR WHEEL (41X14.00-20) 100K0369 02T07406 REAR WHEEL (21.5L-16.1) 100K0369 02T07407 REAR WHEEL (355/80-D20) 100K0369 BRAKE 02T075 BRAKE 100K0369 02T076 BRAKE PEDAL 100K0369 02T077 BRAKE ROD 1 100K0369 02T078 BRAKE ROD 2 100K0369 FRONT AXLE AND FRONT WHEEL AND CHASSIS 02T083 FRONT AXLE 100K0369 02T084 FRONT AXLE CASE 100K0369 02T085 DIFFERENTIAL GEAR SHAFT 100K0369 02T086 FRONT DIFFERENTIAL CASE 100K0369 02T087 FRONT DIFFERENTIAL 100K0369 02T088 PROPELLER SHAFT 100K0369 02T089 FRONT WHEEL DRIVE SHAFT 100K0369 02T090 FRONT WHEEL DRIVE LEVER 100K0369 02T09101 FRONT WHEEL (7.2-16) 100K0369 02T09102 FRONT WHEEL (10-16.5) 100K0369 02T09103 FRONT WHEEL (25*8.50-14) 100K0369 02T09104 FRONT WHEEL (27*8.50-15) 100K0369 02T09105 FRONT WHEEL (27*10.50-15) 100K0369 02T09106 FRONT WHEEL (29*12.50-15) 100K0369 02T092 FRONT AXLE FRAME [4WD] 100K0369 STEERING 02T09302 STEERING LINKAGE [4WD] 100K0369 02T094 STEERING CYLINDER 100K0369 02T095 STEERING CYLINDER [COMPONENT PARTS] 100K0369 02T096 STEERING CONTROLLER 100K0369 02T097 STEERING HANDLE 100K0369 HYDRAULIC SYSTEM 02T098 HYDRAULIC OIL LINE (PS) 100K0369 02T100 REGULATOR VALVE 100K0369 02T10101 PTO HYDRAULIC OIL LINE [WITH IND-PTO] [MANUAL T/M TYPE] 100K0369 02T102 HYDRAULIC PUMP 100K0369 02T103 HYDRAULIC PUMP [COMPONENT PARTS] 100K0369 02T104 HYDRAULIC OIL LINE (INLET) 100K0369 02T105 HYDRAULIC OIL LINE (DELIVERY) 100K0369 02T106 HYDRAULIC OUTLET BLOCK 100K0369 02T107 HYDRAULIC CYLINDER 100K0369 02T108 LIFT ARM 100K0369 02T109 CONTROL VALVE 100K0369 02T110 CONTROL VALVE [COMPONENT PARTS] 100K0369 02T111 FEED BACK LEVER 100K0369 02T112 POSITION CONTROL LEVER 100K0369

Ref. L2900DT Page 12037 Item Part No. Description Book HYDRAULIC SYSTEM 02T113 DRAFT AND POSITION CONTROL LEVER 1 [OPTION] 100K0369 02T114 DRAFT AND POSITION CONTROL LEVER 2 [OPTION] 100K0369 02T115 TOP LINK HOLDER [OPTION] 100K0369 02T11601 DRAWBAR AND PTO PROTECTOR 100K0369 02T11602 SWINGING DRAWBAR AND CLEVIS DRAWBAR [OPTION] 100K0369 02T11701 REMOTE CONTROL VALVE LEVER 1 [OPTION] 100K0369 02T11702 REMOTE CONTROL VALVE LEVER 2 [OPTION] 100K0369 02T11703 REMOTE CONTROL VALVE LEVER 3 [OPTION] 100K0369 02T11801 REMOTE CONTROL VALVE COUPLER 1 [OPTION] 100K0369 02T11802 REMOTE CONTROL VALVE COUPLER 2 [OPTION] 100K0369 02T11803 REMOTE CONTROL VALVE COUPLER 3 [OPTION] 100K0369 02T119 3-POINT LINKAGE 1 (LOWER LINK) 100K0369 02T120 3-POINT LINKAGE 2 (LIFT ROD) 100K0369 HOOD(BONNET) AND ROPS 02T121 FRONT GRILLE 100K0369 02T122 FRONT GRILLE SUPPORT 100K0369 02T123 HOOD (BONNET) 100K0369 02T124 SIDE COVER 100K0369 02T125 SIDE COVER LOWER 100K0369 02T126 SHUTTER PLATE 100K0369 02T127 PANEL FRAME 100K0369 02T128 FENDER 100K0369 02T129 FLOOR SEAT 100K0369 02T130 SEAT 100K0369 02T131 STEP 100K0369 02T132 ROPS 100K0369 LABELS 02T133 LABEL 1 100K0369 02T134 LABEL 2 100K0369 ACCESSORIES 02T135 ACCESSORIES AND SERVICE PARTS 100K0369

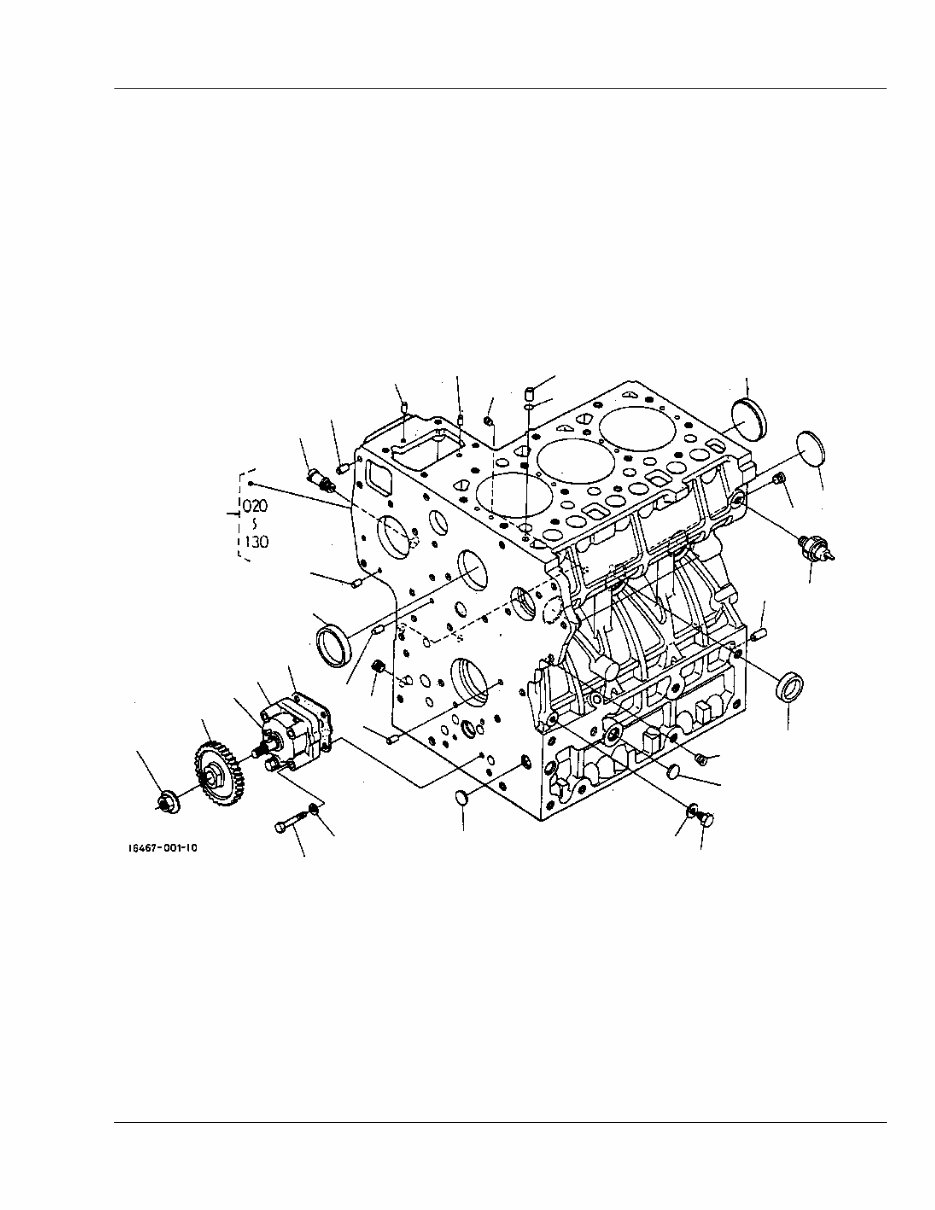

CRANKCASE Reference: 01T001 Page: 1 010 020 020 030 030 040 040 050 060 070 070 080 080 090 090 100 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240

CRANKCASE Reference: 01T001 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 16477-01010 COMP.CRANKCASE 1 48.5 106.7 020 15521-96020 PLUG 5 0.003 0.0066 030 15521-96030 PLUG 2 0.007 0.0154 040 17391-96160 PLUG 3 0.003 0.0066 050 06311-75045 PLUG 1 0.026 0.0572 060 15221-03380 CAP SEALING 5 0.017 0.0374 070 15221-03390 CAP SEALING 2 0.03 0.066 080 05012-00408 PIN STRAIGHT 2 0.001 0.0022 090 05012-00609 PIN STRAIGHT 2 0.003 0.0066 100 05012-00612 PIN STRAIGHT 2 0.003 0.0066 110 05012-01018 PIN STRAIGHT 1 0.012 0.0264 120 15221-33650 PIN PIPE 1 0.004 0.0088 130 15321-73340 PIPE WATER RETURN 1 0.016 0.0352 140 15221-33610 PLUG 1 0.009 0.0198 150 15021-33660 GASKET 1 0.001 0.0022 160 15221-33700 O RING 1 0.001 0.0022 170 15471-35010 ASSY PUMP OIL 1 0 0 180 15296-35150 GASKET OIL PUMP 1 0 0 190 01053-50650 BOLT 4 0.011 0.0242 200 04512-60060 WASHER SPRING 4 0.001 0.0022 210 19202-35660 GEAR OIL PUMP DRIVE 1 0.23 0.506 220 05712-00410 KEY FEATHER 1 0.001 0.0022 230 15221-35682 NUT FLANGE 1 0.014 0.0308 240 15531-39010 SWITCH OIL 1 0.032 0.0704

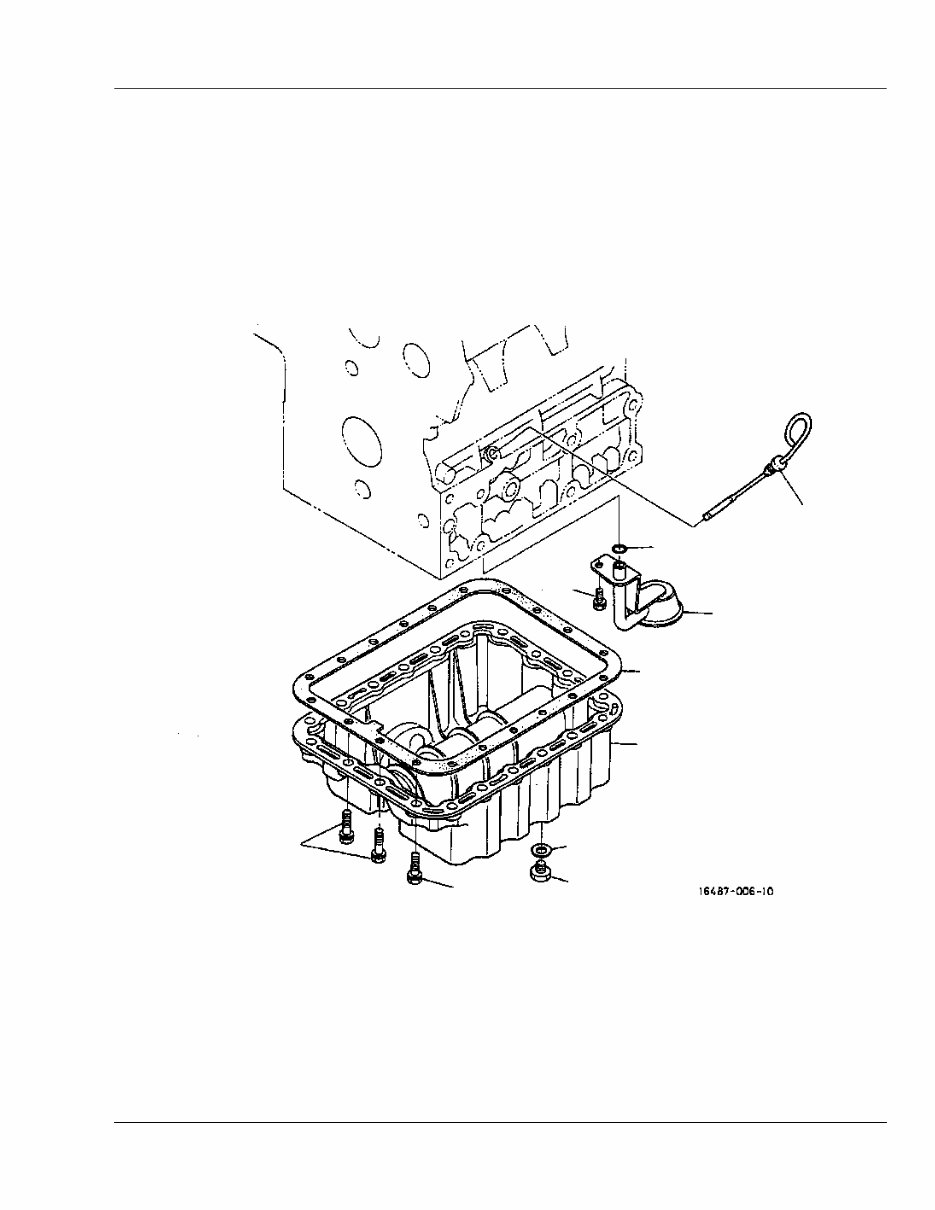

OIL PAN Reference: 01T002 Page: 2 010 020 030 040 050 060 070 080 090 100

OIL PAN Reference: 01T002 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 15521-01610 OIL PAN 1 2.8 6.16 020 17326-01620 GASKET OIL PAN 1 0 0 030 01133-51028 BOLT 18 0.027 0.0594 040 01133-51025 BOLT 2 0.023 0.0506 050 15261-33750 PLUG 2 0.034 0.0748 060 15109-33660 GASKET 2 <=17842 0.001 0.0022 060 6C090-58960 GASKET 2 >=17843 ← 0.002 0.0044 070 16427-32110 FILTER OIL 1 0.2 0.44 080 01123-50814 BOLT 1 0 0 090 04811-00160 O RING 1 0.001 0.0022 100 16457-36410 GAUGE OIL 1 0.035 0.077
