Instructions for Parts Books
The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part
numbers.
Definition of column headings on part number pages:
REF.No The number refering to the part on the picture page of the parts book.
Part No. The number assigned to this part at the time of printing the parts book.
Description Discription of part.
Q'ty Quanity of part used on that page.
S.No. Serial number range of the equipment that this part will fit.
>= Your serial number should be greater than or equal to the number shown.
<= Your serial number should be lesser than or equal to the serial number shown.
I/C Interchangeability of part shown.
The part shown will work for the older and later serial number.
# The part shown is not interchangable with the other serial number.
new for old
old for new
Remarks Notes about this particulart part. Sometimes this may say except [FR] or [CA]
Note about Country Codes:
The parts books we use in the United States of America may also contain information about a part that would be
different in another country. It is important that you are aware of the country codes in some instances.
Symbol Country
A United States of America
CA Canada
FR France
GR Greece
PO Portugal
AU Australia
If the remarks column says for example EXCEPT [FR] this part works in all countries except France.
That means it will work here in the USA.
|ALL PRODUCT INDEX

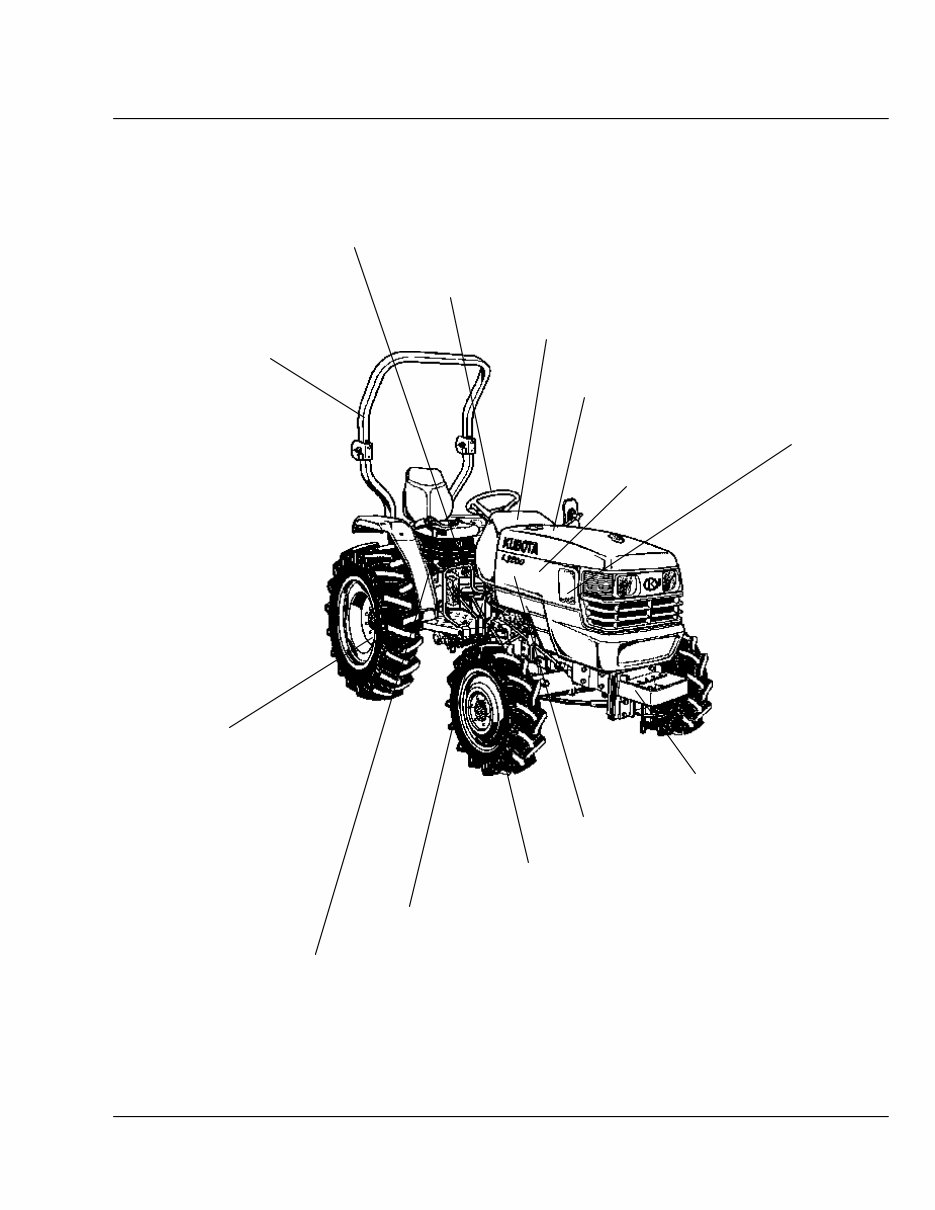

L2800DT/HST
Ref. L2800DT/HST Page 12032
ENGINE
FUEL SYSTEM
COOLING WATER SYSTEM
ELECTRICAL SYSTEM
CLUTCH/TRANSMISSION
SPEED CHANGE SHIFT FORK /SHIFT LEVER
REAR AXLE/BRAKE
FRONT AXLE/CHASSIS
STEERING
HYDRAULIC SYSTEM
3-POINT LINKAGE/DRAWBAR/HITCH
HOOD/BONNET
ROPS
FRONT/REAR TIRE
LABELS
ACCESSORIES AND SERVICE PARTS
OPTION
FREQUENTLY USED ITEMS
Ref. L2800DT/HST Page 12032
Item Part No. Description Book
FREQUENTLY USED ITEMS 000000 FREQUENTLY USED ITEMS 100K0829
ENGINE 01000101 CRANKCASE 100K0829
010002 OIL PAN 100K0829
01000301 CYLINDER HEAD 100K0829
010004 GEAR CASE 100K0829
010005 HEAD COVER 100K0829
010100 MAIN BEARING CASE 100K0829
010101 CAMSHAFT AND IDLE GEAR SHAFT 100K0829
01010201 PISTON AND CRANKSHAFT 100K0829
01010301 FLYWHEEL 100K0829
010105 FUEL CAMSHAFT 100K0829
010200 ENGINE STOP LEVER 100K0829
010202 INJECTION PUMP 100K0829
010204 GOVERNOR 100K0829
010205 SPEED CONTROL PLATE 100K0829
010206 NOZZLE HOLDER AND GLOW PLUG 100K0829
010207 NOZZLE HOLDER [COMPONENT
PARTS]
100K0829
010500 WATER FLANGE AND THERMOSTAT 100K0829
010501 WATER PUMP 100K0829
010600 VALVE AND ROCKER ARM 100K0829
010601 INLET MANIFOLD 100K0829
010603 EXHAUST MANIFOLD/MUFFLER 100K0829
010604 AIR CLEANER 100K0829
01090101 UPPER GASKET KIT 100K0829
010902 LOWER GASKET KIT 100K0829
01A01001 ACCELERATOR LEVER [EXCEPT HST
TYPE]
100K0829
01A01002 ACCELERATOR LEVER [HST TYPE] 100K0829
01A025 ACCELERATOR LINKAGE [EXCEPT
HST TYPE]
100K0829
FUEL SYSTEM 01A101 FUEL TANK 100K0829
01A11001 FUEL PIPE AND FUEL FILTER
[EXCEPT HST TYPE]
100K0829
01A11002 FUEL PIPE AND FUEL FILTER [HST
TYPE]
100K0829
01A130 FUEL FILTER [COMPONENT PARTS] 100K0829
COOLING WATER SYSTEM 01A401 FAN 100K0829
01A410 WATER PIPE 100K0829
01A42001 RADIATOR [EXCEPT HST TYPE] 100K0829
01A42002 RADIATOR [HST TYPE] 100K0829
01A430 RESERVE TANK [HST TYPE] 100K0829
ELECTRICAL SYSTEM 01A515 ALTERNATOR 100K0829
01A520 ALTERNATOR [COMPONENT PARTS] 100K0829
01A525 STARTER 100K0829
01A530 STARTER [COMPONENT PARTS] 100K0829
01A53501 BATTERY [EXCEPT HST TYPE] 100K0829
01A53502 BATTERY [HST TYPE] 100K0829
01B102 SWITCH/RELAY 100K0829
01B10301 SWITCH /SENSOR [EXCEPT HST
TYPE]
100K0829
01B10302 SWITCH/SENSOR [HST TYPE] 100K0829
01B115 PANEL BOARD 100K0829
Ref. L2800DT/HST Page 12032
Item Part No. Description Book
ELECTRICAL SYSTEM 01B120 PANEL BOARD [COMPONENT
PARTS]
100K0829
01B30301 HEAD LIGHT [OLD TYPE] 100K0829
01B30302 HEAD LIGHT [NEW TYPE] 100K0829
01B311 HAZARD LIGHT 100K0829
01B312 REAR LAMP 100K0829
01B50101 ELECTRICAL WIRING [EXCEPT HST
TYPE]
100K0829
01B50102 ELECTRICAL WIRING [HST TYPE] 100K0829
CLUTCH/TRANSMISSION 01C10101 CLUTCH 100K0829
01C20101 CLUTCH LEVER [EXCEPT HST TYPE] 100K0829
01C20103 CLUTCH LEVER [HST TYPE] 100K0829
01C301 CLUTCH PEDAL 100K0829
01C40101 CLUTCH HOUSING [EXCEPT HST
TYPE]
100K0829
01C40103 CLUTCH HOUSING [HST TYPE] 100K0829
01C40301 HST(INPUT SHAFT) [COMPONENT
PARTS] [HST TYPE]
100K0829
01C40302 HST(PUMP SHAFT) [COMPONENT
PARTS] [HST TYPE]
100K0829
01C40303 HST(MOTOR SHAFT) [COMPONENT
PARTS] [HST TYPE]
100K0829
01C40304 HST(VALVE) [COMPONENT PARTS]
[HST TYPE]
100K0829
01C42002 TRANSMISSION CASE [EXCEPT HST
TYPE]
100K0829
01C42003 TRANSMISSION CASE [HST TYPE] 100K0829
01D10101 MAIN SHAFT [EXCEPT HST TYPE] 100K0829
01D105 COUNTERSHAFT [EXCEPT HST TYPE] 100K0829
01D116 REVERSE SHAFT [EXCEPT HST
TYPE]
100K0829
01D11701 RANGE GEAR SHAFT [EXCEPT HST
TYPE]
100K0829
01D11702 RANGE GEAR SHAFT [HST TYPE] 100K0829
01D12502 SPIRAL BEVEL PINION [EXCEPT
HST TYPE]
100K0829
01D12503 SPIRAL BEVEL PINION [HST TYPE] 100K0829
01D12701 REAR DIFFERENTIAL 100K0829
01D13002 PTO COUNTERSHAFT [EXCEPT HST
TYPE]
100K0829
01D13005 PTO COUNTERSHAFT [HST TYPE] 100K0829
01D13007 PTO COUNTERSHAFT [HST TYPE]
[OLD TYPE]
100K0829
01D13008 PTO COUNTERSHAFT [HST TYPE]
[NEW TYPE]
100K0829
01D135 PTO SHAFT 100K0829
SPEED CHANGE SHIFT FORK /SHIFT LEVER 01D201 MAIN GEAR SHIFT FORK [EXCEPT
HST TYPE]
100K0829
01D21701 RANGE GEAR SHIFT FORK [EXCEPT
HST TYPE]
100K0829
01D21702 RANGE GEAR SHIFT FORK [HST
TYPE]
100K0829
Ref. L2800DT/HST Page 12032
Item Part No. Description Book
SPEED CHANGE SHIFT FORK /SHIFT LEVER 01D22001 PTO GEAR SHIFT FORK [EXCEPT
HST TYPE]
100K0829
01D22501 DIFFERENTIAL LOCK SHIFT FORK
[EXCEPT HST TYPE]
100K0829
01D22502 DIFFERENTIAL LOCK SHIFT FORK
[HST TYPE]
100K0829
01E101 MAIN GEAR SHIFT LEVER [EXCEPT
HST TYPE]
100K0829
01E106 CRUISE CONTROL LEVER [HST
TYPE]
100K0829
01E107 CRUISE CONTROL CABLE [HST
TYPE]
100K0829
01E108 NEUTRAL HOLDER ARM [HST TYPE] 100K0829
01E109 SPEED CONTROL PEDAL [HST TYPE] 100K0829
01E11001 RANGE GEAR SHIFT LEVER
[EXCEPT HST TYPE]
100K0829
01E11002 RANGE GEAR SHIFT LEVER [HST
TYPE]
100K0829
01E112 RANGE GEAR SHIFT ROD [EXCEPT
HST TYPE]
100K0829
01E125 PTO GEAR SHIFT LEVER [EXCEPT
HST TYPE]
100K0829
01E126 PTO CLUTCH CONTROL LEVER [HST
TYPE]
100K0829
01E14001 FRONT WHEEL DRIVE LEVER
[EXCEPT HST TYPE]
100K0829
01E14002 FRONT WHEEL DRIVE LEVER [HST
TYPE]
100K0829
REAR AXLE/BRAKE 01E150 REAR AXLE 100K0829
01E16001 BRAKE [EXCEPT HST TYPE] 100K0829
01E16002 BRAKE [HST TYPE] 100K0829
01E20101 BRAKE PEDAL [EXCEPT HST TYPE] 100K0829
01E20102 BRAKE PEDAL [HST TYPE] 100K0829
01E202 PARKING BRAKE LEVER 100K0829
FRONT AXLE/CHASSIS 01F10502 FRONT AXLE FRAME [EXCEPT HST
TYPE]
100K0829
01F10503 FRONT AXLE FRAME [HST TYPE] 100K0829
01F120 PROPELLER SHAFT 100K0829
01F122 FRONT WHEEL DRIVE SHAFT 100K0829
01F125 FRONT DIFFERENTIAL CASE 100K0829
01F135 FRONT DIFFERENTIAL 100K0829
01F141 FRONT AXLE CASE LH 100K0829
01F142 FRONT AXLE CASE RH 100K0829
01F145 DIFFERENTIAL GEAR SHAFT 100K0829
01F150 FRONT AXLE 100K0829
STEERING 01G101 STEERING HANDLE 100K0829
01G105 UNIVERSAL JOINT 100K0829
01G10702 STEERING 100K0829
01G112 STEERING [COMPONENT PARTS] 100K0829
01G12002 STEERING LINKAGE (TIE ROD) 100K0829
HYDRAULIC SYSTEM 01H120 HYDRAULIC PUMP 100K0829
01H125 HYDRAULIC PUMP [COMPONENT
PARTS]
100K0829
Ref. L2800DT/HST Page 12032
Item Part No. Description Book
HYDRAULIC SYSTEM 01H20501 HYDRAULIC OIL LINE(INLET)
[EXCEPT HST TYPE]
100K0829
01H20502 HYDRAULIC OIL LINE(INLET) [HST
TYPE]
100K0829
01H210 HYDRAULIC OIL LINE(DELIVERY) 100K0829
01H22501 HYDRAULIC OIL LINE(POWER
STEERING) [EXCEPT HST TYPE]
100K0829
01H22502 HYDRAULIC OIL LINE(POWER
STEERING) [HST TYPE]
100K0829
01H23501 HYDRAULIC OUTLET BLOCK
[EXCEPT HST TYPE]
100K0829
01H23502 HYDRAULIC OUTLET BLOCK [HST
TYPE]
100K0829
01H240 HYDRAULIC PIPE(HST) [HST TYPE] 100K0829
01H245 OIL COOLER [HST TYPE] 100K0829
01H301 HYDRAULIC CYLINDER 100K0829
01H303 CYLINDER FRONT COVER 100K0829
01H320 LIFT ARM 100K0829
01H330 FEED BACK LEVER 100K0829
01H405 CONTROL VALVE [OLD TYPE] 100K0829
01H40501 CONTROL VALVE [NEW TYPE] 100K0829
01H410 CONTROL VALVE [COMPONENT
PARTS] [OLD TYPE]
100K0829
01H41001 CONTROL VALVE [COMPONENT
PARTS] [NEW TYPE]
100K0829
01H440 POSITION CONTROL LEVER 100K0829
3-POINT LINKAGE/DRAWBAR/HITCH 01J105 TOP LINK 100K0829
01J110 3-POINT LINKAGE 1 (LOWER LINK) 100K0829
01J115 3-POINT LINKAGE 2 (LIFT ROD) 100K0829
01K105 DRAWBAR 100K0829
01K125 PTO PROTECTOR 100K0829
HOOD/BONNET 01L101 FRONT GRILLE 100K0829
01L10201 HOOD(BONNET) FRONT SUPPORT
[EXCEPT HST TYPE]
100K0829
01L10202 HOOD(BONNET) FRONT SUPPORT
[HST TYPE]
100K0829
01L105 HOOD(BONNET) 100K0829
01L110 HOOD(BONNET) SIDE 100K0829
01L120 HOOD(BONNET) SIDE COVER 100K0829
01L13001 SHUTTER PLATE [EXCEPT HST
TYPE]
100K0829
01L13002 SHUTTER PLATE [HST TYPE] 100K0829
01L135 HOOD(BONNET) REAR 100K0829
01L210 FENDER 100K0829
01L21301 FENDER SUPPORT [EXCEPT HST
TYPE]
100K0829
01L21302 FENDER SUPPORT [HST TYPE] 100K0829
01L21701 FLOOR SEAT COVER [EXCEPT HST
TYPE]
100K0829
01L21702 FLOOR SEAT COVER [HST TYPE] 100K0829
01L220 SEAT 100K0829
01L22501 STEP [EXCEPT HST TYPE] 100K0829
01L22502 STEP [HST TYPE] 100K0829
Ref. L2800DT/HST Page 12032
Item Part No. Description Book
ROPS 01L30101 ROPS (RIGID TYPE) 100K0829
01L30102 ROPS (FOLDABLE TYPE) 100K0829
HOOD/BONNET 01L501 SMV EMBLEM 100K0829
FRONT/REAR TIRE 01P10102 FRONT WHEEL (7-16) 100K0829
01P10104 FRONT WHEEL (25*8.50-14) 100K0829
01P10105 FRONT WHEEL (27*8.50-15) 100K0829
01P11001 REAR WHEEL (11.2-24) 100K0829
01P11002 REAR WHEEL (13.6-16) 100K0829
01P11003 REAR WHEEL (15-19.5) 100K0829
LABELS 01R10501 LABEL 1 (FRONT) [EXCEPT HST
TYPE]
100K0829
01R10502 LABEL 1 (FRONT) [HST TYPE] 100K0829
01R11002 LABEL 2 (REAR) [EXCEPT HST TYPE] 100K0829
01R11003 LABEL 2 (REAR) [HST TYPE] 100K0829
ACCESSORIES AND SERVICE PARTS 01S105 ACCESSORIES AND SERVICE PARTS 100K0829
OPTION 01T105 WORKING LIGHT KIT(W/G No.M9551)
[OPTION]
100K0829
01T121 FRONT BUMPER(W/G No.MX8068)
[OPTION]
100K0829
01T122 FRONT WEIGHT [OPTION] 100K0829
01T123 REAR WHEEL WEIGHT [OPTION] 100K0829
01T127 CONTROL VALVE (WITH DRAFT)
[OPTION]
100K0829
01T128 CONTROL VALVE (WITH DRAFT)
[COMPONENT PARTS] [OPTION]
100K0829
01T135 DRAFT CONTROL LEVER (WITH
DRAFT) [OPTION]
100K0829
01T136 DRAFT CONTROL VALVE (WITH
DRAFT) [COMPONENT PARTS]
[OPTION]
100K0829
01T140 TOP LINK HOLDER (WITH DRAFT)
[OPTION]
100K0829
01T143 STABILIZER(W/G No.L8430) [OPTION] 100K0829
01T144 SWINGING DRAWBAR [OPTION] 100K0829
01T148 T/M OIL EXTENSION PORT AND
GAUGE KIT
100K0829

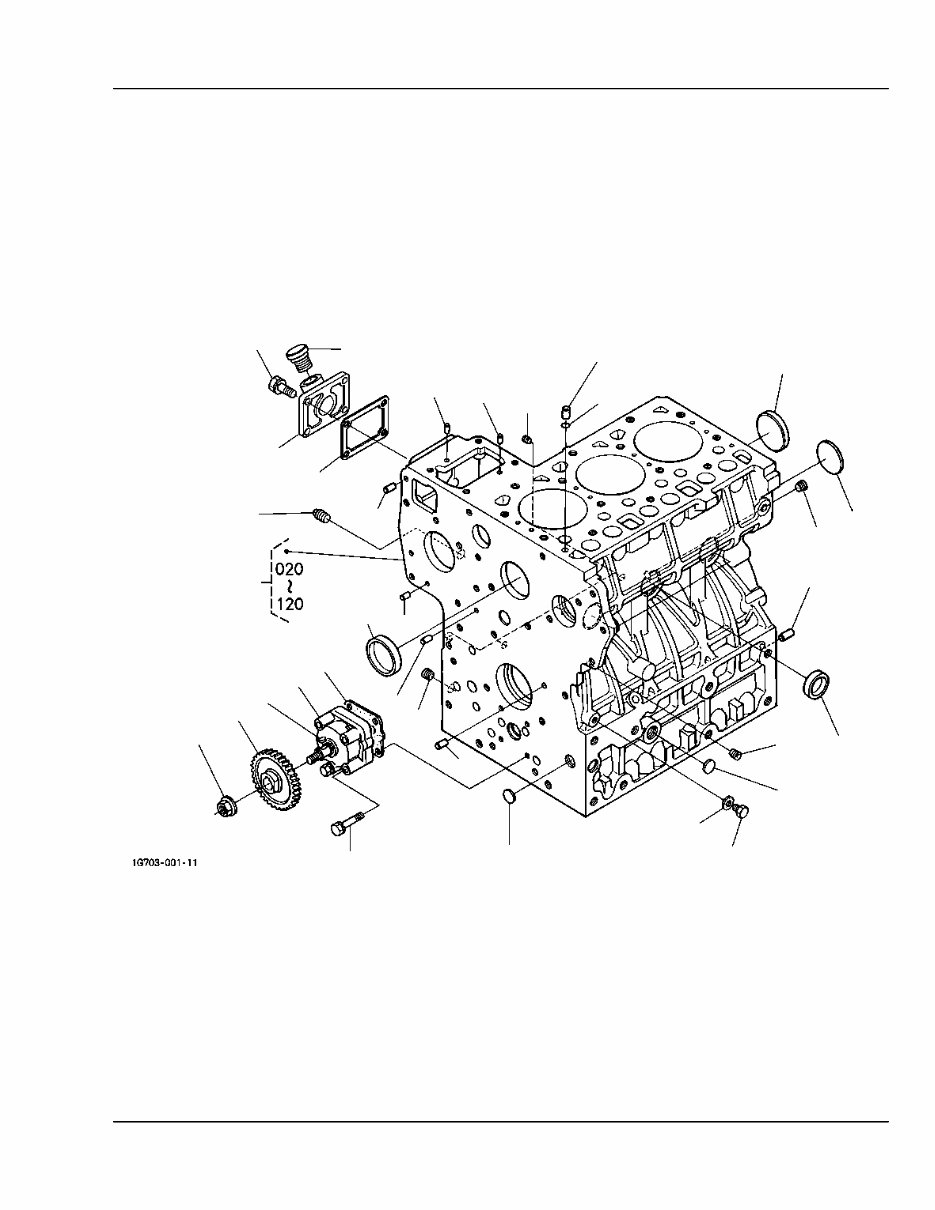

CRANKCASE
Reference: 01000101 Page: 2
010
020
020
030
030
040
040
050
060
070
070
080
080
090
090
100
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
250
260
CRANKCASE
Reference: 01000101 Page: 2
REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight
(kgf)
Weight
(lb)
010 1G703-01010 COMP.CRANKCASE 1 48.5 106.7
020 15521-96020 PLUG 5 0.003 0.0066
030 15521-96030 PLUG 2 0.007 0.0154
040 17391-96160 PLUG EXPANSION 3 0.003 0.0066
050 16271-96160 PLUG EXPANSION 1 0.025 0.055
060 15221-03380 CAP SEALING 5 0.017 0.0374
070 15221-03390 CAP SEALING 2 0.03 0.066
080 05012-00408 PIN STRAIGHT 2 0.001 0.0022
090 05012-00609 PIN STRAIGHT 2 0.003 0.0066
100 05012-00612 PIN STRAIGHT 2 0.003 0.0066
110 05012-01018 PIN STRAIGHT 1 0.012 0.0264
120 15221-33650 PIN PIPE 1 0.004 0.0088
130 15221-33610 PLUG 1 0.009 0.0198
130 15469-33610 PLUG 1 « 0.008 0.0176
140 15021-33660 GASKET 1 0.001 0.0022
150 15221-33700 O RING 1 0.001 0.0022
160 16427-33140 PLUG OIL FILLER 1 <=5C0845 0.025 0.055
160 16427-33142 PLUG OIL FILLER 1 >=5E0001 ‹ 0.025 0.055
170 1A021-33110 FLANGE OIL FILLER 1 0.07 0.154
180 1A021-51660 GASKET PUMP COVER 1 0.003 0.0066
190 01023-50618 BOLT 4 0.006 0.0132
200 15471-35013 ASSY PUMP OIL 1 0.55 1.21
210 1A021-35150 GASKET OIL PUMP 1 0.001 0.0022
220 01023-60650 BOLT 4 0.015 0.033
230 19202-35660 GEAR OIL PUMP DRIVE 1 0.23 0.506
240 05712-00410 KEY FEATHER 1 0.001 0.0022
250 15221-35682 NUT FLANGE 1 0.014 0.0308
260 06312-10020 PLUG 1 0.016 0.0352
OIL PAN
Reference: 010002 Page: 3
010
020
030 040
050
060
070
080
090
100
110
120
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$30.99
Viewed 17 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$30.99
This comprehensive parts manual is for the Kubota L2800 Dt/Hst Tractor. It provides detailed diagrams and step-by-step instructions for repairing and maintaining the tractor. The manual covers a wide range of parts including frequently used items, engine components, electrical wiring, transmission, brakes, steering, hydraulic system, body parts, wheels, labels, and various optional accessories and service parts.
Whether you are a professional mechanic or a DIY enthusiast, this manual is an invaluable resource for ensuring that the required job is completed correctly and efficiently. The manual is available in PDF format, compatible with all versions of Windows and Mac. It can be easily viewed on your PC or laptop, and all pages are printable for convenient reference.
With instant delivery via secure payment processing, there are no shipping costs or waiting for physical delivery. You can access this manual today and use it to effectively maintain and repair your Kubota L2800 Dt/Hst Tractor.
