KUBOTA L2350 DT Tractor Parts Manual ILLUSTRATED LIST IPL

Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

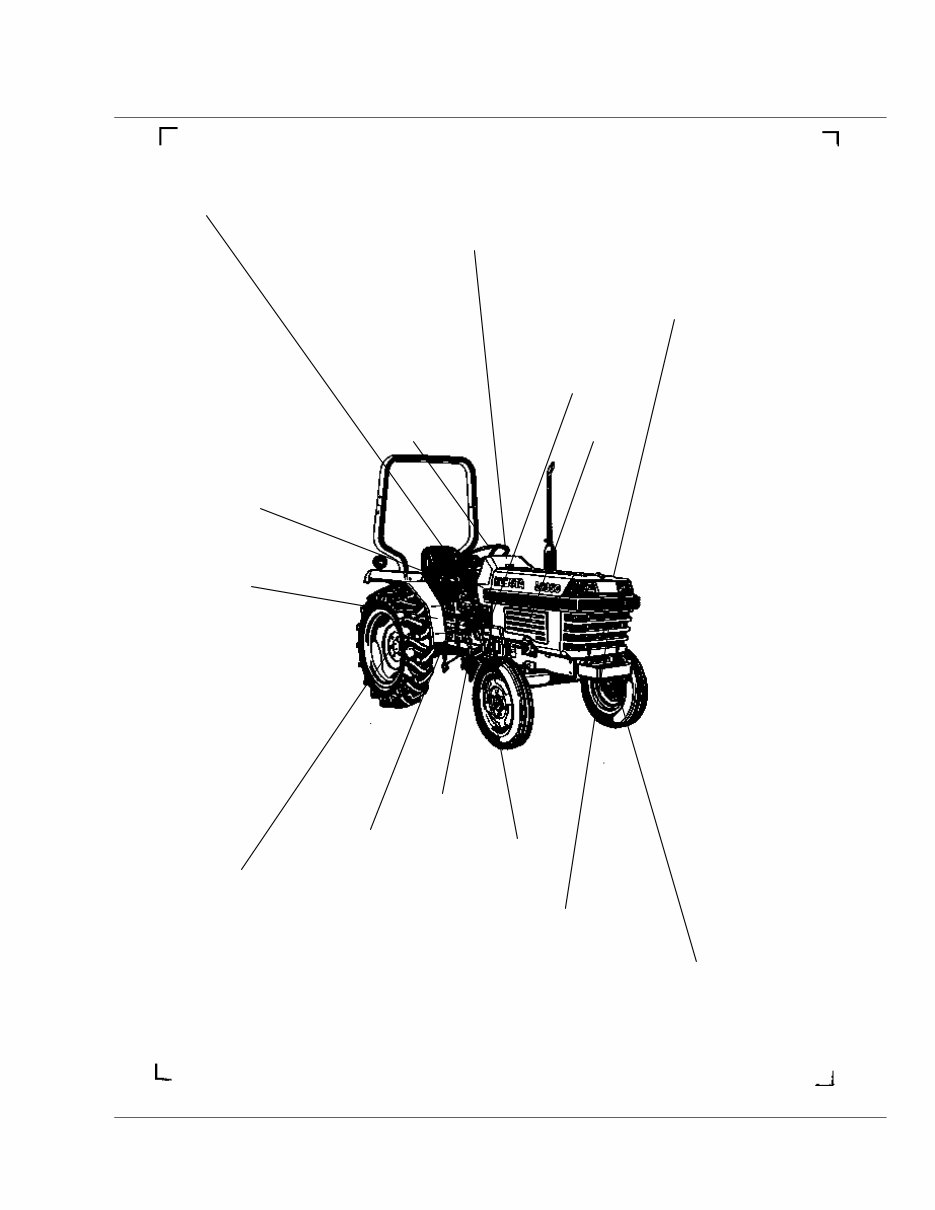

|ALL PRODUCT INDEX L2350DT Ref. L2350DT Page 12010 ENGINE FUEL SYSTEM COOLING WATER SYSTEM ELECTRICAL SYSTEM CLUTCH TRANSMISSION SPEED CHANGE LEVER REAR AXLE AND REAR WHEEL BRAKE FRONT AXLE AND FRONT WHEEL AND CHASSIS STEERING HYDRAULIC SYSTEM HITCH AND DRAWBAR HOOD(BONNET) AND ROPS LABELS ACCESSORIES

Ref. L2350DT Page 12010 Item Part No. Description Book ENGINE 01T001 CRANKCASE 100K0383 01T002 OIL PAN 100K0383 01T003 PISTON AND CRANKSHAFT 100K0383 01T004 MAIN BEARING CASE 100K0383 01T005 FLYWHEEL 100K0383 01T006 CYLINDER HEAD 100K0383 01T007 VALVE AND ROCKER ARM 100K0383 01T008 NOZZLE HOLDER AND GLOW PLUG 100K0383 01T009 NOZZLE HOLDER [COMPONENT PARETS] 100K0383 01T010 CYLINDER HEAD COVER 100K0383 01T011 INLET MANIFOLD 100K0383 01T016 CAMSHAFT 100K0383 01T017 GEAR CASE 100K0383 01T018 WATER PUMP 100K0383 01T019 WATER FLANGE AND THERMOSTAT 100K0383 01T020 INJECTION PUMP AND FUEL CAMSHAFT 100K0383 01T021 INJECTION PUMP [COMPONENT PARTS] 100K0383 01T022 SPEED CONTROL PLATE 100K0383 01T023 GOVERNOR 100K0383 01T024 UPPER GASKET KIT 100K0383 01T025 LOWER GASKET KIT 100K0383 02T012 AIR CLEANER 100K0383 02T013 AIR CLEANER [COMPONENT PARTS] 100K0383 02T014 EXHAUST MANIFOLD 100K0383 02T01501 MUFFLER 100K0383 02T01502 UNDER MUFFLER [OLD TYPE] [OPTION] 100K0383 02T01503 UNDER MUFFLER [NEW TYPE] [OPTION] 100K0383 02T026 HAND ACCELERATOR LEVER 100K0383 FUEL SYSTEM 02T02702 FUEL TANK 100K0383 02T028 FUEL FILTER AND FUEL PIPE 100K0383 COOLING WATER SYSTEM 02T029 WATER PIPE 100K0383 02T030 RADIATOR 100K0383 02T031 SHUTTER 100K0383 ELECTRICAL SYSTEM 02T032 DYNAMO AND FAN 100K0383 02T033 DYNAMO [COMPONENT PARTS] 100K0383 02T034 STARTER 100K0383 02T035 STARTER [COMPONENT PARTS] 100K0383 02T036 BATTERY 100K0383 02T037 SWITCH 100K0383 02T03801 LIGHT [OIL TYPE] 100K0383 02T03802 LIGHT [NEW TYPE] 100K0383 02T03902 REGULATOR AND METER 100K0383 02T04003 ELECTRICAL WIRING [OLD TYPE] 100K0383

Ref. L2350DT Page 12010 Item Part No. Description Book ELECTRICAL SYSTEM 02T04004 ELECTRICAL WIRING [NEW TYPE] 100K0383 CLUTCH 02T041 CLUTCH 100K0383 02T042 CLUTCH LEVER 100K0383 02T043 CLUTCH PEDAL 100K0383 02T044 CLUTCH HOUSING 100K0383 TRANSMISSION 02T045 TRANSMISSION CASE 100K0383 02T046 MAIN SHAFT 100K0383 02T047 COUNTERSHAFT 100K0383 02T04802 PTO COUNTERSHAFT 100K0383 02T049 REVERSE SHAFT 100K0383 SPEED CHANGE LEVER 02T050 MAIN GEAR SHIFT LEVER 100K0383 02T051 PTO GEAR SHIFT LEVER 100K0383 02T052 MAIN GEAR SHIFT FORK 100K0383 02T053 PTO GEAR SHIFT FORK 100K0383 02T054 PTO GEAR SHIFT FORK AND LEVER 100K0383 REAR AXLE AND REAR WHEEL 02T055 SPIRAL BEVEL PINION 100K0383 02T056 REAR DIFFERENTIAL 100K0383 02T057 DIFFERENTIAL LOCK PEDAL 100K0383 02T058 REAR AXLE 100K0383 02T05901 REAR WHEEL (9.5-24) 100K0383 02T05902 REAR WHEEL (11.2-24) 100K0383 02T05903 REAR WHEEL (13.6-16) 100K0383 02T05904 REAR WHEEL (13.6-16) 100K0383 02T05905 REAR WHEEL (355/80-D20) 100K0383 BRAKE 02T06002 BRAKE 100K0383 02T061 BRAKE PEDAL 100K0383 02T062 PARKING BRAKE LEVER 100K0383 FRONT AXLE AND FRONT WHEEL AND CHASSIS 02T067 FRONT AXLE 100K0383 02T068 FRONT AXLE CASE 100K0383 02T069 DIFFERENTIAL GEAR SHAFT 100K0383 02T070 FRONT DIFFERENTIAL CASE 100K0383 02T071 FRONT DIFFERENTIAL 100K0383 02T072 PROPELLER SHAFT 100K0383 02T073 FRONT WHEEL DRIVE CASE 100K0383 02T074 FRONT WHEEL DRIVE LEVER 100K0383 02T07501 FRONT WHEEL (6-14) 100K0383 02T07502 FRONT WHEEL (7-16) 100K0383 02T07503 FRONT WHEEL (24X8.50-14) 100K0383 02T076 FRONT AXLE FRAME 100K0383 STEERING 02T07901 STEERING LINKAGE (DRAG LINK)(MS) 100K0383 02T07902 STEERING LINKAGE (DRAG LINK)(PS) 100K0383 02T080 STEERING LINKAGE (TIE ROD) 100K0383 02T08101 MANUAL STEERING AND HANDLE (MS) 100K0383 02T08102 POWER STEERING AND HANDLE 100K0383 02T08201 MANUAL STEERING [COMPONENT PARTS] 100K0383 02T08202 POWER STEERING [COMPONENT PARTS] 100K0383

Ref. L2350DT Page 12010 Item Part No. Description Book HYDRAULIC SYSTEM 02T08302 HYDRAULIC PUMP 100K0383 02T08402 HYDRAULIC PUMP [COMPONENT PARTS] 100K0383 02T08502 HUDRAULIC OIL LINE 100K0383 02T086 FLOW PRIORITY VALVE (PS) 100K0383 02T087 CONTROL VALVE 100K0383 02T08801 CONTROL VALVE (POSITION) [A] [CA] [COMPONENT PARTS] 100K0383 02T08802 CONTROL VALVE (POSITION) [AU] [COMPONENT PARTS] 100K0383 02T08803 CONTROL VALVE [OPTION] [COMPONENT PARTS] 100K0383 02T089 DRAFT CONTROL VALVE [OPTION] 100K0383 02T090 DRAFT CONTROL VALVE [OPTION] [COMPONENT PARTS] 100K0383 02T091 HYDRAULIC CYLUNDER 100K0383 02T092 CYLIONDER FRONT COVER 100K0383 02T093 LIFT ARM 100K0383 02T094 FEED BACK LAVER 100K0383 02T09501 POSITION CONTROL LEVER [OLD TYPE] 100K0383 02T09502 POSITION CONTROL LEVER [NEW TYPE] 100K0383 02T09601 3-POINT LINKAGE 1 (LOWER LINK AND TOP LINK) [A] [CA] 100K0383 02T09602 3-POINT LINKAGE 1 (LOWER LINK AND TOP LINK) [AU] 100K0383 02T097 3-POINT LINKAGE 2 (LIFT ROD) 100K0383 02T098 TOP LINK BRACKET AND LOWER LINK HOLDER 100K0383 02T099 TOP LINK BRACKET (WITH DRAFT CONTROL) [OPTION] 100K0383 HITCH AND DRAWBAR 02T100 DRAWBAR AND HITCH 100K0383 02T101 PTO SHAFT PROTECTOR 100K0383 HOOD(BONNET) AND ROPS 02T102 FRONT GRILLE 100K0383 02T103 HOOD (BONNET) 100K0383 02T104 HOOD (SIDE COVER) 100K0383 02T10501 FENDER [OLD TYPE] 100K0383 02T10502 FENDER [NEW TYPE] 100K0383 02T106 SEAT 100K0383 02T10701 STEP [OIL TYPE] 100K0383 02T10702 STEP [NEW TYPE] 100K0383 02T108 FENDER SUPPORT [NEW TYPE] 100K0383 02T10901 ROPS [OLD TYPE] 100K0383 02T10902 ROPS [NEW TYPE] 100K0383 LABELS 02T11001 LABEL 1 [OLD TYPE] 100K0383 02T11002 LABEL 1 [NEW TYPE] 100K0383

Ref. L2350DT Page 12010 Item Part No. Description Book LABELS 02T11101 LABEL 2 [OLD TYPE] 100K0383 02T11102 LABEL 2 [NEW TYPE] 100K0383 ACCESSORIES 02T112 ACCESSORIES AND SERVICE PARTS 100K0383

CRANKCASE Reference: 01T001 Page: 1 010 020 020 030 030 040 040 050 060 070 070 080 080 090 090 100 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250

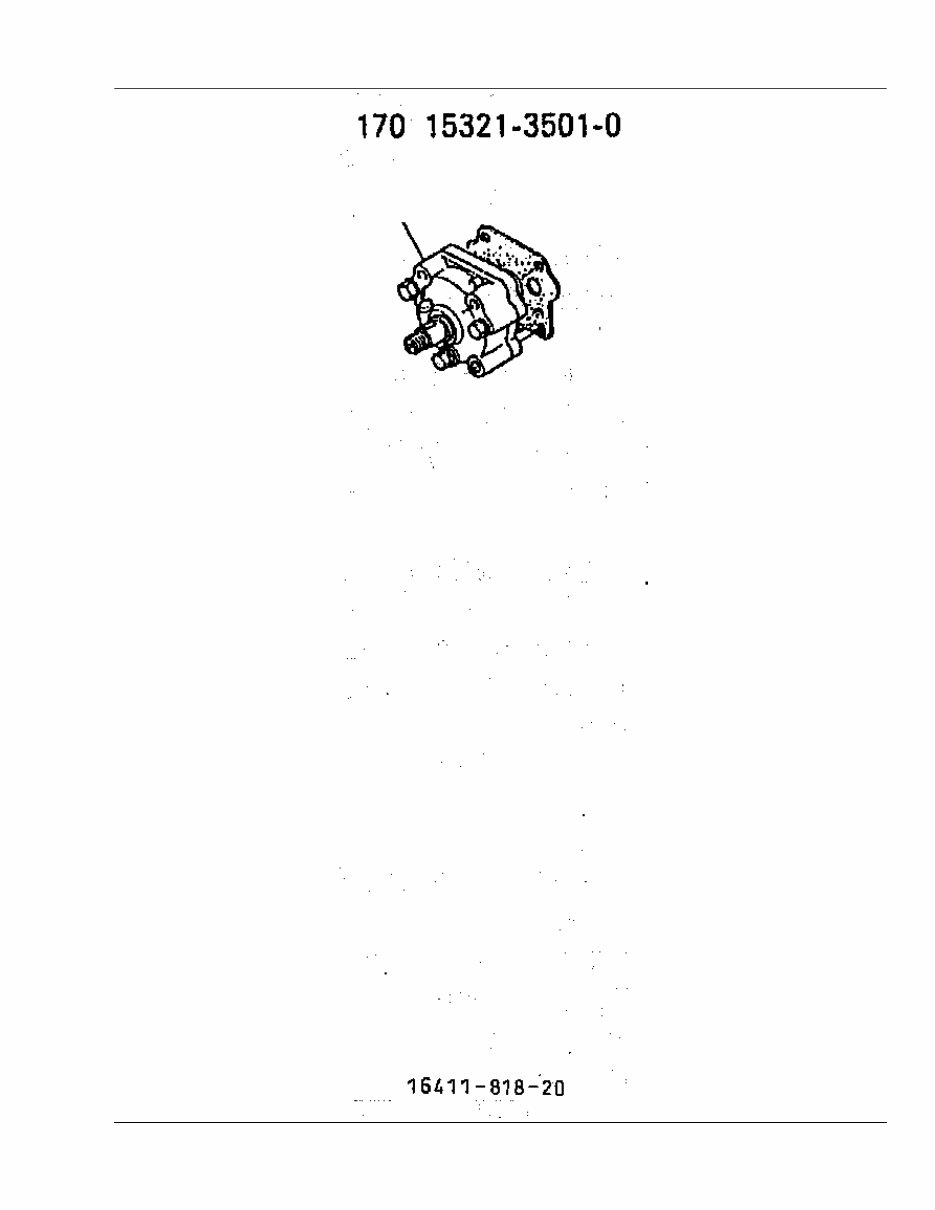

CRANKCASE Reference: 01T001 Page: 1 170

CRANKCASE Reference: 01T001 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 16411-01010 COMP.CRANKCASE 1 48.5 106.7 020 15521-96020 PLUG 5 0.003 0.0066 030 15521-96030 PLUG 2 0.007 0.0154 040 06311-75018 PLUG 3 <=13748 0.004 0.0088 040 17391-96160 PLUG 3 >=13749 ← 0.003 0.0066 050 06311-75045 PLUG 1 0.026 0.0572 060 15221-03380 CAP SEALING 5 0.017 0.0374 070 15221-03390 CAP SEALING 2 0.03 0.066 080 05012-00408 PIN STRAIGHT 2 0.001 0.0022 090 05012-00609 PIN STRAIGHT 2 0.003 0.0066 100 05012-00612 PIN STRAIGHT 2 0.003 0.0066 110 05012-01018 PIN STRAIGHT 1 0.012 0.0264 120 15221-33650 PIN PIPE 1 0.004 0.0088 130 15221-02310 LINER CYLINDER 3 0.58 1.276 140 15221-33610 PLUG 1 0.009 0.0198 150 15021-33660 GASKET 1 0.001 0.0022 160 15221-33700 O RING 1 0.001 0.0022 170 15321-35010 ASSY PUMP OIL 1 <=12063 0.525 1.155 170 17331-35010 ASSY PUMP OIL 1 >=12064 ↔ 0 0 180 15296-35150 GASKET OIL PUMP 1 0.001 0.0022 190 01053-50648 BOLT 4 0.01 0.022 200 04512-60060 WASHER SPRING 4 0.001 0.0022 210 19202-35660 GEAR OIL PUMP DRIVE 1 0.23 0.506 220 05712-00410 KEY FEATHER 1 0.001 0.0022 230 15221-35682 NUT FLANGE 1 0.014 0.0308 240 15531-39010 SWITCH OIL 1 0.032 0.0704 250 06312-10020 PLUG 1 0.015 0.033

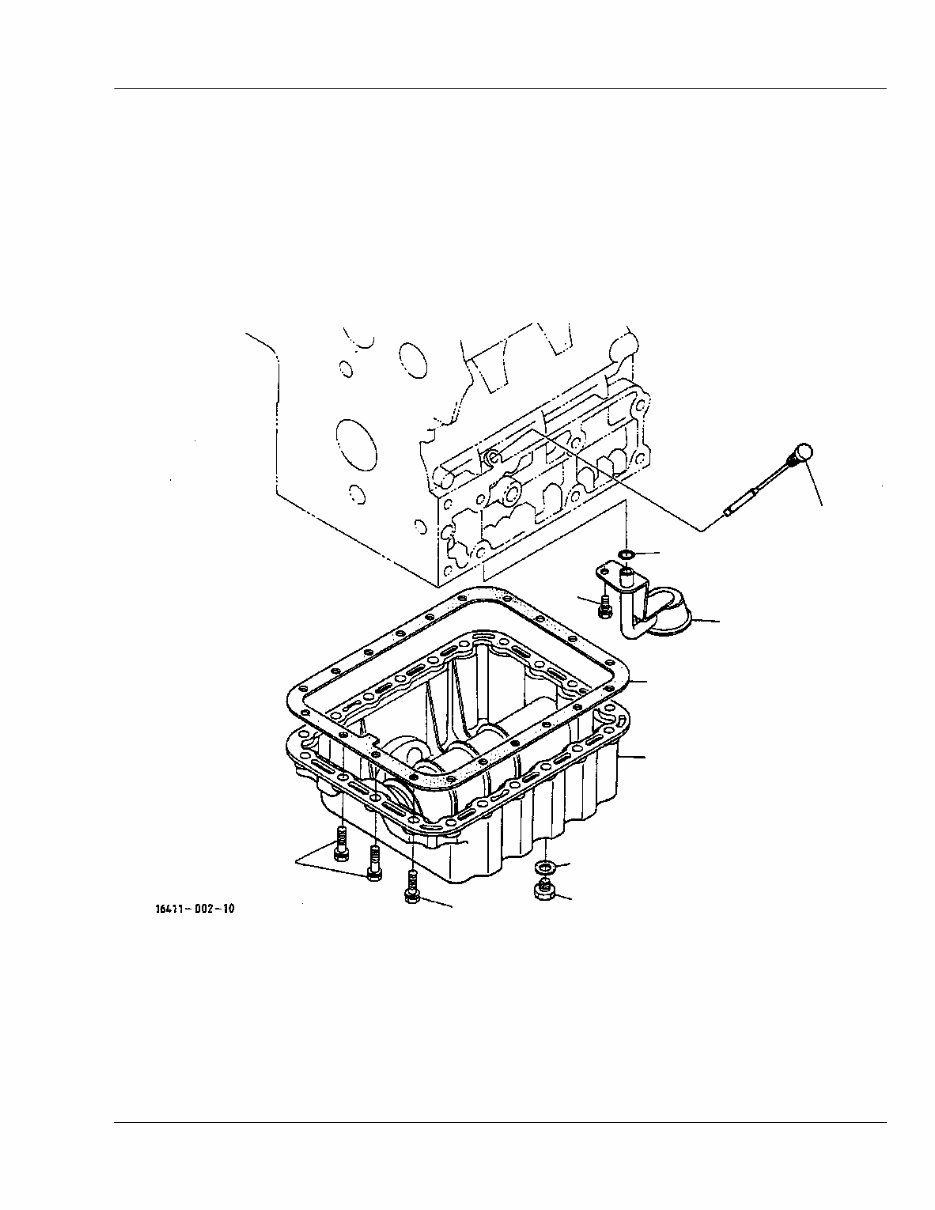

OIL PAN Reference: 01T002 Page: 2 010 020 030 040 050 060 070 080 090 100
