KUBOTA Parts Manual BX Series Tractors and LA Series LOADERS

Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA. tnewcamp manuals

|ALL PRODUCT INDEX RCK48-15BX Ref. RCK48-15BX Page 11075 MOWER

Ref. RCK48-15BX Page 11075 Item Part No. Description Book MOWER 02Y001 UNIVERSAL JOINT 100K0728 02Y00401 BEVEL GEAR CASE 100K0728 02Y00501 INPUT SHAFT/CENTER PULLEY 100K0728 02Y00701 PULLEY HOLDER/BLADE 100K0728 02Y01001 SIDE PULLEY/BLADE 100K0728 02Y01301 TENSION PULLEY 100K0728 02Y10001 MOWER DECK 100K0728 02Y10301 FRONT GAUGE WHEEL 100K0728 02Y10601 REAR WHEEL 100K0728 02Y10901 DISCHARGE COVER 100K0728 02Y200 MOWER LINKAGE 100K0728 02Y25001 MOWER LABEL [ENGLISH] 100K0728 02Y25002 MOWER LABEL [FRENCH] 100K0728 02Y301 ACCESSORIES AND SERVICE PARTS 100K0728 tnewcamp manuals

UNIVERSAL JOINT Reference: 02Y001 Page: 1 010 010 020 030 040 050 060 070 070 080 080 080 080 090 100

UNIVERSAL JOINT Reference: 02Y001 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 K5371-32030 ASSY JOINT UNIVERSAL 1 3.5 7.7 020 76539-31150 YOKE QUICK 1 0.55 1.21 030 K5371-31130 YOKE PTO 1 0.48 1.056 040 76553-31140 SHAFT JOINT 1 1.21 2.662 050 76539-31170 YOKE SLEEVE 1 0.2 0.44 060 76539-31180 ASSY JOINT CROSS 2 0.21 0.462 070 76539-31210 NIPPLE GREASE 2 0.01 0.022 080 76539-32120 RING SNAP 8 0.003 0.0066 090 01053-51035 BOLT 1 0.03 0.066 100 04512-60100 WASHER SPRING 1 0.002 0.0044 tnewcamp manuals

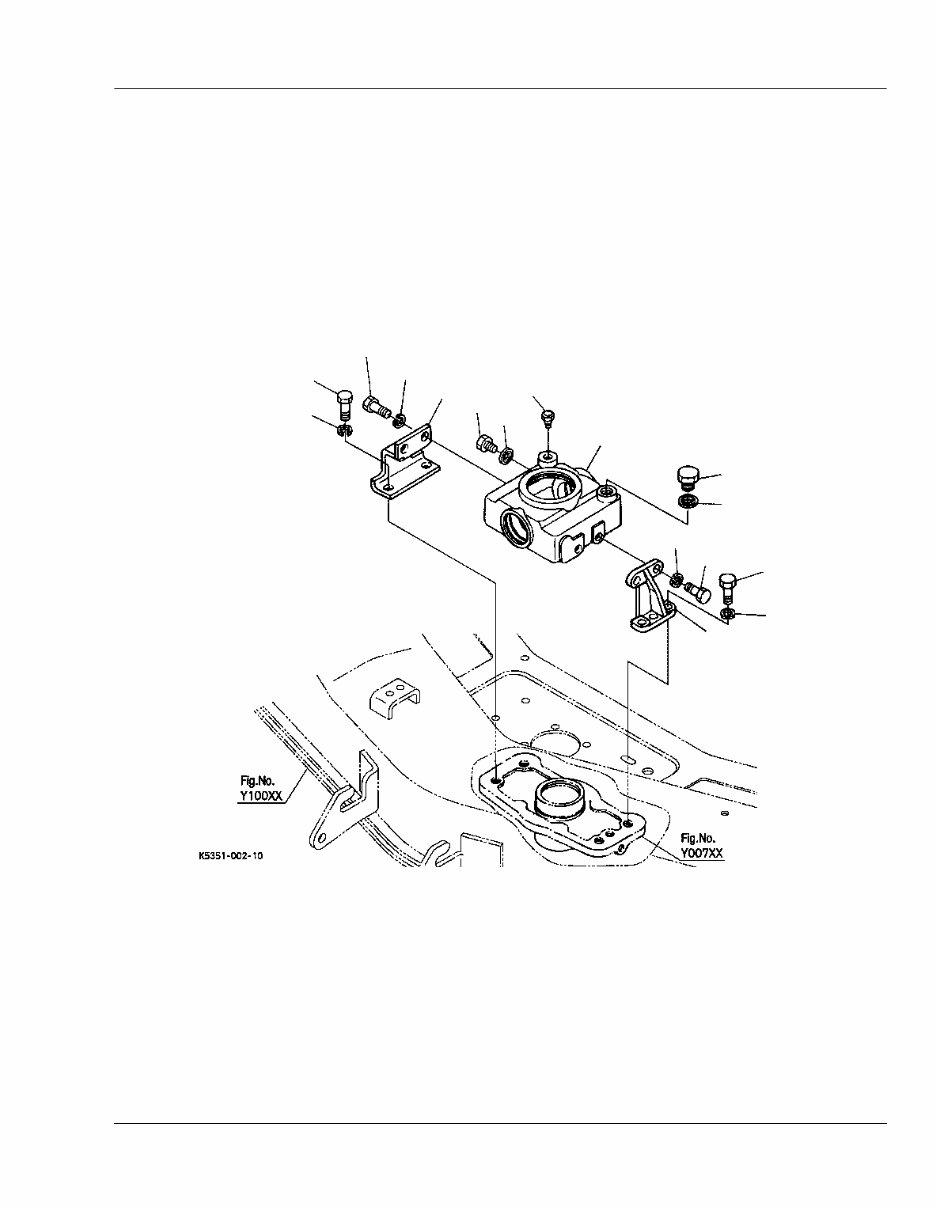

BEVEL GEAR CASE Reference: 02Y00401 Page: 2 010 020 030 040 050 060 070 070 070 070 080 090 100 110 120 130

BEVEL GEAR CASE Reference: 02Y00401 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 K5761-33130 STAY BEVEL CASE LH 1 0.4 0.88 020 K5700-33150 STAY CASE RH 1 0 0 030 K5763-33210 BOLT REAMER 2 0 0 040 01073-51225 BOLT 2 0.035 0.077 050 K5763-33230 BOLT REAMER 2 0 0 060 01073-51235 BOLT 2 0.045 0.099 070 04512-60120 WASHER SPRING 8 0.005 0.011 080 K5761-33115 CASE BEVEL GEAR 1 3.82 8.404 090 01153-50812 BOLT 2 0.008 0.0176 100 04717-00800 WASHER WITH RUBBER 2 0.001 0.0022 110 K5761-33250 PLUG BREATHER 1 0.006 0.0132 120 06331-35016 PLUG 1 0.04 0.088 130 04711-00300 GASKET 1 0.001 0.0022 tnewcamp manuals

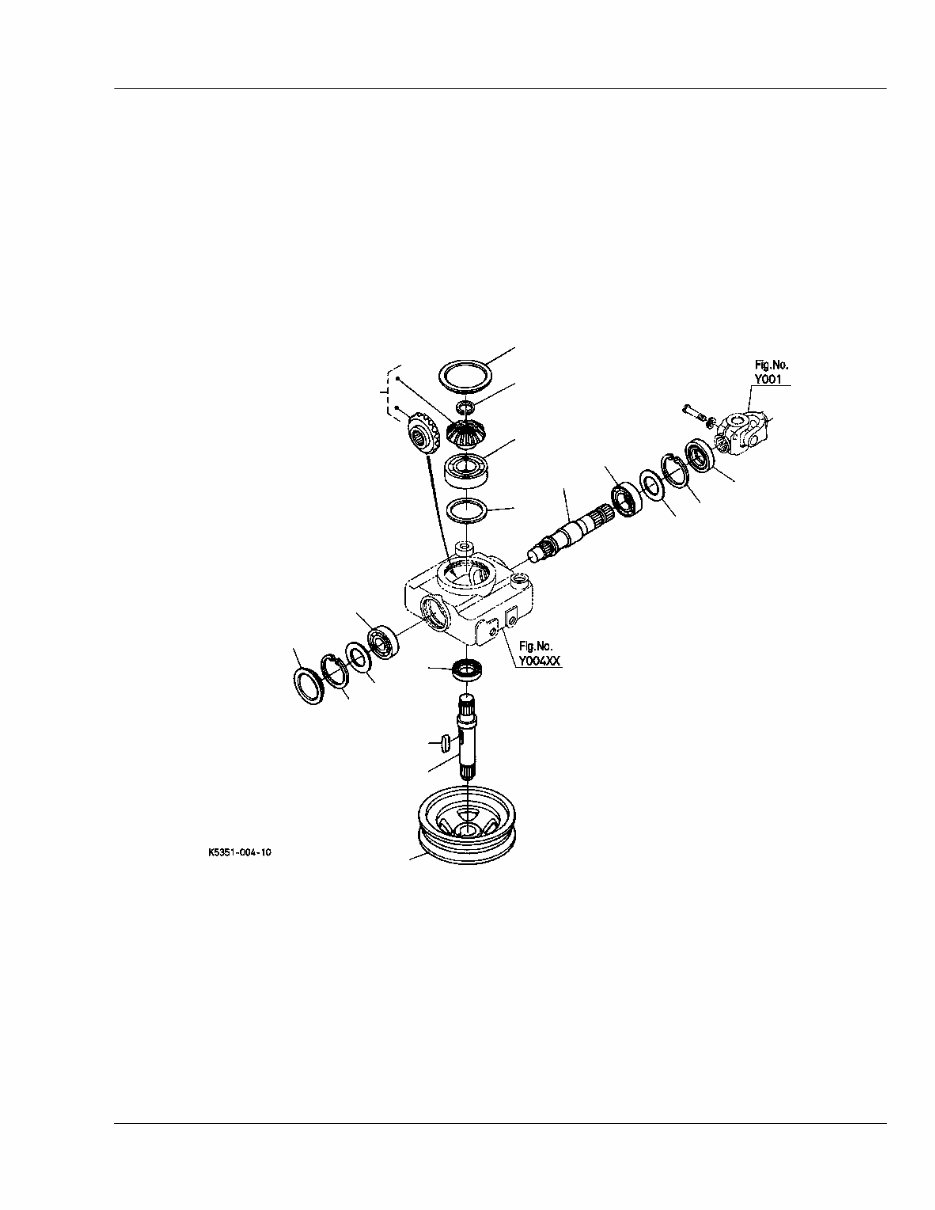

INPUT SHAFT/CENTER PULLEY Reference: 02Y00501 Page: 3 010 020 030 030 040 050 060 060 070 080 090 100 110 120 130 140 150 160

INPUT SHAFT/CENTER PULLEY Reference: 02Y00501 Page: 3 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 K5763-33310 SHAFT PINION 1 0.66 1.452 020 K5762-33320 KIT GEAR BEVEL 1 16-21T 0.46 1.012 030 36330-28420 SHIM 2 0.2mm 0.002 0.0044 030 36330-28410 SHIM 2 0.3mm 0.002 0.0044 040 08101-06205 BEARING BALL 1 0.14 0.308 050 08101-06304 BEARING BALL 1 0.146 0.3212 060 04611-00520 CIR CLIP INTERNAL 2 0.009 0.0198 070 76535-33440 SEAL OIL 1 0.02 0.044 080 63313-32270 CAP 1 0.03 0.066 090 K5700-33500 SHAFT BEVEL GEAR 1 0.5 1.1 100 04612-00220 CIR CLIP EXTERNAL 1 0.001 0.0022 110 70712-33550 BEARING BALL 1 0.22 0.484 120 70712-33570 SHIM 1 0.1mm 0.001 0.0022 120 76539-33410 SHIM 1 0.2mm 0.001 0.0022 130 K5761-33540 SEAL OIL 1 0.012 0.0264 140 7C765-51260 CAP 1 0.07 0.154 150 K5371-33520 PULLEY CENTER 1 1.78 3.916 160 05712-00728 KEY FEATHER 1 0.01 0.022 tnewcamp manuals
