Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

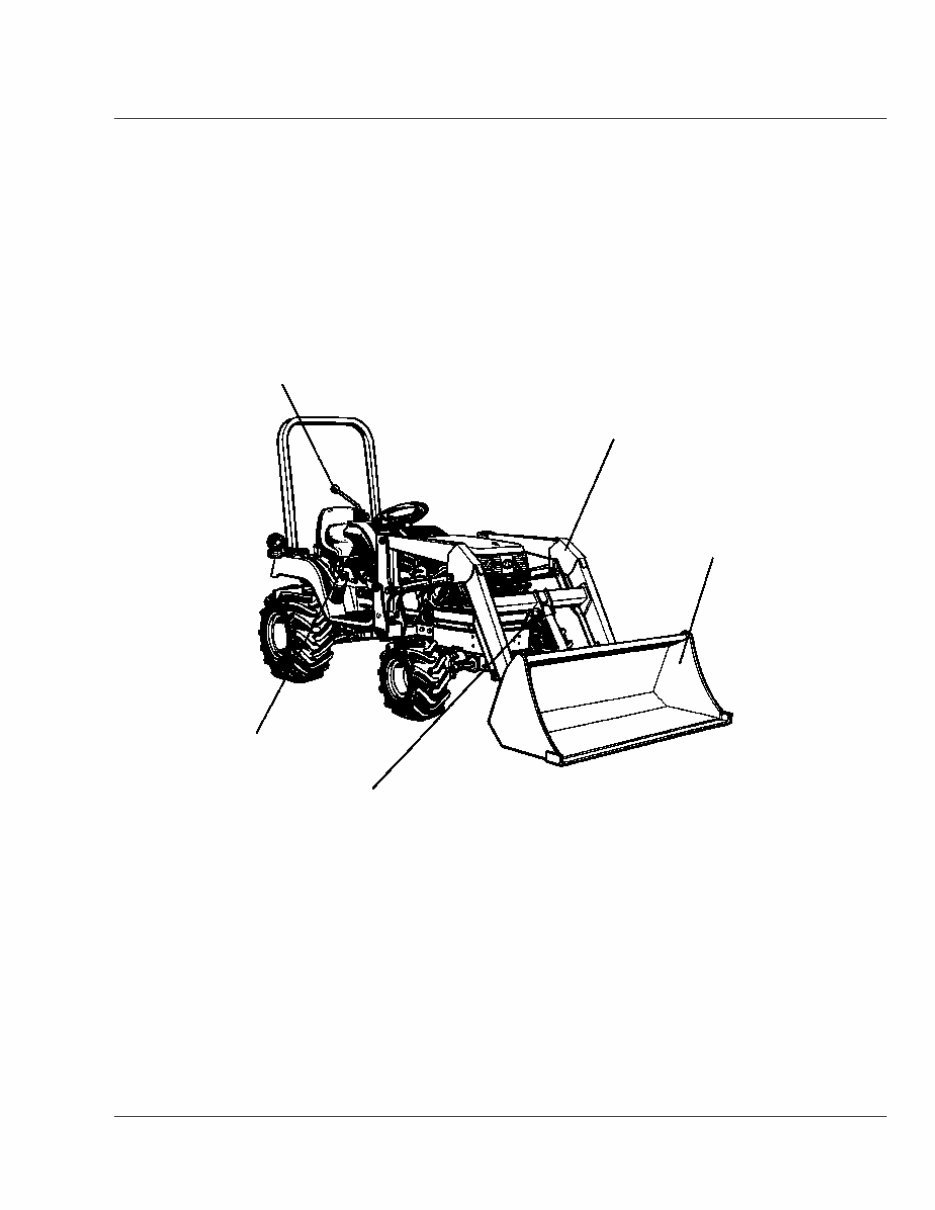

|ALL PRODUCT INDEX 89831046 Ref. LA211 Page 65116 CHASSIS FRONT ATTACHMENTS CONTROL LEVER CONTROL VALVE HYDRAULIC SYSTEM ACCESSORIES AND SERVICE PARTS OPTION

Ref. LA211 Page 65116 Item Part No. Description Book CHASSIS 01A00101 MAIN FRAME [S.No.;A:<=29999] 100A0235 01A00102 MAIN FRAME [S.No.;4-POSITION C/V:>=30001 to 59999] 100A0235 01A00103 MAIN FRAME [3-POSITION C/V:S.No.; A:>=60001] 100A0235 FRONT ATTACHMENTS 01A010 BOOM 100A0235 CONTROL VALVE 01B00101 CONTROL VALVE [BX2013 3-POSITION C/V] 100A0235 01B00102 CONTROL VALVE [3-POSITION C/V] 100A0235 01B00103 CONTROL VALVE [BX2014 4-POSITION C/V] 100A0235 01B00104 CONTROL VALVE 100A0235 01B00501 CONTROL VALVE [COMPONENT PARTS][3-POSITION C/V] 100A0235 01B00502 CONTROL VALVE [COMPONENT PARTS] [4-POSITION C/V] 100A0235 01B00503 CONTROL VALVE [COMPONENT PARTS] [4-POSITION C/V] 100A0235 CONTROL LEVER 01B01301 CONTROL LEVER 100A0235 01B01302 CONTROL LEVER 100A0235 01B01303 CONTROL LEVER 100A0235 HYDRAULIC SYSTEM 01B015 CYLINDER/HYDRAULIC HOSE 100A0235 01B01601 HYDRAULIC HOSE 1 [3-POSITION C/V] 100A0235 01B01602 HYDRAULIC HOSE 1 [BX2014 4-POSITION C/V] 100A0235 01B01603 HYDRAULIC HOSE 2 100A0235 01B01604 HYDRAULIC HOSE [4-POSITION C/V] 100A0235 01B020 HYDRAULIC TUBE 100A0235 01B025 CYLINDER (BOOM)[COMPONENT PARTS] 100A0235 01B030 CYLINDER (BUCKET)[COMPONENT PARTS] 100A0235 01B03501 HYDRAULIC BLOCK 100A0235 01B03502 HYDRAULIC BLOCK 100A0235 OPTION 01C001 FRONT GUARD [OPTION] 100A0235 ACCESSORIES AND SERVICE PARTS 01D001 ACCESSORIES AND SERVICE PARTS 100A0235

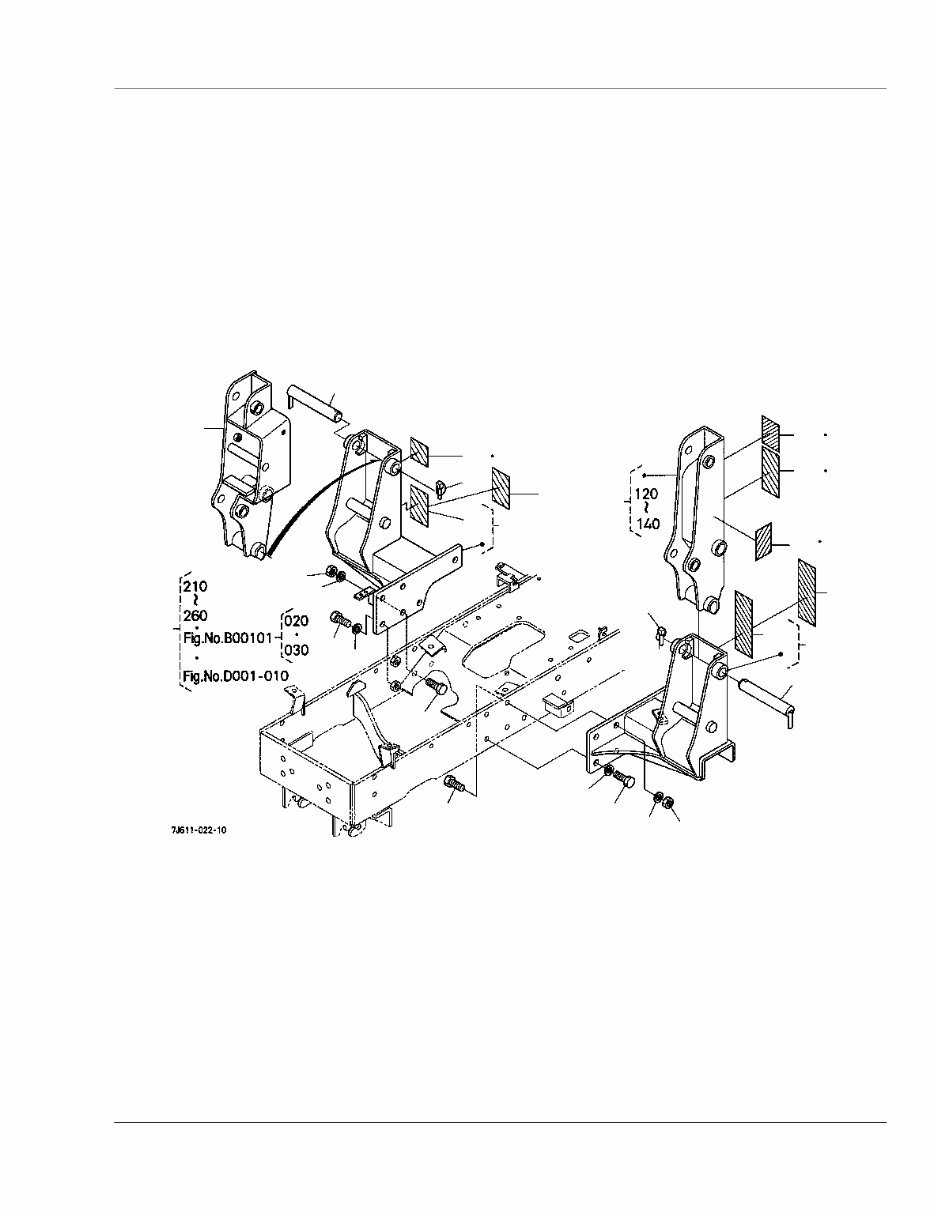

MAIN FRAME [S.No.;A:<=29999] Reference: 01A00101 Page: 1 010 020 030 030 040 040 050 060 070 080 080 090 090 100 110 120 130 140 160 170 170 180 180 190 200 210 220 230 240 250 260

MAIN FRAME [S.No.;A:<=29999] Reference: 01A00101 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 75538-90190 FRAME MAIN LH(LABEL) 1 ENGLISH 0 0 020 75546-56410 LABEL DANGER 1 1 <=23755 ENGLISH 0 0 020 7J246-56410 LABEL DANGER 1 1 >=23756 ← ENGLISH 0.002 0.0044 030 75599-04630 HEX.BOLT 6 9/16-18UNF*1-1/2 0.067 0.1474 040 75599-33016 WASHER SPRING 6 9/16 0.08 0.176 050 75599-31066 HEX.NUT 3 9/16-18UNF 0.03 0.066 060 75538-90180 FRAME MAIN RH(LABEL) 1 ENGLISH 0 0 070 75546-56450 LABEL CAUTION 1 1 <=23755 ENGLISH 0.001 0.0022 070 7J246-56450 LABEL CAUTION 1 1 >=23756 ← ENGLISH 0.002 0.0044 080 75599-04630 HEX.BOLT 6 9/16-18UNF*1-1/2 0.067 0.1474 090 75599-33016 WASHER SPRING 6 9/16 0.08 0.176 100 75599-31066 HEX.NUT 3 9/16-18UNF 0.03 0.066 110 75538-90130 FRAME SIDE LH(LABEL) 1 ENGLISH 6.7 14.74 120 75567-56420 LABEL DANGER 2 1 <=23755 ENGLISH 0 0 120 7J246-56420 LABEL DANGER 2 1 >=23756 ← ENGLISH 0.001 0.0022 130 75546-56430 LABEL DANGER 3 1 <=23755 ENGLISH NOT SALE 0 0 130 7J246-56430 LABEL DANGER 3 1 >=23756 ← ENGLISH 0.002 0.0044 140 75546-56440 LABEL WARNING 1 1 <=23755 ENGLISH 0.002 0.0044 140 7J246-56442 LABEL WARNING 1 1 >=23756 ← ENGLISH 0.01 0.022 150 99999-99999 BLANK 0 0 0 160 75538-56030 FRAME SIDE RH 1 10.85 23.87 170 75548-56810 PIN 2 0.8 1.76 180 75548-56820 PIN LYNCH 2 0.045 0.099 190 75540-62360 LABEL CONTROL 1 0.001 0.0022 200 75538-95505 KIT FRENCH LA211 1 FRENCH 0.12 0.264 210 75546-99613 LABEL DANGER 1(F) 1 FRENCH 0.001 0.0022 220 75546-99654 LABEL CAUTION(F) 1 FRENCH 0.003 0.0066 230 75567-99622 LABEL DANGER 2(F) 1 FRENCH 0.003 0.0066 240 75546-99632 LABEL DANGER 3(F) 1 FRENCH 0.01 0.022 250 75546-99642 LABEL WARNING 1(F) 2 FRENCH 0.001 0.0022 260 75553-99640 LABEL CONTROL(F) 1 FRENCH 0.001 0.0022
