BX2350D,RCK48-23BX-EU, RCK54-23BX-EU,RCK60B-23BX-EU, LA243 WORKSHOP MANUAL TRACTOR,ROTARY MOWER, FRONT LOADER KiSC issued 09, 2006 A

TO THE READER This Workshop Manual has been prepared to provide servicing personnel with information on the mechanism, service and maintenance of KUBOTA Tractor BX2350D, KUBOTA Rotary Mower RCK48-23BX-EU, RCK54-23BX-EU, RCK60B-23BX-EU and KUBOTA Front Loader LA243. It is divided into three parts, “General”, “Mechanism” and “Servicing” for each section. ■ General Information on the tractor identification, the general precautions, maintenance check list, check and maintenance and special tools are described. ■ Mechanism Mechanism Information on the construction and function are included. This part should be understood before proceeding with troubleshooting, disassembling and servicing. Refer to Diesel Engine / Tractor Mechanism Workshop Manual (Code No. 9Y021- 01874 / 9Y021-18200) for the one which has not been described to this workshop manual. ■ Servicing Information on the troubleshooting, servicing specification lists, tightening torque, checking and adjusting, disassembling and assembling and servicing which cover procedures, precautions, factory specifications and allowable limits. All information illustrations and specifications contained in this manual are based on the latest product information available at the time of publication. The right is reserved to make changes in all information at any time without notice. August 2006 © KUBOTA Corporation 2006 KiSC issued 09, 2006 A

1 BX2350D, RCK48-23BX-EU, RCK54-23BX-EU, RCK60B-23BX-EU, LA243, WSM SAFETY INSTRUCTIONS BEFORE SERVICING AND REPAIRING • Read all instructions and safety instructions in this manual and on your machine safety decals. • Clean the work area and machine. • Park the machine on a firm and level ground, and set the parking brake. • Lower the implement to the ground. • Stop the engine, and remove the key. • Disconnect the battery negative cable. • Hang a “DO NOT OPERATE” tag in operator station. SAFETY FIRST This symbol, the industry’s “Safety Alert Symbol”, is used throughout this manual and on labels on the machine itself to warn of the possibility of personal injury. Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to repair or use this unit. DANGER : Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING : Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. ■ IMPORTANT : Indicates that equipment or property damage could result if instructions are not followed. ■ NOTE : Gives helpful information. KiSC issued 09, 2006 A

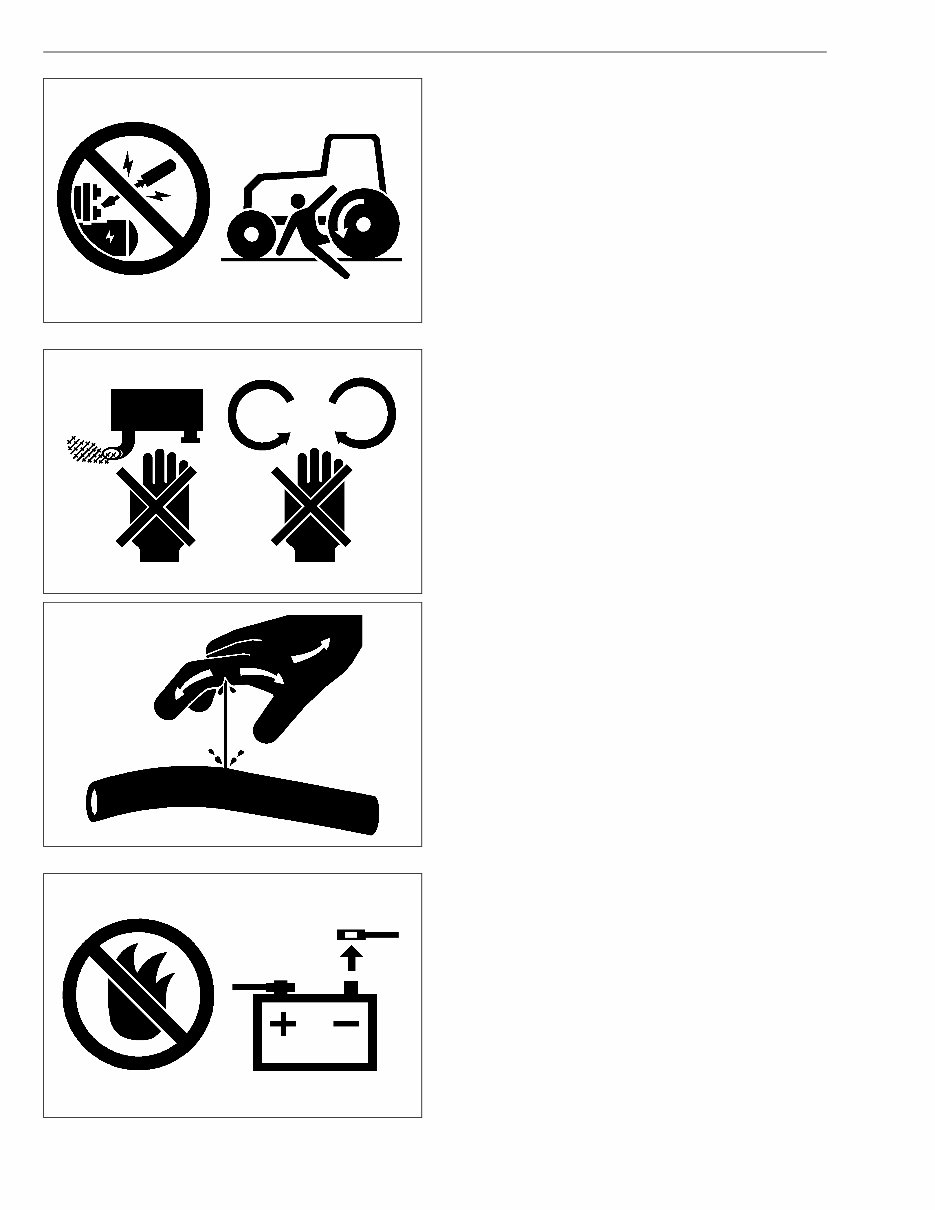

2 BX2350D, RCK48-23BX-EU, RCK54-23BX-EU, RCK60B-23BX-EU, SAFETY INSTRUCTIONS SAFETY STARTING • Do not start the engine by shorting across starter terminals or bypassing the safety start switch. • Do not alter or remove any part of machine safety system. • Before starting the engine, make sure that all shift levers are in neutral positions or in disengaged positions. • Never start the engine while standing on ground. Start the engine only from operator’s seat. SAFETY WORKING • Do not work on the machine while under the influence of alcohol, medication, or other substances or while fatigued. • Wear close fitting clothing and safety equipment appropriate to the job. • Use tools appropriate to the work. Makeshift tools, parts, and procedures are not recommended. • When servicing is performed together by two or more persons, take care to perform all work safely. • Do not work under the machine that is supported solely by a jack. Always support the machine by safety stands. • Do not touch the rotating or hot parts while the engine is running. • Never remove the radiator cap while the engine is running, or immediately after stopping. Otherwise, hot water will spout out from radiator. Only remove radiator cap when cool enough to touch with bare hands. Slowly loosen the cap to first stop to relieve pressure before removing completely. • Escaping fluid (fuel or hydraulic oil) under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting hydraulic or fuel lines. Tighten all connections before applying pressure. AVOID FIRES • Fuel is extremely flammable and explosive under certain conditions. Do not smoke or allow flames or sparks in your working area. • To avoid sparks from an accidental short circuit, always disconnect the battery negative cable first and connect it last. • Battery gas can explode. Keep sparks and open flame away from the top of battery, especially when charging the battery. • Make sure that no fuel has been spilled on the engine. KiSC issued 09, 2006 A

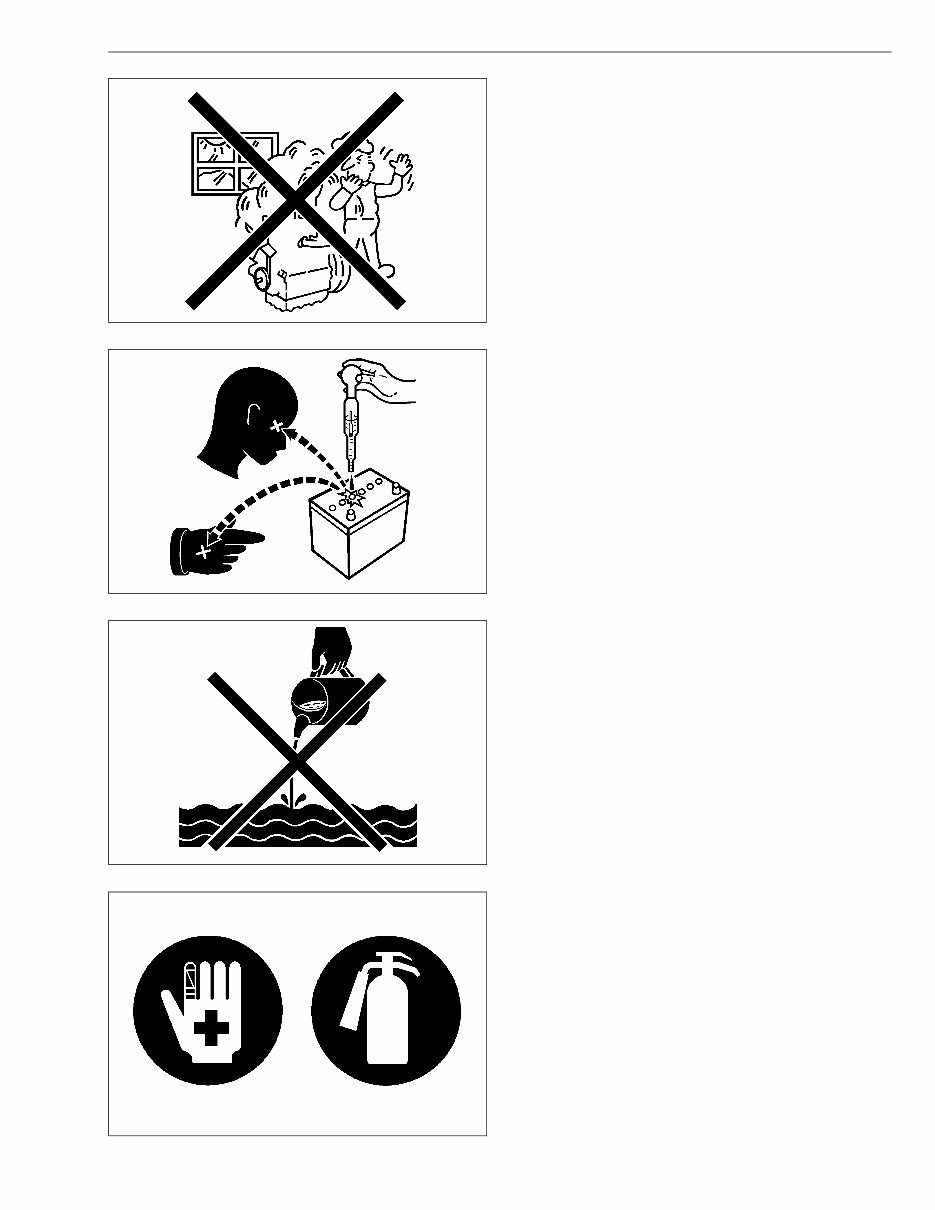

3 BX2350D, RCK48-23BX-EU, RCK54-23BX-EU, RCK60B-23BX-EU, LA243, WSM SAFETY INSTRUCTIONS VENTILATE WORK AREA • If the engine must be running to do some work, make sure the area is well ventilated. Never run the engine in a closed area. The exhaust gas contains poisonous carbon monoxide. PREVENT ACID BURNS • Sulfuric acid in battery electrolyte is poisonous. It is strong enough to burn skin, clothing and cause blindness if splashed into eyes. Keep electrolyte away from eyes, hands and clothing. If you spill electrolyte on yourself, flush with water, and get medical attention immediately. DISPOSE OF FLUIDS PROPERLY • Do not pour fluids into the ground, down a drain, or into a stream, pond, or lake. Observe relevant environmental protection regulations when disposing of oil, fuel, coolant, electrolyte and other harmful waste. PREPARE FOR EMERGENCIES • Keep a first aid kit and fire extinguisher handy at all times. • Keep emergency numbers for doctors, ambulance service, hospital and fire department near your telephone. KiSC issued 09, 2006 A

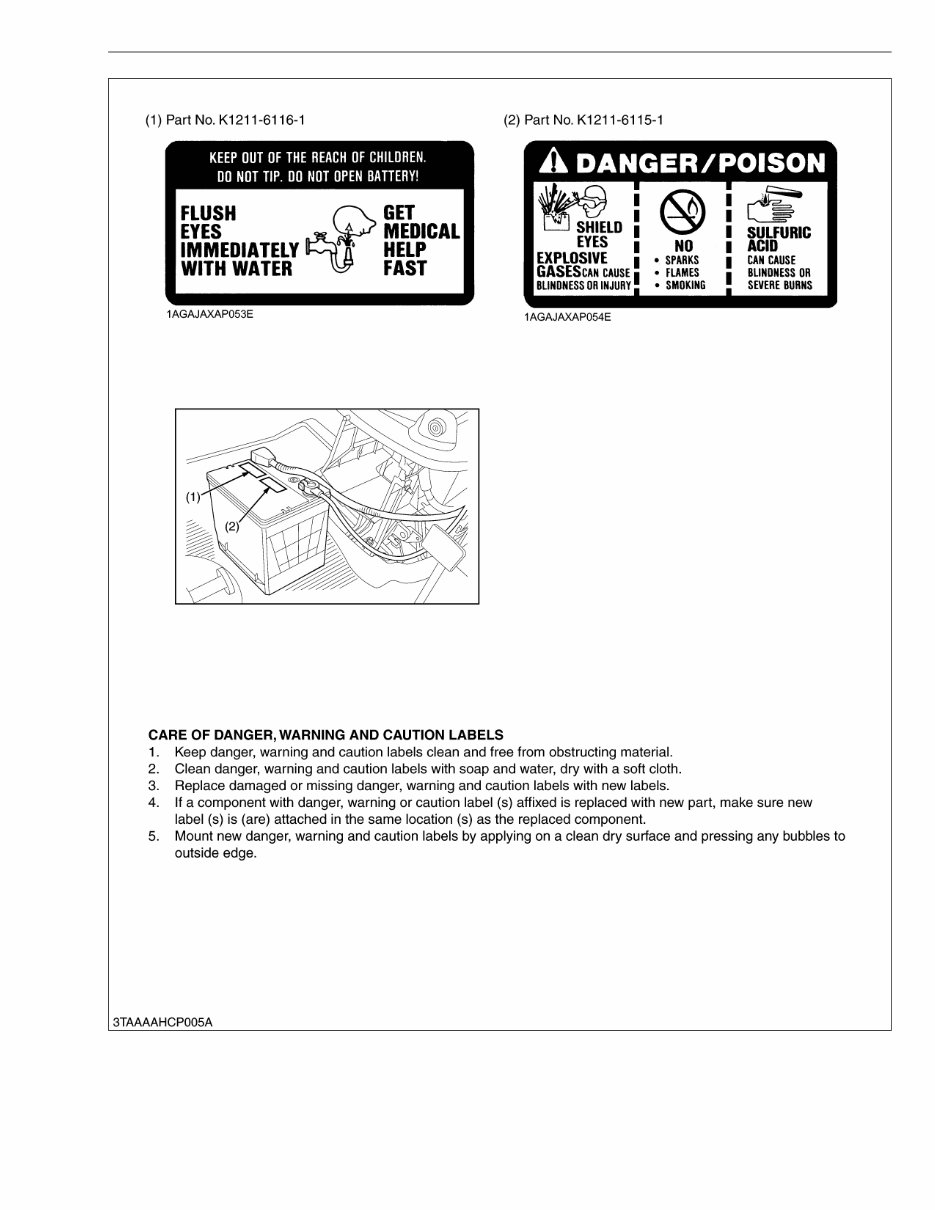

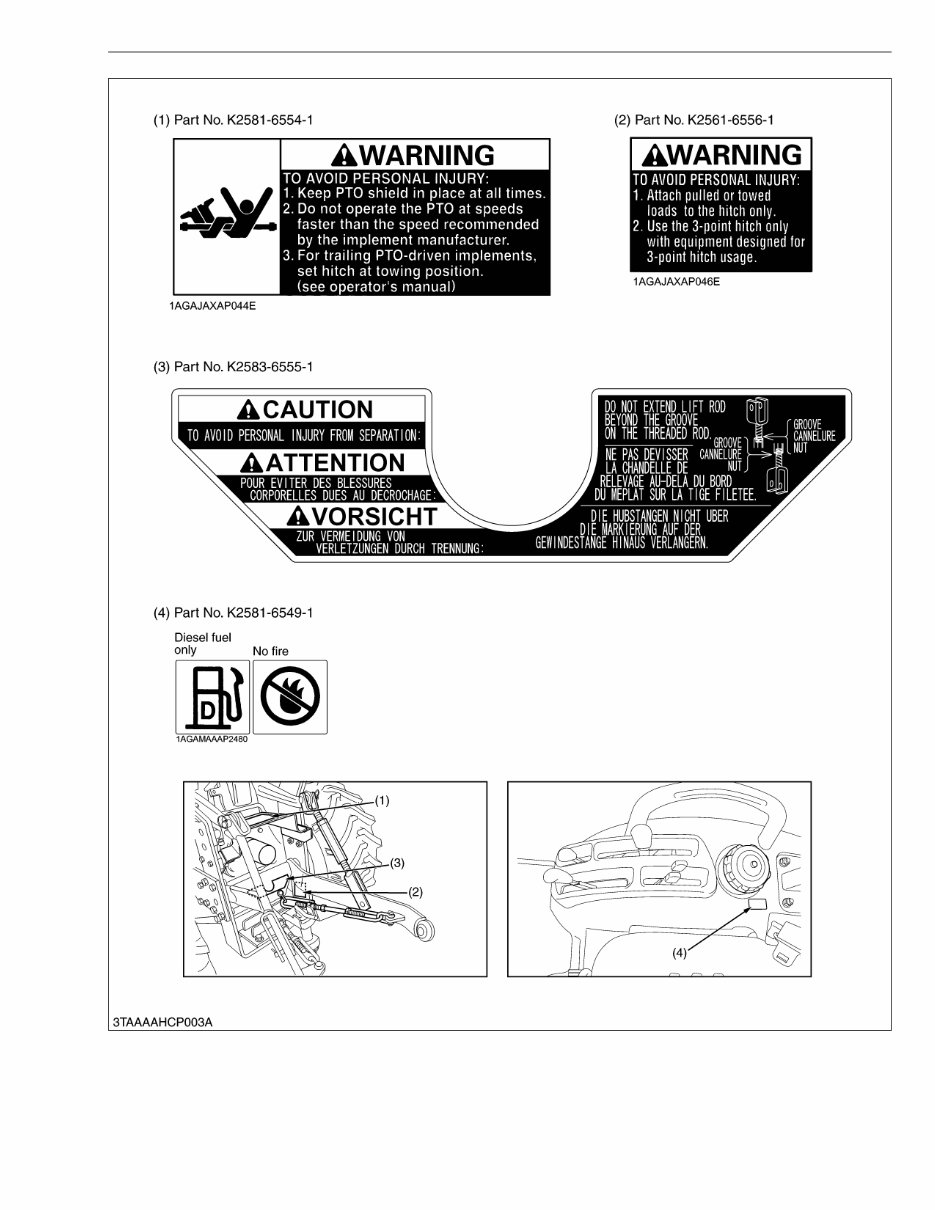

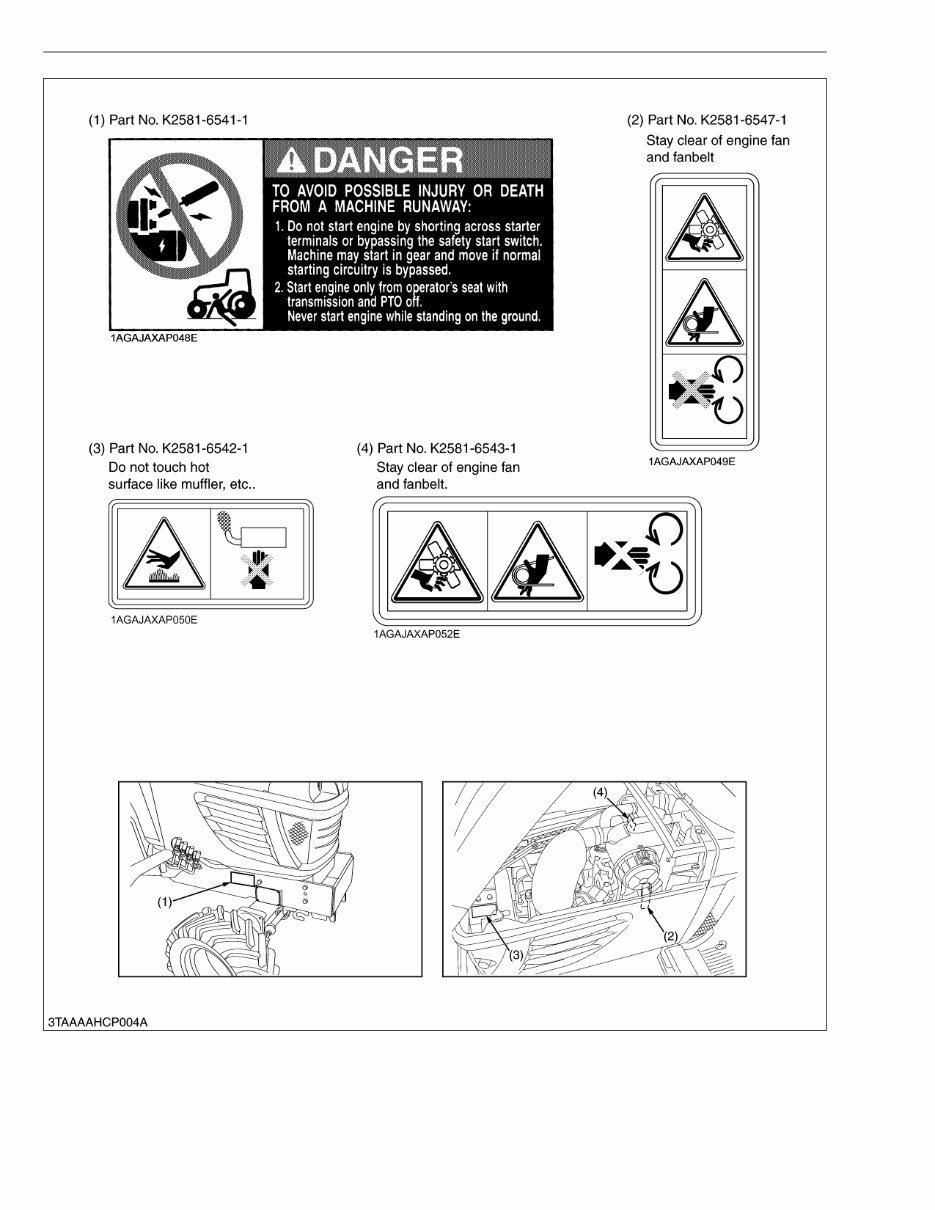

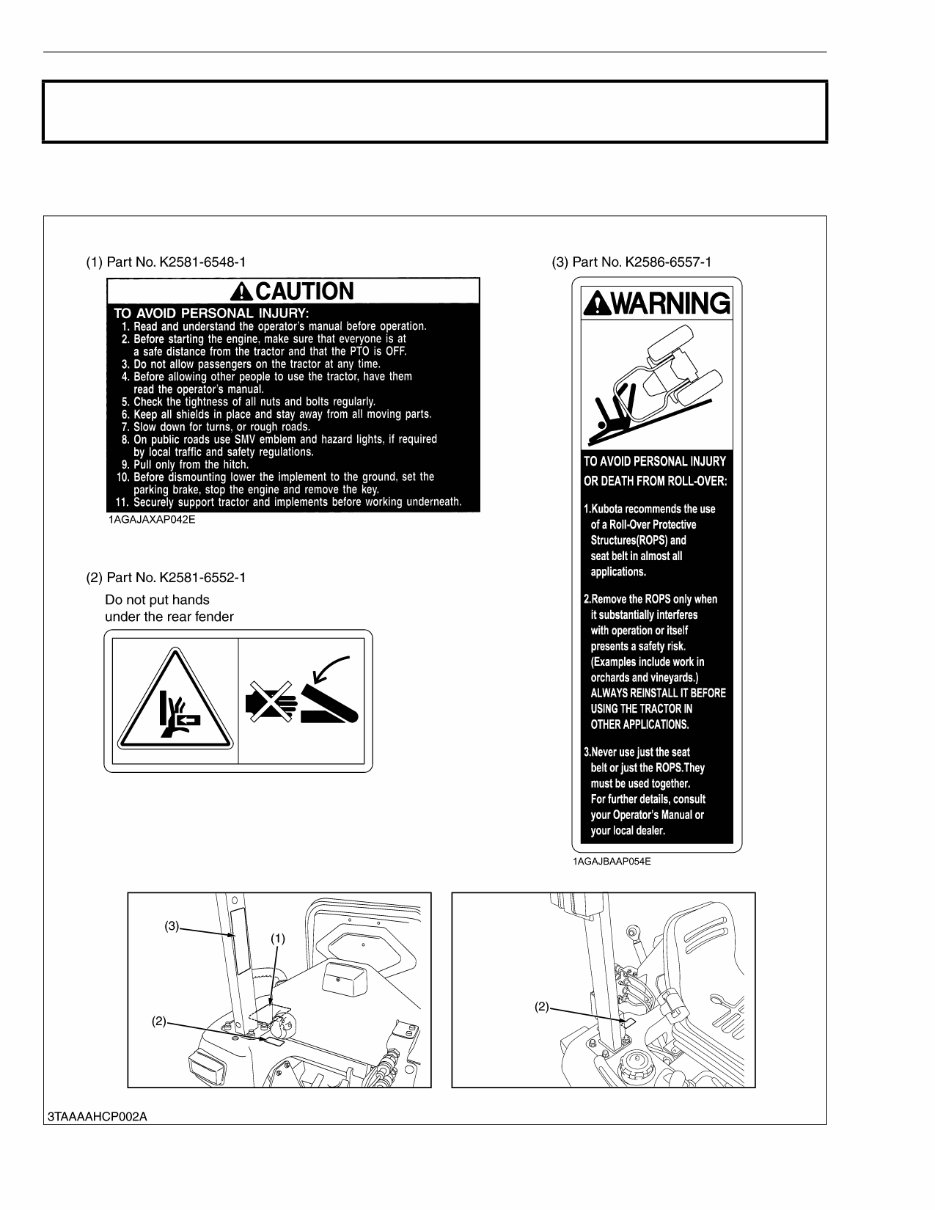

4 BX2350D, RCK48-23BX-EU, RCK54-23BX-EU, RCK60B-23BX-EU, SAFETY INSTRUCTIONS The following safety decals are installed on the machine. If a decal becomes damaged, illegible or is not on the machine, replace it. The decal part number is listed in the parts list. SAFETY DECALS KiSC issued 09, 2006 A

5 BX2350D, RCK48-23BX-EU, RCK54-23BX-EU, RCK60B-23BX-EU, LA243, WSM SAFETY INSTRUCTIONS KiSC issued 09, 2006 A

6 BX2350D, RCK48-23BX-EU, RCK54-23BX-EU, RCK60B-23BX-EU, SAFETY INSTRUCTIONS KiSC issued 09, 2006 A

7 BX2350D, RCK48-23BX-EU, RCK54-23BX-EU, RCK60B-23BX-EU, LA243, WSM SAFETY INSTRUCTIONS KiSC issued 09, 2006 A

8 BX2350D, RCK48-23BX-EU, RCK54-23BX-EU, RCK60B-23BX-EU, SPECIFICATIONS SPECIFICATIONS NOTE: * Manufacture’s estimate The company reserves the right to change the specifications without notice. W1028103 Model BX2350D PTO power 13.2 kW (17.9 HP)* Engine Maker KUBOTA Model D902-E2-BX-2 Type Indirect Injection, vertical, water-cooled, 4-cycle diesel Number of cylinders 3 Bore and stroke 72 × 73.6 mm (2.83 × 2.90 in.) Total displacement 898 cm 3 (54.8 cu.in.) Engine gross power 17.1 kW (23.3 HP) Rated revolution 3200 min -1 (rpm) Maximum torque 56.1 N·m (5.7 kgf·m, 41.4 ft-lbs) Battery 12 V, CCA : 535 A, RC : 80 min. Starting system Electric starting with cell starter, 12 V, 1.4 kW Lubrication system Forced lubrication by trochoidal pump Cooling system Pressurized radiator, forced circulation with water pump Fuel Diesel fuel No. 2-D [above −10 °C (14 °F)], Diesel fuel No. 1 [below −10 °C (14 °F)] Capacities Fuel tank 25 L (6.6 U.S.gals, 5.5 Imp.gals.) Engine crankcase (with filter) 3.1 L (3.3 U.S.qts., 2.7 Imp.qts.) Engine coolant (with recovery tank) 3.1 L (3.3 U.S.qts., 2.7 Imp.qts.) Transmission case 11.6 L (3.06 U.S.gals, 2.55 Imp.gals.) Front axle case 4.7 L (5.0 U.S.qts., 4.1 Imp.qts.) Dimensions Overall length (without 3P) 2425 mm (95.5 in.) Overall width 1145 mm (45.1 in.) Overall height (with ROPS) 2140 mm (84.3 in.) Overall height (Top of steering handle) 1305 mm (51.4 in.) Wheel base 1400 mm (55.1 in.) Minimum ground clearance 170 mm (6.7 in.) Tread Front 910 mm (35.8 in.) Rear 820 mm (32.2 in.) Weight (with ROPS) 665 kg (1466.3 lbs) Travelling system Tires Front 18 × 8.50 – 10 (Turf) Rear 26 × 12.00 – 12 (Turf) Steering Hydrostatic power steering Transmission Main-hydrostatic transmission, Range gear shift (2 forward and 2 reverse) Brake Wet disk type Min. turning radius (without brake) 2.3 m (7.5 feet) Differential Bevel gear Hydraulic system Hydraulic control system Directional control, auto-return lever system Pump capacity 23.5 L/min. (6.2 U.S.gals./min., 5.2 Imp.gals./min.) Three point hitch SAE Category I Max. lift force 5390 N (550 kg, 1374 lbs) PTO system Clutch Wet type, multiple disks Rear PTO shaft SAE 1-3/8, 6 splines Revolution 1 speed (540 min -1 (rpm) at engine 3142 min -1 (rpm)) Mid PTO shaft USA No. 5 (KUBOTA 10-tooth) involute spline Revolution 1 speed (2500 min -1 (rpm) at engine 3043 min -1 (rpm)) KiSC issued 09, 2006 A
