SAFETY INSTRUCTIONS ex 1Boo· 8X2200 WSM. 12460 ::r///////////////////////////////////////////////////// //////////////////////////////////////////////////////////////////////////////~ ~ A SAFETY FIRST ~ ~ ~ ~ This symbol, the industry's "Safety Alert Symbol", is used throughout this manual and decals on ~ ~ the machine itself to warn of the possibility of personal injury. Read these instructions carefully. ~ ~ It is essential that you read the instructions and safety regulations before you attempt to repair or ~ ~ use this unit. ~ ~///////////////////////////////////////////////////// hV//////////////////////////////U////////////////////H/ ///////////////////.a: .it. DANGER : Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. A. WARNING:lndicates a potentially hazardous situation which, if not avoided, could result in death or serious injury_ A CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury . • IMPORTANT: Indicates that equipment or property damage could result if instructions are not followed. 1'- __N_O.T.E .:G_iv.e.S.h.e.I.Pf.U.I.i".f.o.'.m.a.'i.0."." 1 OOOOOZOOO I0 OOOOOF00010 BEFORE SERVICING AND REPAIRING (1) Read all instructions and safety instructions in this manual and on your machine safety decals. (2) Clean the work area and machine. (3) Park the machine on afirm and level ground, and set the parking brake. (4) Lower the implement to the ground. (5} Stop the engine, and remove the key. (6) Disconnect the battery negative cable. (7) Hang a "DO NOT OPERATE" tag in operator station. OOOQOZOOO20 1

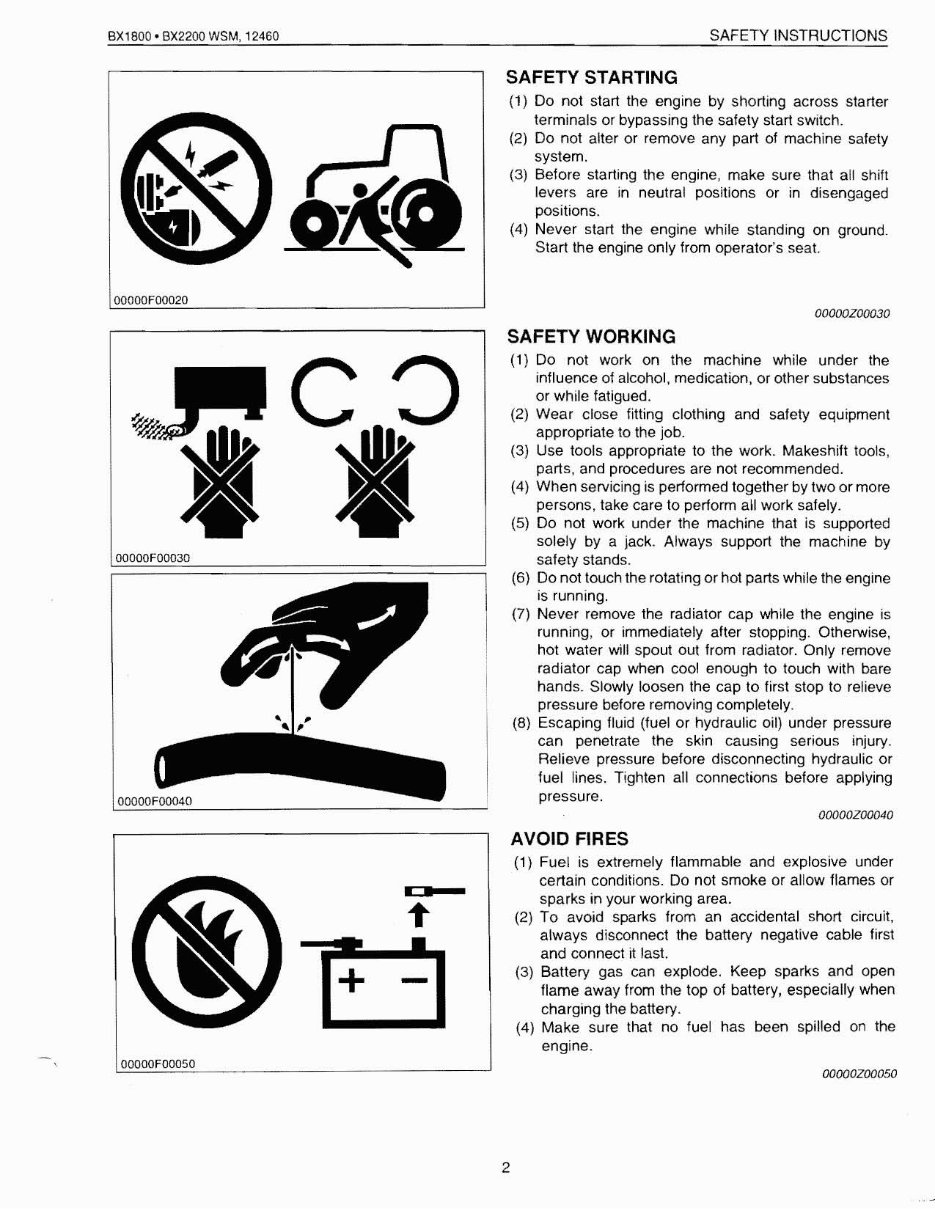

BX1800· BX220Q WSM, 12460 OOOOOFOO020 SAFETY INSTRUCTIONS SAFETY STARTING (1) Do not start the engine by shorting across starter terminals or bypassing the safety start switch. (2) Do not alter or remove any part of machine safety system. (3) Before starting the engine, make sure that all shift levers are in neutral positions or in disengaged positions. (4) Never start the engine while standing on ground. Start the engine only from operator's seat. OOOOOFOOO30 C~ t OOOOOZ00030 SAFETY WORKING (1) Do not work on the machine while under the influence of alcohol, medication, or other substances or while fatigued. (2) Wear close fitting clothing and safety equipment appropriate to the job. (3) Use tools appropriate to the work. Makeshift toots, parts, and procedures are not recommended. (4) When servicing is performed together by two or more persons, take care to perform all work safely. (5) Do not work under the machine that is supported solely by a jack. Always support the machine by safety stands. (6) Do not touch the rotating or hot parts while the engine is running. (7) Never remove the radiator cap YJhile the engine is running, or immediately after stopping. Otherwise, hot water """';11 spout out from radiator. Only remove radiator cap when cool enough to touch with bare hands. Slowly loosen the cap to first stop to relieve pressure before removing completely. (8) Escaping fluid (fuel or hydraulic oil) under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting hydraulic or fuel lines. Tighten all connections before applying pressure. OOOOOZ00040 OOOOOFOOO50 + • - AVOID FIRES (1) Fuel is extremely flammable and explosive under certain conditions. Do not smoke or allow flames or sparks in your working area. (2) To avoid sparks from an accidental short circuit, always disconnect the battery negative cable first and connect it last. (3) Battery gas can explode. Keep sparks and open flame away from the top of battery, especially when charging the battery. (4) Make sure that no fuel has been spilled on the engine. OOOOOZOOOSO 2

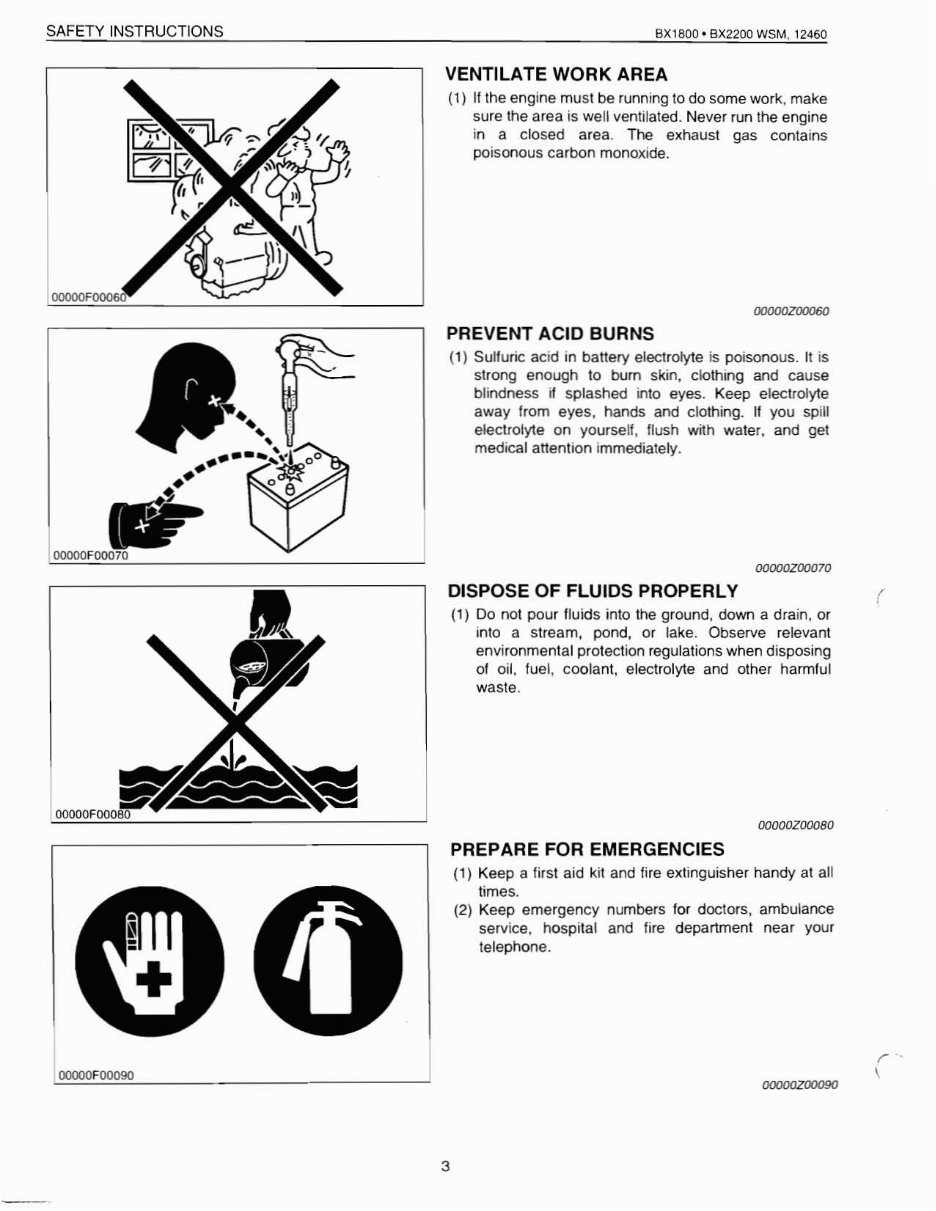

SAFETY INSTRUCTIONS 8X1800' BX2200 WSM, 12460 OOOOOZOOO7Cl PREVENT ACID BURNS (1) Sulfuric acid in battery electrolyte is poisonous. II is strong enough 10 burn skin, clothing and cause blindness if splashed into eyes. Keep electrolyte away from eyes, hands and clothing. If you spill electrolyte on yourself, flush with water, and gel medical attention immediately. VENTILATE WORK AREA (1) If the engine must be funning to do some work, make sure the area is well ventilated. Never run the engine in a closed area. The exhaust gas contains poisonous carbon monoxide. .- •• '. ••_··-~':LoO .. O~ OOOOOFOOQ70 OOOOOF OOOOOFOO090 DISPOSE OF FLUIDS PROPERLY (1) Do not pour fluids into the ground, do'#Tl a drain, or into a stream, pond, or take. Observe relevant environmental protection regUlations when disposing of oil. luel, coolant, electrolyte and other harmful waste. OOOOOZOOOBO PREPARE FOR EMERGENCIES (1) Keep a first aid kit and lire extinguisher handy at all times. (2) Keep emergency numbers for doctors, ambulance service, hospital and fire department near your telephone. OOOOOZOOO9O ( r \ 3

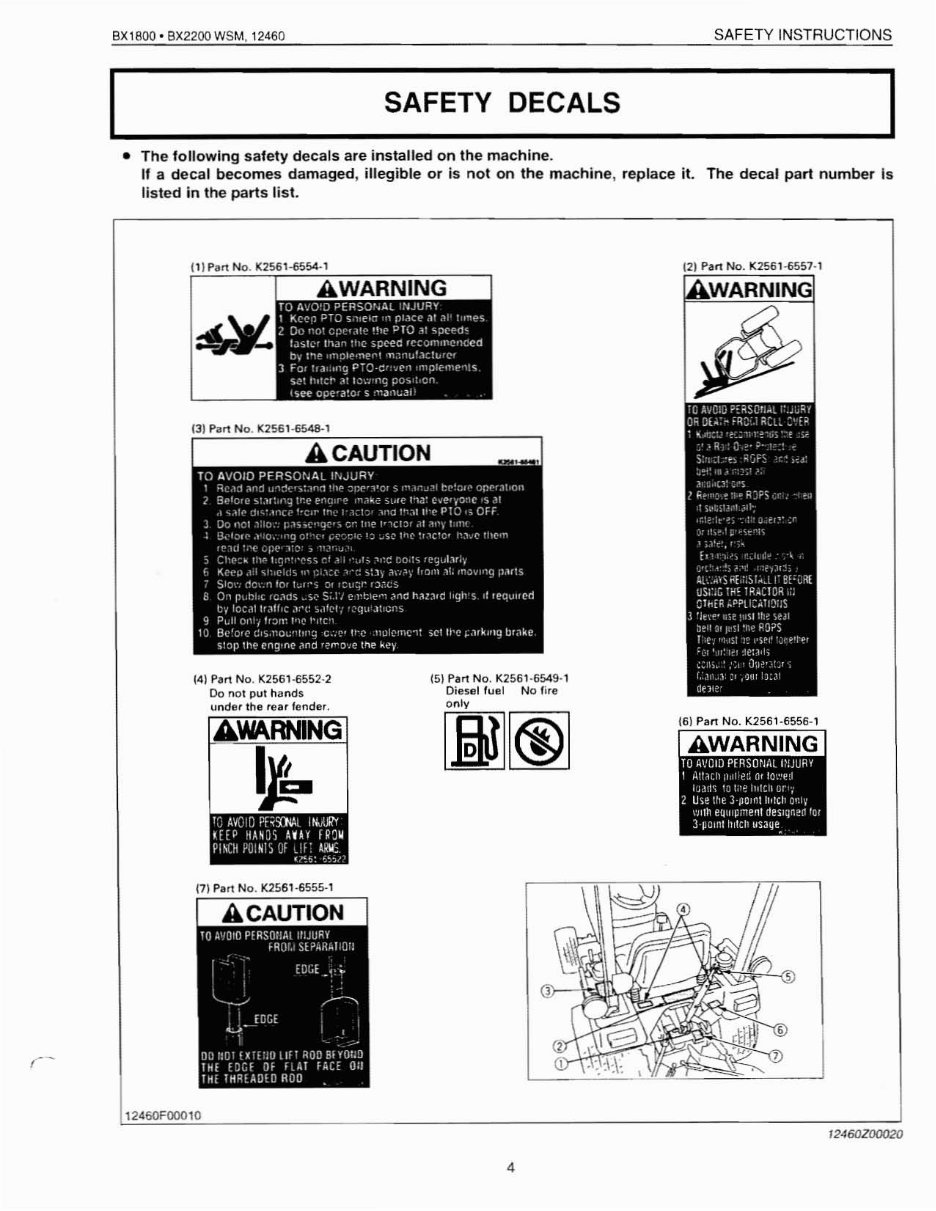

BX1800· BX2200 WSM, 12460 SAFETY INSTRUCTIONS I SAFETY DECALS I -------" • The following safety decals are installed on the machine. If a decal becomes damaged, illegible or is not on the machine, replace it. The decal part number Is listed in the parts list. {2) Part No. 1<2561-6557·' {61 Part No. K256'-6556-' 15) Part No.K2561·6549-' Diesel tuel No fife only [il]~ AWARNING ~ , A/=I~ ~:,c{t;A ,NeJl<'" I "IA~ , ~,II I Q~~ ~.~··""NJ} , ~,\l" , " '. 14) Part No. 1<2561·6552·2 Do fI01 PUI haods under the rear fender (3) Part No. 1<2561·6548-1 (11 Part No. 1<2561-6554-1 m Piln No. K2561·6555-' 1246QFOOO10 12460Z00020 4

SAFETY INSTRUCTIONS BX1800· BX2200 WSM, 12460 (8) p"" No. K2561·6541-1 (91 Part No. 1<2561·654)·' Slay clear 01 engine Ian and '"nbelt . , C121 Part No. 1(2561·6116·' r!f; ~DfURX; ~=, ~In.. _Of. ...RIS ® NO ·UWI . ,~ I SHIflD I EYES I lXPlOSlY( : GASlSuI UII'I .-u.tlll .....r K{fP OUT Of IHf ~,ACH Of CHIUlH'I. CO hOT TIP DO 1I0T UP£,. 6AfT(AT' FLUSH ~GET EnS MEDICAL IMMEDIATELY . HELP WITH WATER FAST (11) Part No. K2!Hil'611$-1 1101 PlIrt NO, 1(2561·6542·1 Do nOllouch hoI su.face like muffler, ." CARE OF DANGER, WARNING AND CAUTION LABELS 1. Keep danger, warning and caution labels clean and free Irom obslrucling material. 2. Clean danger, warning and caution labels with soap and waler, dry with a soft cloth. 3. Replace damaged or missing danger, warning and caution labels with new labels. 4. "a component wilh danger, warning or caution label (s) affixed is replace wilh new part, make sure new label (s) is (are) altached in Ihe same localions (s) as the replaced component 5, Mouni new danger, warning and caullon labels by applying on a clean dry surface and pressing any bubbles to outside edge. 12460F00020 72460Z00030 5

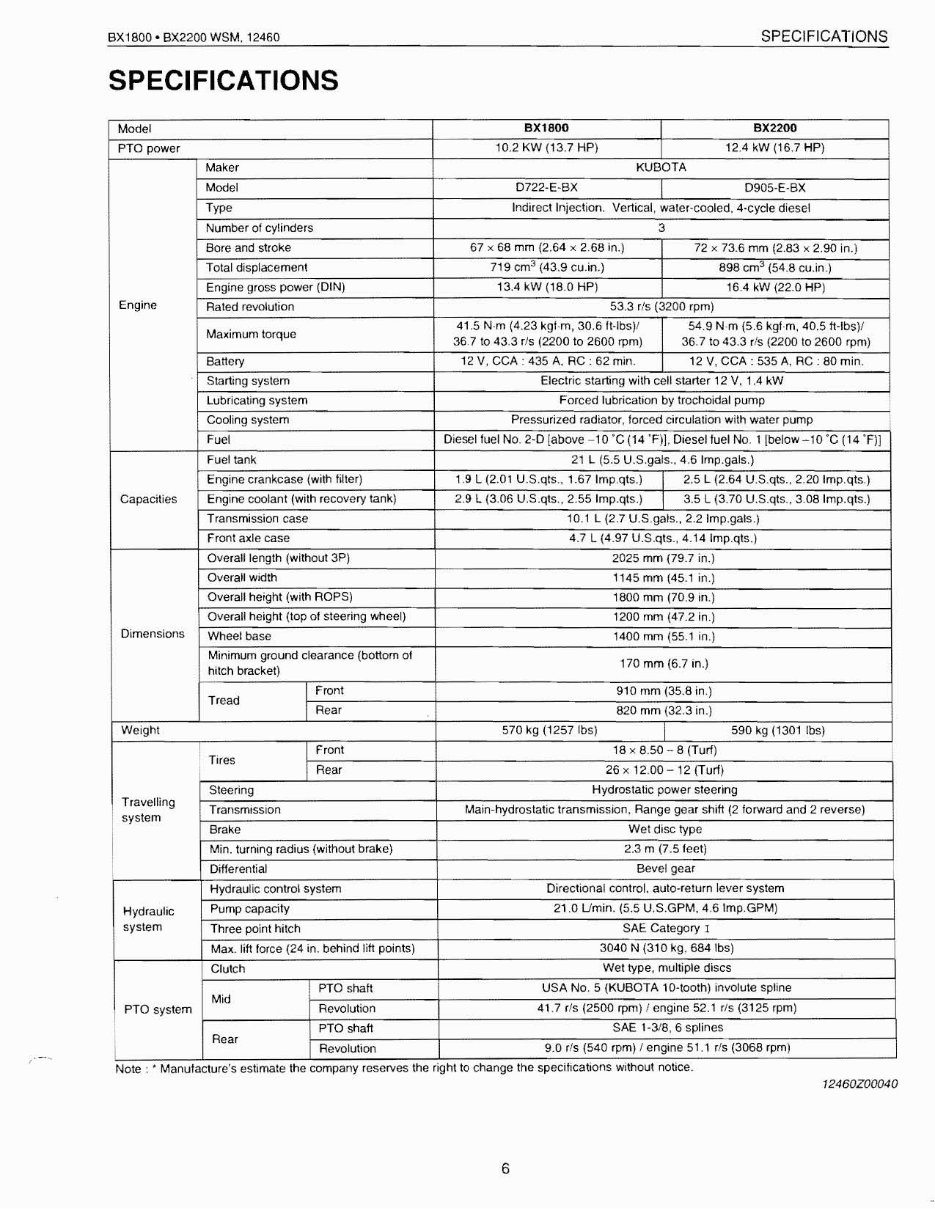

BX 1800· BX2200 WSM. 12460 SPECIFICATIONS SPECIFICATIONS Model BX1800 BX2200 PTa power 10.2 KW (13.7 HPJ I 12.4 kW (16.7 HPJ Milker KUBOTA Model D722-E-BX I 0905-E·BX Type Indirect Injection. Vertical, water·cooled. 4·cycle diesel Number of cylinders 3 Bore and stloke 67 x 68 mm (2.64 x 2.68 in.) 72 x 73.6 mm (2.83 x 2.90 in .• Total displacemenl 719 cm J (43.9 cu.in.) 898 cm J (54.8 cu.in.) Engine gross power (DIN) 13.4 kW (18.0 HP) 16.4 kW (22.0 HP) Engine Rated revolution 53.3 rls (3200 rpm) Ma~imum torque 41.5 N·m (4.23 kgt·m, 30.6 ft·lbs)1 54,9 Nm (5.6 kgf·m. 40.5 tl-lbs)/ 367 to 43.3 rls (2200 to 2600 fllm} 36.7 to 43,3 ris (2200 to 2600 rpm) Battery 12V, GGA' 435 A, RC: 62 min. 12 V, CCA: 535A. RC: 80 min. Stinting system Electric starting with cell starter 12 V. 1.4 kW Lubricating system Forced lubrication by trochoidal pump Cooling system Pressurized radiator. torced circulalion with water pump Fuel Diesel fuel No. 2-D {above -10'C (14 'F)), Diesettuel No. 1 lbelow 10·C(14 OF)] Fuel tank 21 l (5.5 U.S,gals .. 4.6 Imp.gals.) Engine crankcase (with tilter) \.9 L (2.01 U.S.qts .. 1.67 tmp.qts.) I 2,5 L (2.64 U.S.qts .. 2.20 Imp.qts,) Capacities Engine croant (with recovery tank) 2.9l (3.06 U.S.qts.• 2.55 Imp.qts.) I 3.5 L (3.70 U5.qts.. 3,08lmp.qts.) Transmission case 10.1 l (2.7 U.S.gals., 2.2 Imp.gals.) Front a~le case 4.7 L (4.97 U.S.Qls., 4.14Imp.Qts.) Overall length (without 3Pj 2025 mm (79.7 in.) Overall width 1145 mm (45.1 in.) Overall height (with RaPS) 1800 mm (70.9 in.) Overall height (top of steering wheel) 1200 mm (47.2 in.) Dimensions Wheel base 1400 mm (55.1 in.) Minimum glound clearance {bottom of 170 mm (6.7 in.) hitch bracket) Tread I Front 910 mm (35.8 in.) I Rear 820 mm (32.3 in.) Weight 570 kg (1257 Ibs) I 590 kg (1301 Ibs) i Tires Front 18 x 8.50 8 (Turf) I Rear 26 x 12.00 12 (Turf) Steering Hydrostatic power steering Travelling Transmission Main-hydrostatic transmission. Range gear shift (2 forward and 2 reverse) system I Brake Wet disc type Min. turning radius (without brake) 2.3 m (7.5 feel) Differential Bevel gear I Hydraulic control system Directional control, auto-retlJrn lever system HydralJlic Pump capacity 21.0 Umin. (5.5 U.S.GPM, 4.6tmp.GPM) system Three point hitch SAE Category 1 Ma~.lif1 force (24 in. behind lift points) 3040 N (310 kg. 6841bs) Clutch Wet type, multiple discs PTOshaf1 USA No, 5 (KUBOTA 10'looth) involute spline Mid 41,7 rls (2500 rpm) I engine 52.1 rls (3125 rpm) PTO system ReVOlution PTa shaft SAE 1-318, 6 splines Rear 90 rls (540 rpm) I engine 51 1 rls (3068 rpm) I Revolution Note: • Manulacture'S estimate the company reserves the right to change the specifications without notice. 12460Z00040 6

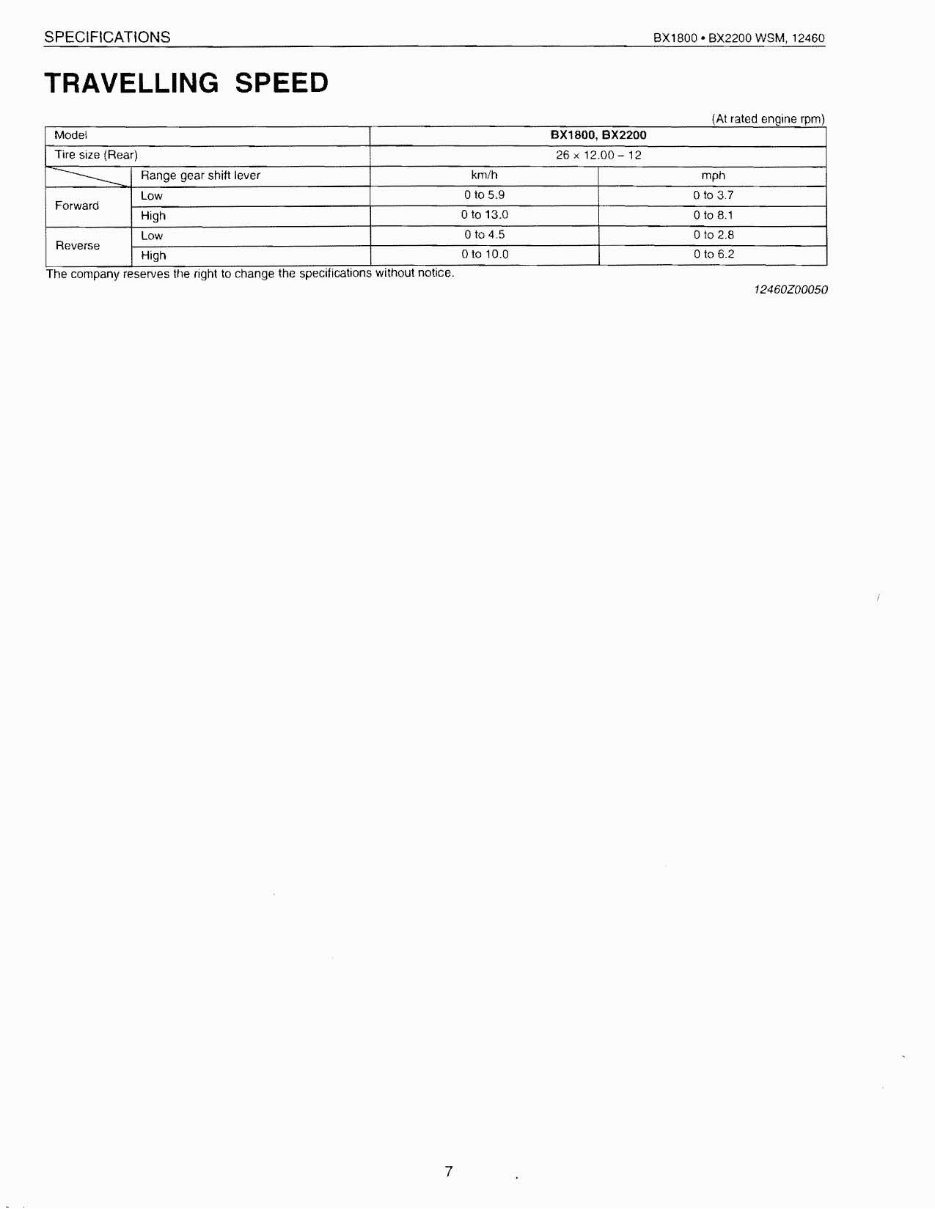

SPECIFICATIONS BX 1800· BX2200 WSM, 12460 TRAVELLING SPEED IA d t ratc enome rpm) Model BX1800, BX2200 Tire size (Rear) 26>< 12.00-12 ---- Range gear shilt lever km/h mph Low Ot05.9 o to 37 Forward High 01013.0 0108.' Low 0\04.5 o to 2.8 Reverse High o to 10.0 0106.2 The company reserves tile nght to change the specificatIOns without notice. 12460Z00050 7

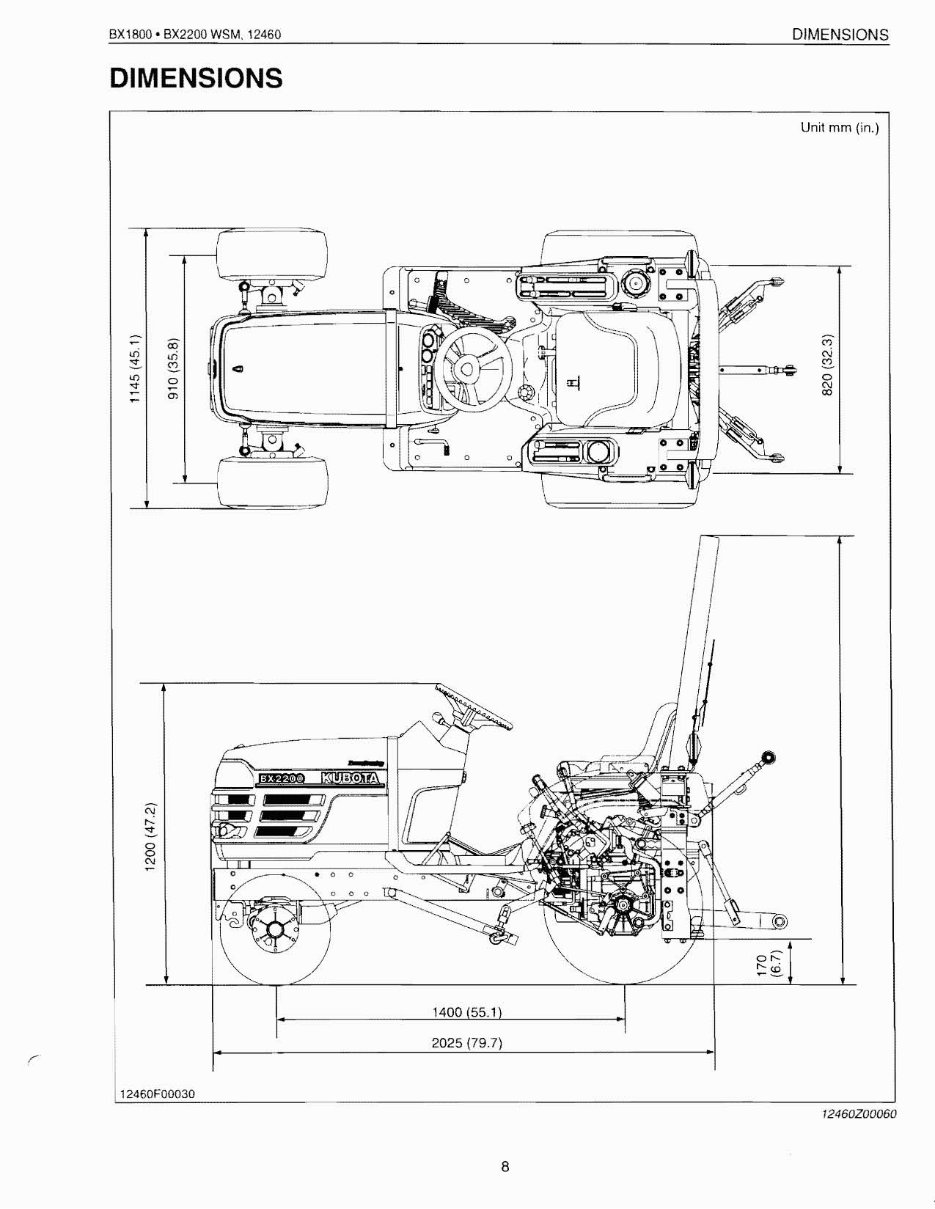

BX 1800 • BX2200 WSM, 12460 DIMENSIONS DIMENSIONS Unit mm (in.) -~ I • ,- - , A '" L "~] ) '" - '" '" oj " to to ~ 0 0 ~ N m ro - • • c. 0 • • o I N ~ " 8 N • • • 1400 55.1 2025 (79.7) 12460FQOO30 12460Z00060 8
