KUBOTA B8200 DP Tractor Parts Manual - ILLUSTRATED MASTER Parts LIST Manual

Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

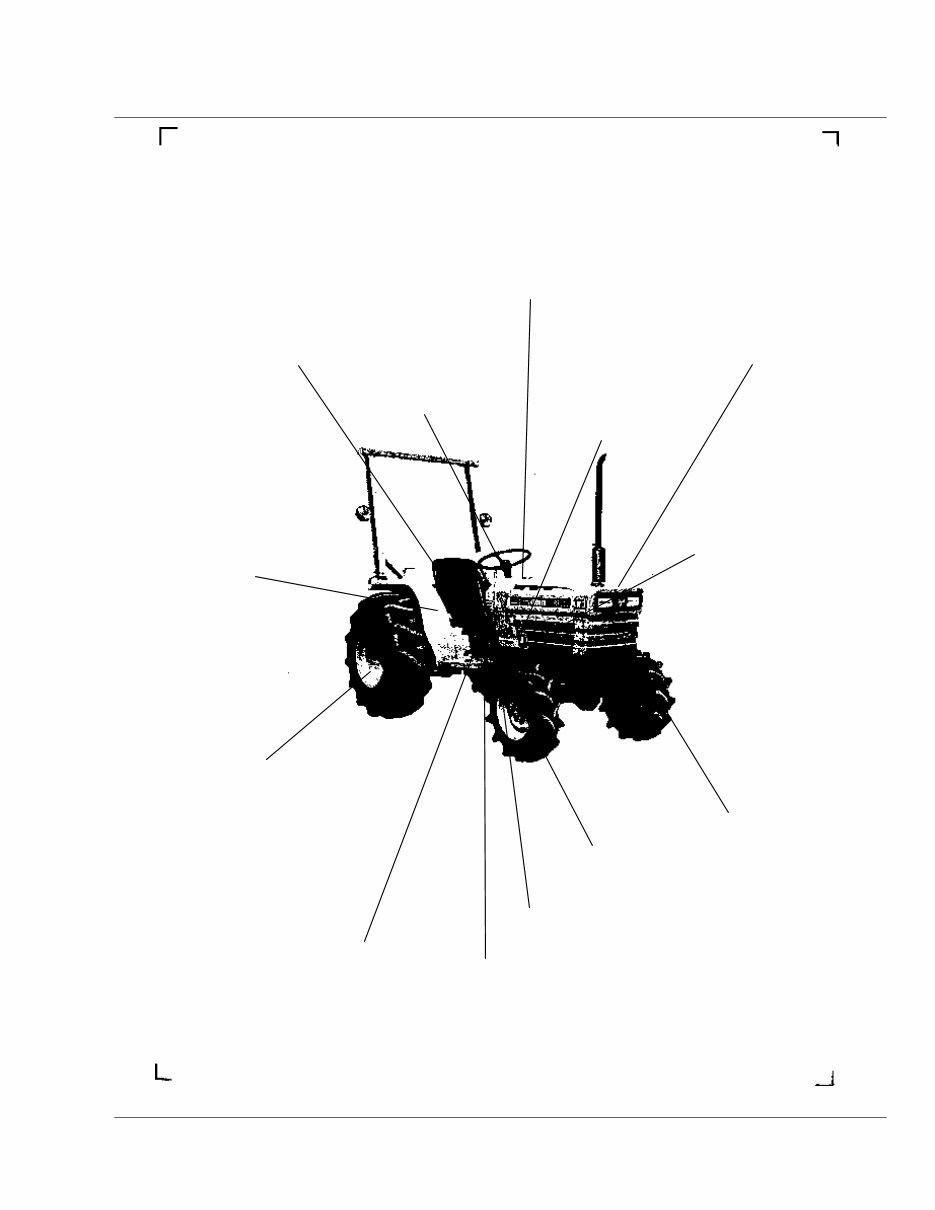

|ALL PRODUCT INDEX B8200DP Ref. B8200DP Page 11063 ENGINE FUEL SYSTEM COOLING WATER SYSTEM ELECTRICAL SYSTEM CLUTCH TRANSMISSION SPEED CHANGE LEVER REAR AXLE/REAR WHEEL BRAKE FRONT AXLE/FRONT WHEEL STEERING HYDRAULIC SYSTEM HOOD (BONNET)/CHASSIS LABELS ACCESSORIES

Ref. B8200DP Page 11063 Item Part No. Description Book ENGINE 01T001 CRANKCASE 100K0094 01T002 OIL PAN 100K0094 01T003 CYLINDER HEAD 100K0094 01T004 GEAR CASE 100K0094 01T005 MAIN BEARING CASE 100K0094 01T006 CYLINDER HEAD COVER 100K0094 01T007 INLET MANIFOLD 100K0094 01T008 VALVE/ROCKER ARM 100K0094 01T009 CAMSHAFT 100K0094 01T010 ENGINE STOP LEVER 100K0094 01T011 GEAR PUMP 100K0094 01T012 PISTON/CRANKSHAFT 100K0094 01T013 FLYWHEEL 100K0094 01T014 NOZZLE HOLDER 100K0094 01T015 SPEED CONTROL PLATE 100K0094 01T016 GOVERNOR 100K0094 01T017 WATER FLANGE 100K0094 01T018 FUEL CAMSHAFT 100K0094 01T019 WATER PUMP 100K0094 HYDRAULIC SYSTEM 01T098 GEAR PUMP [SECTION PARTS] 100K0094 ENGINE 01T099 NOZZLE HOLDER [SECTION PARTS] 100K0094 01T100 NOZZLE HOLDER [SECTION PARTS] 100K0094 01T101 INJECTION PUMP [SECTION PARTS] 100K0094 ELECTRICAL SYSTEM 01T102 DYNAMO [SECTION PARTS] 100K0094 01T104 STARTER [SECTION PARTS] 100K0094 TRANSMISSION 01T020 TRANSMISSION CASE 100K0094 01T021 COVER 100K0094 01T022 AXLE CASE 100K0094 CLUTCH 01T023 CLUTCH 100K0094 TRANSMISSION 01T024 1 ST SHAFT AND 2 ND SHAFT 100K0094 01T025 3 RD SHAFT 100K0094 01T026 4 TH SHAFT AND REVERSE SHAFT 100K0094 01T027 FRONT DRIVE SHAFT AND 6 TH SHAFT 100K0094 01T028 7TH SHAFT AND PTO SHAFT 100K0094 REAR AXLE/REAR WHEEL 01T029 REAR DIFFERENTIAL 100K0094 01T030 REAR AXLE AND REAR WHEEL (8.3-24) [A] 100K0094 01T031 REAR AXLE AND REAR WHEEL (12.4-16) 100K0094 01T032 REAR WHEEL (13.6-16) [A] (T) 100K0094 SPEED CHANGE LEVER 01T034 MAIN SPEED CHANGE 100K0094 01T035 SPEED CHANGE FORK 100K0094 01T036 FRONT DRIVE FORK 100K0094 01T037 ROTARY SPEED CHANGE FORK 100K0094 BRAKE 01T038 BRAKE 100K0094 HYDRAULIC SYSTEM 01T039 HITCH 100K0094 01T040 CASE COVER AND LIFT ARM 100K0094 01T041 CONTROL VALVE 100K0094 01T042 CONTROL VALVE 100K0094 01T044 HYDRAULIC PIPING 100K0094 01T045 HYDRAULIC PIPING 100K0094 01T046 HYDRAULIC BLOCK 100K0094 01T047 HYDRAULIC BLOCK 100K0094 STEERING 01T048 STEERING 100K0094 01T049 STEERING 100K0094 SPEED CHANGE LEVER 01T050 SPEED CHANGE LEVER 1 100K0094 01T051 SPEED CHANGE LEVER 2 100K0094 CLUTCH 01T052 CLUTCH PEDAL AND BRAKE PEDAL 100K0094

Ref. B8200DP Page 11063 Item Part No. Description Book BRAKE 01T053 BRAKE ROD 100K0094 TRANSMISSION 01T054 RELEASE LEVER 100K0094 LABELS 01T055 NAME PLATE 100K0094 CLUTCH 01T056 CLUTCH HOUSING 100K0094 HOOD (BONNET)/CHASSIS 01T057 STEP AND FRAME 100K0094 01T058 FENDER 100K0094 01T060 SEAT 100K0094 01T061 SEAT 100K0094 ENGINE 01T062 MUFFLER AND MUFFLER PIPET 100K0094 HOOD (BONNET)/CHASSIS 01T063 DUSTPROOF NET 100K0094 FUEL SYSTEM 01T064 FUEL TANK 100K0094 01T065 FUEL TANK 100K0094 01T066 FUEL PIPE 100K0094 ENGINE 01T067 DECOMPRESS WIRE AND ENGINE STOP WIRE 100K0094 HOOD (BONNET)/CHASSIS 01T068 HOOD AND PANEL 100K0094 01T069 HOOD AND PANEL 100K0094 01T070 SKIRT 100K0094 01T071 SKIRT 100K0094 01T072 HOOD BRACKET 100K0094 ELECTRICAL SYSTEM 01T073 BATTERY 100K0094 01T074 ELECTRICAL SYSTEM 100K0094 01T075 ELECTRICAL SYSTEM 100K0094 01T076 HEAD LAMP AND FLASHER LAMP 100K0094 ENGINE 01T077 AIR CLEANER 100K0094 FUEL SYSTEM 01T078 FUEL FILTER 100K0094 COOLING WATER SYSTEM 01T079 RADIATOR 100K0094 ELECTRICAL SYSTEM 01T080 DYNAMO AND STARTER 100K0094 FRONT AXLE/FRONT WHEEL 01T086 FRONT AXLE ARM 100K0094 01T087 BEVEL GEAR CASE 100K0094 01T088 FRONT AXLE CASE 100K0094 01T089 KNUCKLE ARM 100K0094 01T090 FRONT DIFFERENTIAL 100K0094 01T091 BEVEL GEAR 100K0094 01T092 DRIVE SHAFT 100K0094 01T093 FRONT WHEEL (6-12) 100K0094 01T094 FRONT WHEEL (24 X 8.50-12) (T) 100K0094 HYDRAULIC SYSTEM 01T095 LIFT ROD 100K0094 01T096 CHECK CHAIN AND BRACKET 100K0094 HOOD (BONNET)/CHASSIS 01T097 FRONT WEIGHT BRACKET 100K0094 HYDRAULIC SYSTEM 01T106 CONTROL VALVE [SECTION PARTS] 100K0094 01T107 CONTROL VALVE [SECTION PARTS] 100K0094 ACCESSORIES 01T108 ACCESSORIES AND SERVICE PARTS 100K0094

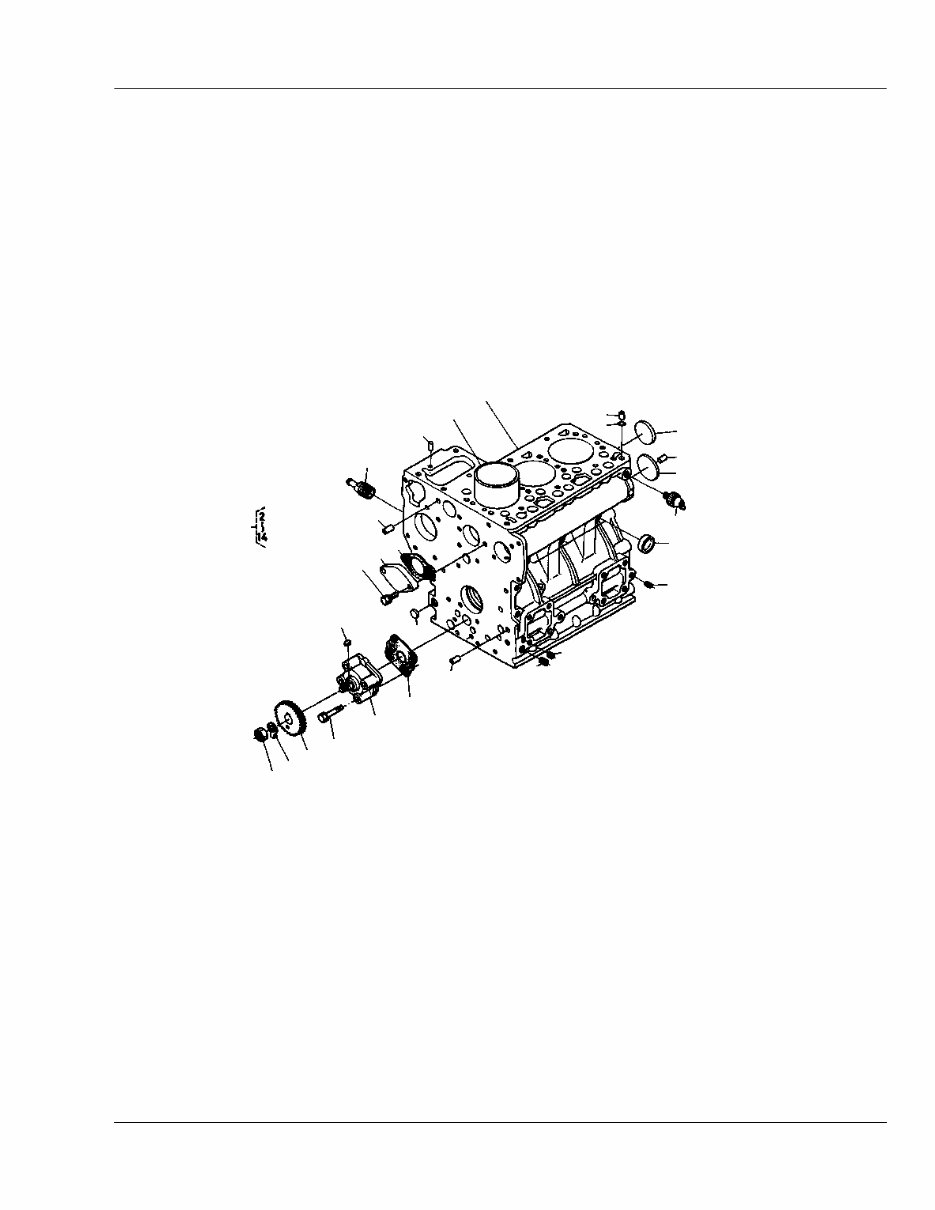

CRANKCASE Reference: 01T001 Page: 1 001 002 003 004 005 006 007 008 009 010 011 012 012 013 014 015 016 017 018 019 020 021 022 023 024 025 026 027

CRANKCASE Reference: 01T001 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 001 15532-01010 ASSY CRANKCASE 1 REF.NO.002 TO 014 26.5 58.3 002 99999-99999 BLANK 0 ORDER BY REF.No.001 0 0 003 06311-75015 PLUG, EXPANSION 3 0.002 0.0044 004 06311-75040 PLUG, EXPANSION 1 0.02 0.044 005 15321-96260 PLUG, SEALING 5 0.014 0.0308 006 15221-03490 PLUG, SEALING 1 0.02 0.044 007 15261-96010 PLUG 6 0.002 0.0044 008 15521-96020 PLUG 3 0.003 0.0066 009 15521-96030 PLUG 1 0.007 0.0154 010 05012-00609 PIN, STRAIGHT 2 0.003 0.0066 011 05012-00814 PIN, STRAIGHT 2 0.006 0.0132 012 15231-33960 PIN, PIPE 2 0.001 0.0022 013 15221-33650 PIN, PIPE 1 0.004 0.0088 014 15531-02310 LINER, CYLINDER 3 0.42 0.924 015 15221-33700 O RING 1 0.001 0.0022 016 15261-73910 COVER, WATER 1 0.13 0.286 017 15261-73920 GASKET, WATER COVER 1 0 0 018 01023-50618 BOLT 2 0.006 0.0132 019 15531-73170 JOINT, DRAIN PIPE 1 0.145 0.319 020 15261-35010 ASSY PUMP OIL 1 0.32 0.704 021 15261-35150 GASKET, OIL PUMP 1 0 0 022 15261-91022 BOLT 4 0.012 0.0264 023 15954-35660 GEAR, OIL PUMP DRIVE 1 0.14 0.308 024 05712-00410 KEY, FEATHER 1 0.001 0.0022 025 02016-50100 NUT 1 0.009 0.0198 026 04211-50100 WASHER, CRAW 1 0.002 0.0044 027 15521-39010 SWITCH, OIL 1 0.048 0.1056

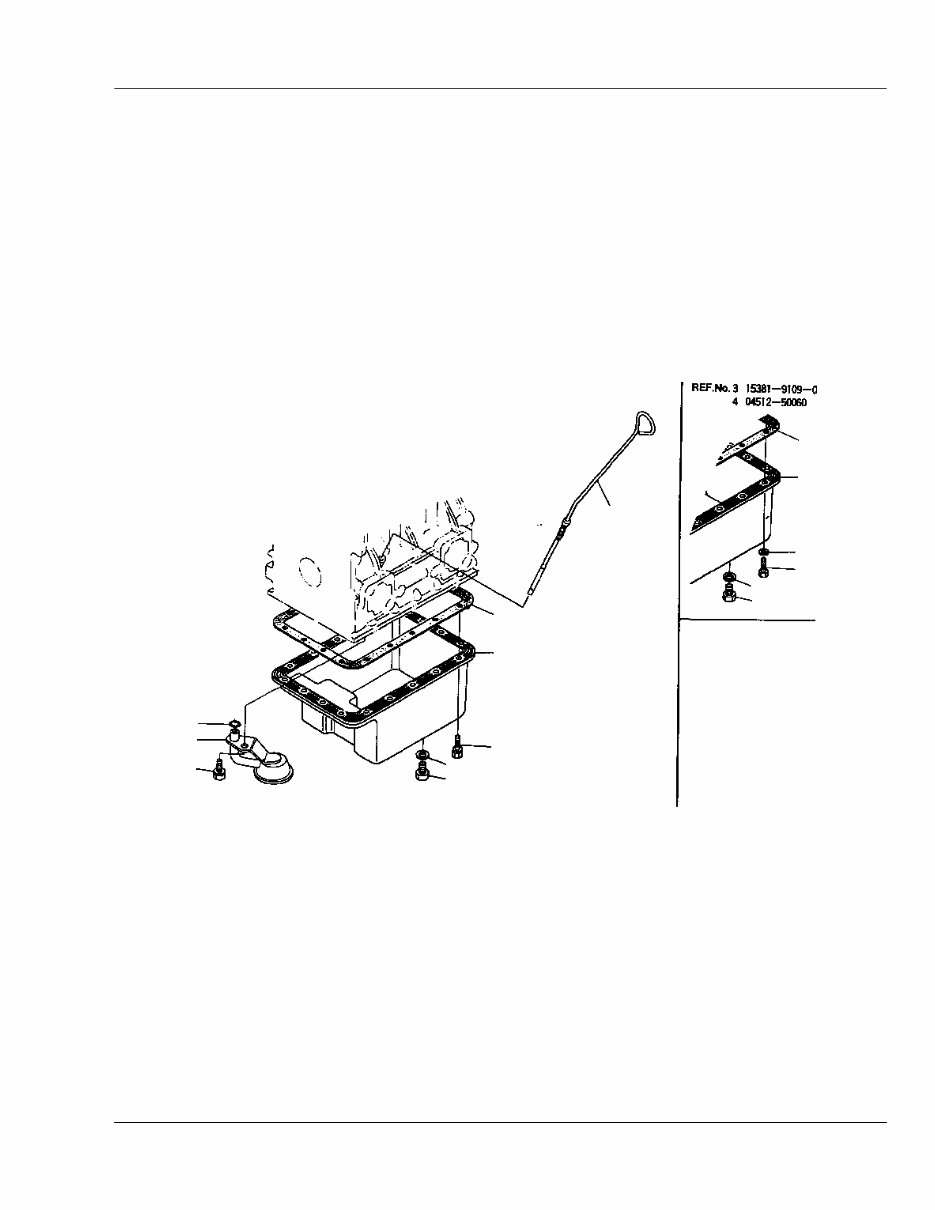

OIL PAN Reference: 01T002 Page: 2 001 001 002 002 003 003 004 005 005 006 006 007 008 009 010

OIL PAN Reference: 01T002 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 001 15371-01614 OIL PAN 1 1.1 2.42 002 15381-01620 GASKET, OIL PAN 1 0 0 003 15381-91090 BOLT 18 <=388044 0 0 003 15381-91092 BOLT 18 >=1001 0.002 0.0044 004 04512-50060 WASHER, SPRING 18 <=388044 0 0 005 15221-33750 PLUG 1 0.032 0.0704 006 15109-33660 GASKET 1 0.001 0.0022 007 15531-32110 FILTER, OIL 1 1 0.185 0.407 008 01123-50816 BOLT 1 0.011 0.0242 009 04811-00140 O RING 1 0.001 0.0022 010 15533-36410 GAUGE, OIL 1 0.03 0.066

CYLINDER HEAD Reference: 01T003 Page: 3 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 016 016 017 018 019 020 021 021

CYLINDER HEAD Reference: 01T003 Page: 3 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 001 15532-03040 ASSY CYLINDER, HEAD 1 REF.NO.002 TO 007, 021 9 19.8 002 99999-99999 BLANK 0 ORDER BY REF.No.001 0 0 003 15261-03370 PLUG, SEALING 5 0.005 0.011 004 15321-96260 PLUG, SEALING 1 0.014 0.0308 005 15261-96010 PLUG 2 0.002 0.0044 006 15261-13540 GUIDE, INLET VALVE 3 0.02 0.044 007 15261-13560 GUIDE, EXHAUST VALVE 3 0.02 0.044 008 19215-03450 BOLT, CYLINDER HEAD 12 <=270675 0.047 0.1034 008 19215-03450 BOLT, CYLINDER HEAD 11 >=1001 0.047 0.1034 009 19215-03412 STUD, CYLINDER HEAD 2 0.044 0.0968 010 19215-03512 NUT, CYLINDER HEAD 2 <=270675 0.009 0.0198 010 19215-03512 NUT, CYLINDER HEAD 3 >=1001 0.009 0.0198 011 15532-03410 STUD, CYLINDER HEAD 1 >=270676 0.052 0.1144 012 15531-03310 GASKET,CYLINDER HEAD 1 <=328255 0 0 012 15531-03313 GASKET,CYLINDER HEAD 1 >=1001 0 0 013 15531-03320 SHIM, CYLINDER HEAD 1 0.03 0.066 014 15000-36080 PLUG 1 0.03 0.066 015 04717-01600 GASKET 1 0.003 0.0066 016 15221-01750 HOOK, ENGINE 2 0.04 0.088 017 01513-50816 STUD 1 0.009 0.0198 018 01123-50816 BOLT 1 0.011 0.0242 019 02156-50080 NUT 1 0.004 0.0088 020 04512-50080 WASHER, SPRING 1 0.001 0.0022 021 15261-03140 CHAMBER, COMBUSTION 3 0.023 0.0506
