KUBOTA B3030 HSD Tractor Parts Manual ILLUSTRATED LIST IPL

Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

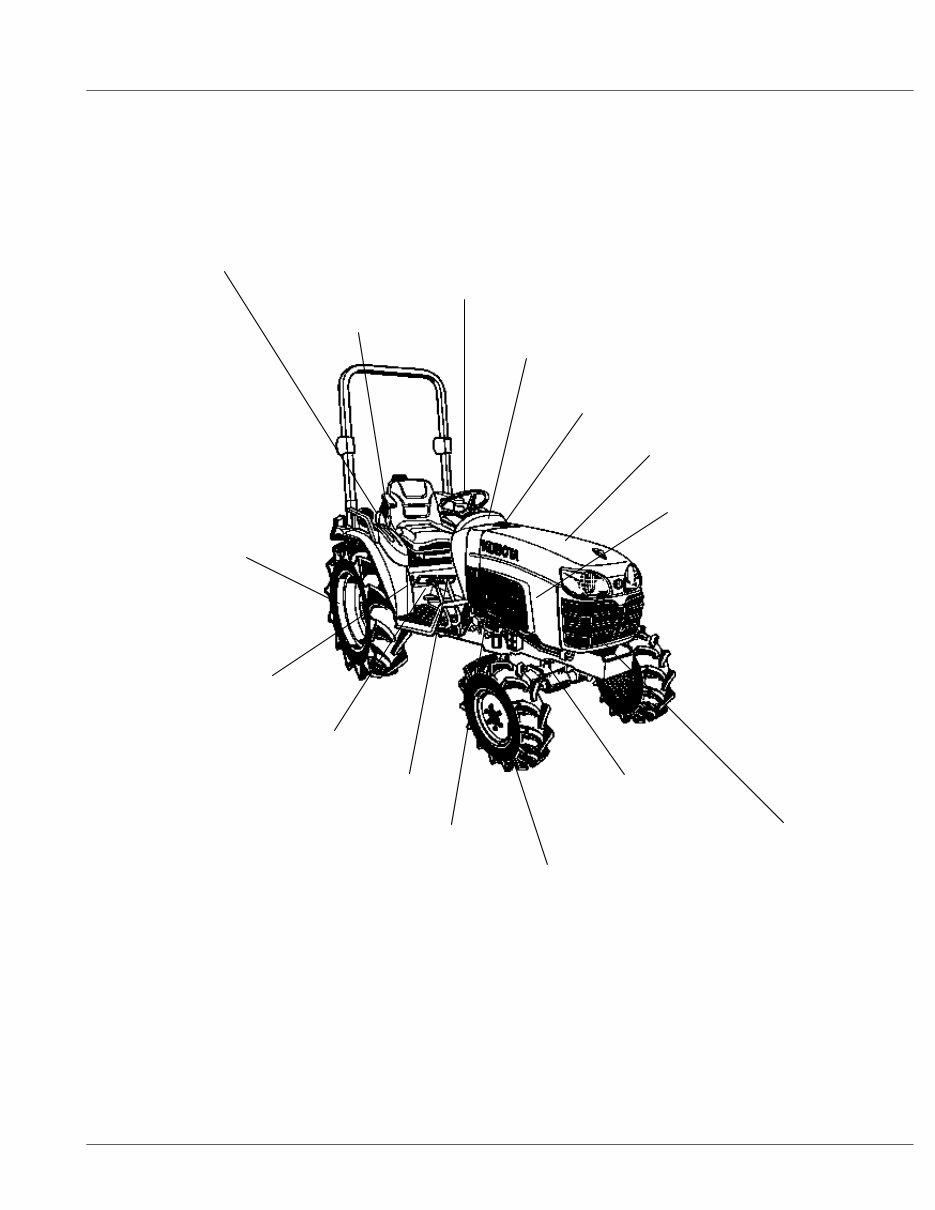

|ALL PRODUCT INDEX B3030HSD Ref. B3030HSD Page 11033 OPTION ENGINE FUEL SYSTEM COOLING WATER SYSTEM ELECTRICAL SYSTEM CLUTCH TRANSMISSION SPEED CHANGE REAR AXLE BRAKE PUMP/MOTOR SYSTEM FRONT AXLE STEERING TOP LINK/TOP LINK BRACKET/PTO PROTECTOR HOOD/BONNET FRONT TIRE REAR TIRE LABELS ACCESSORIES AND SERVICE PARTS

Ref. B3030HSD Page 11033 Item Part No. Description Book ENGINE 011001 CRANKCASE 100K0828 011002 OIL PAN 100K0828 011003 CYLINDER HEAD 100K0828 011004 GEAR CASE 100K0828 011005 HEAD COVER 100K0828 011006 OIL FILTER 100K0828 011007 DIPSTICK AND GUIDE 100K0828 011100 MAIN BEARING CASE 100K0828 011101 CAMSHAFT AND IDLE GEAR SHAFT 100K0828 011102 PISTON AND CRANKSHAFT 100K0828 011103 FLYWHEEL 100K0828 011105 FUEL CAMSHAFT AND GOVERNOR SHAFT 100K0828 011200 IDLE APPARATUS 100K0828 011202 INJECTION PUMP 100K0828 011204 GOVERNOR 100K0828 011205 SPEED CONTROL PLATE 100K0828 011206 NOZZLE HOLDER AND GLOW PLUG 100K0828 011207 NOZZLE HOLDER [COMPONENT PARTS] 100K0828 011301 FUEL PUMP(MECHANICAL) 100K0828 011400 DYNAMO 100K0828 011401 DYNAMO [COMPONENT PARTS] 100K0828 011500 WATER FLANGE AND THERMOSTAT 100K0828 011501 WATER PUMP 100K0828 011600 VALVE AND ROCKER ARM 100K0828 011601 INLET MANIFOLD 100K0828 011602 EXHAUST MANIFOLD 100K0828 011603 AIR CLEANER 100K0828 011605 MUFFLER 100K0828 011700 HYDRAULIC PUMP 100K0828 011701 HYDRAULIC PUMP [COMPONENT PARTS] 100K0828 011900 UPPER GASKET KIT 100K0828 011901 LOWER GASKET KIT 100K0828 01A001 ACCELERATOR LEVER 100K0828 01A030 ACCELERAOTR ROD 100K0828 FUEL SYSTEM 01A101 FUEL TANK 100K0828 01A11002 FUEL PIPE 100K0828 01A130 FUEL FILTER [COMPONENT PARTS] 100K0828 COOLING WATER SYSTEM 01A40102 FAN 100K0828 01A41002 WATER PIPE 100K0828 01A42002 RADIATOR 100K0828 01A430 RESERVE TANK 100K0828 ELECTRICAL SYSTEM 01A510 STOP SOLENOID 100K0828 01A525 STARTER 100K0828 01A530 STARTER [COMPONENT PARTS] 100K0828 01A535 BATTERY 100K0828 01B101 SWITCH 100K0828 01B115 PANEL BOARD 100K0828 01B120 PANEL BOARD [COMPONENT PARTS] 100K0828 01B301 HEAD LIGHT 100K0828 01B302 HAZARD LIGHT 100K0828 01B304 TAIL LIGHT 100K0828 01B310 WINKER LAMP 100K0828 01B50102 ELECTRICAL WIRING 100K0828

Ref. B3030HSD Page 11033 Item Part No. Description Book CLUTCH 01C401 CLUTCH HOUSING 100K0828 01C415 CENTER FRAME 100K0828 01C417 SUB FRAME 100K0828 TRANSMISSION 01C420 TRANSMISSION CASE 100K0828 01C425 DIFFERENTIAL GEAR CASE 100K0828 01C428 REAR AXLE CASE LH 100K0828 01C429 REAR AXLE CASE RH 100K0828 01D001 CLUTCH SHAFT 100K0828 01D005 PROPELLER SHAFT 100K0828 01D010 HST 100K0828 01D016 HST [COMPONENT PARTS] 1 100K0828 01D017 HST [COMPONENT PARTS] 2 100K0828 01D018 HST [COMPONENT PARTS] 3 100K0828 01D019 HST [COMPONENT PARTS] 4 100K0828 01D108 RANGE GEAR SHAFT 100K0828 01D110 REVERSE SHAFT 100K0828 01D13202 PTO DRIVE SHAFT 100K0828 01D133 PTO CLUTCH SHAFT 100K0828 01D136 PTO CLUTCH 100K0828 01D137 MID PTO 100K0828 01D139 BEVEL GEAR SHAFT/RANGE GEAR 100K0828 01D140 REAR DIFFERENTIAL 100K0828 SPEED CHANGE 01D217 RANGE GEAR SHIFT FORK 100K0828 01D222 PTO GEAR SHIFT ARM 100K0828 01D225 DIFFERENTIAL LOCK SHIFT FORK 100K0828 REAR AXLE 01D301 REAR AXLE 100K0828 BRAKE 01E001 BRAKE 100K0828 01E005 BRAKE ROD 100K0828 01E015 PARKING BRAKE LEVER 100K0828 SPEED CHANGE 01F104 CRUISE CONTROL LEVER 100K0828 01F105 CRUISE CONTROL BASE 100K0828 01F106 CRUISE CONTROL CLUTCH 100K0828 01F108 SPEED CONTROL PEDAL 100K0828 01F109 HST RELEASE ROD 100K0828 01F110 RANGE GEAR SHIFT LEVER 100K0828 01F113 FRONT WHEEL DRIVE LEVER 100K0828 01F125 PTO GEAR SHIFT LEVER 100K0828 PUMP/MOTOR SYSTEM 01F140 POSITON CONTROL LEVER 100K0828 BRAKE 01F201 BRAKE PEDAL 100K0828 REAR AXLE 01F205 DIFFERENTIAL LOCK PEDAL 100K0828 FRONT AXLE 01G101 FRONT AXLE FRAME 100K0828 01G105 FRONT AXLE CASE 100K0828 01G115 FRONT DIFFERENTIAL 100K0828 01G120 DIFFERENTIAL GEAR SHAFT 100K0828 01G123 BEVEL GEAR CASE 100K0828 01G125 FRONT AXLE CASE 100K0828 01G130 FRONT AXLE 100K0828 01G135 FRONT DRIVE SHAFT 100K0828 STEERING 01H101 STEERING HANDLE 100K0828 01H105 STEERING POST 100K0828 01H108 TILT PEDAL 100K0828 01H110 STEERING CONTROLLER 100K0828 01H120 STEERING LINKAGE 100K0828 01H122 STEERING CYLINDER [COMPONENT PARTS] 100K0828 PUMP/MOTOR SYSTEM 01J20102 HYDRAULIC OIL LINE(SUCTION) 100K0828 01J21002 HYDRAULIC OIL LINE(DELIVERY) 100K0828 01J21502 HYDRAULIC OIL LINE(STEERING) 100K0828 01J235 HYDRAULIC OIL LINE (HST) 100K0828

Ref. B3030HSD Page 11033 Item Part No. Description Book PUMP/MOTOR SYSTEM 01J240 HYDRAULIC OIL LINE (OIL COOLER) 100K0828 01J301 HYDRAULIC CYLINDER 100K0828 01J310 HYDRAULIC PISTON/LIFT ARM 100K0828 01J330 FEED BACK LEVER 100K0828 01J405 CONTROL VALVE 100K0828 01J410 CONTROL VALVE [COMPONENT PARTS] 100K0828 01J430 RELIEF VALVE 100K0828 01J470 PTO VALVE 100K0828 01J472 PTO VALVE [COMPONENT PARTS] 100K0828 01K101 3-POINT LINKAGE 2(LIFT ROD) 100K0828 TOP LINK/TOP LINK BRACKET/PTO PROTECTOR 01K115 LOWER LINK 100K0828 01K119 STABILIZER 100K0828 01K120 3-POINT LINKAGE 1(TOP LINK) 100K0828 01L117 HITCH/DRAWBAR 100K0828 01L125 PTO PROTECTOR 100K0828 HOOD/BONNET 01M101 FRONT GRILLE 100K0828 01M105 BONNET 100K0828 01M113 PANEL COVER 100K0828 01M120 SIDE COVER 100K0828 01M130 SHUTTER PLATE 100K0828 01M208 LEVER GUIDE LH 100K0828 01M209 LEVER GUIDE RH 100K0828 01M210 FENDER 100K0828 01M21502 FLOOR SEAT 100K0828 01M21702 SEAT SUPPORT 100K0828 01M219 SEAT SUSPENSION 100K0828 01M225 STEP 100K0828 01M30101 ROPS(RIGID TYPE) 100K0828 01M30102 ROPS(FOLDABLE TYPE) 100K0828 01M501 SMV EMBLEM 100K0828 FRONT TIRE 01R10101 FRONT WHEEL(7-12) 100K0828 01R10102 FRONT WHEEL(23*8.50-14R4) 100K0828 01R10103 FRONT WHEEL(24*8.50-14) 100K0828 REAR TIRE 01R11001 REAR WHEEL(12.4-16) 100K0828 01R11002 REAR WHEEL(12.4-16R4) 100K0828 01R11003 REAR WHEEL(13.6-16) 100K0828 LABELS 01S10103 LABEL [ENGLISH] 100K0828 01S10104 LABEL [FRENCH] 100K0828 ACCESSORIES AND SERVICE PARTS 01T105 ACCESSORIES AND SERVICE PARTS 100K0828 OPTION 01U800 ALTERNATOR KIT [OPTION] 100K0828 01U802 ALTERNATOR [COMPONENT PARTS] [OPTION] 100K0828 01U805 WORKING LIGHT KIT [OPTION] 100K0828 01U94001 AUXILIARY CONTROL VALVE [OPTION] 100K0828 01U94002 AUXILIARY CONTROL VALVE (FLOATING) [OPTION] 100K0828 01U94301 AUXILIARY CONTROL VALVE LEVER (1ST) [OPTION] 100K0828 01U94302 AUXILIARY CONTROL VALVE LEVER (2ND) [OPTION] 100K0828 01U94501 AUXILIARY CONTROL VALVE COUPLER (1ST) [OPTION] 100K0828 01U94502 AUXILIARY CONTROL VALVE COUPLER (2ND) [OPTION] 100K0828

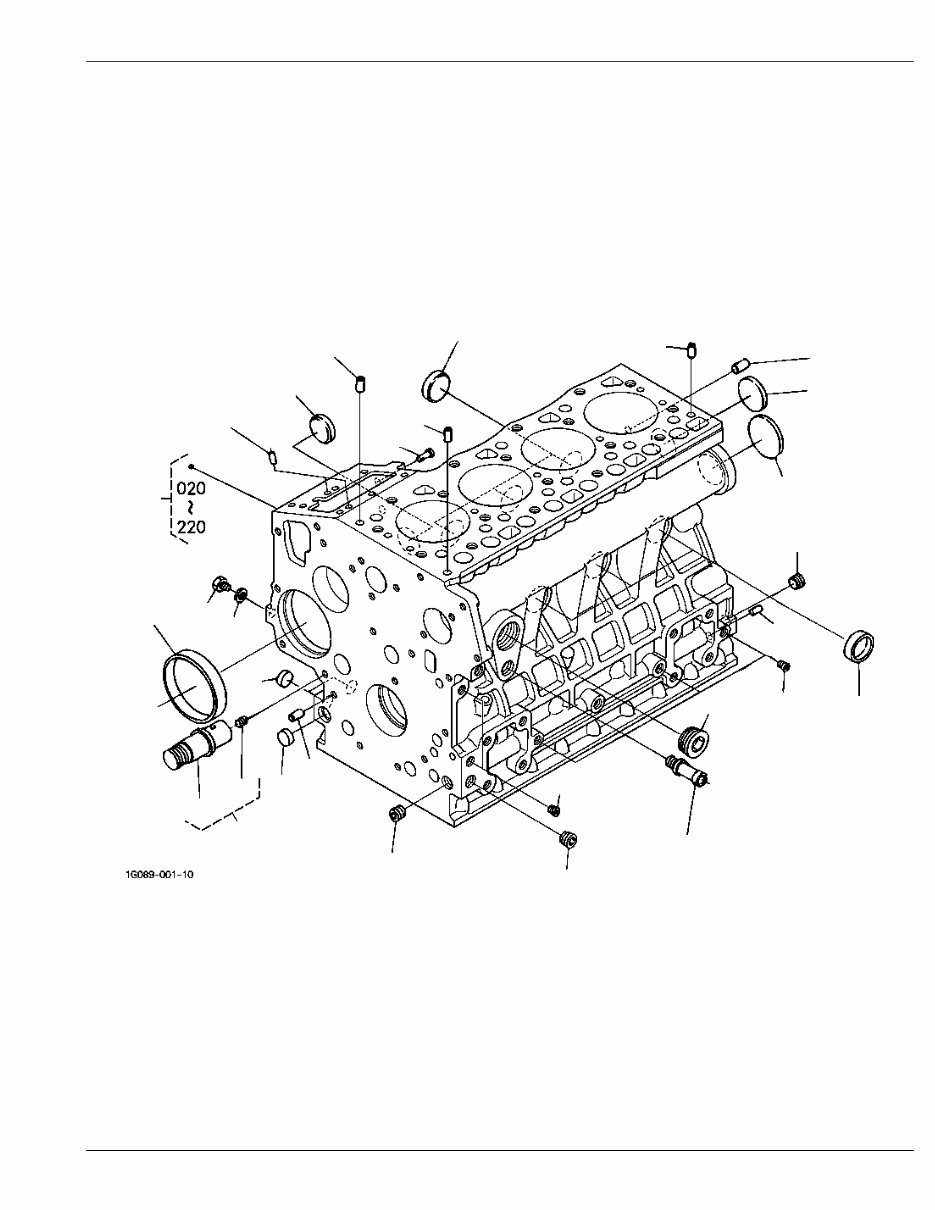

CRANKCASE Reference: 011001 Page: 1 010 020 020 030 040 050 060 060 060 070 080 080 090 100 110 110 120 120 130 140 150 160 170 180 190 200 210 220 230

CRANKCASE Reference: 011001 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 1G093-01010 COMP.CRANKCASE 1 47 103.4 020 15451-96270 CAP SEALING 6 0.001 0.0022 030 15221-03490 CAP SEALING 1 0.02 0.044 040 15261-96010 PLUG 4 0.002 0.0044 050 16683-96020 PLUG 1 0.07 0.154 060 16241-96010 PLUG 3 0.007 0.0154 070 15521-96020 PLUG 2 0.003 0.0066 080 17391-96160 PLUG EXPANSION 3 0.003 0.0066 090 16271-96160 PLUG EXPANSION 1 0.025 0.055 100 05012-00508 PIN STRAIGHT 2 0.001 0.0022 110 05012-00814 PIN STRAIGHT 2 0.006 0.0132 120 16221-94520 PIN STRAIGHT 2 0.005 0.011 130 15231-33960 PIN PIPE 2 0.001 0.0022 140 16241-33650 PIN PIPE 1 0.002 0.0044 150 16241-96262 PLUG FUEL CAMSHAFT 1 0.007 0.0154 160 16221-56280 PIN START SPRING 1 0.005 0.011 170 16251-24060 COMP SHAFT IDLE 1 0.18 0.396 180 16251-24260 SHAFT IDLE GEAR 1 0.18 0.396 190 15521-93610 SCREW SET 1 0.002 0.0044 200 16271-55350 BUSH GOVERNOR GEAR 1 0.06 0.132 210 15221-33610 PLUG 1 0.009 0.0198 220 15021-33660 GASKET 1 0.001 0.0022 230 15321-73340 PIPE WATER RETURN 1 0.016 0.0352

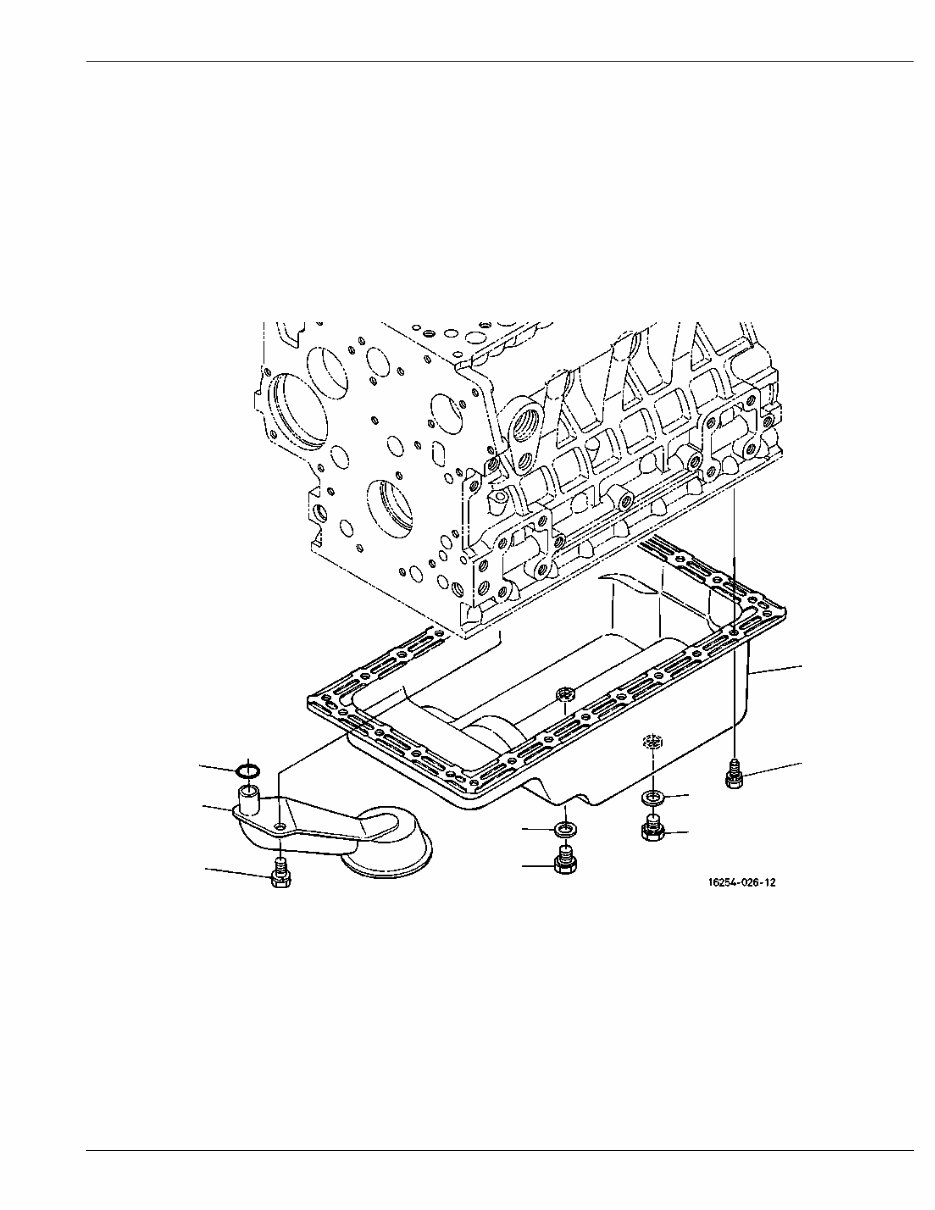

OIL PAN Reference: 011002 Page: 2 010 020 030 030 040 040 050 060 070

OIL PAN Reference: 011002 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 16271-01502 COMP.OIL PAN 1 1.7 3.74 020 16221-91120 BOLT 26 0.005 0.011 030 16271-33750 PLUG 2 0.1 0.22 040 15471-96650 GASKET 2 0.002 0.0044 050 16271-32115 FILTER OIL 1 0.24 0.528 060 01123-60816 BOLT 1 0.01 0.022 070 04814-00160 O RING 1 0.001 0.0022

CYLINDER HEAD Reference: 011003 Page: 3 010 010 020 020 030 040 050 050 060 070 080 090 100 110
