Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

|ALL PRODUCT INDEX B2400HSE Ref. B2400HSE Page 11029 ENGINE FUEL SYSTEM COOLING WATER SYSTEM ELECTRICAL SYSTEM CLUTCH FRAME TRANSMISSION REAR AXLE BRAKE SPEED CHANGE LEVER FRONT AXLE STEERING HYDRAULIC SYSTEM WHEEL LABELS ACCESSORIES HOOD(BONNET)/ROPS

Ref. B2400HSE Page 11029 Item Part No. Description Book ENGINE 010001 CRANK CASE 100A0078 010002 OIL PAN 100A0078 010003 CYLINDER HEAD 100A0078 010004 GEAR CASE 100A0078 010005 HEAD COVER 100A0078 010100 MAIN BEARING CASE 100A0078 010101 CAMSHAFT AND IDLE GEAR SHAFT 100A0078 010102 PISTON AND CRANK SHAFT 100A0078 010103 FLYWHEEL 100A0078 010105 FUEL CAMSHAFT AND GOVERNOR SHAFT 100A0078 010201 STOP SOLENOID 100A0078 010202 INJECTION PUMP 100A0078 010203 INJECTION PUMP [COMPONENT PARTS] 100A0078 010204 GOVERNOR 100A0078 010205 SPEED CONTROL PLATE 100A0078 010206 NOZZLE HOLDER AND GLOW PLUG 100A0078 010207 NOZZLE HOLDER [COMPONENT PARTS] 100A0078 010500 WATER FLANGE AND THERMOSTAT 100A0078 010501 WATER PUMP 100A0078 010600 VALVE AND ROCKER ARM 100A0078 010601 INLET MANIFOLD 100A0078 010602 EXHAUST MANIFOLD 100A0078 01090001 UPPER GASKET KIT 100A0078 01090002 LOWER GASKET KIT 100A0078 ELECTRICAL SYSTEM 01A521 DYNAMO 100A0078 01A523 DYNAMO [COMPONENT PARTS] 100A0078 CLUTCH 01C101 CLUTCH 100A0078 HYDRAULIC SYSTEM 01J120 HYDRAULIC PUMP 100A0078 01J125 HYDRAULIC PUMP [COMPONENT PARTS] 100A0078 ENGINE 02060301 AIR CLEANER 100A0078 02060302 AIR CLEANER 100A0078 02060303 AIR CLEANER (DOUBLE) [OPTION] 100A0078 020605 MUFFLER 100A0078 FUEL SYSTEM 02A001 ACCELERATOR LEVER 100A0078 02A101 FUEL TANK 100A0078 02A110 FUEL PIPE 100A0078 02A11001 FUEL PIPE 100A0078 02A130 FUEL FILTER [COMPONENT PARTS] 100A0078 COOLING WATER SYSTEM 02A401 FAN 100A0078 02A410 WATER PIPE 100A0078 02A420 RADIATOR 100A0078 ELECTRICAL SYSTEM 02A515 ALTERNATOR [CA] 100A0078 02A520 ALTERNATOR [COMPONENT PARTS] [CA] 100A0078 02A525 STARTER 100A0078 02A530 STARTER [COMPONENT PARTS] 100A0078 02A535 BATTERY 100A0078 02B115 PANEL BOARD 100A0078 02B120 PANEL BOARD [COMPONENT PARTS] 100A0078 02B301 HEAD LIGHT 100A0078 02B302 TAIL LIGHT/HAZARD LIGHT/WORKING LIGHT 100A0078 02B50101 ELECTRICAL WIRING 100A0078 02B50102 ELECTRICAL WIRING [CA] 100A0078 CLUTCH 02C110 CLUTCH ROD 100A0078 02C301 CLUTCH PEDAL 100A0078 02C401 CLUTCH HOUSING 100A0078 FRAME 02C415 FRAME 100A0078

Ref. B2400HSE Page 11029 Item Part No. Description Book TRANSMISSION 02C420 TRANSMISSION CASE 100A0078 02C425 DIFFERENTIAL GEAR CASE 100A0078 02C427 REAR AXLE CASE 100A0078 02D001 CLUTCH SHAFT/PROPELLER SHAFT 100A0078 02D010 HST 100A0078 02D015 HST [COMPONENT PARTS] 100A0078 02D105 2ND SHAFT/3RD SHAFT/4TH SHAFT 100A0078 02D135 5TH SHAFT/PTO SHAFT 100A0078 02D137 MID PTO 100A0078 REAR AXLE 02D140 REAR DIFFERENTIAL 100A0078 02D301 REAR AXLE 100A0078 BRAKE 02E001 BRAKE 100A0078 02E015 PARKING BRAKE LEVER 100A0078 SPEED CHANGE LEVER 02F010 SPEED CHANGE LEVER 100A0078 02F020 SPEED CONTROL PEDAL 100A0078 02F030 SPEED SET LEVER 100A0078 02F110 RANGE GEAR SHIFT LEVER 100A0078 02F113 FRONT WHEEL DRIVE LEVER PLUG 100A0078 02F125 PTO GEAR SHIFT LEVER 100A0078 02F140 POSITION CONTROL LEVER 100A0078 02F201 BRAKE PEDAL 100A0078 02F205 DIFFERENTIAL LOCK PEDAL 100A0078 FRONT AXLE 02G101 FRONT AXLE FRAME 100A0078 02G103 FRONT WHEEL HUB 100A0078 STEERING 02H001 DRAG LINK/TIE ROD 100A0078 02H101 STEERING HANDLE 100A0078 02H110 STEERING CONTROLLER 100A0078 02H11501 STEERING CONTROLLER [COMPONENT PARTS] 100A0078 02H11502 STEERING CONTROLLER [COMPONENT PARTS] 100A0078 HYDRAULIC SYSTEM 02J201 HYDRAULIC OIL LINE (SUCTION) 100A0078 02J203 FLOW DIVIDER VALVE [COMPONENT PARTS] 100A0078 02J215 HYDRAULIC OIL LINE (STEERING) 100A0078 02J230 HYDRAULIC OIL LINE (T/M) 100A0078 02J235 HYDRAULIC OIL LINE (HST) 100A0078 02J240 HYDRAULIC OIL LINE (OIL COOLER) 100A0078 02J301 HYDRAULIC CYLINDER CASE 100A0078 02J405 CONTROL VALVE 100A0078 02J41001 CONTROL VALVE [COMPONENT PARTS] 100A0078 02J41002 CONTROL VALVE [COMPONENT PARTS] 100A0078 02K101 LIFT ROD 100A0078 02K115 LOWER LINK 100A0078 02K120 TOP LINK 100A0078 HOOD(BONNET)/ROPS 02M101 FRONT GRILLE 100A0078 02M105 HOOD (BONNET) 100A0078 02M120 SIDE COVER 100A0078 02M210 FENDER 100A0078 02M211 EXTENSION FENDER 100A0078 02M217 SEAT SUPPORT 100A0078 02M220 SEAT 100A0078 02M225 STEP 100A0078 02M301 ROPS 100A0078 WHEEL 02R10102 FRONT WHEEL (6.50-10) 100A0078 02R11003 REAR WHEEL (11.2-16) 100A0078 02R11004 REAR WHEEL (33*12.5-15) 100A0078 02R11005 REAR WHEEL (31*15.5-15) 100A0078 LABELS 02S101 LABEL 100A0078

Ref. B2400HSE Page 11029 Item Part No. Description Book ACCESSORIES 02T102 EXTENSION STOPPER 100A0078 02T105 ACCESSORIES AND SERVICE PARTS 100A0078

CRANK CASE Reference: 010001 Page: 1 010 020 020 030 040 050 060 060 060 070 080 080 090 100 110 110 120 120 130 130 140 150 160 170 180 190 200 210 220 230

CRANK CASE Reference: 010001 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 16613-01010 COMP.CRANKCASE 1 <=741870 31.47 69.234 010 16613-01010 COMP.CRANKCASE 1 >=10001 31.47 69.234 010 16613-01012 COMP.CRANKCASE 1 >=110327 ≠ 31.2 68.64 010 16613-01013 COMP.CRANKCASE 1 >=YC0001 ← 32 70.4 020 15451-96270 CAP SEALING 4 0.012 0.0264 030 15221-03490 CAP SEALING 1 0.02 0.044 040 15261-96010 PLUG 3 0.002 0.0044 050 16683-96020 PLUG 1 0.47 1.034 060 16241-96010 PLUG 3 0.007 0.0154 070 15521-96020 PLUG 2 0.003 0.0066 080 17391-96160 PLUG EXPANSION 3 0.003 0.0066 090 16271-96160 PLUG EXPANSION 1 0.025 0.055 100 05012-00508 PIN STRAIGHT 2 <=WT2678 0.001 0.0022 100 16225-94510 PIN STRAIGHT 2 >=WU0001 ↔ 0.001 0.0022 110 05012-00814 PIN STRAIGHT 2 <=WT2678 0.006 0.0132 110 16221-94530 PIN STRAIGHT 2 >=WU0001 ↔ 0.006 0.0132 120 05012-00610 PIN STRAIGHT 2 <=WT2678 0.003 0.0066 120 16221-94520 PIN STRAIGHT 2 >=WU0001 ↔ 0.005 0.011 130 15231-33960 PIN PIPE 2 0.001 0.0022 140 16241-33650 PIN PIPE 1 0.002 0.0044 150 16241-96260 PLUG 1 <=781870 0 0 150 16241-96260 PLUG 1 >=10001 0 0 150 16241-96262 PLUG FUEL CAMSHAFT 1 >=49890 ← 0.007 0.0154 160 16261-56280 PIN START SPRING 1 0.004 0.0088 170 16282-96010 PLUG 1 0.09 0.198 180 16271-55350 BUSH GOVERNOR GEAR 1 0.06 0.132 190 15221-33610 PLUG 1 0.009 0.0198 200 15021-33660 GASKET 1 0.001 0.0022 210 15221-33700 O RING 1 0.001 0.0022 220 15321-73340 PIPE WATER RETURN 1 0.016 0.0352 230 15531-39010 SWITCH OIL 1 0.032 0.0704

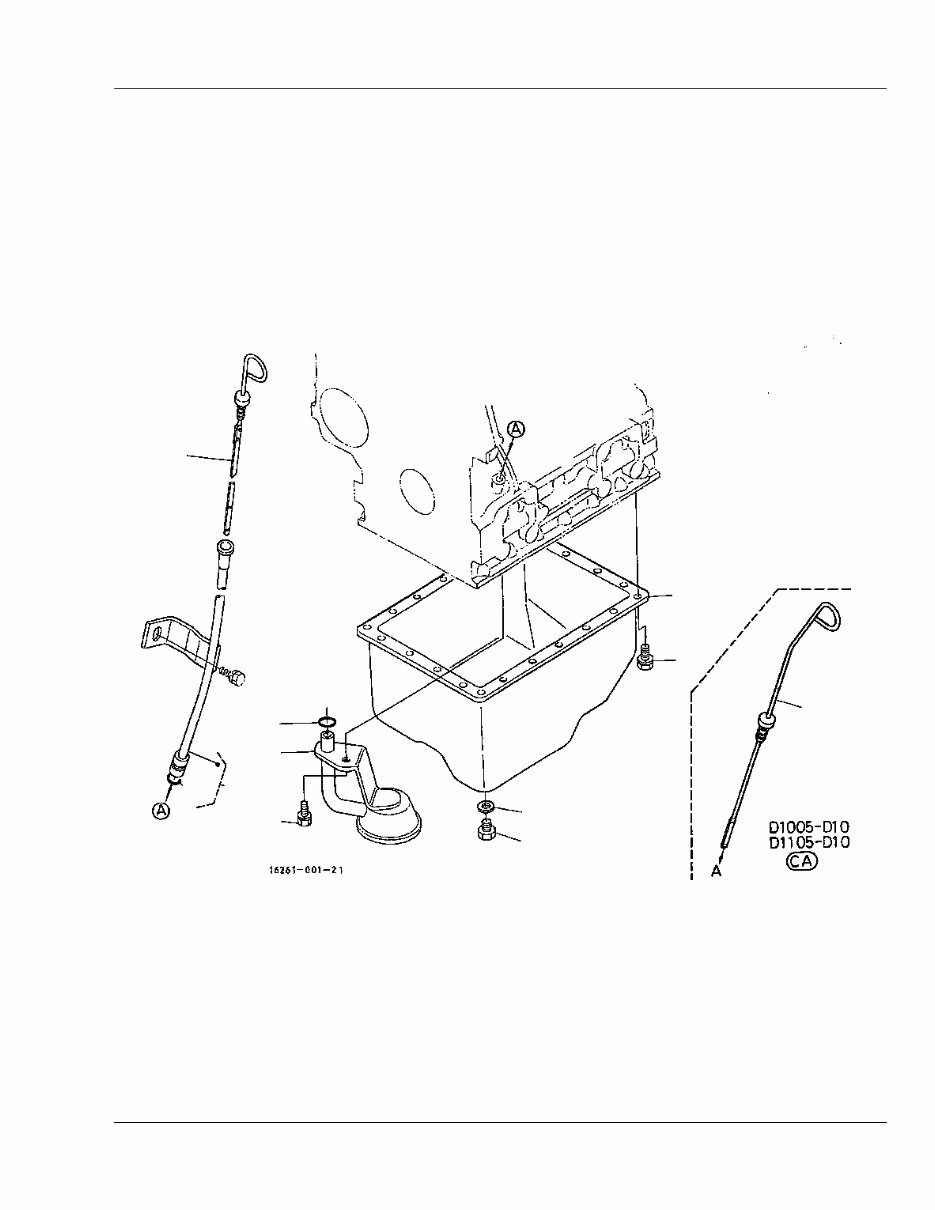

OIL PAN Reference: 010002 Page: 2 010 030 040 050 060 070 080 090 090 100 110

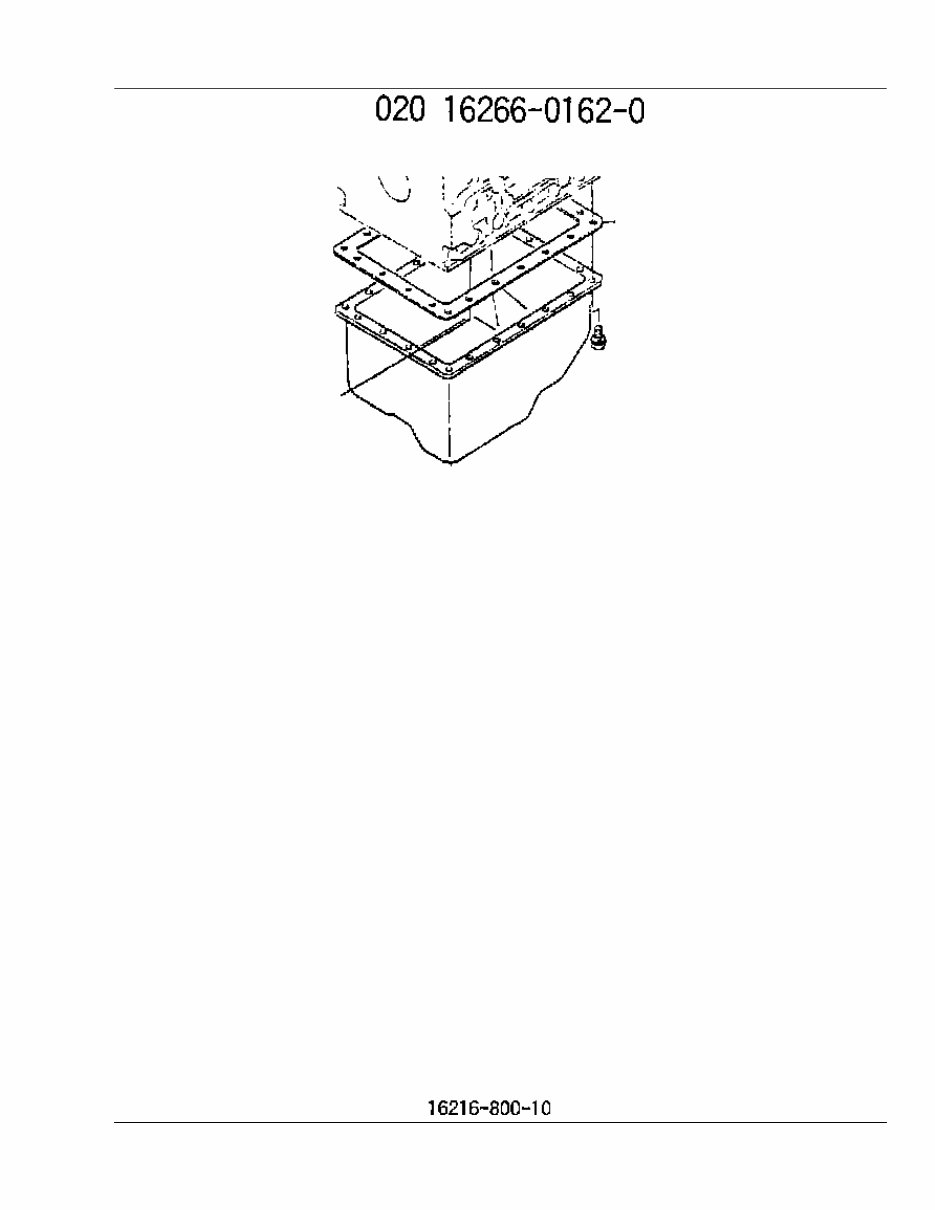

OIL PAN Reference: 010002 Page: 2 020

OIL PAN Reference: 010002 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 6C040-58920 COMP.OIL PAN 1 1.2 2.64 020 16266-01620 GASKET OIL PAN 1 <=741870 0.028 0.0616 020 16266-01620 GASKET OIL PAN 1 >=10001 0.028 0.0616 020 16266-01620 GASKET OIL PAN 1 <=15685 0.028 0.0616 030 01023-50612 BOLT 22 0.005 0.011 040 15221-33750 PLUG 1 0.032 0.0704 050 15101-33660 PACKING 1 <=WP2119 0.001 0.0022 050 6C090-58960 GASKET 1 >=WQ0001 ↔ 0.002 0.0044 060 16261-32110 FILTER OIL 1 <=741870 0 0 060 16261-32110 FILTER OIL 1 >=10001 0 0 060 16261-32113 FILTER OIL 1 >=25929 ← 0 0 060 16261-32114 FILTER OIL 1 >=WJ0001 ← 0.21 0.462 070 01123-60816 BOLT 1 0.01 0.022 080 04811-00160 O RING 1 <=WH4333 0.001 0.0022 080 04814-00160 O RING 1 >=WJ0001 ← 0.001 0.0022 090 16216-36410 GAUGE OIL 1 <=74180 [A] 0 0 090 16216-36410 GAUGE OIL 1 >=10001 [A] 0 0 090 16216-36412 GAUGE OIL 1 >=139736 ← [A] 0.03 0.066 090 16224-36410 GAUGE OIL 1 [CA] 0.057 0.1254 100 16216-36500 ASSY GUIDE OIL GAUGE 1 [A] 0.14 0.308 110 04814-00090 O RING 1 [A] 0.001 0.0022
