OPERATOR'S MANUAL KUBOTA 1AGAEEIAP0010 MODELS B2301 B2601 READ AND SAVE THIS MANUAL Kuboho

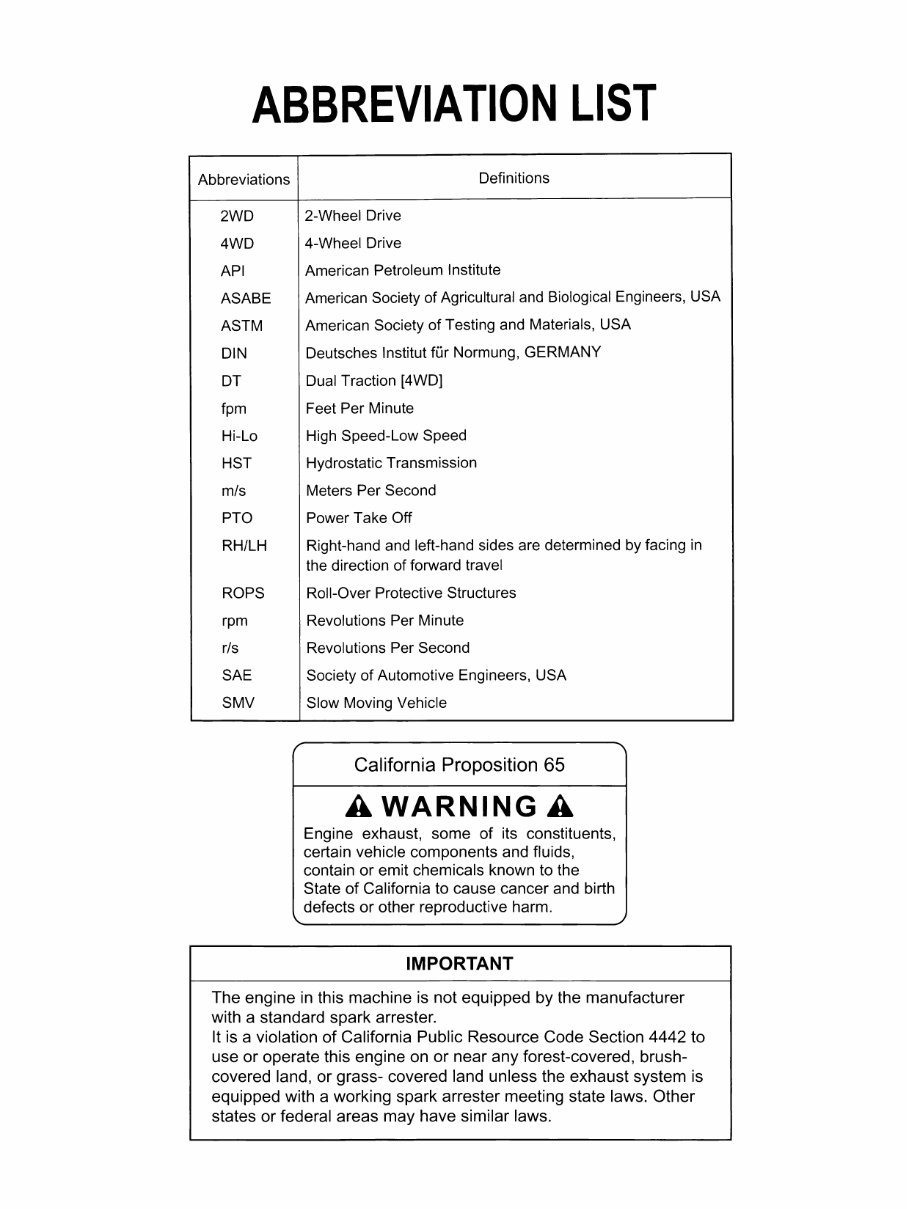

ABBREVIATION LIST Abbreviations Definitions 2WD 2-Wheel Drive 4WD 4-Wheel Drive API American Petroleum Institute ASABE American Society of Agricultural and Biological Engineers, USA ASTM American Society of Testing and Materials, USA DIN Deutsches Institut fur Normung, GERMANY DT Dual Traction [4WD] fpm Feet Per Minute Hi-Lo High Speed-Low Speed HST Hydrostatic Transmission m/s Meters Per Second PTO Power Take Off RH/LH Right-hand and left-hand sides are determined by facing in the direction of forward travel ROPS Roll-Over Protective Structures rpm Revolutions Per Minute r/s Revolutions Per Second SAE Society of Automotive Engineers, USA SMV Slow Moving Vehicle California Proposition 65 A WARNING A Engine exhaust, some of its constituents, certain vehicle components and fluids, contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. IMPORTANT The engine in this machine is not equipped by the manufacturer with a standard spark arrester. It is a violation of California Public Resource Code Section 4442 to use or operate this engine on or near any forest-covered, brush- covered land, or grass- covered land unless the exhaust system is equipped with a working spark arrester meeting state laws. Other states or federal areas may have similar laws.

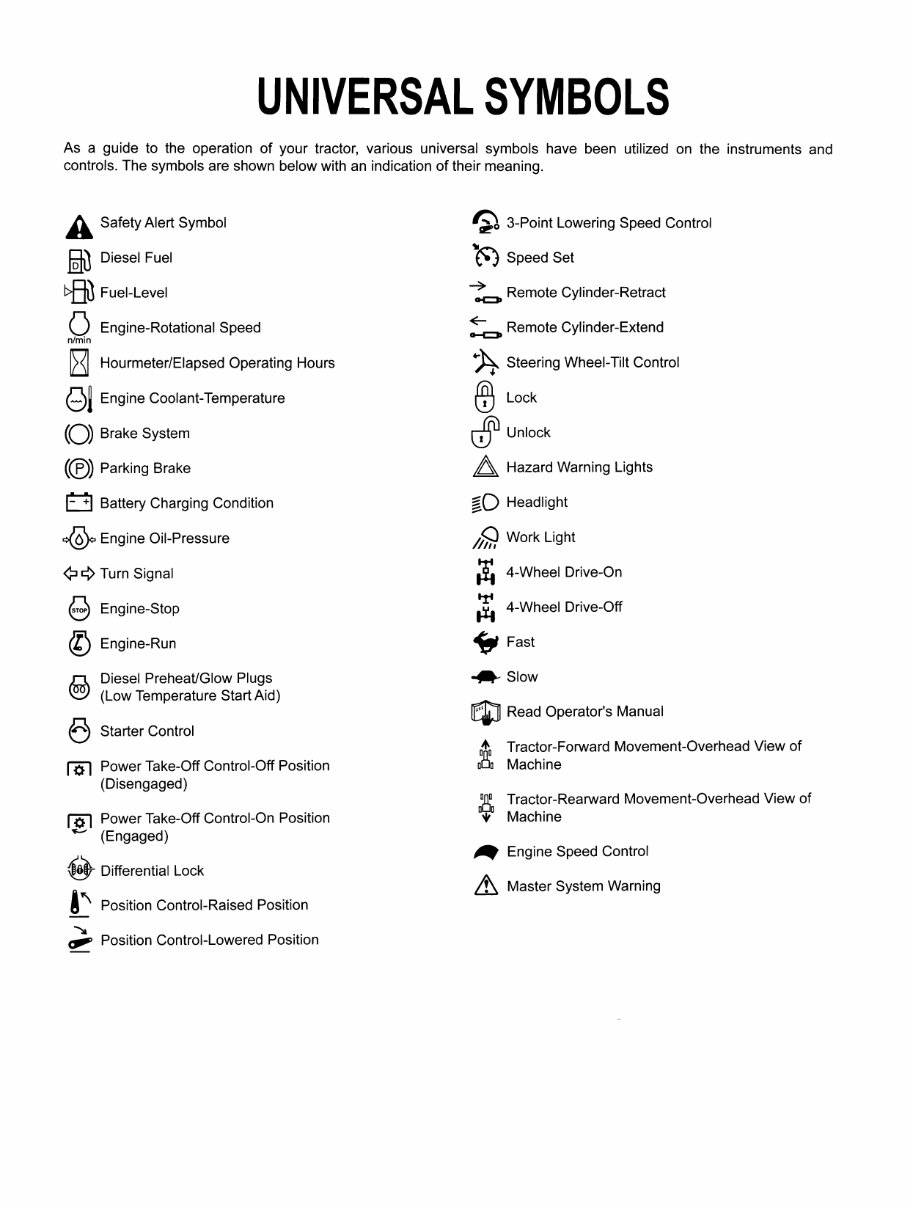

UNIVERSAL SYMBOLS As a guide to tlie operation of your tractor, various universal symbols have been utilized on the instruments and controls. The symbols are shown below with an indication of their meaning. Safety Alert Symbol D esel Fuel l>~il Fuel-Level Engine-Rotational Speed n/min ^ Hourmeter/Elapsed Operating Hours (^1 Engine Coolant-Temperature (O) System (©) ^^'"'^''^9 Brake l" +1 Battery Charging Condition Engine Oil-Pressure Turn Signal 0 Engine-Stop ^ Engine-Run n Diesel Preheat/Glow Plugs ® (Low Temperature Start Aid) ^ Starter Control Power Take-Off Control-Off Position (Disengaged) Power Take-Off Control-On Position ^ (Engaged) Differential Lock Position Control-Raised Position Position Control-Lowered Position -Si A to K »!• A 3-Point Lowering Speed Control Speed Set Remote Cylinder-Retract Remote Cylinder-Extend Steering Wheel-Tilt Control Lock Unlock Hazard Warning Lights Headlight Work Light 4-Wheel Drive-On 4-Wheel Drive-Off Fast Slow Read Operator's Manual Tractor-Forward Movement-Overhead View of Machine Tractor-Rearward Movement-Overhead View of Machine Engine Speed Control Master System Warning

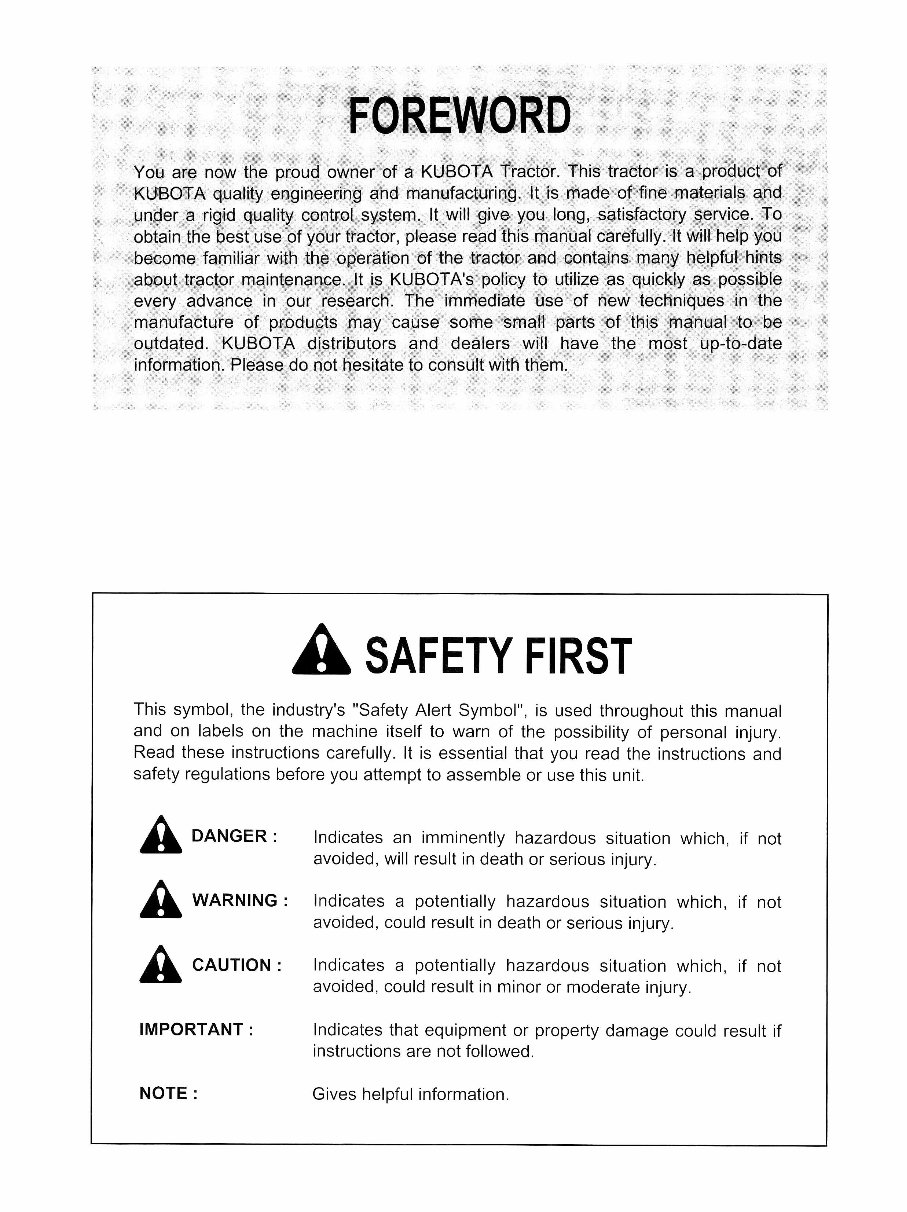

FOREWORD You are now the proud owner of a KUBOTA Tractor. This tractor is a product of KUBOTA quality engineering and manufacturing. It is made of fine materials and under a rigid quality control system. It will give you long, satisfactory service. To obtain the best use of your tractor, please read this manual carefully. It will help you become familiar with the operation of the tractor and contains many helpful hints about tractor maintenance. It is KUBOTA's policy to utilize as quickly as possible every advance in our research. The immediate use of new techniques in the manufacture of products may cause some small parts of this manual to be outdated. KUBOTA distributors and dealers will have the most up-to-date information. Please do not hesitate to consult with them. A SAFETY FIRST This symbol, the industry's "Safety Alert Symbol", is used throughout this manual and on labels on the machine itself to warn of the possibility of personal injury. Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to assemble or use this unit. A A A DANGER : Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING : Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION : Indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. IMPORTANT: Indicates that equipment or property damage could result if instructions are not followed. Gives helpful information.

ASAFE OPERATION A-1 SERVICING OF TRACTOR 1 SPECIFICATIONS 2 SPECIFICATION TABLE 2 TRAVELING SPEEDS 4 IMPLEMENT LIMITATIONS 5 INSTRUMENT PANEL AND CONTROLS 7 PRE-OPERATION CHECK 9 DAILY CHECK 9 OPERATING THE ENGINE 10 STARTING THE ENGINE 10 Block Heater (Option) 13 STOPPING THE ENGINE 13 WARMING UP 14 Warm-up Transmission Oil at Low Ambient Temperatures 14 JUMP STARTING 14 OPERATING THE TRACTOR 16 OPERATING NEW TRACTOR 16 Do not Operate the Tractor at Full Speed for the First 50 Hours 16 Changing Lubricating Oil for New Tractors 16 BOARDING AND LEAVING THE TRACTOR 16 OPERATING FOLDABLE ROPS 16 To Fold the ROPS 16 To Raise the ROPS to Upright Position 17 Adjustment of Foldable ROPS 18 STARTING 18 Operator's Seat 18 Seat Belt 19 TiltSteering Adjustment 19 Head Light / Turn Signal / Hazard Light Switch 20 Tractor Lights 21 Brake Pedals (Right and Left) 21 Range Gear Shift Lever (L-M-H) 22 Front Wheel Drive Lever 23 Hand Throttle Lever 23 Parking Brake 23 Speed Control Pedal 24 Speed Set Device 24 STOPPING 25 Stopping 25 CHECK DURING DRIVING 25 Immediately Stop the Engine if: 25 Easy Checker (TM) 25

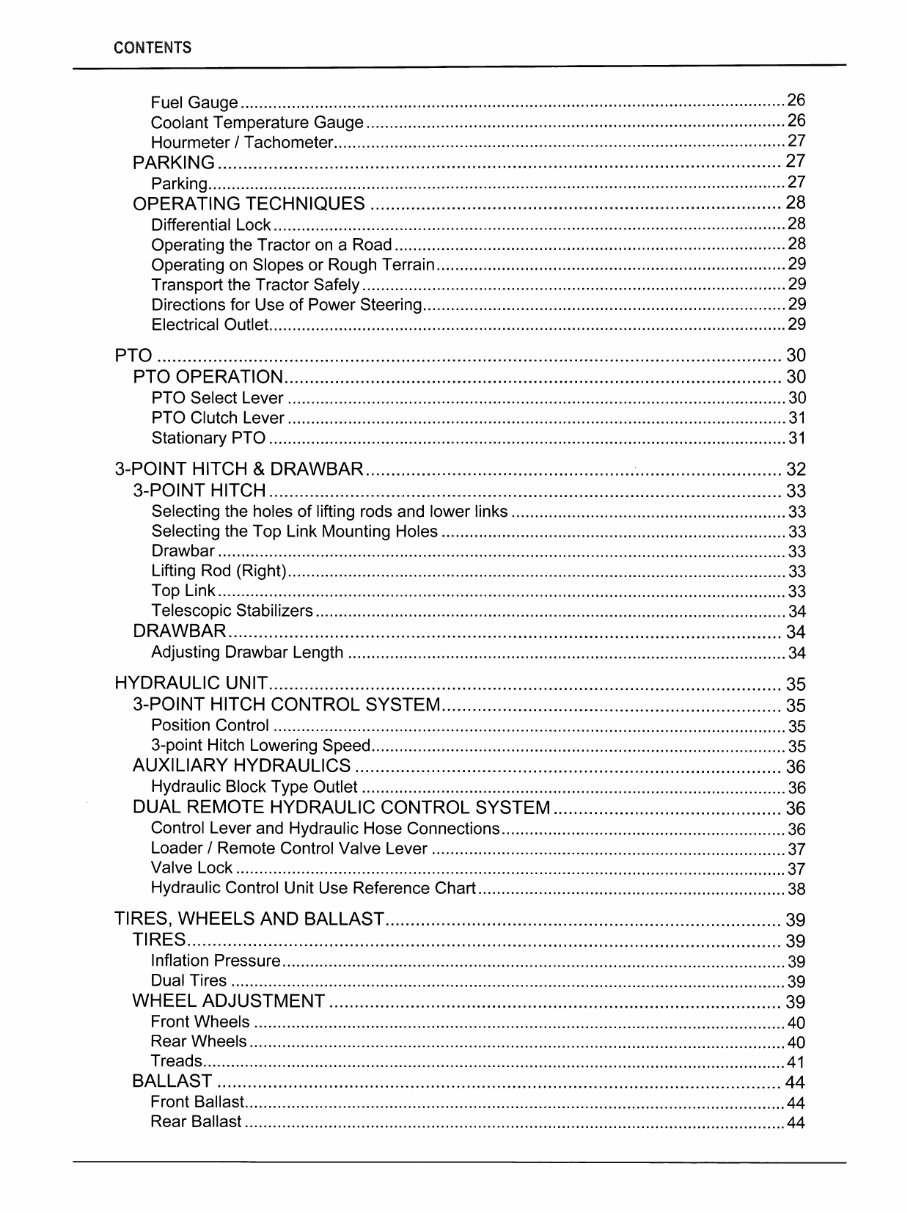

CONTENTS Fuel Gauge 26 Coolant Temperature Gauge 26 Hourmeter / Tachometer 27 PARKING 27 Parking 27 OPERATING TECHNIQUES 28 Differential Lock 28 Operating the Tractor on a Road 28 Operating on Slopes or Rough Terrain 29 Transport the Tractor Safely 29 Directions for Use of Power Steering 29 Electrical Outlet 29 PTO 30 PTO OPERATION 30 PTO Select Lever 30 PTO Clutch Lever 31 Stationary PTO 31 3-POINT HITCH & DRAWBAR 32 3-POINT HITCH 33 Selecting the holes of lifting rods and lower links 33 Selecting the Top Link Mounting Holes 33 Drawbar 33 Lifting Rod (Right) 33 Top Link 33 Telescopic Stabilizers 34 DRAWBAR 34 Adjusting Drawbar Length 34 HYDRAULIC UNIT 35 3-POINT HITCH CONTROL SYSTEM 35 Position Control 35 3-point Hitch Lowering Speed 35 AUXILIARY HYDRAULICS 36 Hydraulic Block Type Outlet 36 DUAL REMOTE HYDRAULIC CONTROL SYSTEM 36 Control Lever and Hydraulic Hose Connections 36 Loader / Remote Control Valve Lever 37 Valve Lock 37 Hydraulic Control Unit Use Reference Chart 38 TIRES, WHEELS AND BALLAST 39 TIRES 39 Inflation Pressure 39 Dual Tires 39 WHEEL ADJUSTMENT 39 Front Wheels 40 Rear Wheels 40 Treads 41 BALLAST 44 Front Ballast 44 Rear Ballast 44

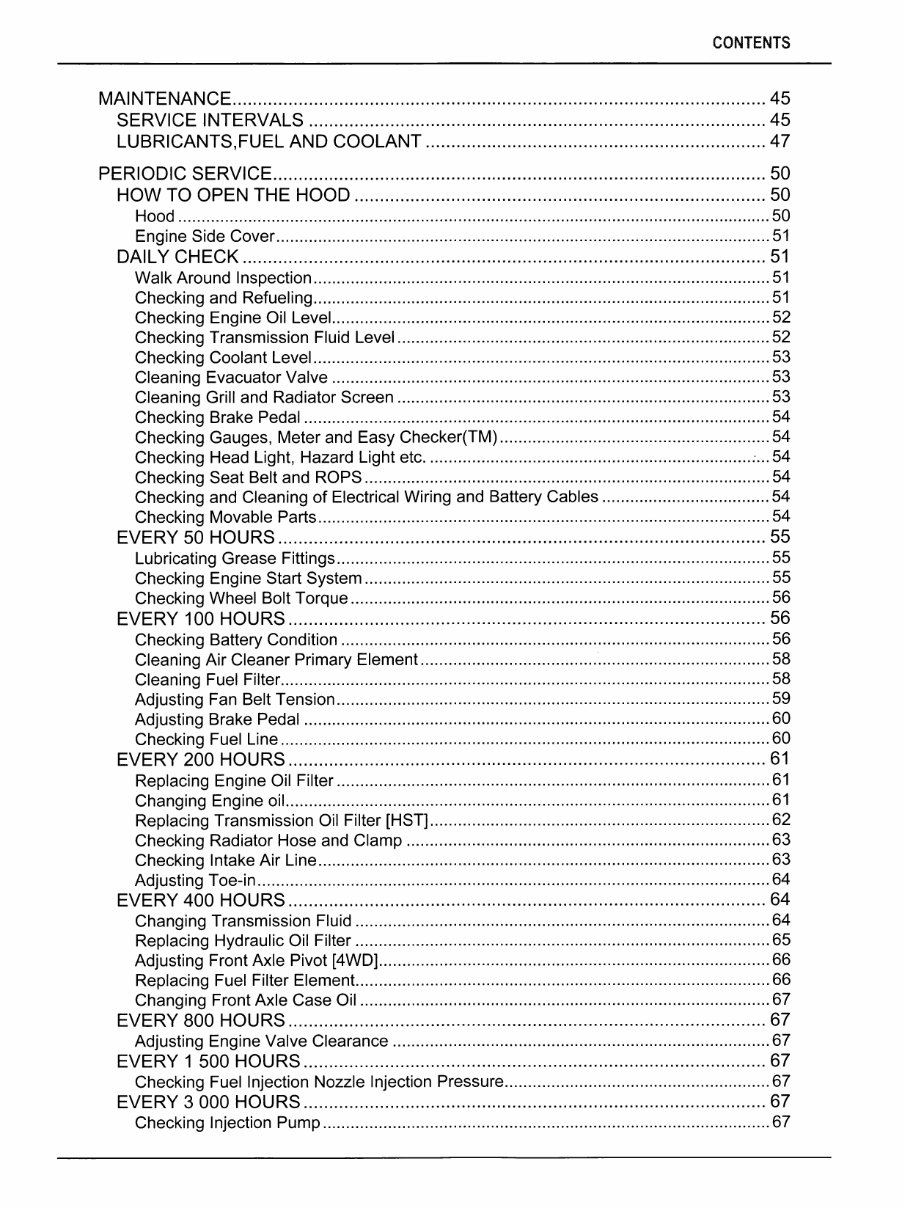

CONTENTS MAINTENANCE 45 SERVICE INTERVALS 45 LUBRICANTS,FUEL AND COOLANT 47 PERIODIC SERVICE 50 HOW TO OPEN THE HOOD 50 Hood 50 Engine Side Cover 51 DAILY CHECK 51 Walk Around Inspection 51 Checking and Refueling 51 Checking Engine Oil Level 52 Checking Transmission Fluid Level 52 Checking Coolant Level 53 Cleaning Evacuator Valve 53 Cleaning Grill and Radiator Screen 53 Checking Brake Pedal 54 Checking Gauges, Meter and Easy Checker(TM) 54 Checking Head Light, Hazard Light etc .... 54 Checking Seat Belt and ROPS 54 Checking and Cleaning of Electrical Wiring and Battery Cables 54 Checking Movable Parts 54 EVERY 50 HOURS 55 Lubricating Grease Fittings 55 Checking Engine Start System 55 Checking Wheel Bolt Torque 56 EVERY 100 HOURS 56 Checking Battery Condition 56 Cleaning AirCleaner Primary Element 58 Cleaning Fuel Filter 58 Adjusting Fan Belt Tension 59 Adjusting Brake Pedal 60 Checking Fuel Line 60 EVERY 200 HOURS 61 Replacing Engine Oil Filter 61 Changing Engine oil 61 Replacing Transmission Oil Filter [HST] 62 Checking Radiator Hose and Clamp 63 Checking Intake Air Line 63 Adjusting Toe-in 64 EVERY 400 HOURS 64 Changing Transmission Fluid 64 Replacing Hydraulic Oil Filter 65 Adjusting Front Axle Pivot [4WD] 66 Replacing Fuel Filter Element 66 Changing Front Axle Case Oil 67 EVERY 800 HOURS 67 Adjusting Engine Valve Clearance 67 EVERY 1 500 HOURS 67 Checking Fuel Injection Nozzle Injection Pressure 67 EVERY 3 000 HOURS 67 Checking Injection Pump 67

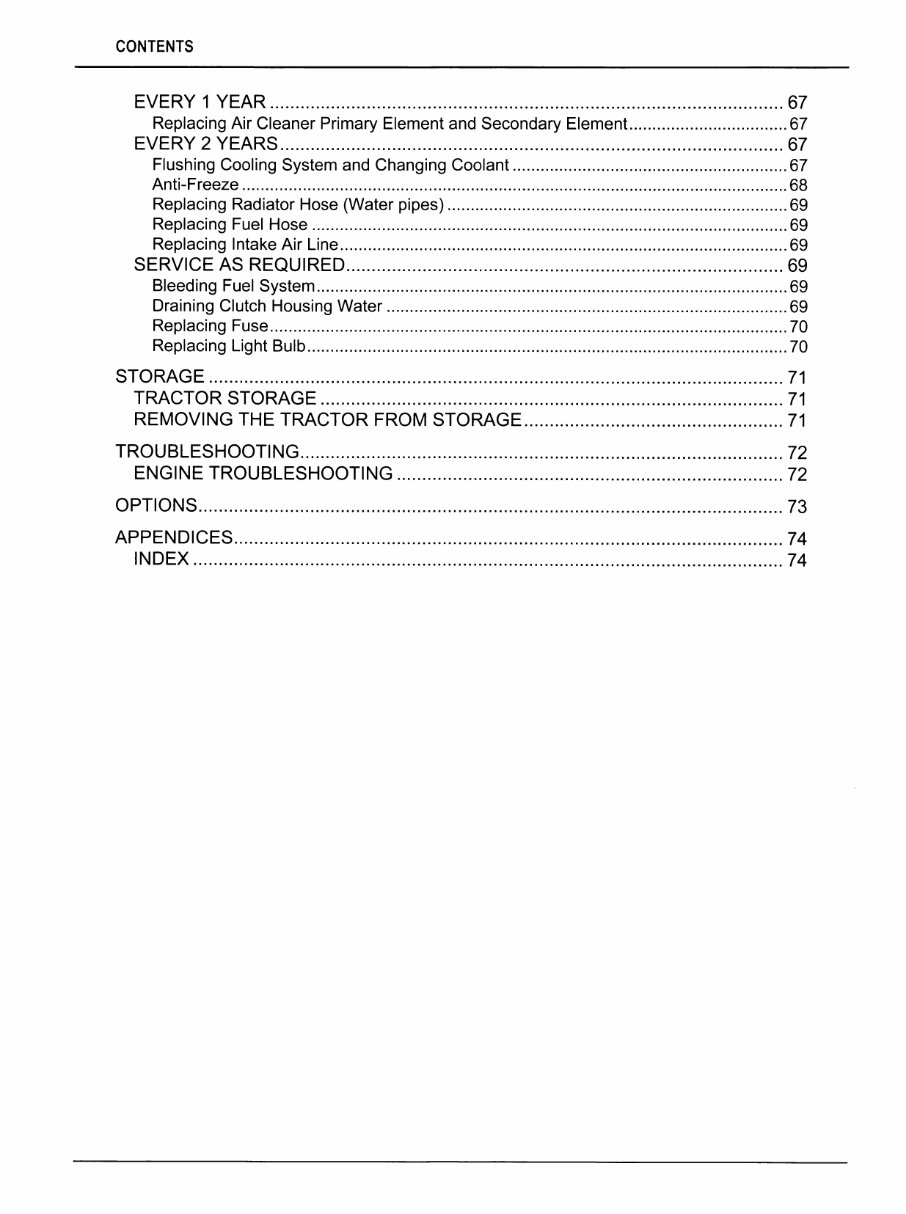

CONTENTS EVERY 1 YEAR 67 Replacing Air Cleaner Primary Element and Secondary Element 67 EVERY 2 YEARS 67 Flushing Cooling System and Changing Coolant 67 Anti-Freeze 68 Replacing Radiator Hose (Water pipes) 69 Replacing Fuel Hose 69 Replacing Intake Air Line 69 SERVICE AS REQUIRED 69 Bleeding Fuel System 69 Draining Clutch Housing Water 69 Replacing Fuse 70 Replacing Light Bulb 70 STORAGE 71 TRACTOR STORAGE 71 REMOVING THE TRACTOR FROM STORAGE 71 TROUBLESHOOTING 72 ENGINE TROUBLESHOOTING 72 OPTIONS 73 APPENDICES 74 INDEX 74

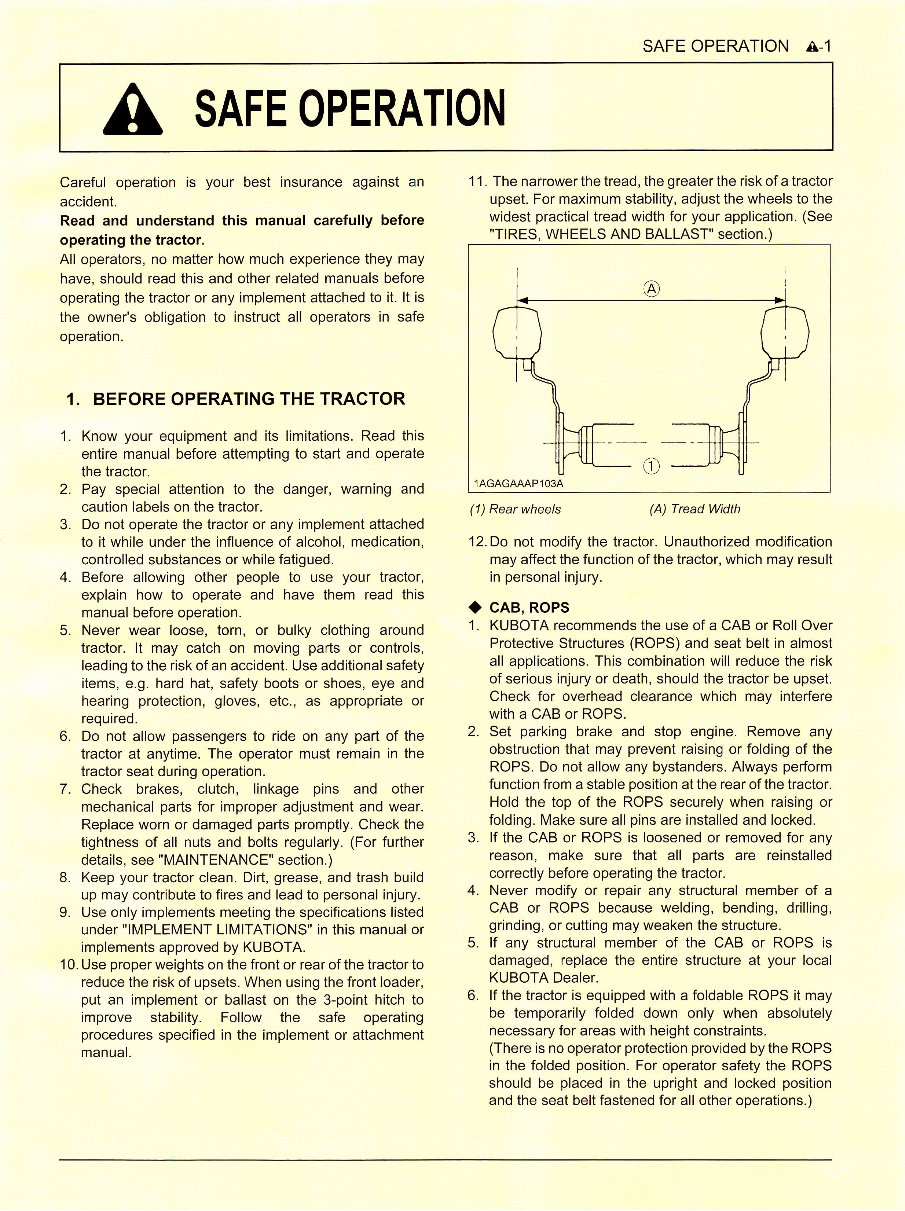

SAFE OPERATION A-1 SAFE OPERATION Careful operation is your best insurance against an accident. Read and understand this manual carefully before operating the tractor. All operators, no matter how much experience they may have, should read this and other related manuals before operating the tractor or any implement attached to it. It is the owner's obligation to instruct all operators in safe operation. 1. BEFORE OPERATING THE TRACTOR 1. 2. 3. 4. 5. 6. 7. 8. 9. Know your equipment and its limitations. Read this entire manual before attempting to start and operate the tractor. Pay special attention to the danger, warning and caution labels on the tractor. Do not operate the tractor or any implement attached to it while under the influence of alcohol, medication, controlled substances or while fatigued. Before allowing other people to use your tractor, explain how to operate and have them read this manual before operation. Never wear loose, torn, or bulky clothing around tractor. It may catch on moving parts or controls, leading to the risk of an accident. Use additional safety items, e.g. hard hat, safety boots or shoes, eye and hearing protection, gloves, etc., as appropriate or required. Do not allow passengers to ride on any part of the tractor at anytime. The operator must remain in the tractor seat during operation. Check brakes, clutch, linkage pins and other mechanical parts for improper adjustment and wear. Replace worn or damaged parts promptly. Check the tightness of all nuts and bolts regularly. (For further details, see "MAINTENANCE" section.) Keep your tractor clean. Dirt, grease, and trash build up may contribute to fires and lead to personal injury. Use only implements meeting the specifications listed under "IMPLEMENT LIMITATIONS" in this manual or implements approved by KUBOTA. 10. Use proper weights on the front or rear of the tractor to reduce the risk of upsets. When using the front loader, put an implement or ballast on the 3-point hitch to improve stability. Follow the safe operating procedures specified in the implement or attachment manual. 11. The narrower the tread, the greater the risk of a tractor upset. For maximum stability, adjust the wheels to the widest practical tread width for your application. (See "TIRES, WHEELS AND BALLAST" section.) 1AGAGAAAP103A (1) Rear wheels (A) Tread Width 12. Do not modify the tractor. Unauthorized modification may affect the function of the tractor, which may result in personal injury. ♦ CAB, ROPS 1. KUBOTA recommends the use of a CAB or Roll Over Protective Structures (ROPS) and seat belt in almost all applications. This combination will reduce the risk of serious injury or death, should the tractor be upset. Check for overhead clearance which may interfere with a CAB or ROPS. 2. Set parking brake and stop engine. Remove any obstruction that may prevent raising or folding of the ROPS. Do not allow any bystanders. Always perform function from a stable position at the rear of the tractor. Hold the top of the ROPS securely when raising or folding. Make sure all pins are installed and locked. 3. If the CAB or ROPS is loosened or removed for any reason, make sure that all parts are reinstalled correctly before operating the tractor. 4. Never modify or repair any structural member of a CAB or ROPS because welding, bending, drilling, grinding, or cutting may weaken the structure. 5. If any structural member of the CAB or ROPS is damaged, replace the entire structure at your local KUBOTA Dealer. 6. If the tractor is equipped with a foldable ROPS it may be temporarily folded down only when absolutely necessary for areas with height constraints. (There is no operator protection provided by the ROPS in the folded position. For operator safety the ROPS should be placed in the upright and locked position and the seat belt fastened for all other operations.)

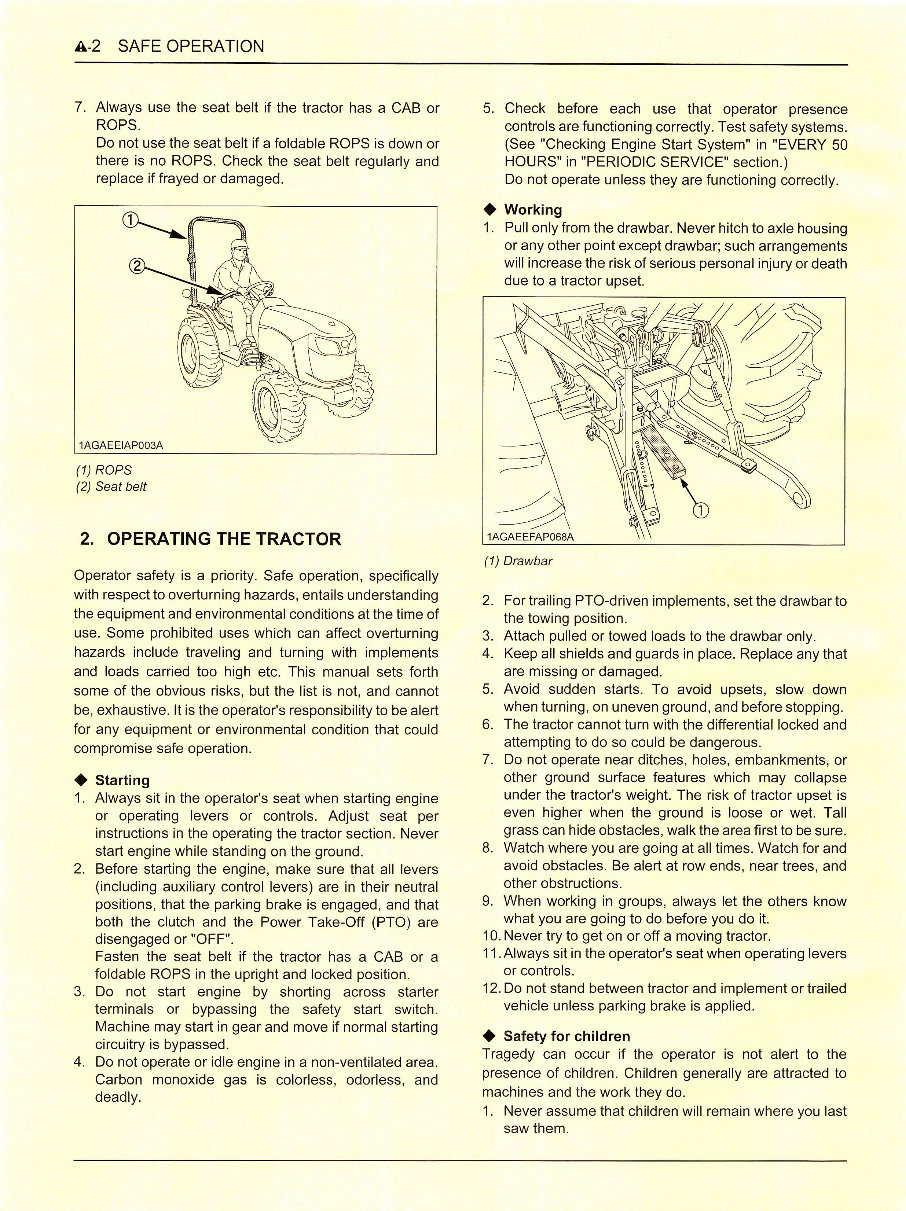

A-2 SAFE OPERATION 7. Always use the seat belt if the tractor has a CAB or ROPS. Do not use the seat belt if a foldable ROPS is down or there is no ROPS. Check the seat belt regularly and replace iffrayed or damaged. 1AGAEEIAP003A (1) ROPS {2) Seat belt 2. OPERATING THE TRACTOR Operator safety is a priority. Safe operation, specifically with respect to overturning hazards, entails understanding the equipment and environmental conditions at the time of use. Some prohibited uses which can affect overturning hazards include traveling and turning with implements and loads carried too high etc. This manual sets forth some of the obvious risks, but the list is not, and cannot be, exhaustive. It is the operator's responsibility to be alert for any equipment or environmental condition that could compromise safe operation. ♦ 1. 2. 3. 4. Starting Always sit in the operator's seat when starting engine or operating levers or controls. Adjust seat per instructions in the operating the tractor section. Never start engine while standing on the ground. Before starting the engine, make sure that all levers (including auxiliary control levers) are in their neutral positions, that the parking brake is engaged, and that both the clutch and the Power Take-Off (PTO) are disengaged or "OFF". Fasten the seat belt if the tractor has a CAB or a foldable ROPS in the upright and locked position. Do not start engine by shorting across starter terminals or bypassing the safety start switch. Machine may start in gear and move if normal starting circuitry is bypassed. Do not operate or idle engine in a non-ventilated area. Carbon monoxide gas is colorless, odorless, and deadly. 5. Check before each use that operator presence controls are functioning correctly. Test safety systems. (See "Checking Engine Start System" in "EVERY 50 HOURS" in "PERIODIC SERVICE" section.) Do not operate unless they are functioning correctly. ♦ Working 1. Pull only from the drawbar. Never hitch to axle housing or any other point except drawbar; such arrangements will increase the risk of serious personal injury or death due to a tractor upset. 1AGAEEFAP068A (1) Drawbar 2. For trailing PTO-driven implements, set the drawbar to the towing position. 3. Attach pulled or towed loads to the drawbar only. 4. Keep all shields and guards in place. Replace any that are missing or damaged. 5. Avoid sudden starts. To avoid upsets, slow down when turning, on uneven ground, and before stopping. 6. The tractor cannot turn with the differential locked and attempting to do so could be dangerous. 7. Do not operate near ditches, holes, embankments, or other ground surface features which may collapse under the tractor's weight. The risk of tractor upset is even higher when the ground is loose or wet. Tall grass can hide obstacles, walk the area first to be sure. 8. Watch where you are going at all times. Watch for and avoid obstacles. Be alert at row ends, near trees, and other obstructions. 9. When working in groups, always let the others know what you are going to do before you do it. 10. Never try to get on or off a moving tractor. 11. Always sit in the operator's seat when operating levers or controls. 12. Do not stand between tractor and implement or trailed vehicle unless parking brake is applied. ♦ Safety for children Tragedy can occur if the operator is not alert to the presence of children. Children generally are attracted to machines and the work they do. 1. Never assume that children will remain where you last saw them.
