RX6020C(PC)
RX6620C(PC)
RX7320C(PC)
RX7620C(PC)
WORKSHOP MANUAL
We reserve the right to make changes throughout
the entire manual at any time without notice.
• Using unspecified parts, fuel and lubricants
other than KIOTI's genuine parts can damage the
tractor and such damage will not be covered by
warranty.
•
IMPORTANT REMARK
PREFACE
This manual is to provide servicing personnel with information on the general speci-
fications, service, operating principle, troubleshooting, exploded view including
part name, removing and installing procedures for RX6020C(PC)/RX6620C(PC)/
RX7320C(PC)/RX7620C(PC)-US,EU,AU tractors with high-end technology.
All information in this manual is based on the latest product information available at
the time of publication. Therefore, some of the information in this manual may differ
from the machine you have.
KIOTI has a principle to apply update to the next edition of the manual if there is any.
However, KIOTI has no obligation to modify the contents in this manual, especially
the contents in the manual which is already distributed or published.
The modified information is available in KIOTI's online electronic manual system
(DEMSS).
This manual is ultimately to satisfy customers with best performance of tractor. If there
is any typo, wrong information or question for this manual, feel free to contact KIOTI.
2013. 04
service division
DAEDONG INDUSTRIAL Co., Ltd.
TABLE OF CONTENTS
CHAPTER 1 SAFETY FIRST
CHAPTER 2 GENERAL
CHAPTER 3 ENGINE
CHAPTER 4 CLUTCH
CHAPTER 5 TRANSMISSION
CHAPTER 6 REAR AXLE
CHAPTER 7 BRAKE
CHAPTER 8 FRONT AXLE
CHAPTER 10 HYDRAULIC SYSTEM
CHAPTER 11 ELECTRIC & CALIBRATION
CHAPTER 9 STEERING SYSTEM
CHAPTER 12 CABIN
CHAPTER 13 AIR CONDITIONER & HEATER
CHAPTER 14 INDEX
TABLE OF CONTENTS
SAFETY FIRST
RX6020C(PC)
RX6620C(PC)
RX7320C(PC)
RX7620C(PC)
CHAPTER 1
1. FOR SAFETY .......................................... 1-2
1.1 Alert symbols.......................................... 1-2
2. SAFETY TIPS .......................................... 1-3
2.1 Safety gear ............................................. 1-3
2.2 Work place ............................................ 1-3
2.3 Safety instructions when preparing tractor... 1-4
2.4 Avoid fires............................................... 1-4
2.5 Cautions when handling the battery ....... 1-5
2.6 Cautions for high pressure hoses ............... 1-5
2.7 Use of appropriate tools and equipment 1-6
2.8 Handling of hazardous materials............ 1-6
2.9 Handling of rotating blade,
shaft and driving belt .............................. 1-7
2.10 Prevention of scald................................. 1-7
2.11 Disposal of environmental waste ........... 1-8
2.12 Cautions when handling tires ................. 1-8
3. SAFETY DECALS ................................... 1-9
3.1 Location of decals .................................. 1-9
1
-2
DU90-W00
SAFETY
FIRST GENERAL ENGINE CLUTCH
TRANSMI
SSION HST REAR AXLE BRAKE FRONT AXLE
STEERING
SYSTEM
HYDRAULIC
SYSTEM
ELECTRIC
SYSTEM
CABIN
A/C AND
HEATER SAFETY FIRST GENERAL ENGINE CLUTCH TRANSMISSION REAR AXLE BRAKE FRONT AXLE
STEERING
SYSTEM
HYDRAULIC
SYSTEM
ELECTRIC &
CALIBRATION CABIN A/C & HEATER INDEX
RX6020C(PC)
RX6620C(PC)
RX7320C(PC)
RX7620C(PC)
SAFETY FIRST - FOR SAFETY
1. FOR SAFETY
Most accidents can be avoided if basic safety in-
structions and regulations are followed. Always fol-
low the safety regulations and avoid any dangerous
situation to prevent an accident.
You can be unexpectedly injured if inspecting or
servicing the tractor without full knowledge of it.
Read the service manual carefully before starting
servicing and follow the instructions for servicing,
maintenance and inspection to prevent any injury.
•
•
T46W001A
1.1 ALERT SYMBOLS
In this manual, the following safety-alert symbols are
used. Their meanings are as follows:
REMARK ▶
Broaden your knowledge with additionally supplied
service information for optimal service.
•
T46W002A
REMARK
CAUTION ▶
This mark indicates potentially hazardous situation
which, if not observed, may result in serious injury.
•
T46W004A
CAUTION
IMPORTANT ▶
This mark indicates emphasis on information which
can be confused when servicing. If this information
is not carefully read and observed, the tractor can-
not fully function or may be damaged.
•
T46W003A
WARNING ▶
This mark indicates hazardous situation which, if
not observed, may result in death or injury.
•
T46W005A
WARNING
READ MANUAL!
DU90-W00
1
-3
SAFETY
FIRST
GENERAL ENGINE CLUTCH TRANSMI
SSION
HST REAR AXLE BRAKE FRONT AXLE STEERING
SYSTEM
HYDRAULIC
SYSTEM
ELECTRIC
SYSTEM
CABIN A/C AND
HEATER
SAFETY FIRST GENERAL ENGINE CLUTCH TRANSMISSION REAR AXLE BRAKE FRONT AXLE STEERING
SYSTEM
HYDRAULIC
SYSTEM
ELECTRIC &
CALIBRATION
CABIN A/C & HEATER INDEX
RX6020C(PC)
RX6620C(PC)
RX7320C(PC)
RX7620C(PC)
SAFETY FIRST - SAFETY TIPS
2. SAFETY TIPS
2.1 SAFETY GEAR
A. VENTILATING SYSTEM
The service should be performed in well-ventilated
area. If the engine should be started in an enclosed
place, the exhaust gas pipe should be installed.
T46W006A
California Proposition 65 Warning
Inhaling exhaust gas can cause cancer or damage
the generative function leading to infertility.
•
WARNING
When working on the tractor, wear safety gloves, safety
shoes, ear plugs, safety goggles, safety helmet, work-
ing clothes, etc. appropriate for your working environ-
ment. Never wear loose fitting clothing or a tie which
can be caught to the rotating part. According to the
statistics, most accidents that occurred with rotating
parts are due to this inappropriate manner of wearing
clothes.
2.2 WORK PLACE
T46W007A
B. SAFE WORKING PLACE
T46W008A
The work should be done in a wide, level and safe
place to prevent slip and fall accident.
C. ILLUMINATION
The work place should be well illuminated. If working
in a dark place or under the tractor, use the work lamp.
The work lamp should be covered by the safety cover.
The bulb can cause fire due to leaked fuel if it is broken.
D. SAFETY EQUIPMENT
Be sure to keep a first aid kit and fire extinguisher han-
dy at all times.
E. CLEAN WORKING AREA
Keep the working area clean before and during work. If
any oil or fuel is spilled, it should be cleaned up immedi-
ately.
1
-
DU90-W00
SAFETY
FIRST GENERAL ENGINE CLUTCH
TRANSMI
SSION HST REAR AXLE BRAKE FRONT AXLE
STEERING
SYSTEM
HYDRAULIC
SYSTEM
ELECTRIC
SYSTEM
CABIN
A/C AND
HEATER SAFETY FIRST GENERAL ENGINE CLUTCH TRANSMISSION REAR AXLE BRAKE FRONT AXLE
STEERING
SYSTEM
HYDRAULIC
SYSTEM
ELECTRIC &
CALIBRATION CABIN A/C & HEATER INDEX
RX6020C(PC)
RX6620C(PC)
RX7320C(PC)
RX7620C(PC)

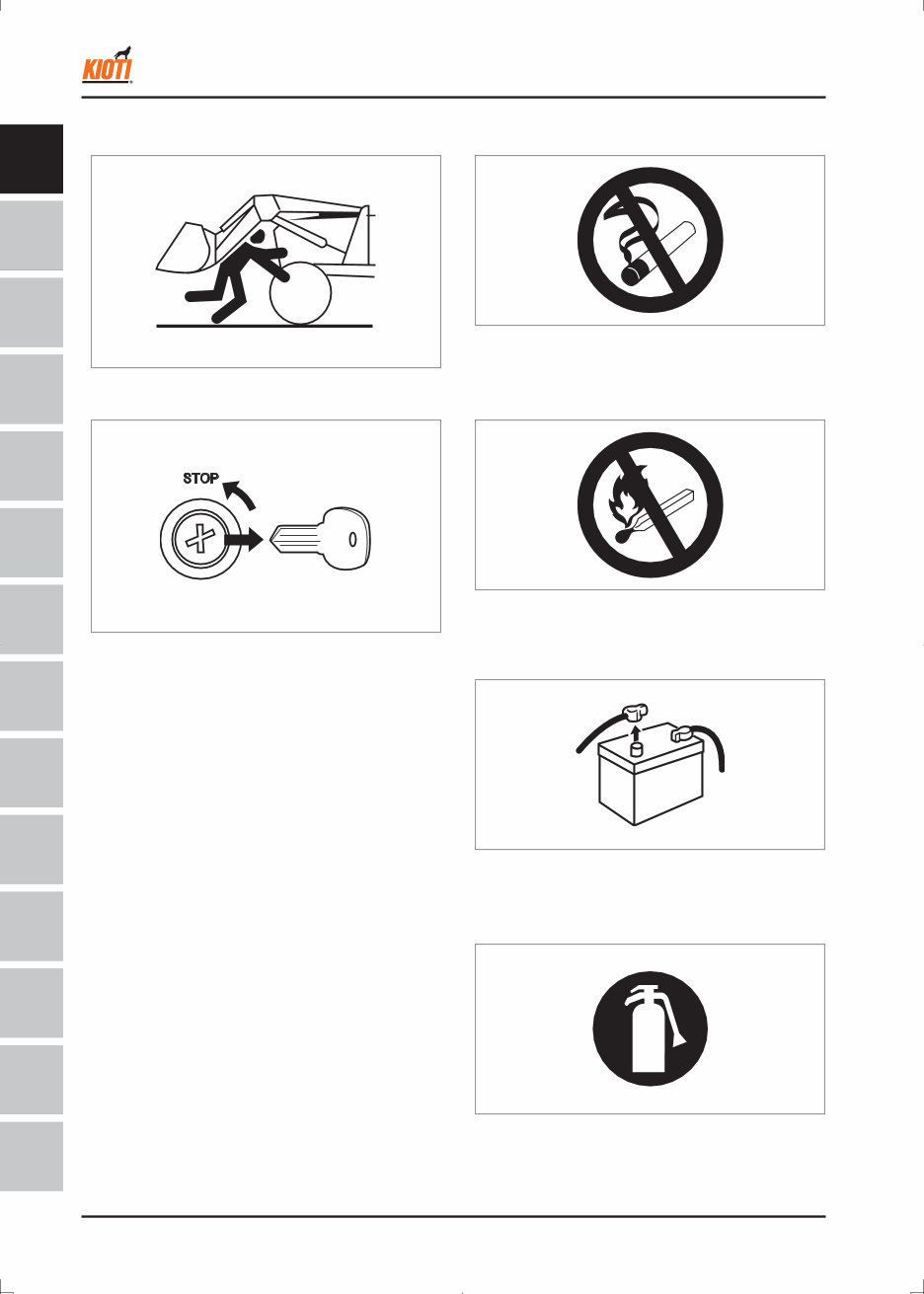

Lower the implement on to the ground. •
T46W009A
2.3 SAFETY INSTRUCTIONS WHEN
PREPARING TRACTOR
T46W010A
Stop the engine and remove the key.
Put "Do not operate" label on the tractor if necessary.
•
•
2. AVOID FIRES
Never smoke or allow flames in your work area
when servicing the fuel system.
•
T46W011A
T46W012A
Keep flames or sparks away from the spray paint or
fuel containers and be careful of leak.
•
T46W013A
Always disconnect the battery cable before servicing.
Be extra cautious of fire when welding.
•
•
T46W014A
Always keep a fire extinguisher in workshop. •
SAFETY FIRST - SAFETY TIPS
