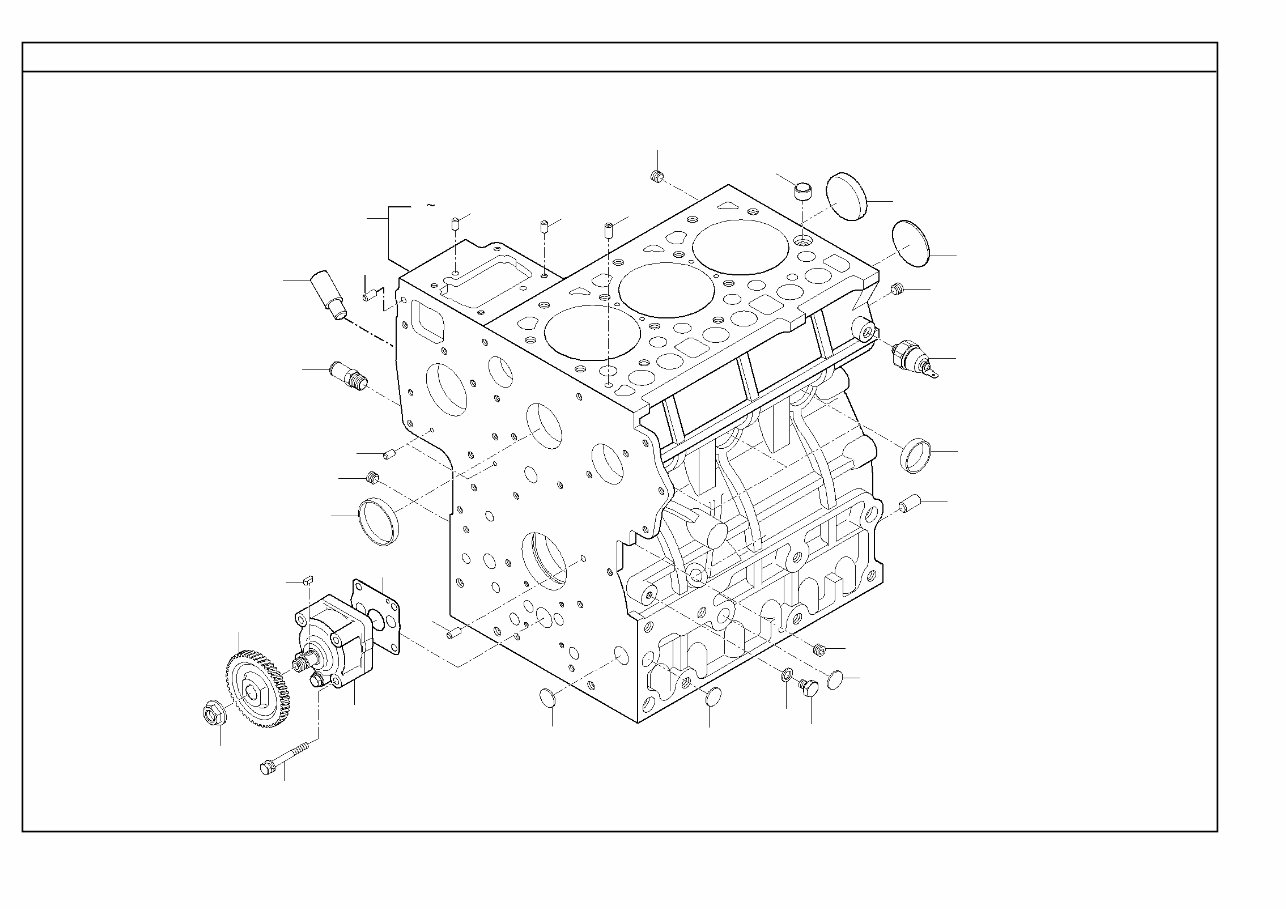

3A165LX-E010 CYLINDER BLOCK GROUP
2
24
7
2 7
9
12
9 1
5
10
23
3
22
13
6
8
3
11
7
17
20
9
19 1
2
4
16
15
14
4 4
21
18
- 1 -
----> Old replace New, <---- New replace Old, <---> Interchangeable, <-O-> Interchangeable with another part(s), <-X-> Not interchangeable
Ref.No Part Number Description
Q'TY
I.C Remark
CK35-EN CK35-EU CK35H-EN CK35H-EU
1 E5640-A0011 CYLINDER BLOCK ASSEMBLY
1 1 1 1
2 E5900-96021 PLUG
5 5 5 5
3 E5900-96031 PLUG
2 2 2 2
4 06311-75018 PLUG
3 3 3 3
5 06311-75045 PLUG
1 1 1 1
6 15221-0338-3 CAP,SEALING
5 5 5 5
7 15221-0339-2 CAP,SEALING
2 2 2 2
8 05012-00408 STRAIGHT PIN
2 2 2 2
9 05012-00609 STRAIGHT PIN
2 2 2 2
10 05012-00612 STRAIGHT PIN
2 2 2 2
11 05012-01018 STRAIGHT PIN
2 2 2 2
12 15221-3365-1 PIN
1 1 1 1
13 E5500-73342 HOSE, WATER RETURN
1 1 1 1
14 15221-3361-1 PLUG
1 1 1 1
15 15021-3366-1 GASKET
1 1 1 1
16 E6200-35012 OIL PUMP ASSEMBLY
1 1 1 1
17 E5500-35154 GASKET,OIL PUMP
1 1 1 1
<----
18 01023-50650 BOLT
4 4 4 4
19 19202-3566-1 GEAR, OIL PUMP DRIVING
1 1 1 1
20 05712-00410 KEY
1 1 1 1
21 E6300-35681 FLANGE NUT
1 1 1 1
22 E5500-39013 OIL SWITCH
1 1 1 1
23 E5752-35692 GUIDE
1 1 1 1
24 E6301-33812 PIN
1 1 1 1
- 2 -

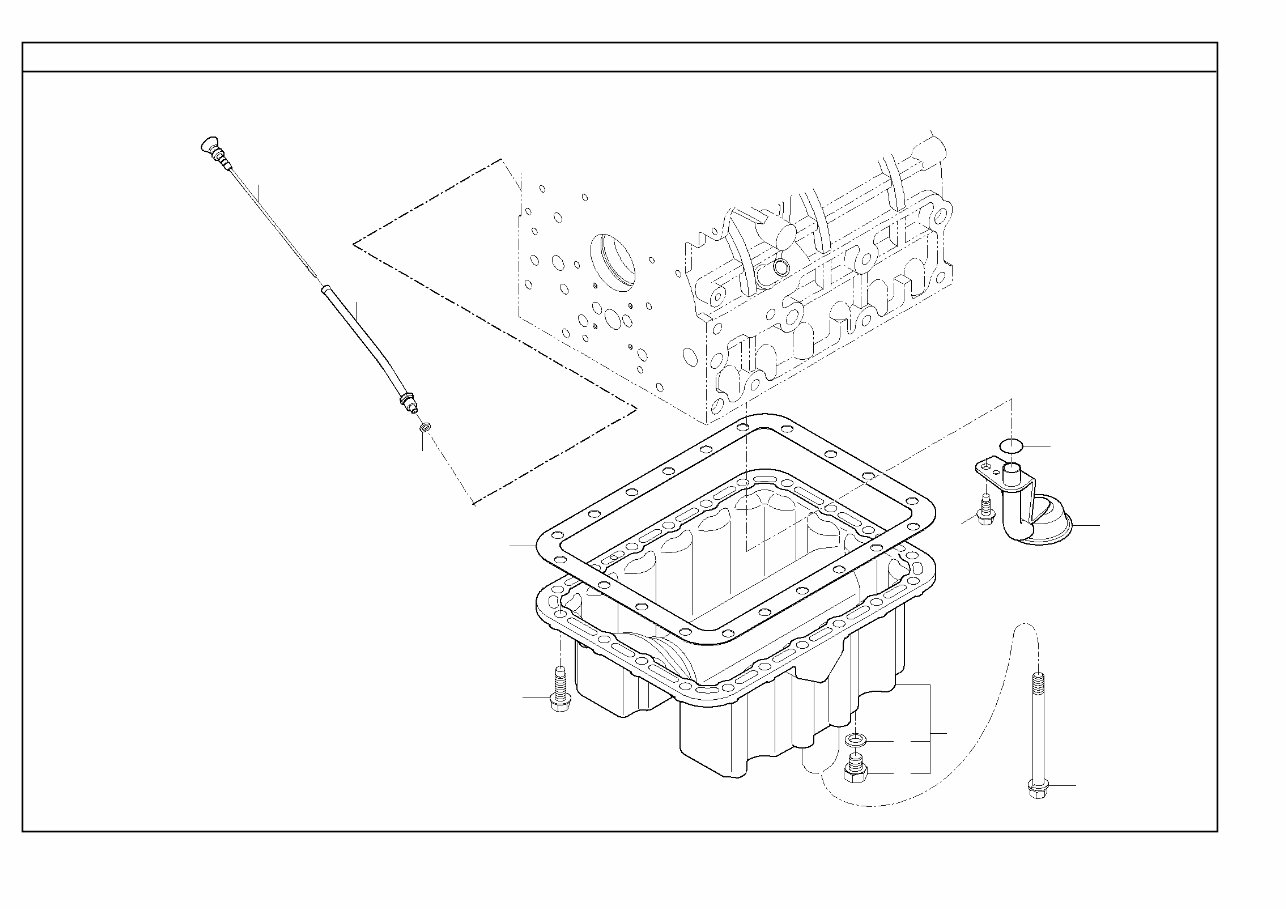

3A150E-E020 OIL PAN GROUP
10
11
9
12
8 7
2
3
1
6
5
4
- 3 -
----> Old replace New, <---- New replace Old, <---> Interchangeable, <-O-> Interchangeable with another part(s), <-X-> Not interchangeable
Ref.No Part Number Description
Q'TY
I.C Remark
CK35-EN CK35-EU CK35H-EN CK35H-EU
1 E5600-A0071 OIL PAN ASSY
1 1 1 1
2 E5500-01622 GASKET,OIL PAN
2 E5500-01623 GASKET,OIL PAN
1 1 1 1
<----
3 01674-51032 FLANGE BOLT
18 18 18 18
4 E6200-91092 BOLT WITH WASHER
2 2 2 2
5 15221-3375-2 PLUG
2 2 2 2
6 04717-01200 WASHER,SEAL
2 2 2 2
7 E6200-32112 FILTER1 OIL
1 1 1 1
8 01654-50820 FLANGE BOLT WITH PIN
1 1 1 1
9 04811-00160 O RING
1 1 1 1
10 E5629-36412 GUAGE,OIL
1 1 1 1
<--->
11 E6305-36422 OIL GAUGE GUIDE PIPE
1 1 1 1
12 E7310-36431 PACKING
1 1 1 1
- 4 -

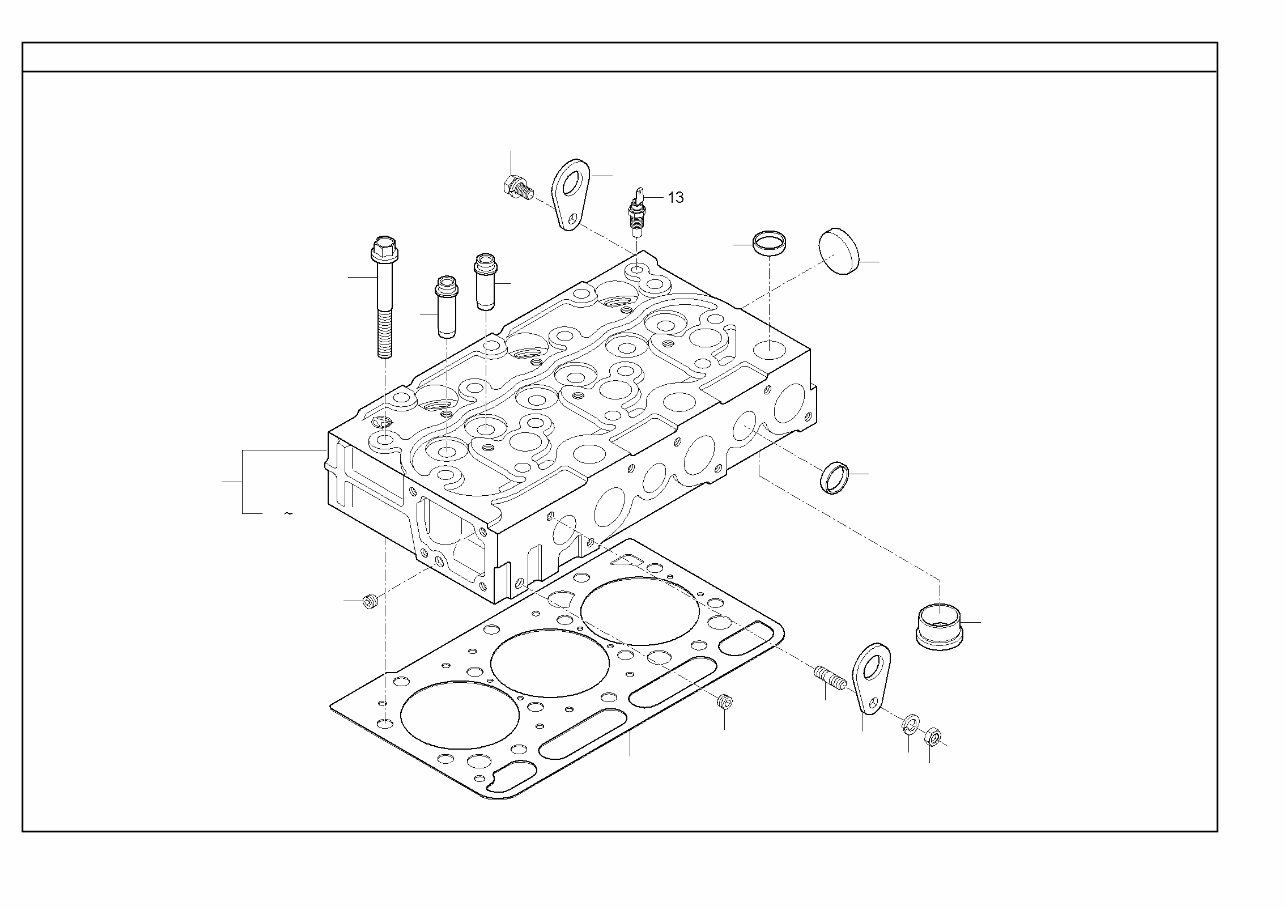

3A165LXB-E030 CYLINDER HEAD GROUP
9
8
2
3
10
6
5
2
1
2 6
4
7
12
4
8
14
11
13
- 5 -
----> Old replace New, <---- New replace Old, <---> Interchangeable, <-O-> Interchangeable with another part(s), <-X-> Not interchangeable
Ref.No Part Number Description
Q'TY
I.C Remark
CK35-EN CK35-EU CK35H-EN CK35H-EU
1 E5600-0304A COMP, HEAD, CYLINDER
1 1 1 1
2 15221-0337-3 CAP,SEALING
9 9 9 9
3 15221-0349-3 CAP,SEALING
1 1 1 1
4 E5900-96021 PLUG
3 3 3 3
5 E6850-13581 GUIDE,INLET VALVE
3 3 3 3
6 E6850-13561 GUIDE,EXHAUST VALVE
3 3 3 3
7 E6301-03148 HOT PLUG
3 3 3 3
8 15221-0175-1 HOLDER, ENGINE
2 2 2 2
9 01123-50816 BOLT
1 1 1 1
10 E6300-03453 BOLT HEAD
14 14 14 14
11 E5600-03315 GASKET,HEAD
1 1 1 1
12 01513-50822 STUD
1 1 1 1
13 02156-50080 NUT
1 1 1 1
14 04512-50080 WASHER, SPRING
1 1 1 1
- 6 -

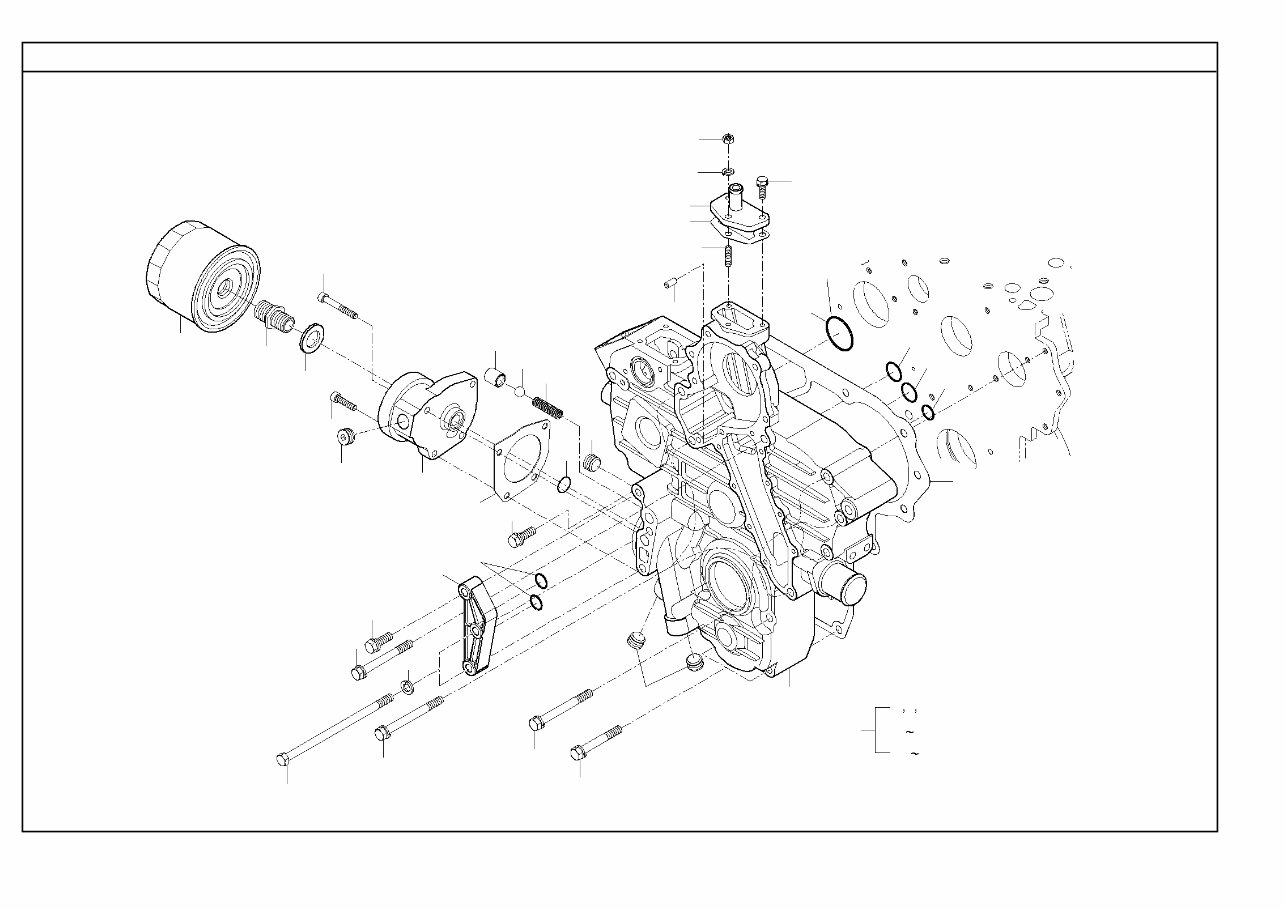

3A150LX-E040 GEAR CASE GROUP
34
35
32
30
31
33
13
6 7
5 36
20
17
21 5
19
18
4
12
3
10
9
8
22
11
25
15
14
16
28
23
2 3
2 3 721
1
31 36
27
29
26
24
- 7 -
----> Old replace New, <---- New replace Old, <---> Interchangeable, <-O-> Interchangeable with another part(s), <-X-> Not interchangeable
Ref.No Part Number Description
Q'TY
I.C Remark
CK35-EN CK35-EU CK35H-EN CK35H-EU
1 E5627-A0023 GEARCASE ASSY
1 1 1 1
2 E5627-04114 GEAR CASE
2 E5627-04115 GEAR CASE
1 1 1 1
<----
3 E5800-96031 PLUG
3 3 3 3
4 04811-00150 O RING
1 1 1 1
5 04811-00220 O RING
2 2 2 2
6 04811-00360 O RING
1 1 1 1
7 05012-00612 STRAIGHT PIN
2 2 2 2
8 E5627-32312 SUPPORT, OIL FILTER
8 E5627-32313 SUPPORT, OIL FILTER
1 1 1 1
<----
9 E5800-96031 PLUG
1 1 1 1
10 04811-00180 O RING
1 1 1 1
<-O->
11 E5627-32323 OILFILTER SUPPORT GASKET
1 1 1 1
<----
12 E5627-91131 BOLT.HEXAGON SOCKET
3 3 3 3
13 E5627-91141 BOLT.HEXAGON SOCKET
1 1 1 1
14 E5627-32882 GEARCASE COVER
1 1 1 1
15 04811-00150 O RING
2 2 2 2
16 01123-50835 BOLT
1 1 1 1
17 15521-3229-1 TUBE, CONNECTING
1 1 1 1
18 04011-50180 WASHER, PLAIN
1 1 1 1
19 15241-3695-2 SPRING
1 1 1 1
20 E5500-36932 SEAT,VALVE
1 1 1 1
21 07715-03213 STEEL BALL
1 1 1 1
22 E5627-04132 GEAR CASE GASKET
1 1 1 1
<----
23 04512-50080 WASHER, SPRING
2 2 2 2
24 62081-1118-2 BOLT
24 01153-50802 SCREW
2 2 2 2
<----
- 8 -
3A150LX-E040 GEAR CASE GROUP
34
35
32
30
31
33
13
6 7
5 36
20
17
21 5
19
18
4
12
3
10
9
8
22
11
25
15
14
16
28
23
2 3
2 3 721
1
31 36
27
29
26
24
- 9 -
----> Old replace New, <---- New replace Old, <---> Interchangeable, <-O-> Interchangeable with another part(s), <-X-> Not interchangeable
Ref.No Part Number Description
Q'TY
I.C Remark
CK35-EN CK35-EU CK35H-EN CK35H-EU
25 01123-50835 BOLT
1 1 1 1
26 01123-50860 BOLT
2 2 2 2
27 01123-50870 BOLT
5 5 5 5
28 01123-50875 BOLT
2 2 2 2
<----
29 01123-50885 BOLT
3 3 3 3
30 15521-7332-1 WATER RETURN FLANGE
1 1 1 1
31 E5500-73332 GASKET
1 1 1 1
<----
32 01023-50620 BOLT
2 2 2 2
33 01513-50620 STUD
1 1 1 1
34 02056-50060 NUT
1 1 1 1
35 04512-50060 WASHER, SPRING
1 1 1 1
36 E6201-32443 OIL FILTER
1 1 1 1
- 10 -
