Farmall CUB Parts Farm Implement Catalog Manual IH CBI-2

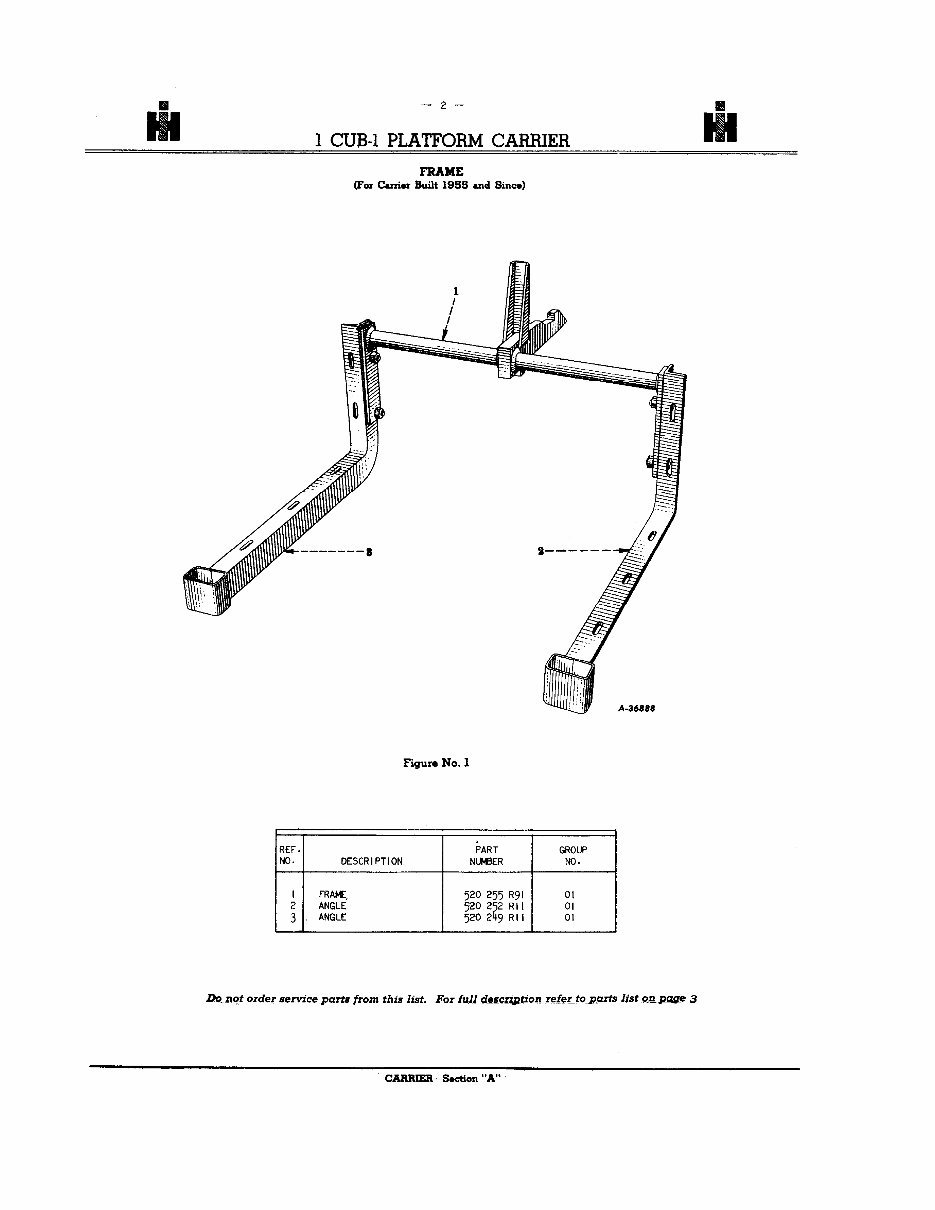

This Farmall Cub Implement Tractor Parts Catalog CBI-2 provides a comprehensive inventory of parts for farm implement equipment. It includes exploded drawings for accurate assembly and identification, along with part numbers, names, descriptions, and dimensions essential for proper part identification. The catalog also specifies part quantities per vehicle, model application, and the years when each part was utilized.

• Instant access, no waiting required
• Format: PDF

Farmall Cub Specs:

• Model history:
  • Introduced: 1947
  • Discontinued: 1964
  • Status: Discontinued
  • Number produced: 224,203
  • Preceded by: New model
  • Superseded by: International Farmall Cub
• Engine Specification:
  • Engine make: International
  • Engine model: C-60
  • Fuel type: gasoline
  • Power hp: 9 belt, 8 drawbar
  • Governed rpm: 1600
  • Displacement: 60 ci
  • Number of Cylinders: 4
  • Bore: 2.625 in
  • Stroke: 2.75 in
  • Cooling system: water
  • Naturally aspirated, Turbo or Supercharged: NA
• Transmission Details:
  • Transmission type: sliding gear
  • Gearbox make: International
  • Forward: 3
  • Reverse: 1
  • Drive: 2-WD
  • Linkage Category: Unknown
  • Tyre Sizes (std/options):
    • Front: 4.00-12 2-ply (standard 3.00-12 2-ply)
    • Rear: 8-24 4-ply (standard 6-24 2-ply)
• Tractor Dimensions:
  • Length: 99 in
  • Width: 48 in
  • Height: 63 in
  • Weight (nominal): 1430 lb
  • Turning circle (nominal): 18.5 ft
  • Wheelbase: 69 in
• More info:
  • Factories: Louisville Works
  • Plow rating: 1-12"
  • Nebraska Tests No.: 386
  • Approximate Cost new in (year): $545 (1948), $1680 (1964)
