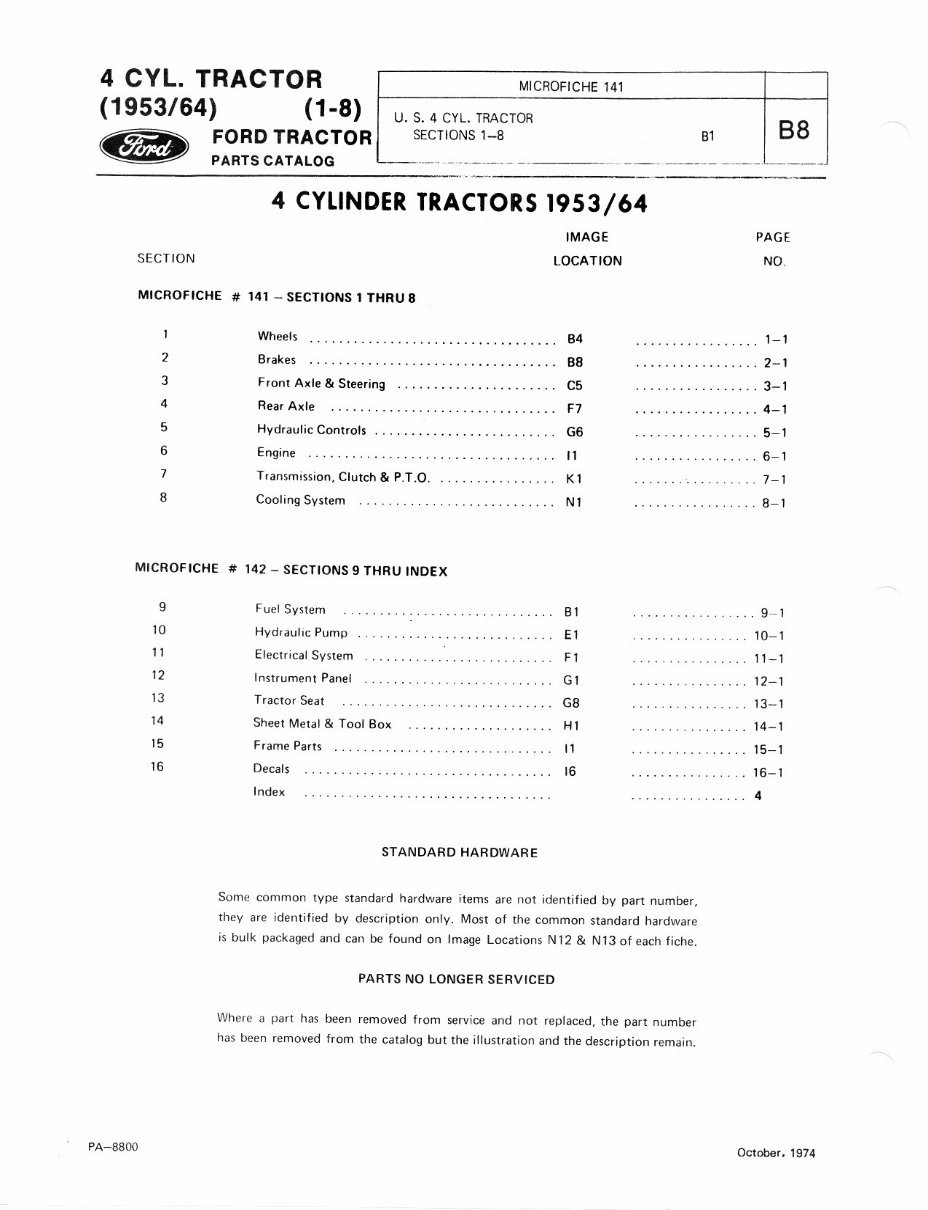

4 CYL. TRACTOR 1 MICROFICHE 141 1 1
PARTS INFORMATION
(1 953/64) \Im8)
FORD TRACTOR

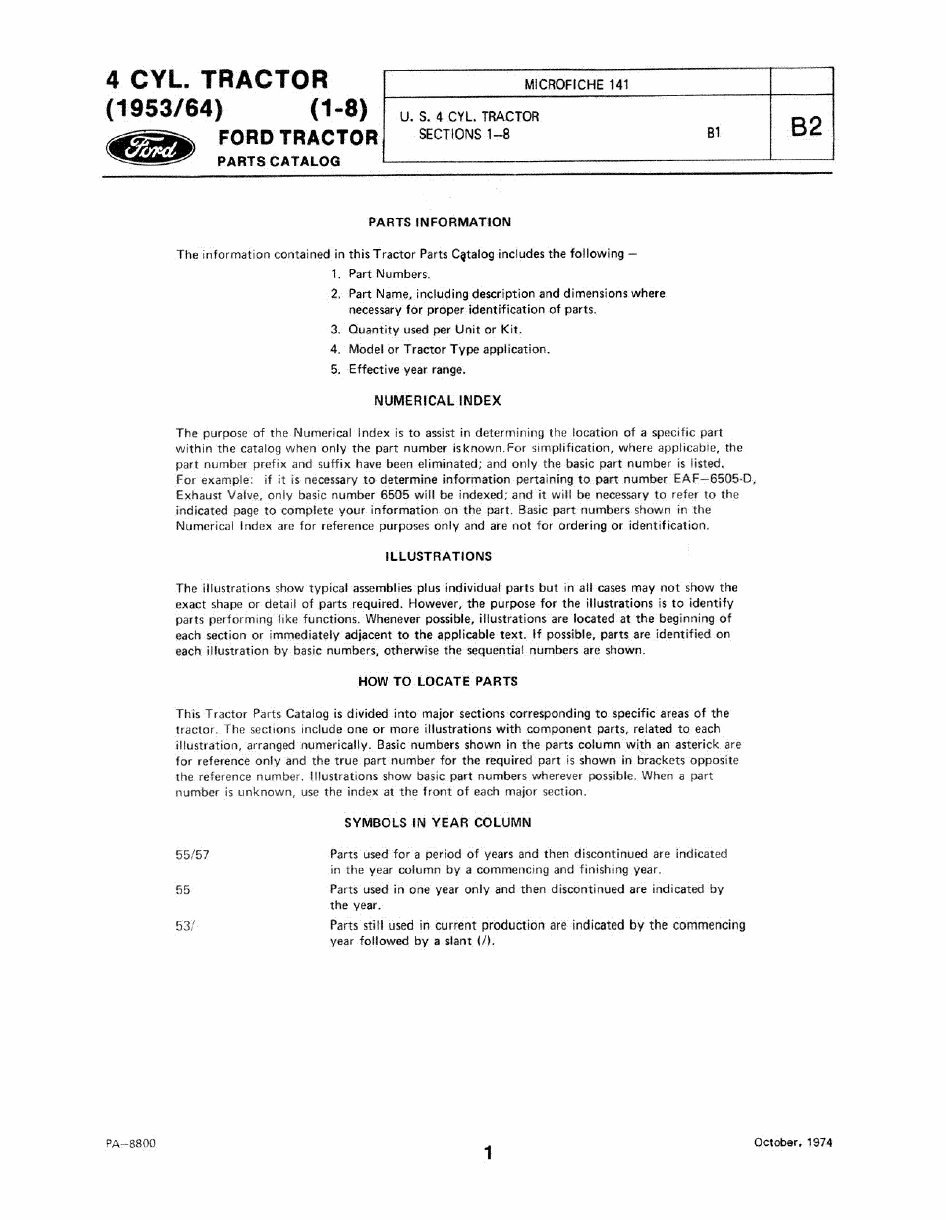

The information contained in this Tractor Parts Catalog includes the following -
1. Part Numbers.
2. Part Name, including description and dimensions where
necessary for proper identification of parts.
PARTS CATALOG L
U. S. 4 CYL. TRACTOR
SECTIONS 1-6 ~1
3. Quantity used per Unit or Kit.
i
B2
4. Model or Tractor Type application.
5. Effective year range.
NUMERICAL INDEX
The purpose of the Numerical Index is to assist in determining the location of a specific part
within the catalog when oniy the part number isknown.For simpliftcation, where applicable, the
part number prefix and suffix have been eliminated; and only the basic part number is listed.
For example: if it is necessary to determine information pertaining to part number EAF-6505-D,
Exhaust Valve, only basic number 6505 will be indexed; and it will be necessary to refer to the
indicated page to complete your information on the part. Basic part numbers shown in the
Numerical Index are for reference purposes only and are not for ordering or identification.
The illustrations show typical assemblies plus individual parts but in all cases may not show the
exact shape or detail of parts required. However, the purpose for the illustrations is to identify
parts performing like functions. Whenever possible, illustrations are located at the beginning of
each section or immediately adjacent to the applicable text. If possible, parts are identified on
each illustration by basic numbers, otherwise the sequential numbers are shown.
HOW TO LOCATE PARTS
This Tractor Pans Catalog is divided into major sections corresponding to specific areas of the
tractor. The sections include one or more illustrations with component parts, related to each
illustration, arranged numerically. Basic numbers shown in the parts column with an asterick are
for reference only and the true part number for the required part is shown in brackets opposite
the reference number. illustrations show basic part numbers wherever possible. When a part
number is unknown, use the index at the front of each major section.
SYMBOLS IN YEAR COLUMN
Parts used for a period of years and then discontinued are indicated
in the year column by a commencing and finishing year.
Parts used in one year only and then discontinued are indicated by
the year.
Parts still used in current production are indicated by the commencing
year followed by a slant {!}.
October, 1974

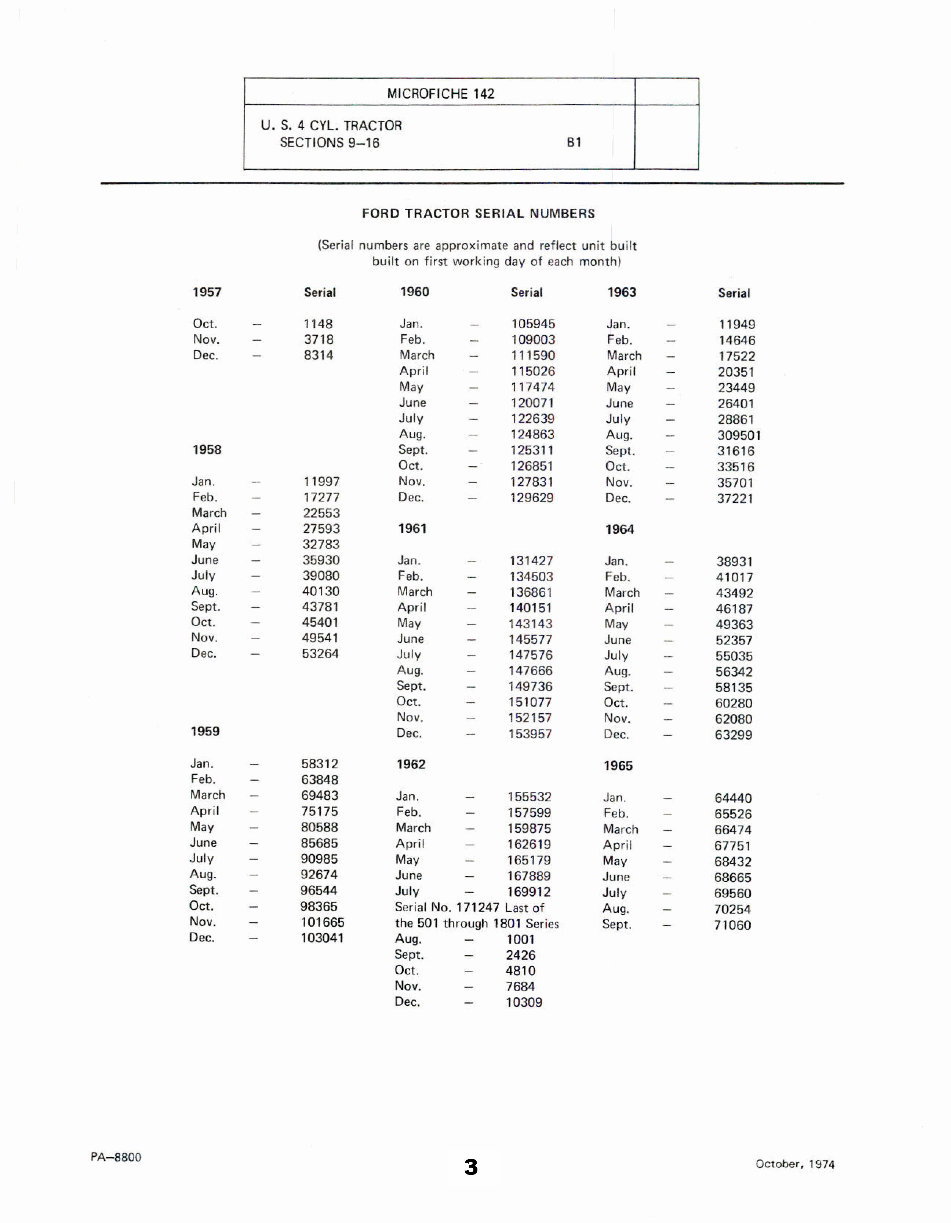

MICROFICHE 142 1
U. S. 4 CYL. TRACTOR
SECTIONS 9-16 B1

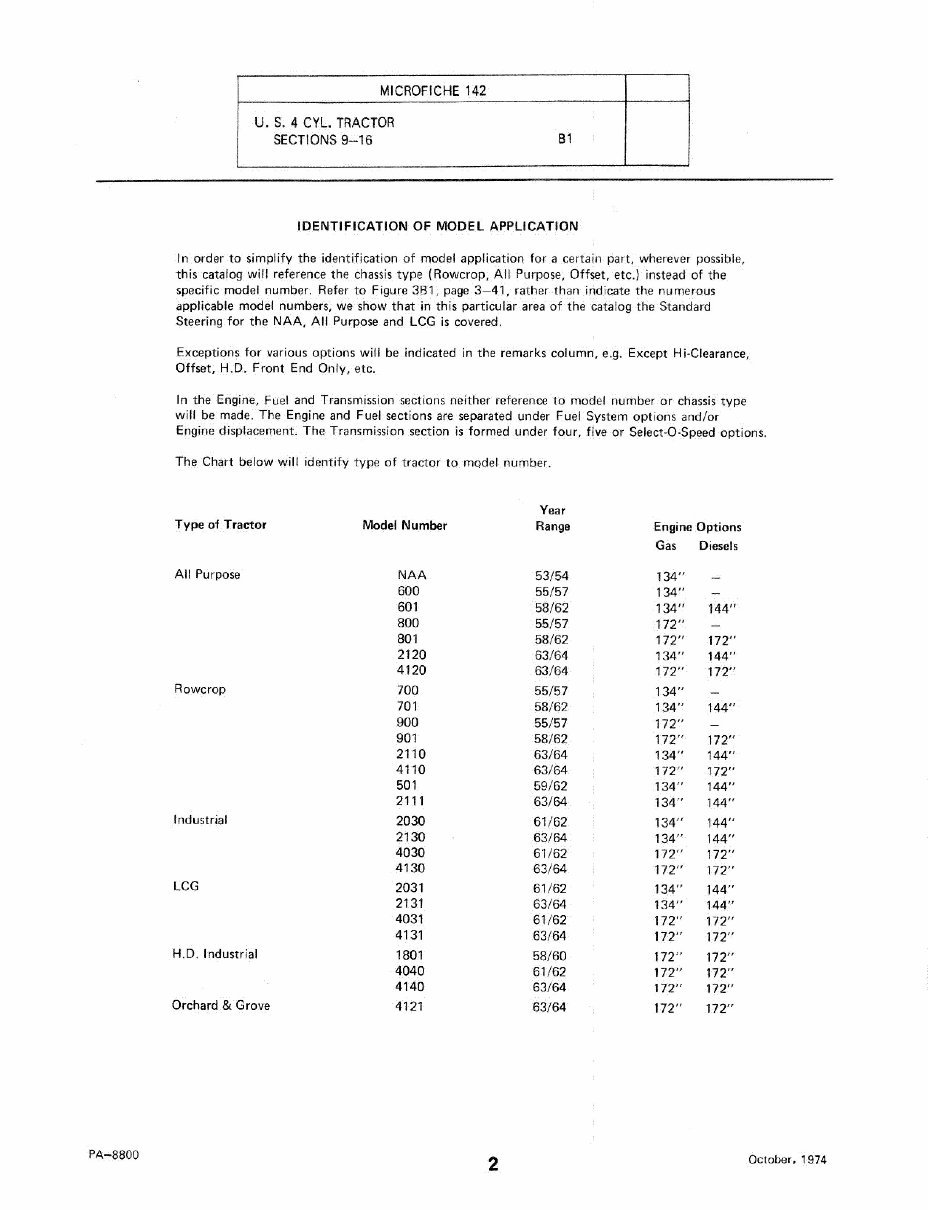

IDENTIFICATION OF MODEL APPLICATION
In order to simplify the identification of model application for a certain part, wherever possible,
this cataiog wifi reference the chassis type (Rowcrop, All Purpose, Offset, etc.1 instead of the
specific model number. Refer to Figure 3B1, page 3-41, rather than indicate the numerous
applicable model numbers, we show that in this particular area of the catalog the Standard
Steering for the NAA, All Purpose and LCG is covered.
Exceptions for various options will be indicated in the remarks column, e.g. Except Hi-Clearance,
Offset, H.D. Front End Only, etc.
In the Engine, Fuel and Transmission sections neither reference to model number or chassis type
wifl be made. The Engine and Fuel sections are separated under Fuel System options and/or
Engine displacement. The Transmission section is formed under four, five or Select-0-Speed options,
The Chart below will identify type of tractor to model number.
Type of Tractor
All Purpose
Rowcrop
industrial
LCG
H.D. Industrial
Orchard & Grove
Model Number
Year
Range Engine Options
Gas Diesels
134" -
134" -
134" 144"
172" -
172" 172"
134" 144"
172" 172"
134" -
134" 144"
172" -
172" 172"
1 34" 144"
172" 172"
134" 144"
134" 144"
134" 144"
134" 144"
172" 172"
172" 172"
134" 144"
134" 144"
172" 172"
172" 172"
172" 172"
172" 172"
172" 172"
172" 172"
October. 1974
