How To Use Figure Search
1). Locate the figure list index at the beginning of manual
examples:
01A01 FRONT WHEEL ASSEMBLY -
2100,2110,2120,2150,2300,2310,3055,3100,3120,3150,3190,3300,3310,3550,4140
01A01[C] FRONT WHEEL ASSEMBLY, W/16" WHEELS - 3400, 3500, 3550, 4400,
4500, 4410, 5100, 5200, 5190, 7100, 7200
01B01 STANDARD REAR WHEELS - 2000, 4100 & 3000 EXCEPT 3550
01B01[A] STANDARD REAR WHEELS - 3500, 3550, 5000, 7000, 4000 EXCEPT 4110
01B02 POWER ADJUSTABLE REAR WHEELS - 2000, 3000, 4140
Use the “search” feature in adobe to jump to the figure number.
Press Ctrl key, and letter F on the keyboard, at the same time. This will bring up the
“search” feature in Adobe Acrobat. Then simply type in the figure number you wish to
locate, and press enter.
Adobe takes you immediately to that page!
Figure Search for 1710 3 CYL COMPACT TRACTOR (1/83-12/86)
01A01 FRONT & REAR WHEELS
01B01 FRONT & REAR WEIGHTS
03A03 FRONT AXLE & FRAME, W/2WD, 1710
03B01 STEERING LINKAGE, W/2WD, 1310, 1510, 1710, 1910
03C03 FRONT AXLE, W/4WD, 1710, 1910
03D03 FRONT DIFFERENTIAL GEARS & FRAME, 1710, 1910 W/4WD
03E02A STEERING COLUMN & GEAR BOX, 1510, 1710
03E03 STEERING COLUMN & GEAR BOX W/POWER STEERING, 1310, 1510 (5-85/-) 1710 (83/-)
03F02 POWER STEERING TUBES, 1510 (5-85/-) & 1710 (83/-)
03G01 PRIORITY VALVE HOSE KIT, 1510 (5-85/) & 1710 (83/)
03H01 CONTROL VALVE W/POWER STEERING, 1310 & 1510 (5-85/-) 1710 & 1910 (83/-)
04A03 BRAKE & WHEEL SHAFT CASE, 1710
04B02 DIFFERENTIAL & DIFFERENTIAL LOCK LINKAGE, 1310, 1510, 1710
05A03 LIFT COVER & ARMS, 1710
05B02 CONTROL VALVE & QUADRANT, 1310, 1510, 1710, 1910
05B03 CONTROL VALVE & QUADRANT W/DRAFT CONTROL, 1710
05C01 HYDRAULIC CONTROL VALVE, W/POSITION CONTROL
05C02 CONTROL VALVE ASSEMBLY, W/DRAFT CONTROL, 1710, 1910
05D02 THREE-POINT LINKAGE, 1310, 1510, 1710, 1910
05E01 REMOTE CONTROL VALVE & PIPING KIT W/POSITION CONTROL, 1110, 1210, 1310, 1510, 1710, 1910
05E01A REMOTE CONTROL VALVE W/POSITION CONTROL, 1110, 1310, 1510, 1710, 1910
05E02 REMOTE CONTROL VALVE & PIPING KIT W/DRAFT CONTROL, 1710, 1910, 2110
05E02A REMOTE CONTROL VALVE W/DRAFT CONTROL,1710, 1910, 2110
05E03 2-SPOOL REMOTE CONTROL VALVE & PIPING KIT (OPTION)
05E04 2-SPOOL REMOTE CONTROL VALVE (OPTIONAL) - 84/10-8
05E04A 2-SPOOL REMOTE CONTROL VALVE (OPTIONAL) - 11-85
05E05 MID CYLINDER - 1710 OFFSET - (U.S.)
05F01 SWINGING DRAWBAR - 1310, 1510, 1710
05G01 DRAWBAR STAYS - ACCESSORY
06A04 CYLINDER BLOCK & CAMSHAFT - 1710
06B04 CYLINDER HEAD, 1710
06C04 CRANKSHAFT & PISTONS - 1710
06E04 TIMING GEAR CASE & WATER PUMP - 1710
06F04 OIL PUMP & IDLE GEAR - 1710
06G01 MUFFLER & ATTACHING KIT
06G02 MUFFLER MOUNTING
06H04 GASKET KIT - 1710
07A02 REAR TRANSMISSION CASE - 1310, 1510, 1710
07B02 FRONT TRANSMISSION GEARS - 1310, 1510, 1710
07C03 REAR TRANSMISSION GEARS - 1310, 1510, 1710
07C08 PTO GEARS - 540/750 & MULTI PTO - 1710 (NH-E - ASIA-PACIFIC - AUSTRALIA & NEW ZEALAND ONLY)
07C11 4WD GEARS - 1310,1510, 1710
07D02 TRANSMISSION CASE & GEAR SHIFT ASSEMBLY - 1310, 1510, 1710
07E02 CLUTCH CASE & CLUTCH - 1310, 1510, 1710
07E06 DOUBLE CLUTCH ASSEMBLY - 1310, 1510, 1710, 1910, 2110
07F02 PEDALS & STEPS - 1310, 1510, 1710
07H02 SYNCHRONIZED TRANSMISSION CASE & GEAR SHIFT - 1310, 1510, 1710
07J02 SYNCHRONIZED TRANSMISSION GEARS - 1310, 1510, 1710
07K01 COLUMN SHIFT - 1310, 1510, 1710, 1910, 2110
08A03 RADIATOR - 1510, 1710, 1910
08A04 RADIATOR - 1710, 1910 - TROPICAL COOLING (NH-E)
Figure Search for 1710 3 CYL COMPACT TRACTOR (1/83-12/86)
09A02 FUEL TANK & RELATED PARTS - 1310, 1510, 1710
09A05 CAV DUAL FILTER - 1710, 1910, 2110 (NH-E)
09B02 AIR CLEANER - 1510, 1710
09B05 AIR CLEANER - WET - 1710, 1910, 2110 (NH-E)
09C02 THROTTLE CONTROLS - 1310, 1510, 1710
09D04 INJECTION PUMP & LINES - 1710
09E04 INJECTION PUMP - 1710
09F04 INJECTOR - 1710
09G01 ENGINE STOP - 1210, 1710, 1910, 2110 (NH-E)
10A04 HYDRAULIC PUMP & PIPING - 1510, 1710
11A04 WIRING HARNESS - 1710
11A09 WIRING HARNESS - 1710 (NH-E)
11A10 WIRING HARNESS, ASIA - 1710
11B02 BATTERY - 1310, 1510, 1710
11C02 ALTERNATOR ASSEMBLY - 1310, 1510, 1710
11C04 ALTERNATOR COVER - 1710, 1910, 2110 (ASIA)
11D04 STARTING MOTOR - 1710
11E01 LIGHTING ACCESSORIES
11E02 LIGHTING ACCESSORIES (NH-E ONLY) - 1210, 1710, 1910, 2110
12A03 INSTRUMENT PANEL - 1710
13A02 SEAT ASSEMBLY - 1310, 1510, 1710, 1910, 2110
13A03 SEAT BELT, US
14A02 FENDER & RELATED PARTS, 1310, 1510, 1710, 1910 & 2110
14A04 FENDERS & RELATED PARTS - 1710, 1910, 2110 (ASIA)
14B02 HOOD & RELATED PARTS - 1310, 1510, 1710
14C01 ENGINE GUARD - 1210, 1710 (NH-E)
14D01 TOOL BOX KIT - 1310, 1510, 1710, 1910, 2110 (U.S.)
14D02 REARVIEW MIRROR - 1210, 1710, 1910, 2110 (NH-E)
15A01 CAB FRAME & WINDOWS - 1710, 1910 (NH-E)
15A02 CAB 15A2, CAB DOORS - 1710,1910 NH-E
15A03 HEATING & ELECTRICAL - 1710, 1910 (NH-E)
15A04 SHEET METAL & FLOOR PLATES - 1710, 1910 (NH-E)
15A05 ROOF HATCH - 1710, 1910 (NH-E)
15A06 CAB MOUNTING - 1710, 1910 (NH-E)
15A07 MISCELLANEOUS PARTS - W/CAB - 1710, 1910 (NH-E)
15A08 ROOF (OUTER) - 1710, 1910 (NH-E)
15A09 ROOF (INNER) & HEATER - 1710, 1910 (NH-E)
15A10 DOORS - 1710, 1910 (NH-E)
15A11 WINDOWS - 1710, 1910 (NH-E)
15A12 CAB MOUNTINGS & STEPS - 1710, 1910 (NH-E)
15A13 COVERS & BOOTS FOR STEERING & INSTRUMENT PANEL 1710, 1910 (NH-E)
15A14 BOOTS,PEDALS & LEVERS - 1710, 1910 (NH-E)
15A15 COWL, HOOD PLATE, FENDER TRIM, MATS & INSULATION, 1710, 1910 (NH-E)
15A16 WIPER & WASHER SYSTEM, 1710, 1910 (NH-E)
15A17 MIRRORS, BRACKETS FOR LIGHTS, TRAILER SOCKET, ETC. 1710,1910 (NH-E)
15A18 WIRING HARNESS - 1710, 1910 (NH-E)
16A01 DECALS
16A02 DECALS
16A03 DECALS
16A04 DECALS
16A05 DECALS
Figure Search for 1710 3 CYL COMPACT TRACTOR (1/83-12/86)
16A06 DECALS - PTO (NH-E, ASIA-PAC, AUSTRALIA & NEW ZEALAND
17A02 CREEPER GEAR KIT - 1310,1510,1710 (2 & 4WD) W/TRENCH L/SYNCHRO
17A03 CREEPER GEAR KIT - 1310,1510,1710 (2 & 4WD)
17B05 ROLLBAR ASSEMBLY - 1710,1910, (83/3-85)
17B06 ROLLBAR ASSEMBLY - 1710,1910 (4-85/-)
17D01 SAFETY EMBLEM PARTS, U.S.
17E01 CANOPY - 1310, 1510, 1710, 1910, 2110, (U.S.)
17F01 SOFT SIDE CABS, U.S.
17G01 ENGINE HEATER KIT, U.S.
17H01 FRONT BUMPER ASSEMBLY, U.S.
1710 3 CYL COMPACT TRACTOR (1/83-12/86)
01A01 FRONT & REAR WHEELS
Ref Part Number Qty Description
1710 3 CYL COMPACT TRACTOR (1/83-12/86)

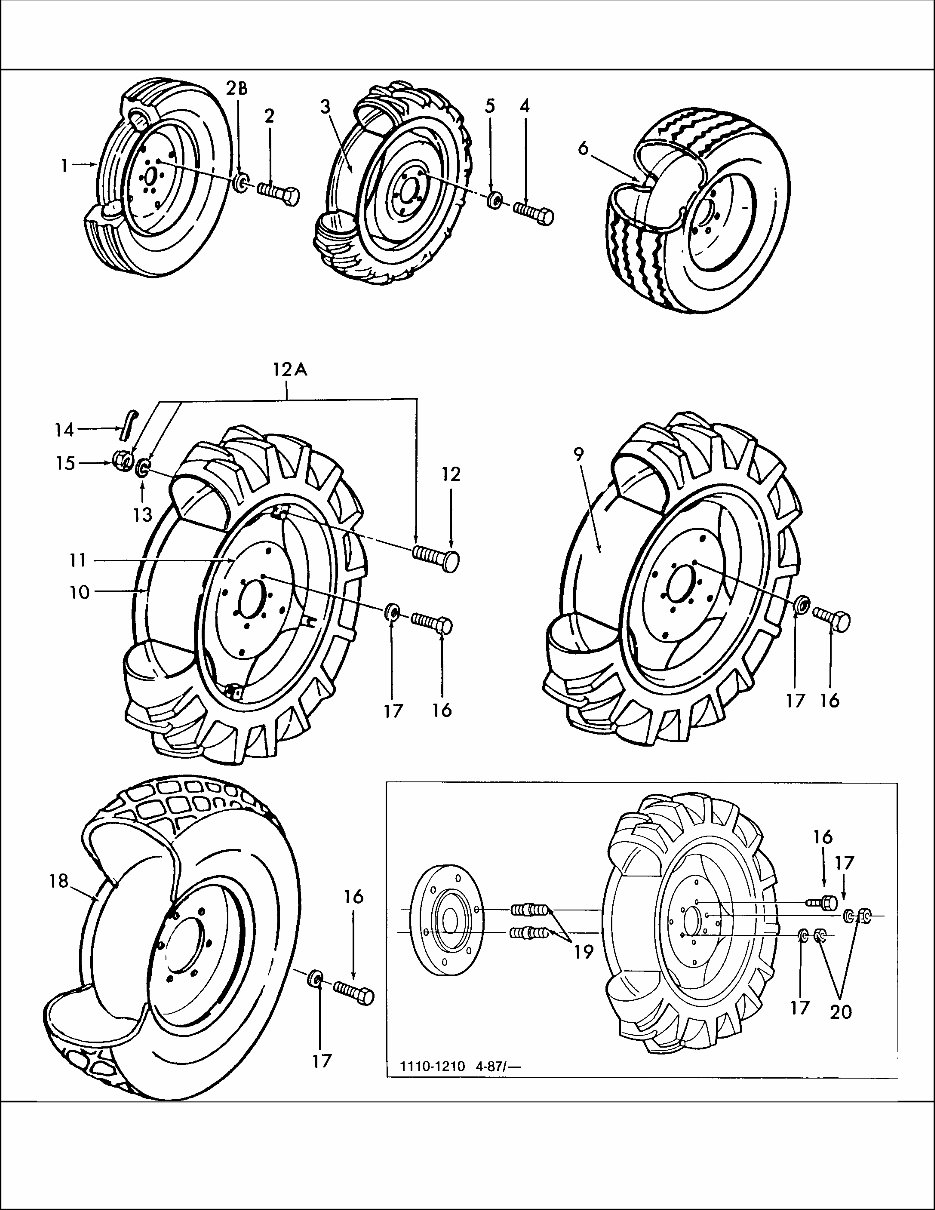

01A01 FRONT & REAR WHEELS
1 SBA336101120 2 Wheel Assy., W/2 WD, Fits Tire Size 4.00-12 ,1110,1210,1310, NHNA Only, Tire Not Included, Start Year:
01/01/1983
1 SBA336100500 2 Wheel Assy., 2 WD, Fits Tire Size 4.00-15, 6.00-15 ,1510,1710, Tire Not Included, Start Year: 01/01/1983
1 SBA336101120 2 Wheel Assy., W/2 WD, Fits Tire Size 4.00-12 ,1110, 1210, 1310, NH-E Only, Tire Not Included, Start Year:
01/01/1983
1 SBA336100770 2 Wheel Assy., W/2 WD, Fits Tire Size 6.00-15 ,1710, NH-E Only, Tire Not Included, Start Year: 01/01/1983
1 SBA336101580 2 Wheel Assy., 2 WD, Fits Tire Size 5.50-16 ,1710 Offset, NHNA Only, Tire Not Included, Start Year:
01/01/1985
1 SBA336101371 2 Wheel Assy., W/2WD, Fits Tire Size 5.50-16 - 6.00 x 16 ,1910,2110, NHNA Only, Tire Not Included, Start
Year: 01/01/1983
1 SBA336100860 2 Wheel Assy., W/2 WD, Fits Tire Size 5.50-16 ,1910, NH-E Only, Tire Not Included, Start Year: 01/01/1983
2A 140028 12 Washer, Lock, M10, Start Year: 01/01/1983
2 SBA011511020 12 Bolt, M10 x 20 ,1110,1210,1310,1510, NHNA Only, Start Year: 01/01/1983
2 SBA011511025 12 Bolt, M10 x 25 ,1710, Start Year: 01/01/1983
2 SBA011511230 12 Bolt, 2 WD, M12 x 30 ,1710 Offset, NHNA Only, Start Year: 01/01/1985
2 SBA011511225 12 Bolt, M12 x 25 ,1910,2110, Years: 01/01/1983-04/30/1984
2 SBA011511230 12 Bolt, W/2 WD, M12 x 30 ,1910,2110, 1910 - U.S.- Used On & ASN UP02331, FNH-E - Used On & ASN
UPE00185, 2110 - U.S.- Used On & ASN UV01087, FNH-E - Used On & ASN UVE00010, Start Year:
05/01/1984
2B SBA399210750 12 Spacer, 2 WD ,1710 Offset, NHNA Only, Start Year: 01/01/1985
2B SBA399210750 12 Spacer, W/2 WD ,1910,2110, 1910 - U.S.- Used On & ASN UP02331, FNH-E - Used On & ASN
UPE00185, 2110 - U.S.- Used On & ASN UV01087, FNH-E - Used On & ASN UVE00010, Start Year:
05/01/1984
3 SBA336101200 2 Wheel Assy., W/4 WD, Fits Tire Size 5-12 ,1110,1210, Tire Not Included, Start Year: 01/01/1983
3 SBA336101301 2 Wheel Assy., W/4 WD, Fits Tire Size 6-12 ,1210, Tire Not Included, Start Year: 06/01/1984
3 SBA336101220 2 Wheel Assy., W/4 WD, Fits Tire Size 6-14 ,1510, NHNA Only, Tire Not Included, Start Year: 01/01/1983
3 SBA336101210 2 Wheel Assy., 4 WD, Fits Tire Size 6-16 ,1710,1910, NHNA Only, Tire Not Included, Start Year: 01/01/1983
3 SBA336101110 2 Wheel Assy., W/4 WD, Fits Tire Size 6-12 ,1310, NHNA Only, Tire Not Included, Start Year: 01/01/1983
3 SBA336101320 2 Wheel Assy., W/4 WD, Fits Tire Size 6-16 ,1710,1910, NH-E Only, Tire Not Included, Start Year:
01/01/1983
3 SBA336101400 2 Wheel Assy., W/4 WD, Fits Tire Size 8-18 ,2110, Tire Not Included, Start Year: 01/01/1983
4 SBA011511020 12 Bolt, M10 x 20, 1110,1210, Start Year: 01/01/1983
4 SBA011511225 12 Bolt, M12 x 25, 1310,1510, NHNA Only, Start Year: 01/01/1983
4 SBA010211630 10/12 Bolt, M16 x 30, 1710,1910,2110, Start Year: 01/01/1983
5 86729275 10/12 Washer, Lock, 5/8", Start Year: 01/01/1983
6 SBA336100711 2 Wheel Assy., 2 & 4 WD Turf, 20 x 8.00-10, 1110,1210, L/Tire, Example: (27 x 8.50 - 15), Rim Size, Oerall
Tire Width, Overall Dia. of Tire, Start Year: 01/01/1983
6 SBA336101230 2 Wheel Assy., 2 WD Turf, 23x8.50-12, 1310,1510,1710, L/Tire, Example: (27 x 8.50 - 15), Rim Size, Oerall
Tire Width, Overall Dia. of Tire, Start Year: 01/01/1983
6 SBA336101240 2 Wheel Assy., 4 WD Turf, 25 x 8.50-14, 1310,1510, L/Tire, Example: (27 x 8.50 - 15), Rim Size, Oerall Tire
Width, Overall Dia. of Tire, Start Year: 01/01/1983
Ref Part Number Qty Description
1710 3 CYL COMPACT TRACTOR (1/83-12/86)
01A01 FRONT & REAR WHEELS
6 SBA336101250 2 Wheel Assy., 4 WD Turf, 27 x 8.50-15, 1710,1910, L/Tire, Example: (27 x 8.50 - 15), Rim Size, Oerall Tire
Width, Overall Dia. of Tire, Start Year: 01/01/1983
6 SBA336101380 2 Wheel Assy., 2 WD Turf, 25 x 8.50-14, 1910,2110, L/Tire, Example: (27 x 8.50 - 15), Rim Size, Oerall Tire
Width, Overall Dia. of Tire, Start Year: 01/01/1983
6 SBA336101390 2 Wheel Assy., 4 WD Turf, 27 x 8.50-15, 2110, L/Tire, Example: (27 x 8.50 - 15), Rim Size, Oerall Tire Width,
Overall Dia. of Tire, Start Year: 01/01/1983
9 SBA336100570 2 Wheel Assy., 2 & 4 WD, Fits Tire Size 8-16, 1110,1210, For FNH-E use items 10 & 11. No #9 used on
FNH-E Models., Tire Not Included, Start Year: 01/01/1983
9 SBA336101510 2 Wheel Assy., W/4 WD, Fits Tire Size 9.5-16, 1210, For FNH-E use items 10 & 11. No #9 used on FNH-E
Models., Tire Not Included, Start Year: 06/01/1984
9 2 Wheel Assy., W/4 WD, Fits Tire Size 9.5-16, 1210, NH-E Only, Tire Not Included, Start Year: 08/01/1986
9 SBA336100630 2 Wheel Assy., Fits Tire Size 9.5-24, 1310,1510, For FNH-E use items 10 & 11. No #9 used on FNH-E
Models., Tire Not Included, Start Year: 01/01/1983
, NHNA Only
9 SBA336101101 2 Wheel Assy., W/4 WD, Fits Tire Size 12.4-16, 1310, For FNH-E use items 10 & 11. No #9 used on FNH-E
Models., Tire Not Included, Start Year: 01/01/1983
9 2 Wheel Assy., 2 & 4 WD, Fits Tire Size 8-16, 1110,1210, NH-E Only, Tire Not Included, Start Year:
01/01/1983
9 SBA336110780 1 Disc, W/2 WD, Tire Size 13.6-24, 1910, NH-E Only, Tire Not Included, Start Year: 01/01/1983
9 SBA336120790 1 Rim, W/2 WD, Fits Tire Size 13.6-24, 1910, NH-E Only, Tire Not Included, Start Year: 01/01/1983
9 SBA336110540 1 Disc, W/2 WD, Tire Size 13.6-28, 2110, NH-E Only, Tire Not Included, Start Year: 01/01/1983
9 SBA336120510 1 Rim, W/2 WD, Fits Tire Size 13.6-28, 2110, NH-E Only, Tire Not Included, Start Year: 01/01/1983
10 SBA336120450 2 Rim, Fits Tire Size, 8-16, 1110, NHNA Only, Start Year: 01/01/1983
10 SBA336121170 2 Rim, Fits Tire Size, 9.5-16, 1110, NH-E Only, Start Year: 01/01/1983
10 SBA336120450 2 Rim, Fits Tire Size, 8-16, 1210, Start Year: 01/01/1983
10 SBA336121170 2 Rim, Fits Tire Size, 9.5-16, 1210, NH-E Only, Start Year: 01/01/1983
10 SBA336120440 2 Rim, Fits Tire Size, 8.3-24, 1310, No #10, 11 for 1310, 12.4-16 Tire because it is a "fixed type" rim which is
welded on disc, see item #9., Start Year: 01/01/1983
10 SBA336120440 2 Rim, Fits Tire Size, 9.5-24, 1510, NHNA Only, Start Year: 01/01/1983
10 SBA336120320 2 Rim, Fits Tire Size, 11.2-24, 1710, NHNA Only, Start Year: 01/01/1983
10 SBA336120630 2 Rim, Fits Tire Size, 11.2-24, 1710, NH-E Only, Start Year: 01/01/1983
10 SBA336120970 2 Rim, Fits Tire Size, 11.2-28, 1710 Offset, NHNA Only, Start Year: 01/01/1983
10 SBA336121070 2 Rim, Fits Tire Size, 11.2-36, 1710 Offset, NHNA Only, Start Year: 01/01/1983
10 SBA336120780 2 Rim, Fits Tire Size, 13.6-24, 1910, NHNA Only, Start Year: 01/01/1983
10 SBA336120790 2 Rim, Fits Tire Size, 13.6-24, 1910, NH-E Only, Start Year: 01/01/1983
10 SBA336120750 2 Rim, Fits Tire Size, 72" Tread Range, 13.6-24, 1910, Start Year: 01/01/1983
10 SBA336120760 2 Rim, Fits Tire Size, 13.6-28, 2110, NHNA Only, Start Year: 01/01/1983
10 SBA336120510 2 Rim, Fits Tire Size, 13.6-28, 2110, NH-E Only, Start Year: 01/01/1983
11 SBA336110530 2 Disc, Tire, 8-16, 1110, NHNA Only, Start Year: 01/01/1983
11 SBA336110970 2 Disc, Tire, 9.5-16, 1110, NH-E Only, Start Year: 01/01/1983
11 SBA336110530 2 Disc, Tire, 8-16, 1210, Start Year: 01/01/1983
Ref Part Number Qty Description
1710 3 CYL COMPACT TRACTOR (1/83-12/86)
01A01 FRONT & REAR WHEELS
11 SBA336110970 2 Disc, Tire, 9.5-16, 1210, NH-E Only, Start Year: 01/01/1983
11 SBA336111050 2 Disc, Tire, 9.5-16, 1110, 1210, NHNA Only, Start Year: 01/01/1983
11 SBA336110370 2 Disc, Tire, 8.3-24, 1310, Start Year: 01/01/1983
11 SBA336110370 2 Disc, Tire, 9.5-24, 1510, NHNA Only, Start Year: 01/01/1983
11 SBA336110370 2 Disc, Tire, 11.2-24, 1710, NHNA Only, Start Year: 01/01/1983
11 SBA336110730 2 Disc, Tire, 11.2-24, 1710 Offset, NH-E Only, Start Year: 01/01/1983
11 SBA336110790 1 Disc, Tire, L.H., 11.2-28, 1710 Offset, NHNA Only, Start Year: 01/01/1983
11 SBA336110960 1 Disc, Tire, R.H., 11.2-28, 1710 Offset, NHNA Only, Start Year: 01/01/1983
11 SBA336110790 1 Disc, Tire, L.H., 11.2-36, 1710 Offset, NHNA Only, Start Year: 01/01/1983
11 SBA336110960 1 Disc, Tire, R.H., 11.2-36, 1710 Offset, NHNA Only, Start Year: 01/01/1983
11 SBA336110770 2 Disc, Tire, 13.6-24, 1910, NHNA Only, Start Year: 01/01/1983
11 SBA336110780 2 Disc, Tire, 13.6-24, 1910, NH-E Only, Start Year: 01/01/1983
11 SBA336110770 2 Disc, Tire, 72" Tread Range, 13.6-24, 1910, Start Year: 01/01/1983
11 SBA336110790 2 Disc, Tire, 13.6-28, 2110, NHNA Only, Start Year: 01/01/1983
11 SBA336110540 2 Disc, Tire, 13.6-28, 2110, NH-E Only, Start Year: 01/01/1983
12A SBA336090040 8 Bolt Assy., Tire, 8-16, 1110, NHNA Only, Start Year: 01/01/1983
12A SBA336090040 8 Bolt Assy., Tire, 9.5-16, 1110 Includes: Ref. 13 & 15, NHNA Only, Start Year: 01/01/1983
12A SBA336090040 8 Bolt Assy., Tire, 8-16, 1210, Start Year: 01/01/1983
12A SBA336090040 8 Bolt Assy., Tire, 9.5-16, 1210 Includes: Ref. 13 & 15, Start Year: 01/01/1983
12A SBA336090031 8 Bolt Assy., Tire, 11.2-24, 1710, NH-E Only, Start Year: 08/01/1996
12A SBA336090031 12 Bolt Assy., Tire, 13.6-24, 1910, NH-E Only, Start Year: 08/01/1996
12A SBA336090031 12 Bolt Assy., Tire, 13.6-28, 2110, NH-E Only, Start Year: 08/01/1996
12 SBA336090121 8 Bolt, Tire, 8.3-24, 1310, NHNA Only, Start Year: 01/01/1983
12 SBA336090121 8 Bolt, Tire, 9.5-24, 1510, NHNA Only, Start Year: 01/01/1983
12 SBA336090121 8 Bolt, Tire, 11.2-24, 1710, NHNA Only, Start Year: 01/01/1983
12 8 Bolt, Tire, 11.2-24, 1710, NH-E Only, Years: 01/01/1983-07/31/1996
12 SBA336090080 4 Bolt, Tire, L.H., 11.2-28, 1710 Offset, NHNA Only, Start Year: 01/01/1983
12 SBA336090090 4 Bolt, Tire, R.H., 11.2-28, 1710 Offset, NHNA Only, Start Year: 01/01/1983
12 SBA336090110 4 Bolt, Tire, L.H., 11.2-36, 1710 Offset, NHNA Only, Start Year: 01/01/1983
12 SBA336090100 4 Bolt, Tire, R.H., 11.2-36, 1710 Offset, NHNA Only, Start Year: 01/01/1983
12 SBA336090121 12 Bolt, Tire, 13.6-24, 1910, NHNA Only, Start Year: 01/01/1983
12 12 Bolt, Tire, 13.6-24, 1910, NH-E Only, Years: 01/01/1983-07/31/1996
12 SBA336090121 12 Bolt, Tire, 72" Tread Range, 13.6-24, 1910, Start Year: 01/01/1983
12 SBA336090110 8 Bolt, Tire, 13.6-28, 2110, NHNA Only, Start Year: 01/01/1983
12 8 Bolt, Tire, 13.6-28, 2110, Years: 01/01/1983-07/31/1996
13 412123 8 Washer, Lock, M12, 1110,1210, NH-E Only, Years: 01/01/1983-04/30/1987
13 SBA399340050 8 Washer, 1110,1210, NH-E Only, Start Year: 05/01/1987
13 412123 8 Washer, Lock, M12, 1110,1210, Start Year: 01/01/1983
13 86729275 8 Washer, Lock, 5/8", 1310,1510,1710,1910, Start Year: 01/01/1983
13 SBA399340140 12/16 Washer, 1710 Offset,2110, Start Year: 01/01/1983
14 PL 16 Pin, Start Year: 01/01/1983
Ref Part Number Qty Description
1710 3 CYL COMPACT TRACTOR (1/83-12/86)
01A01 FRONT & REAR WHEELS
15 SBA022200012 8 Nut, M12 x 1.25, 1110,1210, NH-E Only, Years: 01/01/1983-04/30/1987
15 379752 8 Nut, CL 12, M12 x 1.25, NH-E Only, Start Year: 05/01/1987
15 SBA022109002 8 Nut, W/ 5/8, 1310,1510,1710,1910, Start Year: 01/01/1983
15 10790521 16 Nut, M16, 2110, NH-E Only, Start Year: 01/01/1983
15 10790521 8/16 Nut, W/72" Axle, M16, 1710,Offset,2110, NHNA Only, Start Year: 01/01/1983
16 SBA011511225 12 Bolt, M12 x 25, 1110,1210, Years: 01/01/1983-03/31/1987
16 300388 8 Bolt, M12 x 25, 1110,1210, Start Year: 04/01/1987
16 SBA010211630 12 Bolt, M16 x 30, 1310,1510,1710,1910, Start Year: 01/01/1983
16 412212 8 Bolt, L.H., M16 x 35, 1710 Offset, NHNA Only, Start Year: 01/01/1985
16 84000007 8 Bolt, R.H., M16 x 50, 1710 Offset, NHNA Only, Start Year: 01/01/1985
16 SBA010411640 16 Bolt, M16 x 40, 2110, Start Year: 01/01/1983
17 SBA399210750 12 Spacer, 1110,1210, Start Year: 04/01/1987
17 86729275 12/16 Washer, Lock, 5/8", 1310,1510,1710,1910,2110 ,1110,1210 Turf, Start Year: 01/01/1983
17 SBA399340140 16 Washer, 1710 Offset, NHNA Only, Start Year: 01/01/1985
18 SBA336101190 2 Wheel Assy., Rear, Fits Turf Tire Size 29 x 12.00-15, 1110,1210, Tire Not Included, Start Year: 01/01/1983
18 SBA336101101 2 Wheel Assy., Fits Turf Tire 13.6-16, Tire Not Included, Start Year: 01/01/1983
18 SBA336101361 2 Wheel Assy., Fits Turf Tire Size 18.4-16.1, 1910, 2110, Tire Not Included, Start Year: 01/01/1983
19 SBA012111225 4 Stud, 1110-1210, Start Year: 04/01/1987
20 330327 4 Nut, M12, 1110,2110, Start Year: 04/01/1987
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$44.99
$58.99
Viewed 14 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$44.99
$58.99
This Ford 1710 Illustrated Parts Catalog provides comprehensive part information and numbers for the Ford 1710 3 Cylinder Compact Tractor. It contains all the original parts information necessary for accurately looking up correct part numbers for the entire machine, including engine parts.
Key Features:
- Bookmarked, Searchable Text, Indexed, and Improved Quality
- Instant Access - No Waiting
- Language: English
- Format: PDF
- Compatibility: All Versions of Windows, Mac, iOS, BB, Android, etc
- Pages: 312
- Searchable, Bookmarked, and Indexed
This Parts Catalog is accompanied by detailed illustrations and exploded views, which are invaluable for disassembly, repair, and reassembly of the tractor. The exploded parts diagrams are essential for visualizing the parts and are indispensable for servicing, rebuilding, teardowns, overhauls, repairs, and adjustments.
It is completely searchable and bookmarked, allowing for easy navigation and quick access to the required information. The ability to search makes finding specific parts effortless.
This manual is viewable on any computer, and it can be zoomed, printed, and saved. Whether you need to print a few pages at a time or the entire manual, this flexibility ensures convenience without concerns about dirty, torn, or missing pages.
Sections Covered:
- Cooling System
- Decals
- Electrical System
- Engine
- Front Axle and Steering
- Fuel System
- Hydraulic System
- Instrument Panel
- Miscellaneous
- Rear Axle
- Seats
- Sheet Metal
- Transmission
- Wheels and Weights
Additional Information:
- Documents may require the newest version of Acrobat Reader to display correctly. Should you encounter any issues, please ensure you have the latest version of Adobe Acrobat Reader installed.
- For any other manuals you may need, feel free to email for assistance.
