OPERATING AND MAINTENANCE AGROCOMPACT F60 AGROCOMPACT 70F3 AGROCOMPACT 70F4 AGROCOMPACT F80 AGROCOMPACT F90 Seat and Headquarters Deutz-Fahr Strasse, 1 D-89415 LAUINGEN Tel.: (09072) 997-0 Fax: (09072) 997-300 DEUTZ-FAHR AGRARTECHNIK GMBH 1 ebay Seller: PDF_Manuals

You are advised to read and observe the information given in this instruction book. By doing so, you will avoid accidents, you will maintain the manufacturer’s warranty and will have a functioning and operable tractor. This tractor has been defined by the manufacturer and constructed for use in agriculture - the intended purpose and all uses in excess of this shall be deemed not to be in conformity with the intended purpose. The manufacturer will not be responsible for resulting damages. The risk will be bor- ne solely by the user. Use in accordance with the intended purpose also includes obeying the operating, servicing and repair instructions stipulated by the manufacturer. The tractor must only be used, serviced and repaired by persons who have the necessary skills and were instructed about the risks involved. The relevant accident prevention regulations as well as the other generally recognized safety, industrial hygiene and road traffic regulations must be observed. If you make any changes to the tractor, this will exclude all lia- bility claims against the manufacturer for resulting damage. The DEUTZ-FAHR design engineers have placed special emphasis on safety and efficiency. It is now up to you to operate your tractor with adequate care, to maintain its efficiency and performance and thus to ensure smooth operation. With this booklet DEUTZ-FAHR furnishes you with all necessary information. 2 ebay Seller: PDF_Manuals

IMPORTANT RULES 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. To correctly set the tractor at work, it is necessary to strictly follow the instructions given in this "OPERATING AND MAINTENANCE" handbook. These instructions should be followed for your own safety as well as for the environmental aspect. In fact, inexperience in the use of the tractor may cause severe accidents, besides giving rise to bother- some noise and being damaging to the surroundings. After starting the engine in particularly cold weather conditions, it is necessary to let it run at about half its speed for a few minutes to allow it to warm up correctly before being submitted to heavy work. During the first 100 hours’ work, the tractor should be used by fully observing the instructions given in the "running-in" rules of this book. Should it be necessary to immediately operate the hydraulic power-lift after starting the engine, it is recommended to first bring the latter to about half its speed. Before starting the engine, always verify that there is no one within the tractor’s operating range or that of any mounted implement. Should it be necessary to tow the tractor, even for a short distance, start the engine to ensure the operation of the gearbox lubrication pump. (If the tractor cannot be started, it is suggested to have the tractor transported on another vehicle). Never leave the tractor unattended while the engine is running inproximity to haylofts or other flammable materials. No passenger should be carried on tractor unless a proper "passenger seat" is provided. Mounted or towed implements should be hitched to the proper hitchpoints only. Attention and respect of the safety rules help prevent many accidents. The law prescribes that the tractor always be equipped with either an approved safety frame or cab. After performing P.T.O. work and before disengaging the clutch, let the engine idle to prevent harmful P.T.O. brake overheating due to shaft drag through implement inertia. 3 ebay Seller: PDF_Manuals

4 12. 13. 14. 15. 16. 17. 18. 19. 20. 21. Tractor refueling and maintenance should only be performed with the engine turned off. Never work on pipes with oil under pressure or with the power-lift car - rying a heavy load. Regularly perform the scheduled maintenance operations and cor - rect all problems. Overhauls and repairs should be carried out by skilled personnel recommended by the manufacturer. Perform all lubricating operations by strictly observing the instructions given in this handbook. Make sure all grease nipples are in efficient condition and not clogged. Atregular intervals verify that the wheel fixing bolts are perfectly tightened: q Front track 2-WD tractor (M20x1,5) 50 kgm (490 Nm); q Front track 4-WD tractor (M18x1,5) 36,8 kgm (360 Nm); q Rear track (M20x1,5) 50 kgm (490 Nm). The tightness of the wheel bolts should be checked after the first 20 operating hours. The tyre inflating pressure should always correspond to the pre - scribed one. Water ballasting in very low temperatures should be done by using some “ANTIFREEZING ADDITIVES”. Keep the battery always in proper working condition by following the instructions given by the manufacturer. Protect the alternator and the starter motor when washing the tractor. Use original spare parts only. Order spare parts by indicating:exact part name, ref. code as per spare parts catalogue, serial number of tractor and engine serial number in cases where an engine part is required. If the engine is wather-cooled, it is necessary to let the engine cool down before refueling. The manufacturer declines all responsibility if the tractor is used in non-standard applications which are not recognized as approved operations for the tractor. IMPORTANT!! The safety seal on the engine governor is applied by the manufacturer and ensures that the power output of your tractor does not ex - ceed the declared and approved value. Any tampering with this seal on the governor will void the warranty ebay Seller: PDF_Manuals

ACCIDENT PREVENTION The tractor was designed in full respect of the international safety standards. However, the prevention of accidents depends a great deal on the attention the operator pays while working. Even the slightest inattention may be fatal. LOOK OUT FOR THIS ALERT SYMBOL! It indicates dangerous operations and/or situations. All safety rules are extremely important and must be tho- roughly observed. 1. 2. 3. 4. 5. 6. 7. The use of the tractor is subordinated to the thorough knowledge of the road legislation and the possession of a driving license besides, of course, to the operator’s driving ability. The operator is fully responsible for the workers assigned to the trailers and towed implements, as well as those transported eihter on trailers or tractors. It is forbidden to carry people on the towing or lifting devices. Keep brake and clutch pedals, control levers and the access to the driver’s position duly clean in order to prevent any difficulties when using them. Before starting the engine, always make sure the hydraulic power-lift control levers are correctly positioned and that gearshift and P.T.O. control levers are in neutral and check that the lift control levers are in the correct position Never let the engine run in closed areas, unless suitable hoods and adequate ventilation are provided. Exhaust gases are highly toxic. Before starting the tractor, especially if an implement is connected, make sure no one is within its operating range. Before operating the hydraulic power-lift make sure that everyone is well clear of its moving parts and connected implements. 5 ebay Seller: PDF_Manuals

8. 9. 10. 11. 12. 13. 14. 15. 16. Do not approach working pulleys or cardan shafts. Use cardan shafts provided with proper guards only. When the P.T.O. is not used, the shaft end should be protected with the proper guard. It is very dangerous to get on and off the tractor while the tractor is moving. In case of road transport, it is mandatory to keep the brake pedals connected by means of the special latch. On uneven or icy road surfaces, drive slowly and carefully. Under certain conditions the tractor’s response may be difficult to control. Going down steep hills, shift into suitably low gears and use brakes as little as possible. Exploit the engine’s braking power. In proximity to built-up areas, drive slowly and use the tractor in such a way as to prevent excessive noise and unnecessary pollution. Before leaving the tractor, always apply the parking brake and lower implements to the ground; if possible, try to park the tractor on a level surface ou use a chock to immobilize the wheels. Never leave the tractor unguarded with the engine running. Remove the ignition key to prevent tractor use by unauthorized personnel. If the tractor has a cab, close and lock the doors. Carefully carry out the maintenance operations concerned with brake and lighting systems. Trailers should be equipped with regulation lighting and also with a braking system when performing heavy work. 6 ebay Seller: PDF_Manuals

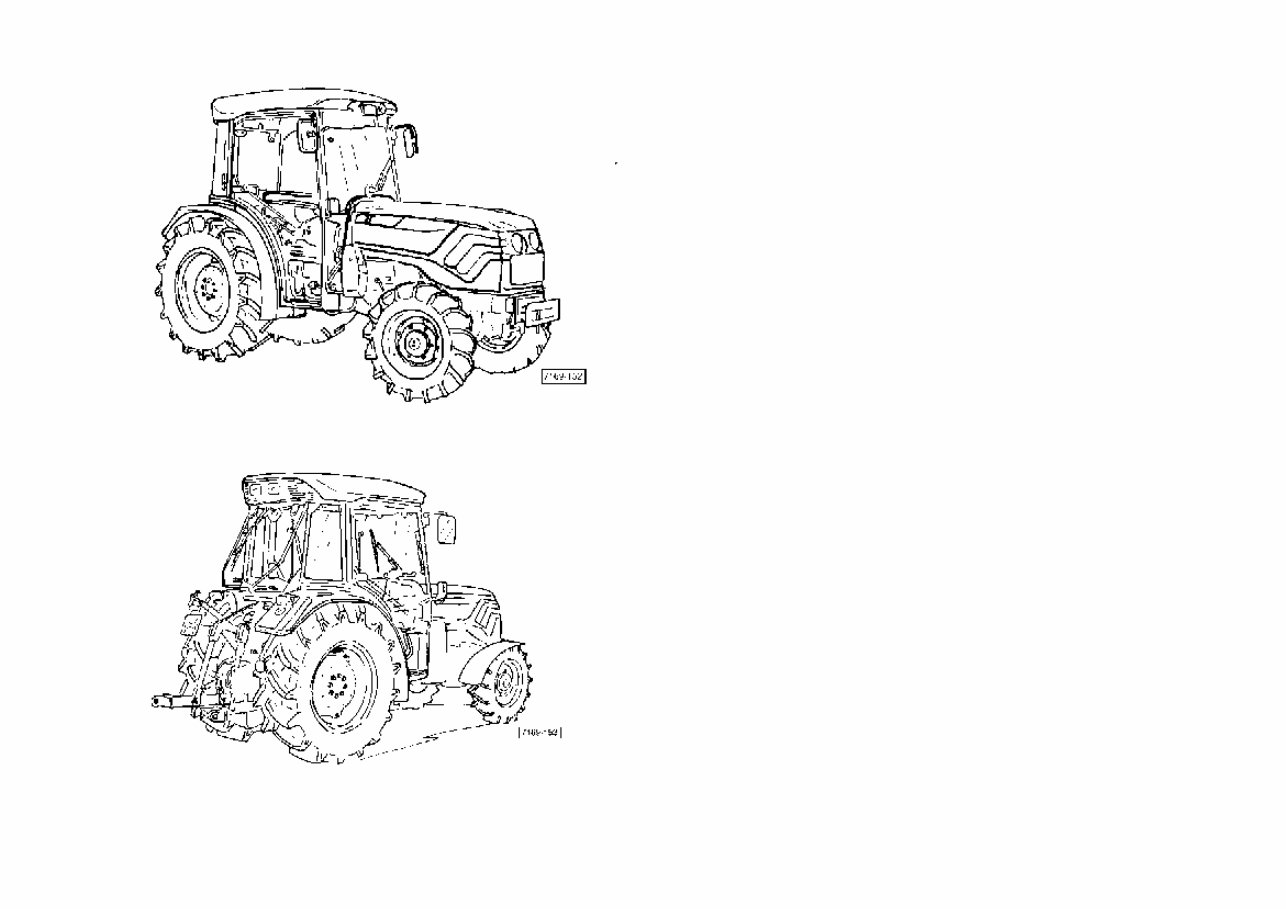

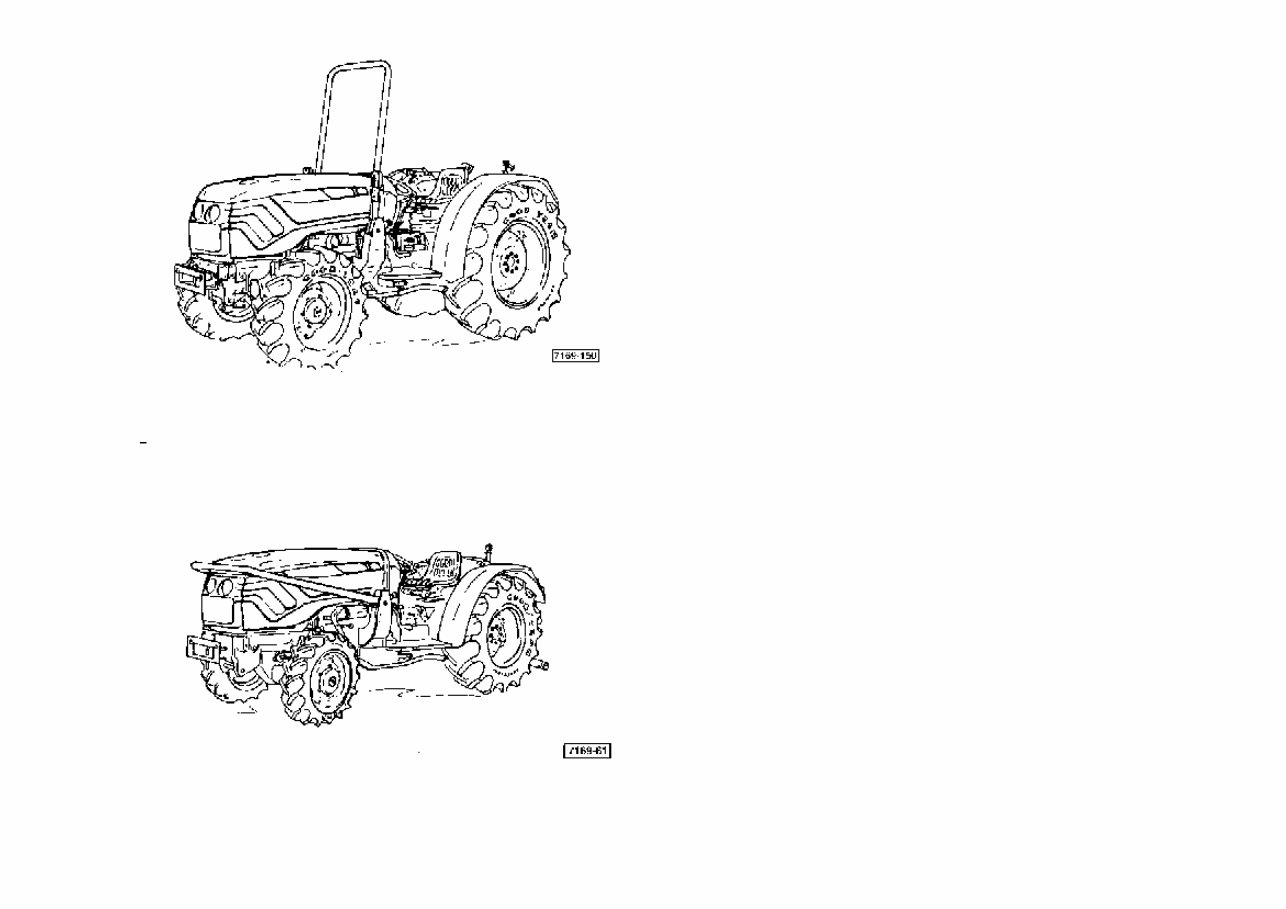

AGROCOMPACT - low version AGROCOMPACT - with roll bar 7 ebay Seller: PDF_Manuals

AGROCOMPACT - with cab 8 ebay Seller: PDF_Manuals

CAREFULLY READ ALL SAFETY INSTRUCTIONS CONTAINED IN THIS "OPERATING AND MAINTENANCE" HANDBOOK, AND STRICTLY KEEP TO THE DIRECTIONS INDICATED ON ALL TRAC- TOR WARNING PLATES. The cab is designed in full conformity to international standards as far as safety is concerned. The internal noise level respects the standards of the O.E.C.D. (Organi- zation for Economic Cooperation and Development) The noise level measured in phonometer tests is 78 dB (A). 9 ebay Seller: PDF_Manuals

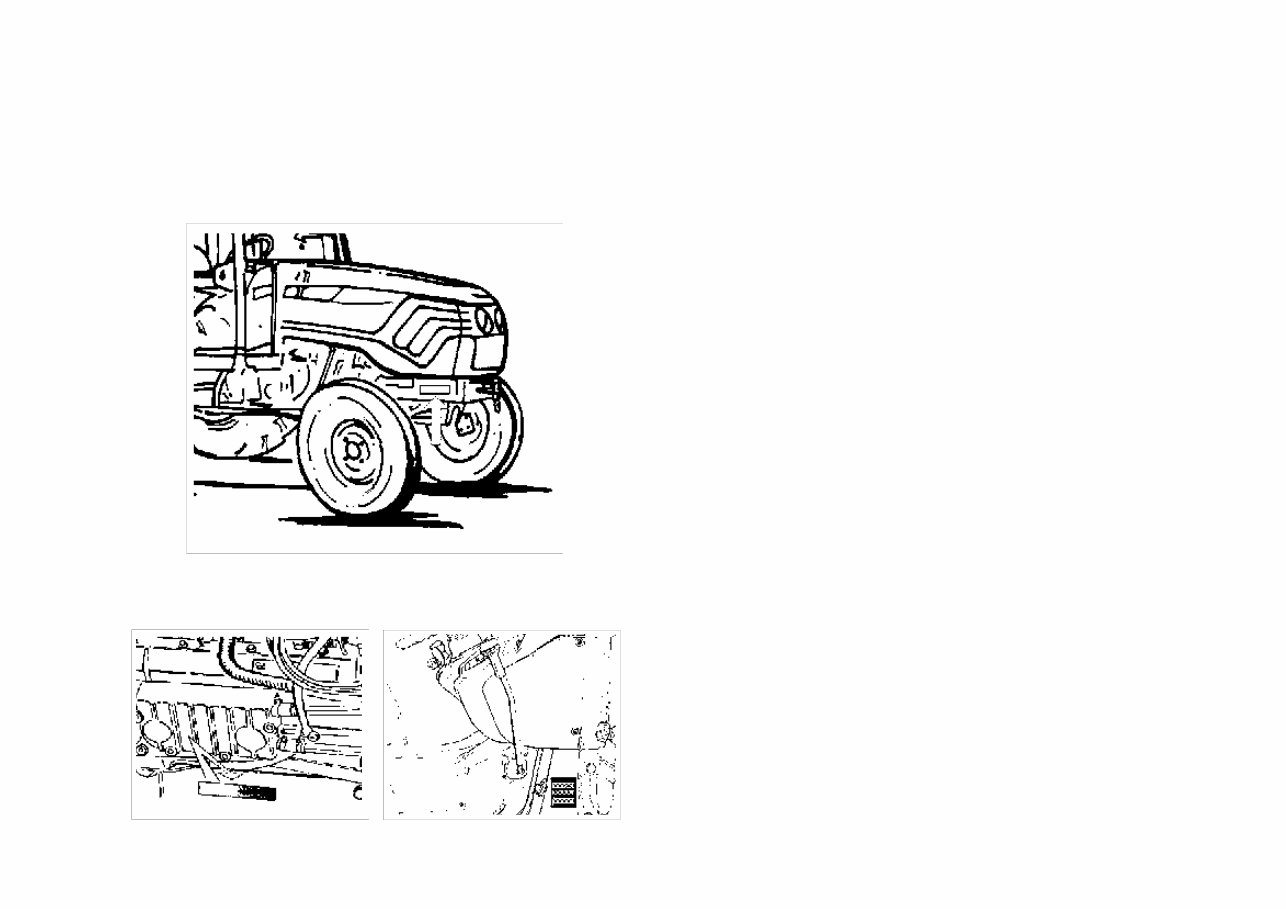

HOW TO ORDER SPARE PARTS To ensure perfect tractor efficiency and avoid serious drawbacks, as well as optimize your investment and operational expenses, the use of "ORI- GINAL SPARE PARTS" is recommended. Spare parts orders must specify the following: 1 Tractor’s serial number and engine’s serial number (if the engine is concerned). 2 Denomination and reference number of the required spare part TRACTOR TYPE AND SERIAL NUMBER ENGINE TYPE AND SERIAL NUM- BER TRACTOR IDENTIFICATION DATA PLATE 10 ebay Seller: PDF_Manuals
