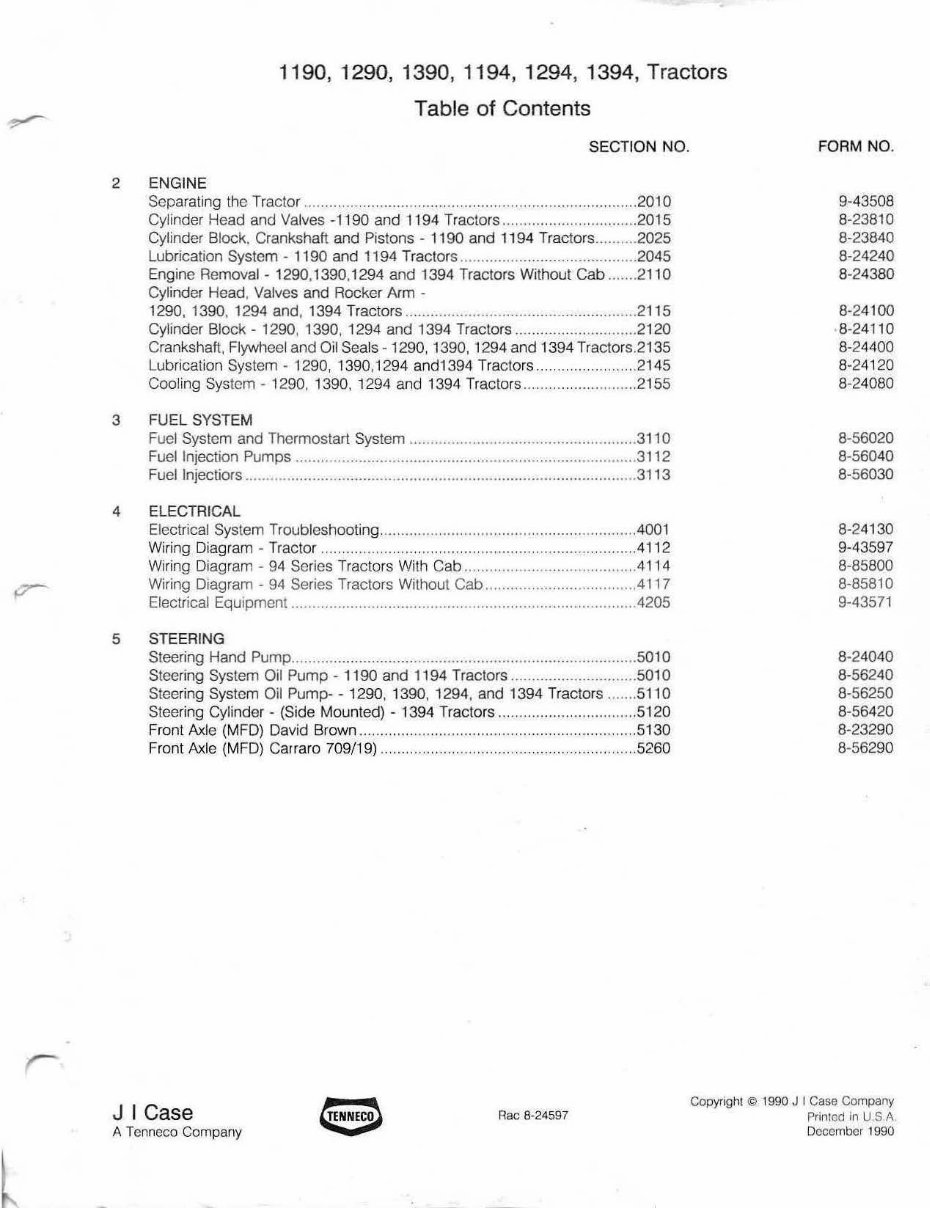

1190, 1290) 1390, 1194, 1294, 1394) Tractors Table of Contents SECTION NO. 2 ENGINE Separating the Tractor .................................. .. ........... ... .. .. ... ...... .. ......... .. .... 2010 Cylinder Head and Valves-1190 and 1194 Tractors ... .. .. ............... .. .. .. .. .. 2015 Cylinder Block. Crankshaft and Pistons - 1190 and 1194 Tractors .. ........2025 Lubrication System - 1190 and 1194 Tractors ...................... .. ........... ... ....2045 Engine Removal - 1290,1390,1294 and 1394 Tractors Without Cab ....... 211 0 Cylinder Head, Valves and Rocker Arm - 1290. 1390, 1294 and, 1394 Tractors .. .......................... .. ......................... 2115 Cylinder Block - 1290 I 1390 I 1294 and 1394 Tractors .. ..... ... .. .. ..... .. ........ 2120 Crankshaft, Flywheel and Oil Seals- 12901 1390, 1294 and 1394 Tractors.2135 Lubrication System - 1290 1 1390,1294 and1394 Tractors .. .. ............. .. .. ... 2145 Cooling System - 1290, 1390, 1294 and 1394 Tractors ... ............ .. ..... ..... 2155 3 FUEL SYSTEM Fuel System and Thermostart System ................................... .. .. ...............3110 Fuel Injection Pumps ........ .................................. ................ .. .. ..................3112 Fuellnjectiors ......................... .... .. .................................................. .. ..........3113 4 ELECTRICAL Electrical System Troubleshooting .......... .... ... ........................................... .4001 Wiring Diagram- Tractor ..... .. ............................... .. ..................... .. ............ 4112 Wiring Diagram - 94 Series Tractors With Cab .................... .. .. ................. 4114 Wiring Diagram - 94 Series Tractors Without Cab ... .. .. .......... .. .......... .. ... , 4117 Electrical Equipment ..................................................... .. .................... .. ..... 4205 5 STEERING Steering Hand Pump............................. ... .... .. .... ... .. .......... .. .............. .. .. .. ...5010 Steering System Oil Pump - 11 90 and 1194 Trectors .. .. ...... .................... 50 10 Steering System Oil Pump-- 1290, 1390, 1294, and 1394 Tractors ....... 5110 Steering Cylinder- (Side Mounted) - 1394 Tractors ................................. 5120 Front Axle (MFD) David Brown ...... .. ....... ,..... .. ............................. .. .. . .. .. .. .. . 5130 Front Axle (MFD) Carrara 709/19) .................... ... ........... ....... ... , .. .. ... ......... 5260 J I Case Rae 8-24597 A Tenneco Company FORM NO. 9-43508 8-23810 8-23840 8-24240 8-24380 8-24100 8-24110 8-24400 8-24120 8-24080 8-56020 8-56040 8-56030 8-24130 9-43597 8-85800 8-85810 9-43571 8-24040 8-56240 8-56250 8-56420 8-23290 8-56290 Copyright © 1 990 J I Case Company PrintGd In U.S.A. December 1990

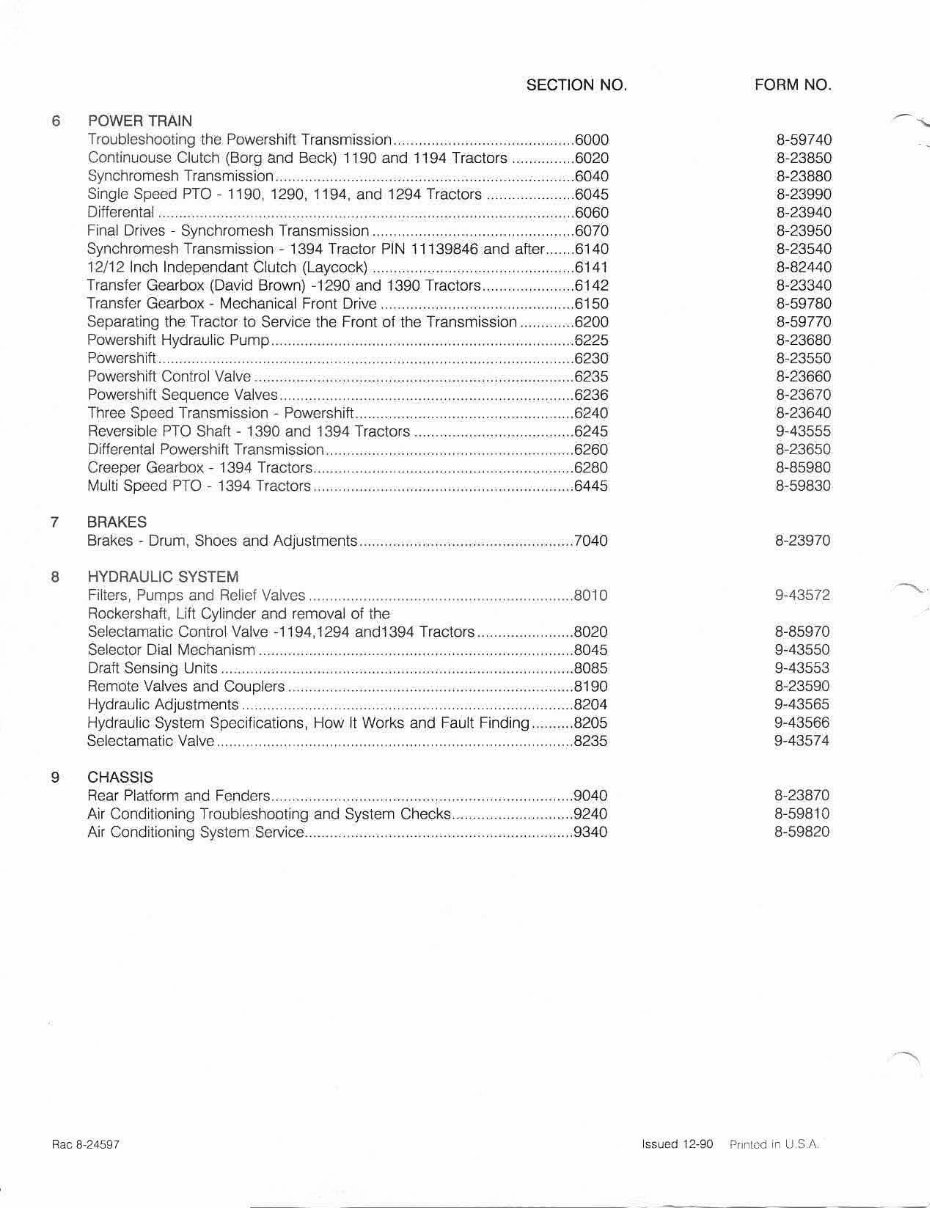

SECTION NO. 6 POWER TRAIN Troubleshooting the. Powershift Transmission .. .... .... , .. .. ... ....... .. ...... .. .. ...... 6000 Continuouse Clutch (Borg and Beck) 11 90 and 1194 Tractors .. ...... .. .. .. .6020 Synchromesh Transmission ................ ......................... .. ............................6040 Single Speed PTO - 1190, 1290, 1194, and 1294 Tractors .. ....... .... .... .. .. 6045 Differental .. ............ ..... .. .. ... ............... ...... .............. ..... .......... .. ..... .. ... . .. .. ... ... 6060 Final Drives - Synchromesh Transmission ........ ... ... ... ............................... 6070 Synchromesh Transmission- 1394 Tractor PIN 11139846 and after .... .. . 6140 12/121nch lndependant Clutch (Laycoc~) ...... .. .. .. .... .. .. .. .... ,.............. .. ..... 61 41 Transfer Gearbox (David Brown) -1290 and 1390 Tractors .. .. .................. 61 42 Transfe r Gearbox- Mechanical Front Drive .............................................. 6150 Separating the Tractor to Service the Front of the Transmission ............. 6200 Powershift Hydraulic Pump .. .... .. .. ....................................................... .. ......6225 Pbwershift .................................... .... ... ... ....... .. ..... .. ................... ................. .6230 Powershift Control Valve ............... .. . ... ....................... .. ....... .. ... ............ .. .... 6235 Powershift Sequence Valves ... ................................... .. ............... .. .. ... .... .... 6236 Three Speed Transmission- Powershift ..................................... .... .. .. .. .. ... 6240 Reversible PTO Shaft- 1390 and 1394 Tractors ................ ... .. ...... .... .. ... .. 6245 Different;:l l Powershift Transmission ......................... .. ., .. ... ......... .. .. .... .. .. .. .. 6260 Creeper Gearbox- 1394 Tractors ....... .. .... .. .... ............ ... ..... .. .......... ... .. .. .. .. 6280 Mu lti Speed PTO - 1394 Tractors ....... , .. .................... ... . .. ................ .. ........ ,6445 7 BRAKES Brakes- Drum, Shoes and Adjustments .......... .. .............. , .............. .. ........ 7040 8 HYDRAULIC SYSTEM Filters, Pumps and Rel ief Valves ...... .. ............................. .. ........................ 8010 Rockershaft, Lift Cylinder and removal of the Selectamatic Control Valve -1194,1294 a:nd1394 Tractors ........ ...... .. ....... 8020 Selector Dial Mechanism .................... ........ .. ............................ ....... ... .. ..... 8045 Dr.aft Sensing Units ...................... .. .. .......... .. .................... .. .............. .. .... ..... 8085 Remote Valves and Couplers ............. .. .. ... ... .. ... ... · ...................................... 8190 Hydraulic Adjustments ... ................. ... ................................................... .. : .. 8204 Hydraulic System Specifications, How It Works and Fault Finding ....... .. . 8205 Selectamatic Valve ... ....... .. ... ... .. .. ..... .. .......... .... .............. .. .... .. .. .... .. .. .......... 8235 9 CHASSIS Rear Platform and Fenders .... .... ...... .. ... .................... , .. .. ... .. .. .... ................ . 9040 Air Conditioning Troubleshooting and System Checks .. .. .. ............. .. .... .... 9240 Air Conditioning System Service ... .. .... .. ............ ... .. ................ ;... , .... .. ...... .. . 9340 Rae 8-24597 FORM NO. 8-59 740 8-23850 8-23880 8~2 3990 8-23940 8-23950 8- 235 .40 8-82440 8-23340 8-59780 8-59770 8-23680 8-23550 8-23660 8-23670 8-23640 9-43555 8-23650 8-85980 8-59830 8-23970 9-43572 8-85970 9~43550 9-43553 8-23590 9-43565 9-43566 9-43574 8-23870 8-59810 8-59820 Issued 12-90 Pnntod In U.S A. ~-

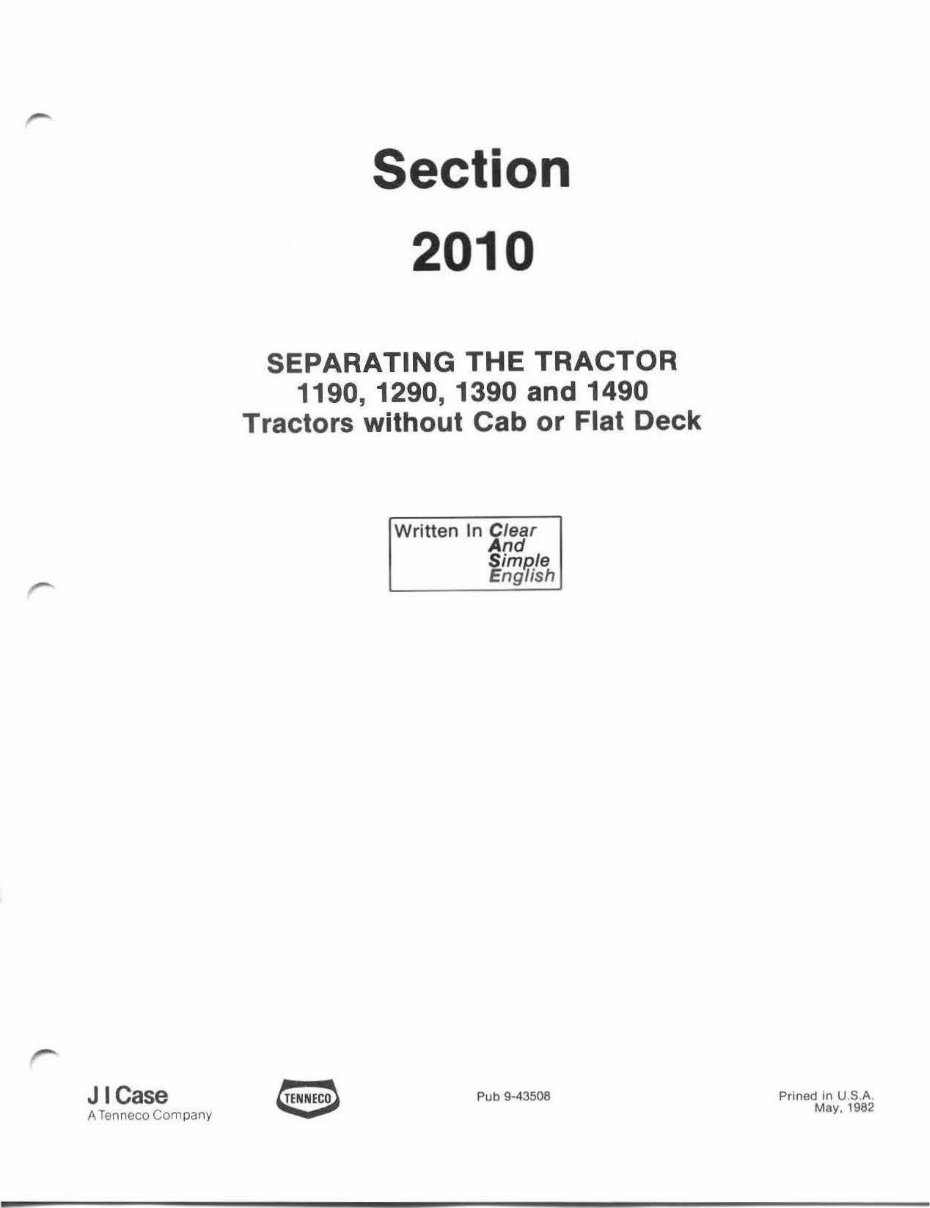

r J I Case A Ten neco Compa ny Section 2010 SEPARATING THE TRACTOR 1190, 1290, 1390 and 1490 Tractors without Cab or Flat Deck Written In Clear And Simple English Pub 9-43508 Prlned In U.S.A. May, 1982

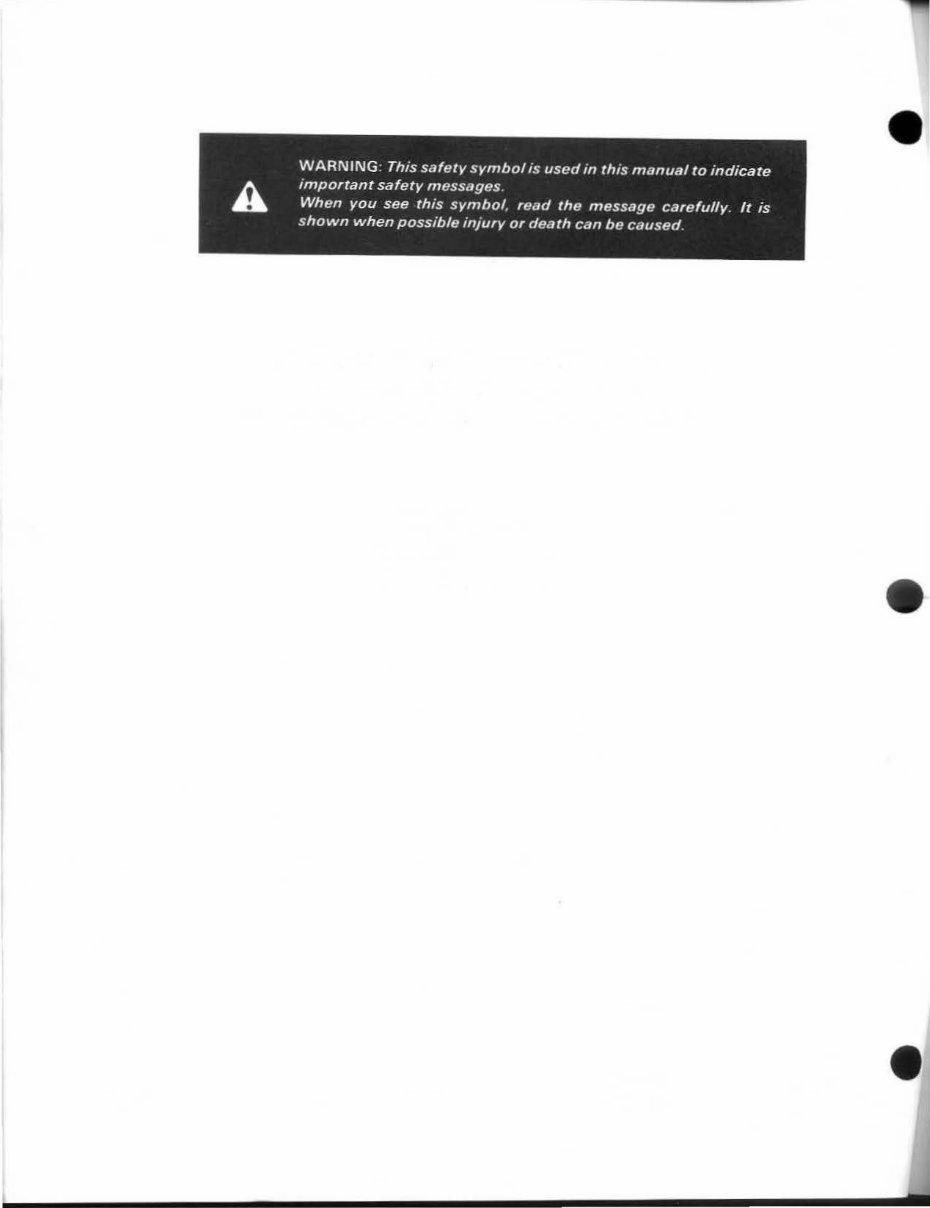

WARNING : This safety symbol is used in this manual to indicate important safety messages . When you see this symbol . read the message carefully. It is shown when possible injury or death can be caused. •

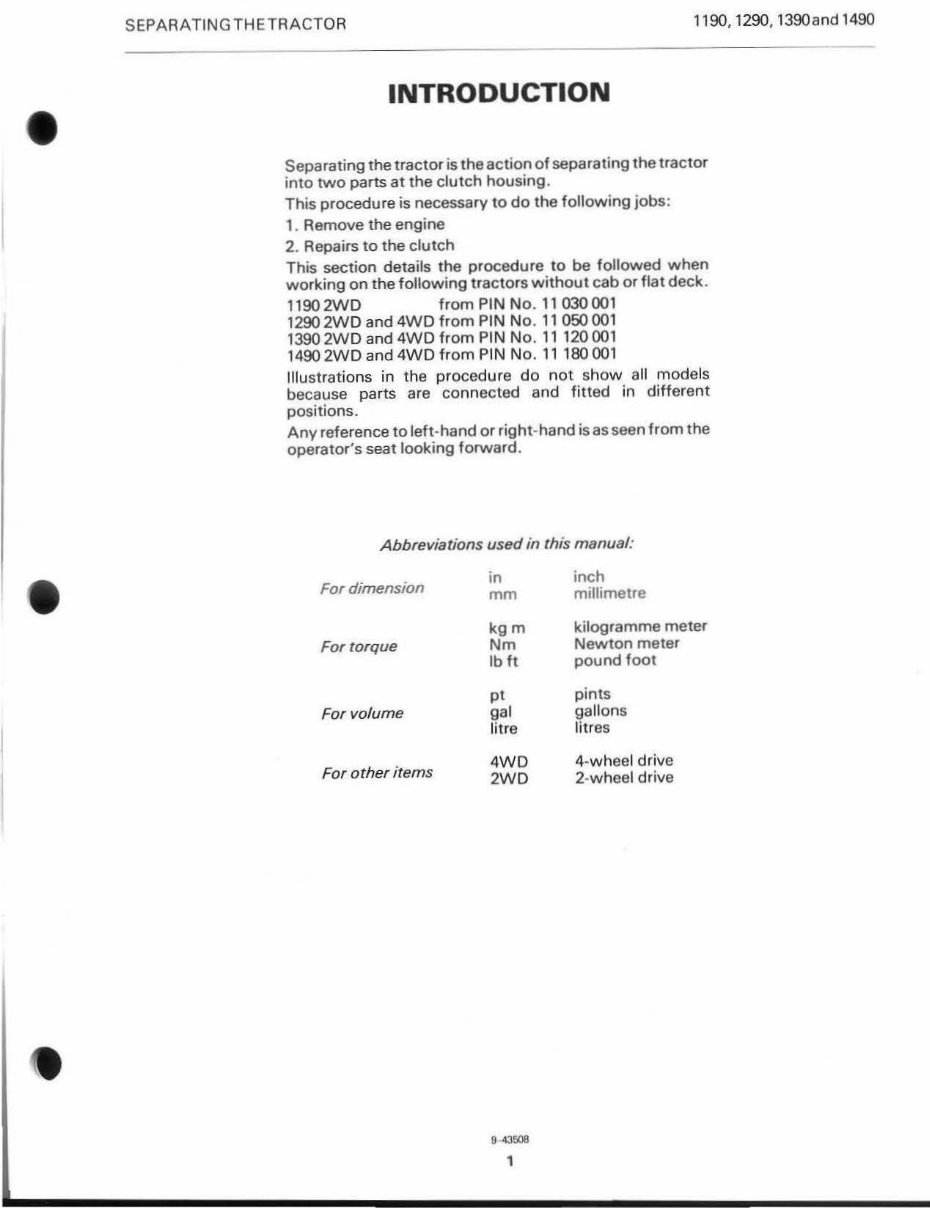

SEPARATING THE TRACTOR 1190,1290, 1390and1490 INTRODUCTION Separating the tractor is the action of separating the tractor into two parts at the clutch housing. This procedure is necessary to do the following jobs: 1. Remove the engine 2. Repairs to the clutch This section details the procedure to be followed when working on the following tractors without cab or flat deck. 1190 2WD from PIN No . 11 030 001 1290 2WD and 4WD from PIN No . 11 050 001 1390 2WD and 4WD from PIN No . 11120 001 1490 2WD and 4WD from PIN No. 11180 001 Illustrations in the procedure do not show all models because parts are connected and fitted in different positions. Any reference to left -hand or right -hand is as seen from the operator's seat looking forward. Abbreviations used in this manual : For dimension For tor que For volume For other items in mm kgm Nm lb ft pt gal litre 4WD 2WD 9 43508 1 inch millimetre kilogramme meter Newton meter pound foot pints gallons litr es 4-wheel drive 2-wheel drive

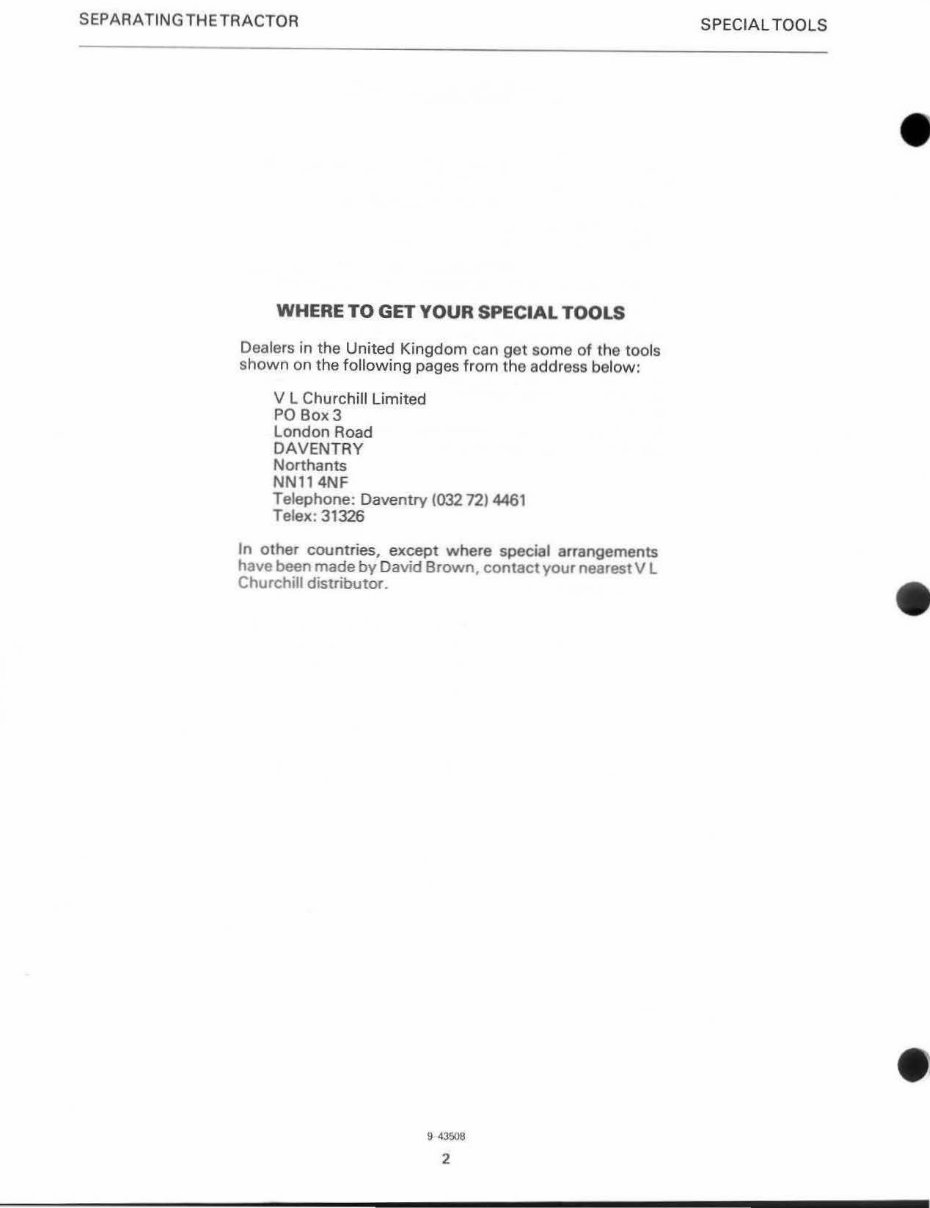

SEPARATING THET RACTOR WHERE TO GET YOUR SPECIAL TOOLS Dea lers in the United Kingdom can get some of the tools shown on the following pages from the address below: V L Churchill Limited PO Box 3 London Road DAVENTRY Northants NN114NF Telephone: Daventry (032 72) 4461 Tel ex: 31326 In other countries, except wh ere special arrangements have been made by David Br own , contact your nearest V L Churchill distributor. 9 43508 2 SPECIAL TOOLS •

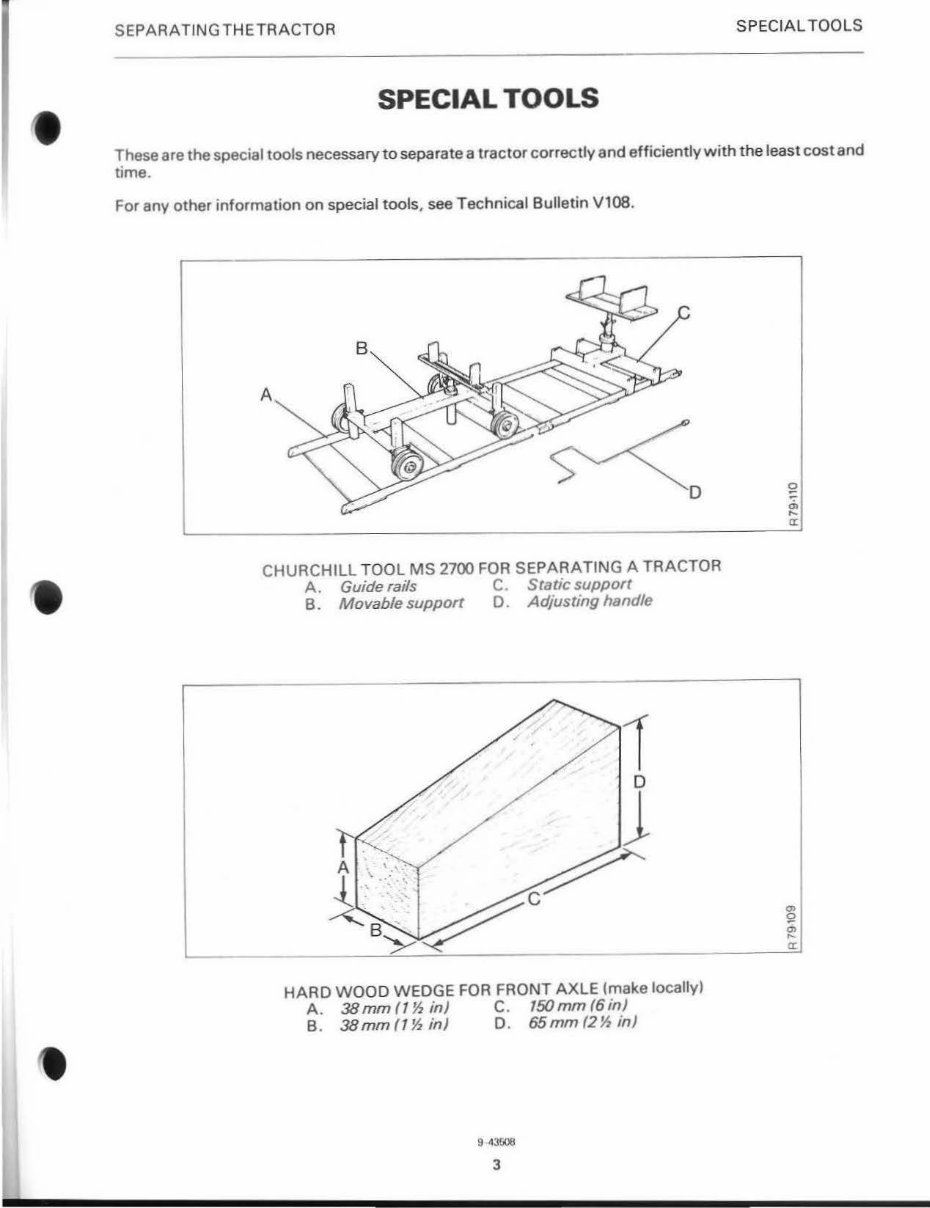

SEPARATINGTHETRACTOR SPECIAL TOOLS SPECIAL TOOLS These are the special tools necessary to separate a tractor correctly and efficiently with the least cost and time. For any other information on special tools, see Techni cal Bulletin V108. A CHURCHILL TOOL MS 2700 FOR SEPARATING A TRACTOR A. Guide rails C Static support B. Movable support D. Ad1ustmg handle HARD WOOD WEDGE FOR FRONT AXLE (make locally) A. 38 mm (1 *i n) C. 150 mm (6 in) B. 38mm(1 * in) D. 65mm(2 Y:z in ) 9 43006 3

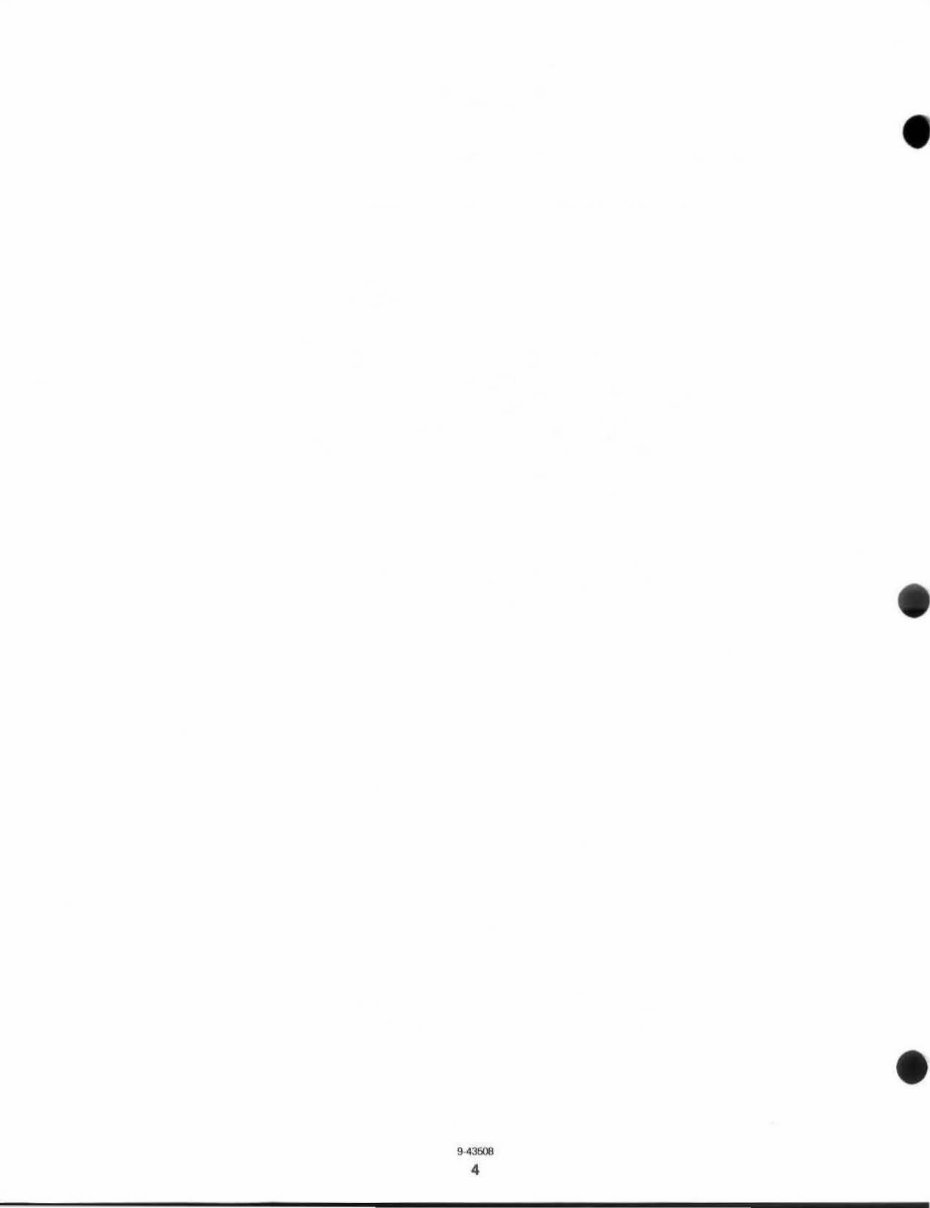

9-43608 4 • •

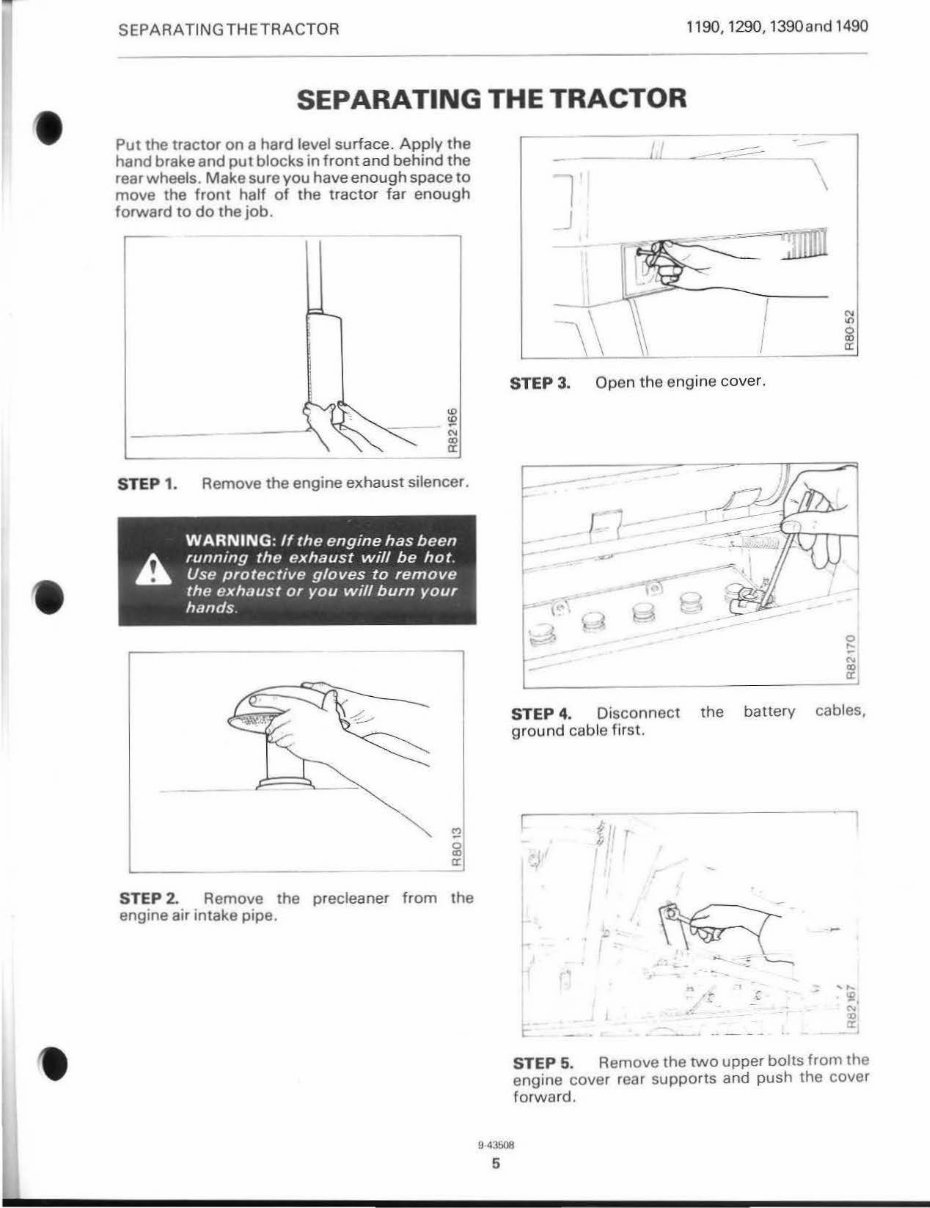

SEPARATING THE TRACTOR 1190, 1290, 1390and1490 SEPARATING THE TRACTOR Put the tractor on a hard level surface. Apply the hand brake and put blocks in front and behind the rear wheels. Make sure you have enough space to move the front half of the tractor far enough forward to do the job. STEP 1. Remove the engine exhaust silencer. WARNING: If the engine has been running the exhaust will be hot . Use protective gloves to remove the exhaust or you will burn your hands. ~ 0 CXl a: STEP 2. Remove the precleaner from the engine air intake pipe. I I I STEP 3. Open the engine cover. ~ 0 CXl a: 0 r;: N CXl a: STEP 4. Disconnect the battery cables, ground cable first. .. STEP 5. Remove the two upper bolts from the engine cover rear supports and push the cover forward. !) 4lb08 5
