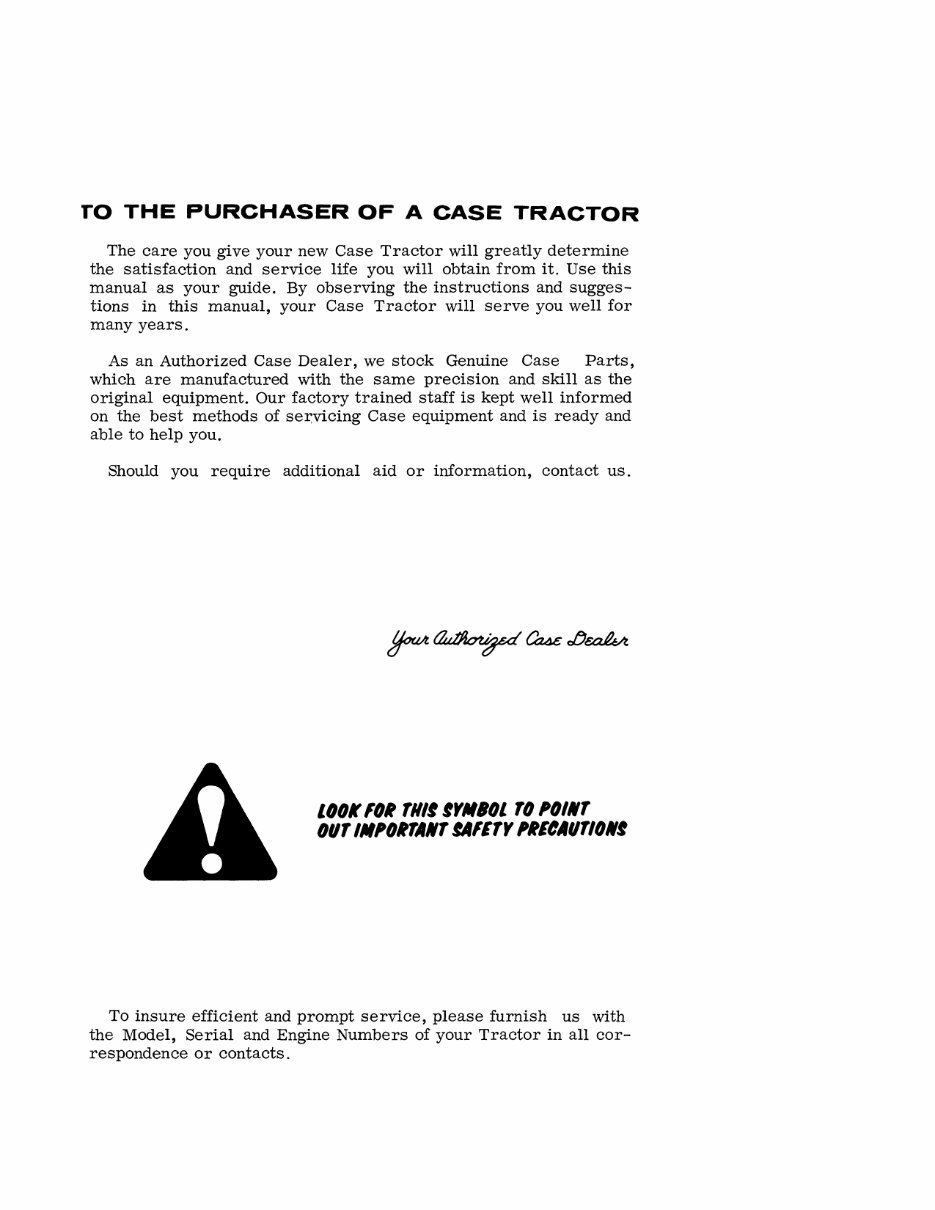

TO THE PURCHASER OF A CASE TRACTOR The care you give your new Case Tractor will greatly determine the satisfaction and service life you will obtain from it. Use this manual as your guide. By observing the instructions and sugges- tions in this manual, your Case Tractor will serve you well for many years. As an Authorized Case Dealer, we stock Genuine Case Parts, which are manufactured with the same precision and skill as the original equipment. Our factory trained staff is kept well informed on the best methods of servicing Case equipment and is ready and able to help you. Should you require additional aid or information, contact us. ,'OK "ll THIIIY"80' T' "'ilT OUT I"'O/ITAIIT IAIETY 'IIEIAUTIOIII To insure efficient and prompt service, please furnish us with the Model, Serial and Engine Numbers of your Tractor in all cor- respondence or contacts.

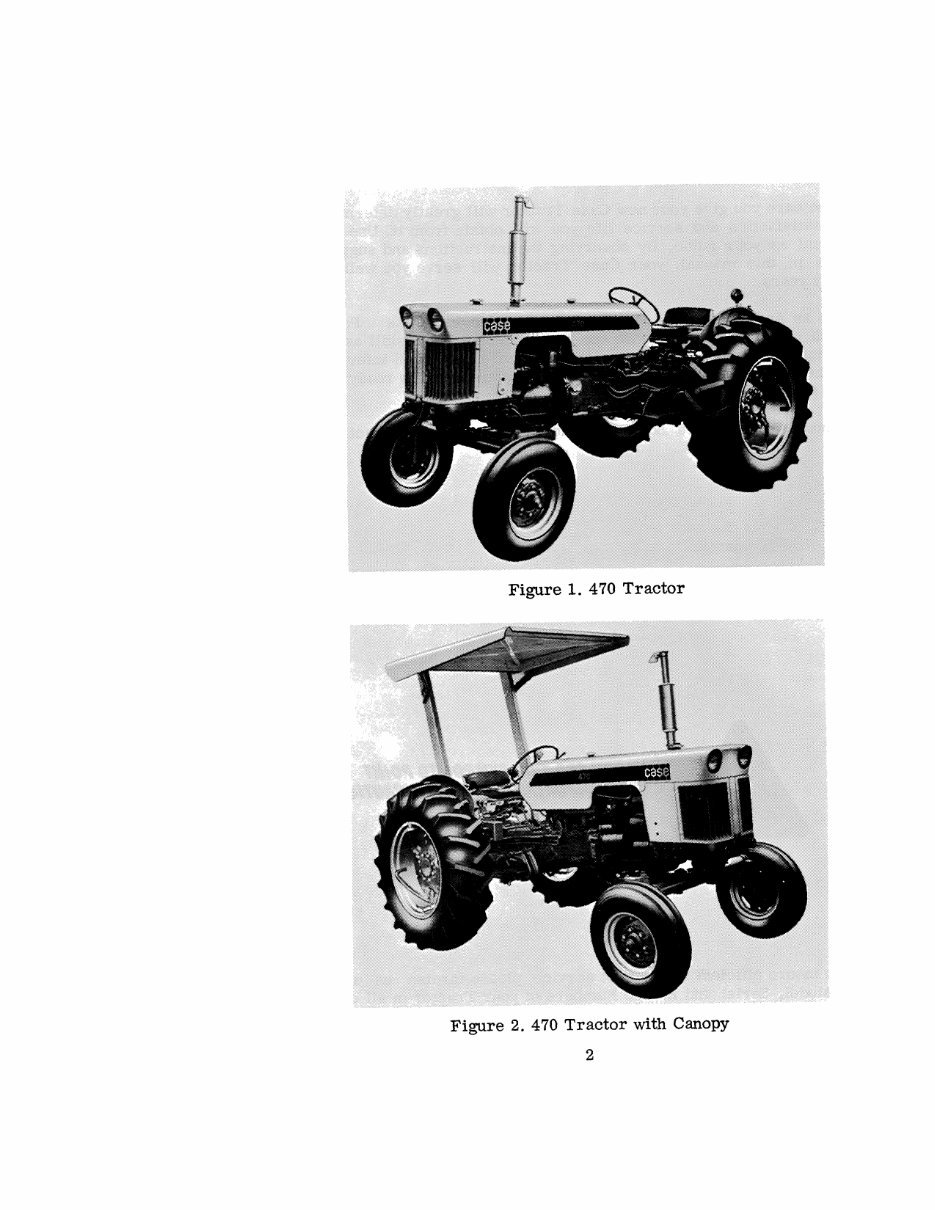

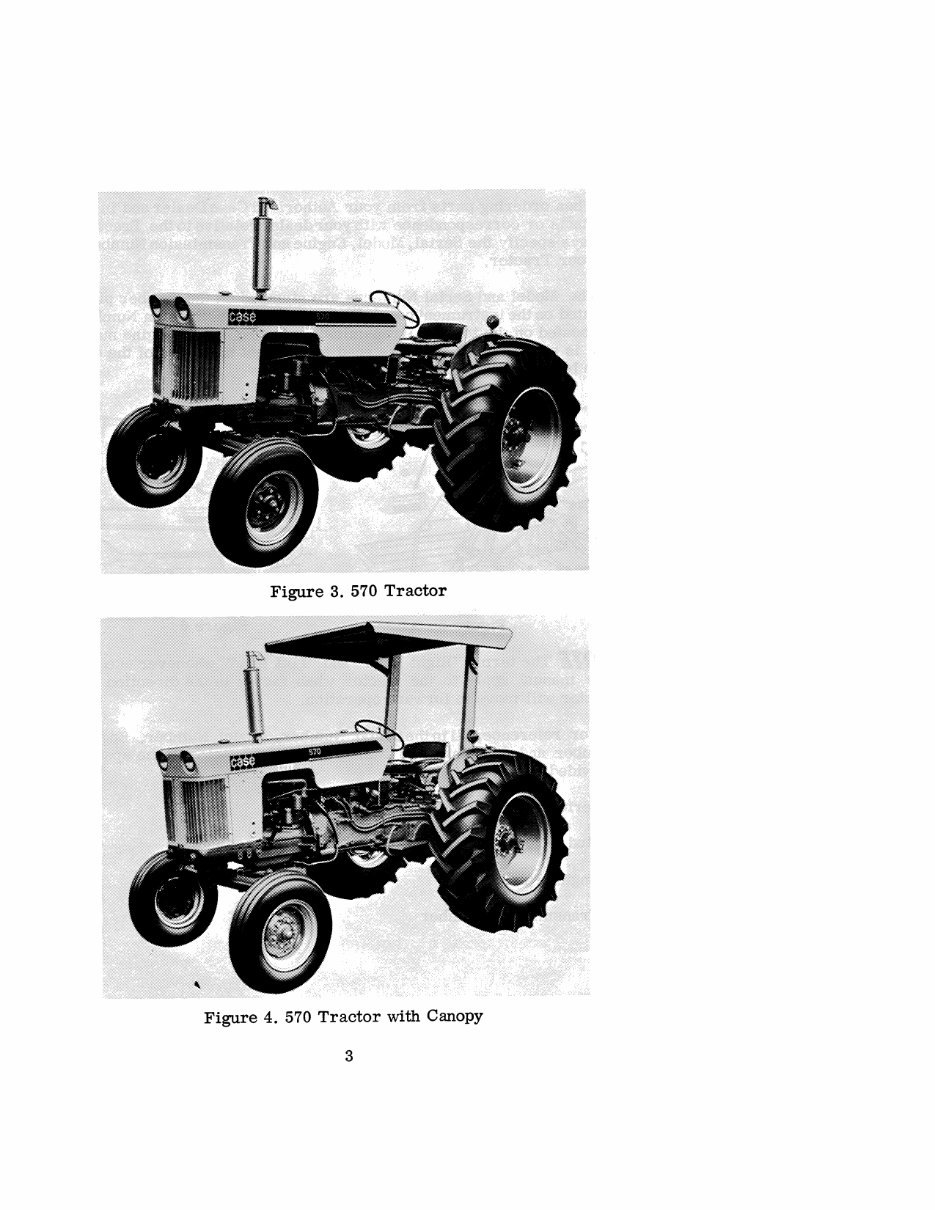

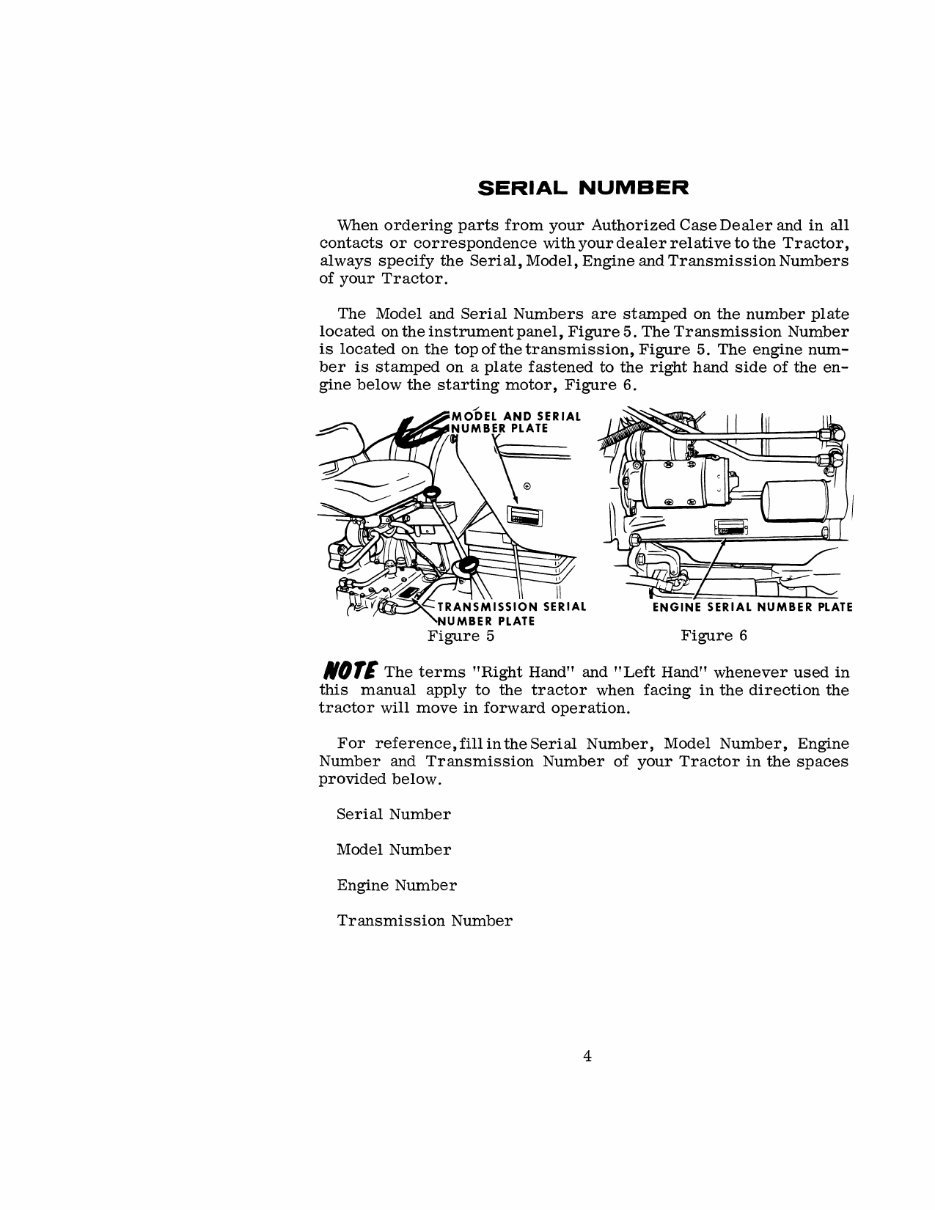

SERIAL NUMBER When ordering parts from your Authorized Case Dealer and in all contacts or correspondence with your dealer relative to the Tractor, always specify the Serial, Model, Engine and Transmission Numbers of your Tractor. The Model and Serial Numbers are stamped on the number plate located on the instrument panel, Figure 5. The Transmission Number is located on the top of the transmission, Figure 5. The engine num- ber is stamped on a plate fastened to the right hand side of the en- gine below the starting motor, Figure 6. MODEL AND SERIAL SERIAL UMBER PLATE Figure 5 ENGINE SERIAL NUMBER PLATE Figure 6 IIfJTt The terms "Right Hand" and "Left Hand" whenever used in this manual apply to the tractor when facing in the direction the tractor will move in forward operation. For reference, fill in the Serial Number, Model Number, Engine Number and Transmission Number of your Tractor in the spaces provided below. Serial Number Model Number Engine Number Transmission Number 4

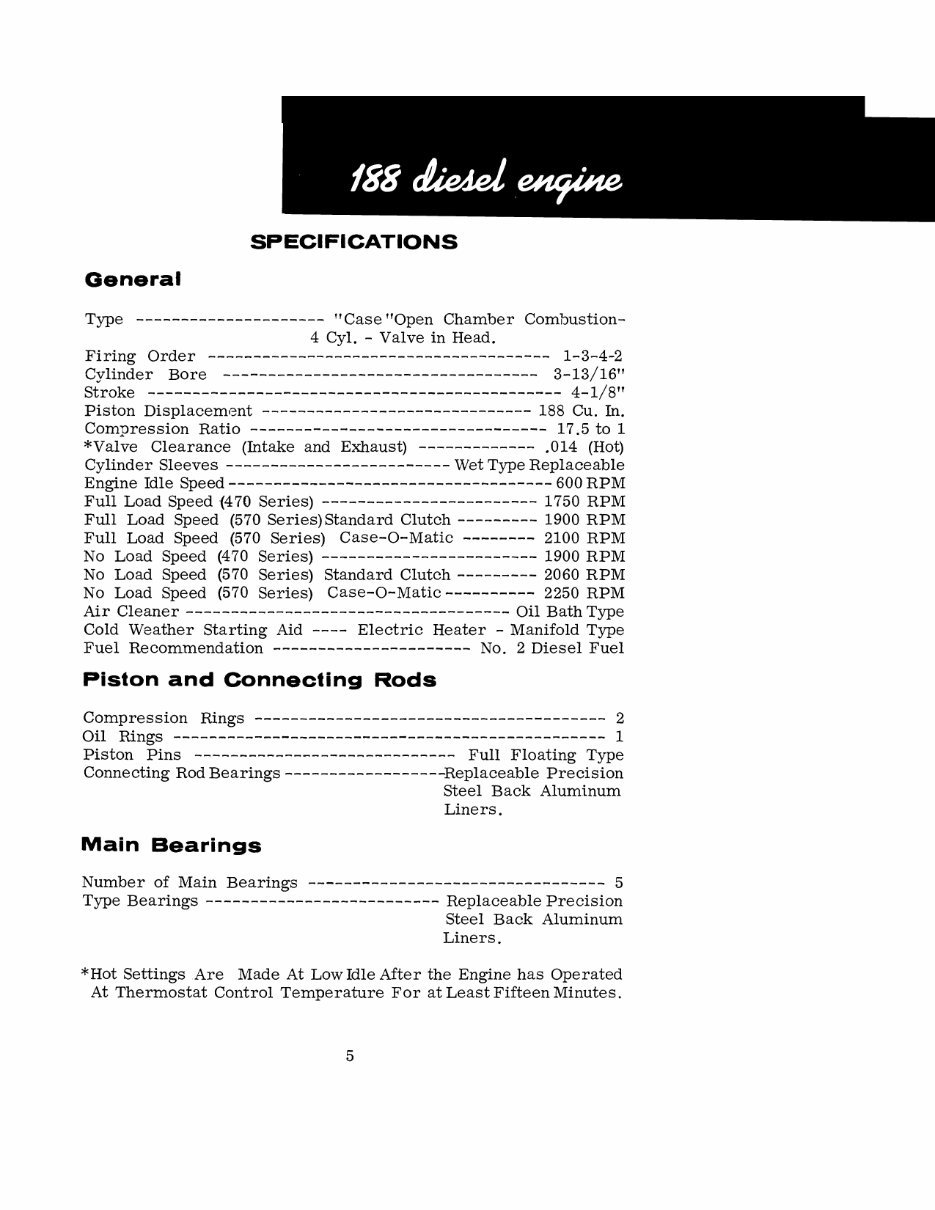

SPECIFICATIONS General Type --------------------- "Case "Open Chamber Combustion- 4 Cyl. - Valve in Head. Firing Order -------------------------------------- 1-3-4-2 Cylinder Bore ----------------------------------- 3-13/16" Stroke ---------------------------------------------- 4-1/8" Piston Displacement ------------------------------ 188 Cu. In. Compression Ratio --------------------------------- 17.5 to 1 *Valve Clearance (Intake and Exhaust) ------------- .014 (Hot) Cylinder Sleeves ------------------------- Wet Type Replaceable Engine Idle Speed ------------------------------------ 600 RPM Full Load Speed {470 Series) ------------------------ 1750 RPM Full Load Speed (570 Series) Standard Clutch --------- 1900 RPM Full Load Speed (570 Series) Case-O- Matic -------- 2100 RPM No Load Speed (470 Series) ------------------------ 1900 RPM No Load Speed (570 Series) Standard Clutch --------- 2060 RPM No Load Speed (570 Series) Case-O-Matic ---------- 2250 RPM Air Cleaner ------------------------------------ Oil Bath Type Cold Weather Starting Aid ---- Electric Heater - Manifold Type Fuel Recommendation ---------------------- No. 2 Diesel Fuel Piston and Connecting Rods Compression Rings --------------------------------------- 2 Oil Rings ------------------------------------------------ 1 Piston Pins ----------------------------- Full Floating Type Connecting Rod Bearings ------------------Replaceable Precision Main Bearings Steel Back Aluminum Liners. Number of Main Bearings --------------------------------- 5 Type Bearings -------------------------- Replaceable Precision Steel Back Aluminum Liners. *Hot Settings Are Made At Low Idle After the Engine has Operated At Thermostat Control Temperature For at Least Fifteen Minutes. 5

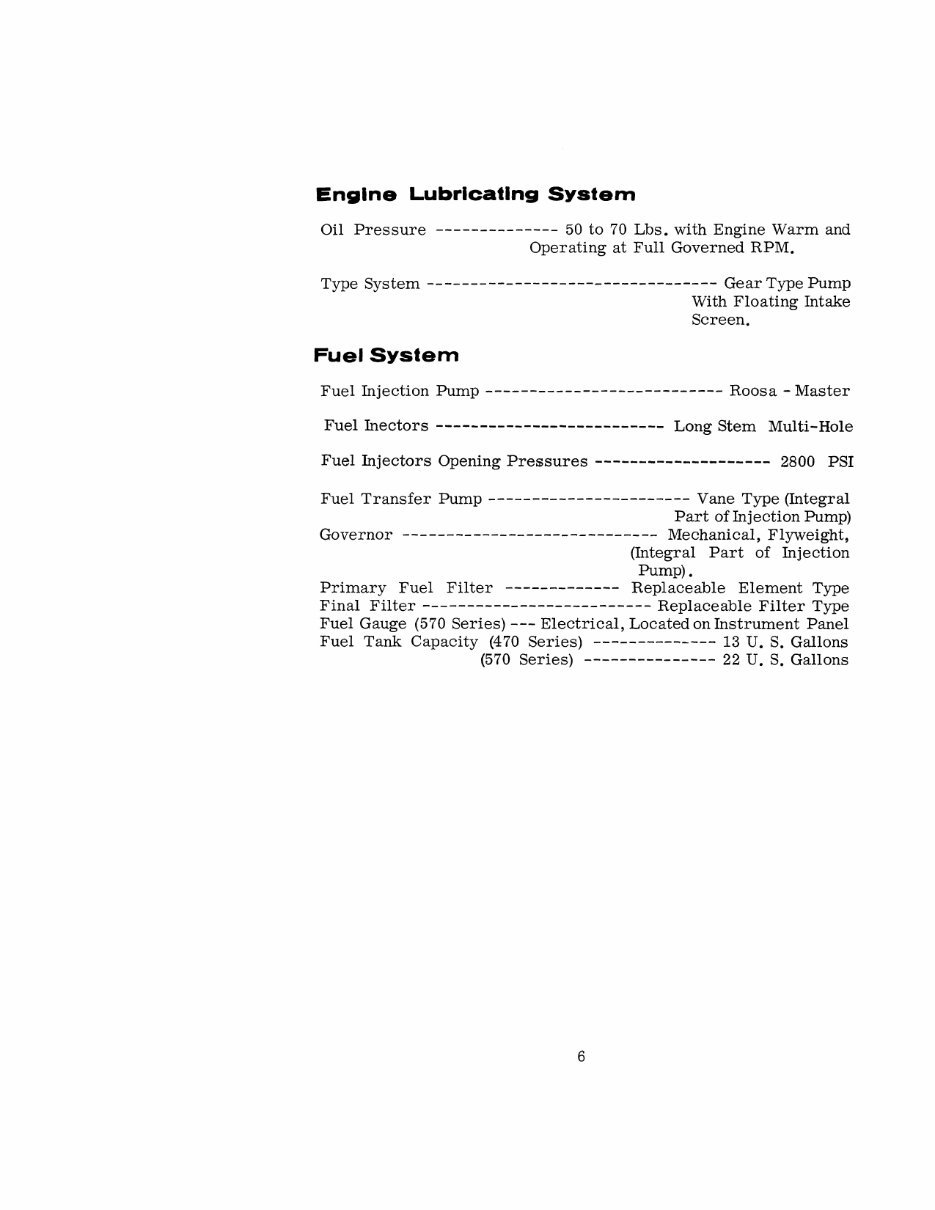

Engine Lubricating System Oil Pressure -------------- 50 to 70 Lbs. with Engine Warm and Operating at Full Governed RPM. Type System --------------------------------- Gear Type Pump With Floating Intake Screen. Fuel System Fuel Injection Pump --------------------------- Roosa - Master Fuel Inectors -------------------------- Long Stem Multi-Hole Fuel Injectors Opening Pressures -------------------- 2800 PSI Fuel Transfer Pump ----------------------- Vane Type (Integral Part of Injection Pump) Governor ----------------------------- Mechanical, Flyweight, (Integral Part of Injection Pump). Primary Fuel Filter ------------- Replaceable Element Type Final Filter -------------------------- Replaceable Filter Type Fuel Gauge (570 Series) --- Electrical, Located on Instrument Panel Fuel Tank Capacity (470 Series) -------------- 13 U. S. Gallons (570 Series) --------------- 22 U. S. Gallons 6

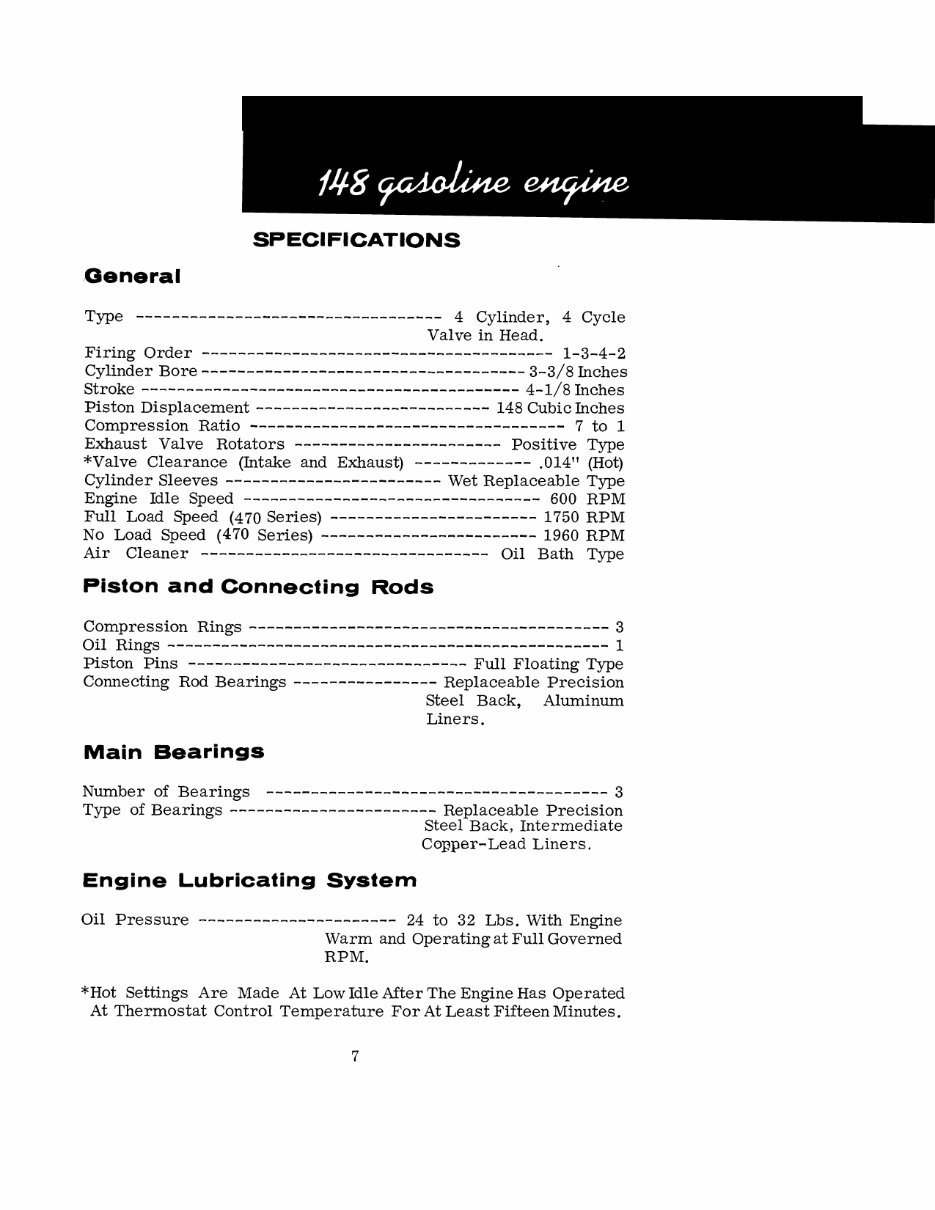

SPECIFICATIONS General Type ---------------------------------- 4 Cylinder, 4 Cycle Valve in Head. Firing Order --------------------------------------- 1-3-4-2 Cylinder Bore ------------------------------------ 3-3/8 Inches Stroke ------------------------------------------ 4-1/8 Inches Piston Displacement -------------------------- 148 Cubic Inches Compression Ratio ----------------------------------- 7 to 1 Exhaust Valve Rotators ----------------------- Positive Type *Valve Clearance (Intake and Exhaust) ------------- .014" (Hot) Cylinder Sleeves ------------------------ Wet Replaceable Type Engine Idle Speed --------------------------------- 600 RPM Full Load Speed (470 Series) ----------------------- 1750 RPM No Load Speed (470 Series) ------------------------ 1960 RPM Air Cleaner -------------------------------- Oil Bath Type Piston and Connecting Rods Compression Rings ---------------------------------------- 3 Oil Rings ------------------------------------------------- 1 Piston Pins ------------------------------- Full Floating Type Connecting Rod Bearings ---------------- Replaceable Precision Main Bearings Steel Back, Aluminum Liners. Number of Bearings -------------------------------------- 3 Type of Bearings ----------------------- Replaceable Precision Steel Back, Intermediate Copper- Lead Liners. Engine Lubricating System Oil Pressure ---------------------- 24 to 32 Lbs. With Engine Warm and Operating at Full Governed RPM. *Hot Settings Are Made At Low Idle Mter The Engine Has Operated At Thermostat Control Temperature For At Least Fifteen Minutes. 7

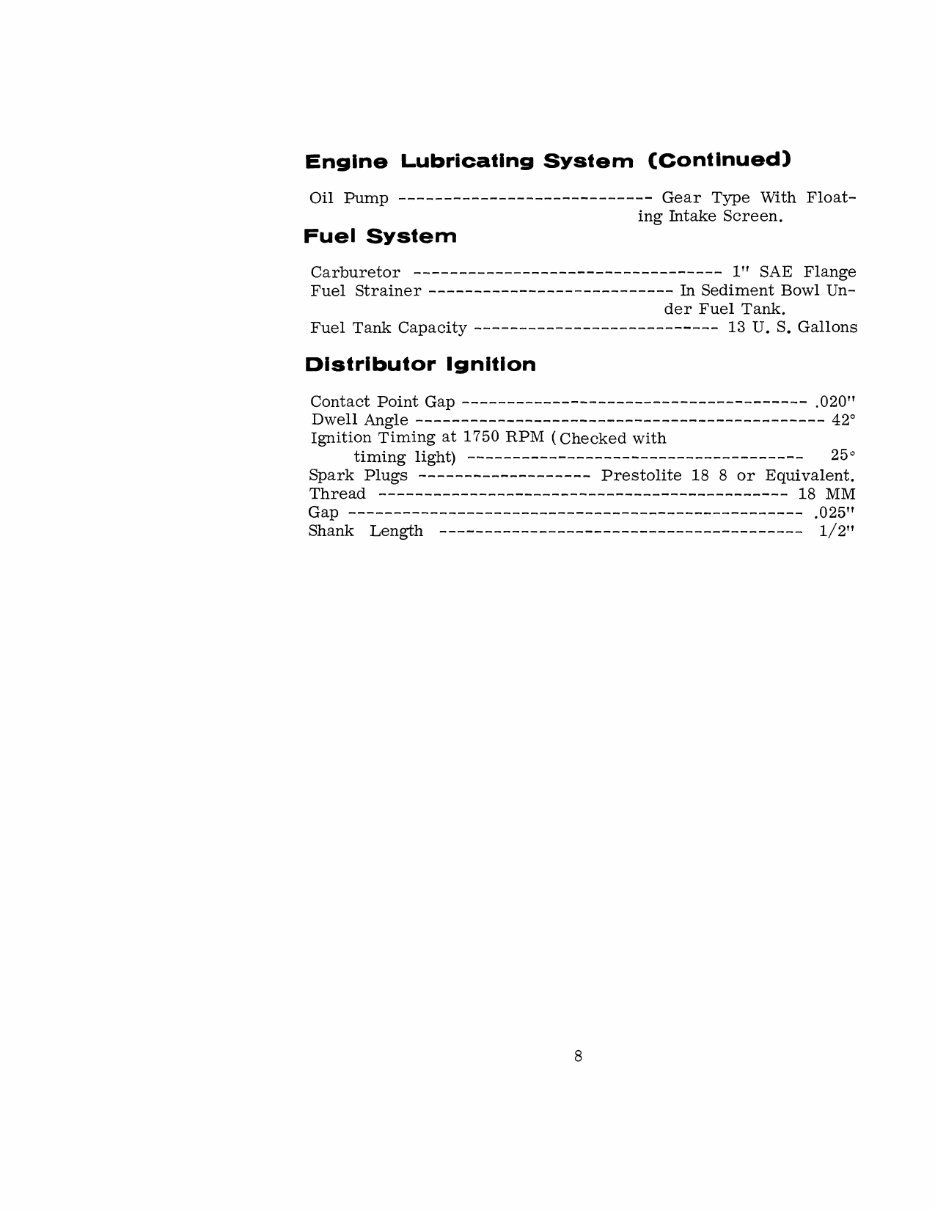

Engine Lubricating System (Continued) Oil Pump ---------------------------- Gear Type With Float- ing Intake Screen. Fuel System Carburetor ---------------------------------- 1" SAE Flange Fuel Strainer --------------------------- In Sediment Bowl Un- der Fuel Tank. Fuel Tank Capacity --------------------------- 13 U. S. Gallons Distributor Ignition Contact Point Gap -------------------------------------- .020" Dwell Angle --------------------------------------------- 42° Ignition Timing at 1750 RPM (Checked with timing light) ------------------------------------- 250 Spark Plugs ------------------- Prestolite 18 8 or Equivalent. Thread --------------------------------------------- 18 MM Gap -------------------------------------------------- .025" Shank Length ---------------------------------------- 1/2" 8

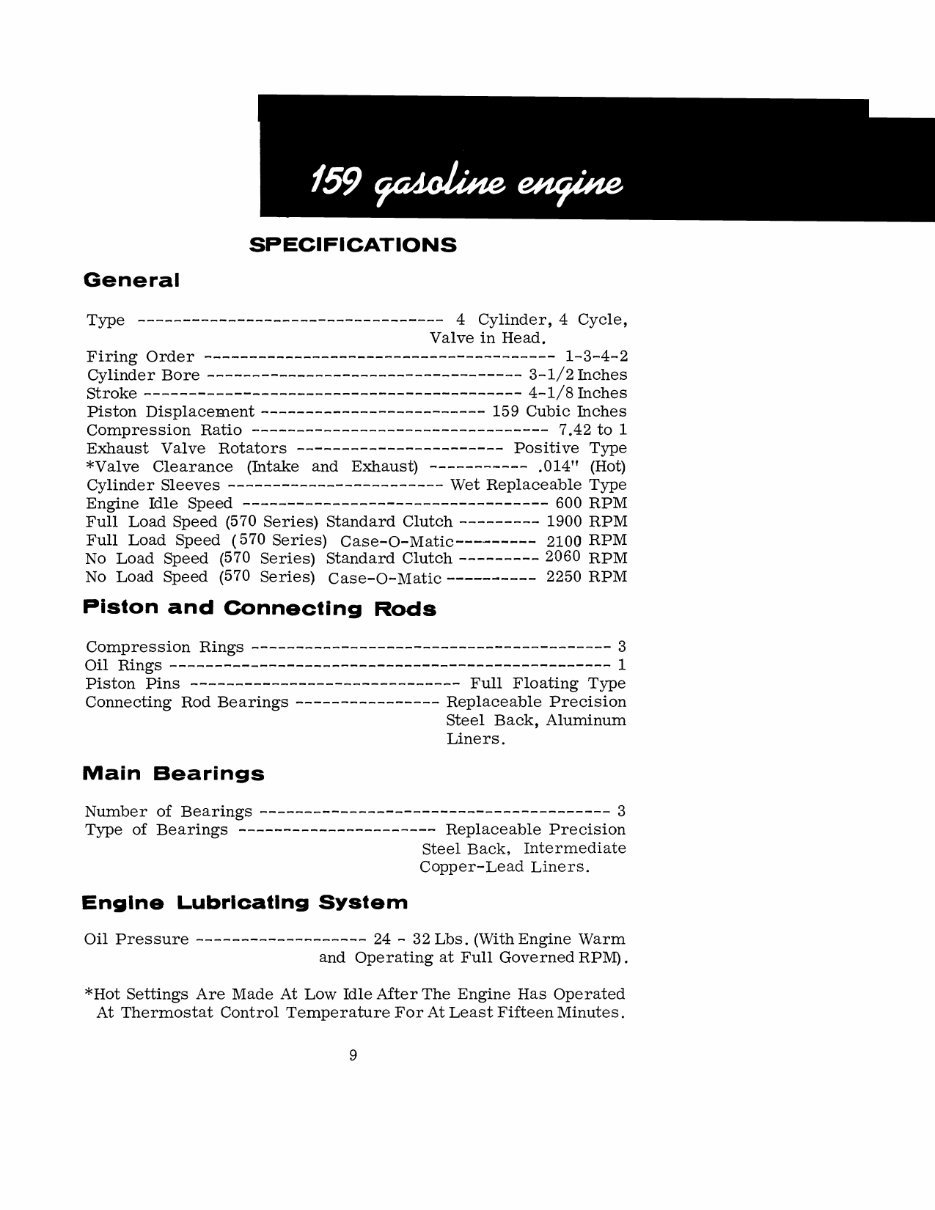

SPECIFICATIONS General Type ---------------------------------- 4 Cylinder, 4 Cycle, Valve in Head. Firing Order --------------------------------------- 1-3-4-2 Cylinder Bore ----------------------------------- 3-1/2 Inches Stroke ------------------------------------------ 4-1/8 Inches Piston Displacement ------------------------- 159 Cubic Inches Compression Ratio --------------------------------- 7.42 to 1 Exhaust Valve Rotators ----------------------- Positive Type *Valve Clearance (Intake and Exhaust) ----------- .014" (Hot) Cylinder Sleeves ------------------------ Wet Replaceable Type Engine Idle Speed ---------------------------------- 600 RPM Full Load Speed (570 Series) Standard Clutch --------- 1900 RPM Full Load Speed (570 Series) Case-O-Matic--------- 2100 RPM No Load Speed (570 Series) Standard Clutch --------- 2060 RPM No Load Speed (570 Series) Case-O-Matic ---------- 2250 RPM Piston and Connecting Rods Compression Rings ---------------------------------------- 3 Oil Rings ------------------------------------------------- 1 Piston Pins ------------------------------ Full Floating Type Connecting Rod Bearings ---------------- Replaceable Precision Main Bearings Steel Back, Aluminum Liners. Number of Bearings --------------------------------------- 3 Type of Bearings ---------------------- Replaceable Precision Steel Back, Intermediate Copper-Lead Liners. Engine Lubricating System Oil Pressure ------------------- 24 - 32 Lbs. (With Engine Warm and Operating at Full Governed RPM) . *Hot Settings Are Made At Low Idle After The Engine Has Operated At Thermostat Control Temperature For At Least Fifteen Minutes. 9
