OPERATION AND SERVICE MANUAL BELARUS SERIES 80.1/80.2/82.1/82.2/82Р Eighth edition, revised and enlarged Publication No. Number of copies pcs. Language – English Released for print

ATTENTION! IMPORTANT! 1. Make a thorough study of this Manual before operating a new tractor and follow the instructions given therein. 2. Use season-specific diesel fuels as specified in this Manual. 3. DO NOT run the diesel-engine in idling for more than 15 minutes. 4. Keep in mind that diesel-start-up is only possible with the gearbox lever in the extreme left-hand position (i.e. engagement position I or gear range position II). 5. When operating the tractor without using the rear P.T.O., set the driving pin of the P.T.O. independent two-speed drive to position I (540 r.p.m.), the lever of the P.T.O. independent synchromesh drive — to its neutral (midposition), and the control lever — to its "P.T.O. Disengaged" position (refer to Section «Controls»). 6. Rear P.T.O. syncronized drive should be used at speeds not exceeding 8 km/h. Otherwise, the tractor power train may suffer severe damages. 7. Run the tractor in 9th gear, with the higher gear range (range II) engaged, only. 8. A one-man seat is installed in the tractor’s cab; only operator should be in the cab. An additional passenger seat (option) can be installed on request. 9. Remove sealing film or cut off bosses from polyethylene plugs on new storage batteries. 10. DO NOT run the tractor with the transmission clutch engaged in full or partially. 11. When starting to move the tractor, first see to it that the parking brake is disengaged. 12. When operating the tractor without universal-joint shafts, set the FDA selector handle to the «force-engaged» position. 13. DO NOT operate the tractor in closed spaces, with lack of sufficient ventilation (interchange of air). Breathing the machine exhaust gases can harm or cause death. 14. NEVER tow tractors «Belarus» 82.1/82.2/82P with the front driving wheels raised above the ground. Violation of this rule can result in breakdown of the FDA drive and/or prevalence of emergency conditions. 15. DO NOT lift the tractor front end Запрещается поднимать переднюю часть трактора за передний буксир, который используйте только для буксировки. 16. NEVER start the diesel-engine and/or work on the tractor without storage batteries installed. 17. Tow or push start of the tractor diesel-engine may only be admitted as a last resort, lest intensive wear of diesel-engine parts should result. 18. Since Manufacturer, Production Enterprise «Minsk Tractor Works», pursues a policy of constant improvement of products, the design of, and/or operating instructions for, certain tractor assembly units and parts may incorporate modifications which have not been introduced in this Manual.

Section 1. Introduction 2 1. INTRODUCTION The Operation and Service Manual is intended for operators and engineering and technical staff dealing with operation and maintenance of tractors «Belarus» 80.1/80.2/82.1/82.2/82Р. The Manual contains general description and specifications of tractors, operating and maintenance rules. Long-term and reliable operation of the «Belarus» tractors can be ensured, subject to their correct handling and timely maintenance. Before using the tractor for the first time, read the present Manual through, understand and strictly follow the recommendations given therein. 1.1. ABBREVIATIONS AND CONVENTIONAL SYMBOLS USED • SB — Storage Batteries; (АКБ); • ADL — Rear Axle Automatic Differential Lock; (АБД); • TDC — Top Dead Center; (ВМТ); • P.T.O. — Power Take-off Shaft; (ВОМ) • HSCU — Hydrostatic Steering Control Unit; (ГОРУ); • HSB — Hydraulic Steering Booster; (ГУР); • SPTA — Spare Parts, Tools and Accessories; — (ЗИП); • GB — (Speed) Gearbox; (КП); • FDA — Front Driving Axle; (ПВМ); • SMS — Seasonal Maintenance Service; (СТО) • HDC — Haul-and-Draw Coupler; … (ТСУ) • MP-1, MP-2 and MP-3 —Maintenance Procedure No. 1, No. 2 and No. 3, respectively; (ТО №1,№2, №3) • HDC — Haul-and-Draw Coupler; (ТСУ); • UC —Unitized Cab; …………… (УК); • ETH— Electric Torch Pre-Heater of Diesel-Engine; (ЭФП) • RHL— Rear Hitch Linkage. (ЗНУ) Tractor Component Nos. Manufacturer’s nameplate with tractor and diesel-engine serial Nos. indicated MINSK TRACTOR WORKS BELARUS Tractor No. Weight Engine No. Year manufactured MADE IN BELARUS

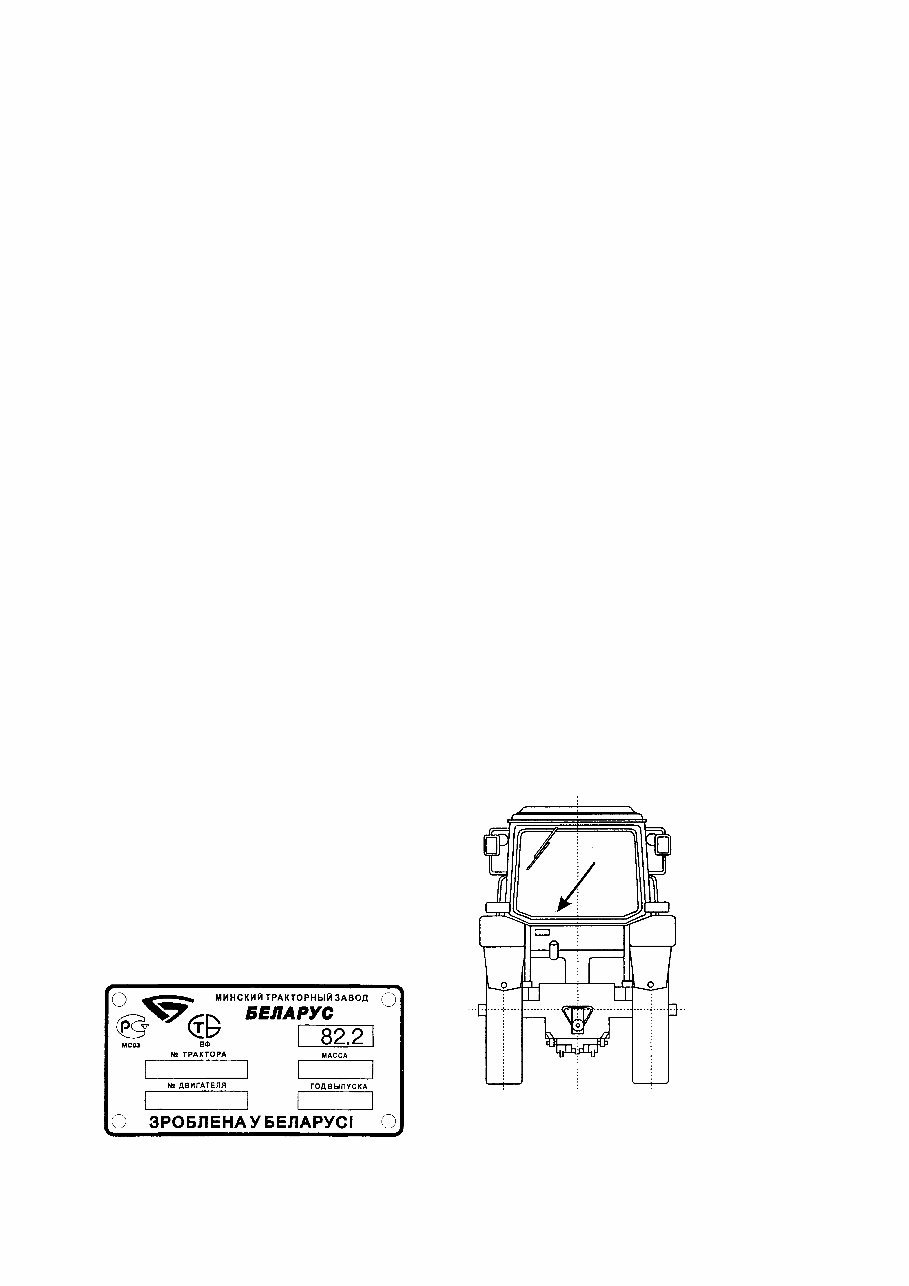

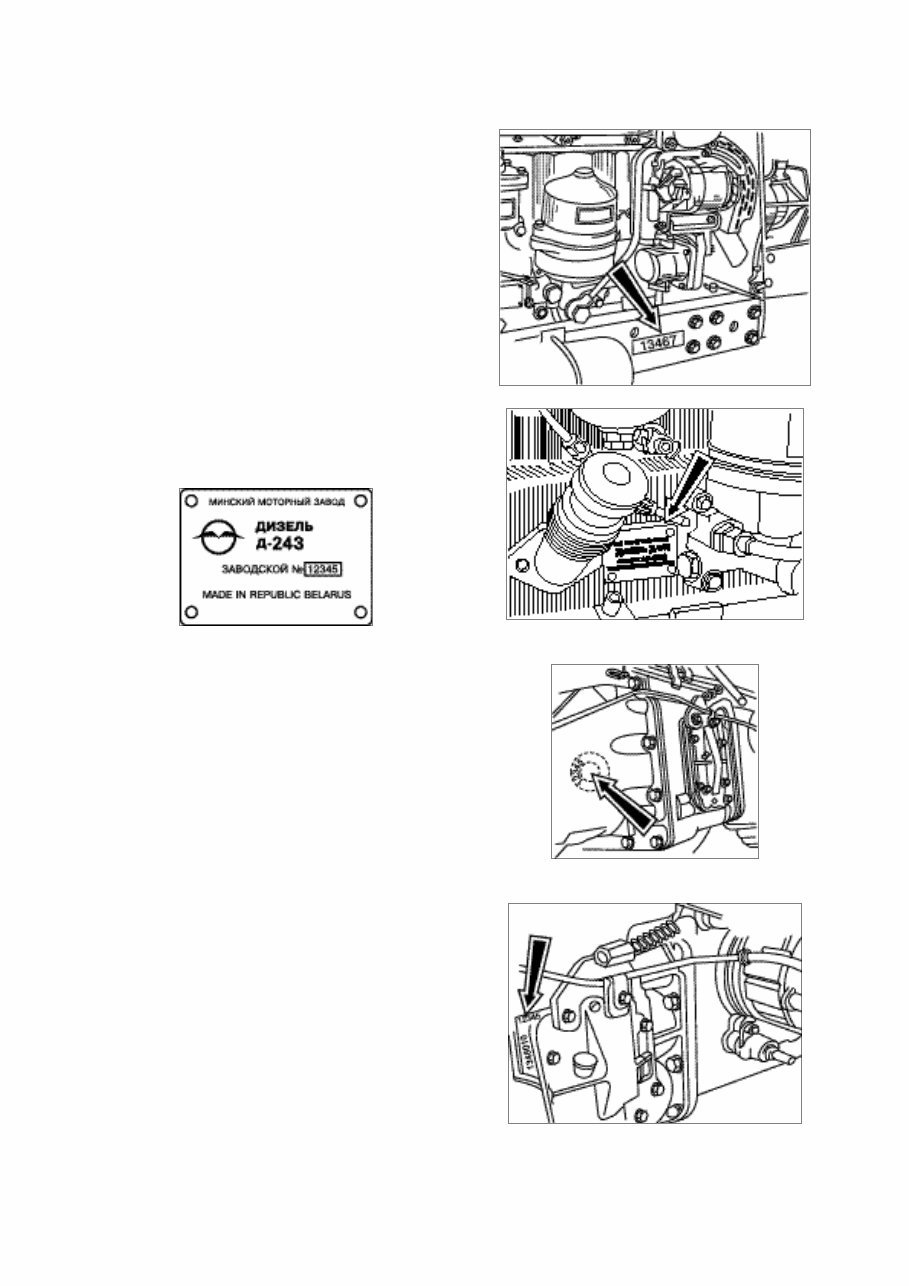

Belarus 80.1/80.2/82.1/82.2/82Р/82Р — Operation and Service Manual Section 1. Introduction 3 Tractor Serial No. is duplicated on the on the front part of the right-hand sidemember (or on the right-hand plate of the front counterweights). Diesel-engine Serial No. is duplicated on the manufacturer’s nameplate attached to the cylinder block, on the right-hand side). Clutch No. (on the clutch housing, to the left). Gearbox No. (on the GB housing, to the left).

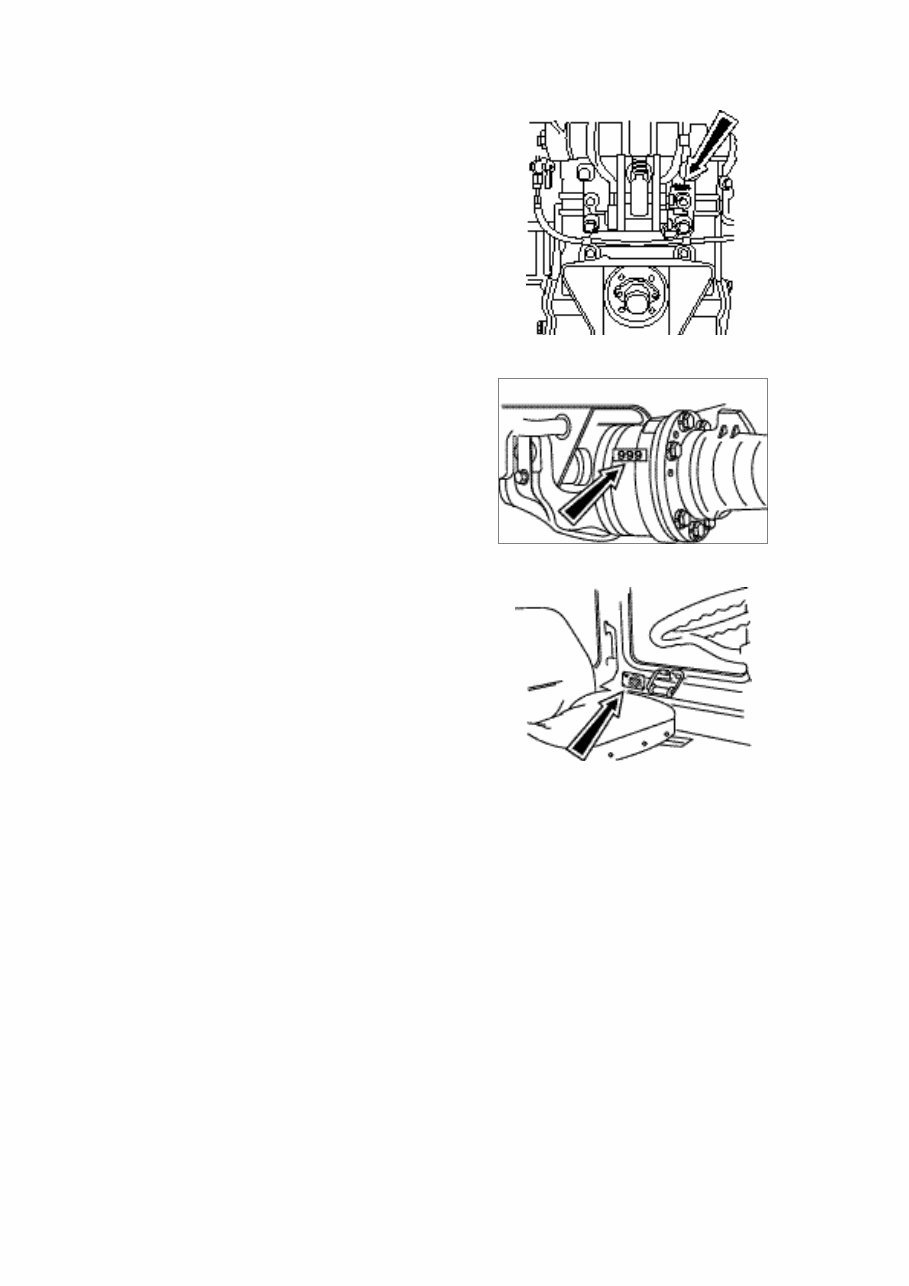

Section 1. Introduction 4 Transmission No. (on the rear axle housing, in the rear). Front driving axle (on the FDA right-hand housing, at the front). Cab serial number

Belarus 80.1/80.2/82.1/82.2/82Р —Operation and Service Manual Section 2.General Description and Technical Characteristics 5 2. GENERAL DESCRIPTION AND TECHNICAL CHARACTERISTICS OF TRACTORS Tractors Belarus are designed to perform a variety of farm jobs, in combination with different mounted, semi-mounted and trailer-type machinery and implements. Besides, tractors can be assigned to ful- fill heavy-duty works when ganged up with earthmoving, shovel dredging, load- ing, post-hole digging implements; also, they can be used on transport missions and for driving various stationary farm outfits. Tractor Belarus 82Р is designed for an all- round mechanization of growing rice and rotation of companion crops. All the technical facilities to be used in combination with Belarus tractors should be agreed with the Production Associa- tion «Minsk Tractor Works» (PA MTW). 2.1. TRACTOR DESIGN AND CON- STRUCTION IN BRIEF Wheeled tractors Belarus 80.1 (see Fig. 1), Belarus 80.2, Belarus 82.1 (рис. 2), and Belarus 82.2 are multi- purpose agricultural machines, Class 1,4 tf (14 kN). These tractors differ from one another by the type of running gear: Bel- arus 80.1/80.2 – with one driving axle, Belarus 82.1/82.2 – with two driving axles. The tractors are of a semi-frame construction. Their skeleton consists of a semi-frame, housings of the clutch, change-speed gearbox and rear axle. The diesel-engine forepart is fastened on the front beam, while its aft-part is rigidly connected to the transmission clutch housing. Index .2 means a modernized version of the respective model, wherein one or several updated assemblies or units are installed, for example: • the front driving axle with planet-and- spur reducing gearboxes (on tractors Belarus–82.2); • bonnet, cab roof, cab mudguards of a modified design (on tractors Belarus 80.2/82.2). Tractor Power Train incorporates a clutch, superreducer and speed gearbox, rear axle with automatic differential lock-up, and rear P.T.O. shaft with two-speed independent and synchronized drives. Tractors with two driving axles are equipped with a front driving axle (FDA) and drives — a transfer box, intermediate and front universaljoint shafts, and an intermediate bearing. The Tractor Steering Control can be of hydromechanical type (with a HSB body) or hydrostatic steering control type, with a metering pump (HSCU). The hydromechanical control outfit consists of a worm, quadrant and the hydraulic steering booster (HSB). The hydrostatic steering control unit (HSCU) incorporates a gerotor-type metering pump which is installed in the steering column on the front cab wall, diesel-engine driven feed gear- pump, a hydraulic cylinder located in the steering trapezoid of the front driving axle (tractors Belarus 82.1/82.2) or tractor fore (non driving) axle (Belarus 80.1/80.2). The HSCU is fed with oil from the hydraulic hitch linkage system tank. Tractors with installed HSCU unit feature a hydraulic drive of the rear-axle differential lock-up unit, whose control cock is located under the slanted footboard of the cab. Locking action is effected by pressing the pedal located to the left of the service brake pedals. The FDA Drive is effected from the speed- change GB to ensure synchronized rotation of the front and rear wheels in any gear se- lected. The front driving axle is pivoted to the fore beam, thus, ensuring its free rolling motions. Provision is made for stepless adjustment of the front (for tractors equipped with a HSB) and rear wheels track. To im- plove tyre traction performance, as well as tractor steerability, additional counterweights can be mounted on the fore-beam totaling to 220 or 510 кг .

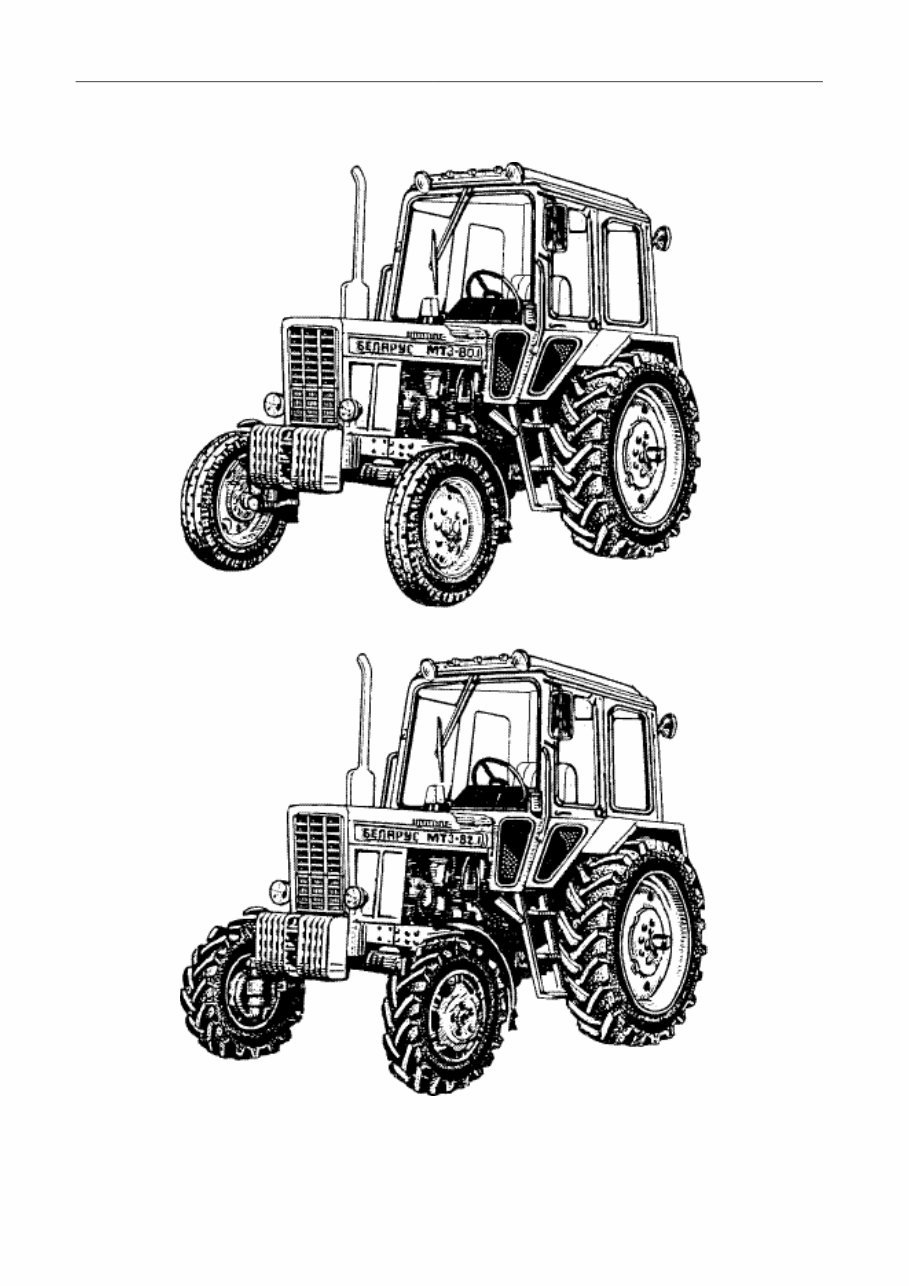

Section 2.General Description and Technical Characteristics Belarus 80.1/80.2/82.1/82.2/82Р — Operation and Service Manual 6 Fig. 1. Tractor «Belarus» 80.1 Fig. 2. Tractor «Belarus» 82.1

Belarus 80.1/80.2/82.1/82.2/82Р — Operation and Service Manual Section 2. General description and technical characteristics 7 The tractor Belarus 82 P, intended for work on rice-growing fields, features increased ground clearance and, also, by a modified propulsion gear – wide cross- section low-pressure tyres, with well- developed (scalloped) lugs and low- profile tread pattern. An increased ground clearance is achieved through installation of an additional hub drive, as well as the use of tyres of larger diame- ters. The rice-field tractor is equipped with a FDA control and parking brake in- terlocking mechanism. The Tractor Hitch Linkage System incorporates a hydraulic system and a rear hitch linkage. The hydraulic system com- prises an oil pump, distributor, draft control, rear and external hydraulic cylinders. Trac- tor may be shipped as equipped with a draft (position) control system or without this system. The Rear Hitch Linkage is a four-link mechanism, with length-adjustable drop links. A RHL fixing mechanism is provided to hold mounted implements at the extreme upper position on transport missions. When running with trailed machines, a cross-bar with a hitch yoke can be used, while on transport missions — install a towing arrangement with a self coupling device and a hydraulic pick-up hook. Трактор оборудован пневматической системой управления тормозами при- цепов с пневматическим или гидрав- лическим приводом тормозов. Electrical Equipment — d.c., 12 V rated voltage. Tractor (Unitized) Cab is a safety sealed frame-and-panel structure, equipped with a single torsion seat, adjustable to operator’s height and weight. An additional seat (option) can be installed. Cab windows are safety heat-absorbing monolithic glass. The cab is furnished with a heating and air- ventilation system, a dome light, windscreen wipers, sun visor, rear-view mirror. Natural ventilation of the cab is achieved through opened sunroof, rear and side windows. Provision is made for the change of angle of the steering wheel column within 15 deg., as a matter of convenience when entering and leaving the cab or operating the tractor, as well as for height adjustment within 100 mm. Also provided is a three-step sideboard and handrails. Installation of a unitized cab is paralleled with installation of a small-size cab on certain tractor batches, against a separate order. The diesel-engine cover is attached to the radiator grille facing frame by hinges; in its open position it is fixed with an arresting catch. On a separate order, the tractor may be supplied with optional extras: a drive pul- ley, side P.T.O., rear P.T.O. shaft replace- able tail-end (21 splines), reverse-reducer  , additional counterweights, P.T.O.-2 tail-end guard, wheels with 18,4L-30; 9,5-42 tyres, starting pre-heater, automatic coupler СА- 1, hydraulic pick-up hook ( ТСУ-2), pneu- matic adapter, a cross-bar of the coupling device ( ТСУ-1-Ж), device ТСУ- З-К (haul- and-draw coupler arrangement), break- away couplings with bracket, coupling hos- es, left-hand adjustable drop link, auxiliary spacer-ring piece for mounting rear wheels, first aid kit, additional seat, and others. Besides, the tractor can be equipped with a travel speed superreducer which is purchased separately by the user, on his own. Also, the tractor should be equipped with a gearbox suitable for installation of the speed superreducer. The left-hand cab door can be locked. To open the door-lock from the outside: • insert a provided key 1 (Fig. 2а) into the slot in the barrel 2 of the handle;  A synchronized reverse-reducer is installed at the Manufacturing Works (option), instead of a downshift reducing gear box, and help quickly reverse the tractor in any gear (ir = -1,07).

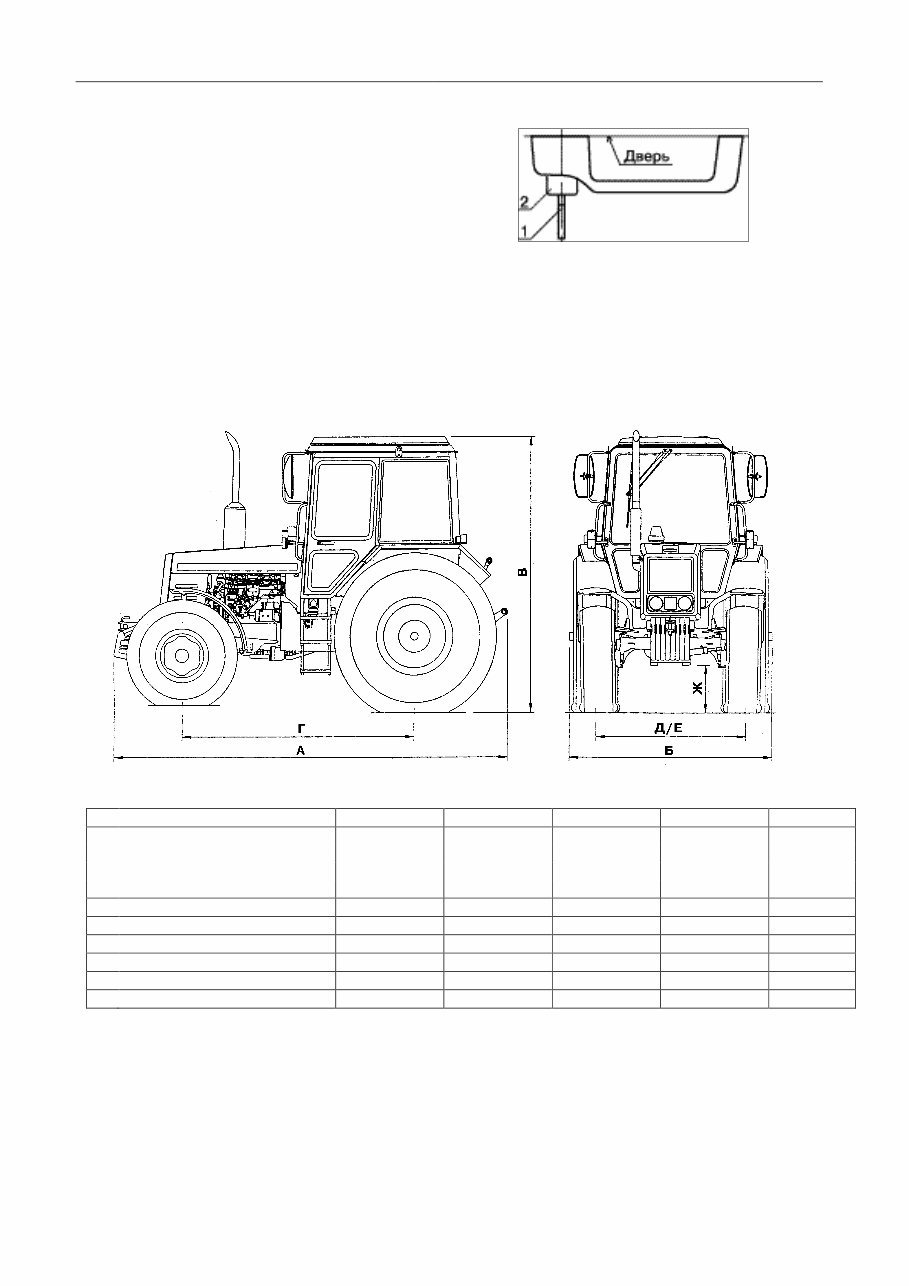

Section 2. General description and technical characteristics Belarus 80.1/80.2/82.1/82.2/82Р — Operation and Service Manual 8 • turn the key to the «Open» position, without depressing the barrel, and open the door. To close and latch the door, turn the key to the «Closed» position, without depressing the barrel. Fig. 2а. 2.2. BASIC SPECIFICATIONS Tractor Overall Dimensions In Figure: Б = B; В = C; Г = D; Д = E; Е = F Description 80.1 80.2 82.1 (с ГУР) 82.2 82 Р A Length, mm: Total 4120 4120 4120 4120 4120 w/o load 3840 3840 3930 3970 4020 over wheels 3650 3650 3740 3820 3810 B Width, mm 1970 1970 1970 1970 2370 C Height to cab top, mm 2780 2800 2800 2820 3030 D Wheelbase, mm 2390 2390 2450 2440 2450 E Rear wheeltrack, mm 1400/2100 1400/2100 1350/2050* 1500/2100 1900 F Front wheeltrack, mm 1450/1850 1450/1850 1430/1990 1420/2000 1900 G Ground clearance, mm 465 465 465 465 715 * 1410/1970 mm - for tractor Belarus 82.1 equipped with a hydrostatic steering control Unit (HSCU).

Belarus 80.1/80.2/82.1/82.2/82Р — Operation and Service Manual Section 2. General description and technical characteristics 9 Table 1 Description Unit of meas- urement Value GENERAL DATA Tractor type — Wheeled, universal, Class 1,4 tf Tractor make — Belarus Tractor model — Belarus 80.1/80.2 Belarus 82Р Belarus 82.1/82.2 Rated speed with downshift reducing gear disengaged, in: 1 st gear km/h 2,50 2,71 2 nd gear km/h 4,26 4,61 3 rd gear km/h 7,25 7,84 4 th gear km/h 8,90 9,63 5 th gear km/h 10,54 11,41 6 th gear km/h 12,34 13,34 7 th gear km/h 15,16 16,40 8 th gear km/h 17,95 19,40 9 th gear km/h 33,39 — Reverse I km/h 5,27 5,69 Reverse II km/h 8,97 9,71 Rated speed with downshift reducing gear engaged, in: 1 st gear km/h 1,89 2,05 2 nd gear km/h 3,22 3,49 3 rd gear km/h 5,48 5,93 4 th gear km/h 6,73 7,28 5 th gear km/h 7,97 8,63 6 th gear km/h 9,33 10,10 7 th gear km/h 11,47 12,40 8 th gear km/h 13,58 14,69 9 th gear km/h 25,25 27,33 Reverse I km/h 3,98 4,31 Reverse II km/h 6,78 7,34 Least turning radius between kerbs, 1400 mm wheeltrack, with the inner rear wheel braked slightly: Belarus 80.1 m 3,8 Belarus 82.1/82.2 m 4,1 Belarus 82Р m 4,3
