OPERATOR’S MANUAL Part number 48011985 4 th edition English October 2016 Replaces part number 47798856 P2050 Air Drill ORIGINAL INSTRUCTIONS

Contents 1 GENERAL INFORMATION Note to the owner........................................................................... 1-1 Intended use ................................................................................ 1-1 Electro-Magnetic Compatibility (EMC) ..................................................... 1-2 Product identification ....................................................................... 1-3 Machine orientation......................................................................... 1-4 2 SAFETY INFORMATION Safety rules and signal word definitions .................................................... 2-1 Safety rules ................................................................................. 2-2 Ecology and the environment .............................................................. 2-7 Hand signals ................................................................................ 2-8 Safety features ............................................................................. 2-9 Safety signs ............................................................................... 2-10 3 OPERATING INSTRUCTIONS COMMISSIONING THE UNIT Connecting ............................................................................. 3-1 Connecting to a tractor ................................................................. 3-2 Connecting to a tow-between air cart .................................................. 3-3 P1030, P1040, P1050, P1060 .................................................. 3-3 Connecting to a tow-between air cart .................................................. 3-5 P2350, P3440, P4460, P3550, P4580 ......................................... 3-5 Tow-behind air cart hitch configuration ................................................. 3-7 Connecting to a tow-behind air cart .................................................... 3-8 P1030, P1040, P1050, P1060 .................................................. 3-8 Connecting to a tow-behind air cart ................................................... 3-11 P2350, P3440, P4460, P3550, P4580 ........................................ 3-11 PARKING THE UNIT Disconnecting ......................................................................... 3-13 Disconnecting in field position ......................................................... 3-14 Disconnecting in transport position .................................................... 3-15 4 TRANSPORT OPERATIONS PREPARING FOR ROAD TRANSPORT Transporting precautions ............................................................... 4-1 Towing weights ......................................................................... 4-2 Transport lighting ....................................................................... 4-5 5 WORKING OPERATIONS FOLDING AND UNFOLDING Safety information .................................................................. 5-1

Folding the air drill .................................................................. 5-2 Unfolding the air drill ................................................................ 5-3 FIELD OPERATION .................................................................. 5-4 Depth adjustment ................................................................... 5-4 General ﬁeld operation ............................................................. 5-5 Leveling the machine Frame leveling safety ............................................................... 5-6 Adjusting the working height ....................................................... 5-7 Center section leveling ............................................................. 5-8 Wing section leveling .............................................................. 5-12 Final leveling and ﬁeld check ...................................................... 5-15 6 MAINTENANCE GENERAL INFORMATION Servicing safety precautions ........................................................... 6-1 Maintenance advice .................................................................... 6-1 Grease decal reference ................................................................ 6-2 Consumables ........................................................................... 6-2 MAINTENANCE CHART Maintenance chart ...................................................................... 6-3 As required Check lighting system .................................................................. 6-4 Sweep pitch adjustment ................................................................ 6-6 Depth gauge ............................................................................ 6-9 Every 10 hours or daily Wheel bolt torque ...................................................................... 6-10 Heavy caster walking beam ........................................................... 6-10 Every 50 hours or weekly Wing rockshaft support ................................................................ 6-11 Center beam buttress ................................................................. 6-11 Wing lift lever pivot pin ................................................................ 6-11 Transport rocker walking beam........................................................ 6-12 Radius center block pivot .............................................................. 6-12 Wing lift hinge pivot .................................................................... 6-12 Front caster pivots ..................................................................... 6-13 Front heavy duty pivot housings ....................................................... 6-13 Every 100 hours Inner wing pivot ........................................................................ 6-14

Yearly Wheel bolt torque ...................................................................... 6-15 Wheel bearings – Grease ............................................................. 6-15 Wheel bearings ........................................................................ 6-15 Press wheel assembly ................................................................. 6-16 Press wheel mount bearings .......................................................... 6-16 Shank mount casting .................................................................. 6-17 Air drill ................................................................................. 6-17 Cylinder rod protection ................................................................ 6-18 7 TROUBLESHOOTING SYMPTOM(S) Seeding - Troubleshooting ..................................................... 7-1 8 SPECIFICATIONS Overall Dimensions ......................................................................... 8-1 Weights ..................................................................................... 8-3 General speciﬁcations ...................................................................... 8-6 Tire pressure and wheel bolt torque ........................................................ 8-7 Trip torque .................................................................................. 8-8 Consumables ............................................................................... 8-8 9 FORMS AND DECLARATIONS Delivery report - owner copy ............................................................... 9-1 Delivery report - dealer copy ............................................................... 9-3

1 - GENERAL INFORMATION 1 - GENERAL INFORMATION###_1_### Note to the owner All persons who will be operating this machine shall pos- sess a valid local vehicle operating permit and/or other applicable local age work permits. Use only approved accessories and attachments de- signed for your machine. Consult your dealer on changes, additions or modifications that may be required for your machine. Do not make any unauthorized modifications to your machine. Your NEW HOLLAND dealer will instruct you in the general operation of your new equipment. Your dealer’s staff of factory-trained service technicians will be glad to an- swer any questions that may arise regarding the operation of your machine. New Holland Top Service is also available. Go to www.newholland.com. Intended use This air hoe drill, with standard equipment and authorized attachments is intended to be used for seeding operations. DO NOT use this machine for any purpose or in any manner other than as described in the manual, decals, or other product safety information provided with the machine. These materials define the machine's intended use. 1-1

1 - GENERAL INFORMATION Electro-Magnetic Compatibility (EMC) Interference may arise as a result of add‐on equipment that may not necessarily meet the required standards. As such interference can result in serious malfunction of the unit and/or create unsafe situations, you must observe the following: • The maximum power of emission equipment (radio, telephones, etc.) must not exceed the limits imposed by the national authorities of the country where you use the machine • The electro‐magnetic ﬁeld generated by the add‐on system should not exceed 24 V/m at any time and at any location in the proximity of electronic components • The add‐on equipment must not interfere with the functioning of the on board electronics Failure to comply with these rules will render the NEW HOLLAND warranty null and void. 1-2

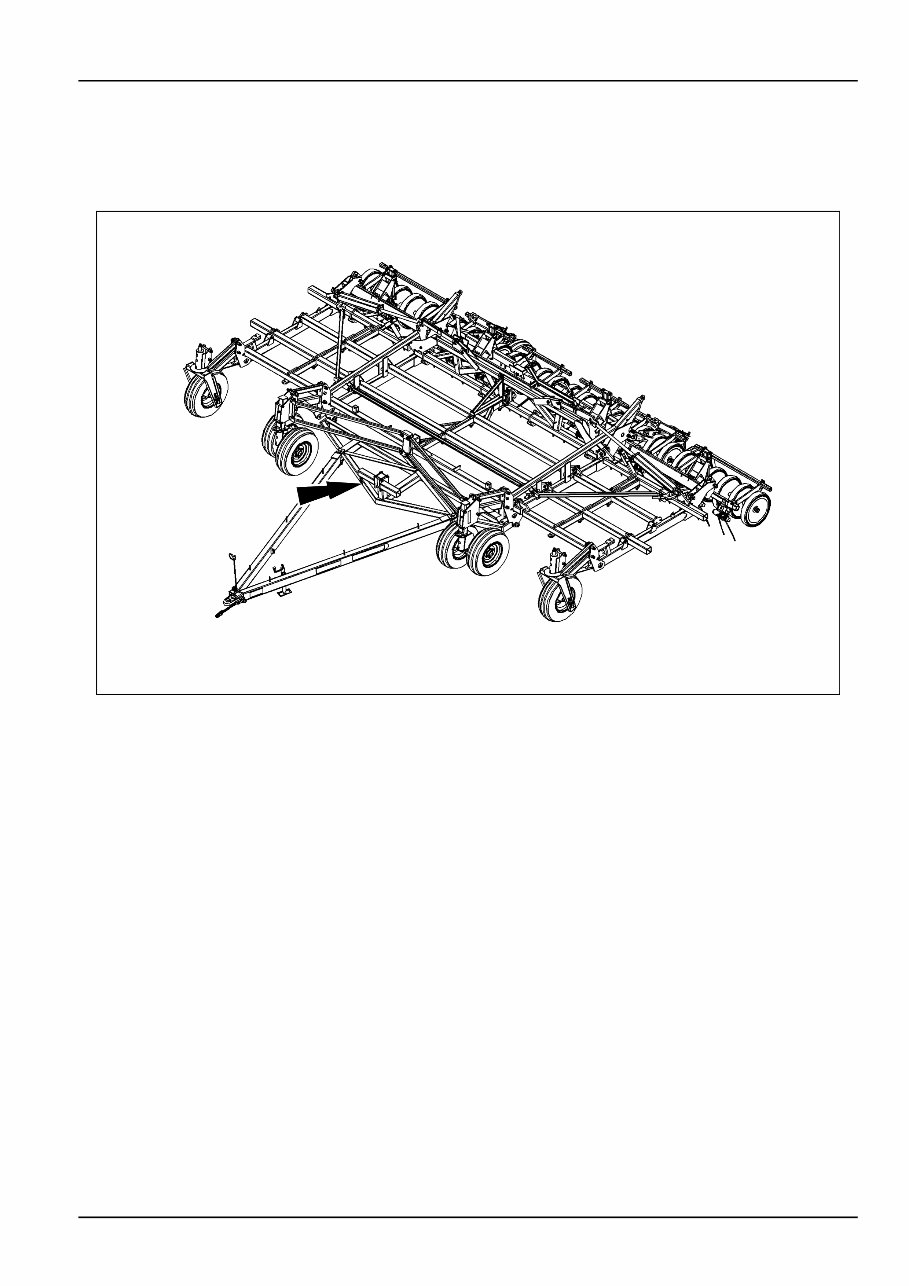

1 - GENERAL INFORMATION Product identification Your machine has a Product Identification Number (PIN) plate. For easy reference, locate the PIN plate at the location shown on the figure for your machine. Record the number on this sheet. When requiring repair parts, take this number into your dealer. SAIL15SE00380FA 1 Product Identification PIN_________________________________________________________________________________________ 1-3

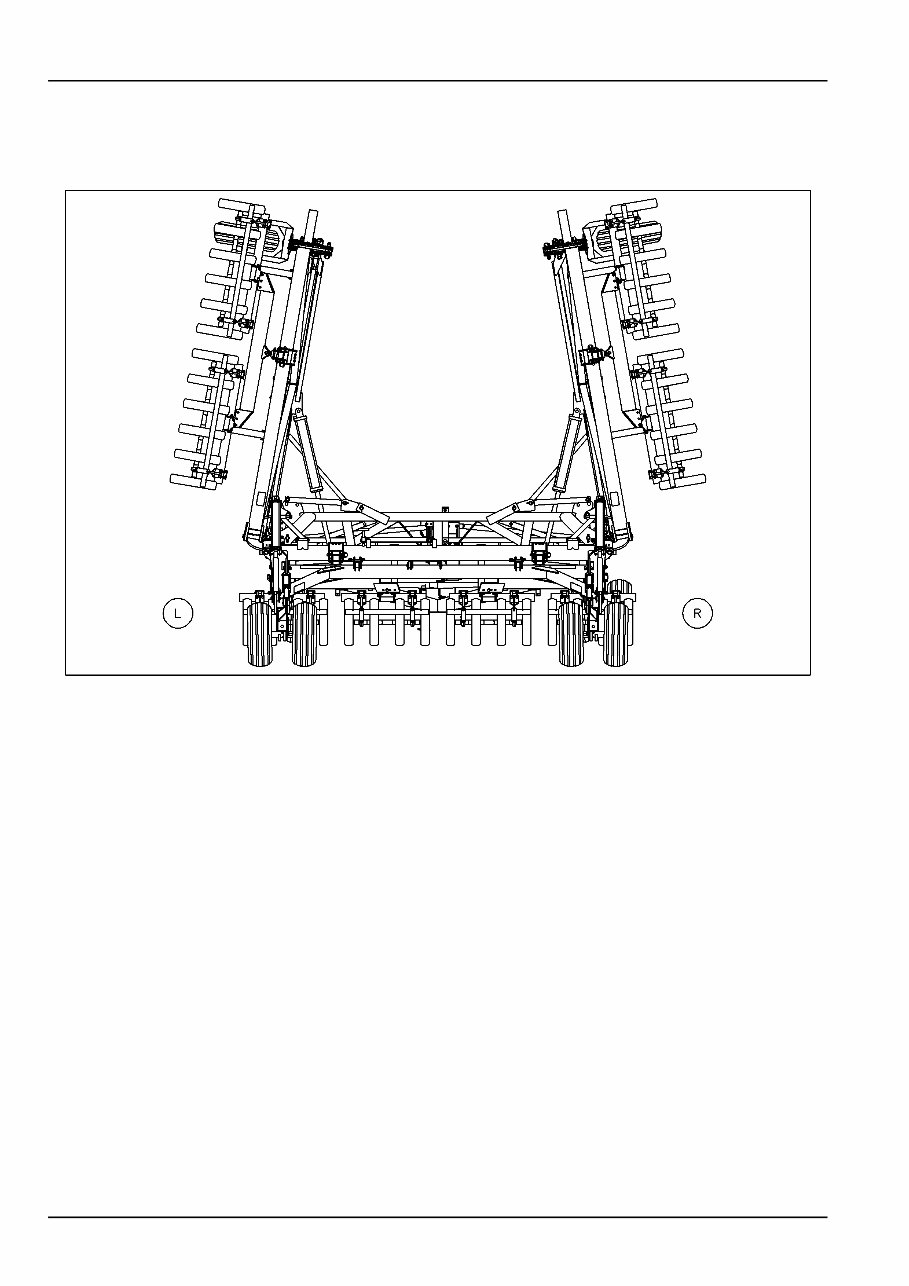

1 - GENERAL INFORMATION Machine orientation Left-hand (L) and right-hand (R) are determined from the rear of the machine in the direction of travel. 210726C 1 1-4

2 - SAFETY INFORMATION 2 - SAFETY INFORMATION###_2_### Safety rules and signal word definitions Personal safety This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible death or injury. Throughout this manual and on machine safety signs, you will find the signal words DANGER, WARNING, and CAU- TION followed by special instructions. These precautions are intended for the personal safety of you and those working with you. Read and understand all the safety messages in this manual before you operate or service the machine. DANGER indicates a hazardous situation that, if not avoided, will result in death or serious injury. The color associated with DANGER is RED. WARNING indicates a hazardous situation that, if not avoided, could result in death or serious injury. The color associated with WARNING is ORANGE. CAUTION indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. The color associated with CAUTION is YELLOW. FAILURE TO FOLLOW DANGER, WARNING, AND CAUTION MESSAGES COULD RESULT IN DEATH OR SERIOUS INJURY. Machine safety NOTICE: Notice indicates a situation that, if not avoided, could result in machine damage or property damage. The color associated with Notice is BLUE. Throughout this manual you will find the signal word Notice followed by special instructions to prevent machine damage or property damage. The word Notice is used to address practices not related to personal safety. Information NOTE: Note indicates additional information that clarifies steps, procedures, or other information in this manual. Throughout this manual you will find the word Note followed by additional information about a step, procedure, or other information in the manual. The word Note is not intended to address personal safety or property damage. 2-1

2 - SAFETY INFORMATION Safety rules WARNING Chemical hazard! Wear protective clothing and a face shield when working with chemicals. Do not allow chemicals to contact skin or eyes. Always follow the chemical manufacturer's instructions. Failure to comply could result in death or serious injury. W0052A WARNING Unexpected machine movement! Disengage power, shut down the tractor, and be sure that all moving parts have stopped before servicing, adjusting, cleaning, or unclogging the equipment. Failure to comply could result in death or serious injury. W0924A CAUTION Escaping fluid! Hydraulic fluid or diesel fuel leaking under pressure can penetrate the skin and cause infection or other injury. To prevent personal injury: Relieve all pressure before disconnecting fluid lines or per- forming work on the hydraulic system. Before applying pressure, make sure all connections are tight and all components are in good condition. Never use your hand to check for suspected leaks under pressure. Use a piece of cardboard or wood for this purpose. If injured by leaking fluid, see your doctor immediately. Failure to comply could result in minor or moderate injury. C0104A General safety rules Use caution when operating the machine on slopes. Raised equipment, full tanks and other loads will change the center of gravity of the machine. The machine can tip or roll over when near ditches and embankments or uneven surfaces. Never permit anyone to ride on the machine. Never operate the machine under the influence of alcohol, drugs or while otherwise impaired. Pay attention to overhead power lines and hanging obsta- cles. High voltage lines may require significant clearance for safety. Hydraulic oil or diesel fuel leaking under pressure can penetrate the skin, causing serious injury or infection. DO NOT use your hand to check for leaks. Use a piece of cardboard or paper. Stop engine, remove key and relieve the pressure before connecting or disconnecting fluid lines. Make sure all components are in good condition and tighten all connections before starting the engine or pressurizing the system. If hydraulic fluid or diesel penetrates the skin, seek med- ical attention immediately. Continuous long term contact with hydraulic fluid may cause skin cancer. Avoid long term contact and wash the skin promptly with soap and water. Keep clear of moving parts. Loose clothing, jewelry, watches, long hair and other loose or hanging items can become entangled in moving parts. Wear protective equipment when appropriate. DO NOT attempt to remove material from any part of the machine while it is being operated or components are in motion. Make sure all guards, shields and handrails are in good condition and properly installed before operating machine. Never operate the machine with shields removed. Always close access doors or panels before operating the machine. Dirty or slippery steps, ladders, walkways and platforms can cause falls. Make sure these surfaces remain clean and clear of debris. A person or pet within the operating area of a machine can be struck or crushed by the machine or its equipment. DO NOT allow anyone to enter the work area. Raised equipment and/or loads can fall unexpectedly and crush persons underneath. Never allow anyone to enter the area underneath raised equipment during operation. 2-2
