GEHL 2345/2365 Disc Mower Conditioner Parts Manual

2345/2365 Disc Mower Conditioner PARTS MANUAL Form No. 908048 Replaces 908005 

Introduction When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. The Disc Mower Conditioner model and serial number is on a plate located on the left side of the main frame near the Drawbar anchor point. “Right’’ and “left’’ are determined from a position standing behind the Disc Mower Conditioner. From this position the drawbar is on the left. GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units. NOTE: On original tire replacement, company policy prohibits the sale of replacement tires for all GEHL machinery. Replacement wheel sets are available and tire size information is called out with the wheel sets to facilitate replacement tire selection. ALL REPLACEMENT TIRES MUST BE PURCHASED LOCALLY. Refer to the abbreviations table located on this page for the various fastener descriptions. Standard attaching hardware torque values are also provided on the inside back cover. In the exploded view parts list, Reference Numbers may have additional information following the Reference Number. A tear drop symbol will indicate an application of a “wet” product such as oil, and the number inside the tear drop will correspond to the description in the Parts List. Also, a number inside a hexagon will be the torque value required, in foot pounds, on the associated Reference Number. Items shown in the parts list that do not have Reference Numbers are shown for reference purposes only and are NOT available for purchase. Unless otherwise specified, all cap screws or bolts are Grade 5, cadmium or zinc plated; hexagon nuts for Grade 5 cap screws or bolts are Grade B; hexagon nuts for other cap screws or bolts are Grade A. NOTE: The following abbreviations may be used herein: AR – As Required ASSD – Assembled ASSY – Assembly CB – Carriage Bolt CCW – Counterclockwise CP – Cotter Pin CS – Cap Screw (Hexagon Head) CTR – Center CW – Clockwise DEG – Degree DIA – Diameter FCS – Flanged Cap Screw FHMS – Flat Head Machine Screw FL – Flanged FLN – Flanged Lock Nut (Hexagon) FLS – Flanged Lock Screw (Hexagon) FW – Flat Washer GA – Gauge GR – Grade HD – Hard or Head HN – Hex Nut INCL – Includes JT – Joint LG – Large LH – Left Hand LN – Lock Nut LW – Lock Washer M – Metric MM/mm – Millimeter NF – National Fine PB – Plow Bolt PTO – Power Take Off RH – Right Hand RHMS – Round Head Machine Screw RPM – Revolutions Per Minute RT – Right SERR – Serrated SHCS – Socket Head Cap Screw SHSS – Socket Head Set Screw SN – Serial Number or Slotted Nut SQ – Square T – Tooth or Teeth TFS – Thread Forming Screw THMS – Truss Head Machine Screw THRD – Thread WLDMT – Weldment # – Number – Torque Required in Foot-Pounds – Indicates a Fluid Application

Printed in U.S.A. 1 908048/BP0403 TABLE OF CONTENTS Introduction Inside Front Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table of Contents 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Decal Locations 2-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Drawbar & Tower Shields (After SN8300-2345 & SN10400-2365) 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Drawbar & Tower Shields (Before SN8301-2345 & SN10401-2365) 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tower, Hitch & Hitchjack 10-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gearbox Mounting 12-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cutterbar - DC2345 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cutterbar - DC2365 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cutterbar & Discs - DC2345 (After SN8300) 16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cutterbar & Discs - DC2365 (After SN10400) 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cutterbar & Discs - DC2345 (Before SN8301) 18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cutterbar & Discs - DC2365 (Before SN10401) 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cutterbar & Skid Shoes - DC2345 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cutterbar & Skid Shoes - DC2365 21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Rollers & Roller Drive (Left Side) 22-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Rollers & Roller Drive (Right Side) 24-25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Roll Tension System 26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Forming Chamber 27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Trailer Assembly (Left Side) 28-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Trailer Assembly (Right Side) 30-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydraulics - Lift 32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hydraulics - Drawbar Positioner 33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Header to Trailer Assembly 34-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Shields & Covers 36-39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Curtains 40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Axles & Wheels 41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Driveline, Tractor to Tower (540 RPM) 42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Driveline, Tractor to Tower (1000 RPM) 43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Driveline, Tower to Gearbox (540 & 1000 RPM) (After SN8300-2345 & SN10400-2365) 44 . . . . . . . . . . . . . . . . . . . . Driveline, Tower to Gearbox (540 RPM) (Before SN8301-2345 & SN10401-2365) 45 . . . . . . . . . . . . . . . . . . . . . . . . . Driveline, Tower to Gearbox (1000 RPM) (Before SN8301-2345 & SN10401-2365) 46 . . . . . . . . . . . . . . . . . . . . . . . . Driveline, Gearbox To Cutterbar 47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gearbox 48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Overrunning Clutch (540 & 1000 RPM) (After SN8300-2345 & SN10400-2365) 49 . . . . . . . . . . . . . . . . . . . . . . . . . . . Overrunning Clutch (540 RPM) (Before SN8301-2345 & SN10401-2365) 50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Overrunning Clutch (1000 RPM) (Before SN8301-2345 & SN10401-2365) 51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hitchjacks 52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hitch Extension 53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Options & Accessories 54-57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Transport Lights 54 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tall Skid Shoes 55 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Tilt Cylinder Kit 56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Safety Chain, Crop Lifter Kit, V-Type Blades 57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Service Kits - Electrical Connectors 58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Alphabetical Index 59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Numerical Index 60-65 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Standard Hardware Torque specifications Inside Back Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

908048/BP0403 2 Printed in U.S.A. DECAL LOCATIONS GENERAL INFORMATION Decal locations information is provided to assist in the proper selection and application of new decals, in the event the original decals become damaged or the machine is repainted. Refer to the listing for the illustration reference number, part number, description and quantity of each decal provided in the kit. Refer to the appropriate illustration(s) for replacement location(s). NOTE: Refer to the SAFETY chapter of the Operator’s Manual for the specific information provided on all of the various safety decals furnished in the decal kit(s). To insure proper selection for correct replacement decal(s), compare all of the various close-up location illustratuons to your machine BEFORE starting to refinish the unit. Then circle each decal applicable to your machine while checking off its part number in the listing. After you have verified all the decals needed for replacement, set aside unneeded decals for disposal. NEW DECAL APPLICATION Surfaces MUST be free from dirt, dust, grease and other foreign material before applying the new decal. To apply a solid-formed decal, remove the smaller portion of the decal backing paper and apply this part of the exposed adhesive backing to the clean surface while maintaining proper position and alignment. Slowly peel off the other portion of the backing paper while applying hand pressure to smooth out the decal surface. CAUTION ALWAYS observe safety rules shown on decals. If decals become damaged or if the unit is repainted, replace the decals. If repainting, BE SURE to affix ALL decals from the kit(s) which apply to your machine. PAINT NOTICE Use this list to order paint for refinishing: 906315 One Gal. AG Red 906324 One Qt. Light Grey 906316 6 (12 oz. Spray Cans) AG Red 906325 6 (12 oz. Spray Cans) Light Grey The decal set number for the DC2345 and DC2365 is 141952. The set includes the following: Ref. Part No. No. Description & Quantity 1. 060138 Oil Level 2. 060510 Jack Storage Position 3. 060511 Jack Lifting Position 4. 145216 Red Reflector Strip (2 Places) 5. 145217 Amber Reflector Strip (2 Places After SN7800-2345 & SN9800-2365) 6. 091444 DANGER - Rotating Drive Line (2 Places) 7. 093366 Store Manual Here 8. 093367 WARNING - Owner’s Responsibility & Read Manual 9. 093373 WARNING - General Safety 10. 093465 WARNING - 1000 RPM Operation ONLY 093466 WARNING - 540 RPM Operation ONLY 11. 093653 WARNING - Rotating Drive Line 12. 094912 Colorbar 12″ 13. 094913 GEHL 3-1/4″ (3 Places) 14. 094951 Made In USA 15. 115974 WARNING - Block (2 Places) 16. 120790 Hitch Adjustment 17. 125476 DANGER - Rotating Knives (2 Places) 18. 126456 GE 19. 126457 HL 20. 141933 2345 141934 2365 21. 141935 2345 & BAR 141936 2365 & BAR 23. 145218 Orange Reflector Strip (2 Places) (After SN7800-2345 & SN9800-2365) 24. 145235 SMV Emblem (Includes Hardware) (After SN7800-2345 & SN9800-2365) 25. 145237 Mounting Spade (After SN7800-2345 & SN9800-2365) 26. 143007* DANGER - Shield Missing * NOT Included in Decal Kit NOTE: Order part number 126757 for 10 ft roll of replacement striping

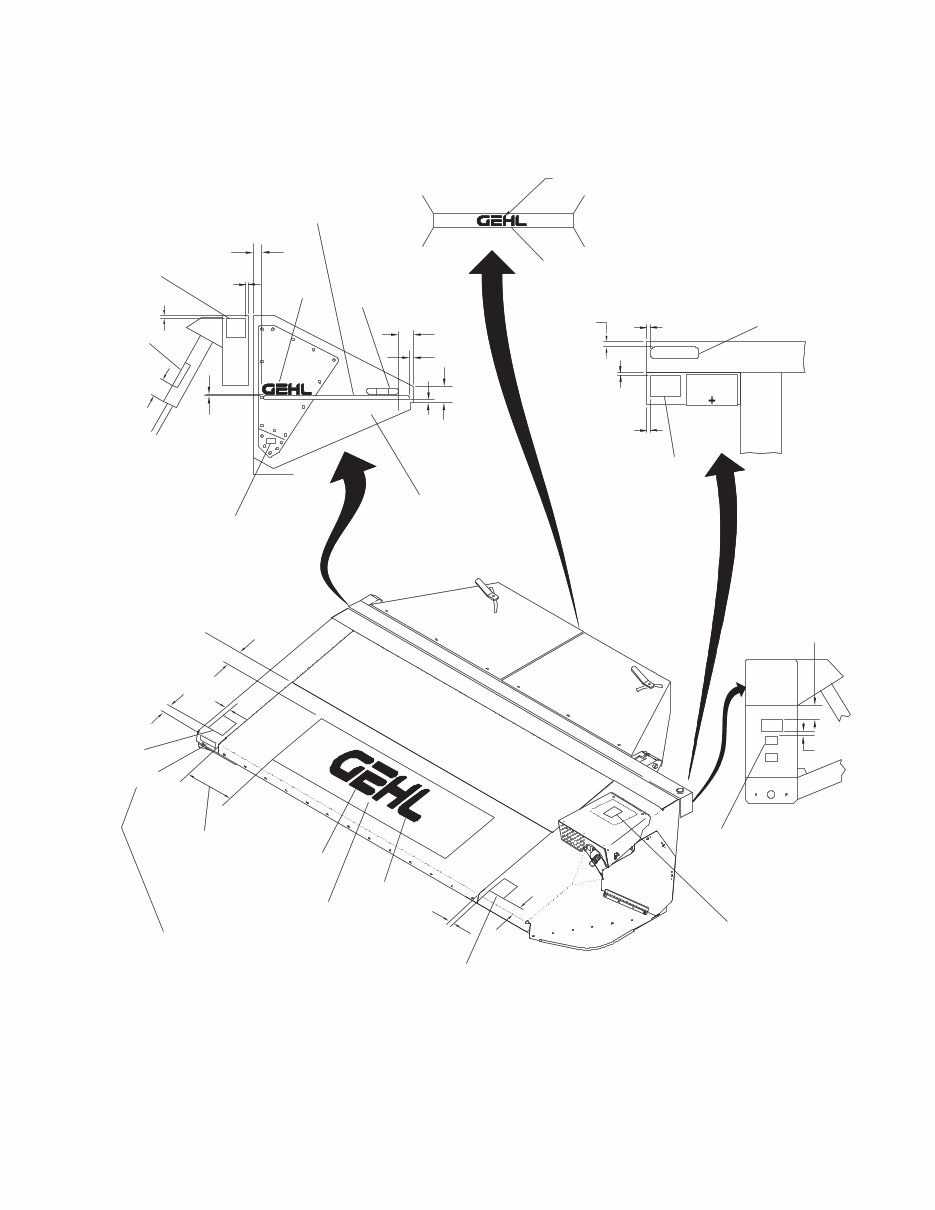

Printed in U.S.A. 3 908048/BP0403 Center 1.75" 23XX Center Yellow To Front. 4 15 13 14 7 17 18 19 17 5 Striping 13 4 15 21 1 Center on Holder (Inside of Cover) 3.0" 0.75" 0.75" 2.0" 2.0" Gap Between Letters 15.12" DC2345 21.56" DC2365 3.0" 0.75" 7.0" (Before SN7801-2345 & SN9801-2365, Ref. 5) Back Edge of Cover 0.50" 0.75" 8.75" 1.0" 1.0" 3.0" 0.50" Typ. 0.25" 1.0" 1.0" 1.0"

908048/BP0403 4 Printed in U.S.A. DECAL LOCATIONS (CONTINUED) The decal set number for the DC2345 and DC2365 is 141952. The set includes the following: Ref. Part No. No. Description & Quantity 1. 060138 Oil Level 2. 060510 Jack Storage Position 3. 060511 Jack Lifting Position 4. 145216 Red Reflector Strip (2 Places) 5. 145217 Amber Reflector Strip (2 Places After SN7800-2345 & SN9800-2365) 6. 091444 DANGER - Rotating Drive Line (2 Places) 7. 093366 Store Manual Here 8. 093367 WARNING - Owner’s Responsibility & Read Manual 9. 093373 WARNING - General Safety 10. 093465 WARNING - 1000 RPM Operation ONLY 093466 WARNING - 540 RPM Operation ONLY 11. 093653 WARNING - Rotating Drive Line 12. 094912 Colorbar 12″ 13. 094913 GEHL 3-1/4″ (3 Places) 14. 094951 Made In USA 15. 115974 WARNING - Block (2 Places) 16. 120790 Hitch Adjustment 17. 125476 DANGER - Rotating Knives (2 Places) 18. 126456 GE 19. 126457 HL 20. 141933 2345 141934 2365 21. 141935 2345 & BAR 141936 2365 & BAR 23. 145218 Orange Reflector Strip (2 Places) (After SN7800-2345 & SN9800-2365) 24. 145235 SMV Emblem (Includes Hardware) (After SN7800-2345 & SN9800-2365) 25. 145237 Mounting Spade (After SN7800-2345 & SN9800-2365) 26. 143007* DANGER - Shield Missing * NOT Included in Decal Kit NOTE: Order part number 126757 for 10 ft roll of replacement striping

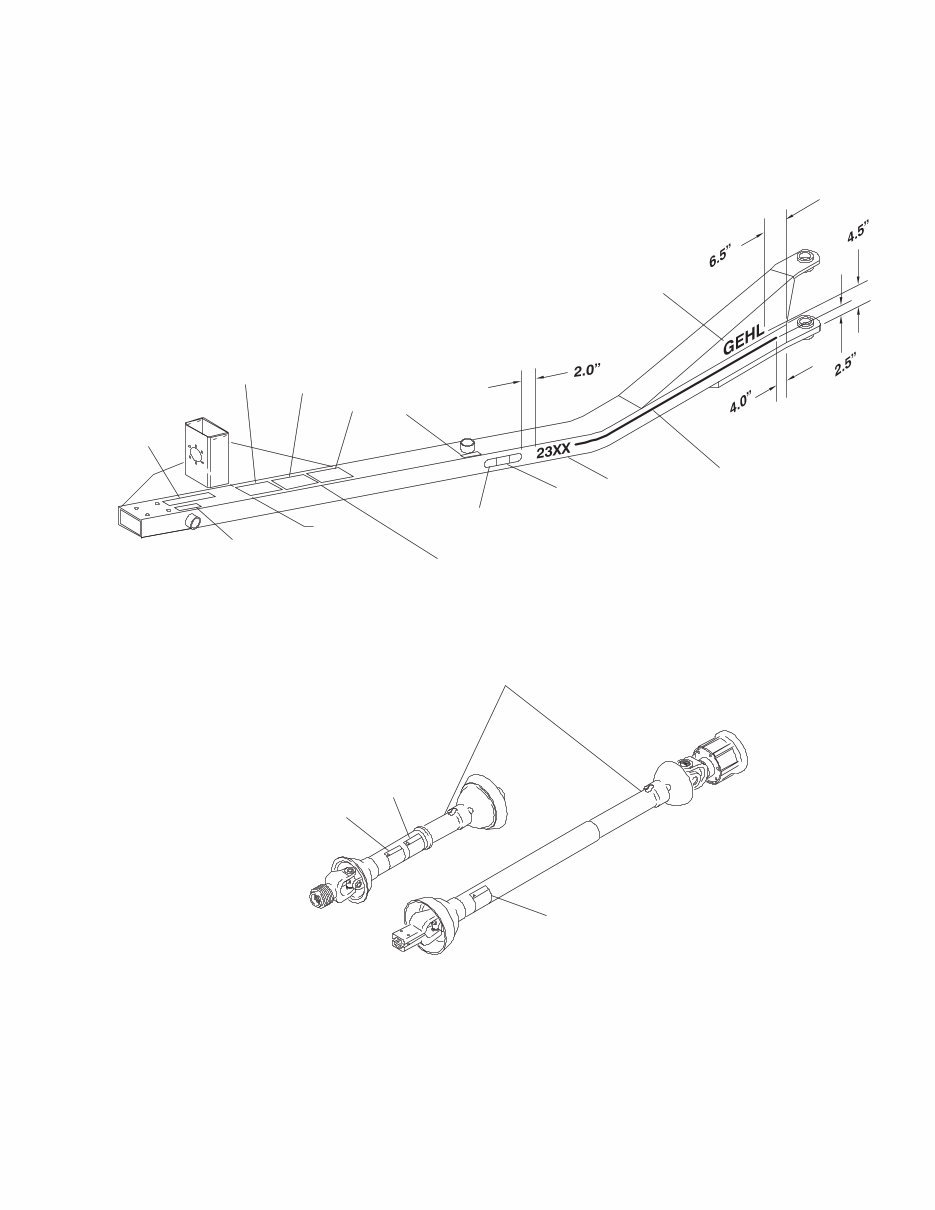

Printed in U.S.A. 5 908048/BP0403 Flush 6 10 6 3 16 8 9 11 2 12 20 Striping 13 26 (Under Shield) 0.25" Gap Typical & Center Yellow this End

908048/BP0403 6 Printed in U.S.A. DECAL LOCATIONS (CONTINUED) The decal set number for the DC2345 and DC2365 is 141952. The set includes the following: Ref. Part No. No. Description & Quantity 1. 060138 Oil Level 2. 060510 Jack Storage Position 3. 060511 Jack Lifting Position 4. 145216 Red Reflector Strip (2 Places) 5. 145217 Amber Reflector Strip (2 Places After SN7800-2345 & SN9800-2365) 6. 091444 DANGER - Rotating Drive Line (2 Places) 7. 093366 Store Manual Here 8. 093367 WARNING - Owner’s Responsibility & Read Manual 9. 093373 WARNING - General Safety 10. 093465 WARNING - 1000 RPM Operation ONLY 093466 WARNING - 540 RPM Operation ONLY 11. 093653 WARNING - Rotating Drive Line 12. 094912 Colorbar 12″ 13. 094913 GEHL 3-1/4″ (3 Places) 14. 094951 Made In USA 15. 115974 WARNING - Block (2 Places) 16. 120790 Hitch Adjustment 17. 125476 DANGER - Rotating Knives (2 Places) 18. 126456 GE 19. 126457 HL 20. 141933 2345 141934 2365 21. 141935 2345 & BAR 141936 2365 & BAR 23. 145218 Orange Reflector Strip (2 Places) (After SN7800-2345 & SN9800-2365) 24. 145235 SMV Emblem (Includes Hardware) (After SN7800-2345 & SN9800-2365) 25. 145237 Mounting Spade (After SN7800-2345 & SN9800-2365) 26. 143007* DANGER - Shield Missing * NOT Included in Decal Kit NOTE: Order part number 126757 for 10 ft roll of replacement striping

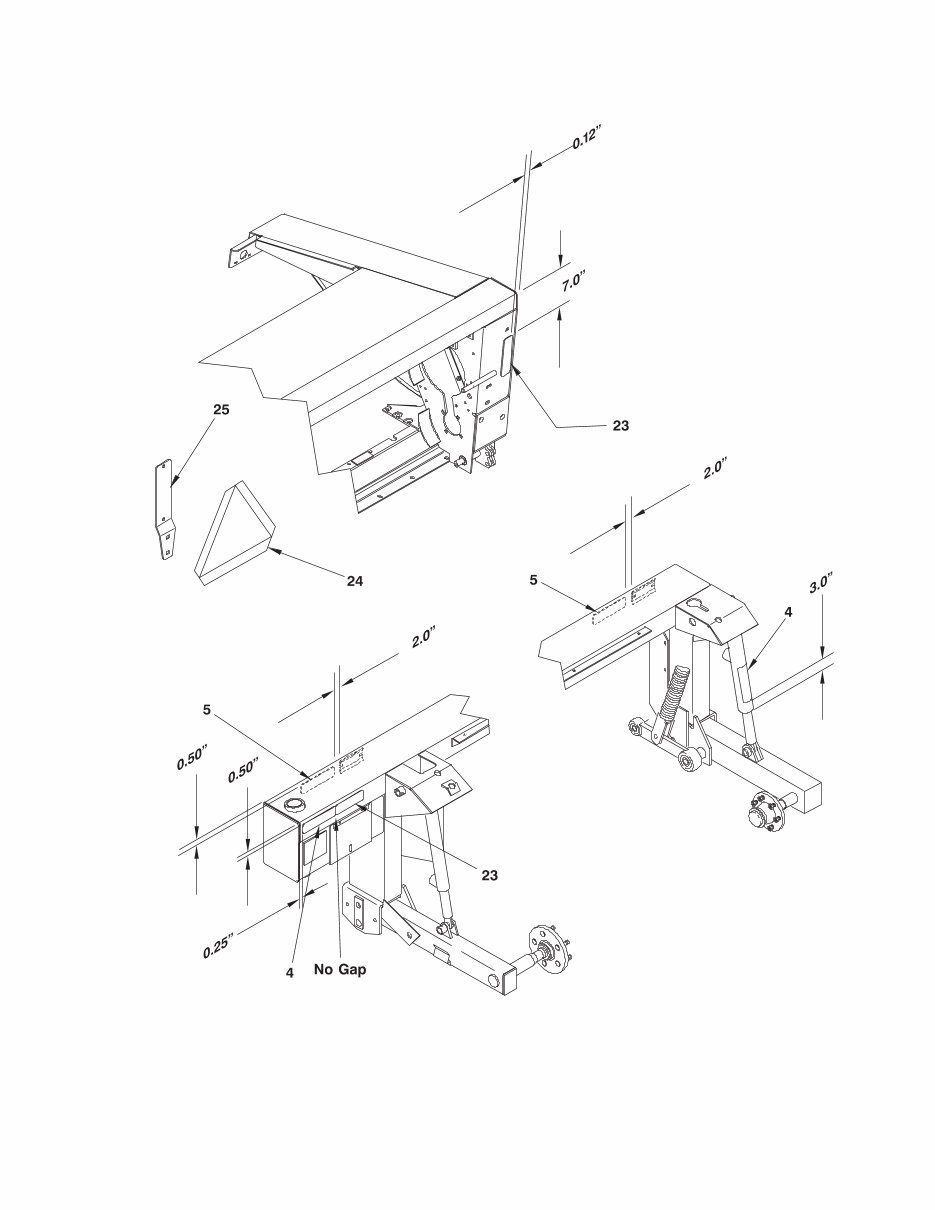

Printed in U.S.A. 7 908048/BP0403 After SN7800Ć2345 & SN9800Ć2365

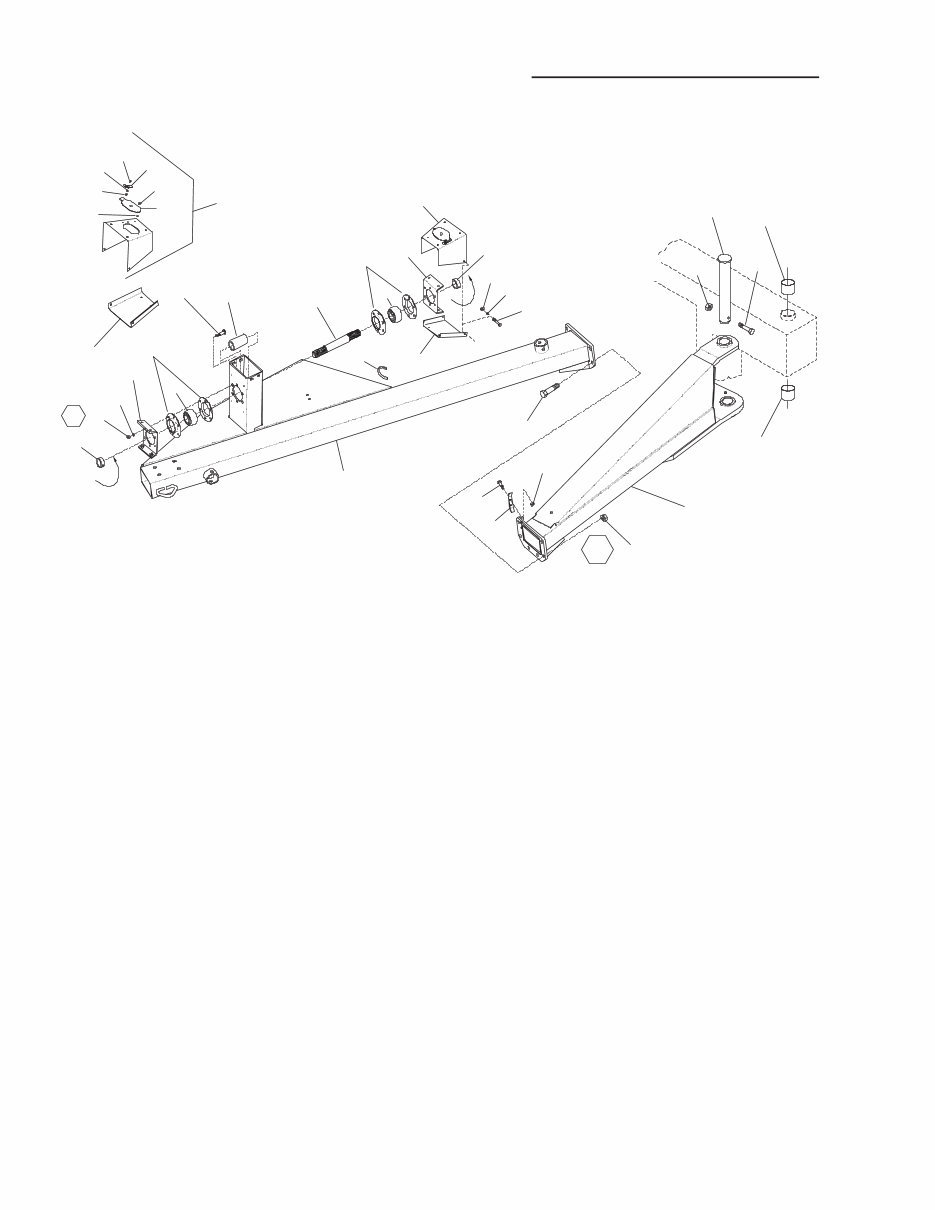

908048/BP0403 8 Printed in U.S.A. 30 2 3 6 7 9 9 10 10 11 11 13 14 19 19 23 26 25 29 15 27 34 33 35 39 38 40 37 30 34 33 41 42 43 44 45 46 47 48 48 49 260 Ref. Part Qty. Ref. Part Qty. No. No. Description Req. No. No. Description Req. 02 171627 a TONGUE/FRONT 1 . . . . . . . . . . . . . . . . . . . . (AFTER SN9833-2345 & SN11736-2365) 156463 a TONGUE/FRONT 1 . . . . . . . . . . . . . . . . . . . . (BEFORE SN9834-2345 & SN11737-2365) 03 171016 WLDMT/TONGUE ASSY 1 . . . . . . . . . . . . . . (AFTER SN9833-2345 & SN11736-2365) 144917 WLDMT/TONGUE ASSY 1 . . . . . . . . . . . . . . (BEFORE SN9834-2345 & SN11737-2365) 06 124475 SHAFT 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07 124626 SHIELD/SHAFT 1 . . . . . . . . . . . . . . . . . . . . . 09 124484 FLANGETTE 4 . . . . . . . . . . . . . . . . . . . . . . . . 10 520092 BEARING/BALL 2 . . . . . . . . . . . . . . . . . . . . . 11 520093 COLLAR/BEARING 2 . . . . . . . . . . . . . . . . . . 12 650704 CB 3/8X1 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 654026 LW 3/8 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 071703 LN 3/8 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 073175 HLN TOP 3/4 7 . . . . . . . . . . . . . . . . . . . . . . . . (AFTER SN9833-2345 & SN11736-2365) 071709 LN 5/8 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (BEFORE SN9834-2345 & SN11737-2365) 19 142122 BRACKET/SHIELD 2 . . . . . . . . . . . . . . . . . . . 23 156438 EDGING 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 650744 CS 1/2X4 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 650786 CB 3/8X1-1/4 12 . . . . . . . . . . . . . . . . . . . . . . . 27 650416 CS 3/4X2-1/2 7 . . . . . . . . . . . . . . . . . . . . . . . . (AFTER SN9833-2345 & SN11736-2365) 651167 CS 5/8X2 GR8 6 . . . . . . . . . . . . . . . . . . . . . . . (BEFORE SN9834-2345 & SN11737-2365) 29 653044 JN 1/2 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 071701 LN 5/16 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 156427 SHIELD/ASSY 2 . . . . . . . . . . . . . . . . . . . . . . . 34 156182 SHIELD/BOTTOM CENTER 2 . . . . . . . . . . . 35 650486 CS 5/16X3/4 12 . . . . . . . . . . . . . . . . . . . . . . . 36 650650 CS 1/2X3-1/2 1 . . . . . . . . . . . . . . . . . . . . . . . . 37 650692 CS 5/16X1-3/4 4 . . . . . . . . . . . . . . . . . . . . . . . 38 653007 HN 5/16 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 654024 LW 5/16 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 142898 CLAMP/HOSE 3 . . . . . . . . . . . . . . . . . . . . . . . 41 126342 FLAP 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 079187 RIVET/BLIND 1 . . . . . . . . . . . . . . . . . . . . . . . 43 040860 CLIP/LUDWIG 1 . . . . . . . . . . . . . . . . . . . . . . . 44 650980 RHMS #10-24X3/8 1 . . . . . . . . . . . . . . . . . . . 45 650584 FW #10 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 650550 HN #10 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 650549 LW #10 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 045-31404 BUSHING/OILITE 2 . . . . . . . . . . . . . . . . . . . . 49 220-32514 WELDMENT/PIN 1 . . . . . . . . . . . . . . . . . . . . . a) Includes 093367, 093373 & 093653 WARNING decals. DC2345/2365 - DRAWBAR & TOWER SHIELDS (AFTER SN8300-2345 & SN10400-2365)
