GEHL TR3038 Two Row Attachment Parts Manual

TR3038 Two Row Attachment PARTS MANUAL Replaces 904865 Form No. 908014 

Introduction When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. The model and serial number for this unit are on a plate located on the right side of the Main Frame next to the Attachment Stand. “Right” and “left” are determined from a position standing behind the unit and facing toward the direction of travel. From this position, the Attachment Drive is on the “left” side. GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units. Refer to the abbreviations table located on this page for the various fastener descriptions. Standard attaching hardware torque values are also provided on the inside back cover. In the exploded view parts list, Reference Numbers may have additional information following the Reference Number. A Tear Drop symbol will indicate an application of a “wet” product such as oil, and the number inside the Tear Drop will correspond to the description in the Parts List. Also, a number inside of a hexagon will be the torque value required, in foot pounds, on the associated Reference Number. Items shown in the parts list that do not have Reference Numbers are shown for reference purposes only and are NOT available for purchase. Unless otherwise specified, all Cap Screws or Bolts are Grade 5, cadmium or zinc plated; Hexagon Nuts for Grade 5 Screws or Bolts are Grade B; Hexagon Nuts for other Screws or Bolts are Grade A. NOTE: The following abbreviations may be used herein: ADJ – Adjust or Adjustment ALT – Alternate AR – As Required ASSY – Assembly BRG – Bearing CB – Carriage Bolt CS – Cap Screw (Hexagon Head) DIA – Diameter DEG – Degree FHMS – Flat Head Machine Screw FHSCS – Flat Head Socket Cap Screw FLN – Flanged Lock Nut (Hexagon) FLS – Flanged Lock Screw FRT – Front FT – Foot or Feet FW – Flat Washer GA – Gauge GR – Grade I.D. – Inside Diameter HD – Hard HN – HN HTB – Hex Tap Bolt JN – Jam Nut L.H. – Left Hand LN – Lock Nut (Hexagon) LT – Left MTG – Mounting MM/mm – Millimeter N – Nut (Hexagon) NF – National Fine NILN – Nylon Insert Lock Nut O.D. – Outside Diameter PB – Plow Bolt PTO – Power Take Off RHMS – Round Head Machine Screw RHSQNB – Round Head Square Neck Bolt RPM – Revolutions Per Minute RT – Right SHSS – Socket Head Set Screw SPL – Special SN – Serial Number or Slotted Nut SPKT – Sprocket SQ – Square SQHSS – Square Head Set Screw T – Tooth or Teeth TFS – Thread Forming Screw THMS – Truss Head Machine Screw UNIV – Universal W/ – With WDRF – Woodruff WLDMT – Weldment WLN – Whiz-lock Nut WLS – Whiz-lock Screw WN – Wing Nut W/O – Without

Printed in U.S.A. 1 908014/AP0600 TABLE OF CONTENTS Introduction Inside Front Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table of Contents 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Decal Locations 2-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Frame & Jackshaft Drive 4-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Frames (Inner) 6-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Carrier & Rotor 8-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Frames (Outer) 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gatherer 13-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gatherer Drive 16-19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Partitions 20-21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fenders 22-25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Deflector 26-27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Points 28-29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Covers 30-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stand 33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Lubrication 34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Alphabetical Index 35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Numerical Index 36-38 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Standard Hardware Torque Specifications Inside Back Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

908014/AP0600 2 Printed in U.S.A. CHAPTER 1 DECAL LOCATIONS GENERAL INFORMATION Decal locations information is provided to assist in the proper selection and application of new decals, in the event the original decals become damaged or the machine is repainted. Refer to the listing for the illustration reference number, part number, description and quantity of each decal provided in the kit. Refer to the appropriate illustrations for replacement locations. NOTE: Refer to the SAFETY chapter of the Operator’s Manual for the specific information provided on all of the various safety decals furnished in the decal kit(s). To insure proper selection for correct replacement decals, compare all of the various close-up location drawings to your machine BEFORE starting to refinish the unit. Then circle each pictured decal applicable to your machine and check off its part number in the listing. After you have verified all the decals needed for replacement, set aside unneeded decals for disposal. NEW DECAL APPLICATION Surfaces MUST be free from dirt, dust, grease and other foreign material before applying the new decal. To apply a solid-formed decal, remove the smaller portion of the decal backing paper and apply this part of the exposed adhesive backing to the clean surface while maintaining proper position and alignment. Slowly peel off the other portion of the backing paper while applying hand pressure to smooth out the decal surface. CAUTION ALWAYS observe safety precautions shown on decals. If decals become damaged, or if the unit is repainted, replace the decals. If repainting, BE SURE that ALL decals from the Kit(s) that apply to your machine are affixed to your unit. PAINT NOTICE (LATER MODELS) Use this list to order paint for refinishing: 906315 One Gal. AG Red 906324 One Qt. Light Grey 906316 6 (12 oz. Spray Cans) AG Red 906325 6 (12 oz. Spray Cans) Light Grey PAINT NOTICE (EARLY MODELS) Use this list to order paint for refinishing: 901225 One Gal. Blaze 901226 One Gal. Maize 610239 6 (12 oz. Spray Cans) Blaze 610240 6 (12 oz. Spray Cans) Maize NOTE: Discard Decals NOT required for this machine. Always order Decals by set number. DO NOT order Decals separately. The Decal Set Number for the TR3038 is 093555. The set includes the following: Ref. Part No. No. Description & Quantity 1. 058302 Chain Adjustment 2. 058303 Lubrication 3. 060954 Hoist Location 4. 060989 Crop Guide Setting 5. 065771 Shear Bolt 6. 093020 Lubrication (2 Places) 7. 093445 DANGER - Hand Feed 8. 093499 DANGER - Rotating Blade (3 Places) 9. 126345 GEHL

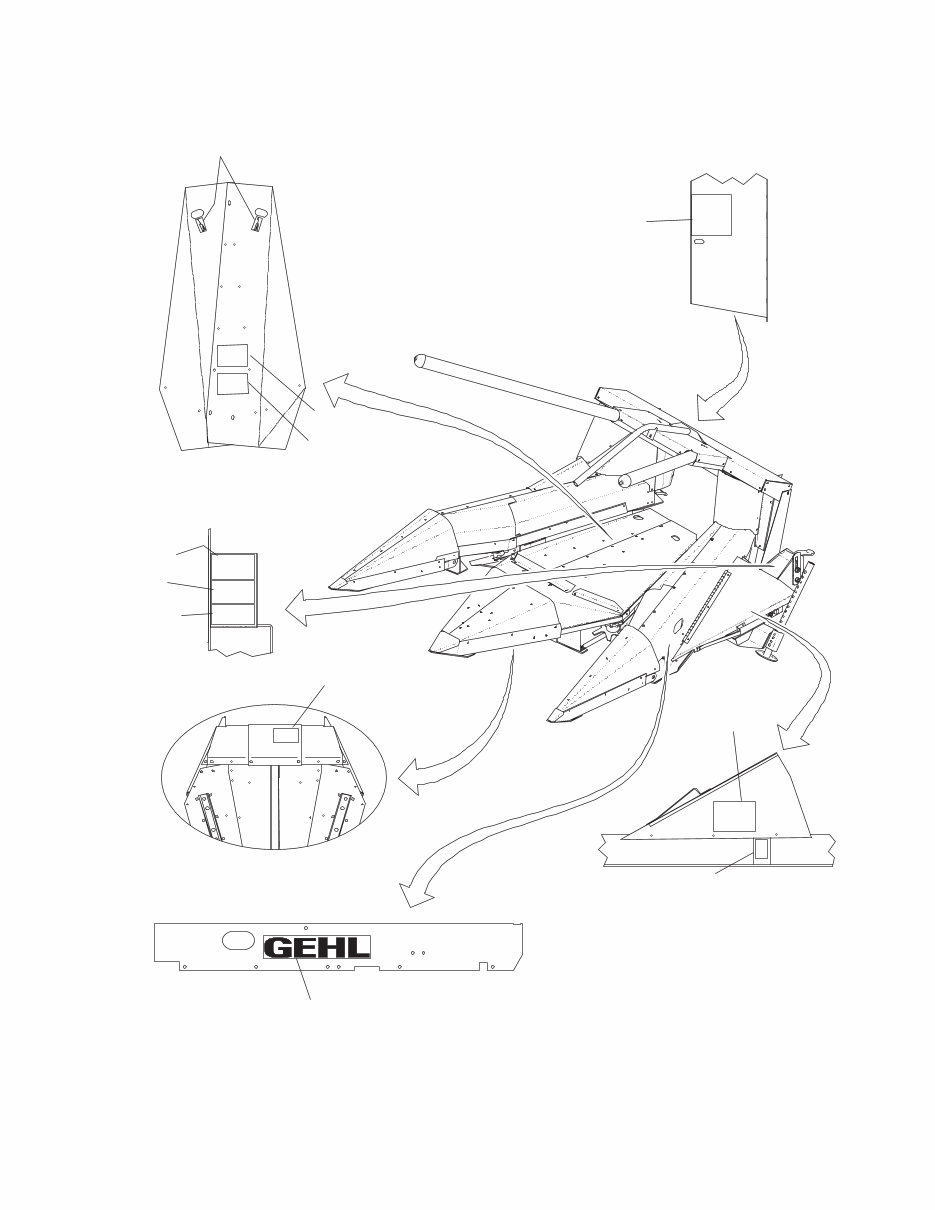

Printed in U.S.A. 3 908014/AP0600 READ READ READ READ Inside of cover READ READ READ Rear of machine READ 6 8 7 8 8 1 2 3 9 4 5 Bottom View READ

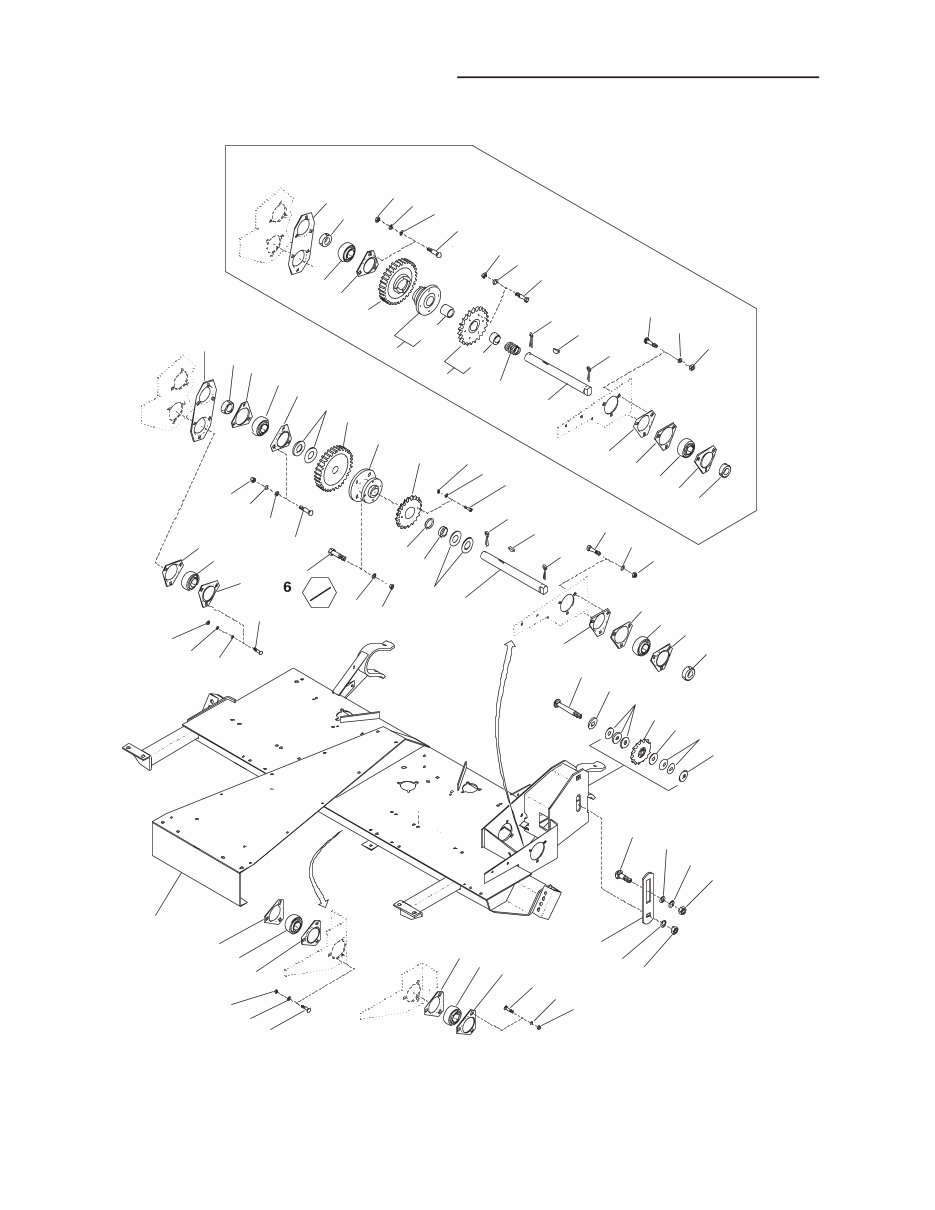

908014/AP0600 4 Printed in U.S.A. A 5 3 20 18 21 61 25 35 39 31 11 43 40 32 6 16 1 4 5 10 49 48 13 42 23 42 25 39 31 3 18 20 3 21 37 19 37 7 29 25 35 39 31 3 60 62 25 39 31 3 60 3 25 39 31 3 60 3 41 33 17 28 37 41 33 18 51 37 Before SN1411 31 39 35 25 21 61 20 3 11 70 6 71 16 48 49 13 10 42 42 23 3 18 20 3 21 25 39 31 72 65 75 TR3038 - FRAME & JACKSHAFT DRIVE

Printed in U.S.A. 5 908014/AP0600 Ref. Part Qty. Ref. Part Qty. No. No. Description Req. No. No. Description Req. 01 650808 FW 1-1/4 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 03 027003 RETAINER/BEARING 8 . . . . . . . . . . . . . . . . 04 062077 SPACER 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 05 H267A FW 1-17/64 AR . . . . . . . . . . . . . . . . . . . . . . . . 06 062071 FLANGE/SHEAR (AFTER SN1410) 1 . . . . . 060558 FLANGE/SHEAR (BEFORE SN1411) 1 . . . 07 058564 FW 21/32 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 08 060571 SPACER 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 09 059142 HANGER 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 062079 SHAFT/JACK (AFTER SN1410) 1 . . . . . . . . 062078 SHAFT/JACK (BEFORE SN1411) 1 . . . . . . 11 062076 GEAR/33T (AFTER SN1410) 1 . . . . . . . . . . 060555 GEAR/33T (BEFORE SN1411) 1 . . . . . . . . . 12 060834 PARTITION/LT OUTER 1 . . . . . . . . . . . . . . . 13 077066 CS 1/4X1-1/2 2 . . . . . . . . . . . . . . . . . . . . . . . . 14 071701 LN 5/16 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 071703 LN 3/8 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 062080 SPROCKET/23T (AFTER SN1410) 1 . . . . . 060561 SPROCKET/23T (BEFORE SN1411) 1 . . . . 17 074757 STRAP/IDLER (AFTER SN9460) 1 . . . . . . . 18 074803 SHIM/FLANGETTE 3 . . . . . . . . . . . . . . . . . . . 19 124773 SPROCKET/IDLER 1 . . . . . . . . . . . . . . . . . . 20 520065 BEARING/BALL 2 . . . . . . . . . . . . . . . . . . . . . 21 520085 COLLAR/BEARING 2 . . . . . . . . . . . . . . . . . . 22 650487 CS 5/16X1 2 . . . . . . . . . . . . . . . . . . . . . . . . . . 23 650513 KEY/WOODRUFF 1/4X1 1 . . . . . . . . . . . . . . 25 650704 CB 3/8X1 15 . . . . . . . . . . . . . . . . . . . . . . . . . . 26 650745 CB 5/16X1-1/4 2 . . . . . . . . . . . . . . . . . . . . . . . 28 650842 CB 5/8X1-1/2 1 . . . . . . . . . . . . . . . . . . . . . . . . 29 650866 CB 5/8X3-1/2 1 . . . . . . . . . . . . . . . . . . . . . . . . 30 653007 HN 5/16 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 653010 HN 3/8 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 653018 HN 1/2 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 653021 HN 5/8 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 654004 FW 5/16 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 654006 FW 3/8 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 654012 FW 5/8 AR . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 654024 LW 5/16 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 654026 LW 3/8 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 654030 LW 1/2 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 654032 LW 5/8 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 655022 CP 3/16X1-3/4 2 . . . . . . . . . . . . . . . . . . . . . . . 43 650453 CS 1/2X1-1/2 4 . . . . . . . . . . . . . . . . . . . . . . . . 44 060829 TROUGH/LT 1 . . . . . . . . . . . . . . . . . . . . . . . . 45 650486 CS 5/16X3/4 3 . . . . . . . . . . . . . . . . . . . . . . . . 46 650490 CS 3/8X1 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 650488 CS 3/8X3/4 3 . . . . . . . . . . . . . . . . . . . . . . . . . . 48 654022 LW 1/4 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 653005 HN 1/4 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 059438 BOARD/CHAIN 1 . . . . . . . . . . . . . . . . . . . . . . 51 154751 FW 21/32 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 044260 BEARING/BALL 3 . . . . . . . . . . . . . . . . . . . . . 61 057068 RETAINER/BEARING 1 . . . . . . . . . . . . . . . . 62 060761 FRAME/MAIN 1 . . . . . . . . . . . . . . . . . . . . . . . 70 B11067 BUSHING (BEFORE SN1411) 1 . . . . . . . . . 71 B11280A BUSHING (BEFORE SN1411) 1 . . . . . . . . . 72 H786B SPRING (BEFORE SN1411) 1 . . . . . . . . . . . 44 26 38 30 A 26 8 14 9 12 30 38 34 22 50 45 34 38 30 31 39 47 35 15 47 31 39 35 46 Position Of Item 44 Varies For 30 Or 38 Inch Rows. A Ref. TR3038 - FRAME & JACKSHAFT DRIVE

908014/AP0600 6 Printed in U.S.A. A B 9 8 39 28 7 31 37 29 42 34 37 31 7 8 5 31 37 42 2 10 15 Ref. C C 32 38 30 2 41 10 15 Ref. 31 37 34 42 31 37 34 27 Ref. D D 32 38 35 44 Right Rotor 41 Left Rotor 4 43 Position Of Items 4 & 5 Vary For 30 or 38 Inch Rows. 50 50 TR3038 - FRAMES (INNER)

Printed in U.S.A. 7 908014/AP0600 Ref. Part Qty. Ref. Part Qty. No. No. Description Req. No. No. Description Req. 02 056821 SPRING 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 04 060835 FRAME/RT INNER 1 . . . . . . . . . . . . . . . . . . . 05 060838 FRAME/LT INNER 1 . . . . . . . . . . . . . . . . . . . 07 058136 RAIL/SLIDE 4 . . . . . . . . . . . . . . . . . . . . . . . . . 08 058137 HANGER/SLIDE 2 . . . . . . . . . . . . . . . . . . . . . 09 058138 FW 17/32 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 058159 SHIM/HANGER AR . . . . . . . . . . . . . . . . . . . . . 15 061029 STRAP/HANGER 2 . . . . . . . . . . . . . . . . . . . . 27 650487 CS 5/16X1 4 . . . . . . . . . . . . . . . . . . . . . . . . . . 28 650585 CS 1/2X2 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 650745 CB 5/16X1-1/4 12 . . . . . . . . . . . . . . . . . . . . . . 30 650860 CB 3/8X1-3/4 4 . . . . . . . . . . . . . . . . . . . . . . . . 31 653007 HN 5/16 32 . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 653010 HN 3/8 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 654004 FW 5/16 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 654006 FW 3/8 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 654024 LW 5/16 32 . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 654026 LW 3/8 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 654030 LW 1/2 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 GREASE 42 650486 CS 5/16X3/4 16 . . . . . . . . . . . . . . . . . . . . . . . 43 060846 TIE/INNER FRAME 1 . . . . . . . . . . . . . . . . . . 44 650490 CS 3/8X1 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 058199 PLUG/SPRING 2 . . . . . . . . . . . . . . . . . . . . . . TR3038 - FRAMES (INNER)

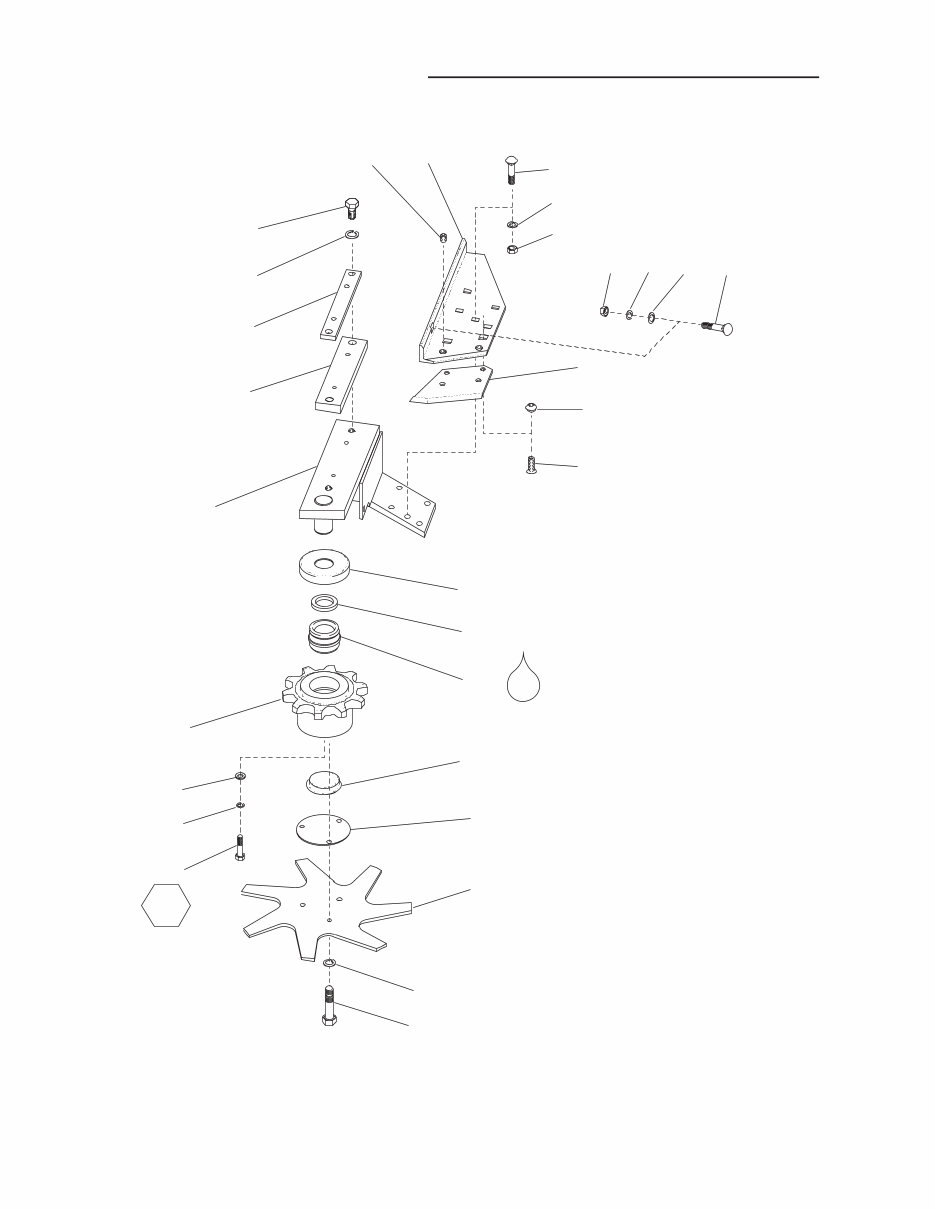

908014/AP0600 8 Printed in U.S.A. 15 17 14 15 17 19 18 1 9 8 11 6 4 3 16 13 16 10 7 5 2 39 31 38 37 33 32 36 35 34 45/55 TR3038 - CARRIER & ROTOR (LEFT)
