Timberjack FB20 Drive to Tree Felling Head Worjshop Manual

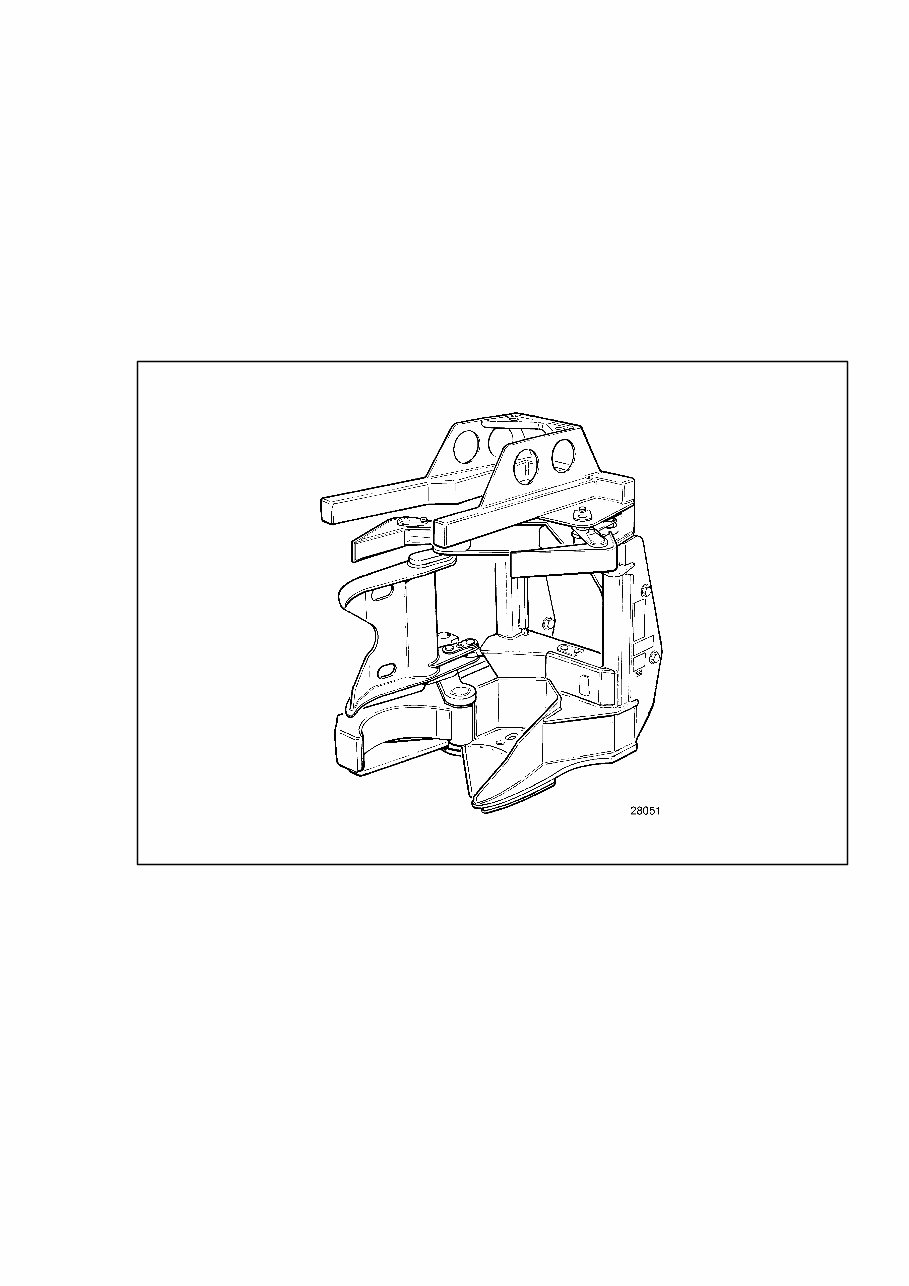

FB20 Drive to Tree Shear Head S/N WCFB20X005001 – TECHNICAL MANUAL FB20 Shear Head TM F435784 (12FEB02) CALIFORNIA Proposition 65 Warning Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects and other reproductive harm. WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Worldwide Construction and Forestry Division English

Workshop Manual FB20 Drive to Tree Felling Head Timberjack Inc. P.O. Box 160 925 Devonshire Avenue Woodstock, Ontario, Canada N4S 7X1 Telephone: (519) 537–6271 02/02

Table of Contents Issue 02/02-01 i Section Description 7400 Introduction 7411 Frame and Shear 7412 Clamp Arms 7420 Carrier Adapter 7440 Hydraulic Group 7442 Hydraulic Cylinders

Issue 02/02-01 ii

7400-1 Page Issue 02/02-01 FB20 Felling Head 7400 Introduction 1.1 Introduction 7400-3 1.1.1 General 7400-3 1.1.2 Models Covered By This Manual 7400-3 1.2 FB20 Felling Head 7400-4 1.2.1 Component Description 7400-4 1.2.2 General Dimensions 7400-5 1.2.3 General Specifications 7400-6 1.3 Safety Precautions 7400-8 1.3.1 General 7400-8 1.3.2 Safety Symbol 7400-8 1.3.3 Undersatanding Signal Words 7400-8 1.3.4 General Safety Precautions 7400-9 1.3.5 Operating Safety Precautions 7400-12 1.3.6 Servicing Safety Precautions 7400-13 1.3.7 Fire prevention 7400-16 1.4 Torque Values 7400-17 1.4.1 Steel Fasteners 7400-17 1.4.2 Hydraulic Fittings 7400-21 1.5 Application of Adhesives 7400-25 1.5.1 Through Hole (Bolts & Nuts) 7400-25 1.5.2 Blind Holes (Cap Screws, etc.) 7400-25 1.5.3 Pre-Assembled Fasteners 7400-26 1.5.4 Hydraulic Fittings 7400-26 1.6 Tool Lists 7400-27 1.6.1 Service Shop 7400-27 1.6.2 Service Truck 7400-28

7400-2 Page Issue 02/02-01 FB20 Felling Head

7400-3 Page Issue 02/02-01 FB20 Felling Head 1 .1 Introduction 1.1.1 General The Workshop Manual is intended to provide technical information, component specifications, troubleshooting and removal, disassembly and reassembly procedures for most of the major components of the felling head. Use this manual in conjunction with the applicable Operator/Maintenance Manual and the applicable Carrier Workshop Manuals. When practical, the Workshop Manual lists likely causes of malfunctions, offers test procedures to verify causes and then illustrates the steps for the adjustment or repair procedure(s). Troubleshooting must always be a multi-step process. Use the following steps: 1. Know the operation of all machine systems. 2. Ask the operator about symptoms and when they occur. 3. Operate the machine yourself if practical. 4. List all possible causes. 5. Inspect for obvious causes. 6. Eliminate the simple ones by checking oil, changing filters, etc. 7. Carry out diagnostic procedures like pressure and leakage testing to pinpoint the cause. Component specifications provide performance and mode of operation information that can be very useful in troubleshooting. Disassembly and re-assembly procedures are given for many major components. When possible, clearance and torques are given. If a manufacturer's workshop manual is available, it should be given priority. Reference to special equipment for testing and repair is limited, as most repair shops or local machine shops are well equipped to fabricate on an as-needed basis to reduce downtime. 1.1.2 Model Covered By This Manual Technical information, component specifications, troubleshooting, removal, disassembly and reassembly procedures for the FB20 model felling head is covered in this manual.

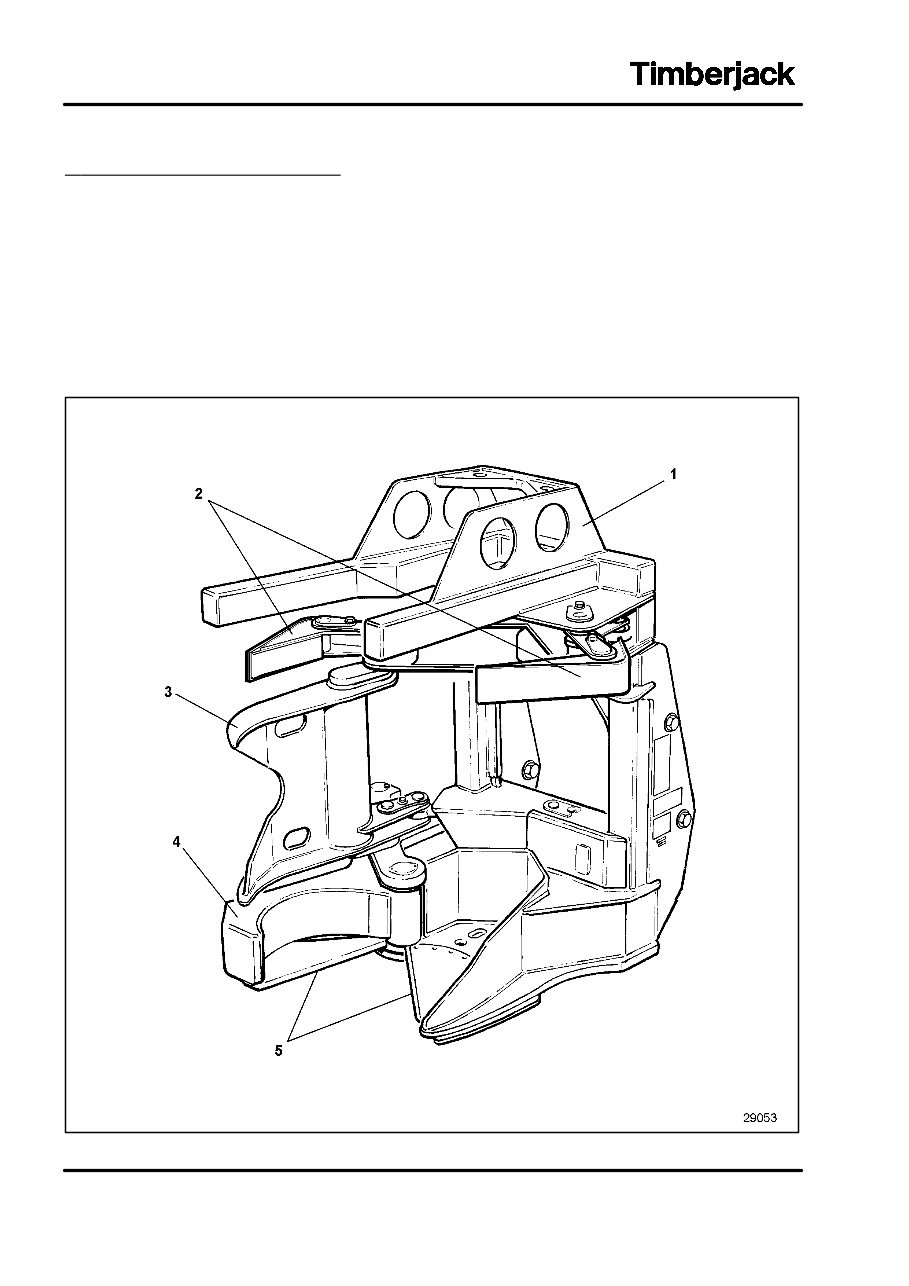

7400-4 Page Issue 02/02-01 FB20 Felling Head 1 .2 FB20 Felling Head 1.2.1 Component Description 1. Frame 2. Accumulator Arms and Cylinders 3. Grapple Arm and Cylinder 4. Shear Arm and Cylinder 5. Shear Blades
