IMPORTANT PLEASE READ:
This manual is in English however when it lists the Parts Description, Reference Number,
Required Amount & Parts Number please note that -
Ссылка / Номер детали / Кол-во / Описание
Needs to be replaced with the following -
REF. / PART NO. / REQ'D / DESCRIPTION
AFX8010 AXIAL-FLOW COMBINE (3/03-9/06)

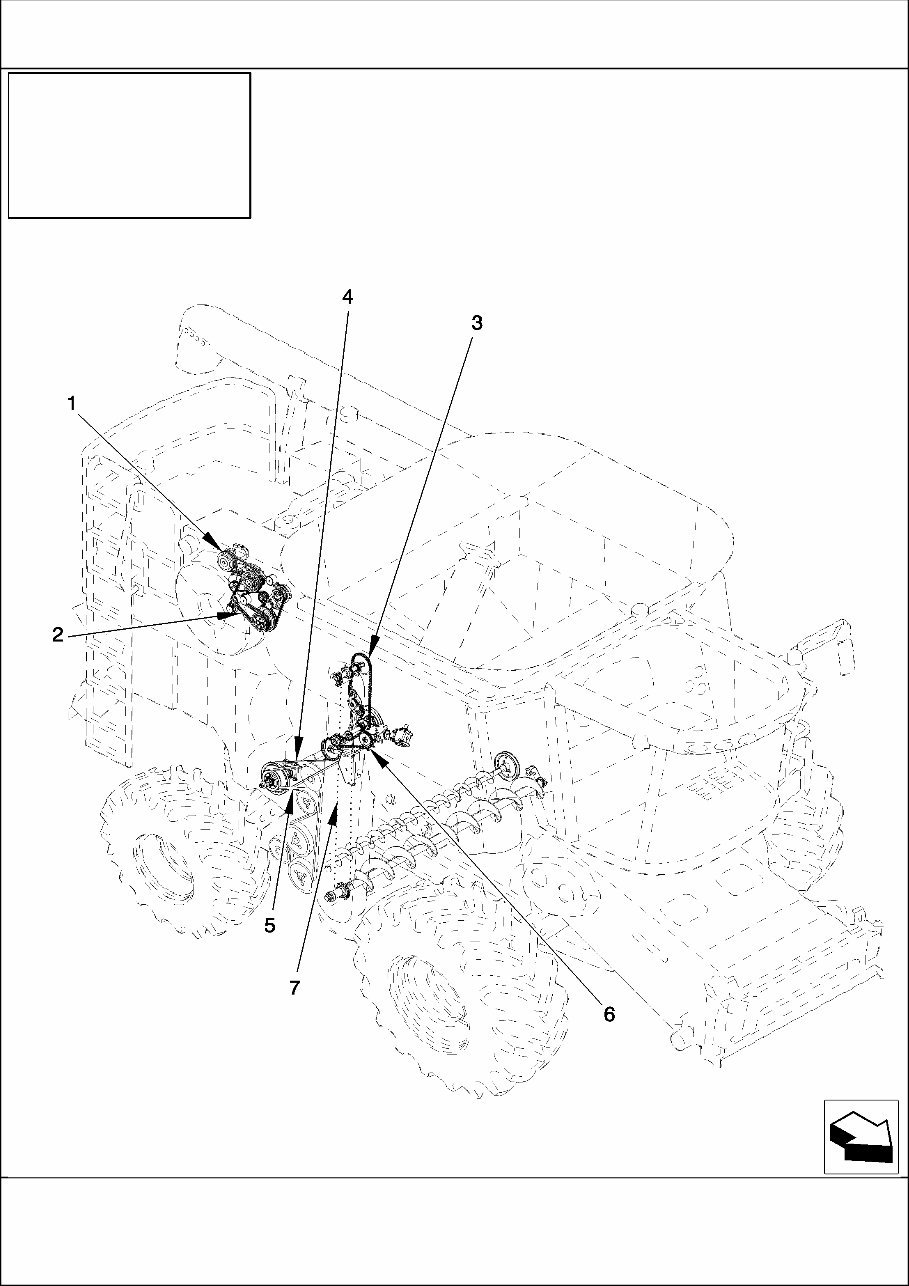

01 BELTS & CHAINS - RIGHT SIDE
REF. PART NO. REQ'D DESCRIPTION
AFX8010 AXIAL-FLOW COMBINE (3/03-9/06)
01 BELTS & CHAINS - RIGHT SIDE
1 504078066 1 BELT, Alt., A/C, Water Pump
See Figure E.40.D.31, Europe Only
1 87282333 1 BELT, Alt., A/C, Water Pump
See Figure E.40.D.31, For NA Only
2 504078068 1 BELT, Fan
See Figure B.50.A.54, Europe Only
2 87282305 1 BELT, Fan
See Figure B.50.A.54, For NA Only
3 87108801 1 CHAIN, Elevator Drive
See Figure K.60.B.52 (1)
4 86975809 1 BELT, Bubble - Up Drive
See Figure K.60.B.40 (1)
5 87109130 1 BELT, Tailings Processor, HCC, 184.2" Effective Length
See Figure K.62.C.41 , Prior to PIN HAJ103201EU & HAJ105207NA
5 87283139 1 BELT, Tailings Processor, HCC, 182.0" Effective Length
See Figure K.62.C.41, PIN HAJ103201EU & HAJ105207NA and after
6 87105134 1 CHAIN, Bubble - Up Drive
See Figure K.60.B.40 (1)
7 87281911 1 CHAIN, ELEVATOR, Includes Paddles
See Figure K.60.B.52 (1)
AFX8010 AXIAL-FLOW COMBINE (3/03-9/06)

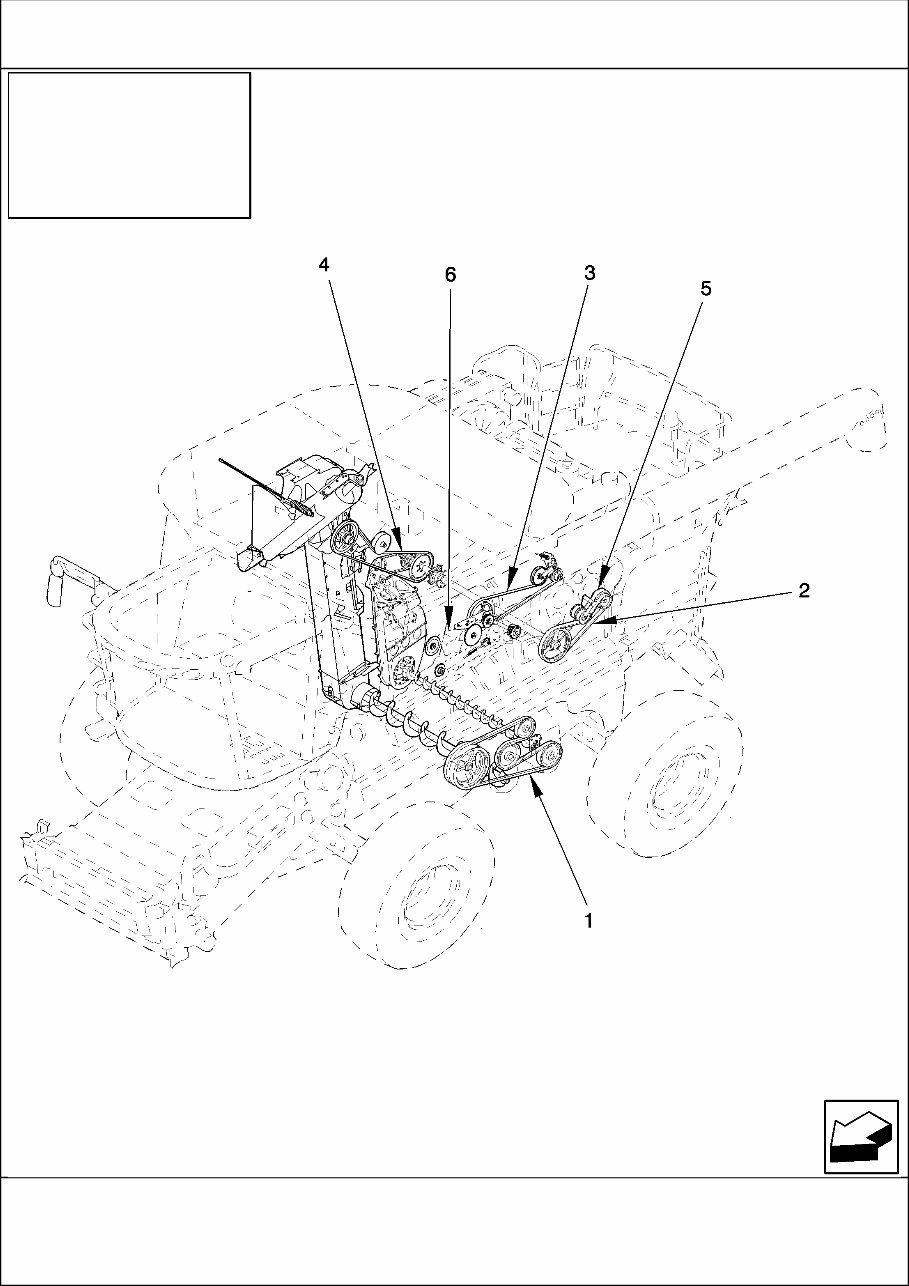

02 BELTS & CHAINS - LEFT SIDE
Ссылка Номер детали Кол-во Описание
AFX8010 AXIAL-FLOW COMBINE (3/03-9/06)
02 BELTS & CHAINS - LEFT SIDE
1 86980546 1 BELT, Shoe Drive - 3758 mm Effective Length
See Figure K.62.B.41 (1)
1 87317063 1 BELT, Shoe Drive - 3651 mm Effective Length
See Figure K.62.B.41 (1), Enhanced Cleaning
2 86517680 1 BELT, Beater Drive - 3045.5 mm Effective Length
See Figure K.64.E.40 (2)
3 87011585 1 BELT, Unloading Drive - 3254 mm Effective Length
See Figure K.72.B.40 (1)
4 86975809 1 BELT, Bubble - Up Drive - 86975809
See Figure K.60.B.40 (1)
5 86976208 1 BELT, Strawchopper Drive - 2720 mm Effective Length
See Figure K.64.C.40 (2), 3000 RPM
5 87283315 1 BELT, Strawchopper Drive - 2690 mm Effective Length
See Figure K.64.C.40 (2), 2800 RPM
6 86998066 1 CHAIN, Unloading Drive
See Figure K.72.B.40 (2)
AFX8010 AXIAL-FLOW COMBINE (3/03-9/06)

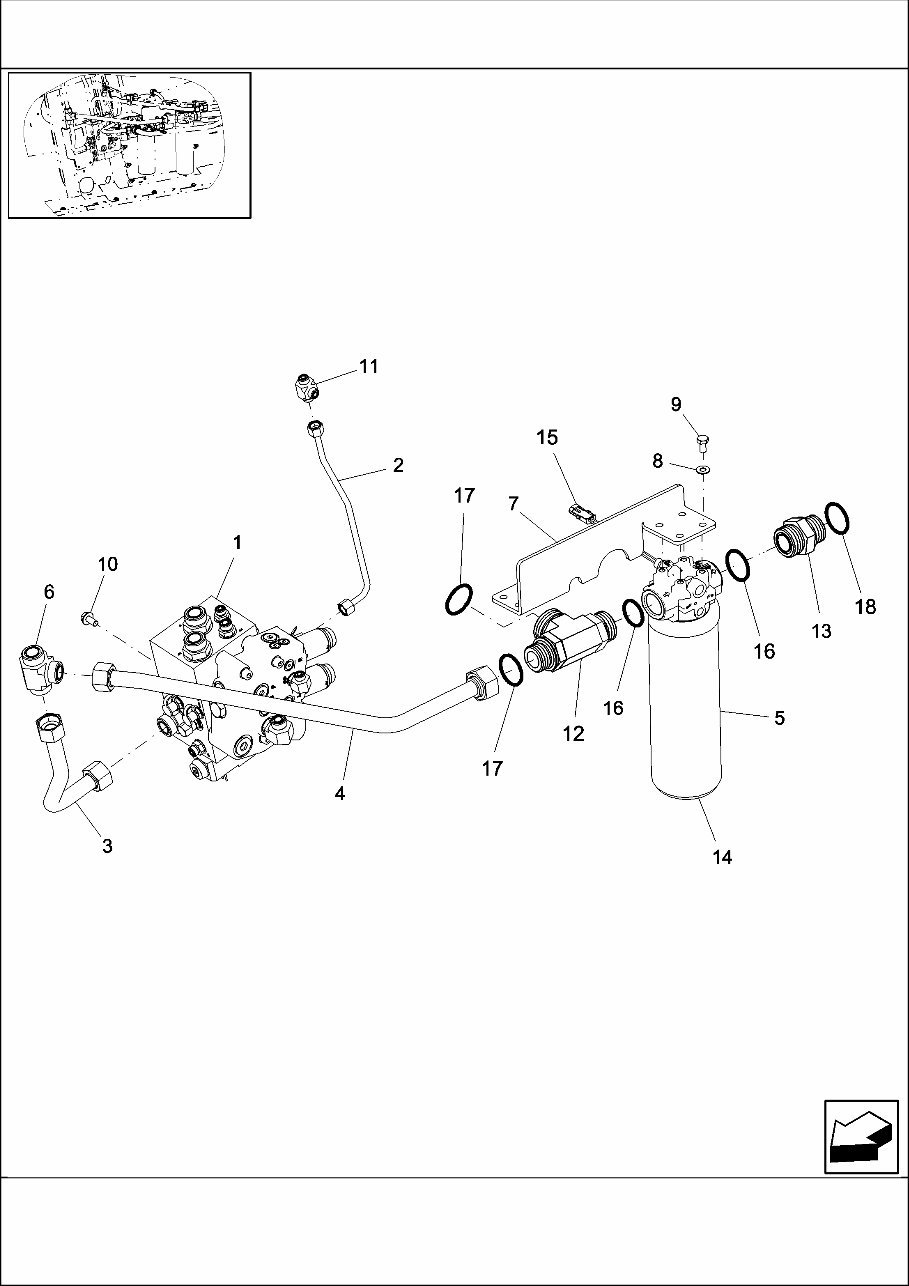

A.10.A(1) FILTERS AND MAIN STACK VALVE
Ссылка Номер детали Кол-во Описание
AFX8010 AXIAL-FLOW COMBINE (3/03-9/06)
A.10.A(1) FILTERS AND MAIN STACK VALVE
1 0C 1 ORDER COMPONENTS, Main Stack; For Component Breakdown, Refer To Fig. A.10.A.18[4]
2 86995855 1 TUBE, HYD, Load Sense from Main Valve
3 86995864 1 TUBE, HYD, Return from Main Valve Stack
4 86995867 1 TUBE, HYD, PFC Return to Filter
5 86998593 1 FILTER ASSY., Aux Return to Reservoir, 17.4 " long
6 86705422 1 TEE,
7 87284382 1 STRAP, Mounting, Ref. # 5, BSN HAJ105757
7 87284938 1 STRAP, Mounting, Ref. # 5, ASN HAJ105758
8 140045 AR WASHER, SPRING, Belleville, M10,
9 43138 8 BOLT, Hex, M10 x 20, 8.8, Full Thd,
9 43139 4 SCREW, Cap, HH, CL 8.8, M10 x 25
10 274249 3 BOLT, Hex Serr Flg, M10 x 20,
11 9840322 1 TEE, 11/16"-16 ORFS,
12 86579708 1 TEE, 1 11/16"-12 ORFS x M42 x 2 ORB Run,
13 86997863 1 CONNECTOR, HYD., 2"-12 ORFS x M42 x 2 ORB,
14 277311A1 1 FILTER, HYDRAULIC OIL, Element, 14.4 " long
15 87447716 1 SWITCH, Filter Bypass
16 637-64386 2 O-RING, Cl 6, 38.6MM ID x 2.9 Thk,
17 238-6025 2 O-RING, -025, 90 Duro, 1.176" ID x .070" Thk,
18 238-6029 1 O-RING, -029, 90 Duro, 1.489" ID x .070" Thk,
AFX8010 AXIAL-FLOW COMBINE (3/03-9/06)

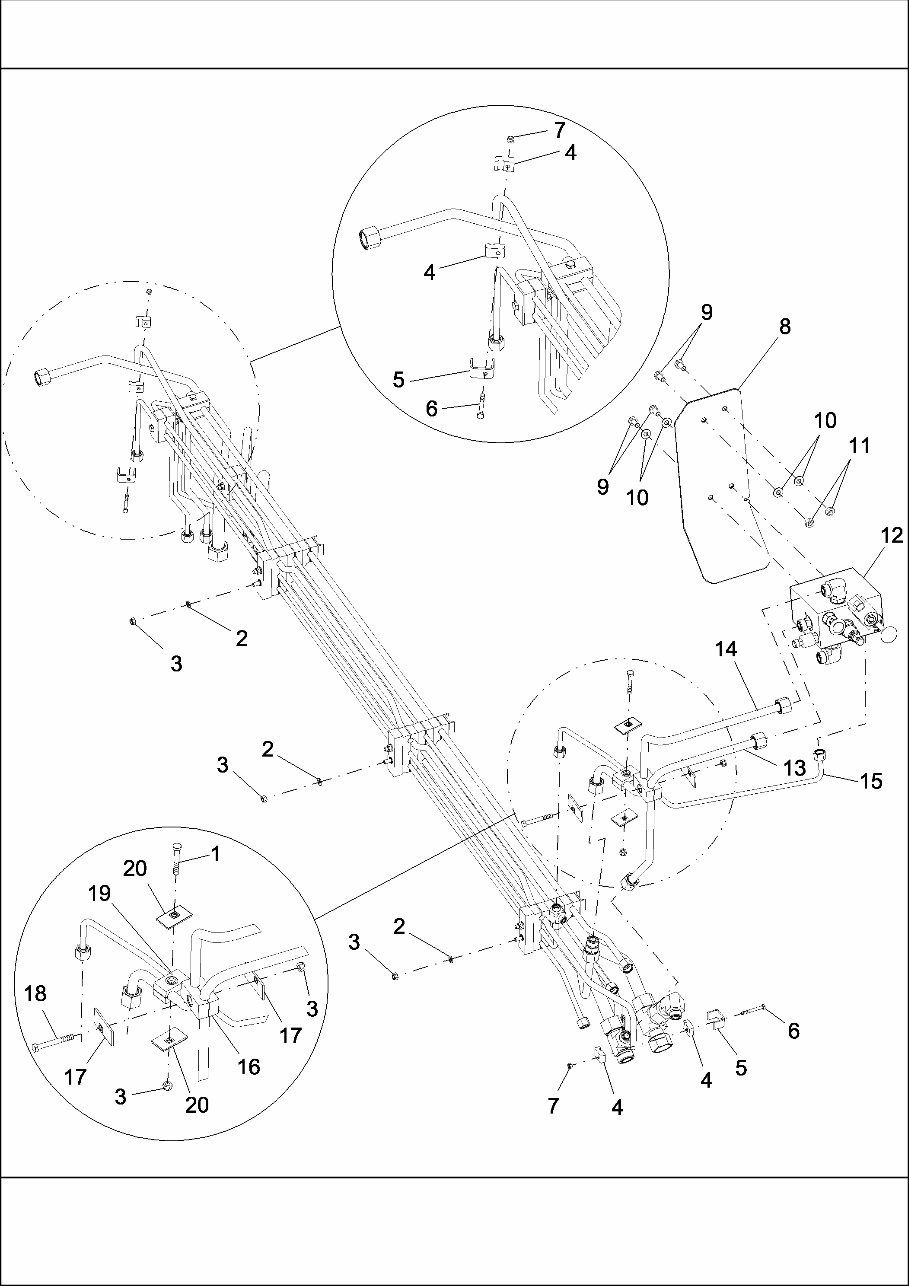

A.10.A(2) HYDRAULIC TUBES - TOW/PARK
Ссылка Номер детали Кол-во Описание
AFX8010 AXIAL-FLOW COMBINE (3/03-9/06)
A.10.A(2) HYDRAULIC TUBES - TOW/PARK
1 16044321 1 BOLT, Hex, M8 x 55, 8.8,
2 140016 3 WASHER, M8 x 16 x 1.6,
3 832-46408 5 NUT, LOCK, M8 x 1.25, Cl 8,
4 433008 4 CLAMP,
5 442340 2 SUPPORT,
6 120056 2 BOLT, Hex, M6 x 50, 8.8,
7 353308 2 NUT, LOCK, M6 x 1, Cl 8,
8 87280113 1 BRACKET,
9 43138 4 BOLT, Hex, M10 x 20, 8.8, Full Thd,
10 140045 4 WASHER, SPRING, Belleville, M10,
11 100016 2 NUT, M10, Cl 8,
12 87109702 1 VALVE, HYDRAULIC, Park/Tow/Reg - with Fittings
13 87109730 1 TUBE, HYD, Valve Supply
14 87280109 1 TUBE, HYD, Drain
15 87280107 1 TUBE, HYD, Regulated Pressure
16 87000150 1 CLAMP, Tube
17 87000230 2 PLATE, Clamp, Hose
18 300510 1 BOLT, Hex, M8 x 65, 8.8,
19 87000159 1 CLAMP, Tube
20 72180326 2 PLATE, Clamp, Hose
