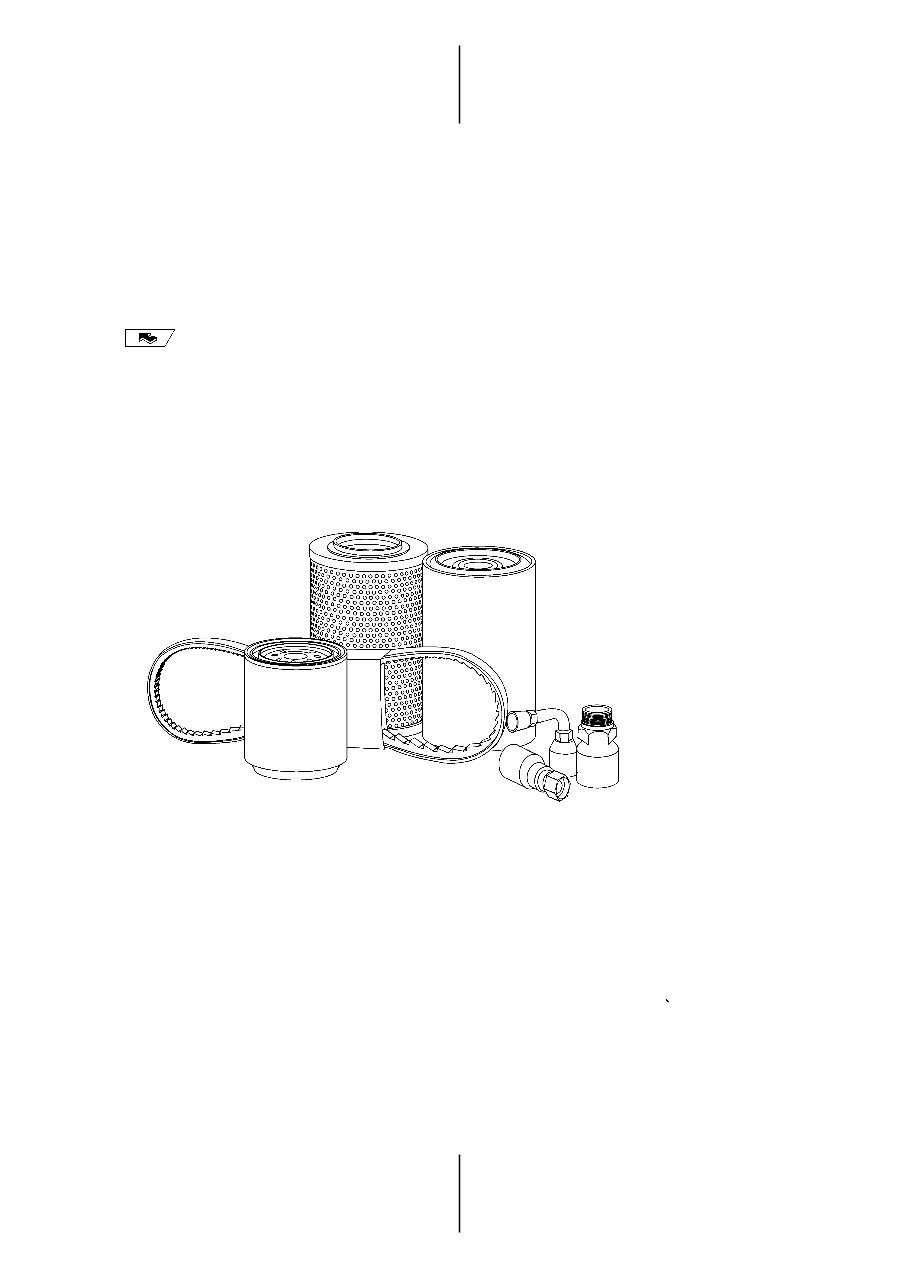

Variants - Model Information - Serial Number ranges - Production Dates - # Part # Part Name Description Qty 1 J100304 FILTER Coolant 1 * CNH XHD COOLANT ANTIFREEZE Coolant, BSN JJC0191483, 40-QT (37.8L) - * CNH XHD COOLANT ANTIFREEZE Coolant, SN JJC0191483 & ASN, 42-QT (39.7L) - 2 J919562 ENGINE OIL FILTER - 1 * NO. 1 SAE 15W40 OIL Crankcase, W/O Filter, 20-QT (18.9L) - * NO. 1 SAE 15W40 OIL Crankcase, W/ Filter, 22-QT (20.8L) - 3 132151A1 AIR FILTER Primary 1 4 132149A1 AIR FILTER Secondary 1 5 120486A2 CAB FILTER Cab Recirculation 1 6 A177605 HYDRAULIC OIL FILTER Spin- on, 128mm OD x 270.7mm L, 1 Spin On 1 * HY-TRAN ULTRA OIL Hydraulic System, Hy-Tran Ultra, 10-Gal (37.9L) - * HY-TRAN ULTRA OIL Transmission, Rear Frame or Differential, Hy-Tran Ultra, 4.3- - 7 84557099 FUEL FILTER User Friendly Version 1
# Part # Part Name Description Qty 8 47387534 FUEL FILTER BSN JJC0191483, Tank 1 9 90-3941T1 SEPARATOR Water Separator Spin On 1 * HY-TRAN ULTRA OIL Power Take-Off, Hy-Tran Ultra PTO, Drive Housing, 14-QT (13.3 - * HY-TRAN ULTRA OIL Wheel Ends, Sprocket or Final Drive, Hy-Tran Ultra, Each, 13- - * HY-TRAN ULTRA OIL Wheel Ends, Sprocket or Final Drive, Rotor Gear Case, 4-QT - * HY-TRAN ULTRA OIL Wheel Ends, Sprocket or Final Drive, Chopper Gear Case, 3.3- - * 135H EP 85W140 OIL Wheel Ends, Sprocket or Final Drive, 135H EP, 85W140, Lower - * 135H EP 85W140 OIL Gear Box, 135H EP, 85W140, Cleaning Fan & Feeder Gear Case, -
Variants - Model Information - Serial Number ranges - Production Dates - null null null null null
Variants - Model Information - Serial Number ranges - Production Dates - null null null null null
Variants - Model Information - Serial Number ranges - Production Dates - # Part # Part Name Description Qty null 141546A2 BOX, TOOL - - null 106743A1 HANDLE Sieve adjustment tool -

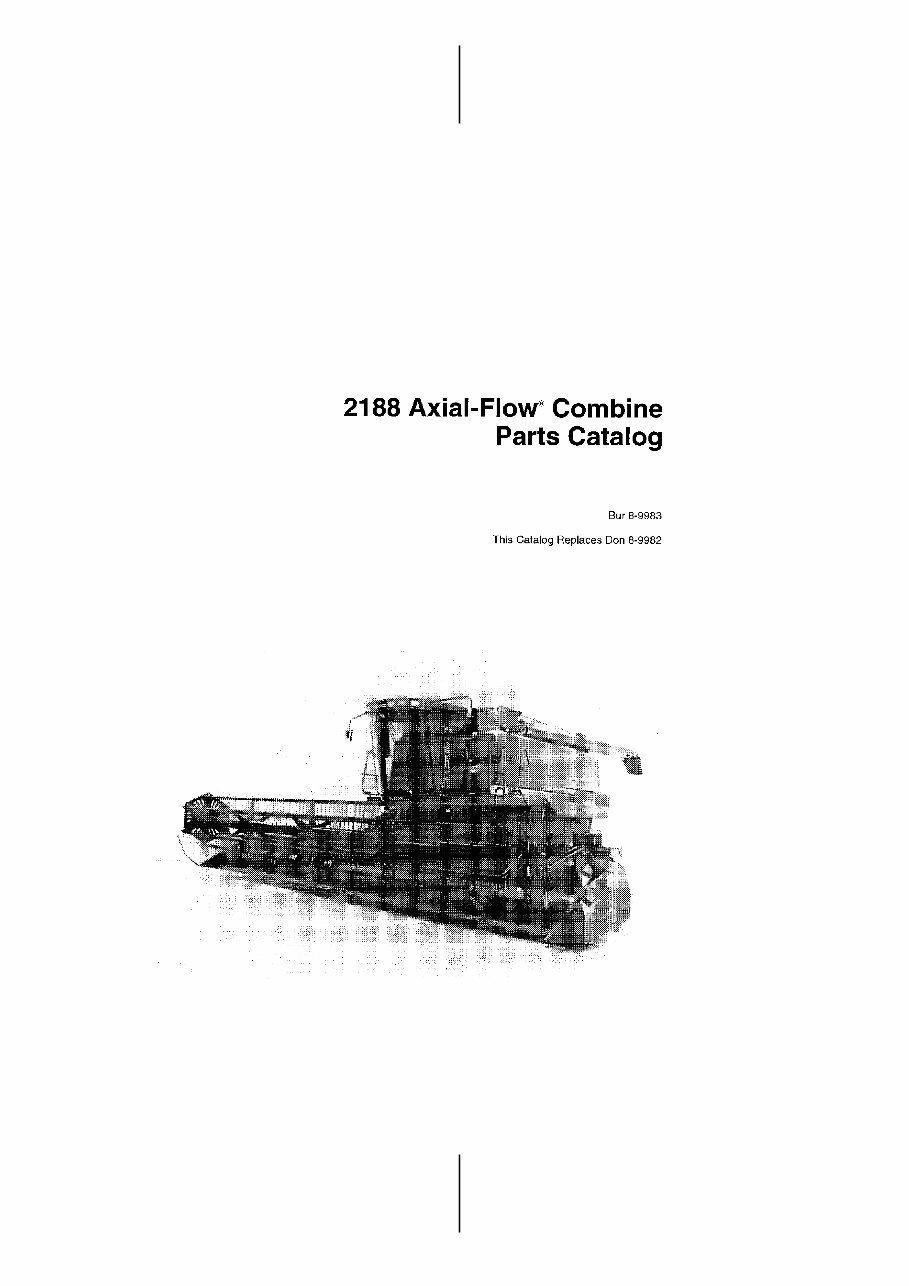

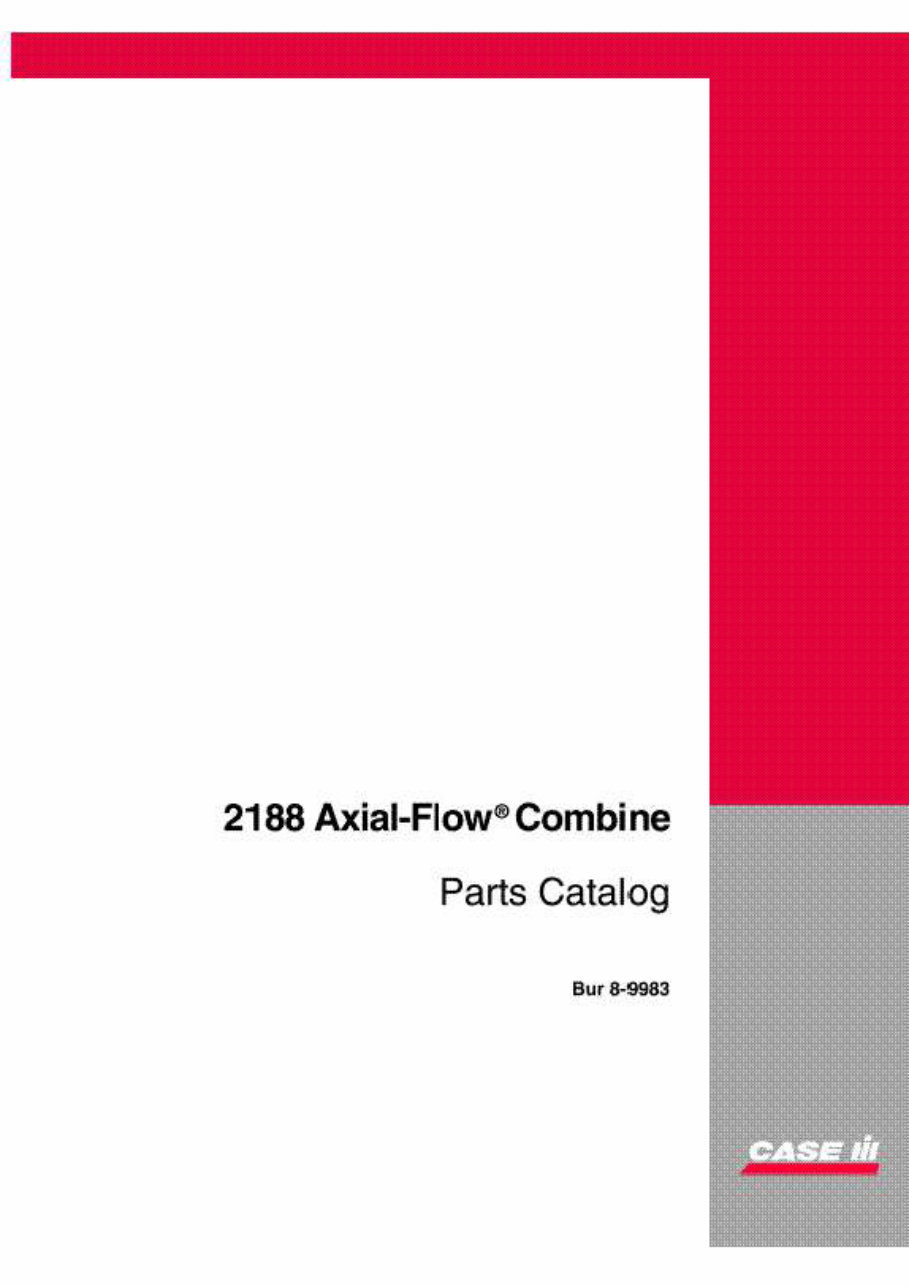

The Case IH 2188 Harvesting Equipment Parts Catalog is a comprehensive guide with detailed descriptions and exploded view illustrations, making it easy to identify and locate the right components for your Case IH 2188. It is a valuable resource for both professional mechanics and DIY enthusiasts, offering a seamless user experience.
Whether you're in need of a replacement part or simply want to explore the inner workings of your machinery, this catalog has you covered. It features a wide range of models, including Case IH 2188 Model A, Model B, and Model C, catering to various needs and preferences.
Each model is meticulously documented, providing you with the confidence to make informed decisions about your equipment. Say goodbye to guesswork and hello to precision with the Case IH 2188 Harvesting Equipment Parts Catalog.
