New Holland 273 Parts Catalog

Baler 273 X X X X 87039037 9/03 PARTS SERVICE PARTS CATALOG

blank page

GENERAL INFORMATION 1. Whenever the terms left and right are used, it should be understood to mean from a position facing in direction of travel. 2. Throughout this manual you find common hardware not illustrated, but listed in the description column. The service part immediately preceding a hardware listing is the part using these particular items for mounting purposes. This hardware is not included with the service part or assembly when ordered as a replacement. 3. New Holland North America, Inc. is continually striving to improve its products. We must, therefore, reserve the right to make improvements or changes when it becomes practical and possible to do so, without incurring any obligation to make changes or additions to the equipment sold previously. ALWAYS USE GENUINE NEW HOLLAND PARTS NEW HOLLAND NORTH AMERICA, INC., 500 DILLER AVENUE, NEW HOLLAND, PA 17557

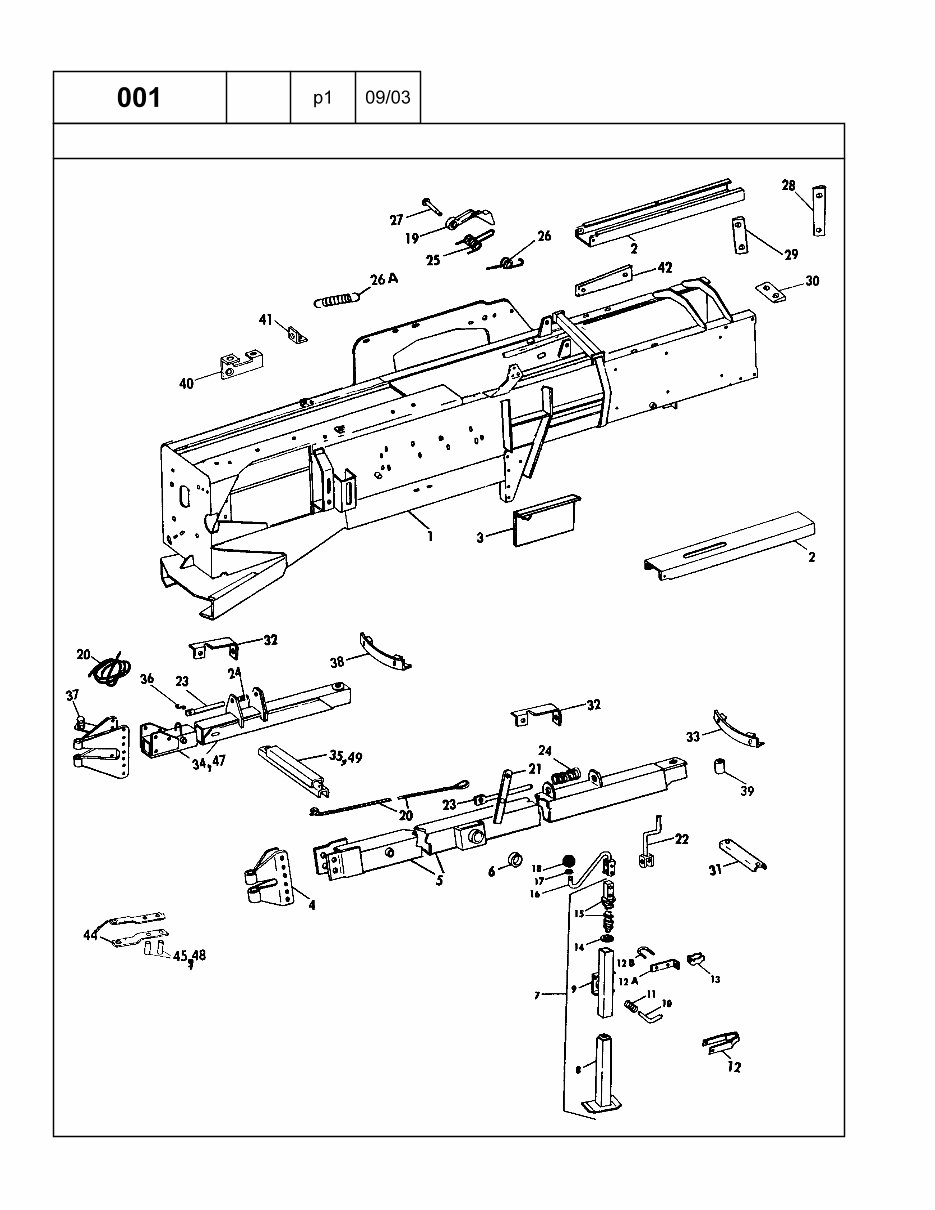

001 TONGUE & BALE CHAMBER 002 WHEEL & AXLE 003 FLYWHEEL, GEARBOX, & CRANK 004 GEARBOX, MAIN DRIVE 005 PLUNGER 006 PICKUP 007 WINDGUARD 008 FINGER FEED 009 BALE TENSION 010 METERING WHEEL 011 NEEDLE YOKE, ROD & LINK 012 TWINE KNOTTER 013 TWINE FINGER & LEVER 014 WIRE TWISTER 015 FEEDER SHELL & SUPPORT 016 TWINE BOX 017 WIRE FEEDING 018 POWER TAKE OFF, BEARING & TUBE 019 POWER TAKE OFF, FRONT, ROCKWELL STANDARD 020 POWER TAKE OFF, FRONT, NEAPCO 021 POWER TAKE OFF, SHORT TONGUE 022 POWER TAKE OFF, REAR, ROCKWELL STANDARD 023 POWER TAKE OFF, REAR, NEAPCO 024 POWER TAKE OFF, CLUTCH 025 ENGINE V-BELT DRIVE & CONTROL 026 ENGINE, GAS TANK & SUPPORTS 027 PICKUP LIFT, MANUAL 028 HYDRAFORMATIC BALE TENSION 029 HYDRAULIC OIL PUMP 030 DUAL WHEEL, LH 031 DUAL WHEEL, RH 032 LIGHTING 033 HEAVY DUTY BALE CHUTE, TURNER ATTACHMENT & ADAPTER KIT 034 BALE CHUTE 035 WAGON HITCH & BALE CHUTE 036 DECALS 037 PAINT

1 2 3 4 4 5 6 9 14 15 16 17 18 19 20 21 23 24 2 PTO 2 to 11 7 11 12 10 13 6 22 9 8 8 10 11 12 13 Before 06/85 17

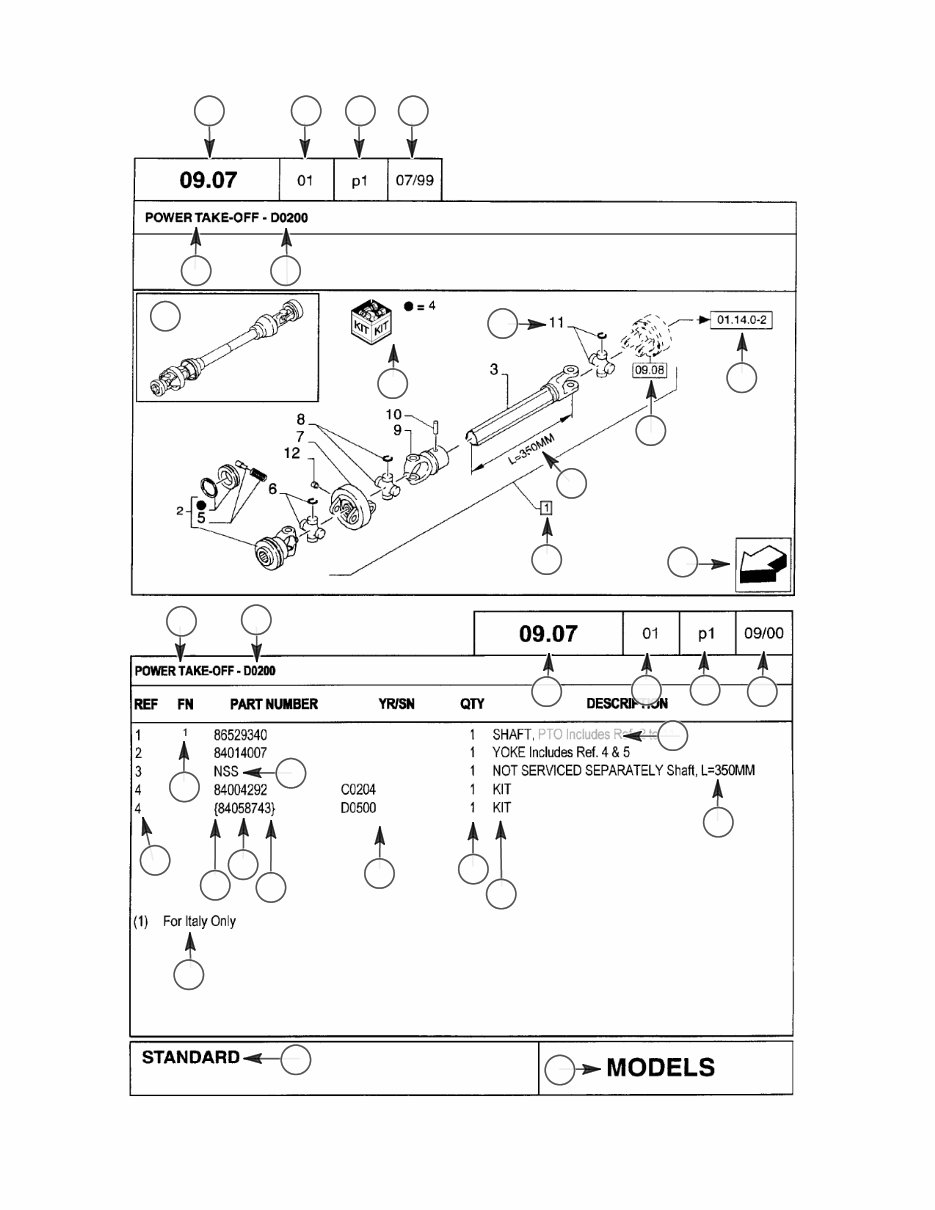

1 Position of the Figure on the machine. 2 Reference -- Figure call-out of the part number. 3 Parts supplied in repair kits per symbol reference. 4 Parts illustrated on the Page or in the Figure indicated, or calls for Variations or Details. Indicates components shown in detail elsewhere in the catalog under the figure number shown. 5 Technical specifications relating to the Part indicated. 6 Item Includes References noted in description. 7 Orientation. (Arrow indicates front of the machine.) 8 Figure description. 9 General information of the figure. 10 Assembly code. 11 Sequence code within the assembly. 12 Page number within the sequence code. 13 Date of printing or updating of page (month--year). 14 Note -- Relating to the Part Number. There is a key to symbols and abbreviations at the bottom of the text page. 15 Non-serviced parts. 16 Further description of the part to help confirm identification. 17 Not available as service part in this market. 18 Part Number. 19 Year Before 06/85 = Part valid for production 06/85 and before From 07/85 = Part valid for production from 07/85 and after Serial Number BSN 31011913 = Part valid for serial number 31011913 and below ASN 31011914 = Part valid for serial number 31011914 and above Modification C 0201 = Part valid UNTIL 0201 change. D 0300 = Part valid FROM 0300 change. F 0202 = Part valid FROM Serial N..... to Serial N..... Implementation of change. Serial number from which the change starts. The numbers are indicated on the identification plate of the model. E.g.: D0300 Serial N 2503001 means that the part has been installed From serial number 2503001. Consequently, the parts marked by C0201, were installed UP TO serial number 2501999. See code table. 20 Total Quantity of the Part referred to in the page. The quantity can be replaced by the following indications: M = supplied in metres. AR = quantity as required. 21 Part Description. 22 Footnote references. 23 Figure notes. 24 Model number(s). 1

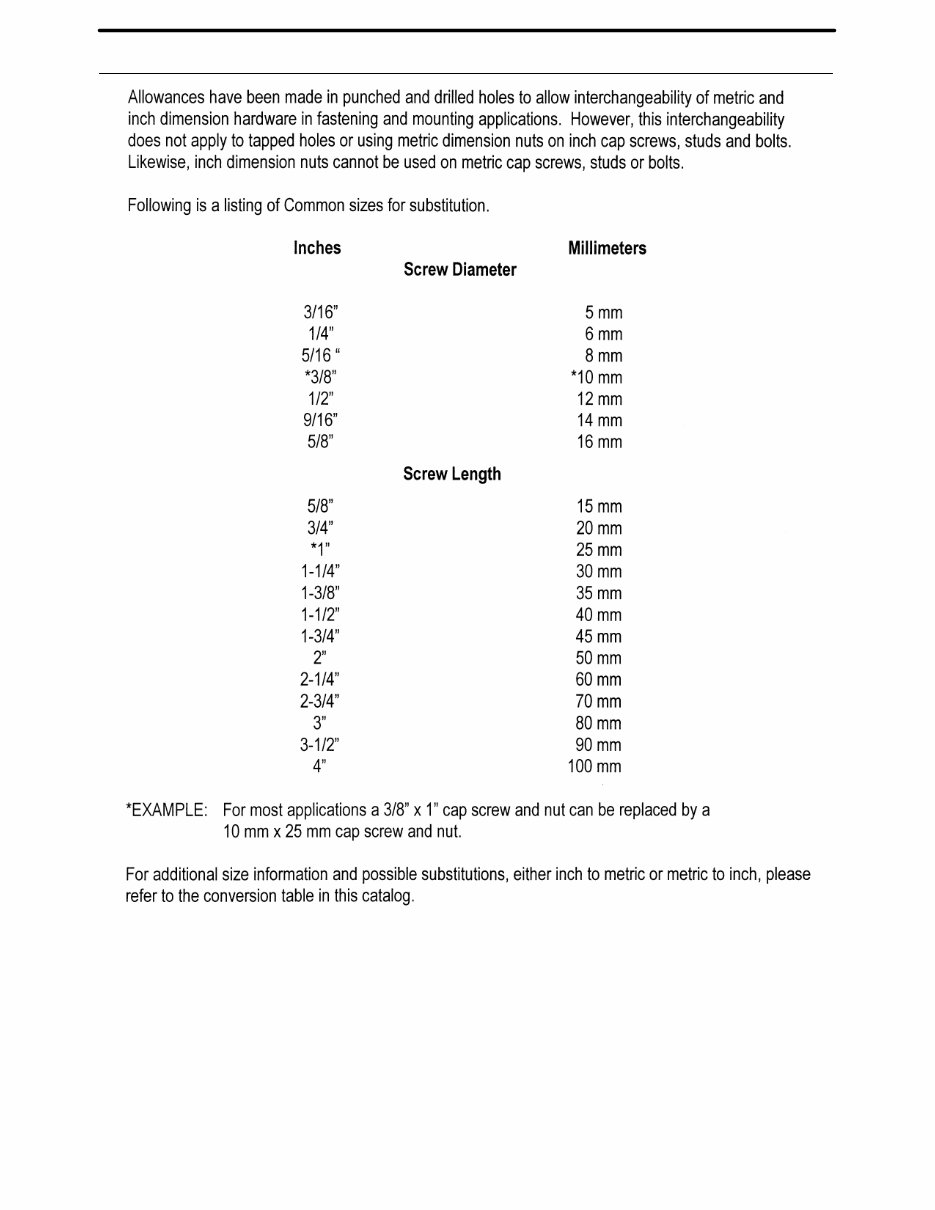

METRIC AND INCH HARDWARE

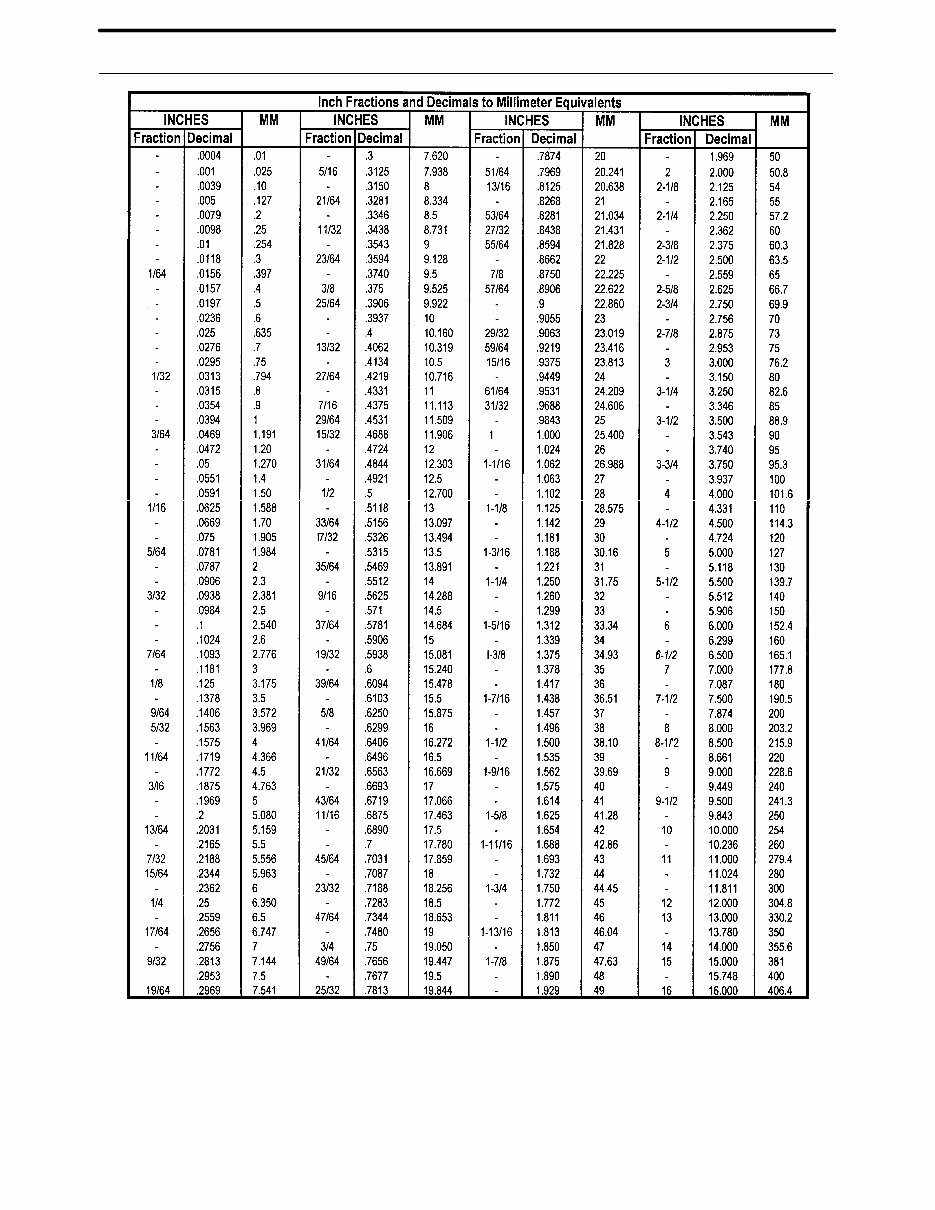

CONVERSION CHART

TONGUE & BALE CHAMBER
