1470 Variable Chamber Round Baler PARTS MANUAL Replaces 904577 Form No. 908006 

Introduction When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. The model and serial number are located under the Top Channel, near the Center Column of the Left Frame Assembly. “Right” and “Left” are determined from a position standing at the rear of the unit facing the direction of travel. GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units. NOTE: On original tire replacement, Company policy prohibits the sale of replacement tires for all GEHL machinery. Replacement Wheel Sets are available and tire size information is called out with the Wheel Sets to facilitate replacement tire selection. ALL REPLACEMENT TIRES MUST BE PURCHASED LOCALLY. Refer to the abbreviations table located on this page for the various fastener descriptions. Standard attaching hardware torque values are also provided on the inside back cover. In the exploded view parts list, Reference Numbers may have additional information following the Reference Number. A Tear Drop symbol will indicate an application of a “wet” product such as oil, and the number inside the Tear Drop will correspond to the description in the Parts List. Also, a number inside of a hexagon will be the torque value required, in foot pounds, on the associated Reference Number. Items shown in the parts list that do not have Reference Numbers are shown for reference purposes only and are NOT available for purchase. Unless otherwise specified, all Cap Screws or Bolts are Grade 5, cadmium or zinc plated; Hexagon Nuts for Grade 5 Screws or Bolts are Grade B; Hexagon Nuts for other Screws or Bolts are Grade A. NOTE: The following abbreviations may be used herein: AR – As Required ASSD – Assembled ASSY – Assembly CB – Carriage Bolt CP – Cotter Pin CS – Cap Screw (Hexagon Head) CTR – Center DEG – Degree DIA – Diameter FCS – Flanged Cap Screw FHMS – Flat Head Machine Screw FLN – Flanged Lock Nut (Hexagon) FLS – Flanged Lock Screw (Hexagon) FW – Flat Washer GA – Gauge GR – Grade HD – Hard or Head HN – Hex Nut INCL – Includes IT-LW – Internal Tooth (Lock Washer) LT – Left LN – Lock Nut LW – Lock Washer JN – Jam Nut M – Metric MM/mm – Millimeter NF – National Fine NILN – Nylon Insert Lock Nut PB – Plow Bolt PTO – Power Take Off RHMS – Round Head Machine Screw RPM – Revolutions Per Minute RT – Right SERR – Serrated SHCS – Socket Head Cap Screw SHSS – Socket Head Set Screw SN – Serial Number or Slotted Nut SQ – Square T – Tooth or Teeth TFS – Thread Forming Screw THMS – Truss Head Machine Screw THRD – Thread WLDMT – Weldment # – Number () – (Quantity Used Here) – Torque Required in foot pounds – Indicates a Fluid Application

Printed in U.S.A. 1 908006/AP0998 TABLE OF CONTENTS Introduction Inside Front Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table of Contents 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Decal Locations 2-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Frame & Fenders 6-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Left Twine Box 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Right Twine Box 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Drawbar, Axles & Ramps 10-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Implement Driveline & Gearbox 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pickup Lift & Overfill Clutch 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pickup 14-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Bale Starter & Scraper 16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Shuttle & Bale Size Indicator 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Roller Drives 18-19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Upper Belts, Rollers & Related Components 20-21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Lower Rollers 22-23 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Gate Hydraulics 24-25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Rear Gate 26-27 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Total Density Control 28-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cross Frame & Twine Tie Mechanism 32-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Transmissions 34-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Universal Drives 35-37 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hitchjacks 38-39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TDC Cylinder 40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Options & Accessories 41-50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Actuator 41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000 RPM Conversion Kit & Universal Drive 42-43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Manual-Electric Twine Tie Control Kit 44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Control Box 45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Auto-Electric Twine Tie 46 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Crowder Wheel Kit 47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stripper Assembly Kit 48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Audible Bale Size Indicator 48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Transport Lights 48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Packing Roller Lagging Kit 49 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Packing Roller Scraper Kit 49 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Center Drive Scraper Kit 49 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Automatic Chain Oiler 50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Safety Chain 50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Sprocket & Roller Part Number Guide 51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Alphabetical Index 52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Numerical Index 53-57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Standard Hardware Torque Specifications Inside Back Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

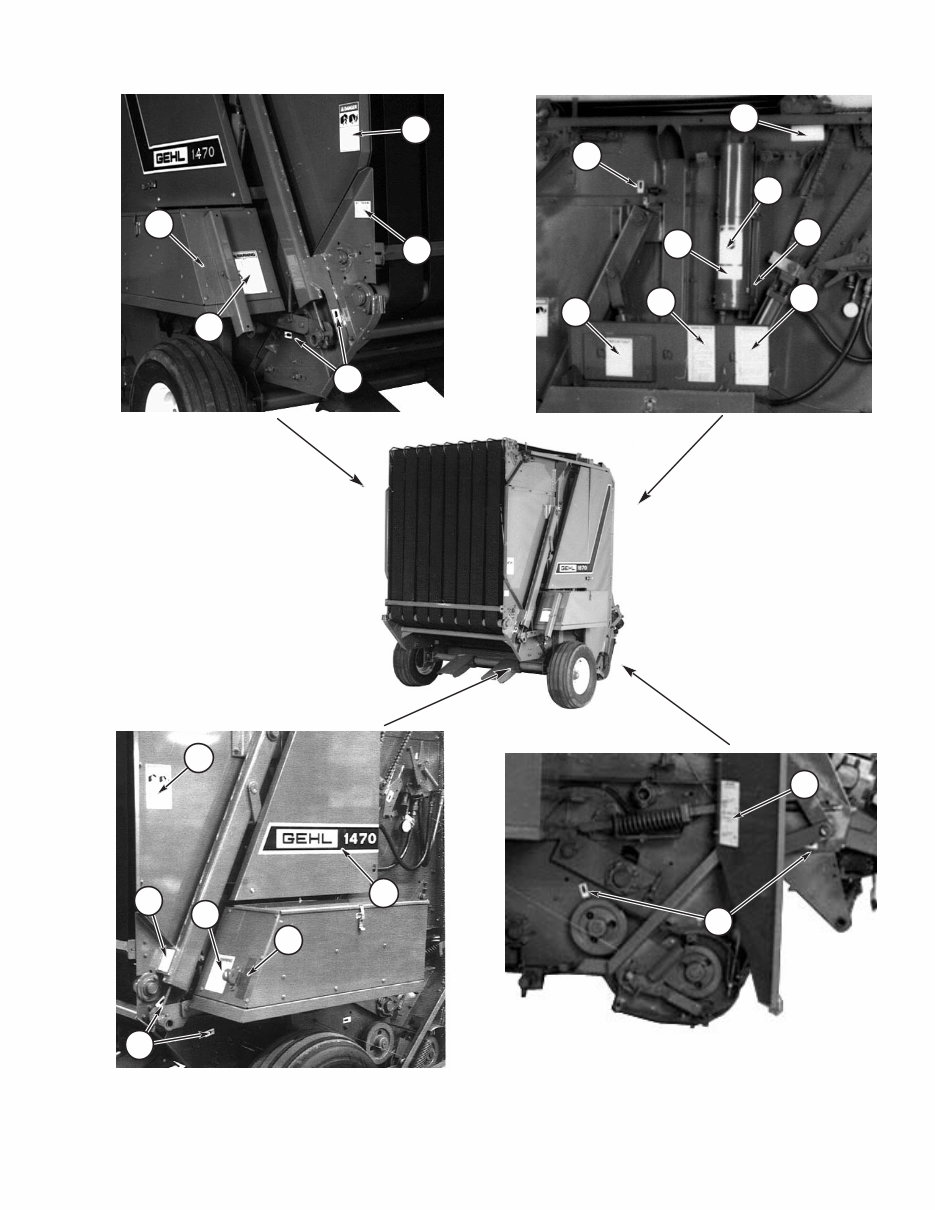

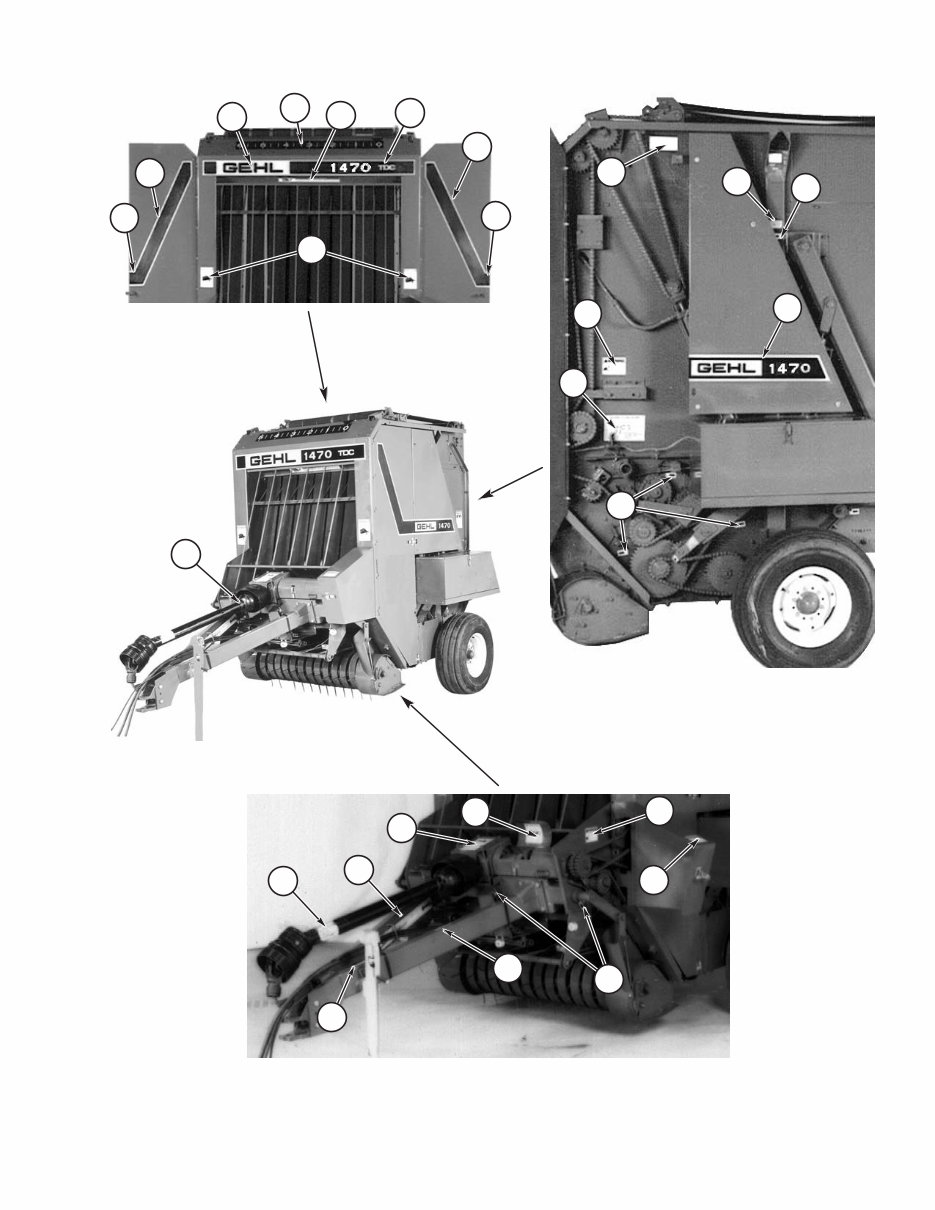

908006/AP0998 2 Printed in U.S.A. CHAPTER 1 DECAL LOCATIONS GENERAL INFORMATION Decal locations information is provided to assist in the proper selection and application of new decals, in the event the original decals become damaged or the machine is repainted. Refer to the listing for the illustration reference number, part number, description and quantity of each decal provided in the kit. Refer to the appropriate illustrations for replacement locations. NOTE: Refer to the SAFETY chapter of the Operator’s Manual for the specific information provided on all of the various safety decals furnished in the decal kit(s). To insure proper selection for correct replacement decals, compare all of the various close-up location photographs to your machine BEFORE starting to refinish the unit. Then circle each pictured decal applicable to your machine and check off its part number in the listing. After you have verified all the decals needed for replacement, set aside unneeded decals for disposal. NEW DECAL APPLICATION Surfaces MUST be free from dirt, dust, grease and other foreign material before applying the new decal. To apply a solid-formed decal, remove the smaller portion of the decal backing paper and apply this part of the exposed adhesive backing to the clean surface while maintaining proper position and alignment. Slowly peel off the other portion of the backing paper while applying hand pressure to smooth out the decal surface. CAUTION ALWAYS observe safety precautions shown on decals. If decals become damaged, or if the unit is repainted, replace the decals. If repainting, BE SURE that ALL decals from the Kit(s) that apply to your machine are affixed to your unit. PAINT NOTICE Use this list to order paint for refinishing: 906315 One Gal. AG Red 902872 One Qt. Light Grey 906316 6 (12 oz. Spray Cans) AG Red 902874 6 (12 oz. Spray Cans) Light Grey For a complete Decal Set, order Part Number 115577 for the RB1470 model Baler. The following Decals (as required) are included in the Sets: Ref. Part No. No. Description & Quantity 1. 060147 Operating Instructions 2. 060148 General Operating Instructions 3. 060151 Belt Tension (2 Places) 4. 060510 Jack Storage Position 5. 060511 Jack Lifting Position 6. 061832 Belt Tracking (2 Places) 7. 067131 Patent 8. 067135 Chain Idler Adjustment 9. 067493 Red Reflector Strip (2 Places) 10. 075526 Bale Size Indicator 1-2-3-4-5 11. 075527 Pickup Adjustment 12. 076171 Left Long Stripe 13. 076172 GEHL (Front) 14. 076173 Right Long Stripe 15. 076176 Right Lower Stripe 16. 076177 Left Lower Stripe 17. 091444 DANGER – Rotating Drive Line 18. 093020 Grease Fitting Symbol (13 Places) 19. 093366 IMPORTANT – Manual Location 20. 093367 WARNING – Owner’s Responsibility & Read Operator’s Manual 21. 093373 WARNING – General Safety Procedures 22. 093466 WARNING – 540 Operation 23. 093457 WARNING – Keep Door Closed (2 Places) 24. 093458 WARNING – Rotating Wrench & Disconnect PTO 25. 093459 WARNING – Reservoir Contamination 26. 093460 DANGER – Stay Clear of Gate (2 Places) 27. 093461 DANGER – Moving Belts 28. 093462 DANGER – Never Hand-feed Material (2 Places) 29. 093522 WARNING – Entangled in Components. 30. 093653 WARNING – Rotating Drive Line 31. 098803 1470 TDC 32. 098802 Right Side 1470 33. 098801 Left Side 1470 * 34. 112981 Oil Level Mark 35. 113340 Reservoir Oil Level 36. 143007* DANGER – Shield Missing * Not Included in Decal Kit. NOTE: Order Part Number 126757 for 10 ft roll of replacement Striping

Printed in U.S.A. 3 908006/AP0998 13 14 15 12 16 28 10 27 31 33 8 23 18 3 7 18 17 24 30 29 23 22 4 5 18 36 (Beneath Shield)

908006/AP0998 4 Printed in U.S.A. NOTE: This list is a repeat of the Decal List on a previous page and is provided for your convenience when selecting Decals from the second page of photographs. For a complete Decal Set, order Part Number 115577 for the RB1470 model Baler. The following Decals (as required) are included in the Sets: Ref. Part No. No. Description & Quantity 1. 060147 Operating Instructions 2. 060148 General Operating Instructions 3. 060151 Belt Tension (2 Places) 4. 060510 Jack Storage Position 5. 060511 Jack Lifting Position 6. 061832 Belt Tracking (2 Places) 7. 067131 Patent 8. 067135 Chain Idler Adjustment 9. 067493 Red Reflector Strip (2 Places) 10. 075526 Bale Size Indicator 1-2-3-4-5 11. 075527 Pickup Adjustment 12. 076171 Left Long Stripe 13. 076172 GEHL (Front) 14. 076173 Right Long Stripe 15. 076176 Right Lower Stripe 16. 076177 Left Lower Stripe 17. 091444 DANGER – Rotating Drive Line 18. 093020 Grease Fitting Symbol (13 Places) 19. 093366 IMPORTANT – Manual Location 20. 093367 WARNING – Owner’s Responsibility & Read Operator’s Manual 21. 093373 WARNING – General Safety Procedures 22. 093466 WARNING – 540 Operation 23. 093457 WARNING – Keep Door Closed (2 Places) 24. 093458 WARNING – Rotating Wrench & Disconnect PTO 25. 093459 WARNING – Reservoir Contamination 26. 093460 DANGER – Stay Clear of Gate (2 Places) 27. 093461 DANGER – Moving Belts 28. 093462 DANGER – Never Hand-feed Material (2 Places) 29. 093522 WARNING – Entangled in Components. 30. 093653 WARNING – Rotating Drive Line 31. 098803 1470 TDC 32. 098802 Right Side 1470 33. 098801 Left Side 1470 * 34. 112981 Oil Level Mark 35. 113340 Reservoir Oil Level 36. 143007* DANGER – Shield Missing * Not Included in Decal Kit. NOTE: Order Part Number 126757 for 10 ft roll of replacement Striping

Printed in U.S.A. 5 908006/AP0998 9 20 26 6 18 21 9 26 6 18 32 19 18 2 1 3 34 35 25 11 18

908006/AP0998 6 Printed in U.S.A. 35 39 40 36 38 37 32 36 34 34 32 31 36 38 37 36 35 33 16 15 17 13 12 10 9 8 7 11 4 1 2 3 14 19 3 2 27 20 18 22 23 9 10 28 13 29 30 8 7 25 25 26 24 22 23 Early Style 21 RB1470 - FRAME & FENDERS

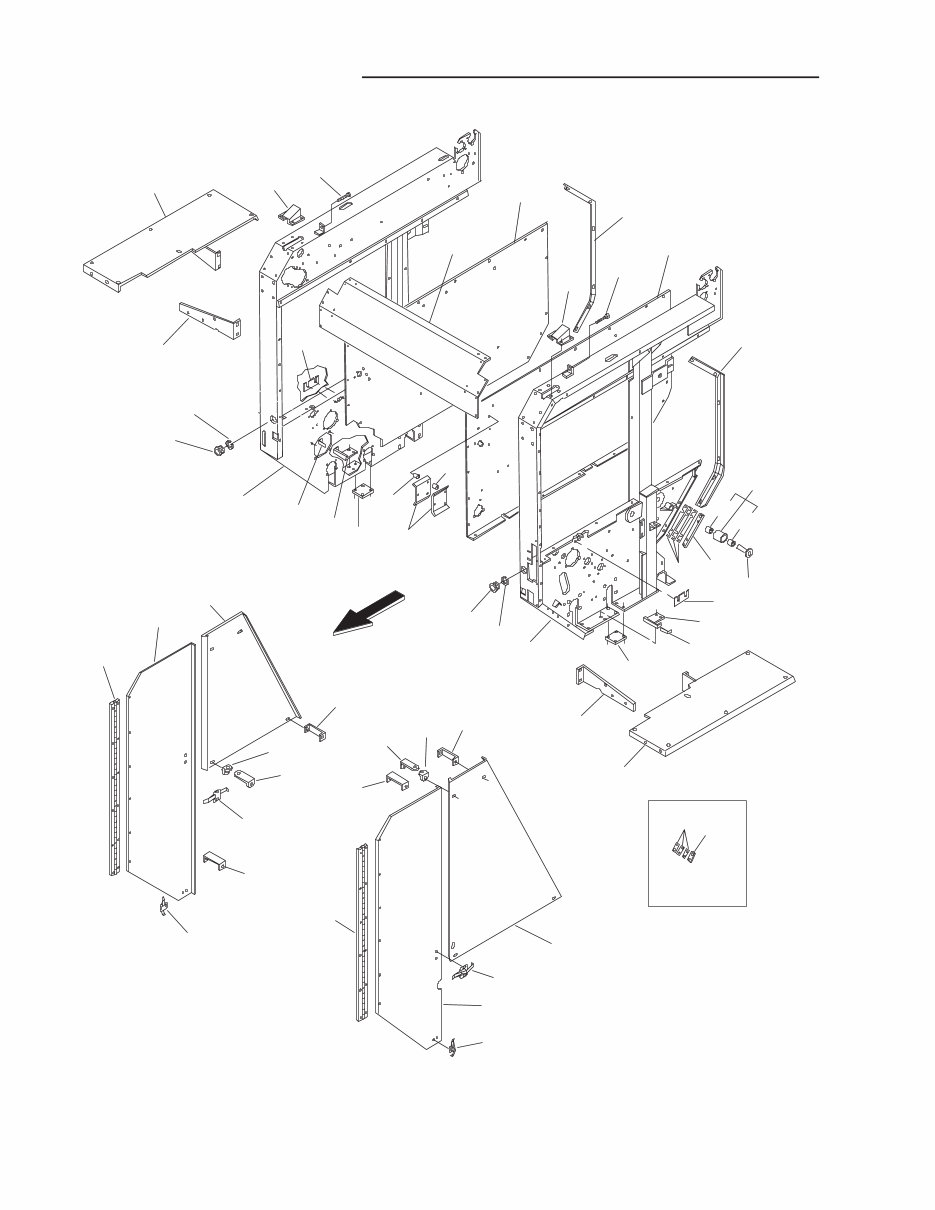

Printed in U.S.A. 7 908006/AP0998 Ref. Part Qty. Ref. Part Qty. No. No. Description Req. No. No. Description Req. 01 084671 FENDER/ASSY RT 1 . . . . . . . . . . . . . . . . . . . 650948 THMS 5/16X5/8 (HN, LW) 1 . . . . . . . . . . . . 650486 CS 5/16X3/4 (HN, LW) 2 . . . . . . . . . . . . . . . 650704 CB 3/8X1 (HN, LW) 2 . . . . . . . . . . . . . . . . . 02 058326 GUARD/CHAIN 2 . . . . . . . . . . . . . . . . . . . . . . 650490 CS 3/8X1 (HN, 6LW, 2FW) 7 . . . . . . . . . . . 03 062342 HTB 1/2X3-1/2 (4HN 1/2) 2 . . . . . . . . . . . . . . 04 084666 BRACE/TWINE BOX FRT RT 1 . . . . . . . . . . 650704 CB 3/8X1 (HN, LW) 4 . . . . . . . . . . . . . . . . . 07 200-32423 GUIDE/TWINE 2 . . . . . . . . . . . . . . . . . . . . . . 08 076161 RING/RETAINING 2 . . . . . . . . . . . . . . . . . . . 09 059692 SHIM 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 650573 CB 5/16X1 (HN, LW, 2FW) 4 . . . . . . . . . . . 10 076691 STRIP/RUBBER 2 . . . . . . . . . . . . . . . . . . . . . 11 126365 FRAME/ASSY RT 1 . . . . . . . . . . . . . . . . . . . . 650490 CS 3/8X1 (HN, LW) 1 . . . . . . . . . . . . . . . . . 12 076546 BRACKET/LATCH HOOK RT 1 . . . . . . . . . . 650487 CS 5/16X1 (HN, LW) 2 . . . . . . . . . . . . . . . . 13 075733 TIE/FRAME 3 . . . . . . . . . . . . . . . . . . . . . . . . . 650490 CS 3/8X1 (HN, LW) 16 . . . . . . . . . . . . . . . . 14 066227 PANEL 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 650490 CS 3/8X1 (HN, LW) 14 . . . . . . . . . . . . . . . . 15 H6053B SPACER/DEFL HOLD/DOWN 3 . . . . . . . . . 16 056378 SPACER 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 057122 GUIDE/CHAIN 2 . . . . . . . . . . . . . . . . . . . . . . . 650731 CS 3/8X3-1/2 (HN, LW) 3 . . . . . . . . . . . . . . 18 071965 SHEET/CENTER RT 1 . . . . . . . . . . . . . . . . . 650704 CB 3/8X1 (HN, LW, 9FW) 15 . . . . . . . . . . . 650490 CS 3/8X1 (HN, LW) 7 . . . . . . . . . . . . . . . . . 19 075497 ANGLE/GATE GUIDE RT 1 . . . . . . . . . . . . . 20 071967 SHEET/CENTER LT 1 . . . . . . . . . . . . . . . . . . 650490 CS 3/8X1 (HN, LW) 7 . . . . . . . . . . . . . . . . . 650704 CB 3/8X1 (HN, LW, 9FW) 13 . . . . . . . . . . . 21 126366 FRAME/ASSY LT 1 . . . . . . . . . . . . . . . . . . . . 22 094892 SPACER (LATER STYLE) 6 . . . . . . . . . . . . . 052588 WEIGHT/BALANCE (EARLY STYLE) 6 . . . 23 094891 STOP/GATE LONG (LATER STYLE) 2 . . . . 066375 STOP/GATE (EARLY STYLE) 2 . . . . . . . . . . 650362 FHMS 5/16X1-1/2 (HN, LW) 8 . . . . . . . . . . 24 070754 PIN 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 570005 FITTING/GREASE 2 . . . . . . . . . . . . . . . . . . 650535 CS 3/8X2-1/4 (LN) 2 . . . . . . . . . . . . . . . . . . 25 520139 BEARING/NEEDLE 4 . . . . . . . . . . . . . . . . . . 26 073172 SLEEVE/GATE LATCH ASSY 2 . . . . . . . . . . 27 075498 ANGLE/GATE GUIDE LT 1 . . . . . . . . . . . . . . 28 076547 BRACKET/LATCH HOOK LT 1 . . . . . . . . . . 650487 CS 5/16X3/4 (HN, LW) 2 . . . . . . . . . . . . . . . 29 084665 BRACE/TWINE BOX FRT LT 1 . . . . . . . . . . 650704 CB 3/8X1 (HN, LW) 2 . . . . . . . . . . . . . . . . . 30 084667 FENDER/ASSY LT 1 . . . . . . . . . . . . . . . . . . . 650948 THMS 5/16X5/8 (HN, LW) 1 . . . . . . . . . . . . 650486 CS 5/16X3/4 (HN, LW) 2 . . . . . . . . . . . . . . . 650704 CB 3/8X1 (HN, LW) 2 . . . . . . . . . . . . . . . . . 31 084679 GUARD/STATIONARY LT 1 . . . . . . . . . . . . . 061872 TFS 5/16X3/4 4 . . . . . . . . . . . . . . . . . . . . . . 32 079878 LATCH 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 650812 RHMS #12-24X1/2 (HN, LW) 4 . . . . . . . . . 33 076545 GUARD/LT 1 . . . . . . . . . . . . . . . . . . . . . . . . . . 650486 CS 5/16X3/4 (HN, LW) 6 . . . . . . . . . . . . . . . 34 054586 LATCH 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 650943 THMS 1/4X1/2 (HN, LW) 4 . . . . . . . . . . . . . 35 066467 HINGE 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 650486 CS 5/16X3/4 (HN, LW, FW) 12 . . . . . . . . . . 36 092344 STANDOFF 8 . . . . . . . . . . . . . . . . . . . . . . . . . 061872 TFS 5/16X3/4 2 . . . . . . . . . . . . . . . . . . . . . . 650687 CB 5/16X3/4 (HN, LW) 8 . . . . . . . . . . . . . . . 37 076684 BASE/HINGE ANGLE 4 . . . . . . . . . . . . . . . . 650687 CB 5/16X3/4 (4HN, 4LW, NILN) 8 . . . . . . . 38 092343 ANGLE/HINGE 4 . . . . . . . . . . . . . . . . . . . . . . 061872 TFS 5/16X3/4 2 . . . . . . . . . . . . . . . . . . . . . . 650487 CS 5/16X1 (NILN) 4 . . . . . . . . . . . . . . . . . . 39 090030 GUARD/RIGHT 1 . . . . . . . . . . . . . . . . . . . . . . 650486 CS 5/16X3/4 (HN, LW) 6 . . . . . . . . . . . . . . . 40 076543 GUARD/STATIONARY RT 1 . . . . . . . . . . . . . 061872 TFS 5/16X3/4 4 . . . . . . . . . . . . . . . . . . . . . . RB1470 - FRAME & FENDERS

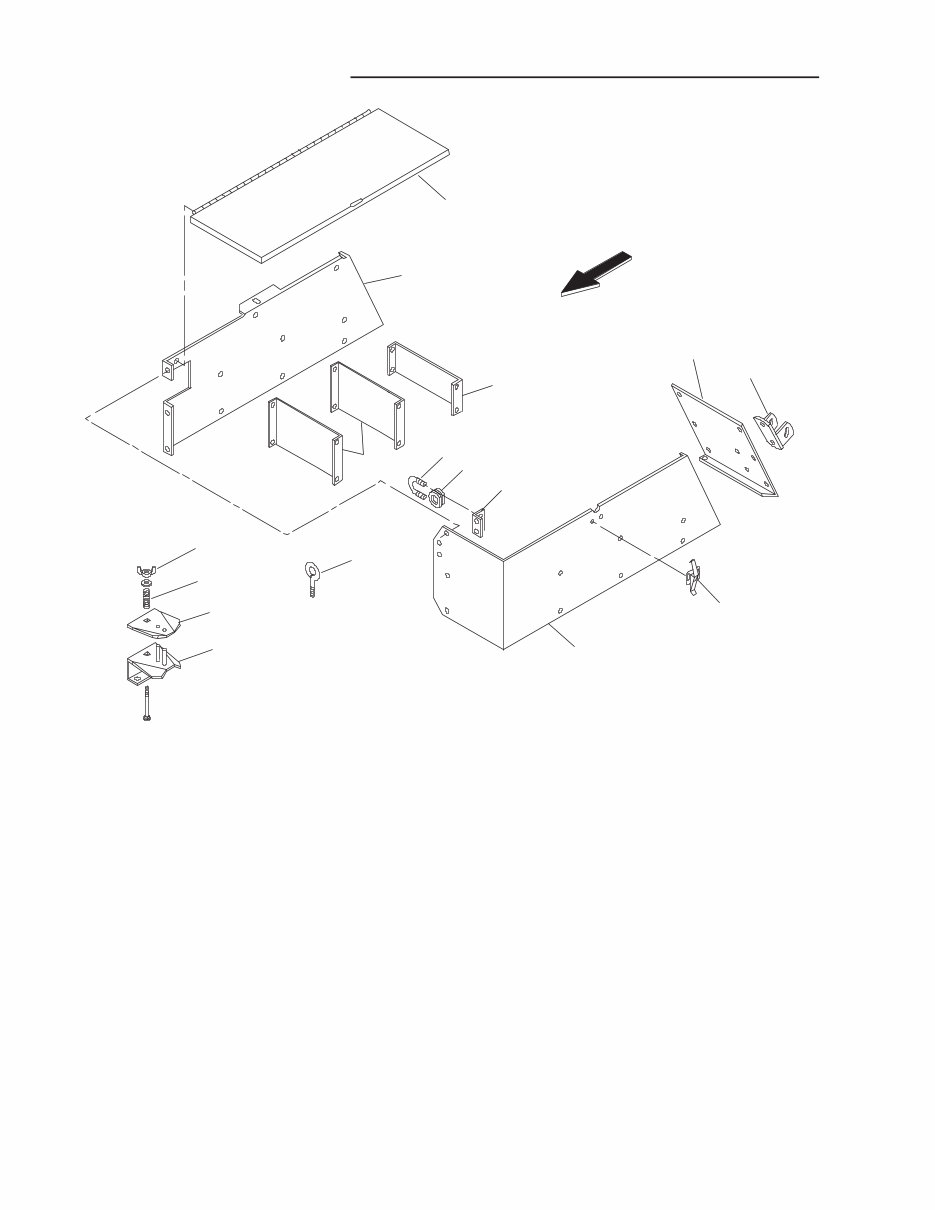

908006/AP0998 8 Printed in U.S.A. 1 2 3 4 13 14 15 16 12 11 10 9 8 7 6 5 Ref. Part Qty. Ref. Part Qty. No. No. Description Req. No. No. Description Req. 01 087600 COVER/TWINE BOX ASSY LT 1 . . . . . . . . . 650486 CS 5/16X3/4 (HN, LW) 3 . . . . . . . . . . . . . . . 02 084674 SIDE/INNER TWINE BOX LT 1 . . . . . . . . . . 650949 THMS 5/16X3/4 (HN, LW) 6 . . . . . . . . . . . . 03 077847 DIVIDER 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 650949 THMS 5/16X3/4 (HN, LW) 4 . . . . . . . . . . . . 04 077846 DIVIDER 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . 650949 THMS 5/16X3/4 8 . . . . . . . . . . . . . . . . . . . . 05 084675 BACK/TWINE BOX LT 1 . . . . . . . . . . . . . . . . 650948 THMS 5/16X5/8 (HN, LW) 2 . . . . . . . . . . . . 650486 CS 5/16X3/4 (HN, LW) 1 . . . . . . . . . . . . . . . 650949 THMS 5/16X3/4 3 . . . . . . . . . . . . . . . . . . . . 06 077849 BASE/CYL BRACKET ASSY 1 . . . . . . . . . . 07 079878 LATCH 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 650812 RHMS #12-24X1/2 (HN, LW) 2 . . . . . . . . . 08 084673 SIDE/TWINE BOX LT 1 . . . . . . . . . . . . . . . . . 650486 CS 5/16X3/4 (HN, LW) 4 . . . . . . . . . . . . . . . 650949 THMS 5/16X3/4 (HN, LW) 8 . . . . . . . . . . . . 09 077848 MOUNT/GUIDE 1 . . . . . . . . . . . . . . . . . . . . . . 650949 THMS 5/16X3/4 (HN, LW) 2 . . . . . . . . . . . . 10 059721 GUIDE/ROPE 1 . . . . . . . . . . . . . . . . . . . . . . . 11 B11069 U-BOLT/ECCENTRIC SHAFT 1 . . . . . . . . . . (2) 5/16 LN 12 066172 BOLT/EYE 1 . . . . . . . . . . . . . . . . . . . . . . . . . . (2) HN 5/16 13 210-20454 NUT/WING 2 . . . . . . . . . . . . . . . . . . . . . . . . . . 14 380-13297 SPRING 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 651095 CB 1/4X2-3/4 (FW) 1 . . . . . . . . . . . . . . . . . . 15 160-32472 PLATE TWINE TENSIONER 1 . . . . . . . . . . . 16 098850 PLATE/TWINE TENSION ASSY 1 . . . . . . . . 651095 CB 1/4X2-3/4 (FW) 1 . . . . . . . . . . . . . . . . . . RB1470 - TWINE BOX (LEFT)
