0-1 TO THE OWNER This manual contains information concerning the adjustment and maintenance of your Case IH Model RBX452, RBX462, RBX552 and RBX562 Round Balers. You have purchased a dependable machine, but only by proper care and operation can you expect to receive the performance and long service built into this round baler. Please have all operators read this manual carefully and keep it available for ready reference. Your Case IH dealer will instruct you in the general operation of your round baler. (Refer to the Delivery Report at the back of this manual.) Your dealers staff of factory-trained service technicians will be glad to answer any questions that may arise regarding the operation of your round baler. Your Case IH dealer carries a complete line of genuine Case IH service parts. These parts are manufactured and carefully inspected to insure high quality and accurate fitting of any necessary replacement parts. Be prepared to give your dealer the model and product identification number of the round baler, when ordering parts. Locate these numbers now and record them below. Refer to the General Information section of this manual for the location of the model and product identification numbers of your round baler. Model Product Identification Number CAUTION This safety alert symbol indicates important safety messages in this manual. When you see this symbol, carefully read the message that follows and be alert to the possibility of personal injury or death. CAUTION Pictures in this manual may show protective shielding open or removed to better illustrate a particular feature or adjustment. Be certain, however, to close or replace all shielding before operating the machine. IMPROVEMENTS CNH America LLC is continually striving to improve its products. We reserve the right to make improvements or changes when it becomes practical and possible to do so, without incurring any obligation to make changes or additions to the equipment sold previously. NOT FOR REPRODUCTION

0-2 CONTENTS SAFETY 0-5 ............................................................ GENERAL INFORMATION 1-1 ........................................... OPERATION 2-1 ........................................................ FIELD OPERATION 3-1 ................................................. LUBRICATION 4-1 ...................................................... MAINTENANCE 5-1 ..................................................... TROUBLESHOOTING 6-1 ............................................... OPTIONAL EQUIPMENT 7-1 ............................................. SPECIFICATIONS 8-1 ................................................... INDEX 8-9 ............................................................. YOUR BALER 8-11 ..................................................... DELIVERY REPORT 8-13 ................................................ NOT FOR REPRODUCTION

0-3 CALIFORNIA Proposition 65 Warning Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm. Battery posts, terminals and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. NOT FOR REPRODUCTION

0-4 PRECAUTIONARY STATEMENTS PERSONAL SAFETY Throughout this manual and on machine decals, you will find precautionary statements (DANGER, WARNING, and CAUTION) followed by specific instructions. These precautions are intended for the personal safety of you and those working with you. Please take the time to read them. DANGER This word DANGER indicates an immediate hazardous situation that, if not avoided, will result in death or serious injury. The color associated with Danger is RED. WARNING This word WARNING indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury. The color associated with Warning is ORANGE. CAUTION This word CAUTION indicates a potentially hazardous situation that, if not avoided, may result in minor or moderate injury. It may also be used to alert against unsafe practices. The color associated with Caution is YELLOW. FAILURE TO FOLLOW THE DANGER, WARNING, AND CAUTION INSTRUCTIONS MAY RESULT IN SERIOUS BODILY INJURY OR DEATH. MACHINE SAFETY The precautionary statement (IMPORTANT) is followed by specific instructions. This statement is intended for machine safety. IMPORTANT: The word IMPORTANT is used to inform the reader of something he needs to know to prevent minor machine damage if a certain procedure is not followed. INFORMATION NOTE: Instructions used to identify and present supplementary information. NOT FOR REPRODUCTION

0-5 SAFETY PRECAUTIONARY STATEMENTS A careful operator is the best operator. Most accidents can be avoided by observing certain precautions. To help prevent accidents, read the following precautions before operating this equipment. Equipment should be operated only by those who are responsible and instructed to do so. Carefully review the procedures given in this manual with all operators. It is important that all operators be familiar with and follow safety precautions. The Round Baler 1. Keep safety decals free of dirt and grime. 2. Replace all damaged, missing or illegible safety decals. 3. Install all shields before operating the round baler. 4. Keep the round baler free of dust, chaff and hay. Always have a fire extinguisher handy. 5. Never operate the round baler without the PTO shield in place. Make sure the PTO shield rotates freely. On a RBX562 make sure the shield chain is attached. Towing the Round Baler 1. Do not exceed 32 KPH (20 MPH) when towing the round baler. Do not tow the baler with a bale in the bale chamber. 2. Make sure the SMV, reflective tape and lights are clean and clearly visible. 3. Refer to local, state or provincial laws and regulations for restrictions on public roads. 4. Make sure the taillights are operating properly. 5. Raise and secure the pickup in its highest position. Operating the Round Baler 1. Read the Operators Manual before operating the round baler. 2. Only allow properly trained persons to operate the round baler. 3. Allow only one operator on the tractor. 4. Do not permit anyone to ride on the round baler. 5. Do not engage the PTO before you are sure everyone is clear of the round baler. 6. Do not work around the round baler in loose clothing that might catch in moving parts. 7. Do not attempt to pull crop from the round baler without turning off the PTO. 8. Keep hands away from the twine knife. Be sure all persons are clear of the baler before operating the twine tubes. 9. If the twine does not start, stop the round baler before correcting the problem. 10. Keep hands away from the net knife. 11. Do not operate above the rated PTO speed. 12. Do not back over windrows, the hay may wedge between the floor roll and pickup. 13. Do not make overweight bales. The round baler may be damaged. 14. Do not exceed the full bale size. An oversize bale will put excessive stress on the round baler components. 15. Be sure all persons are clear of the round baler before starting the round baler, activating the wrapper or opening the tailgate. 16. Do not adjust the pickup lower than necessary. 17. When operating on slopes, the bale must be ejected on the side of the slope to prevent the bale from rolling into the baler or down the hill. 18. Avoid contact with electric power lines. Be especially careful when opening the tailgate. NOT FOR REPRODUCTION

0-6 Servicing the Round Baler 1. Do not service the round baler with the tailgate in the raised position unless the valve safety lock is in the locked position. 2. Make sure the PTO drive is disengaged, the tractor engine is shut off and the electric power supply to the baler is disconnected before doing any lubrication, maintenance, or service work on the baler. 3. Park on level ground and block the wheels to prevent the round baler from rolling. 4. Do not adjust the belts with the round baler running. 5. Do not oil the chains with the baler running. 6. Do not modify or allow anyone else to modify the round baler without consulting the dealer. 7. Escaping hydraulic fluid under pressure can penetrate the skin causing serious injury. • Do not use your hand to check for leaks. Use a piece of cardboard or paper. • Stop the engine and relieve the pressure before connecting or disconnecting hydraulic lines. • Tighten all connections before starting the engine or pressurizing the hydraulic lines. • If hydraulic fluid penetrates the skin, obtain medical attention immediately. • Continuous long term contact with hydraulic fluid may cause skin cancer. Avoid long term contact and wash the skin promptly with soap and water. 8. To protect the alternator and battery of the tractor, always detach the tractor from the baler before welding or working on the baler electrical components. 9. Always chock the wheels before working on the baler. 10. Hydraulic flexible hose assemblies must be inspected periodically for signs of abrasive rubbing of the cover, leakage, or impending failure and appropriate corrective action taken to help prevent unexpected assembly failures. NOT FOR REPRODUCTION

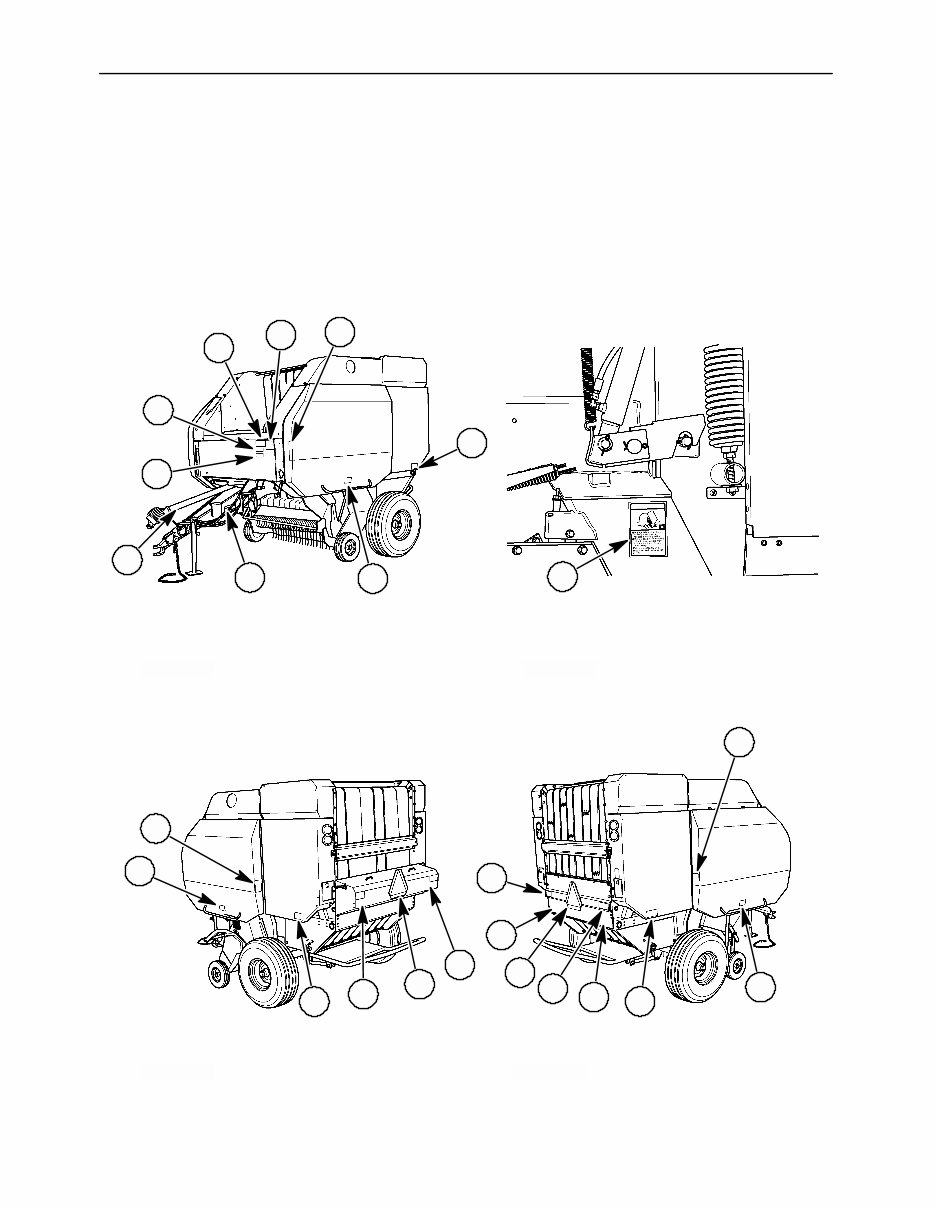

0-7 SAFETY DECALS The following safety decals have been placed on your machine in the areas indicated. They are intended for your personal safety and for those working with you. Please take this manual and walk around your machine to note the content and location of these warning signs. Review these warning signs and the operating instructions detailed in this manual with your machine operators. Keep the decals legible. If they are not, obtain replacements from your authorized dealer. The decal replacement part numbers are listed with each decal. 1 2 3 4 5 6 12 7 7 8 9 10 3 7 8 9 10 11 10022276 10022277 10022278 10022279 9 8 11 10 10 9 NOT FOR REPRODUCTION

0-8 7 10022280 1 DANGER: Do not operate without all shields in place and in proper operating condition. Always inspect driveline and shields before operating. Rotating driveline can cause death or serious injury. Part #849471 2 DANGER: Do Not operate this unit with the driveline shields removed. Failure to comply will result in death or serious injury. Part #9826789 3 WARNING: Never eject or store bales where they could roll downhill. Part #86631516 WARNING: Read the complete Operators Manual and become familiar with starting, operating and safety instructions before operating. Contact your Dealer to replace the Operators Manual if it is missing. Failure to comply could result in death or serious injury. Part #86622073 4 20042750 13 NOT FOR REPRODUCTION
