Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

Ref. RCK60-24B Page 65158 Part No. RCK60-24B Book 01M01 UNIVERSAL JOINT 100A0092 01M02 BEVEL GEAR CASE 100A0092 01M03 PULLEY HOLDER 100A0092 01M04 BLADE 100A0092 01M05 TENSION PULLEY 100A0092 01M0603 MOWER DECK 100A0092 01M07 FRONT GAUGE WHEEL 100A0092 01M08 LINKAGE 100A0092 01M0902 REAR WHEEL 100A0092 01M10 DISCHARGE COVER 100A0092 01M11 LIFT LINKAGE 100A0092 01M12 LIFT ARM 100A0092 01M13 ACCESSORIES AND SERVICE PARTS 100A0092

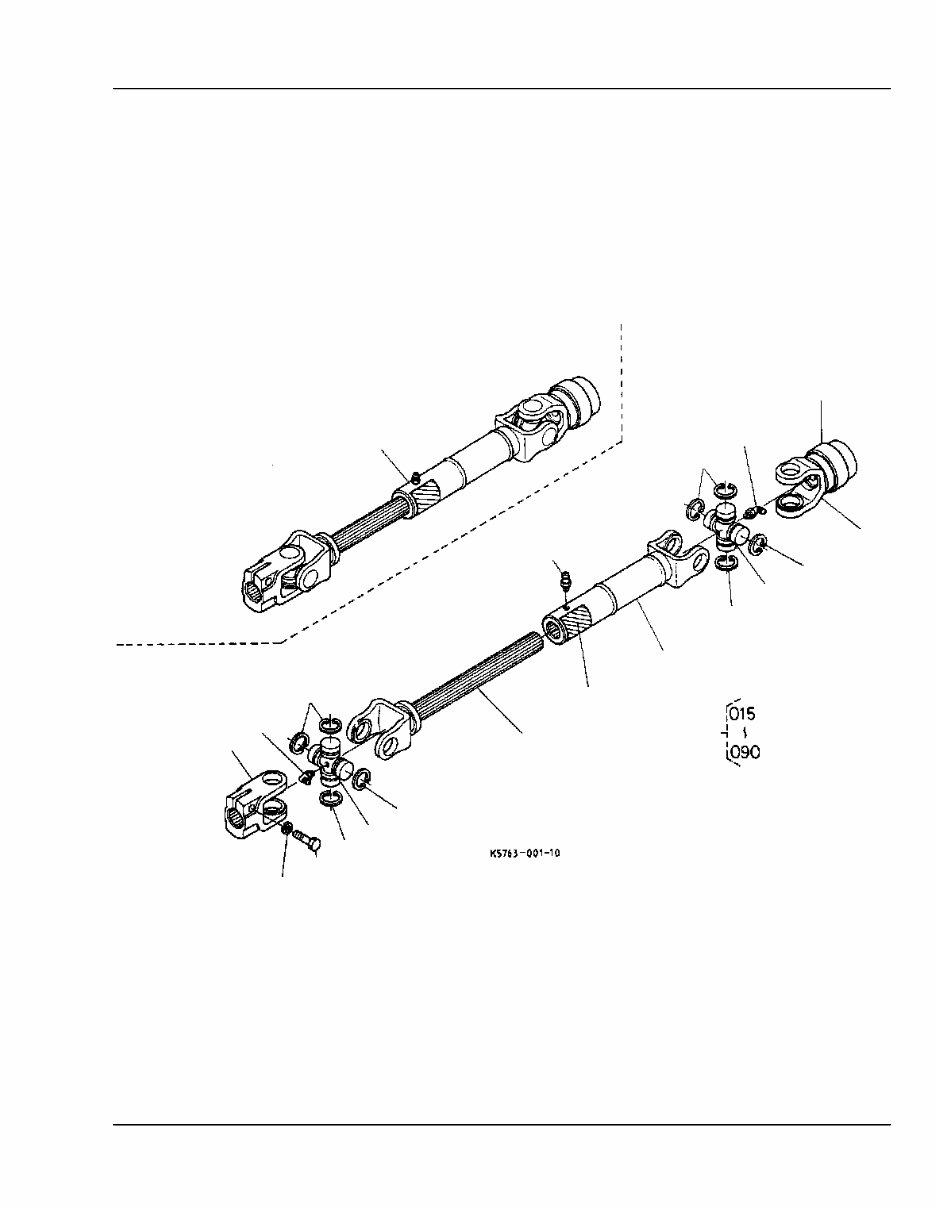

UNIVERSAL JOINT Reference: 01M01 Page: 1 010 010 015 020 030 040 050 060 070 070 080 080 080 080 080 080 090 090 100 110 120

UNIVERSAL JOINT Reference: 01M01 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 K5763-32030 UNIVERSAL JOINT 1 3.75 8.25 015 K5763-73120 LABEL ROTATION 1 0.002 0.0044 020 K5763-31150 YOKE QUICK 1 0.58 1.276 030 K5651-31130 YOKE PTO 1 0.4 0.88 040 K5763-31140 YOKE SHAFT 1 1.22 2.684 050 K5651-31170 YOKE SLEEVE 1 0.97 2.134 060 K5651-31160 NIPPLE GREASE 1 0.002 0.0044 070 K5651-31180 ASSY.JOINT CROSS 2 0.3 0.66 080 K5651-32120 RING SNAP 8 0.002 0.0044 090 K5651-31210 NIPPLE GREASE 2 0.011 0.0242 100 01153-51035 BOLT 1 0.025 0.055 110 04512-50100 WASHER SPRING 1 0 0 120 K5763-31220 KIT COUPPLER REPAIR 1 0.23 0.506

BEVEL GEAR CASE Reference: 01M02 Page: 2 010 020 030 040 045 050 060 070 080 085 090 095 100 100 100 100 110 120 130 130 150 160 170 170 180 190 200 210 220 230 240 250 260 270 280

BEVEL GEAR CASE Reference: 01M02 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 K5761-33114 CASE BEVEL GEAR 1 0 0 020 01153-50812 BOLT 2 0.008 0.0176 030 04717-00080 GASKET 2 0 0 040 06331-35016 PLUG 1 0.04 0.088 045 K5761-33250 PLUG 1 0.006 0.0132 050 04711-00300 GASKET 1 0.001 0.0022 060 K5763-33130 STAY CASE LH 1 0.48 1.056 070 K5763-33150 STAY CASE RH 1 0.53 1.166 080 K5763-33210 BOLT REAMER 30 2 0.04 0.088 085 01073-51225 BOLT 2 0.035 0.077 090 K5763-33230 BOLT REAMER 35 2 0.045 0.099 095 01073-51230 BOLT 2 0.041 0.0902 100 04512-50120 WASHER SPRING 8 0 0 110 K5763-33310 SHAFT PINION 1 0.66 1.452 120 K5763-33320 KIT GEAR BEVEL 1 0.45 0.99 130 36330-28410 SHIM 2 0.002 0.0044 130 36330-28420 SHIM 2 0.002 0.0044 150 08101-06205 BEARING 1 0.14 0.308 160 08101-06304 BEARING 1 0.146 0.3212 170 04611-00520 CIR CLIP 2 0.009 0.0198 180 76535-33440 SEAL OIL 1 0.02 0.044 190 63313-32270 CAP 1 0.03 0.066 200 K5763-33500 SHAFT BEVEL GEAR 1 0.55 1.21 210 04612-00220 CIR CLIP 1 0.001 0.0022 220 70712-33550 BEARING 1 0.22 0.484 230 70712-33570 SHIM 1 0.001 0.0022 230 76539-33410 SHIM 1 0.001 0.0022 240 K5761-33540 SEAL OIL 1 0.012 0.0264 250 7C765-51260 CAP 1 0.07 0.154 260 K5761-33520 PULLEY 1 1.92 4.224 270 05712-00728 KEY FEATHER 1 0.01 0.022 280 K5763-33100 ASSY CASE 1 8.7 19.14

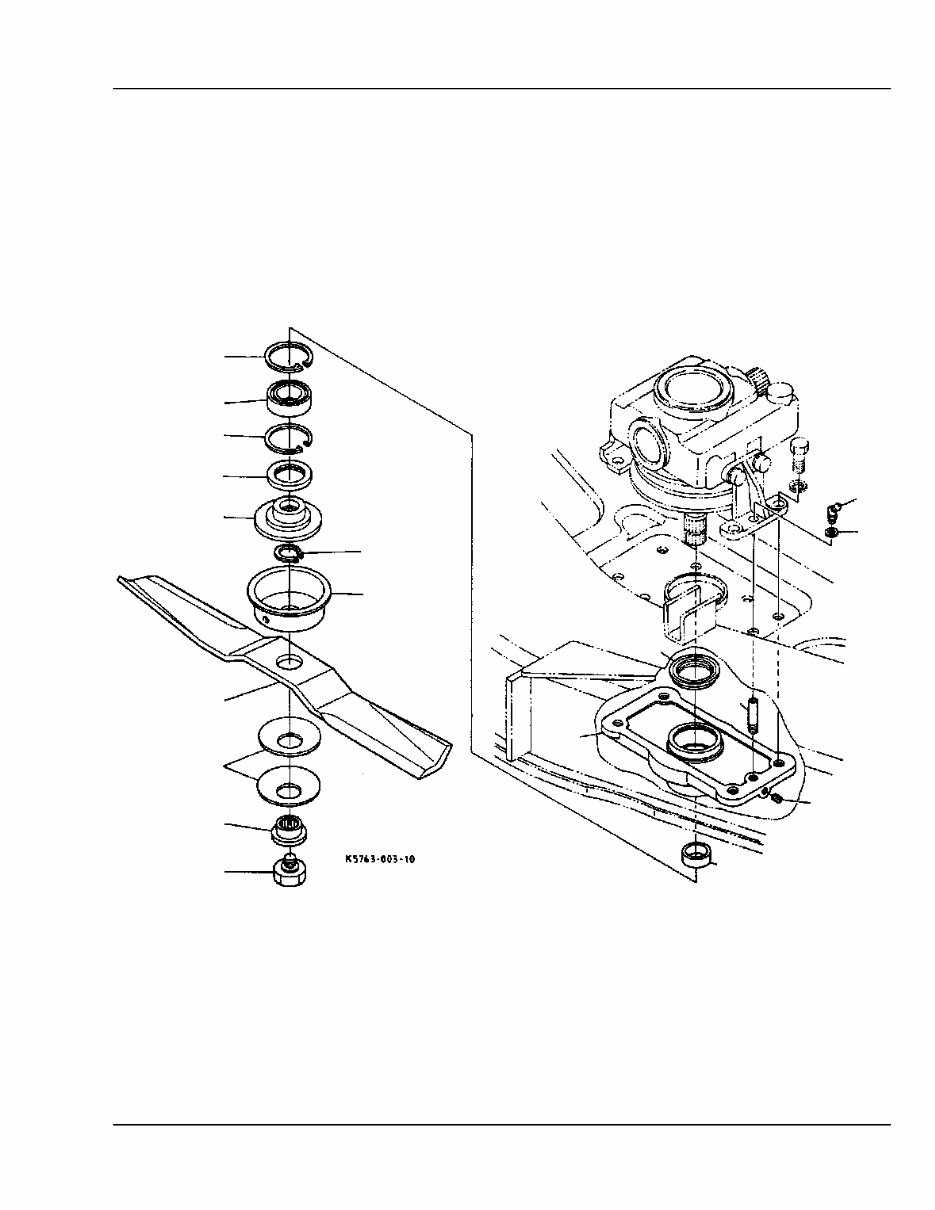

PULLEY HOLDER Reference: 01M03 Page: 3 010 020 030 030 040 050 060 070 080 090 100 110 120 130 140 150 160 170

PULLEY HOLDER Reference: 01M03 Page: 3 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 K5763-34110 HOLDER PULLEY CENTER 1 2.92 6.424 020 08101-06205 BEARING 1 0.14 0.308 030 04611-00520 CIR CLIP 2 0.009 0.0198 040 K5651-34120 OIL SEAL UPPER 1 0 0 050 K5651-34160 OIL SEAL LOWER 1 0 0 060 03410-50608 SCREW 1 0.001 0.0022 070 K5763-34130 PIPE EXTENSION 1 0.28 0.616 080 K5763-44250 NIPPLE GREASE 45DEG. 1 0.01 0.022 090 K5763-27340 SHIM ADJUST 1 0.001 0.0022 100 K5761-34152 BOSS SPLINE 1 0.28 0.616 110 04612-00220 CIR CLIP 1 0.001 0.0022 120 K5651-34310 COVER DUST 1 0.1 0.22 130 K5651-34330 BLADE H20 1 1.5 3.3 140 K5651-34350 SPRING PLATE 2 0.07 0.154 150 76539-34392 BOSS SPLINE 2 1 0.06 0.132 160 K5651-34370 BOLT (M12*1.25) 1 0.08 0.176 170 K5763-33520 COLLAR CENTER 1 0.035 0.077

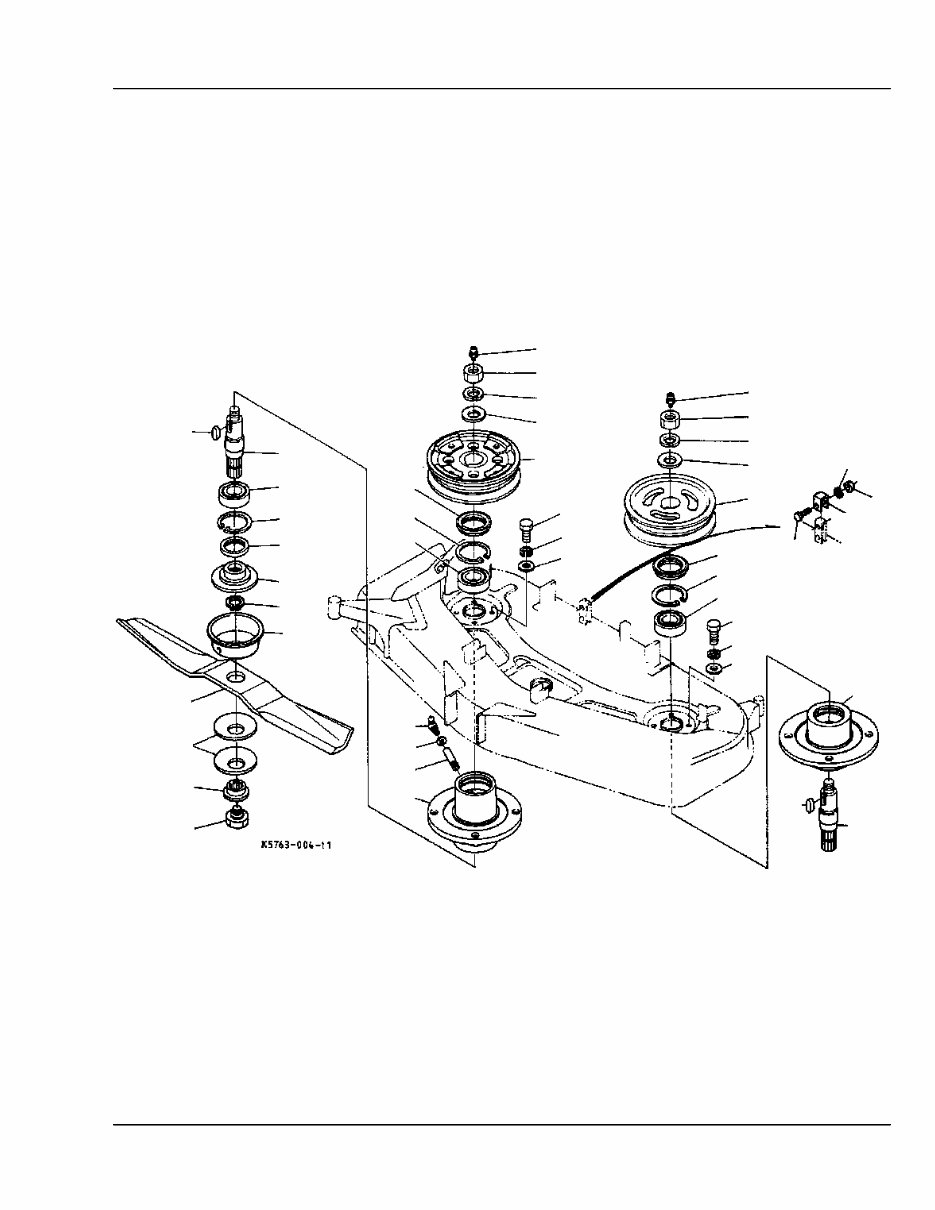

BLADE Reference: 01M04 Page: 4 010 020 030 030 032 032 040 040 050 050 070 070 070 080 080 090 090 090 100 110 110 120 130 140 140 150 150 160 160 170 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310

BLADE Reference: 01M04 Page: 4 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 K5651-34510 HOLDER PULLEY SIDE 1 2.35 5.17 020 K5763-34520 HOLDER PULLEY RH 1 2.34 5.148 030 75599-32015 WASHER PLAIN (1/2) 8 0.01 0.022 032 04512-50120 WASHER SPRING 8 0 0 040 01073-51225 BOLT 8 0.035 0.077 050 K5651-34550 SHAFT SPINDLE 2 0.55 1.21 070 08101-06205 BEARING 4 0.14 0.308 080 K5651-34120 OIL SEAL UPPER 2 0 0 090 04611-00520 CIR CLIP 4 0.009 0.0198 100 K5651-34160 OIL SEAL LOWER 2 0 0 110 K1122-15150 NIPPLE GREASE 2 (M6 * 1.0) 0.002 0.0044 120 K5763-33570 PULLEY SIDE RH 1 1.75 3.85 130 K5651-33580 PULLEY SIDE 1 1.6 3.52 140 05712-00722 KEY FEATHER 2 0.009 0.0198 150 K5651-34560 WASHER PLAIN 2 0.024 0.0528 160 04512-50160 WASHER SPRING 2 0 0 170 02074-50160 NUT 2 0.029 0.0638 180 K5761-34152 BOSS SPLINE 2 0.28 0.616 190 04612-00220 CIR CLIP 2 0.001 0.0022 200 K5651-34310 COVER DUST 2 0.1 0.22 210 K5651-34330 BLADE H20 2 1.5 3.3 220 K5651-34350 SPRING PLATE 4 0.07 0.154 230 76539-34392 BOSS SPLINE 2 2 0.06 0.132 240 K5651-34370 BOLT (M12*1.25) 2 0.08 0.176 250 K5763-34130 PIPE EXTENSION 1 0.28 0.616 260 K5763-44250 NIPPLE GREASE 45DEG. 1 0.01 0.022 270 K5763-27340 SHIM ADJUST 1 0.001 0.0022 280 K5763-72100 EXTENSION STOPPER 2 1 NOT USE 0.1 0.22 290 01073-51260 BOLT 1 NOT USE 0.07 0.154 300 02572-50120 NUT 1 NOT USE 0.014 0.0308 310 04512-50120 WASHER SPRING 1 NOT USE 0 0
