Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

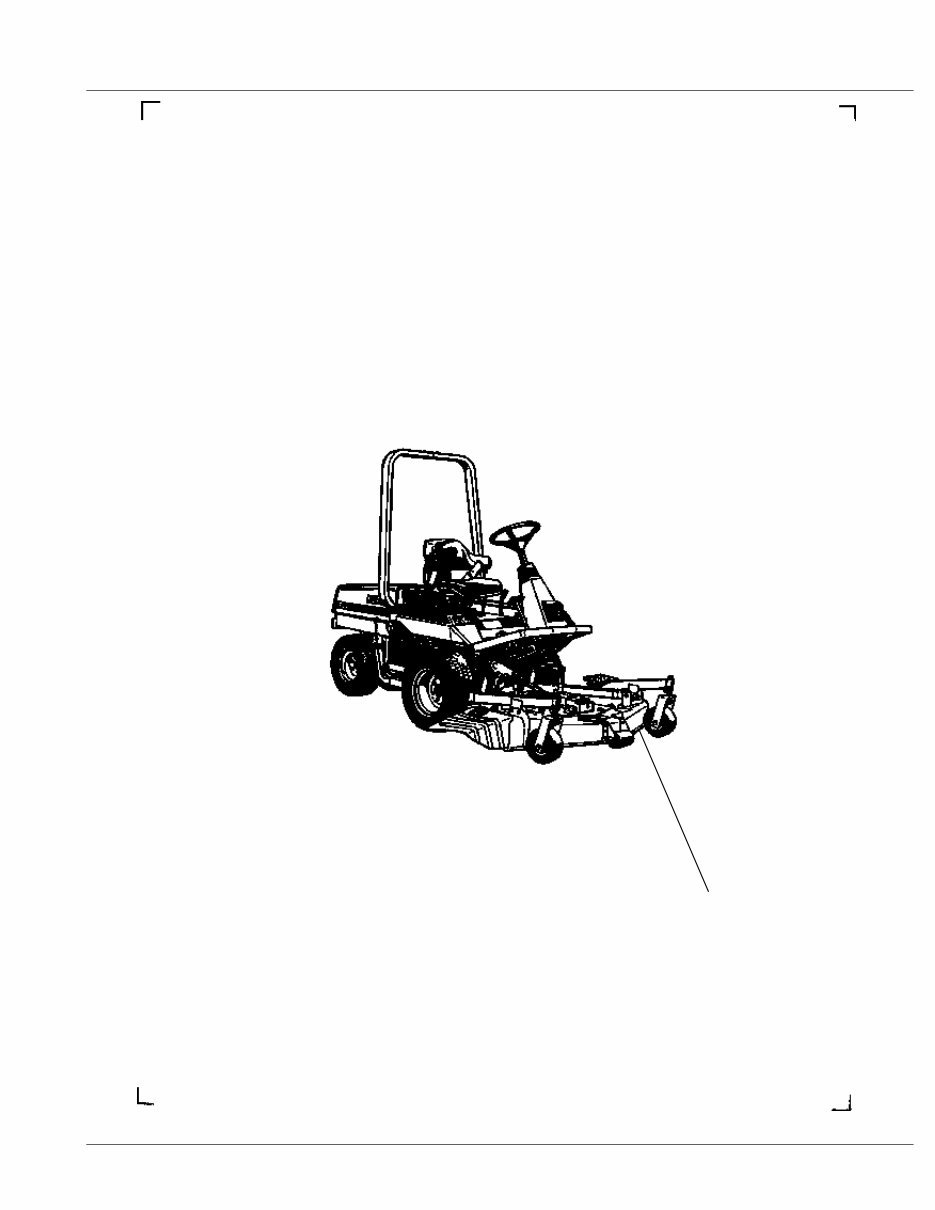

|ALL PRODUCT INDEX RC72-FZ21 Ref. RC72-FZ21 Page 31113 MOWER

Ref. RC72-FZ21 Page 31113 Item Part No. Description Book MOWER 01G09602 UNIVERSAL JOINT 100K0497 01G09702 BEVEL CASE/CENTER PULLEY 100K0497 01G09802 PULLEY HOLDER/BLADE 100K0497 01G09902 SIDE PULLEY/BLADE 100K0497 01G100 TENSION PULLEY 100K0497 01G10102 MOWER DECK 100K0497 01G10202 WHEEL STAY/COVER/LABEL 100K0497 01G10302 ANTI-SCALP ROLLER 100K0497 01G10402 MOWER LINK 100K0497 01G10502 LIFT ROD 100K0497 01G107 ACCESSORIES AND SERVICE PARTS 100K0497

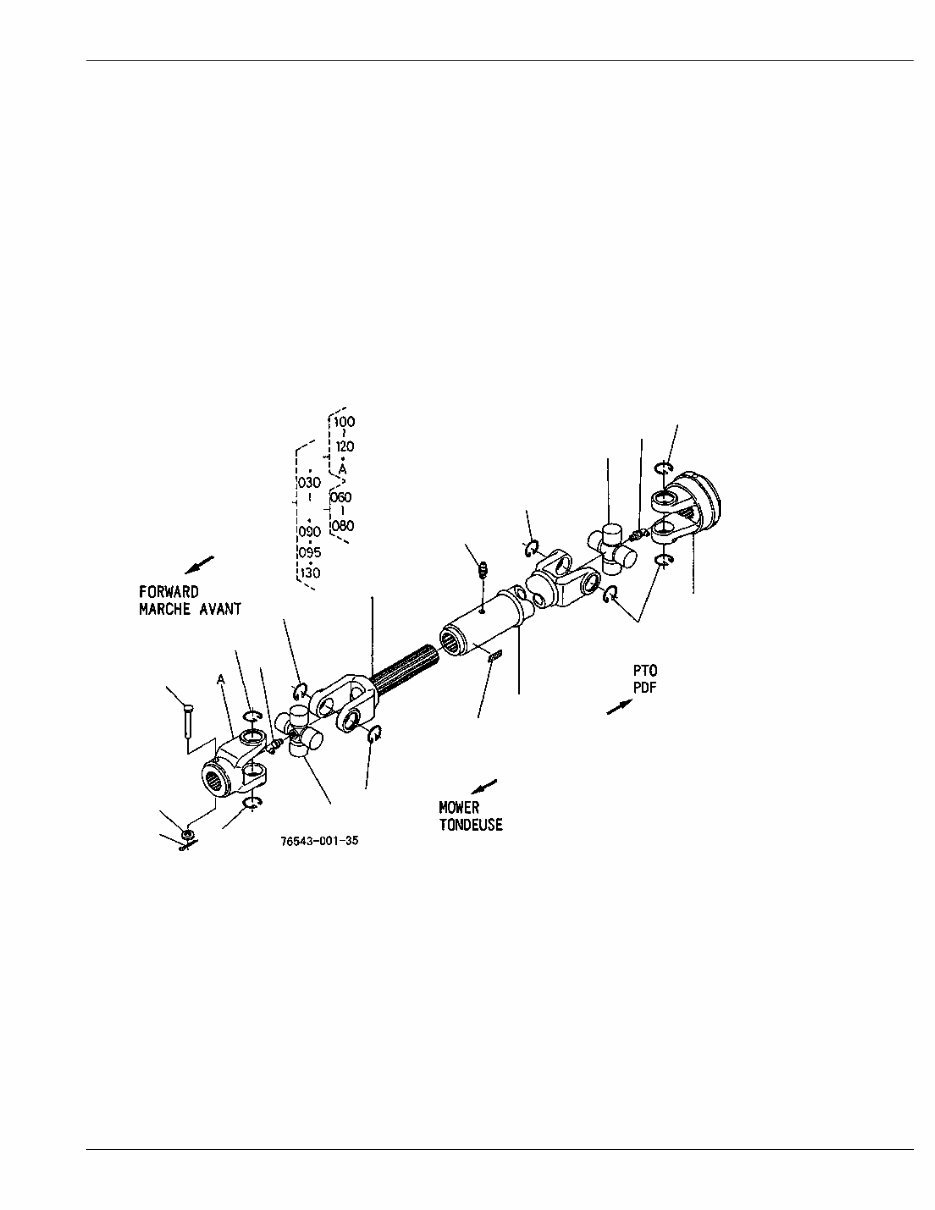

UNIVERSAL JOINT Reference: 01G09602 Page: 1 010 020 030 040 050 060 060 070 070 080 080 080 080 080 080 080 090 095 100 110 120 130

UNIVERSAL JOINT Reference: 01G09602 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 76544-98010 JOINT UNIVERSAL 1 4.3 9.46 020 70722-98140 ASSY YOKE 1 0.05 0.11 030 76543-31140 ASSY AS YOKE 1 0.37 0.814 040 76544-31150 YOKE SHAFT 1 1.3 2.86 050 70720-32110 ASSY JOINT CROSS 2 0.2 0.44 060 70720-31212 NIPPLE GREASE 2 0.006 0.0132 070 70720-31182 JOINT CROSS 2 0.21 0.462 080 70720-32120 RING SNAP 8 0.001 0.0022 090 76544-31174 YOKE SLEEVE 1 1.59 3.498 095 06613-10675 NIPPLE GREASE 1 0.003 0.0066 100 05122-50845 PIN JOINT 1 0.018 0.0396 110 04012-50080 WASHER PLAIN 1 0.001 0.0022 120 05511-50218 PIN SPLIT 1 0.001 0.0022 130 76550-31150 MARK 1 0.001 0.0022

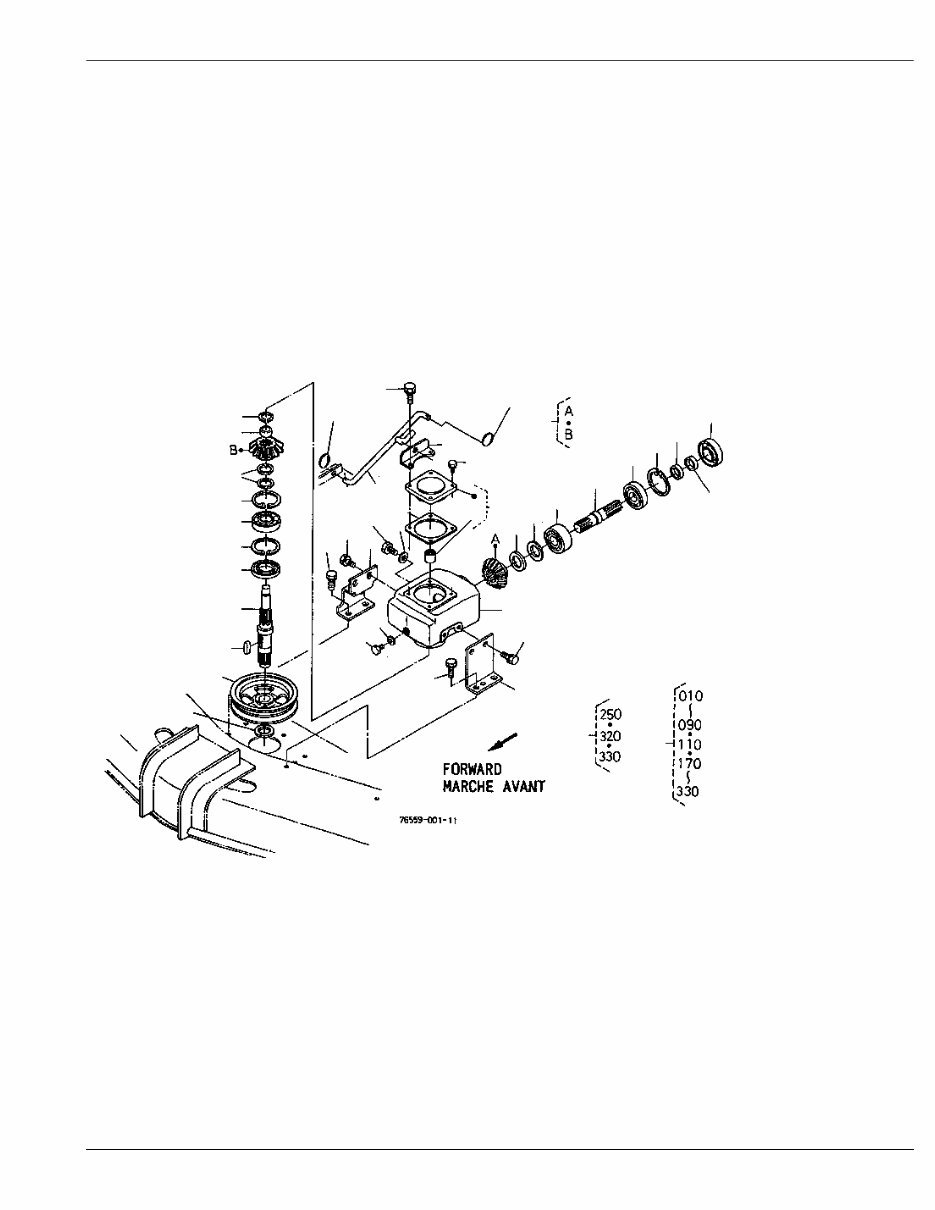

BEVEL CASE/CENTER PULLEY Reference: 01G09702 Page: 2 010 020 030 040 050 060 070 080 090 100 110 120 130 140 140 150 150 160 170 180 190 200 210 220 230 235 240 250 260 270 280 290 300 300 310 320 330 340 350 360 360 370 380

BEVEL CASE/CENTER PULLEY Reference: 01G09702 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 76550-33110 CASE BEVEL GEAR 1 5.3 11.66 020 76550-33100 ASSY COVER BEVELCASE 1 0.51 1.122 030 76550-33580 BEARING NEEDLE 1 0.01 0.022 040 06331-35020 PLUG 1 0.068 0.1496 050 04717-02000 WASHER WITH RUBBER 1 0.004 0.0088 060 01173-51218 BOLT 1 0.028 0.0616 070 04717-01200 WASHER WITH RUBBER 1 0.002 0.0044 080 01123-60816 BOLT 2 0.01 0.022 090 01123-50820 BOLT 2 0.011 0.0242 100 76544-32040 STAY ROD 1 0.09 0.198 110 76550-33142 GASKET 1 0.001 0.0022 120 76553-33130 STAY BEVEL CASE LH 1 0.4 0.88 130 76553-33152 STAY BEVEL CASE RH 1 0.4 0.88 140 01133-61222 BOLT 4 0.035 0.077 150 01133-51235 BOLT 4 0.05 0.11 160 76544-99020 KIT GEAR BEVEL 1 17-18T 0.6 1.32 170 76550-33310 SHAFT PINION 1 0.525 1.155 180 70720-33350 SHIM 1 0.2MM 0.001 0.0022 190 70720-33360 SHIM 1 0.3MM 0.001 0.0022 200 08241-05305 BEARING BALL 1 0.358 0.7876 210 08101-06305 BEARING BALL 1 0.23 0.506 220 04611-00620 CIR CLIP INTERNAL 1 0.011 0.0242 230 66591-56420 BUSH 1 0.021 0.0462 240 67121-56660 SEAL OIL 1 <=10304 0.027 0.0594 240 76535-33530 SEAL OIL 1 >=10305 ↔ 0.025 0.055 250 76550-33510 SHAFT BEVEL GEAR 1 0.82 1.804 260 76550-33350 SHIM 1 0.2MM 0.001 0.0022 260 76550-33360 SHIM 1 0.3MM 0.001 0.0022 270 76550-33560 COLLAR 1 0.012 0.0264 280 04612-00220 CIRCLIP EXTERNAL 1 0.001 0.0022 290 08101-06305 BEARING BALL 1 0.23 0.506 300 04611-00620 CIR CLIP INTERNAL 2 0.011 0.0242 310 54617-22850 SEAL OIL 1 <=10304 0.03 0.066 310 76540-34350 SEAL OIL 1 >=10305 ↔ 0.03 0.066 320 76553-33522 PULLEY CENTER 1 1.9 4.18 330 05712-00730 KEY FEATHER 1 0.011 0.0242 340 76559-33540 COLLAR 1 0.04 0.088 350 76559-32030 ROD 1 0.25 0.55 360 76550-42190 RING SNAP 2 <=10331 0.004 0.0088 360 70712-51140 RING SNAP 2 >=10332 ↔ 0.009 0.0198 370 76559-99040 ASSY PULLEY CENTER 1 2.65 5.83 380 76559-99170 ASSY CASE GEAR 1 11 24.2

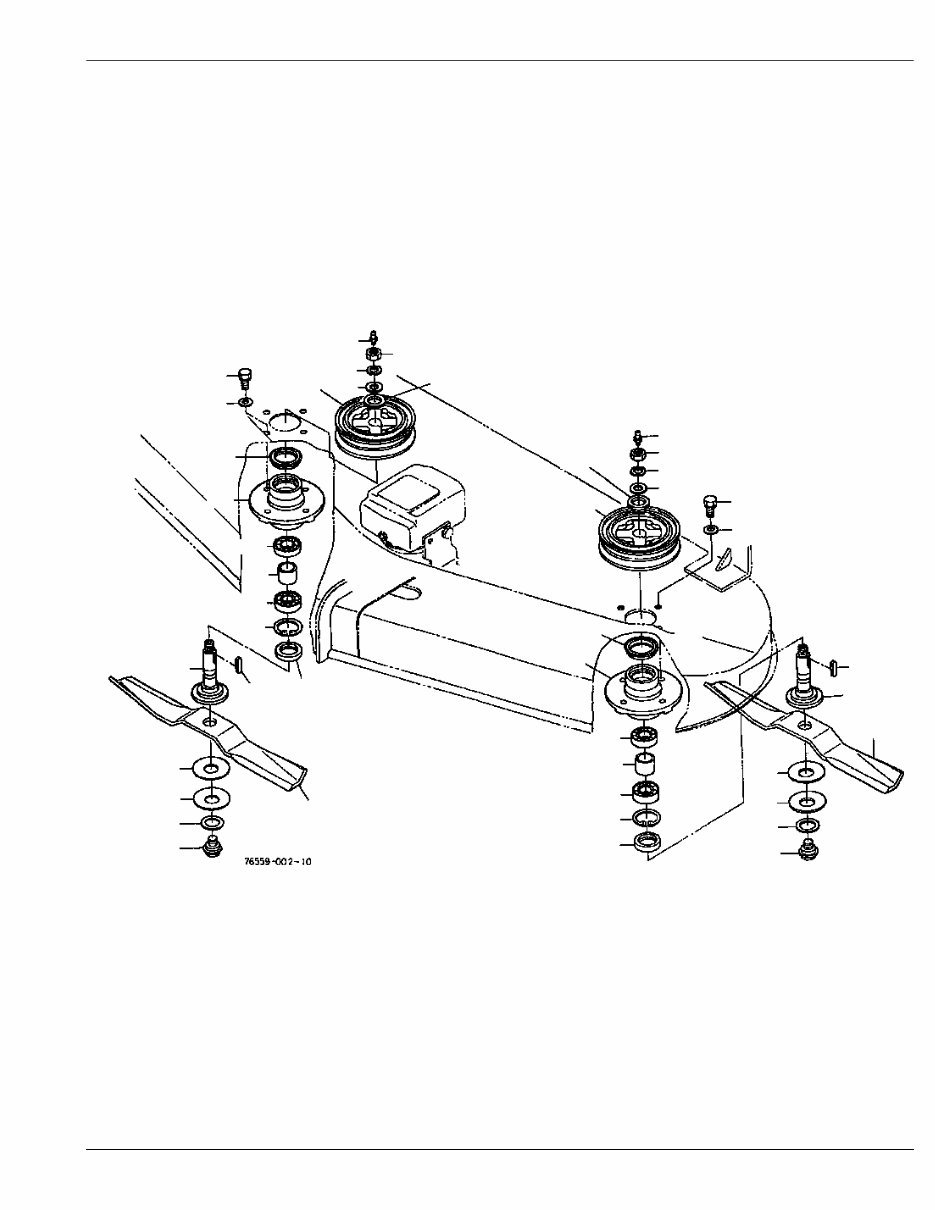

PULLEY HOLDER/BLADE Reference: 01G09802 Page: 3 010 020 030 040 050 060 070 080 090 100 110 120 130 140 140 150 160

PULLEY HOLDER/BLADE Reference: 01G09802 Page: 3 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 76550-34110 HOLDER PULLEY 1 2.95 6.49 020 01133-51225 BOLT 3 0.038 0.0836 030 76550-34140 BEARING BALL 1 0.21 0.462 040 04611-00620 CIR CLIP INTERNAL 1 0.011 0.0242 050 76550-34120 SEAL OIL 1 0.027 0.0594 060 76550-34160 SEAL OIL 1 <=10304 0 0 060 76550-34162 SEAL OIL 1 >=10305 ← 0.03 0.066 070 03410-50606 SCREW SET 1 0.001 0.0022 080 76550-34130 PIPE EXTENSION 1 0.035 0.077 090 67111-44250 NIPPLE GREASE 1 0.005 0.011 100 66616-34390 SHIM ADJUSTING 1 0.001 0.0022 110 76550-34150 BOSS BLADE 1 0.53 1.166 120 04612-00280 CIRCLIP EXTERNAL 1 0.003 0.0066 130 76544-99050 BLADE 1 2.14 4.708 140 76550-34350 RETAINER BLADE 2 0.075 0.165 150 76550-34373 BOLT LOCKING BLADE 1 0.12 0.264 160 76550-34390 WASHER LOCK 1 0.01 0.022

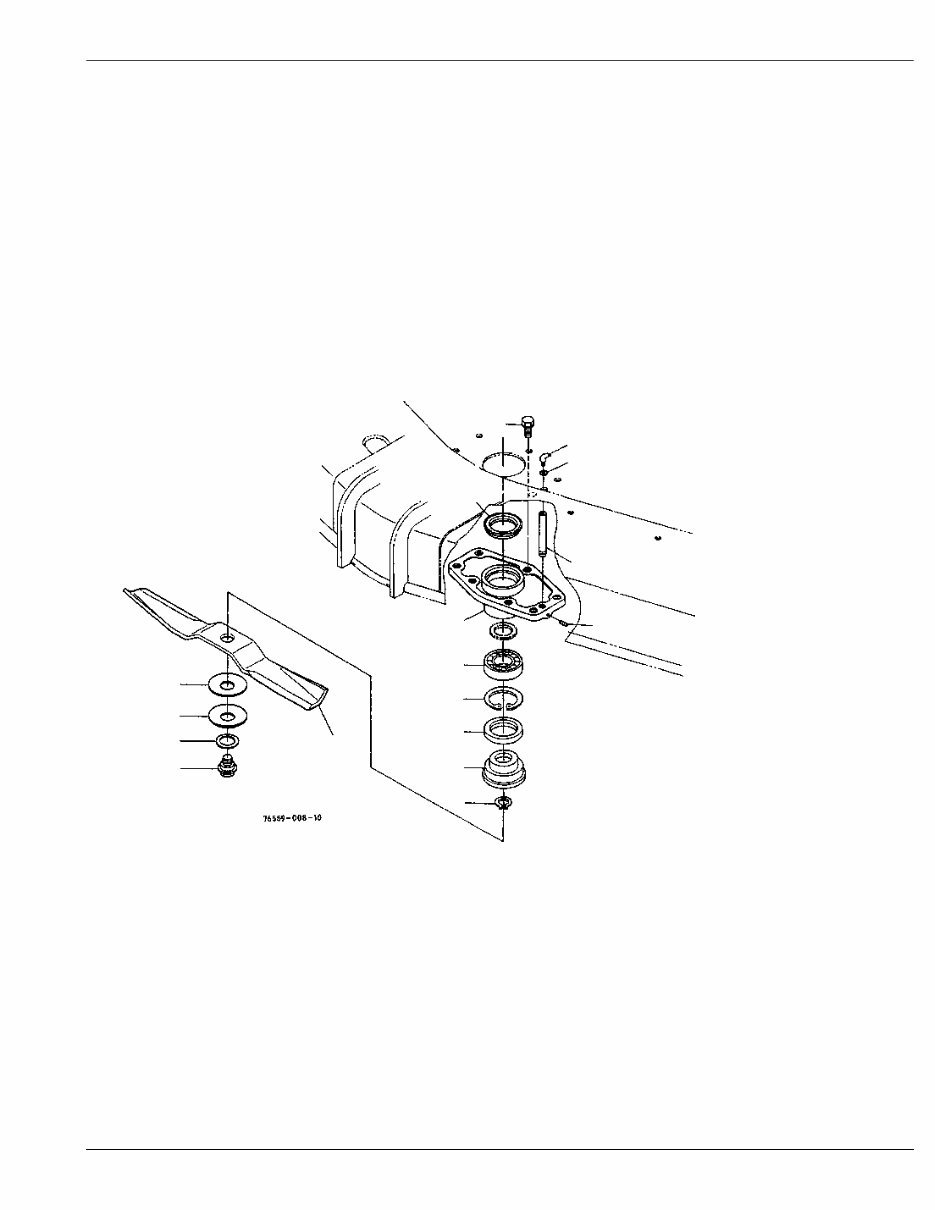

SIDE PULLEY/BLADE Reference: 01G09902 Page: 4 010 010 020 020 020 020 030 030 040 040 050 050 060 060 070 070 080 080 090 090 090 090 100 100 110 110 120 120 130 130 140 140 150 150 160 160 170 170 180 180 190 190 200 200
