KUBOTA RC72 F24 Parts Manual ILLUSTRATED LIST IPL

Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

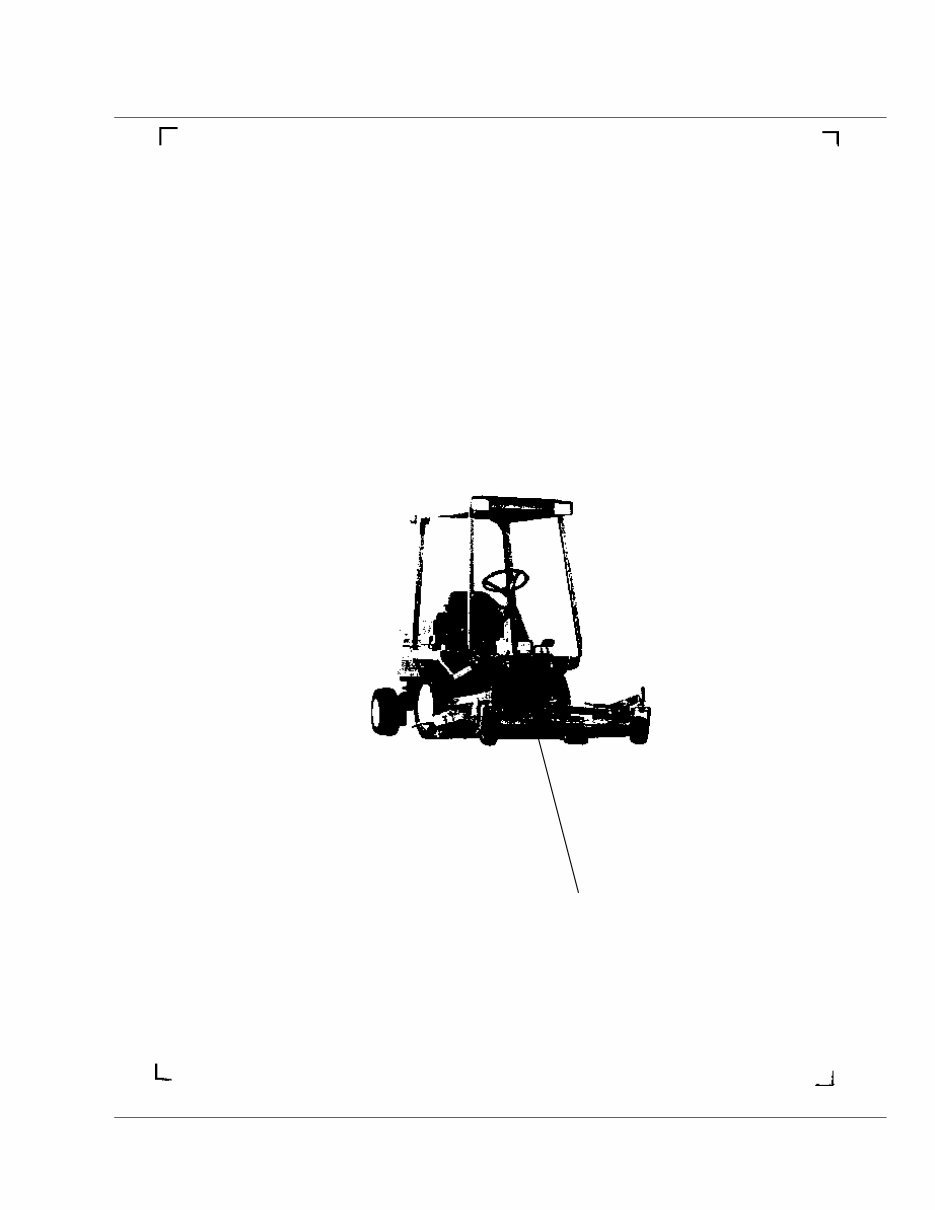

|ALL PRODUCT INDEX RC72-F24(F2400) Ref. RC72-F24(F2400) Page 31111 MOWER

Ref. RC72-F24(F2400) Page 31111 Item Part No. Description Book MOWER 01G133 UNIVERSAL JOINT 100K0501 01G134 BEVEL CASE 100K0501 01G135 PULLEY HOLDER 100K0501 01G136 BLADE 100K0501 01G137 TENSION PULLEY 100K0501 01G138 MOWER DECK 100K0501 01G139 WHEEL STAY 100K0501 01G140 REAR WHEEL 100K0501 01G141 MOWER LINK 100K0501 01G142 LIFT SPRING [OPTION] 100K0501 01G144 ACCESSORIES AND SERVICE PARTS 100K0501

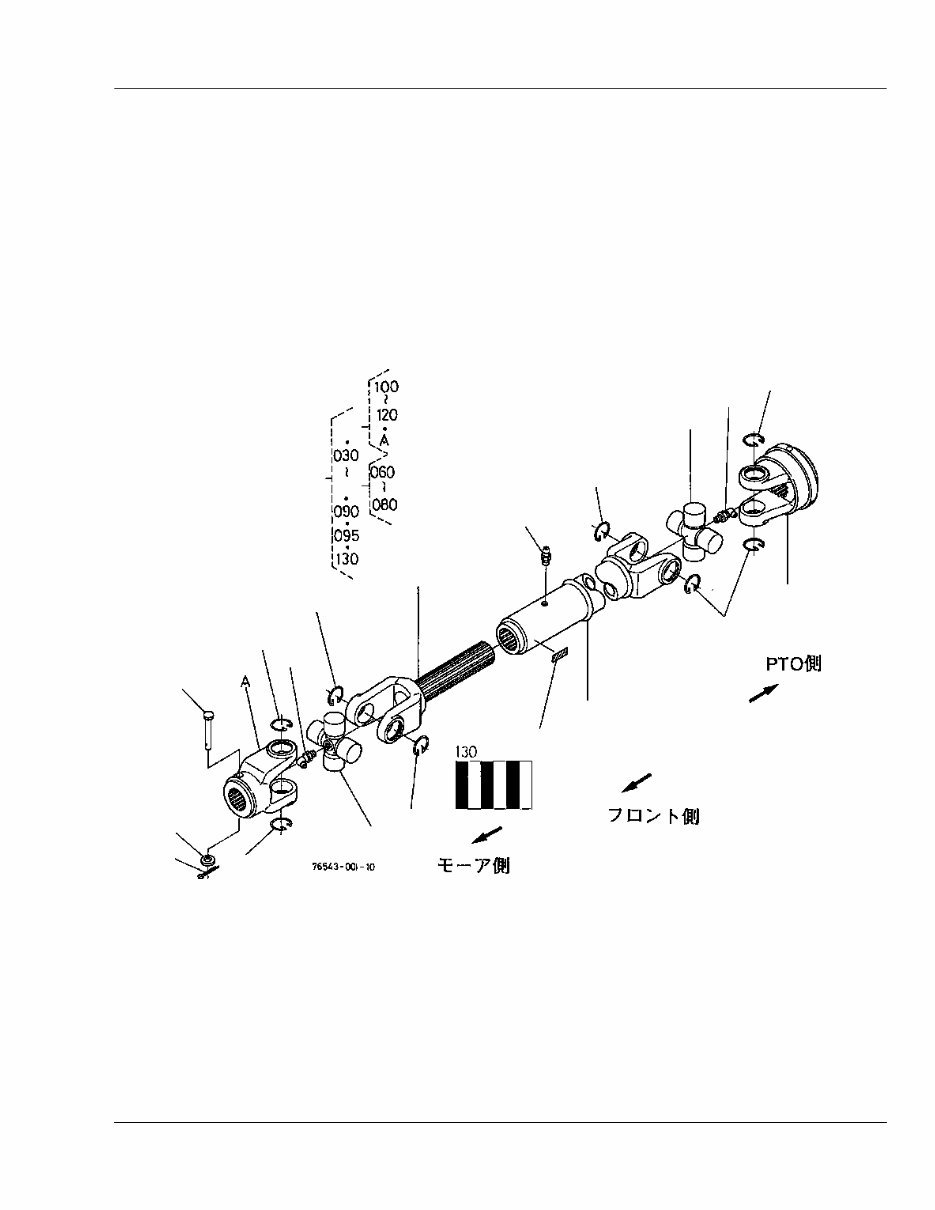

UNIVERSAL JOINT Reference: 01G133 Page: 1 010 020 030 040 050 060 060 070 070 080 080 080 080 080 080 080 090 095 100 110 120 130

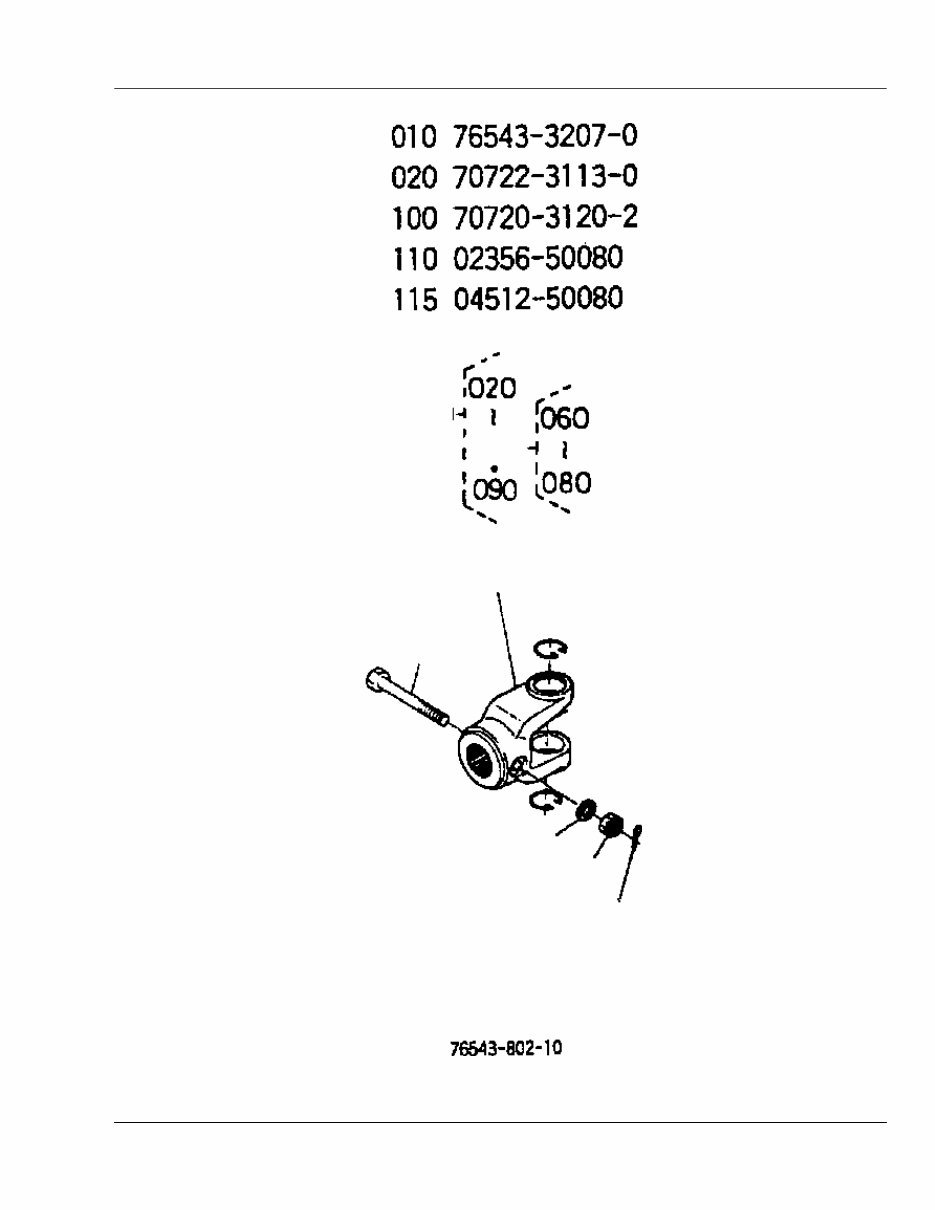

UNIVERSAL JOINT Reference: 01G133 Page: 1 010 020 050 100 110 115 120

UNIVERSAL JOINT Reference: 01G133 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 76544-32010 JOINT UNIVERSAL 1 <=13224 0 0 010 76544-98010 KIT JOINT UNIVERSAL 1 >=13225 ↔ 4.3 9.46 020 70722-31130 JOINT 1 <=13224 0 0 020 70722-98140 ASSY YOKE 1 >=13225 ↔ 0.05 0.11 030 76543-31140 ASSY AS YOKE 1 0.37 0.814 040 76544-31150 YOKE SHAFT 1 1.3 2.86 050 70720-32110 ASSY JOINT CROSS 2 0.2 0.44 060 70720-31212 NIPPLE GREASE 2 0.006 0.0132 070 70720-31182 JOINT CROSS 2 0.21 0.462 080 70720-32120 RING SNAP 8 0.001 0.0022 090 76544-31170 YOKE SPLINE 1 <=12750 0 0 090 76544-31174 YOKE SLEEVE 1 >=12751 ← 1.59 3.498 095 06613-10675 NIPPLE GREASE 1 >=12751 0.003 0.0066 100 70720-31202 BOLT 1 <=12750 0.02 0.044 100 05122-50845 PIN JOINT 1 >=12751 ≠ 0.018 0.0396 110 02356-50080 NUT 1 <=12750 0.004 0.0088 110 04012-50080 WASHER PLAIN 1 >=12751 ≠ 0.001 0.0022 115 04512-60080 WASHER SPRING 1 <=12750 0.002 0.0044 120 05511-50218 PIN SPLIT 1 0.001 0.0022 130 76550-31150 MARK 1 >=13128 0.001 0.0022

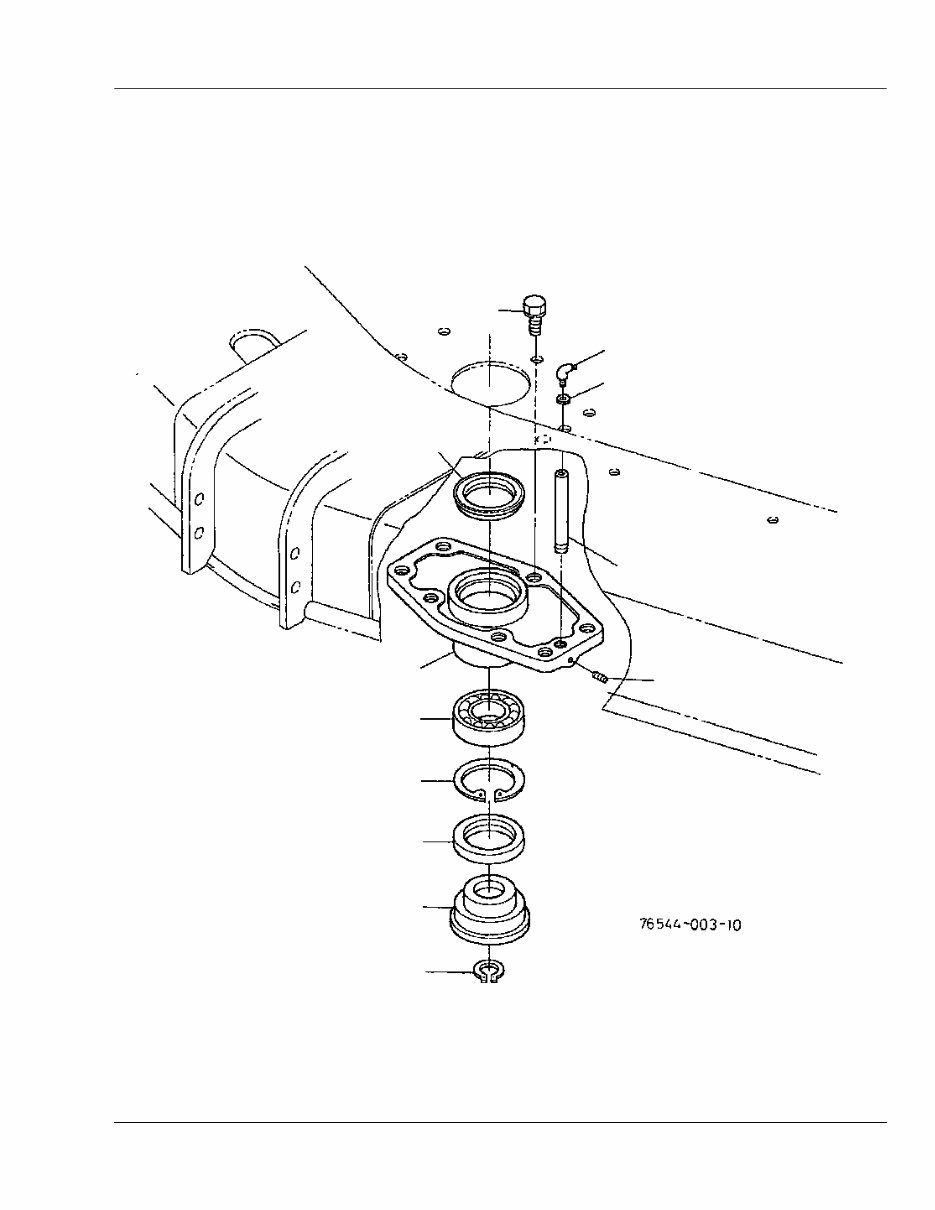

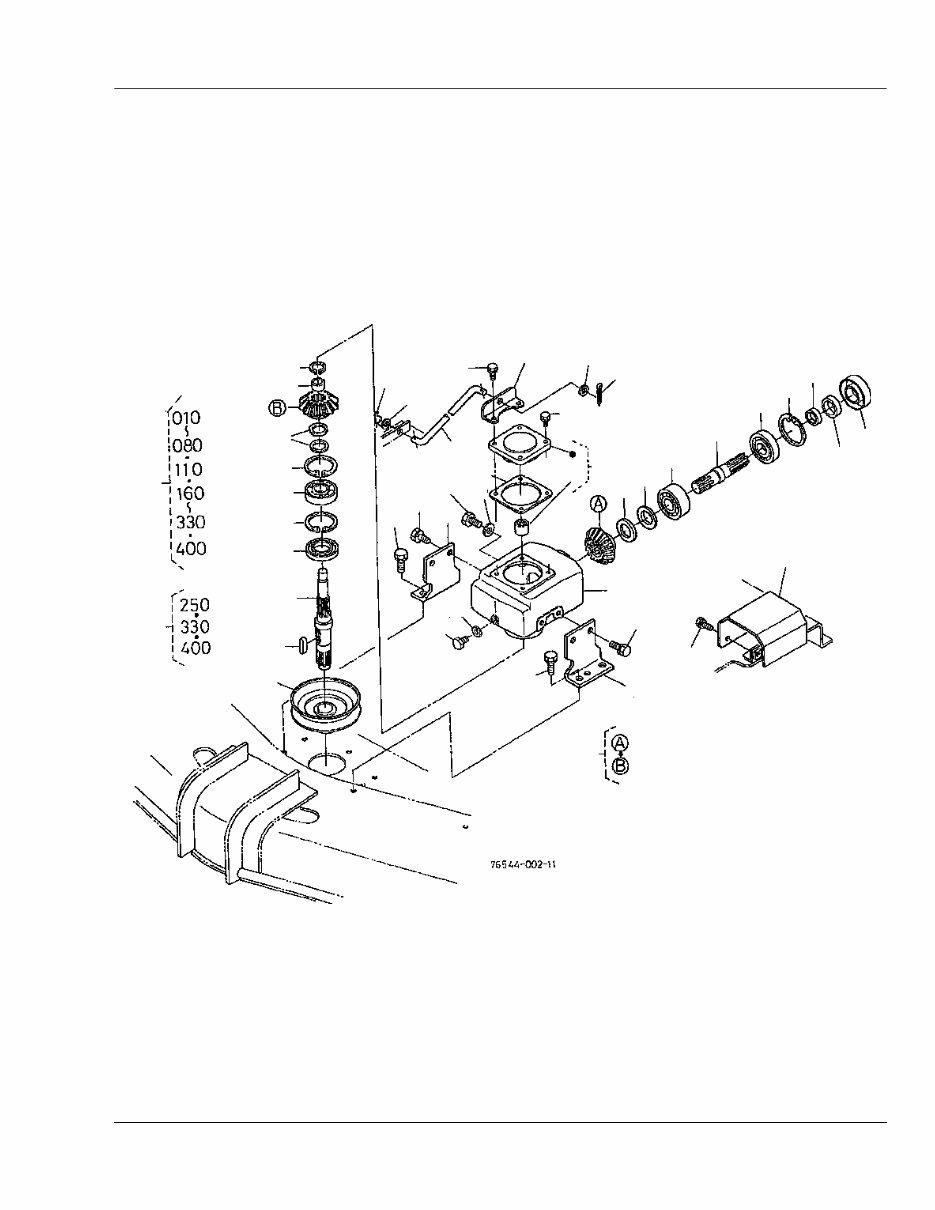

BEVEL CASE Reference: 01G134 Page: 2 010 020 030 040 050 060 070 080 090 100 110 120 130 140 140 150 150 160 170 180 190 200 210 220 230 240 245 250 270 280 290 300 310 310 320 330 340 350 360 370 380 390 390 400 410 420

BEVEL CASE Reference: 01G134 Page: 2 340

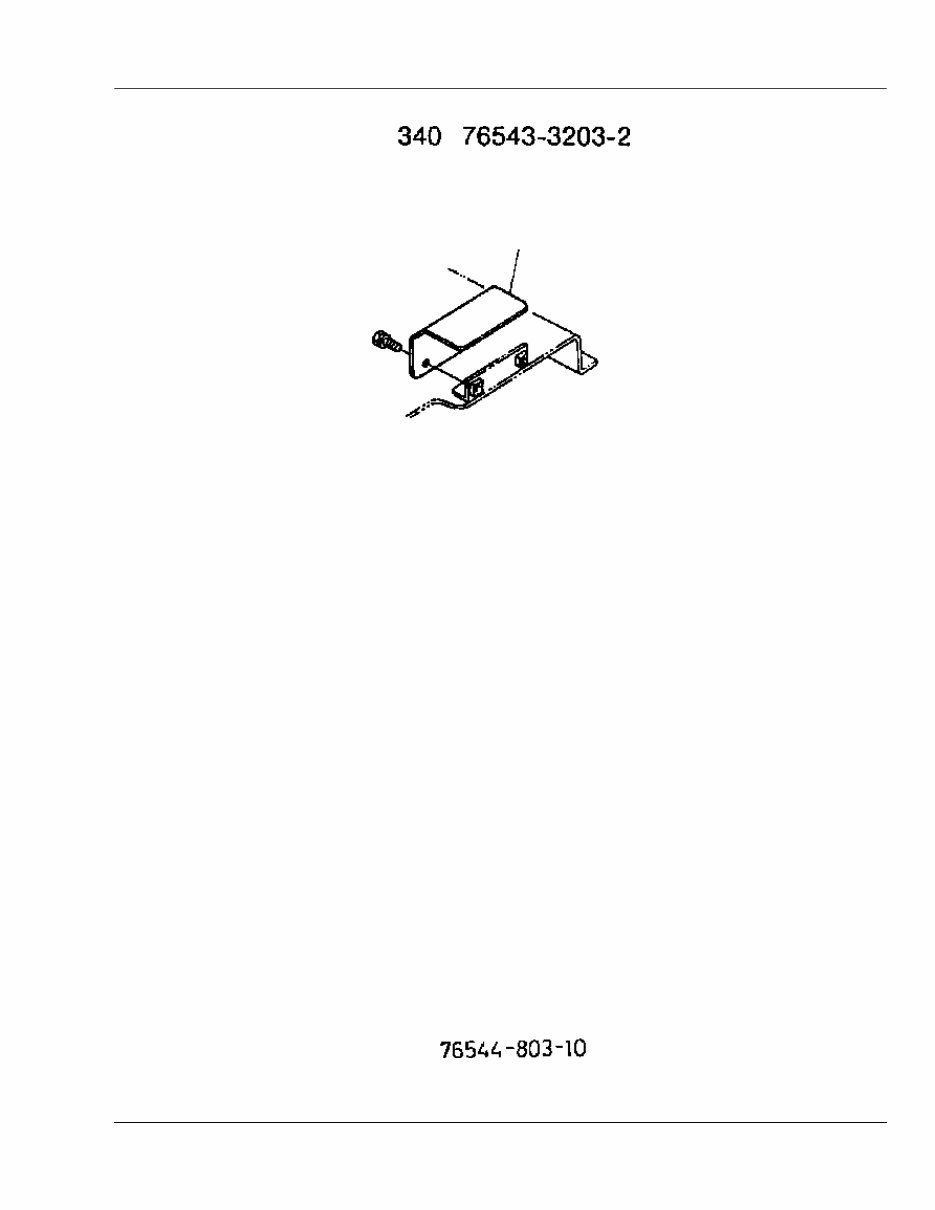

BEVEL CASE Reference: 01G134 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 76550-33110 CASE BEVEL GEAR 1 5.3 11.66 020 76550-33100 ASSY COVER BEVELCASE 1 0.51 1.122 030 76550-33580 BEARING NEEDLE 1 0.01 0.022 040 06331-35020 PLUG 1 0.068 0.1496 050 04717-02000 WASHER WITH RUBBER 1 0.004 0.0088 060 01173-51218 BOLT 1 0.028 0.0616 070 04717-01200 WASHER WITH RUBBER 1 0.002 0.0044 080 01123-60816 BOLT 2 0.01 0.022 090 01123-50820 BOLT 2 0.011 0.0242 100 76544-32040 STAY ROD 1 0.09 0.198 110 76550-33142 GASKET 1 0.001 0.0022 120 76538-33130 STAY BEVEL CASE LH 1 0.35 0.77 130 76538-33150 STAY BEVEL CASE RH 1 0.34 0.748 140 01133-61222 BOLT 4 0.035 0.077 150 01133-51235 BOLT 4 0.05 0.11 160 76544-99020 KIT GEAR BEVEL 1 0.6 1.32 170 76550-33310 SHAFT PINION 1 0.525 1.155 180 70720-33350 SHIM 1 0.2MM 0.001 0.0022 190 70720-33360 SHIM 1 0.3MM 0.001 0.0022 200 08241-05305 BEARING BALL 1 0.358 0.7876 210 08101-06305 BEARING BALL 1 0.23 0.506 220 04611-00620 CIR CLIP INTERNAL 1 0.011 0.0242 230 66591-56420 BUSH 1 0.021 0.0462 240 67121-56660 SEAL OIL 1 <=13336 0.027 0.0594 240 76535-33530 SEAL OIL 1 >=13337 ↔ 0.025 0.055 245 53961-16120 COLLAR 1 >=15299 0.01 0.022 250 76550-33510 SHAFT BEVEL GEAR 1 0.82 1.804 270 76550-33350 SHIM 1 0.2MM 0.001 0.0022 270 76550-33360 SHIM 1 0.3MM 0.001 0.0022 280 76550-33560 COLLAR 1 0.012 0.0264 290 04612-00220 CIRCLIP EXTERNAL 1 0.001 0.0022 300 08101-06305 BEARING BALL 1 0.23 0.506 310 04611-00620 CIR CLIP INTERNAL 2 0.011 0.0242 320 54617-22850 SEAL OIL 1 <=13336 0.03 0.066 320 76540-34350 SEAL OIL 1 >=13337 ↔ 0.03 0.066 330 76550-99750 PULLEY CENTER 1 1.34 2.948 340 76543-32032 COVER JOINT 1 <=13224 0 0 340 76543-32034 COVER JOINT 1 >=13225 ← 0.48 1.056 350 01123-60816 BOLT 2 0.01 0.022 360 76544-32030 ROD HANGING 1 0.17 0.374 370 05515-61000 PIN SNAP 1 0.003 0.0066 380 05511-50318 PIN SPLIT 1 0.001 0.0022 390 04013-50100 WASHER PLAIN 2 0 0 400 05712-00735 KEY FEATHER 1 0.013 0.0286 410 76544-99170 ASSY CASE BEVEL GEAR 1 11.6 25.52

PULLEY HOLDER Reference: 01G135 Page: 3 010 020 030 040 050 060 070 080 090 100 110 120
