Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

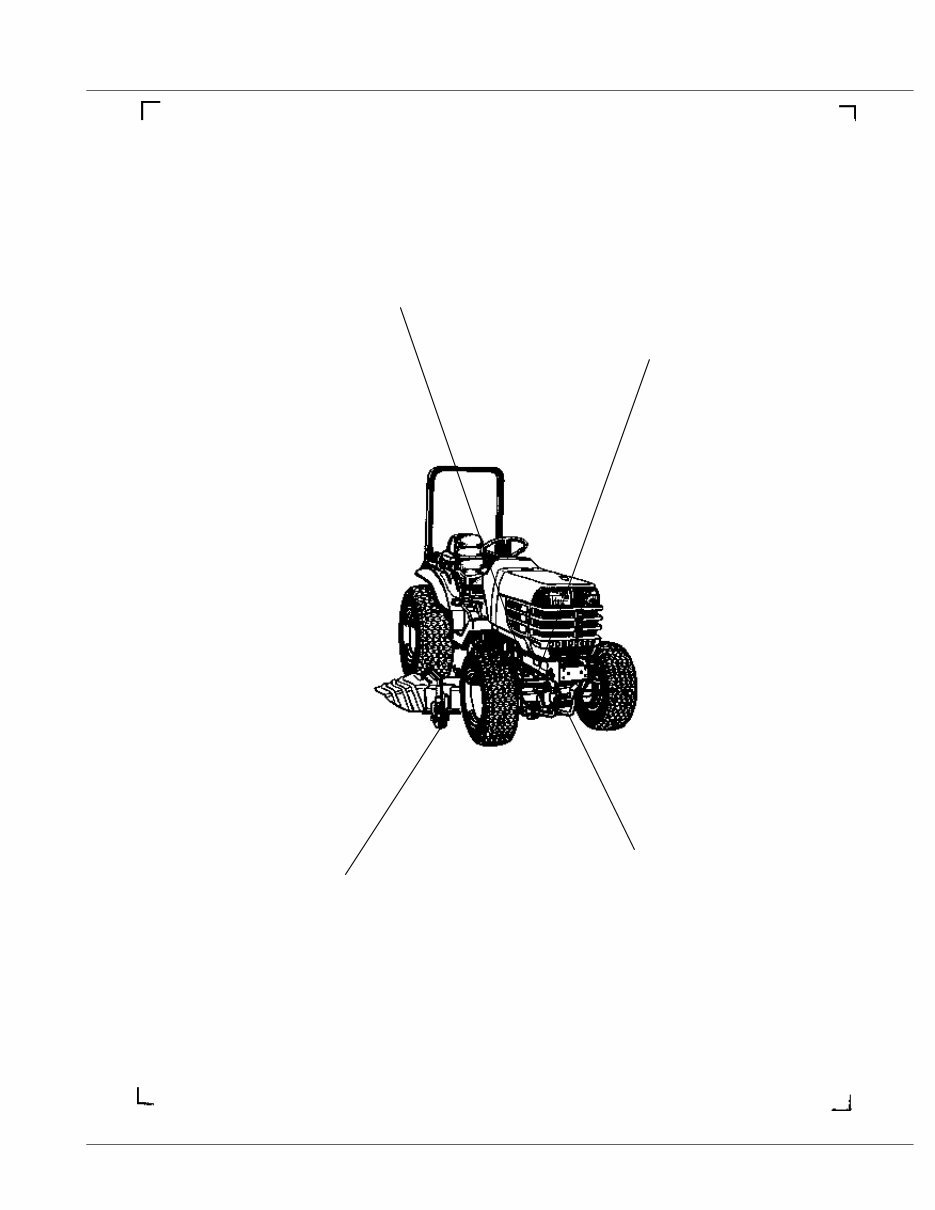

|ALL PRODUCT INDEX RC72-27B Ref. RC72-27B Page 65153 UNIVERSAL JOINT GEAR BOX/PULLEY/BLADE MOWER DECK/WHEEL LINKAGE/LIFT ARM ACCESSORIES

Ref. RC72-27B Page 65153 Item Part No. Description Book UNIVERSAL JOINT 01A001 UNIVERSAL JOINT 100A0034 GEAR BOX/PULLEY/BLADE 01A004 BEVEL GEAR CASE 100A0034 01A007 PULLEY HOLDER 100A0034 01A010 BLADE 100A0034 01A013 TENSION PULLEY 100A0034 MOWER DECK/WHEEL 01A100 MOWER DECK 100A0034 01A103 FRONT GAUGE WHEEL 100A0034 01A106 REAR WHEEL 100A0034 01A109 DISCHARGE COVER 100A0034 LINKAGE/LIFT ARM 01A200 LINKAGE 100A0034 01A203 LIFT LINKAGE 100A0034 01A206 LIFT ARM 100A0034 01A209 LIFT STOPPER 100A0034 ACCESSORIES 01A300 ACCESSORIES AND SERVICE PARTS 100A0034

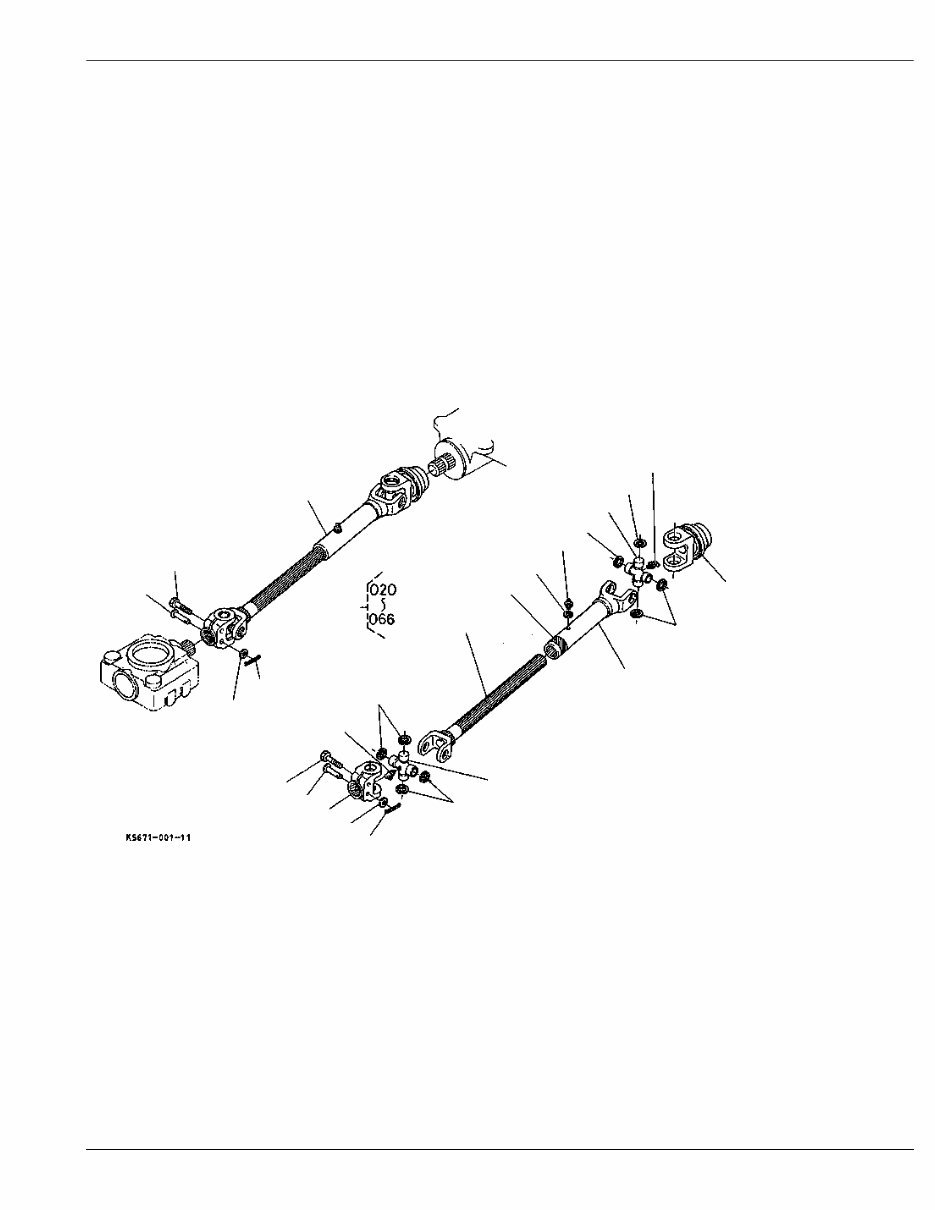

UNIVERSAL JOINT Reference: 01A001 Page: 1 010 010 020 030 040 050 055 056 060 060 065 065 066 066 066 066 066 070 080 080 090 090 100 100 110 110

UNIVERSAL JOINT Reference: 01A001 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 K5671-32010 JOINT UNIVERSAL 1 3.52 7.744 020 K5671-31130 YOKE PTO 1 0.4 0.88 030 K5671-31150 YOKE QUICK 1 0.54 1.188 040 K5671-31140 SHAFT YOKE 1 1.48 3.256 050 K5671-31170 YOKE SLEEVE 1 0.65 1.43 055 06613-10675 NIPPLE GREASE 1 0.003 0.0066 056 04012-50060 WASHER PLAIN 1 0.001 0.0022 060 K5671-31180 ASSY JOINT CROSS 2 0.23 0.506 065 76508-31210 NIPPLE GREASE 2 0.05 0.11 066 76508-32120 RING SNAP 8 0.01 0.022 070 76550-31150 MARK 1 0.001 0.0022 080 05122-50845 PIN JOINT 1 0.018 0.0396 090 04012-50080 WASHER PLAIN 1 0.001 0.0022 100 05511-50218 PIN SPLIT 1 0.001 0.0022 110 01123-50840 BOLT 1 0.018 0.0396

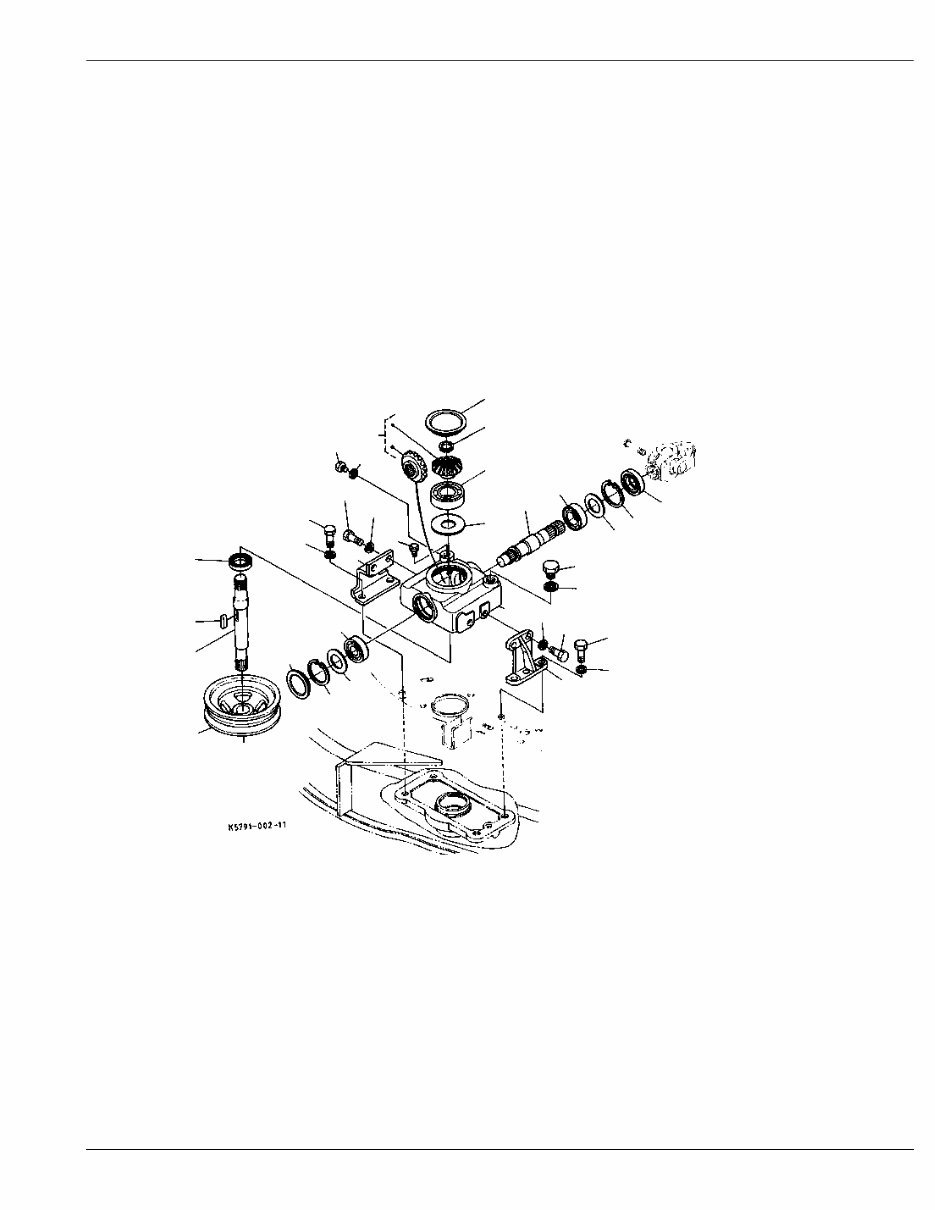

BEVEL GEAR CASE Reference: 01A004 Page: 2 010 020 030 040 045 050 060 070 080 085 090 095 100 100 100 100 110 120 130 130 150 160 170 170 180 190 200 210 220 230 240 250 260 270

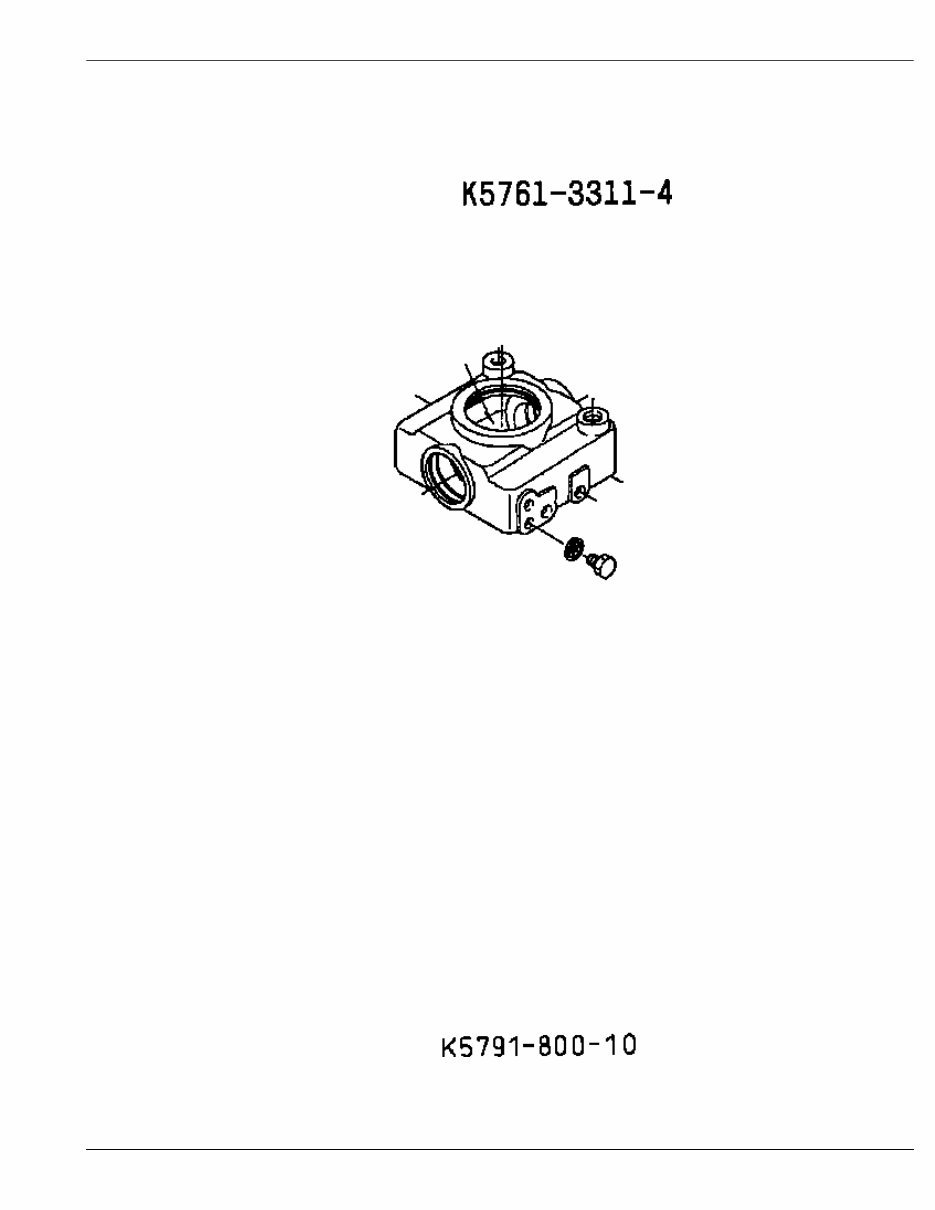

BEVEL GEAR CASE Reference: 01A004 Page: 2 010 010

BEVEL GEAR CASE # REV.JUL.10 '99 Reference: 01A004 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 K5761-33115 CASE BEVEL GEAR 1 <=10479 3.82 8.404 020 01153-50812 BOLT 2 0.008 0.0176 030 04717-00800 WASHER WITH RUBBER 2 0.001 0.0022 040 06331-35016 PLUG 1 0.04 0.088 045 K5761-33250 PLUG BREATHER 1 0.006 0.0132 050 04711-00300 GASKET 1 0.001 0.0022 060 K5671-33130 STAY BEVEL CASE LH 1 0.45 0.99 070 K5671-33150 STAY BEVEL CASE RH 1 0.462 1.0164 080 K5761-33210 BOLT REAMER 2 0.038 0.0836 085 01133-51225 BOLT 2 0.038 0.0836 090 K5671-33230 BOLT REAMER 2 0.043 0.0946 095 01133-51235 BOLT 2 0.05 0.11 100 04512-60120 WASHER SPRING 4 0.005 0.011 110 K5761-33310 SHAFT PINION 1 0.64 1.408 120 K5671-33320 KIT GEAR BEVEL 1 17-18T 0.45 0.99 130 36330-28420 SHIM 2 0.2MM 0.002 0.0044 130 36330-28410 SHIM 2 0.3MM 0.002 0.0044 150 08101-06205 BEARING BALL 1 0.14 0.308 160 08101-06304 BEARING BALL 1 0.146 0.3212 170 04611-00520 CIR CLIP INTERNAL 2 0.009 0.0198 180 76535-33440 SEAL OIL 1 0.02 0.044 190 63313-32270 CAP 1 0.03 0.066 200 K5671-33503 SHAFT BEVEL GEAR 1 0 0 210 04612-00220 CIR CLIP EXTERNAL 1 0.001 0.0022 220 70712-33550 BEARING BALL 1 0.22 0.484 230 70712-33570 SHIM 1 0.1MM 0.001 0.0022 230 76539-33410 SHIM 1 0.2MM 0.001 0.0022 240 K5761-33540 SEAL OIL 1 0.012 0.0264 250 7C765-51260 CAP 1 0.07 0.154 260 K5671-33520 PULLEY CENTER 1 1.79 3.938 270 05712-00732 KEY FEATHER 1 0.013 0.0286

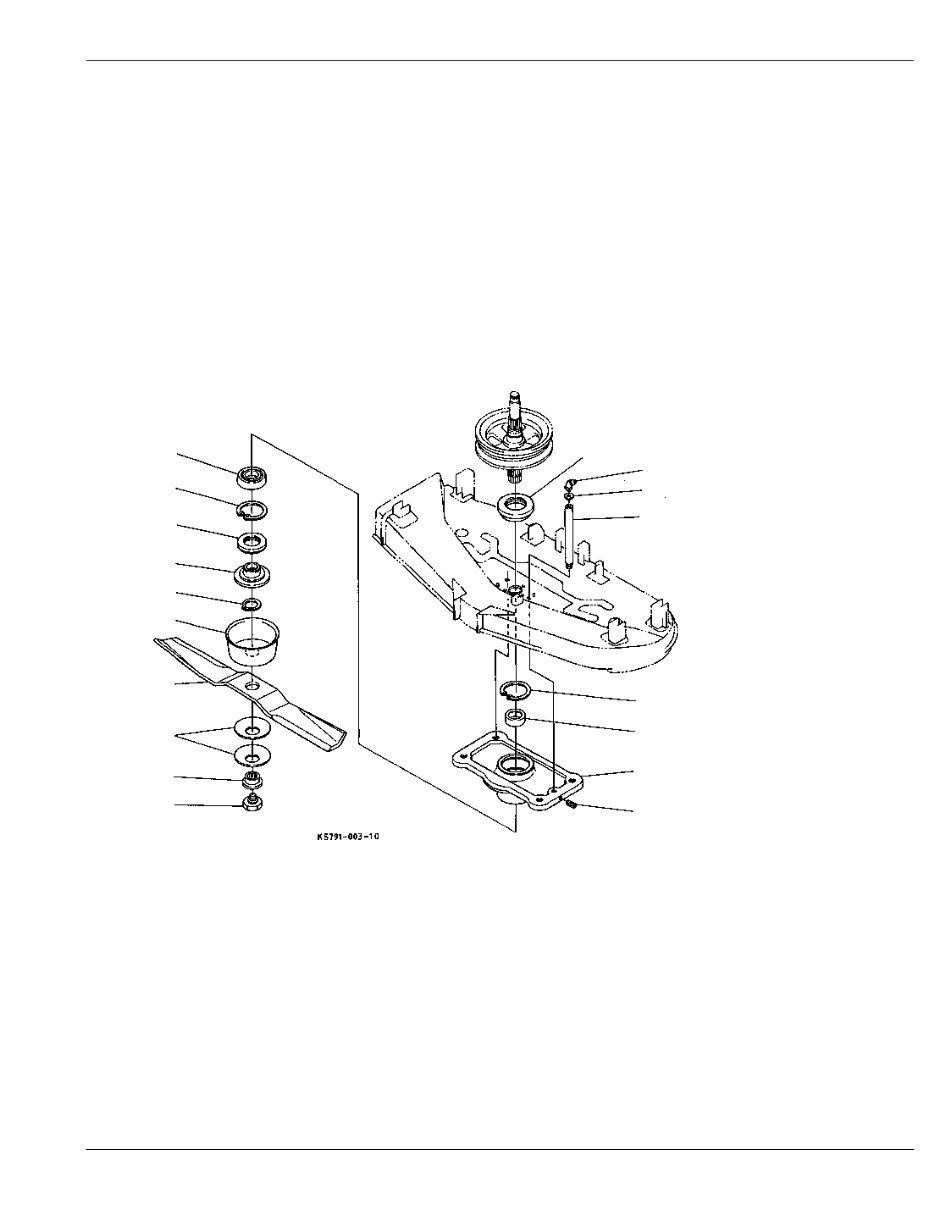

PULLEY HOLDER Reference: 01A007 Page: 3 010 020 030 040 040 050 060 070 080 090 100 110 120 130 140 150 160 170

PULLEY HOLDER Reference: 01A007 Page: 3 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 K5671-34110 HOLDER CENTER PULLEY 1 2.95 6.49 020 K5671-33590 COLLAR 1 0.034 0.0748 030 08101-06205 BEARING BALL 1 0.14 0.308 040 04611-00520 CIR CLIP INTERNAL 2 0.009 0.0198 050 70725-34162 SEAL OIL 1 0.024 0.0528 060 70722-34120 SEAL OIL 1 0.025 0.055 070 03410-50606 SCREW SET 1 0.001 0.0022 080 76550-34130 PIPE EXTENSION 1 0.035 0.077 090 67111-44250 NIPPLE GREASE 1 0.005 0.011 100 66616-34390 SHIM ADJUSTING 1 0.001 0.0022 110 K5761-34152 BOSS SPLINE 1 0.28 0.616 120 04612-00220 CIR CLIP EXTERNAL 1 0.001 0.0022 130 K5671-34310 COVER DUST 1 0.11 0.242 140 76553-34330 BLADE 1 2 4.4 150 76550-34350 RETAINER BLADE 2 0.075 0.165 160 76539-34392 JOINT BLADE BOSS 1 0.06 0.132 170 76539-34372 BOLT LOCKING BLADE 1 0.05 0.11
