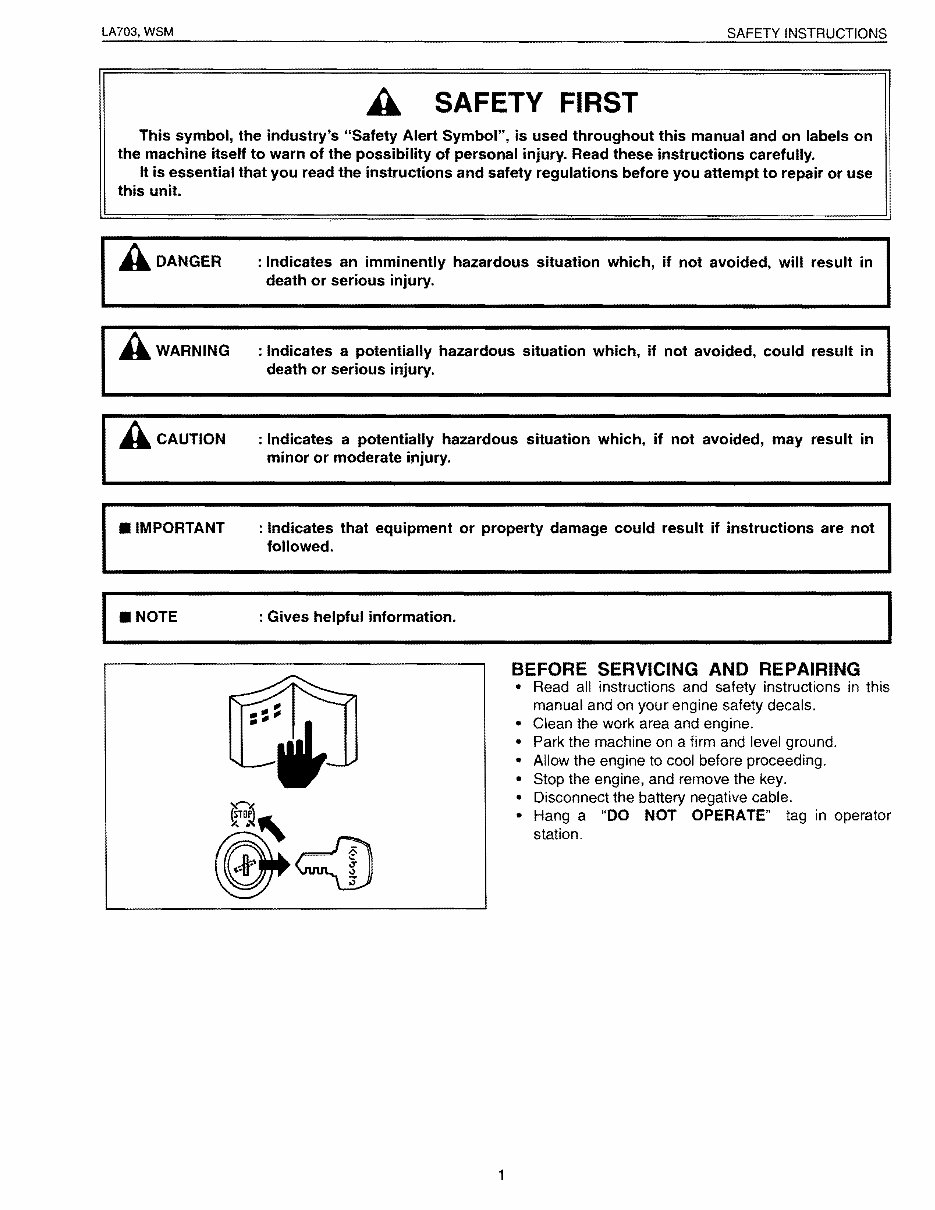

LA703, WSM SAFETY INSTRUCTIONS SAFETY FIRST This symbol, the industry's "Safety Alert Symbol", is used throughout this manual and on labels on the machine itself to warn of the possibility of personal injury. Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to repair or use this unit. A DANGER : Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. A WARNING : Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. A CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. • IMPORTANT : Indicates that equipment or property damage could result if instructions are not followed. • NOTE : Gives helpful information . I BEFORE SERVICING AND REPAIRING • Read all instructions and safety instructions in this manual and on your engine safety decals. • Clean the work area and engine. • Park the machine on a firm and level ground. • Allow the engine to cool before proceeding. • Stop the engine, and remove the key. • Disconnect the battery negative cable. • Hang a "DO NOT OPERATE" tag in operator station.

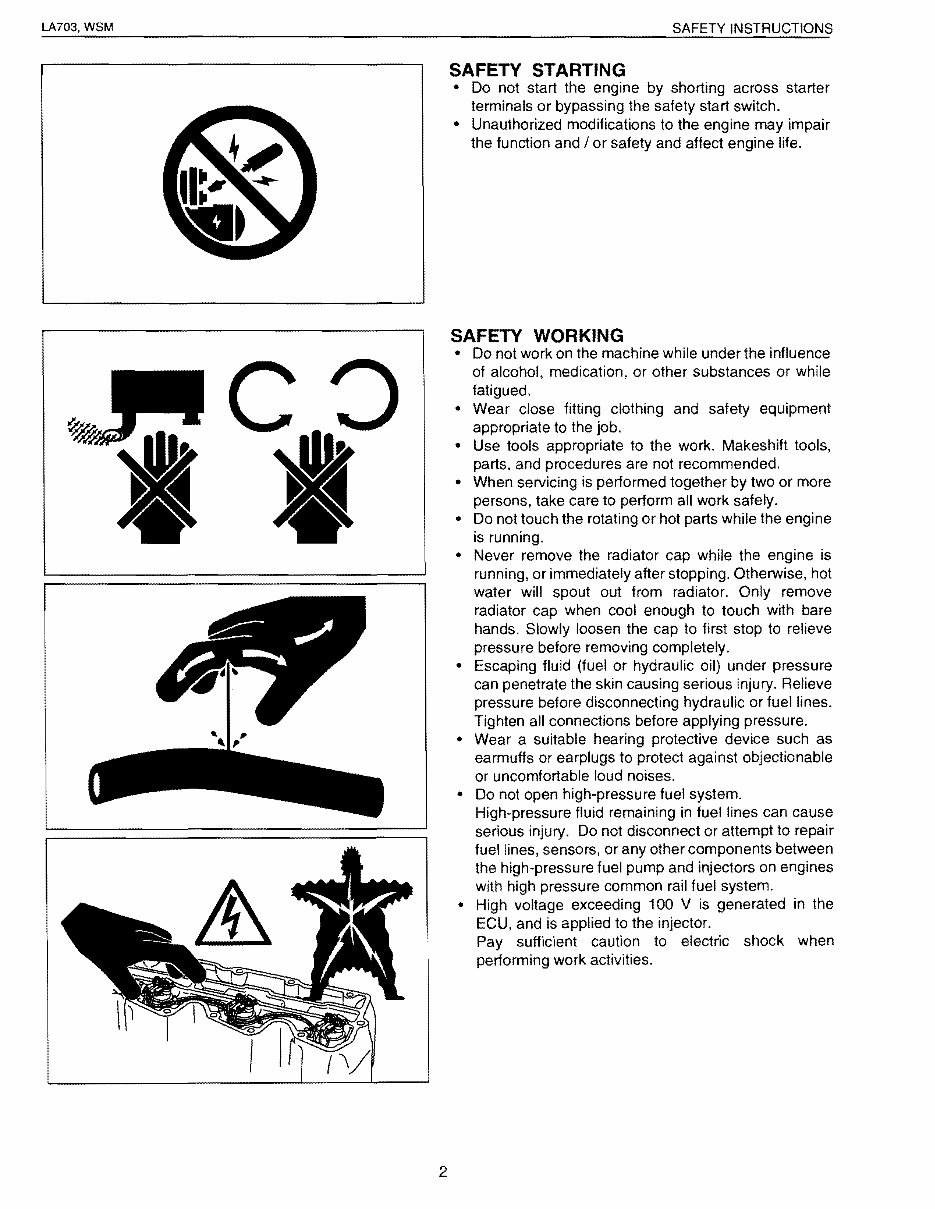

LA703, WSM SAFETY INSTRUCTIONS SAFETY STARTING • Do not start the engine by shorting across starter terminals or bypassing the safety start switch. • Unauthorized modifications to the engine may impair the function and / or safety and affect engine life. SAFETY WORKING • Do not work on the machine while under the influence of alcohol, medication, or other substances or while fatigued. • Wear close fitting clothing and safety equipment appropriate to the job. • Use tools appropriate to the work. Makeshift tools, parts, and procedures are not recommended. • When servicing is performed together by two or more persons, take care to perform all work safely. • Do not touch the rotating or hot parts while the engine is running. • Never remove the radiator cap while the engine is running, or immediately after stopping. Otherwise, hot water will spout out from radiator. Only remove radiator cap when cool enough to touch with bare hands. Slowly loosen the cap to first stop to relieve pressure before removing completely. • Escaping fluid (fuel or hydraulic oil) under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting hydraulic or fuel lines. Tighten all connections before applying pressure. • Wear a suitable hearing protective device such as earmuffs or earplugs to protect against objectionable or uncomfortable loud noises. • Do not open high-pressure fuel system. High-pressure fluid remaining in fuel lines can cause serious injury. Do not disconnect or attempt to repair fuel lines, sensors, or any other components between the high-pressure fuel pump and injectors on engines with high pressure common rail fuel system. • High voltage exceeding 100 V is generated in the ECU, and is applied to the injector. Pay sufficient caution to electric shock when performing work activities. 2

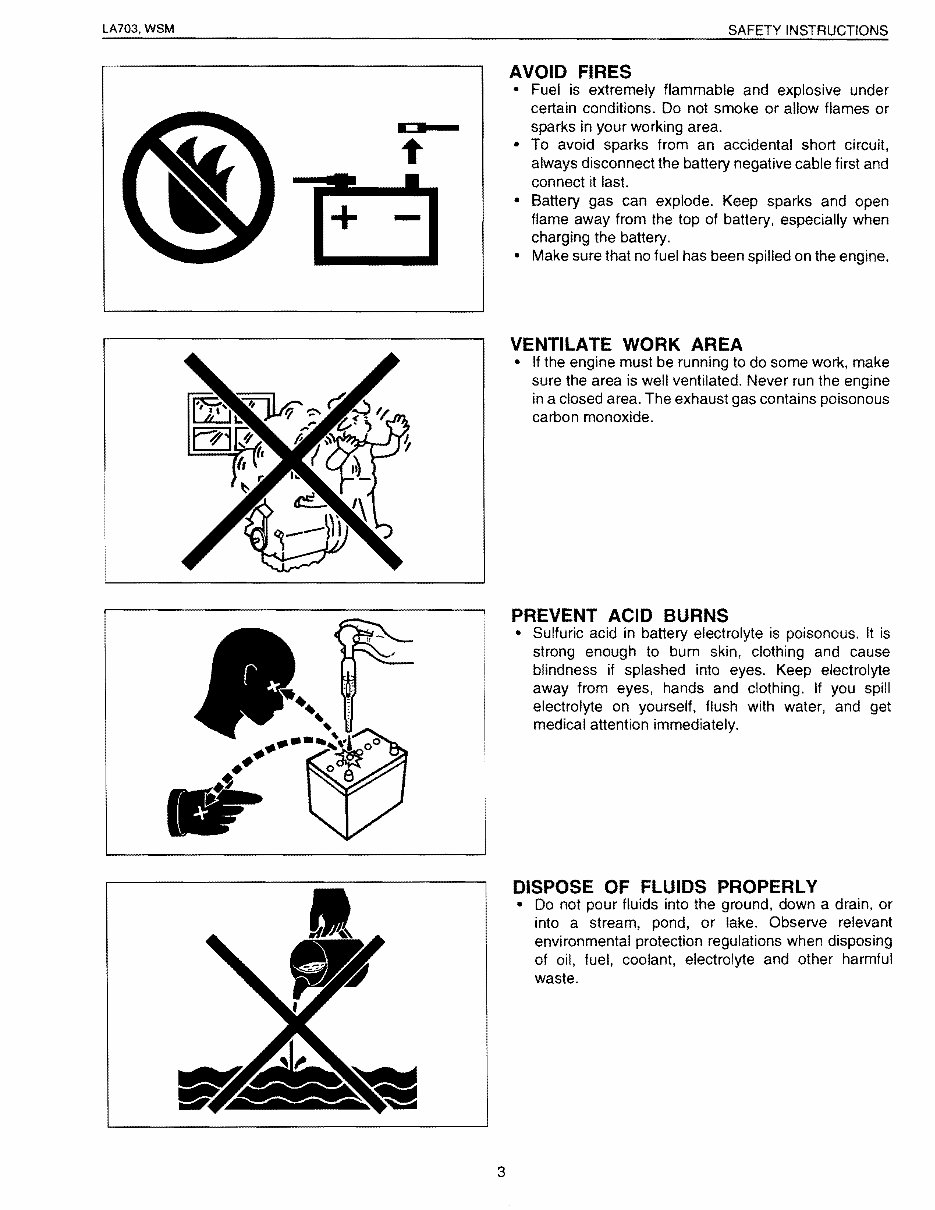

LA703, WSM SAFETY INSTRUCTIONS • + - AVOID FIRES • Fuel is extremely flammable and explosive under certain conditions. Do not smoke or allow flames or sparks in your working area . • To avoid sparks from an accidental short circuit, always disconnect the battery negative cable first and connect it last. • Battery gas can explode. Keep sparks and open flame away from the top of battery, especially when charging the battery. • Make sure that no fuel has been spilled on the engine. VENTILATE WORK AREA • If the engine must be running to do some work, make sure the area is well ventilated. Never run the engine in a closed area. The exhaust gas contains poisonous carbon monoxide. PREVENT ACID BURNS • Sulfuric acid in battery electrolyte is poisonous. It is strong enough to burn skin, clothing and cause blindness if splashed into eyes. Keep electrolyte away from eyes, hands and clothing. If you spill electrolyte on yourself, flush with water, and get medical attention immediately. DISPOSE OF FLUIDS PROPERLY • Do not pour fluids into the ground, down a drain, or into a stream, pond, or lake. Observe relevant environmental protection regulations when disposing of oil, fuel, coolant, electrolyte and other harmful waste. 3

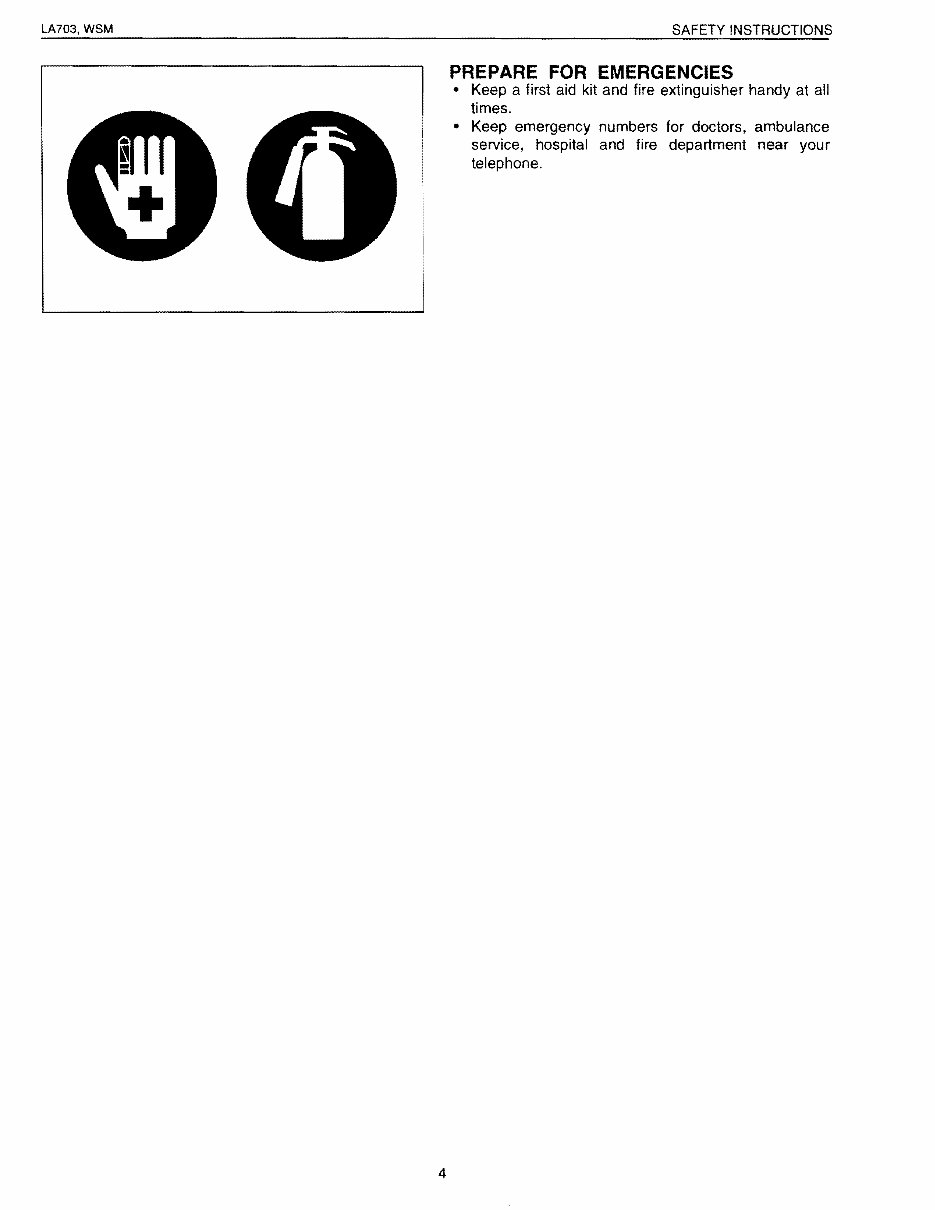

LA703, WSM SAFETY INSTRUCTIONS PREPARE FOR EMERGENCIES • Keep a first aid kit and fire extinguisher handy at all times. • Keep emergency numbers for doctors, ambulance service, hospital and fire department near your telephone. 4

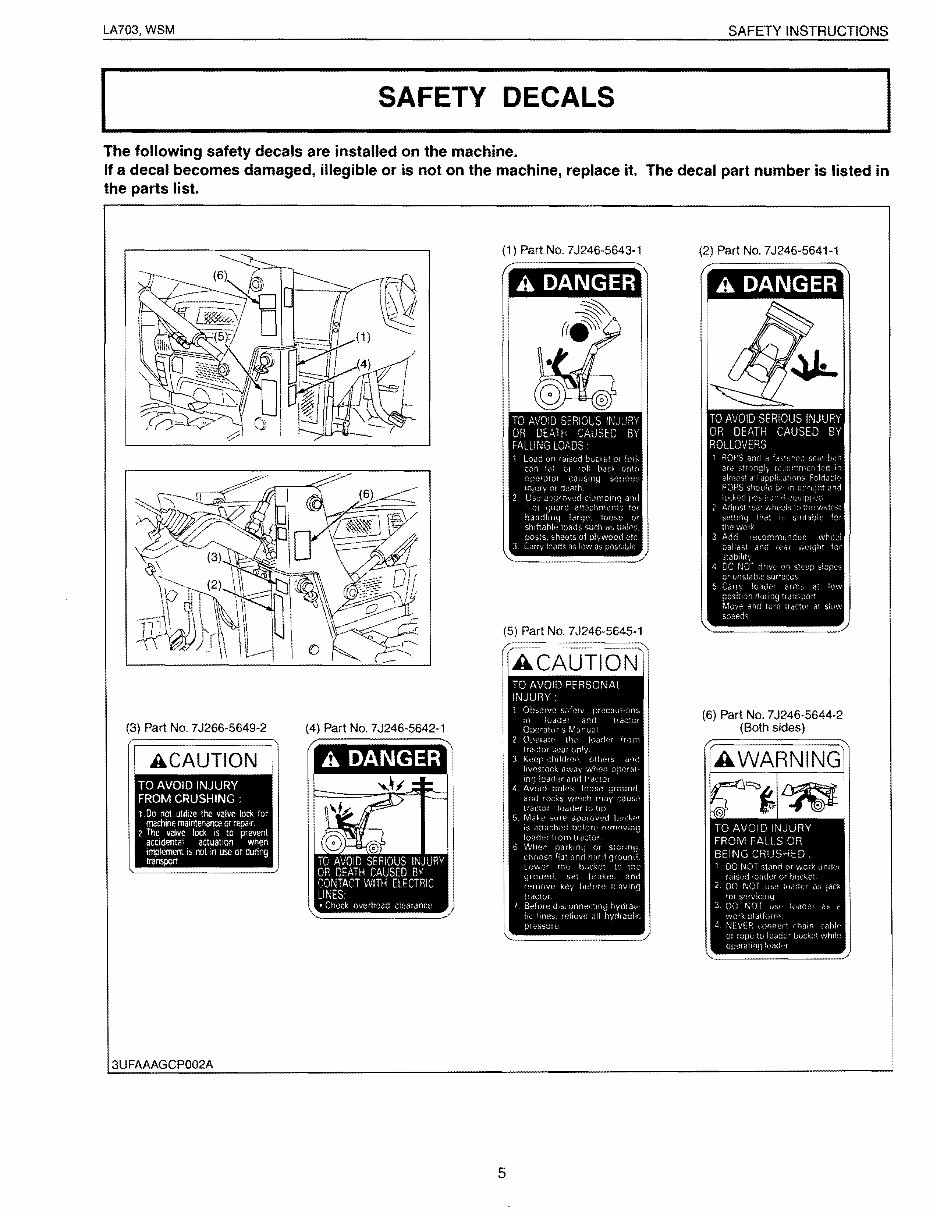

I LA703, WSM SAFETY INSTRUCTIONS SAFETY DECALS The following safety decals are installed on the machine. If a decal becomes damaged, illegible or is not on the machine, replace it. The decal part number is listed in the parts list. (1 ) Part No. 7J246-5643-1 (2) Part No. 7J246-5641-1 A DANGER (6) Part No.7J246·5644·2 (3) Part No. 7J266-5649-2 (4) Part No. 7J246-5642-1 (Both sides) 3UFAAAGCP002A 5

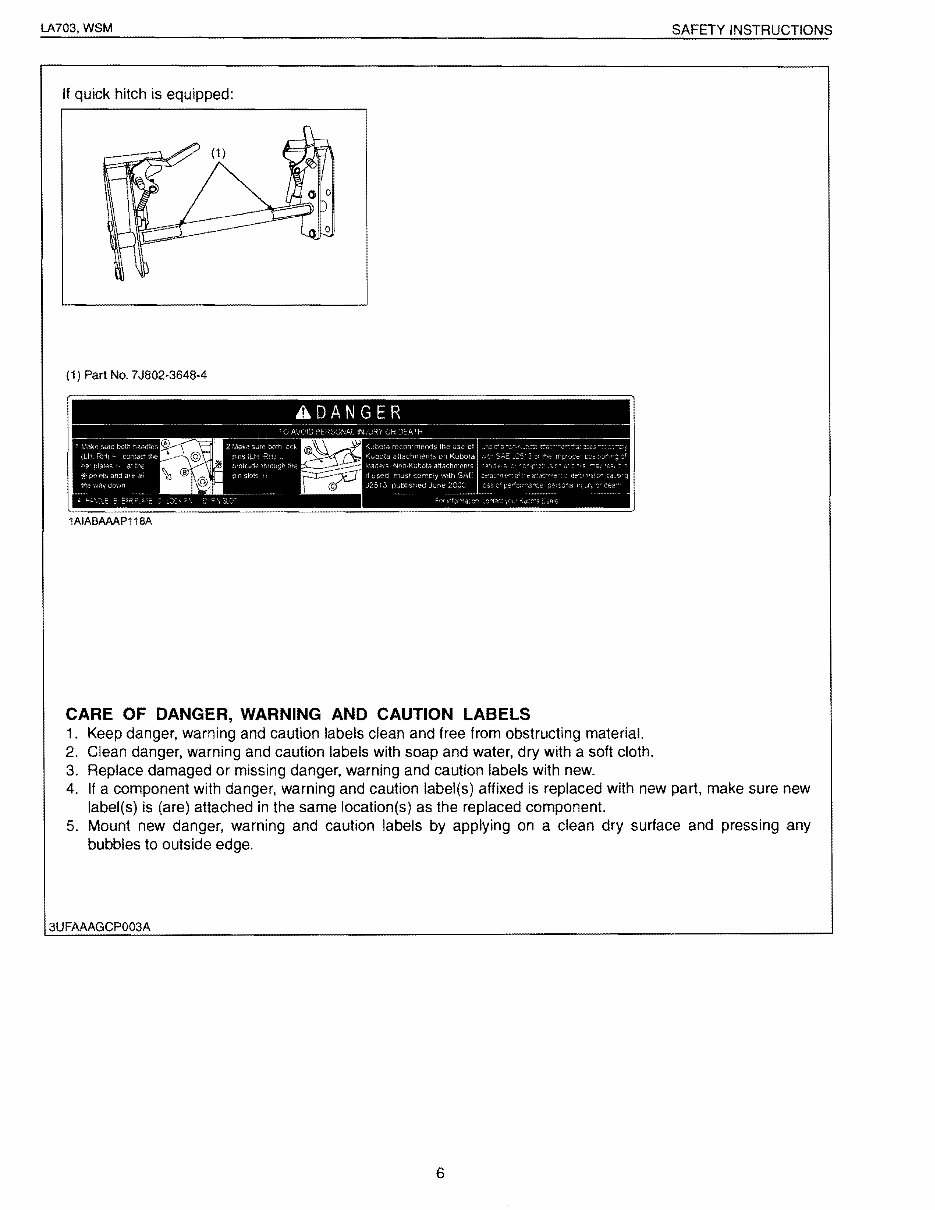

LA703, WSM SAFETY INSTRUCTIONS If quick hitch is equipped: (1) Part NO.7J802·3648-4 1AIABAAAP118A CARE OF DANGER, WARNING AND CAUTION LABELS 1. Keep danger, warning and caution labels clean and free from obstructing material. 2. Glean danger, warning and caution labels with soap and water, dry with a soft cloth. 3. Replace damaged or missing danger, warning and caution labels with new. 4. If a component with danger, warning and caution label(s) affixed is replaced with new part, make sure new label(s) is (are) attached in the same location(s) as the replaced component. 5. Mount new danger, warning and caution labels by applying on a clean dry surface and pressing any bubbles to outside edge. 3UFAAAGCP003A 6

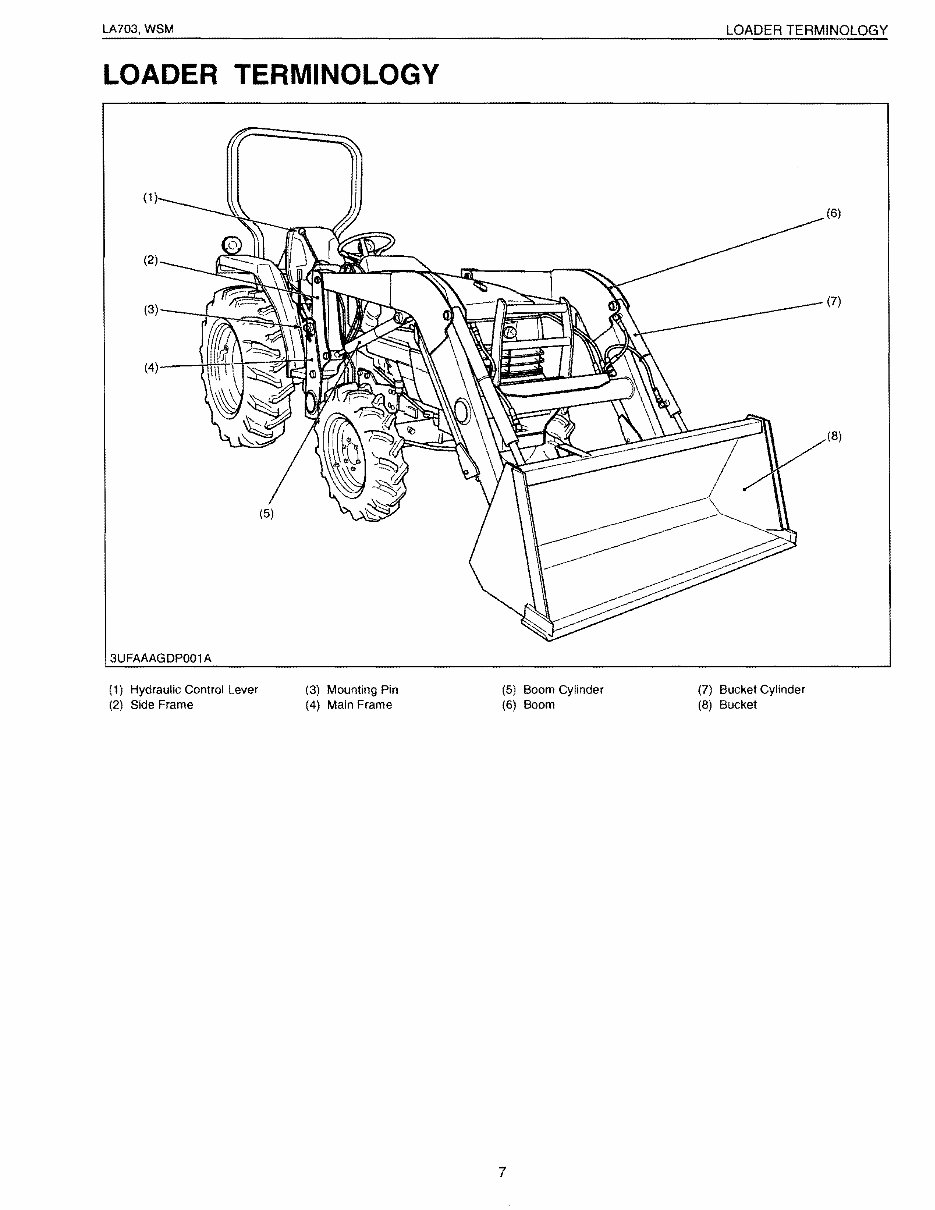

LA703, WSM LOADER TERMINOLOGY LOADER TERMINOLOGY (6) (7) (8) 3UFAAAGDPOOl A (1) Hydraulic Control Lever (3) Mounting Pin (5) Boom Cylinder (7) Bucket Cylinder (2) Side Frame (4) Main Frame (6) Boom (8) Bucket 7

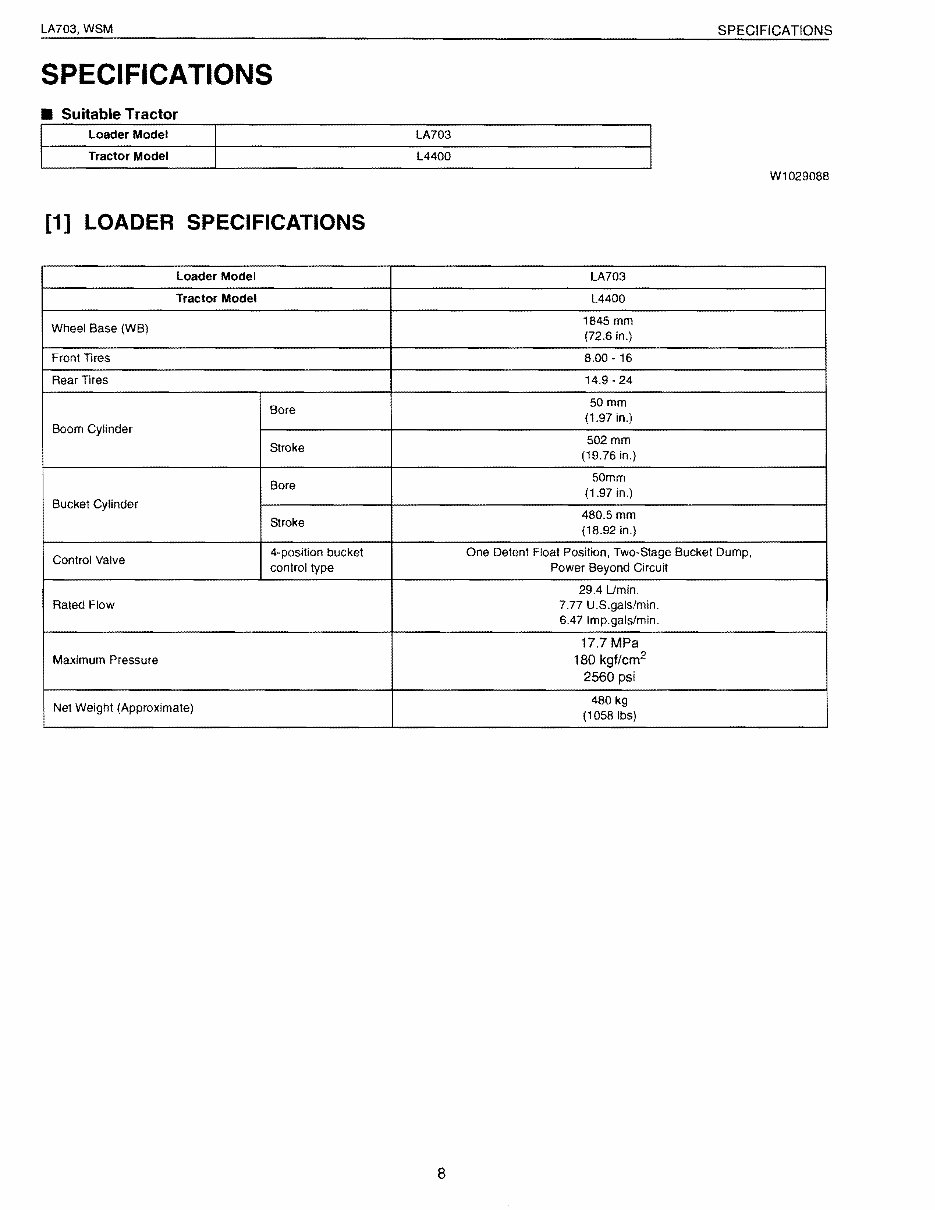

LA703, WSM SPECIFICATIONS SPECIFICATIONS • Suitable Tractor Loader Model LA703 Tractor Model L4400 W1029088 [1] LOADER SPECIFICATIONS Loader Model LA703 Tractor Model L4400 Wheel Base (WB) 1845 mm (72.6 in.) Front Tires 8.00 - 16 Rear Tires 14.9 - 24 Boom Cylinder Bore 50mm (1.97 in.) Stroke 502mm (19.76 in.) Bucket Cylinder Bore 50mm (1.97 in.) Stroke 480.5mm (18.92 in.) Control Valve 4-posilion bucket control type One Detent Float Position, Two-Stage Bucket Dump, Power Beyond Circuit Rated Flow 29.4 Umin. 7.77 U.S.gals/min. 6.47 Imp.gals/min. Maximum Pressure 17.7 MPa 180 kgflcm 2 2560 psi Net Weight (Approximate) 480 kg (1058Ibs) 8

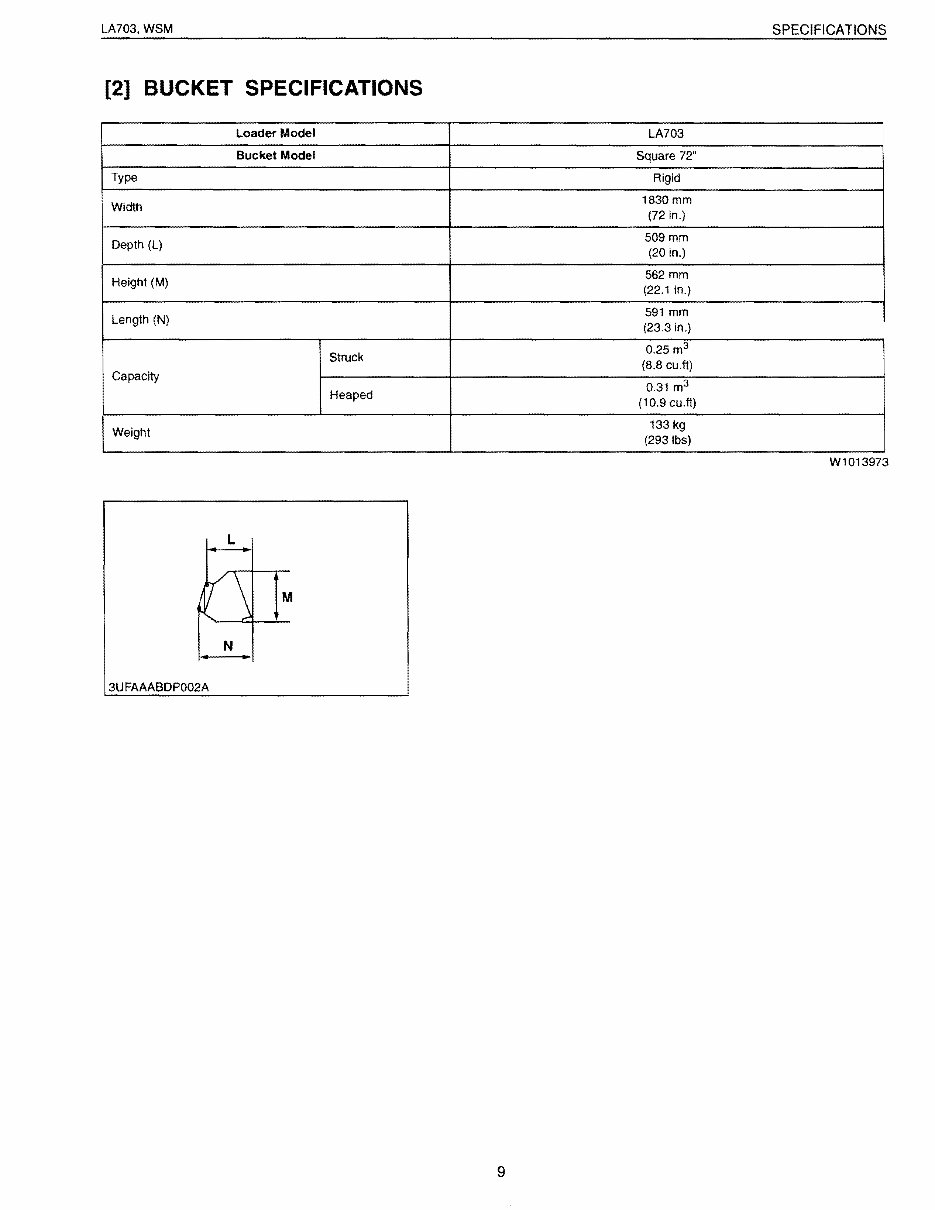

LA703. WSM SPECIFICATIONS [2] BUCKET SPECIFICATIONS Loader Model LA703 I Bucket Model Square 72" Type Rigid Width 1830 mm (72 in.) Depth (L) 509mm (20 in.) Height (M) 562 mm (22.1 in.) Length (N) 591 mm (23.3 in.) i Capacity Struck 0.25 m 3 (8.8 cu.ft) Heaped 0.31 m 3 (10.9 cu.ft) Weight 133 kg (293Ibs) W1013973 L r\ M N 3U FAAABDP002A 9

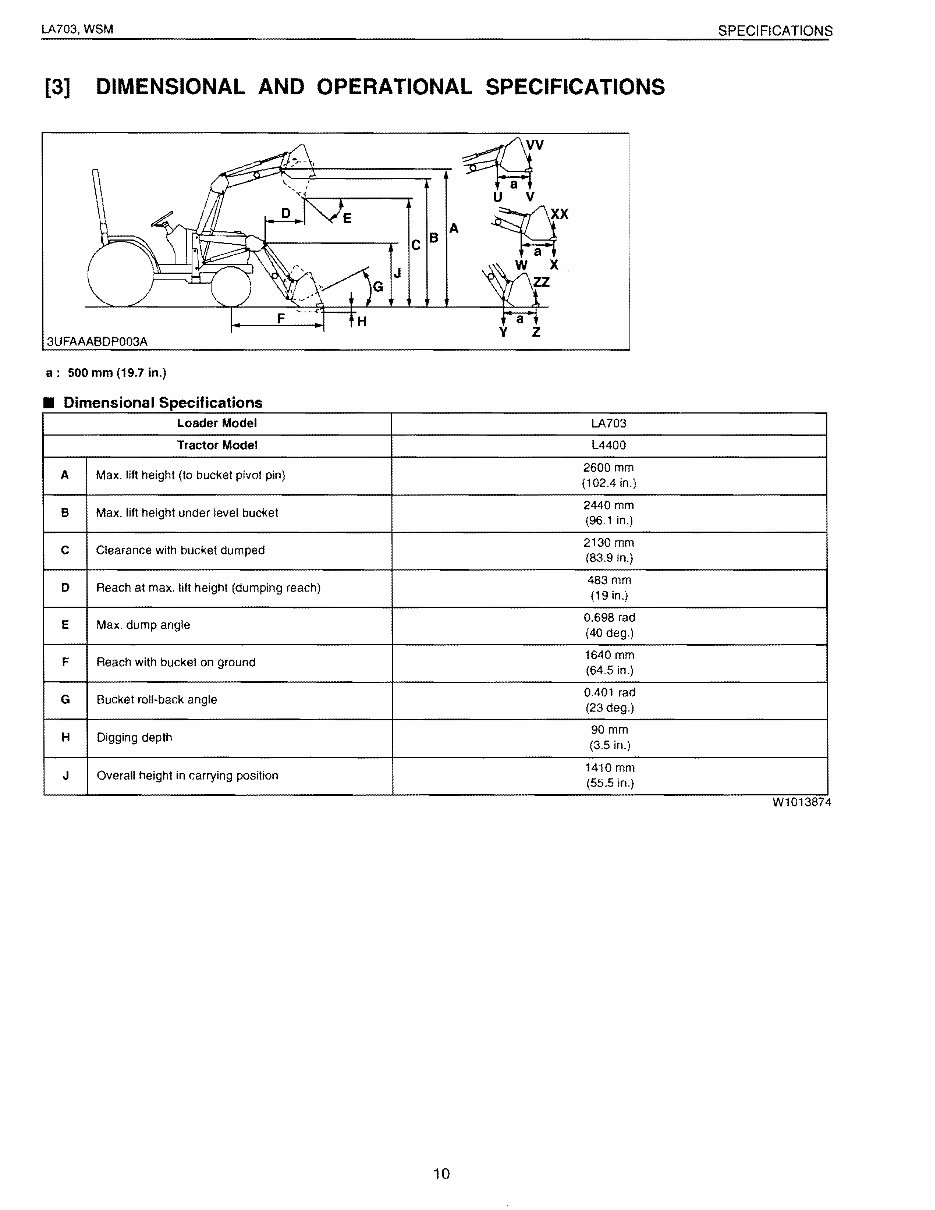

LA703, WSM SPECI FICATIONS [3] DIMENSIONAL AND OPERATIONAL SPECIFICATIONS 3UFAAABDP003A a: 500 mm (19.7 in.) • Dimensional Specifications ~w u v ~ J B A C w ZZ x y Z Loader Model LA703 Tractor Model L4400 A Max. lift heighl (to bucket pivot pin) 2600 mm (102.4 in.) B Max. lift height under level bucket 2440 mm (96.1 in.) C Clearance with bucket dumped 2130 mm (83.9 in.) 0 Reach at max. lift height (dumping reach) 483mm (19 in.) E Max. dump angle 0.698 rad (40 deg.) F Reach with bucket on ground 1640 mm (64.5 in.) G Bucket roll·back angle 0.401 rad (23 deg.) H Digging depth 90mm (3.5 in.) J Overall height in carrying position 1410 mm (55.5 in.) W1013874 10
