PART NO. 07150SL
Service Manual
Groundsmaster 7200/7210
Preface
The purpose of this publication is to provide the service
technician with information for troubleshooting, testing,
and repair of major systems and components on the
Groundsmaster 7200 and 7210.
REFER TO THE OPERATORS MANUAL FOR OPER-
ATING, MAINTENANCE AND ADJUSTMENT
INSTRUCTIONS. Space is provided in Chapter 2 of this
book to insert the Operators Manual and Parts Catalog
for your machine. Replacement Operators Manuals
and Parts Catalogs are available on the internet at
The Toro Company reserves the right to change product
specifications or this publication without notice.
This safety symbol means DANGER, WARNING
or CAUTION, PERSONAL SAFETY INSTRUC-
TION. When you see this symbol, carefully read
the instructions that follow. Failure to obey the
instructions may result in personal injury.
NOTE: A NOTE will give general information about the
correct operation, maintenance, service, testing or
repair of the machine.
IMPORTANT: The IMPORTANT notice will give im-
portant instructions which must be followed to pre-
vent damage to systems or components on the
machine.
E The Toro Company 2007
Groundsmaster 7200/7210
This page is intentionally blank.
Groundsmaster 7200/7210
Table Of Contents
Chapter 1 Safety
General Safety Instructions 1 1 . . . . . . . . . . . . . . . . . .
Jacking Instructions 1 4 . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 2 Product Records and Maintenance
Product Records 2 1 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance 2 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

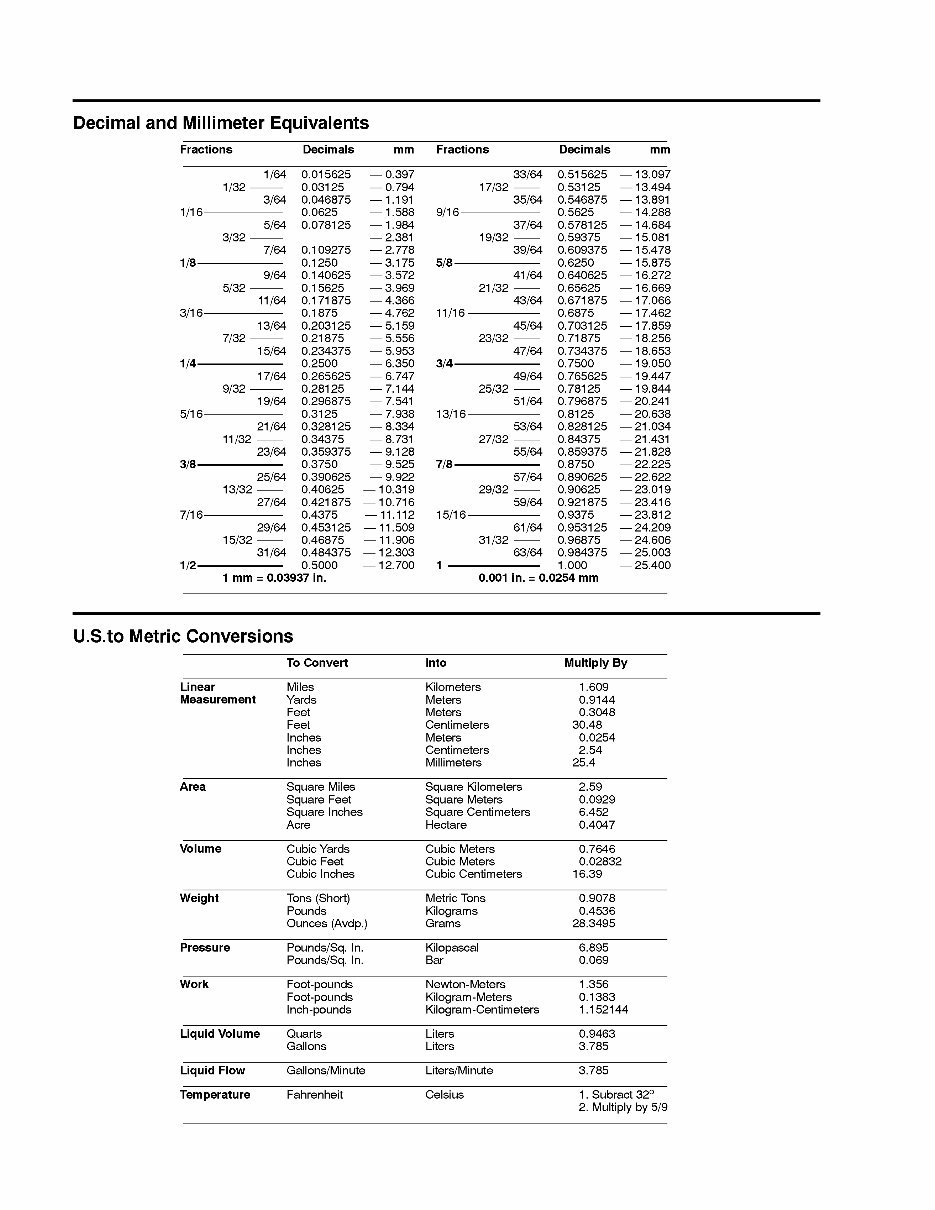

Equivalents and Conversions 2 2 . . . . . . . . . . . . . . . .
Torque Specifications 2 3 . . . . . . . . . . . . . . . . . . . . . . .
Chapter 3 Kubota Diesel Engine
Specifications 3 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Information 3 4 . . . . . . . . . . . . . . . . . . . . . . . .
Adjustments 3 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service and Repairs 3 6 . . . . . . . . . . . . . . . . . . . . . . . .
KUBOTA WORKSHOP MANUAL, DIESEL ENGINE,
05 SERIES
Chapter 4 Hydraulic System
Specifications 4 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Information 4 3 . . . . . . . . . . . . . . . . . . . . . . . .
Hydraulic Schematics 4 9 . . . . . . . . . . . . . . . . . . . . . . .
Hydraulic Flow Diagrams 4 10 . . . . . . . . . . . . . . . . . . .
Special Tools 4 18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 4 20 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Testing 4 24 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service and Repairs 4 43 . . . . . . . . . . . . . . . . . . . . . . .
PARKER TORQMOTOR
TM
SERVICE PROCEDURE
(TC, TB, TE, TJ, TF, TG, TH AND TL SERIES)
Chapter 5 Electrical System
Electrical Schematics and Diagrams 5 1 . . . . . . . . . .
Special Tools 5 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 5 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical System Quick Checks 5 8 . . . . . . . . . . . . . .
Component Testing 5 10 . . . . . . . . . . . . . . . . . . . . . . . .
Service and Repairs 5 28 . . . . . . . . . . . . . . . . . . . . . . .
Chapter 6 Chassis
Specifications 6 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Information 6 3 . . . . . . . . . . . . . . . . . . . . . . . .
Service and Repairs 6 4 . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 7 Cutting Deck
General Information 7 2 . . . . . . . . . . . . . . . . . . . . . . . .
Factors That Can Affect Cutting Performance 7 3 . .
Service and Repairs 7 5 . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 8 Foldout Diagrams
Hydraulic Schematics 8 3 . . . . . . . . . . . . . . . . . . . . . . .
Electrical Schematics 8 7 . . . . . . . . . . . . . . . . . . . . . . .
Electrical Circuit Diagrams 8 9 . . . . . . . . . . . . . . . . . . .
Wire Harness Drawings 8 13 . . . . . . . . . . . . . . . . . . . .
Safety Product Records
and Maintenance
Kubota
Diesel Engine
Hydraulic
System
Electrical
System
Chassis Cutting
Deck
Foldout
Diagrams
Groundsmaster 7200/7210
This page is intentionally blank.
Groundsmaster 7200/7210 Page 1 1 Safety
Chapter 1
Safety
Table of Contents
GENERAL SAFETY INSTRUCTIONS 1 . . . . . . . . . . . .
Supervisors Responsibilities 1 . . . . . . . . . . . . . . . . .
Before Operating 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
While Operating 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance and Service 3 . . . . . . . . . . . . . . . . . . . .

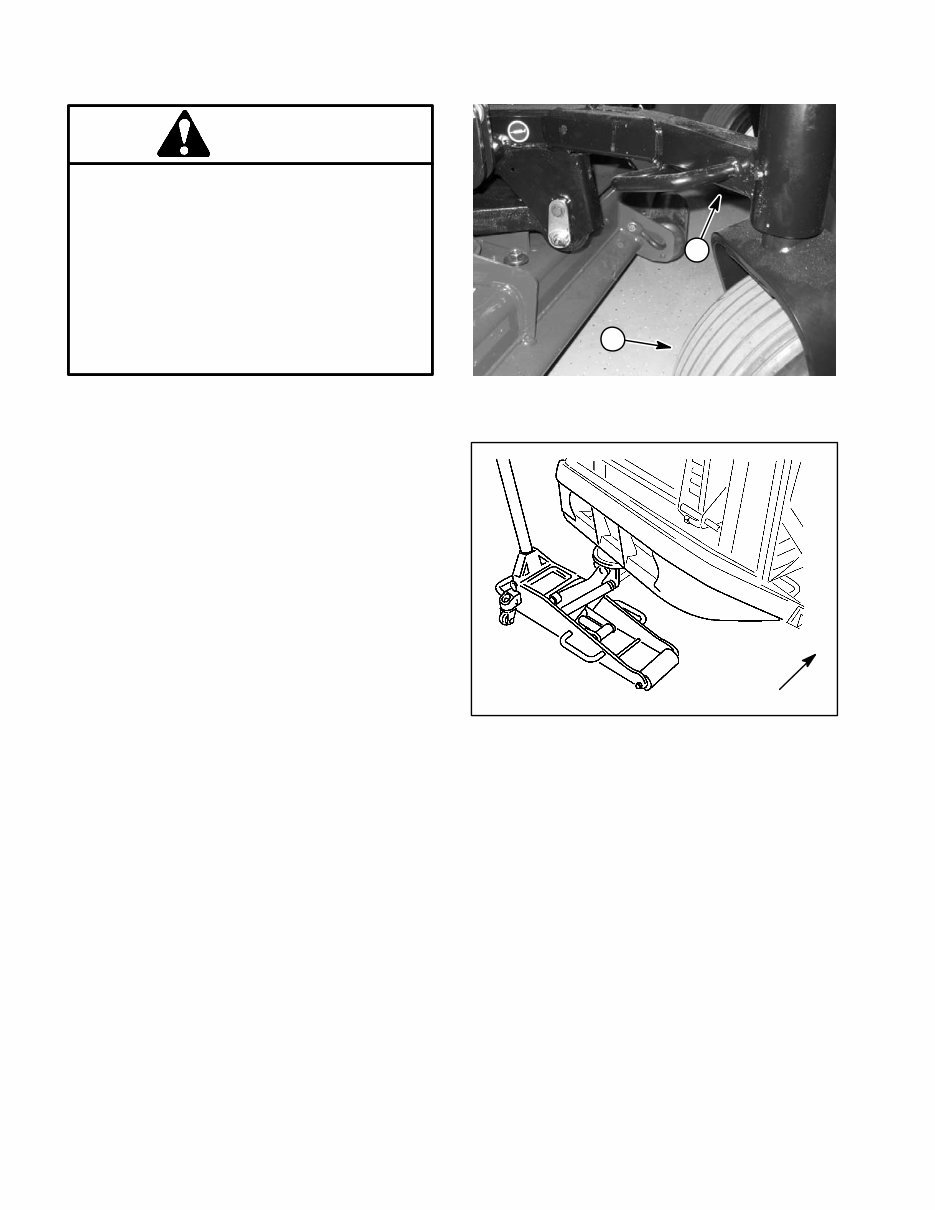

JACKING INSTRUCTIONS 4 . . . . . . . . . . . . . . . . . . . . .
General Safety Instructions
Groundsmaster 7200 and 7210 machines meet or ex-
ceed safety standard specifications as identified in the
Operators Manual. Although hazard control and acci-
dent prevention are dependent partially upon the design
and configuration of the machine, these factors are also
dependent upon the awareness, concern and proper
training of the personnel involved in the operation, trans-
port, maintenance and storage of the machine. Improp-
er use or maintenance by the operator or owner of the
machine can result in injury. To reduce the potential for
any injury, comply with the following safety instructions
as well as information found in the Operators Manual.
WARNING
To reduce the potential for injury or death,
comply with the following safety instructions.
Supervisors Responsibilities
1. Make sure operators are thoroughly trained and fa-
miliar with the Operators Manual, Operator Training
DVD and all of the operating and safety decals on the
machine.
2. Be sure to establish your own special procedures
and work rules for unusual operating conditions (e.g.
slopes too steep for machine operation). Survey mow-
ing site completely to determine which hills can be
operated on safely. When performing this site survey,
always use common sense and take into consideration
the turf condition and the rollover risk. To perform a site
survey, follow the procedure outlined in the Operators
Manual.
Safety
Groundsmaster 7200/7210 Page 1 2 Safety
Before Operating
1. Review and understand the contents of the Opera-
tors Manual and Operator Training DVD before starting
and operating the machine. Become familiar with the
controls and know how to stop the machine and engine
quickly. A replacement Operators Manual is available
on the Internet at www.Toro.com or by sending the com-
plete model and serial number to:
The Toro Company
Attn. Technical Publications
8111 Lyndale Avenue South
Bloomington, Minnesota 554201196
2. Keep all shields, safety devices and decals in place.
If a shield, safety device or decal is defective, illegible or
damaged, repair or replace it before operating the ma-
chine.
3. Tighten any loose nuts, bolts or screws to ensure
machine is in safe operating condition.
4. Assure interlock switches are adjusted correctly so
engine cannot be started unless both drive handles are
in the neutral lock position, the PTO switch is OFF (dis-
engaged) and either the seat is occupied or the parking
brake is applied.
5. Since fuel is highly flammable, handle it carefully:
A. Store fuel in containers specifically designed for
this purpose.
B. Do not remove machine fuel tank cap while en-
gine is hot or running.
C. Do not smoke while handling fuel.
D. Fill fuel tank outdoors and only to within an inch of
the top of the tank, not the filler neck. Do not overfill.
E. Replace fuel tank and fuel container caps secure-
ly after refueling machine.
F. If fuel is spilled, do not attempt to start the engine
but move the machine away from the area of the spill-
age. Avoid creating any source of ignition until fuel
vapors have dissipated. Wipe up any spilled fuel.
While Operating
1. Sit on the seat when starting and operating the ma-
chine.
2. Before starting the engine:
A. Engage the parking brake.
B. Make sure both drive handles are in the neutral
lock position and the PTO switch is OFF (disen-
gaged).
C. After engine is started, release parking brake and
keep both drive handles in the neutral lock position.
Machine must not move. If movement is evident, the
traction linkage is adjusted incorrectly; therefore,
shut engine off and adjust traction linkage until ma-
chine does not move when both drive handles are in
the neutral lock position.
3. Do not run engine in a confined area without ade-
quate ventilation. Exhaust fumes are hazardous and
could possibly be deadly.
4. Do not touch engine, radiator or exhaust system
while engine is running or soon after it is stopped. These
areas could be hot enough to cause burns.
5. Before getting off the seat:
A. Ensure that both drive handles are in the neutral
lock position.
B. Lower and disengage cutting deck (or imple-
ment) and wait for all movement to stop.
C. Set parking brake.
D. Stop engine and remove key from ignition switch.
6. Anytime the machine is parked (short or long term),
the cutting deck (or implement) should be lowered to the
ground. This relieves pressure from the lift circuit and
eliminates the risk of the cutting deck (or implement) ac-
cidentally lowering to the ground.
7. Do not park on slopes unless wheels are chocked or
blocked.
Groundsmaster 7200/7210 Page 1 3 Safety
Maintenance and Service
1. Before servicing or making adjustments, lower cut-
ting deck (or implement), stop engine, set parking brake
and remove key from the switch.
2. Make sure machine is in safe operating condition by
keeping all nuts, bolts and screws tight.
3. Never store the machine or fuel container inside
where there is an open flame, such as near a water heat-
er or furnace.
4. Make sure all hydraulic line connectors are tight, and
all hydraulic hoses and lines are in good condition be-
fore applying pressure to the hydraulic system.
5. Keep body and hands away from pin hole leaks in hy-
draulic lines that eject high pressure hydraulic fluid. Use
cardboard or paper to find hydraulic leaks. Hydraulic
fluid escaping under pressure can penetrate skin and
cause injury. Fluid accidentally injected into the skin
must be surgically removed within a few hours by a doc-
tor familiar with this form of injury or gangrene may re-
sult.
6. Before disconnecting or performing any work on the
hydraulic system, all pressure in the system must be re-
lieved by parking the machine on a level surface, lower-
ing the cutting deck (or implement) completely to the
ground and then stopping the engine.
7. When working on the hydraulic system and its com-
ponents, wear eye protection.
8. If major repairs are ever needed or assistance is de-
sired, contact your Authorized Toro Distributor.
9. Use care when checking or servicing the cutting
deck. Wear gloves and use caution when servicing it.
10.To reduce potential fire hazard, keep engine area
free of excessive grease, grass, leaves and dirt. Clean
protective screen on machine frequently.
11. If engine must be running to perform maintenance or
to make an adjustment, keep hands, feet, clothing and
other parts of the body away from the cutting deck (or im-
plement) and other moving parts. Keep bystanders
away.
12.Do not overspeed the engine by changing engine
governor setting. To assure safety and accuracy, check
maximum engine speed with a tachometer.
13.Shut engine off before checking or adding oil to the
engine crankcase.
14.Disconnect battery before servicing the machine.
Disconnect negative battery cable first and positive
cable last. If battery voltage is required for troubleshoot-
ing or test procedures, temporarily connect the battery.
Reconnect positive battery cable first and negative
cable last.
15.Battery acid is poisonous and can cause burns. Pre-
vent acid contact with skin, eyes and clothing. Protect
your face, eyes and clothing when working with a bat-
tery.
16.Battery gases can explode. Keep cigarettes, sparks
and flames away from the battery.
17.If welding on the machine is necessary, disconnect
the battery cables to prevent electrical system damage.
Disconnect negative battery cable first and positive
cable last.
18.At the time of manufacture, the machine conformed
to the safety standards for riding mowers. To assure op-
timum performance and continued safety certification of
the machine, use genuine Toro replacement parts and
accessories. Replacement parts and accessories made
by other manufacturers may result in non-conformance
with the safety standards, and the warranty may be
voided.
19.When changing attachments, tires or performing
other service, use correct blocks, hoists and jacks.
Make sure machine is parked on a solid level floor such
as a concrete floor. Prior to raising the machine, remove
any attachments that may interfere with the safe and
proper raising of the machine. Always chock or block
wheels. Use appropriate jack stands to support the
raised machine. If the machine is not properly supported
by appropriate jack stands, the machine may move or
fall, which may result in personal injury (see Jacking In-
structions in this section).
Safety
Groundsmaster 7200/7210 Page 1 4 Safety
Jacking Instructions
CAUTION
When changing attachments, tires or performing
other service, use correct blocks, hoists and
jacks. Make sure machine is parked on a solid lev-
el floor such as a concrete floor. Prior to raising
machine, remove any attachments that may inter-
fere with the safe and proper raising of the ma-
chine. Always chock or block wheels. Use ap-
propriate jack stands to support the raised ma-
chine. If the machine is not properly supported by
appropriate jack stands, the machine may move
or fall, which may result in personal injury.
Jacking the Front
1. Apply parking brake and chock both rear tires to pre-
vent the machine from moving.
2. Position jack to machine:
A. On machines with cutting deck, position jack se-
curely under the square carrier frame tube near the
front castor wheel (Fig. 1). Do not use the cutting
deck as a jacking point.
B. On machines with Polar Trac
TM
Kit, position jack
securely under the lift arm pivot tube on the front of
machine. Do not use the implement as a jacking
point.
3. Use jack to raise front of machine.
4. After raising the front of the machine, use appropri-
ate jack stands under the frame to support the front of
the machine.
Jacking the Rear (Fig. 2)
IMPORTANT: Do not support machine on wheel
hubs (brake rotors).
1. Chock both front castor wheels to prevent the ma-
chine from moving.
2. Place jack securely under the rear frame.
3. Jack rear wheels off the ground.
4. Use appropriate jack stands under the frame to sup-
port the rear of the machine.
1. Front castor wheel 2. Front jacking point
Figure 1
2
1
Figure 2
FRONT OF MACHINE
Groundsmaster 7200/7210 Page 2 1 Product Records and Maintenance
Chapter 2
Product Records and Maintenance
Table of Contents
PRODUCT RECORDS 1 . . . . . . . . . . . . . . . . . . . . . . . . .
MAINTENANCE 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EQUIVALENTS AND CONVERSIONS 2 . . . . . . . . . . .
Decimal and Millimeter Equivalents 2 . . . . . . . . . . . .
U.S. to Metric Conversions 2 . . . . . . . . . . . . . . . . . . .
TORQUE SPECIFICATIONS 3 . . . . . . . . . . . . . . . . . . .
Fastener Identification 3 . . . . . . . . . . . . . . . . . . . . . . .
Using a Torque Wrench with an Offset Wrench 3 . .
Standard Torque for Dry, Zinc Plated and Steel
Fasteners (Inch Series) 4 . . . . . . . . . . . . . . . . . . . .
Standard Torque for Dry, Zinc Plated and Steel
Fasteners (Metric Fasteners) 5 . . . . . . . . . . . . . . .
Other Torque Specifications 6 . . . . . . . . . . . . . . . . . .
Conversion Factors 6 . . . . . . . . . . . . . . . . . . . . . . . . .
Product Records
Insert a copy of the Operators Manual and Parts Cata-
log for your Groundsmaster 7200 or 7210 at the end of
this chapter. Additionally, if any optional equipment or
accessories have been installed to your machine, insert
the Installation Instructions, Operators Manuals and
Parts Catalogs for those options at the end of this chap-
ter.
Maintenance
Maintenance procedures and recommended service in-
tervals for the Groundsmaster 7200 and 7210 are cov-
ered in the Operators Manuals. Refer to those
publications when performing regular equipment main-
tenance.
Product Records
and Maintenance
0.09375
