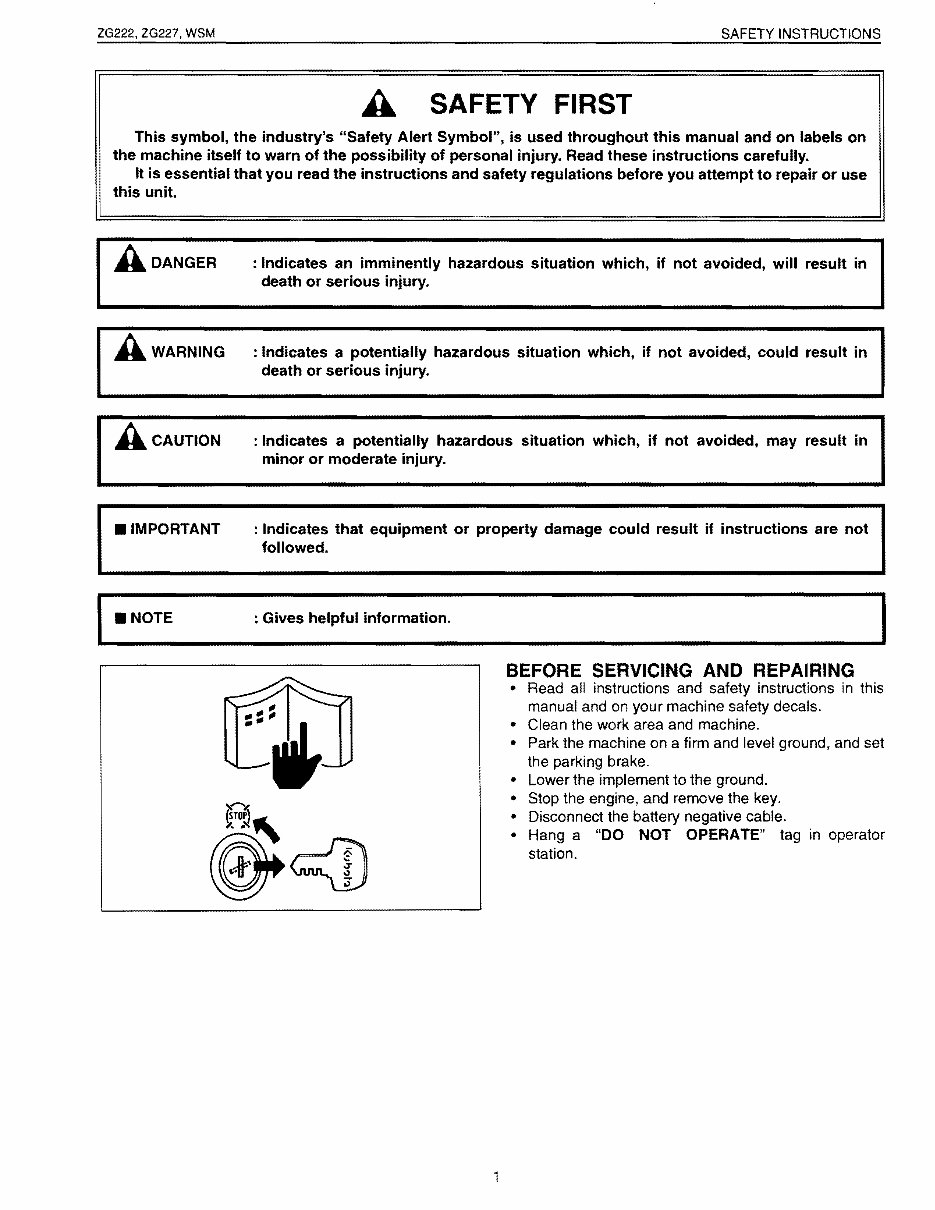

ZG222. ZG227. WSM SAFETY INSTRUCTIONS A SAFETY FIRST This symbol, the industry's "Safety Alert Symbol", is used throughout this manual and on labels on the machine itself to warn of the possibility of personal injury. Read these instructions carefully. It is essential that you read the instructions and safety regulations before you attempt to repair or use this unit. A DANGER : Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. A WARNING : Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. A CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. • IMPORTANT : Indicates that equipment or property damage could result if instructions are not followed. • NOTE : Gives helpful information. I BEFORE SERVICING AND REPAIRING • Read all instructions and safety instructions in this manual and on your machine safety decals. • Clean the work area and machine. • Park the machine on a firm and level ground, and set the parking brake. • Lower the implement to the ground. • Stop the engine, and remove the key. • Disconnect the battery negative cable. • Hang a ''~O NOT OPERA TE" tag in operator station.

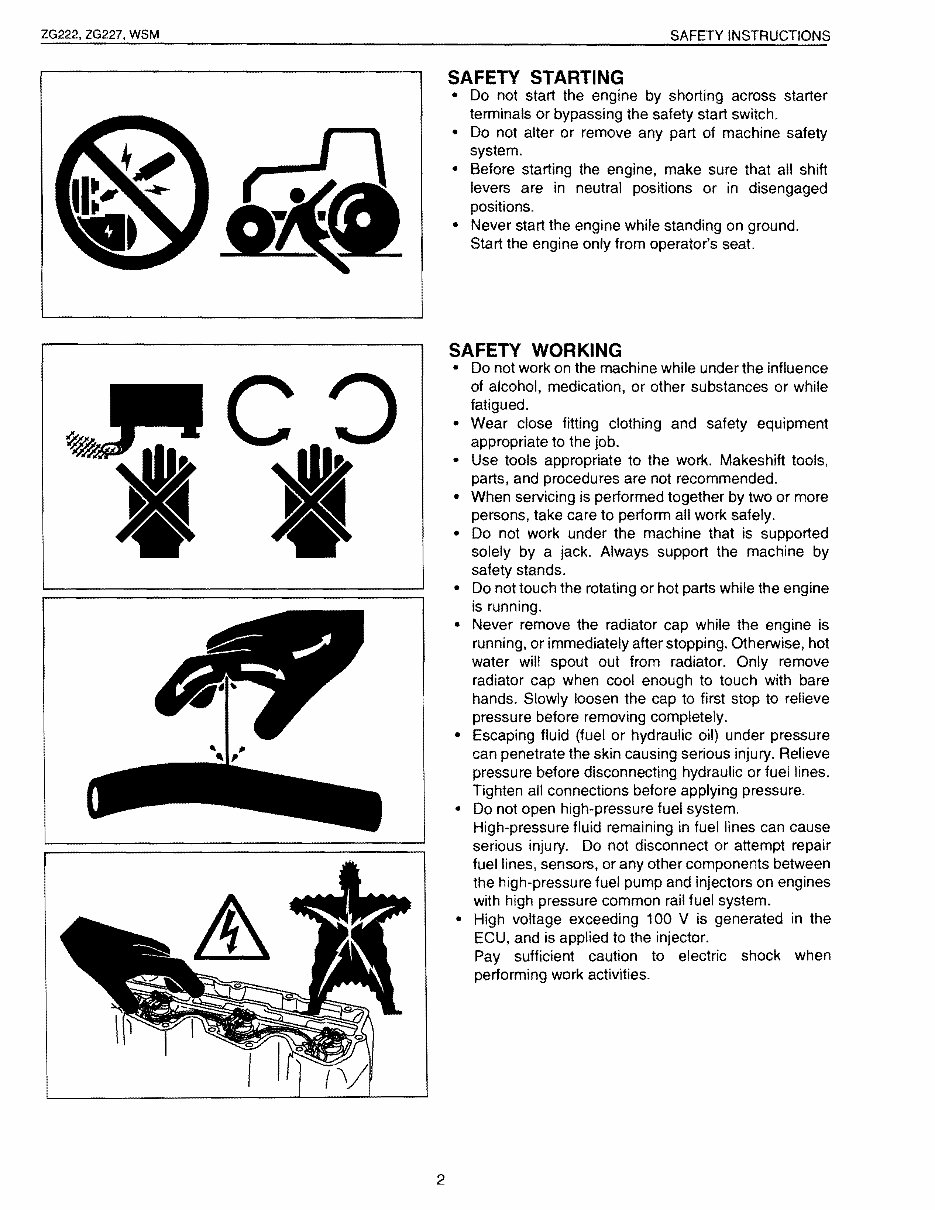

ZG222, ZG227, WSM SAFETY INSTRUCTIONS SAFETY STARTING • Do not start the engine by shorting across starter terminals or bypassing the safety start switch. • Do not alter or remove any part of machine safety system. • Before starting the engine, make sure that all shift levers are in neutral positions or in disengaged positions. • Never start the engine while standing on ground. Start the engine only from operator's seat. SAFETY WORKING • Do not work on the machine while under the influence of alcohol, medication, or other substances or while fatigued. • Wear close fitting clothing and safety equipment appropriate to the job. • Use tools appropriate to the work. Makeshift tools, parts, and procedures are not recommended. • When servicing is performed together by two or more persons, take care to perform all work safely. • Do not work under the machine that is supported solely by a jack. Always support the machine by safety stands. • Do not touch the rotating or hot parts while the engine is running. • Never remove the radiator cap while the engine is running, or immediately after stopping. Otherwise, hot water will spout out from radiator. Only remove radiator cap when cool enough to touch with bare hands. Slowly loosen the cap to first stop to relieve pressure before removing completely. • Escaping fluid (fuel or hydraulic oil) under pressure can penetrate the skin causing serious injury. Relieve pressure before disconnecting hydraulic or fuel lines. Tighten all connections before applying pressure. • Do not open high-pressure fuel system. High-pressure fluid remaining in fuel lines can cause serious injury. Do not disconnect or attempt repair fuel lines, sensors, or any other components between the high-pressure fuel pump and injectors on engines with high pressure common rail fuel system. • High voltage exceeding 100 V is generated in the ECU, and is applied to the injector. Pay sufficient caution to electric shock when performing work activities. 2

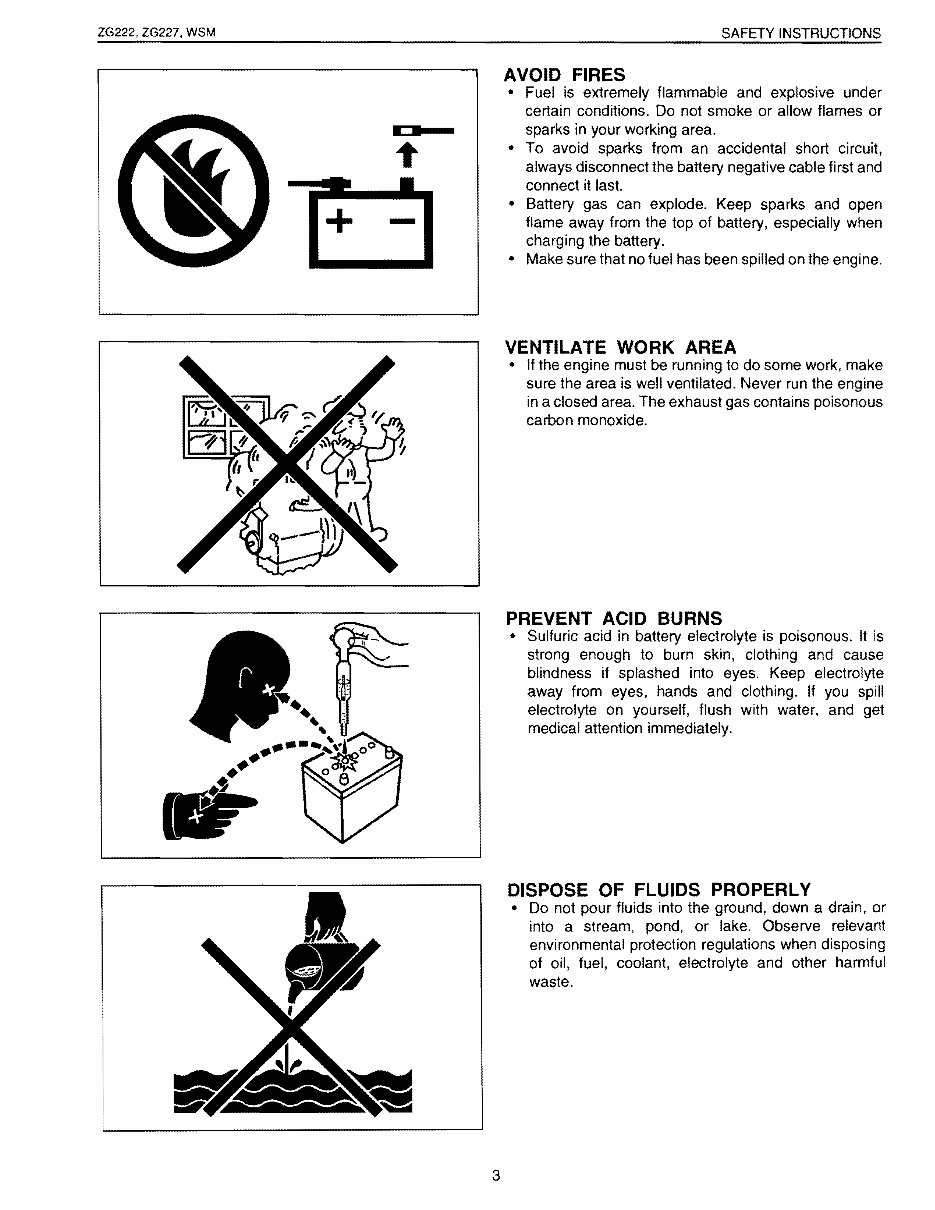

ZG222, ZG227, WSM SAFETY INSTRUCTIONS • + - AVOID FIRES • Fuel is extremely flammable and explosive under certain conditions. Do not smoke or allow flames or sparks in your working area . • To avoid sparks from an accidental short circuit, always disconnect the battery negative cable first and connect it last. • Battery gas can explode. Keep sparks and open flame away from the top of battery, especially when charging the battery. • Make sure that no fuel has been spilled on the engine. VENTILATE WORK AREA • If the engine must be running to do some work, make sure the area is well ventilated. Never run the engine in a closed area. The exhaust gas contains poisonous carbon monoxide. PREVENT ACID BURNS • Sulfuric acid in battery electrolyte is poisonous. It is strong enough to burn skin, clothing and cause blindness if splashed into eyes. Keep electrolyte away from eyes, hands and clothing. If you spill electrolyte on yourself, flush with water, and get medical attention immediately. DISPOSE OF FLUIDS PROPERLY • Do not pour fluids into the ground, down a drain, or into a stream, pond, or lake. Observe relevant environmental protection regulations when disposing of oil, fuel, coolant, electrolyte and other harmful waste. 3

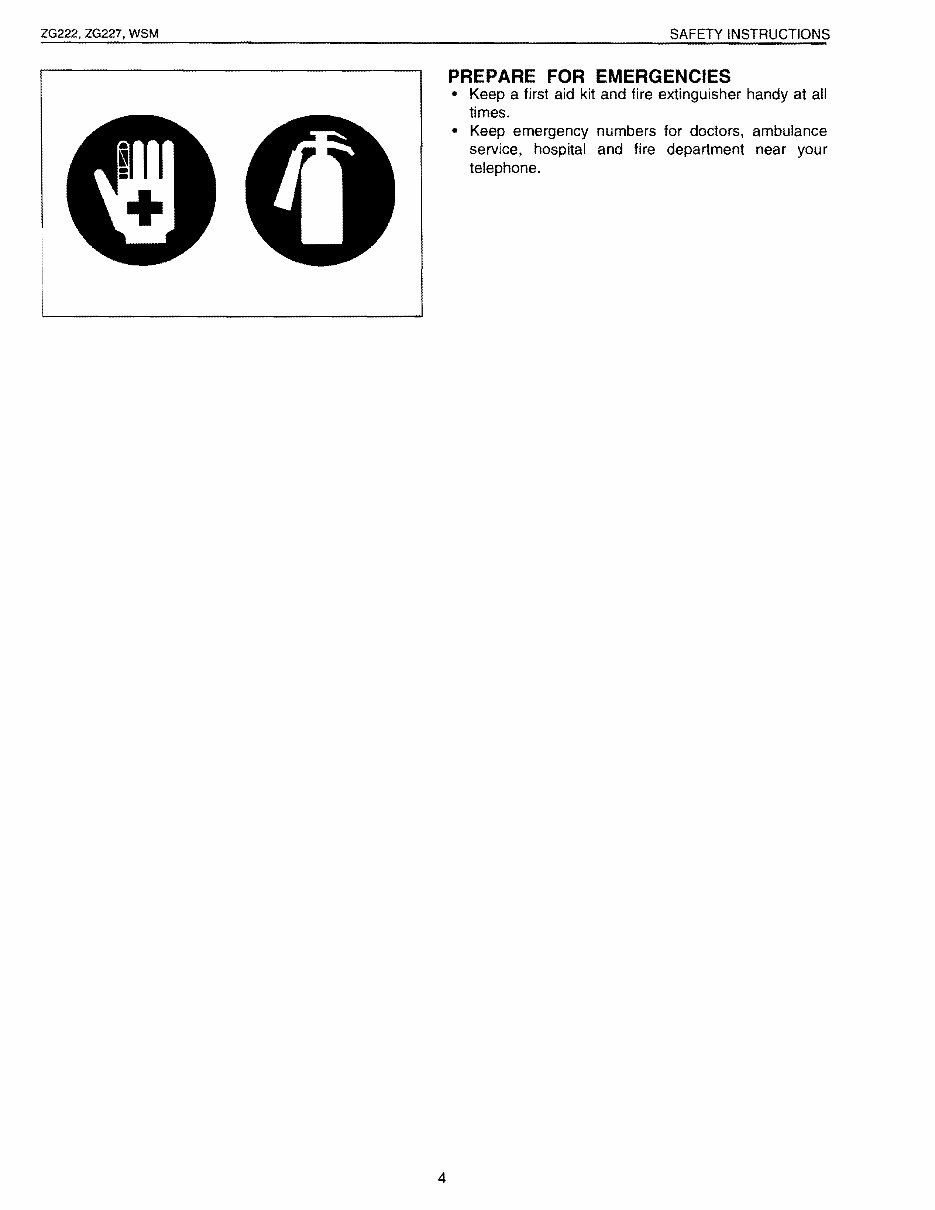

ZG222, ZG227, WSM SAFETY INSTRUCTIONS PREPARE FOR EMERGENCIES • Keep a first aid kit and fire extinguisher handy at all times. • Keep emergency numbers for doctors, ambulance service, hospital and fire department near your telephone. 4

ZG222, ZG227, WSM SAFETY INSTRUCTIONS SAFETY DECALS The following safety decals are installed on the machine. If a decal becomes damaged, illegible or is not on the machine, replace it. The decal part number is listed in the parts list. (1) Part No. K3181-6585-0 (1 ) AWARNING AADVERTENCIA 1BDABCQAP093A (2) Part No. K3271-6585-0 1BDABCYAP063A (4) Part No. K3271-6587-0 (3) Part No. K3271-6581-0 1BDABC YAP065A 1BDABCYAP064A 3GZAAAICP001 A 5

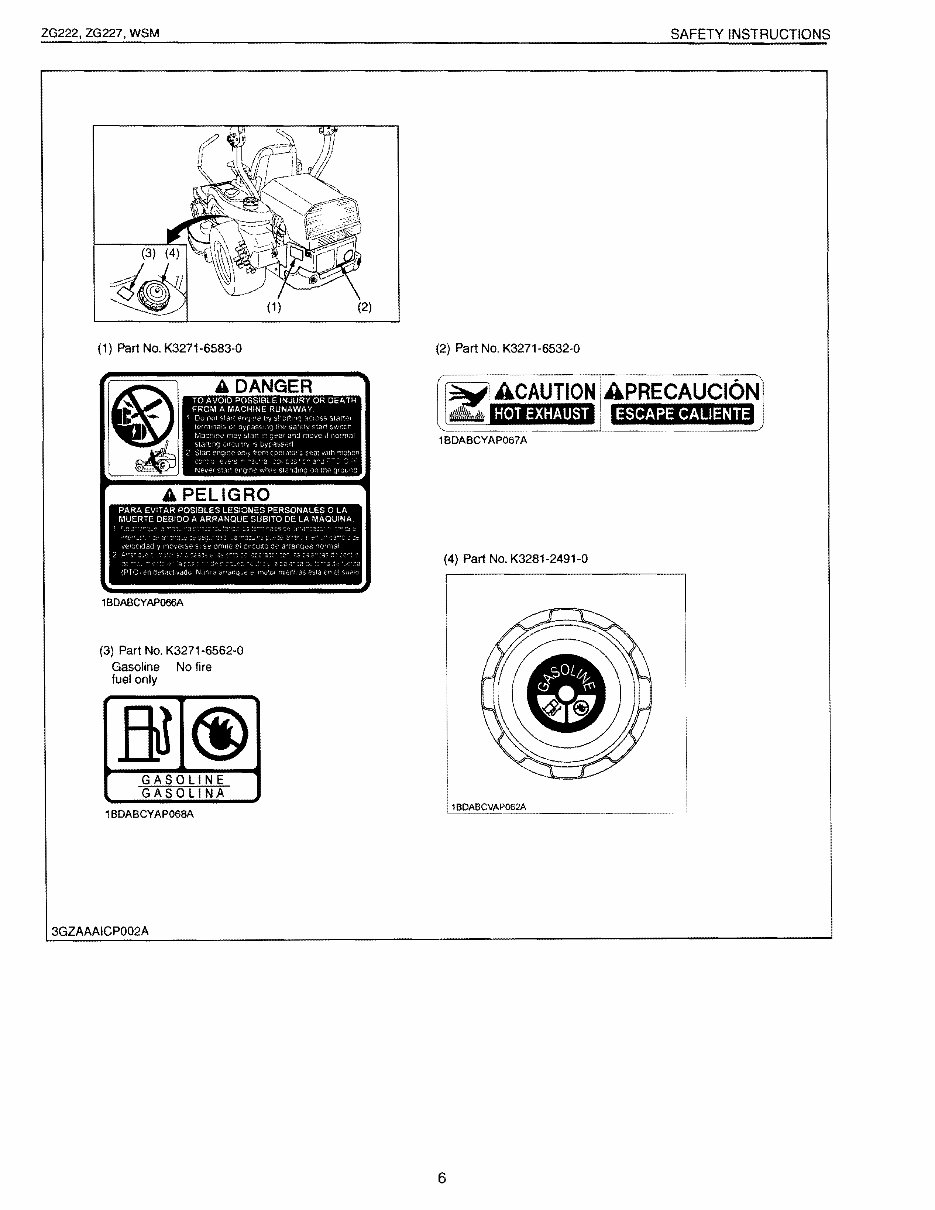

2G222, 2G227, WSM SAFETY INSTRUCTIONS (1) Part No. K3271-6583-0 (2) Part No. K3271-6532-0 A PELIGRO PARA EVITAR POSIBLES LESIONES PERSONALES 0 LA MUERTE DEBIDO A ARRANQUE SUBITO DE LA MAQUINA 1 t _;:> ~ " - ~ ~- ) • ~~ '2':: ~. ~ "a ,," 'I "'~ '" " '" ''1- 't~ , -"3:;-:;:-;-~ ~3~ 3""'1:;:_C'~~ ~-~:>~--"' -~~. veiOCid3d y me'.'!:>;;, .. ':'1 5e omlte;;1 c '~Ujto c(' ar anqlle nOfll al 2 :. "'~;; " " ~-_ '-,.. 3~" -::'):! :::- ,,~__n eI":: .... c:,,- ~ • - a~ - :;'"'~ ~~-~~ M ,:;~~~n a: • ~3'- ::1 IPTOI en d;';SJCl vad6 Nu"(3 ,war1q It' e mo'OI m12i!' JS c::;ta en 21 $uPlo 1BDABCYAP066A (3) Part No. K3271-6562-0 Gasoline No fire fuel only [~ti~~Jlli; APRECAUCION] 1 BDABCYAP067A (4) Part No. K3281-2491-0 GASOLINE GASOLINA 1BDABCYAP068A 3GZAAAICP002A 6

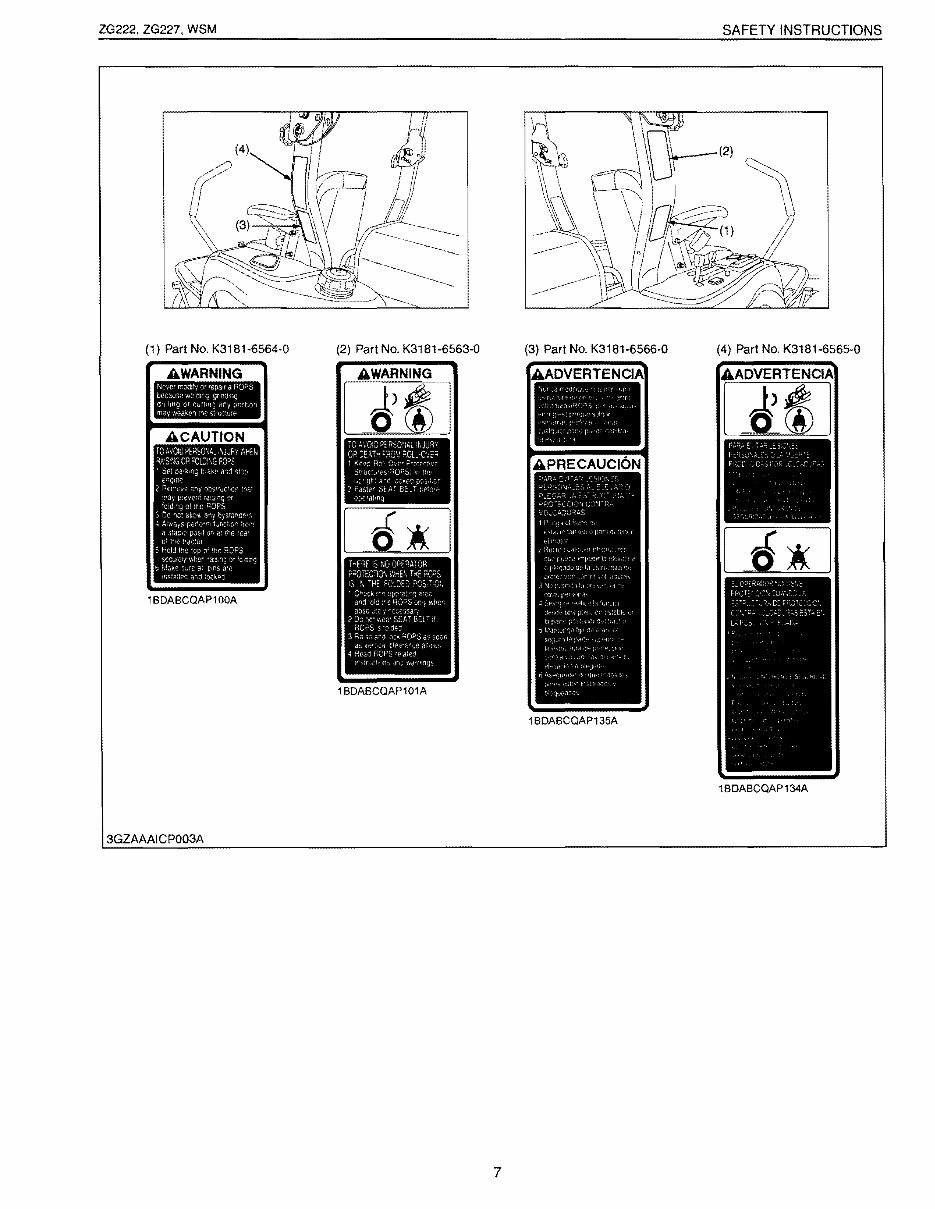

ZG222, ZG227, WSM SAFETY INSTRUCTIONS (1) Part No. K3181-6564-0 (2) Part No. K3181-6563-0 (3) Part No. K3181-6566-0 (4) Part No. K3181-6565-0 AWARNING AADVERTENCIA [~~l I~~[ 1BDABCQAP100A 1BDABCQAP101A 1BDABCQAP134A 3GZAAAICP003A 1BDABCQAP135A 7

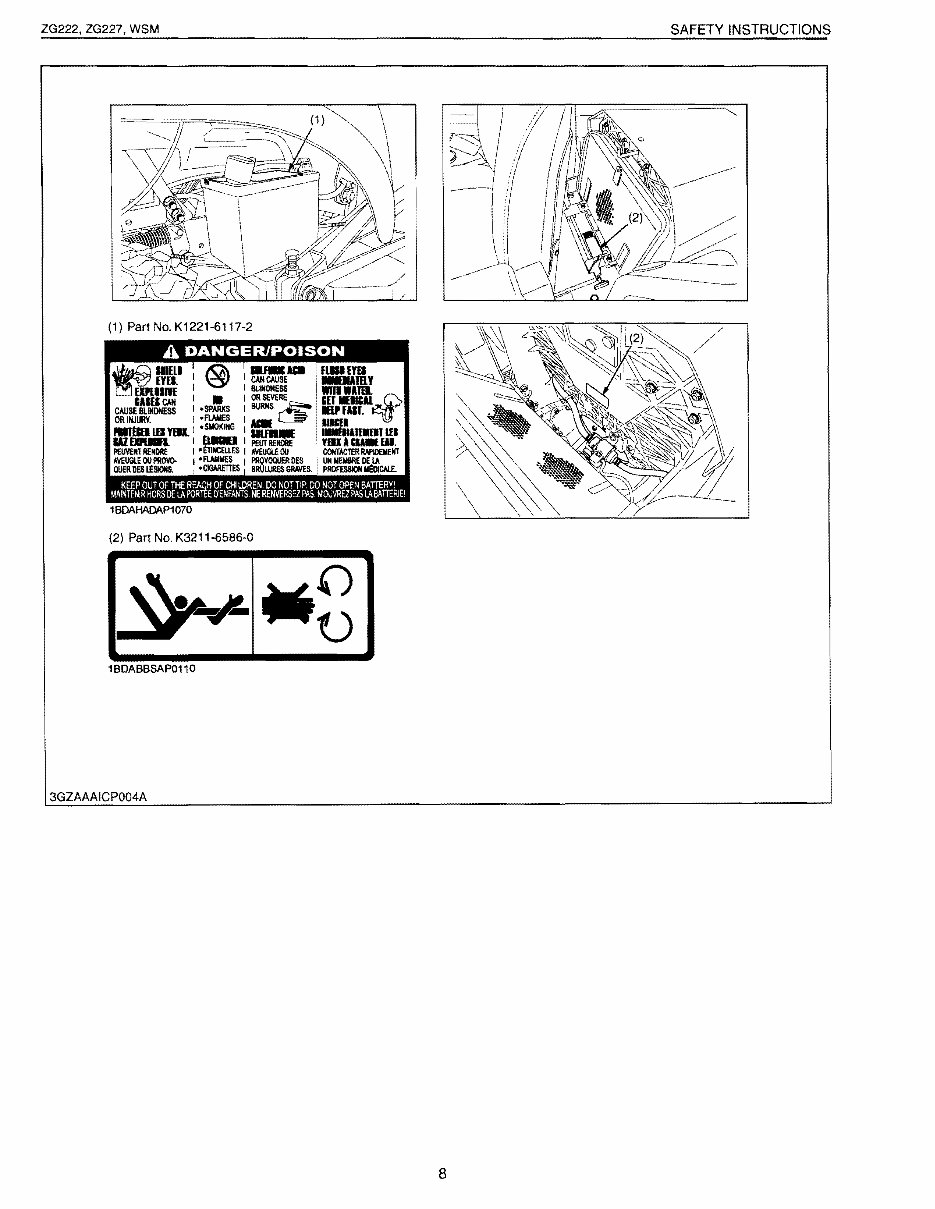

ZG222, ZG227, WSM SAFETY INSTRUCTIONS (1) Part No. K1221-6117-2 18OAHADAP1070 (2) Part No. K3211-6586-0 1BDABBSAP011 0 3GZAAAICP004A 8

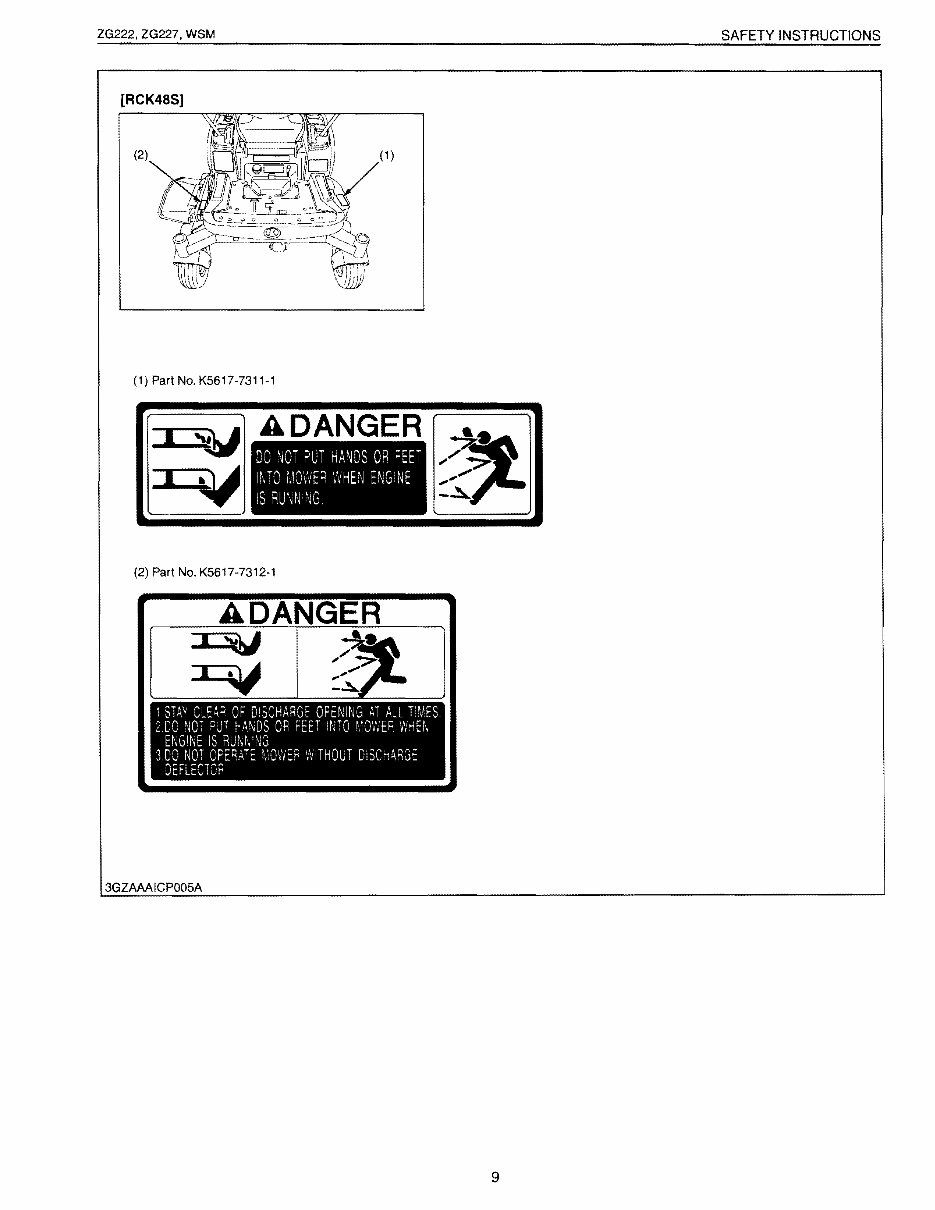

ZG222, ZG227, WSM SAFETY INSTRUCTIONS [RCK48S] (2) (1 ) (1) Part No. K5617-7311-1 I 'QJ ADANGER DO NOT ?UT HANDS OR ::EEi INTO /.lOViEo WHEN ~NGINE I~ IS RUWNG (2) Part No. K5617-7312-1 ADANGER ISiJI I -41 1STAv C.:AR OF DISCHARGE OPENING AT U TI~IES 2 DO NO~ PUT HANDS OR FEET IN~O ~iO\'IER WHE~ ENGINE IS RUNf\'NG 3 DO NOT OPEfl.n f,iOI'lER W THQUT DISChARGE DEFLECTOR 3GZAAAICP005A 9

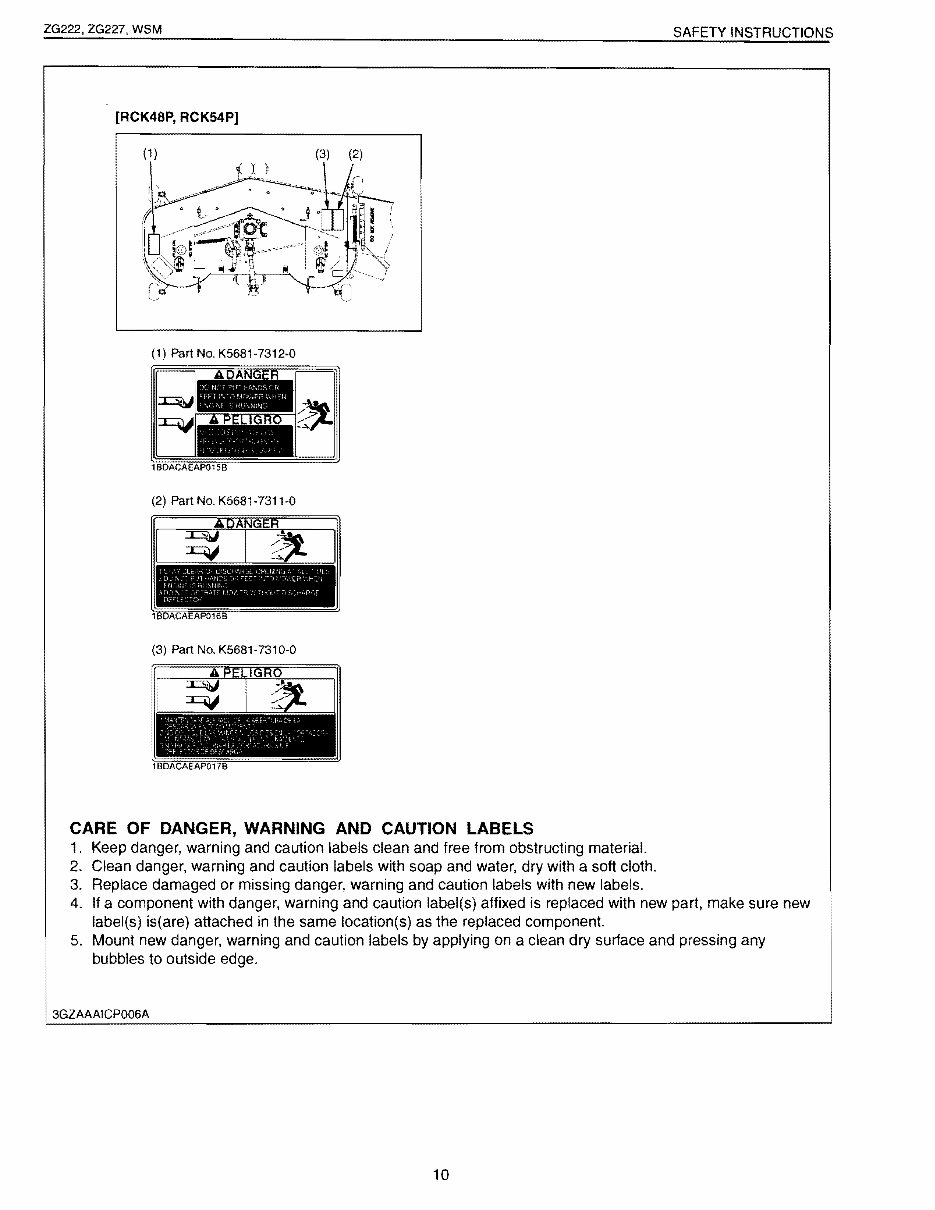

ZG222, ZG227, WSM SAFETY INSTRUCTIONS [RCK48P, RCK54P] (1) Part No. K5681-7312-0 (2) Part No. K5681-7311-0 (3) Part No. K5681-731 0-0 CARE OF DANGER, WARNING AND CAUTION LABELS 1. Keep danger, warning and caution labels clean and free from obstructing material. 2. Clean danger, warning and caution labels with soap and water, dry with a soft cloth. 3. Replace damaged or missing danger, warning and caution labels with new labels. 4. If a component with danger, warning and caution label(s) affixed is replaced with new part, make sure new label(s) is(are) attached in the same location(s) as the replaced component. 5. Mount new danger, warning and caution labels by applying on a clean dry surface and pressing any bubbles to outside edge. 3GZAAAlCP006A 10
