Kubota AT70S parts list

Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

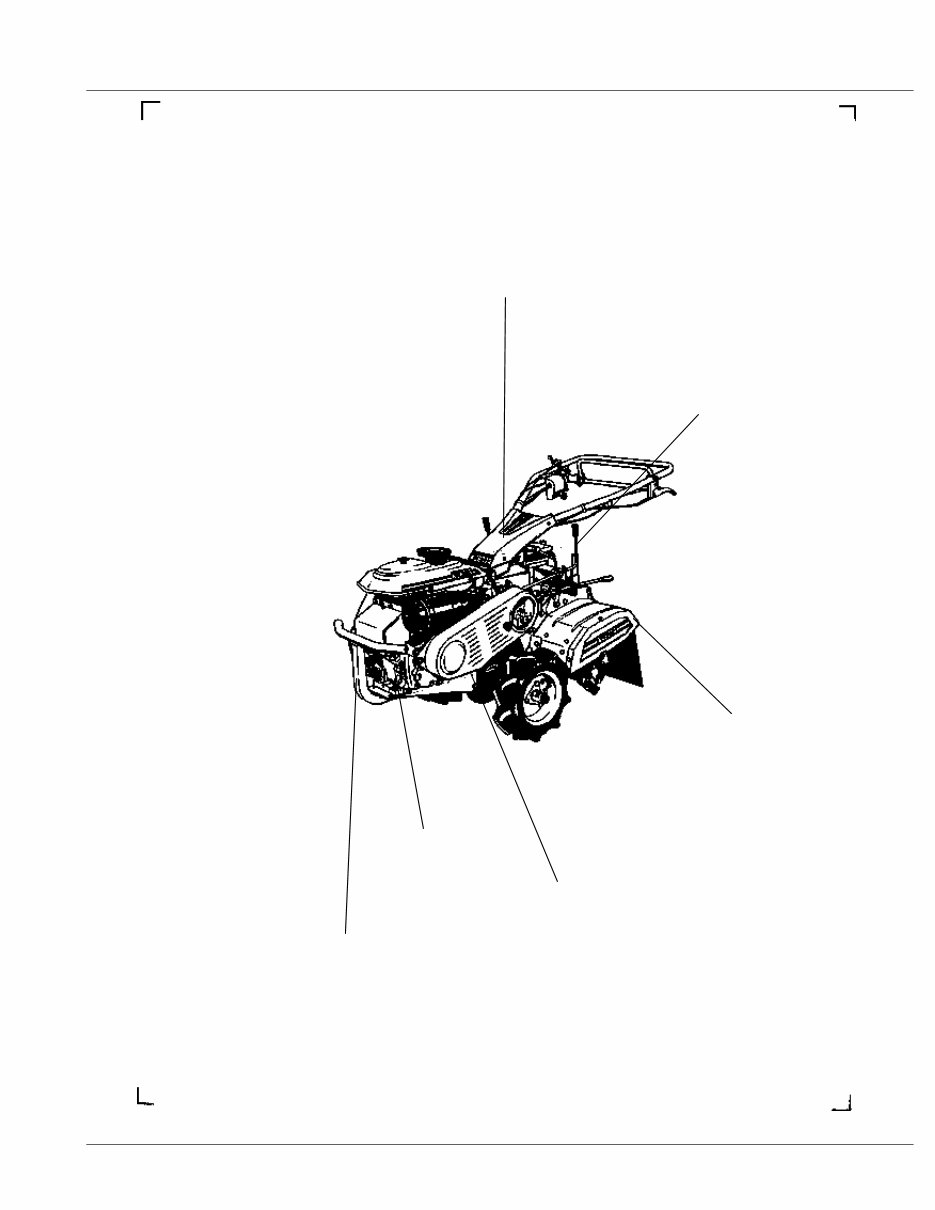

|ALL PRODUCT INDEX AT70S-AMERICA Ref. AT70S-AMERICA Page 56004 ENGINE TRANSMISSION AND TIRE ROTARY SPEED CHANGE LEVER LABELS FRONT FRAME AND COVER ELECTRICAL SYSTEM OPTION PARTS ACCESSRIES

Ref. AT70S-AMERICA Page 56004 Item Part No. Description Book ENGINE 01K001 CYLINDER 100K0378 01K002 BREATHER 100K0378 01K003 AIR CLEANER 100K0378 01K004 MUFFLER 100K0378 01K005 CAMSHAFT 100K0378 01K006 PISTON AND CRANKSHAFT 100K0378 01K007 GOVERNOR LEVER 100K0378 01K008 RECOIL STARTER 100K0378 01K009 MAGNETO 100K0378 01K010 CARBURETTOR [COMPONENT PARTS] 100K0378 TRANSMISSION AND TIRE 01K012 TRANSMISSION CASE 100K0378 01K013 GEAR 100K0378 01K014 TENSION PULLEY 100K0378 01K015 AXLE 100K0378 01K016 TIRE 100K0378 01K017 SHIFT FORK 100K0378 01K018 CHAIN CASE 100K0378 ROTARY 01K019 ROTARY CASE 100K0378 01K020 TILLAGE DRIVE SHAFT 100K0378 01K021 TINE SHAFT 100K0378 01K022 ROTATY COVER 100K0378 01K023 SIDE COVER 100K0378 SPEED CHANGE LEVER 01K024 TINE CHANGE LEVER 100K0378 01K025 HANDLE 100K0378 01K026 CHANGE LEVER 1 100K0378 01K027 CHANGE LEVER 2 100K0378 LABELS 01K028 LABEL 100K0378 FRONT FRAME AND COVER 01K029 FRONT FRAME 100K0378 01K030 BELT COVER 100K0378 01K031 FUEL TANK 100K0378 01K032 FURROWER [B TYPE] 100K0378 OPTION PARTS 01K035 OPTION PARTS 100K0378 ACCESSRIES 01K036 ACCESSORIES AND SERVICE PARTS 100K0378

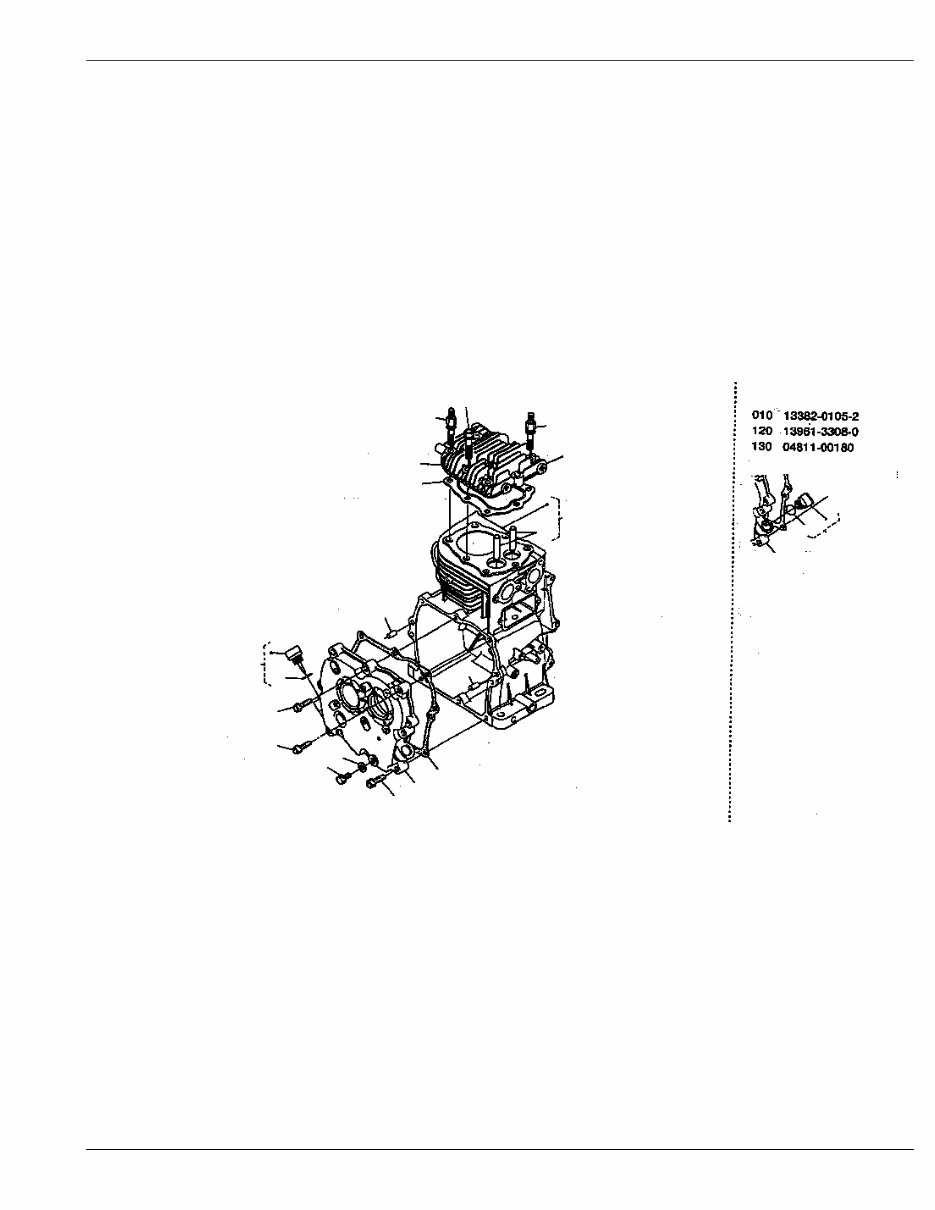

CYLINDER Reference: 01K001 Page: 1 010 010 020 030 030 040 040 040 050 060 070 080 090 090 100 110 120 120 130 130 140 150

CYLINDER Reference: 01K001 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 13382-01052 ASSY CRANKCASE 1 <=552261 1.06 2.332 010 13382-01053 ASSY CRANKCASE 1 >=552262 ≠ 1 2.2 020 13961-01180 GASKET,CRANKCASE 1 0 0 030 13325-94510 PIN,STRAIGHT 2 0.009 0.0198 040 13921-91120 BOLT 8 0.02 0.044 050 13418-02110 COMP.CYLINDER 1 <=552836 6.8 14.96 050 13418-02112 COMP.CYLINDER 1 >=552837 ≠ 6.8 14.96 060 13961-13950 GUIDE,INLET VALVE 2 0.02 0.044 070 13425-03110 CYLINDER HEAD 1 0.71 1.562 080 13961-03310 GASKET,CYLINDER HEAD 1 0 0 090 13961-03450 BOLT,CYLINDER HEAD 3 0.035 0.077 100 13382-03460 BOLT,CYLINDER HEAD 2 0.055 0.121 110 13181-03462 BOLT,CYLINDER HEAD 2 0.073 0.1606 120 13961-33080 ASSY PLUG,OIL FILLER 2 <=552261 0.013 0.0286 120 13961-33080 ASSY PLUG,OIL FILLER 1 >=552262 0.013 0.0286 130 04811-00180 O RING 2 <=552261 0.001 0.0022 130 04811-00180 O RING 1 >=552262 0.001 0.0022 140 13901-33750 PLUG,DRAIN 1 0.03 0.066 150 04724-00120 GASKET 1 0.002 0.0044

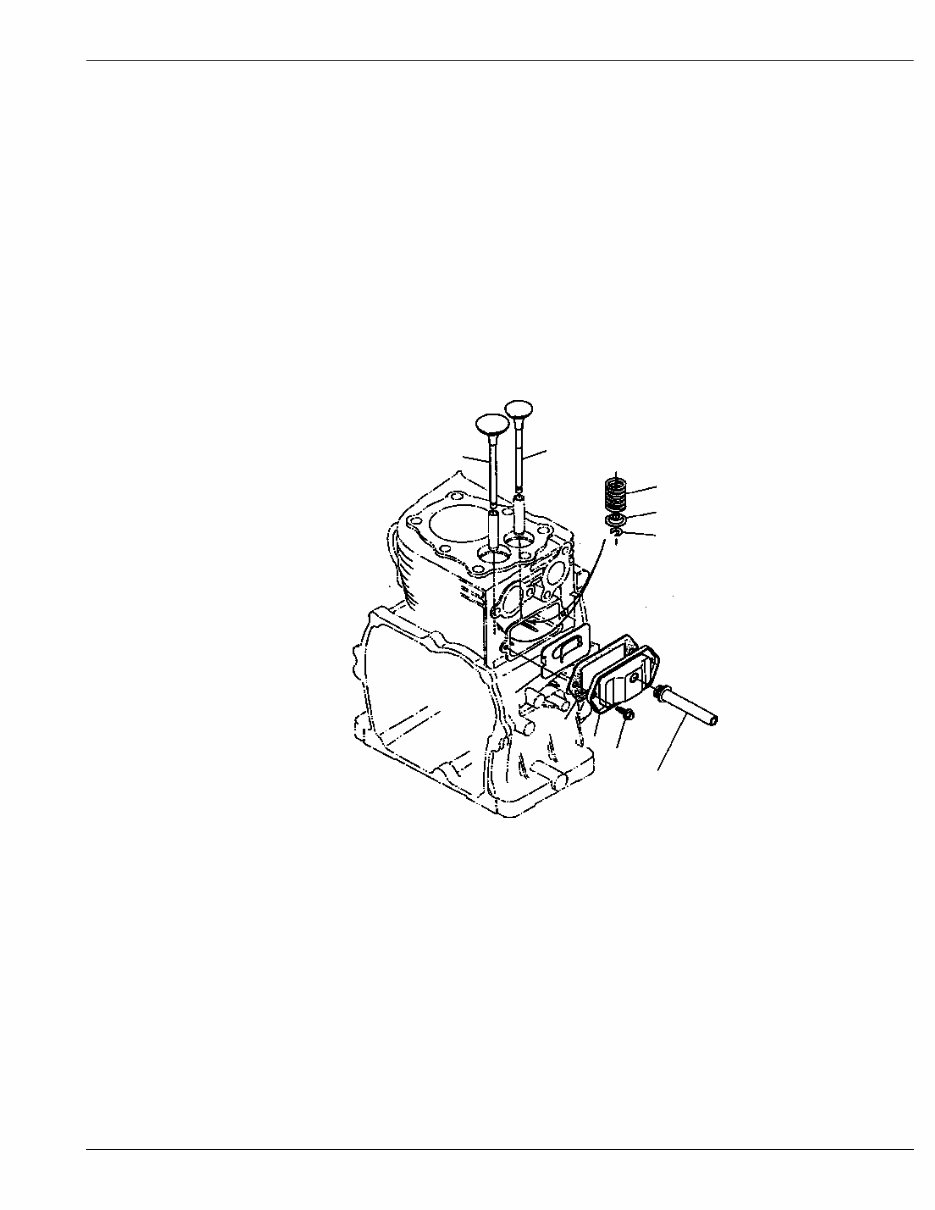

BREATHER Reference: 01K002 Page: 2 010 020 030 040 050 060 070 080 090 100

BREATHER Reference: 01K002 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 13961-05013 COMP.BREATHER 1 0.05 0.11 020 13961-13110 VALVE,INLET 1 0.05 0.11 030 13961-13910 VALVE,EXHAUST-EXPORT 1 <=552266 0 0 030 12451-13910 VALVE,EXHAUST-EXPORT 1 >=552267 ≠ 0.06 0.132 040 13641-13240 SPRING,VALVE 2 0.023 0.0506 050 13641-13330 RETAINER,VALVE SP. 2 0.006 0.0132 060 13268-13450 COLLET,VALVE SPRING 2 0.001 0.0022 070 12401-13810 COVER,TAPPET CASE 1 0.042 0.0924 080 13961-13820 GASKET 1 <=552386 0 0 080 12401-13820 GASKET 1 >=552387 ↔ 0 0 090 13801-91130 BOLT 2 <=552836 0.005 0.011 090 13901-91020 BOLT 2 >=552837 ≠ 0.005 0.011 100 13381-05510 PIPE,BREATHER 1 0.01 0.022

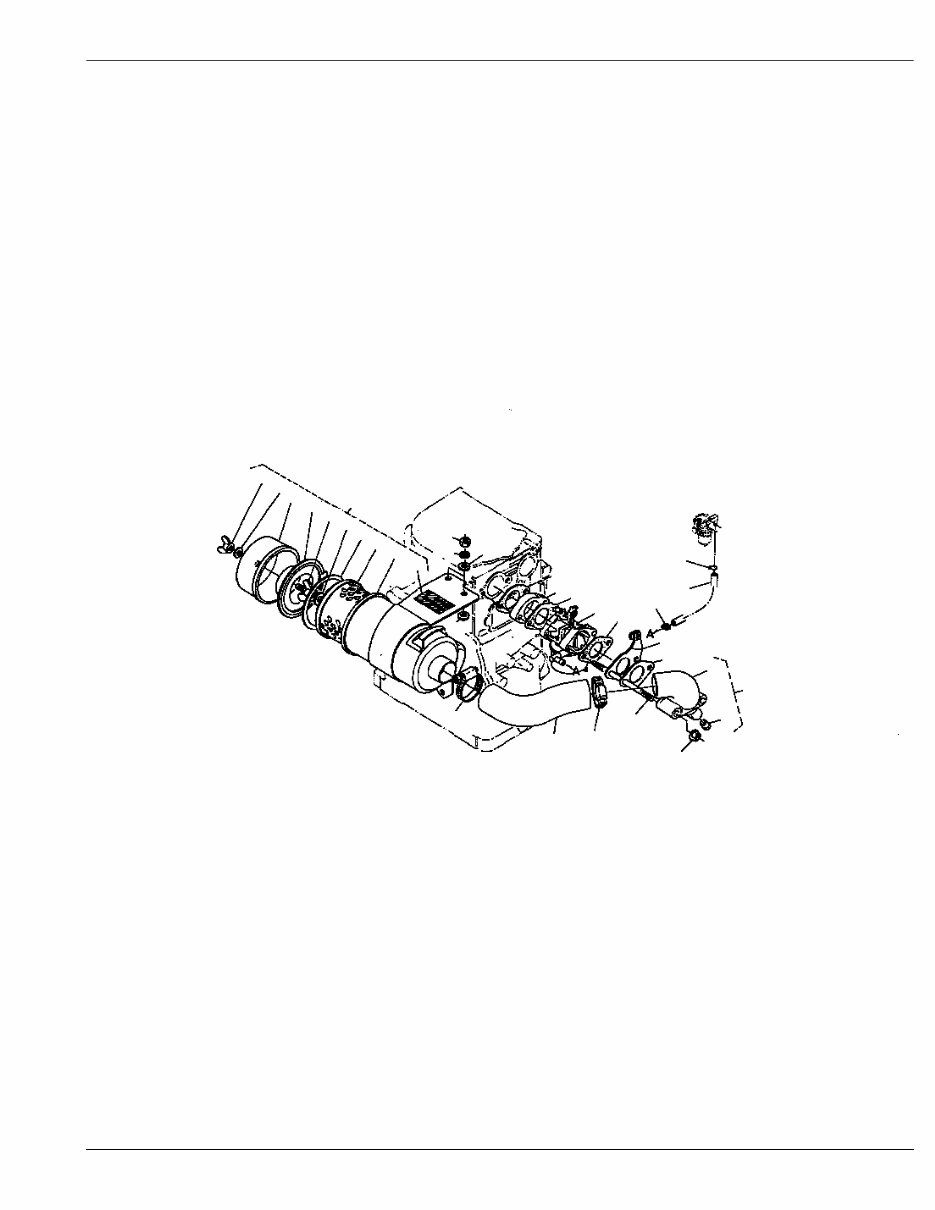

AIR CLEANER Reference: 01K003 Page: 3 010 020 030 040 045 050 060 070 080 090 100 110 120 130 140 150 160 160 170 180 190 200 200 210 220 230 240 250 260 270 280 290 300

AIR CLEANER Reference: 01K003 Page: 3 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 13415-11013 ASSY CLEANER,AIR 1 0 0 020 13382-11154 BODY,AIR CLEANER 1 0.94 2.068 030 13415-11080 ASSY ELEMENT 1 0.277 0.6094 040 13415-11412 COVER,BAFFLE 1 0.05 0.11 045 13382-11300 GASKET 1 0.002 0.0044 050 02810-50080 NUT,WING 1 0.014 0.0308 060 15221-94430 WASHER,WITH RUBBER 1 0.004 0.0088 070 02810-50060 NUT,WING 1 0.009 0.0198 080 04013-50060 WASHER,PLAIN 1 0 0 090 13382-11163 COVER,AIR CLEANER 1 0.11 0.242 100 13415-88452 LABEL,AIR CLEANER 1 0.001 0.0022 110 13382-11810 COMP ELBOW,A/C 1 0.156 0.3432 120 13382-11610 FLANGE,AIR CLEANER 1 0.14 0.308 130 13242-05550 JOINT 1 0.02 0.044 140 13961-11510 GASKET,AIR CLEANER 1 0 0 150 02114-50080 NUT 2 0.005 0.011 160 04013-50080 WASHER,PLAIN 4 0 0 170 04512-50080 WASHER,SPRING 2 0 0 180 13961-92010 NUT 2 0.005 0.011 190 13382-11620 PIPE,INLET 1 0.14 0.308 200 13382-72860 BAND 2 0.03 0.066 210 13951-42180 PIPE,FUEL 1 0.01 0.022 220 13621-42360 CLIP,FUEL PIPE 1 0 0 230 13415-44013 ASSY CARBURETTOR 1 <=551979 0 0 230 13415-44014 ASSY CARBURETTOR 1 >=551980 ← 0 0 230 13415-44015 ASSY CARBURETTOR 1 >=552262 ← 0 0 230 13415-44016 ASSY CARBURETTOR 1 >=552267 ← 0.23 0.506 240 13961-46150 FLANGE,CARBURETTOR 1 0.015 0.033 250 13961-46160 PACKING,CARB.FLANGE 1 0 0 260 13961-46110 GASKET,CARBURETTOR 1 0 0 270 13381-91520 STUD 2 0.048 0.1056 300 62411-54730 CLIP,PIPE 1 0.005 0.011

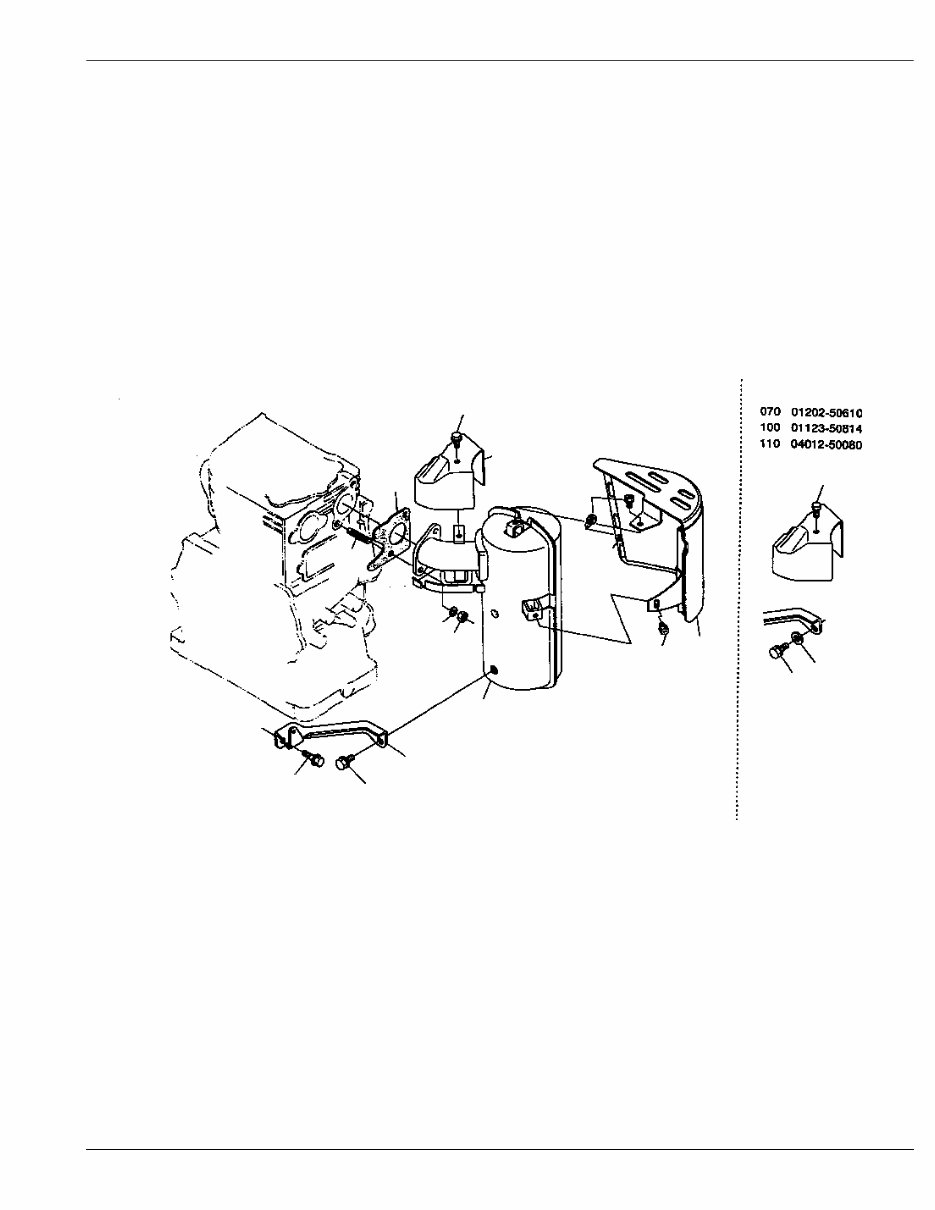

MUFFLER Reference: 01K004 Page: 4 010 020 030 040 050 060 070 070 080 090 100 100 110 120 130 130
