Collection of 3 files - Simplicity 4040 Power Max Repair Service Manual & Illustrated Parts Catalog & Operator Manual

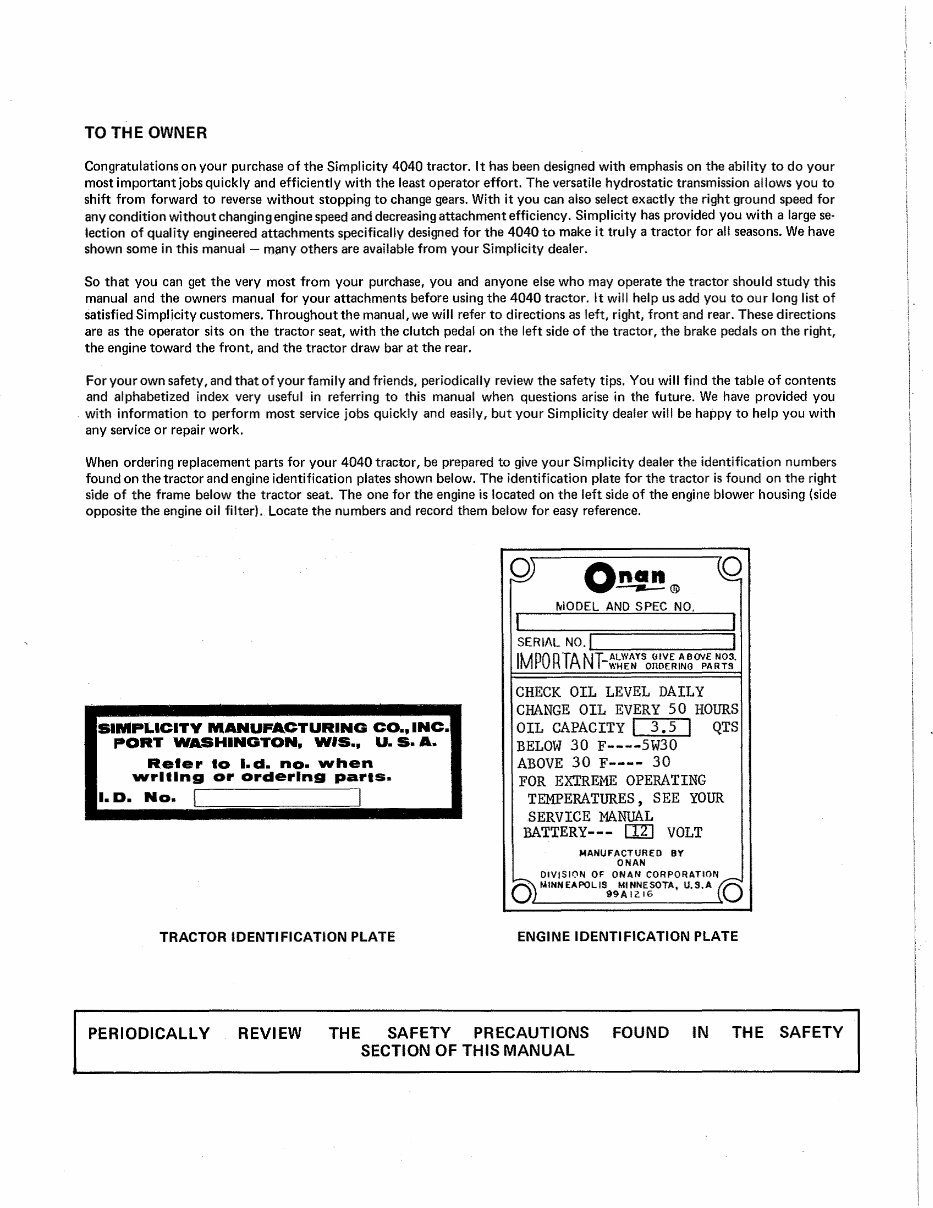

TO THE OWNER Congratulations on your purchase of the Simplicity 4040 tractor. It has been designed with emphasis on the ability to do your most important jobs qu ickly and efficiently with the least operator effort. The versatile hydrostatic transmission allows you to shift from forward to reverse without stopping to change gears. With it you can also select exactly the right ground speed for any condition without changing engine speed and decreasing attachment efficiency. Simplicity has provided you with a large selection of quality engineered attachments specifically designed for the 4040 to make it truly a tractor for all seasons. We have shown some in this manual - many others are available from your Simplicity dealer. So that you can get the very most from your purchase, you and anyone else who may operate the tractor should study this manual and the owners manual for your attachments before using the 4040 tractor. It will help us add you to our long list of satisfied Simplicity customers. Throughoutthe manual, we will refer to directions as left, right, front and rear. These directions are as the operator sits on the tractor seat, with the clutch pedal on the left side of the tractor, the brake pedals on the right, the engine toward the front, and the tractor draw bar at the rear. For your own safety, and that of your family and friends, periodically review the safety tips. You will find the table of contents and alphabetized index very useful in referring to this manual when questions arise in the future. We have provided you . with information to perform most service jobs quickly and easily, but your Simplicity dealer will be happy to help you with any service or repair work. When ordering replacement parts for your 4040 tractor, be prepared to give your Simplicity dealer the identification numbers found on the tractor and engine identification plates shown below. The identification plate for the tractor is found on the right side of the frame below the tractor seat. The one for the engine is located on the left side of the engine blower housing (side opposite the engine oil filter). Locate the numbers and record them below for easy reference. SIMPLICITY MANUFACTURING Co., INC. PORT WASHINGTON, WIS., U. S. A. Rele r 10 •• d. no. ""hen "W'riling or ordering pariS. I.D. No. I I TRACTOR IDENTIFICATION PLATE 0 0 On.n -----® MODEL AND SPEC NO. I I SERIAL No.1 I GIVE ABOVE N03. WHEN OflDERINO PARTS CHECK OIL LEVEL DAILY CHANGE OIL EVERY 50 HOURS OIL CAPACITY I 3.5 I QTS BELOW 30 F----5W30 ABOVE 30 F---- 30 FOR EXTREME OPERATING TEMPERATURES, SEE YOUR SERVICE MANUAL BATTERY--- [If] VOLT MANUFACTURED BY ONAN DIVISION OF ONAN CORPORATION 0 MINNEAPOLIS MINNESOTA. U.S.A 0 99AJ2.IG ENGINE IDENTIFICATION PLATE PERIODICALL V REVIEW THE SAFETY PRECAUTIONS FOUND IN THE SAFETY SECTION OF THIS MANUAL

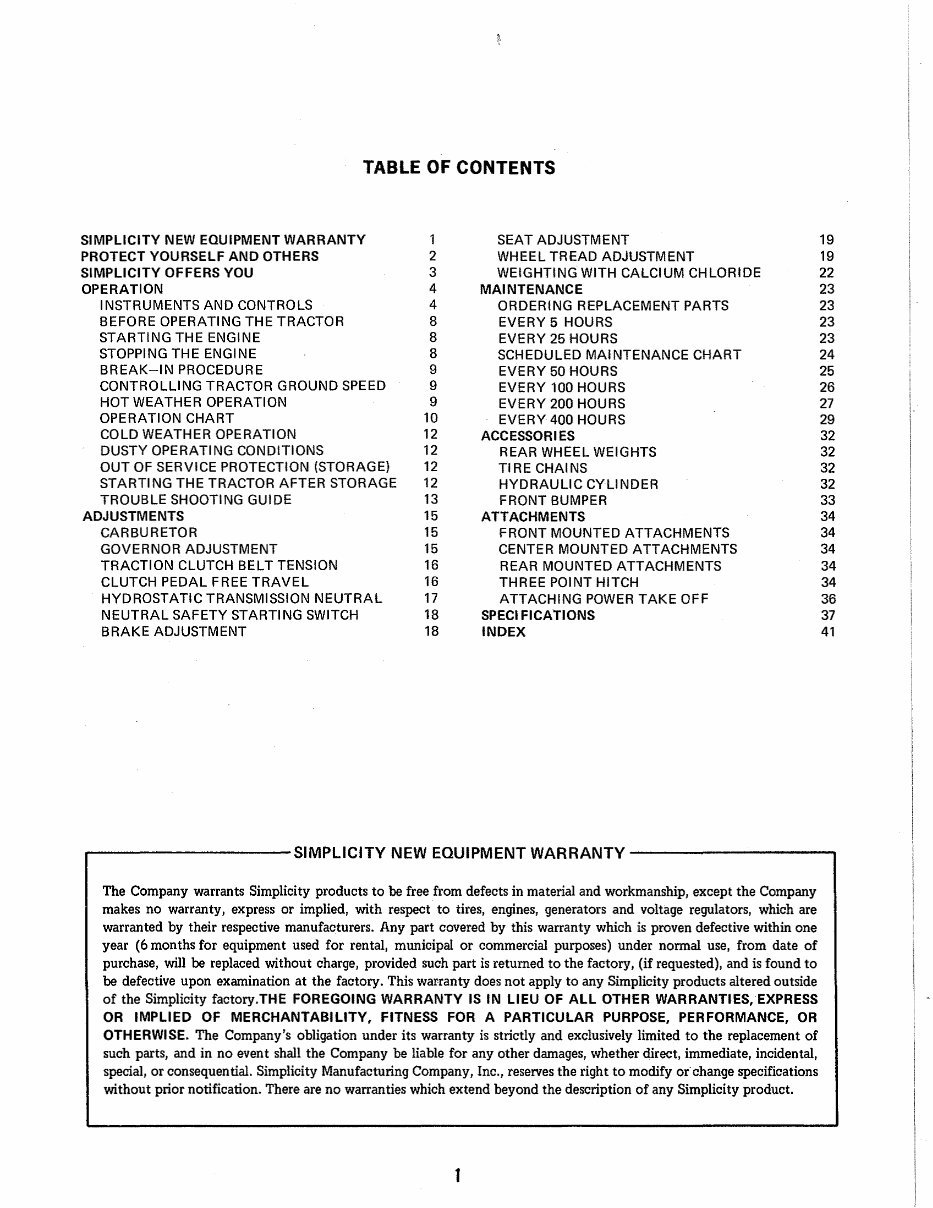

TABLE OF CONTENTS SIMPLICITY NEW EQUIPMENT WARRANTY PROTECT YOURSELF AND OTHERS SIMPLICITY OFFERS YOU OPERATION INSTRUMENTS AND CONTROLS BEFORE OPERATING THE TRACTOR STARTING THE ENGINE STOPPING THE ENGINE BREAK-IN PROCEDURE CONTROLLING TRACTOR GROUND SPEED HOT WEATHER OPERATION OPERATION CHART COLD WEATHER OPERATION DUSTY OPERATING CONDITIONS OUT OF SERVICE PROTECTION (STORAGE) STARTING THE TRACTOR AFTER STORAGE TROUBLE SHOOTING GUIDE ADJUSTMENTS CARBURETOR GOVERNOR ADJUSTMENT TRACTION CLUTCH BELT TENSION CLUTCH PEDAL FREE TRAVEL HYDROSTATIC TRANSMISSION NEUTRAL NEUTRAL SAFETY STARTING SWITCH BRAKE ADJUSTMENT 1 2 3 4 4 8 8 8 9 9 9 10 12 12 12 12 13 15 15 15 16 16 17 18 18 SEAT ADJUSTMENT WHEEL TREAD ADJUSTMENT WEIGHTING WITH CALCIUM CHLORIDE MAINTENANCE ORDERING REPLACEMENT PARTS EVERY 5 HOURS EVERY 25 HOURS SCHEDULED MAINTENANCE CHART EVERY 50 HOURS EVERY 100 HOURS EVERY 200 HOURS EVERY 400 HOURS ACCESSORIES REAR WHEEL WEIGHTS TIRE CHAINS HYDRAULIC CYLINDER FRONT BUMPER ATTACHMENTS FRONT MOUNTED ATTACHMENTS CENTER MOUNTED ATTACHMENTS REAR MOUNTED ATTACHMENTS THREE POINT HITCH ATTACHING POWER TAKE OFF SPECI FICATIONS INDEX 19 19 22 23 23 23 23 24 25 26 27 29 32 32 32 32 33 34 34 34 34 34 36 37 41 r----------SIMPLICITy NEW EQUIPMENT WARRANTY -----------, The Company warrants Simplicity products to be free from defects in material and workmanship, except the Company makes no warranty, express or implied, with respect to tires, engines, generators and voltage regulators, which are warranted by their respective manufacturers. Any part covered by this warranty which is proven defective within one year (6 months for equipment used for rental, municipal or commercial purposes) under normal use, from date of purchase, will be replaced without charge, provided such part is returned to the factory, (if requested), and is found to be defective upon examination at the factory. This warranty does not apply to any Simplicity products altered outside of the Simplicity factory.THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES,-EXPRESS OR IMPLIED OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, PERFORMANCE, OR OTHERWISE. The Company's obligation under its warranty is strictly and exclusively limited to the replacement of such parts, and in no event shall the Company be liable for any other damages, whether direct, immediate, incidental, special, or consequential. Simplicity Manufacturing Company, Inc., reserves the right to modify or change specifications without prior notification. There are no warranties which extend beyond the description of any Simplicity product. 1

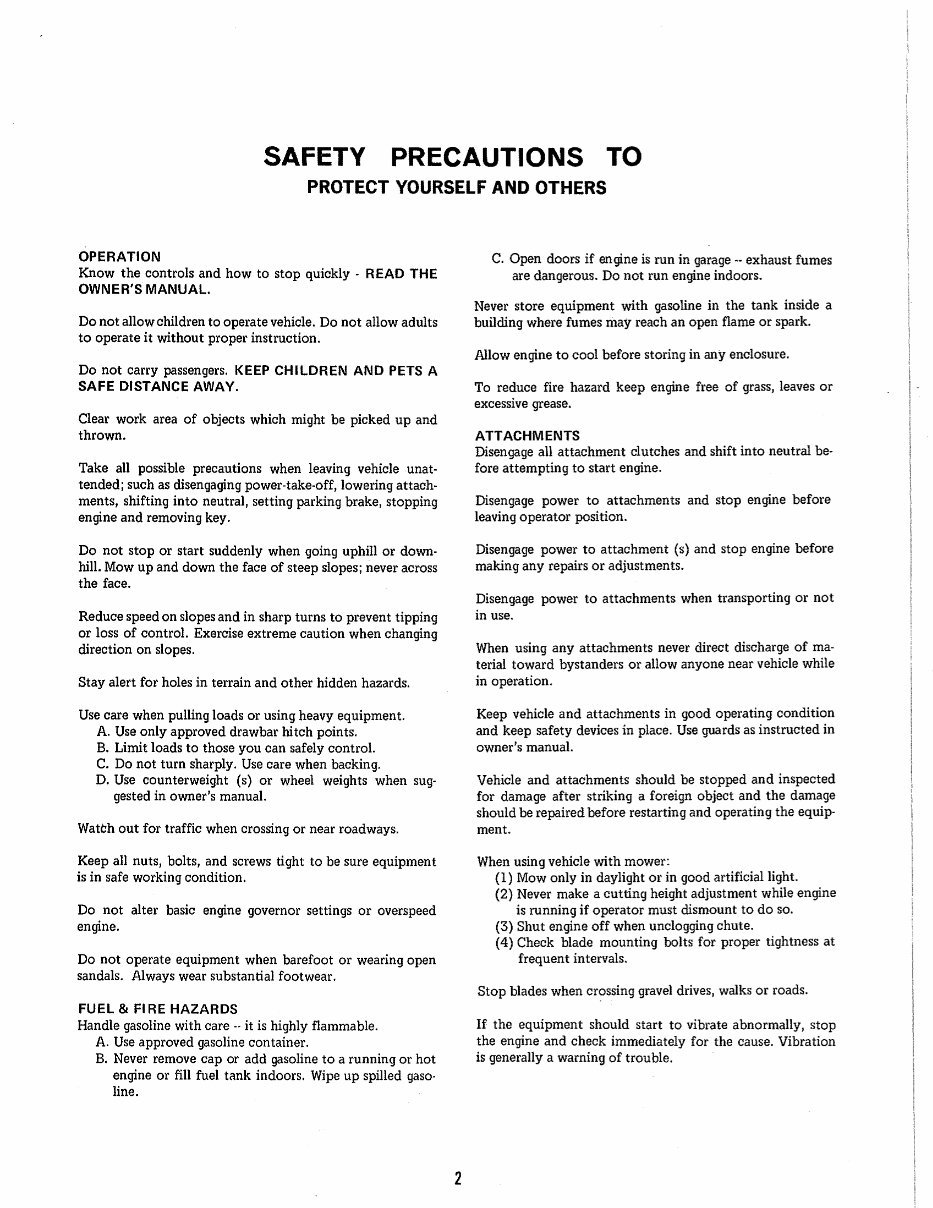

SAFETY PRECAUTIONS TO PROTECT YOURSELF AND OTHERS OPERATION Know the controls and how to stop quickly - READ THE OWNER'S MANUAL. Do not allow children to operate vehicle. Do not allow adults to operate it without proper instruction. Do not carry passengers. KEEP CHILDREN AND PETS A SAFE DISTANCE AWAY. Clear work area of objects which might be picked up and thrown. Take all possible precautions when leaving vehicle unat- tended; such as disengaging power-take-off, lowering attachments, shifting into neutral, setting parking brake, stopping engine and removing key. Do not stop or start suddenly when going uphill or down- hill. Mow up and down the face of steep slopes; never across the face. Reduce speed on slopes and in sharp turns to prevent tipping or loss of control. Exercise extreme caution when changing direction on slopes. Stay alert for holes in terrain and other hidden hazards. Use care when pulling loads or using heavy equipment. A. Use only approved drawbar hitch points. B. Limit loads to those you can safely controL C. Do not turn sharply. Use care when backing. D. Use counterweight (s) or wheel weights when sug- gested in owner's manual. Watch out for traffic when crossing or near roadways. Keep all nuts, bolts, and screws tight to be sure equipment is in safe working condition. Do not alter basic engine governor settings or overspeed engine. Do not operate equipment when barefoot or wearing open sandals. Always wear substantial footwear. FUEL & FI RE HAZARDS Handle gasoline with care -- it is highly flammable. A. Use approved gasoline container. B. Never remove cap or add gasoline to a running or hot engine or fill fuel tank indoors. Wipe up spilled gasoline. 2 C. Open doors if engine is run in garage -- exhaust fumes are dangerous. Do not run engine indoors. Never store equipment with gasoline in the tank inside a building where fumes may reach an open flame or spark. Allow engine to cool before storing in any enclosure. To reduce fire hazard keep engine free of grass, leaves or excessive grease. ATTACHMENTS Disengage all attachment clutches and shift into neutral before attempting to start engine. Disengage power to attachments and stop engine before leaving operator position. Disengage power to attachment (s) and stop engine before making any repairs or adjustments. Disengage power to attachments when transporting or not in use. When using any attachments never direct discharge of material toward bystanders or allow anyone near vehicle while in operation. Keep vehicle and attachments in good operating condition and keep safety devices in place. Use guards as instructed in owner's manuaL Vehicle and attachments should be stopped and inspected for damage after striking a foreign object and the damage should be repaired before restarting and operating the equipment. When using vehicle with mower: (I) Mow only in daylight or in good artificial light. (2) Never make a cutting height adjustment while engine is running if operator must dismount to do so. (3) Shut engine off when unclogging chute. (4) Check blade mounting bolts for proper tightness at frequent intervals. Stop blades when crossing gravel drives, walks or roads. If the equipment should start to vibrate abnormally, stop the engine and check immediately for the cause. Vibration is generally a warning of trouble.

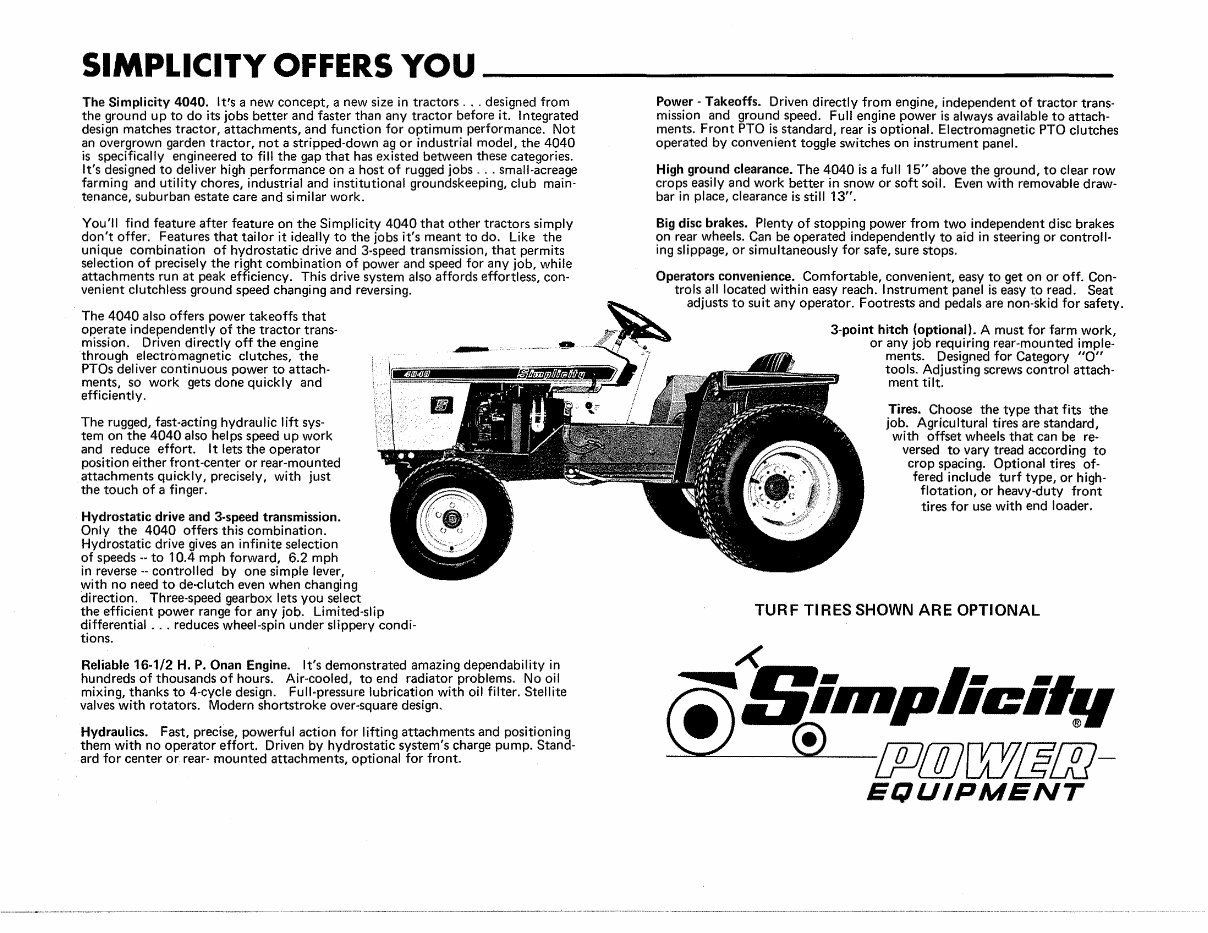

SIMPLICITY OFFERS YOU ____________ _ The Simplicity 4040. It's a new concept, a new size in tractors ... designed from the ground up to do its jobs better and faster than any tractor before it. Integrated design matches tractor, attachments, and function for optimum performance. Not an overgrown garden tractor, not a stripped-down ag or industrial model, the 4040 is specifically engineered to fill the gap that has existed between these categories. It's designed to deliver high performance on a host of rugged jobs ... small-acreage farming and utility chores, industrial and institutional groundskeeping, club maintenance, suburban estate care and similar work. You'll find feature after feature on the Simplicity 4040 that other tractors simply don't offer: Features that tailor it ideally to the jobs it's meant to do. Like the unique combination of hydrostatic drive and 3-speed transmission, that permits selection of precisely the right combination of power and speed for any job, while attachments run at peak efficiency. This drive system also affords effortless, convenient clutchless ground speed changing and reversing. The 4040 also offers power takeoffs that operate independently of the tractor transmission. Driven directly off the engine through electromagnetic clutches, the PTOs deliver continuous power to attachments, so work gets done quickly and efficiently. The rugged, fast-acting hydraulic lift system on the 4040 also helps speed up work and reduce effort. It lets the operator position either front-center or rear-mounted attachments quickly, precisely, with just the touch of a finger. Hydrostatic drive and 3-speed transmission. Only the 4040 offers this combination. Hydrostatic drive gives an infinite selection of speeds -- to 10.4 mph forward, 6.2 mph in reverse controlled by one simple lever, with no need to de-clutch even when changing direction. Three-speed gearbox lets you select the efficient power range for any job. Limited-slip differential ... reduces wheel-spin under slippery conditions. ,..-".' Reliable 16-1/2 H. P. Onan Engine. It's demonstrated amazing dependability in hundreds of thousands of hours. Air-cooled, to end radiator problems. No oil mixing, thanks to 4-cycle design. Full-pressure lubrication with oil filter. Stellite valves with rotators. Modern shortstroke over-square design. Hydraulics. Fast, precise, powerful action for lifting attachments and positioning them with no operator effort. Driven by hydrostatic system's charge pump. Stand- ard for center or rear- mounted attachments, optional for front. Power - Takeoffs. Driven directly from engine, independent of tractor transmission and ground speed. Full engine power is always available to attachments. Front PTa is standard, rear is optional. Electromagnetic PTa clutches operated by convenient toggle switches on instrument panel. High ground clearance. The 4040 is a full 15" above the ground, to clear row crops easily and work better in snow or soft soil. Even with removable drawbar in place, clearance is still 13". Big disc brakes. Plenty of stopping power from two independent disc brakes on rear wheels. Can be operated independently to aid in steering or controlling slippage, or simultaneously for safe, sure stops. Operators convenience. Comfortable, convenient, easy to get on or off. Con- trols all located within easy reach. Instrument panel is easy to read. Seat adjusts to suit any operator. Footrests and pedals are non-skid for safety. 3-point hitch (optional). A must for farm work, or any job requiring rear-mounted imple- ments. Designed for Category "0" tools. Adjusting screws control attachment tilt. Tires. Choose the type that fits the job. Agricultural tires are standard, with offset wheels that can be re- versed to vary tread according to crop spacing. Optional tires of- fered include turf type, or high- flotation, or heavy-duty front tires for use with end loader. TURF TIRES SHOWN ARE OPTIONAL ,,( tA\---. ali! ••• plieil" EQUIPMENT
