Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

|ALL PRODUCT INDEX GR2100 Ref. GR2100 Page 25001 ENGINE FUEL SYSTEM COOLING WATER SYSTEM ELECTRICAL SYSTEM TRANSMISSION REAR TIRE BRAKE SPEED CHANGE FRONT AXLE FRONT TIRE CHASSIS STEERING PUMP/MOTOR SYSTEM HOOD/BONNET LABELS ACCESSORIES

Ref. GR2100 Page 25001 Item Part No. Description Book ENGINE 010001 CRANKCASE 100A0267 010002 OIL PAN 100A0267 010003 CYLINDER HEAD 100A0267 010004 GEAR CASE 100A0267 010005 HEAD COVER 100A0267 010006 OIL FILTER 100A0267 010007 DIPSTICK AND GUIDE 100A0267 010008 OIL PUMP 100A0267 010100 MAIN BEARING CASE 100A0267 010101 CAMSHAFT AND IDLE GEAR SHAFT 100A0267 010102 PISTON AND CRANKSHAFT 100A0267 010103 FLYWHEEL 100A0267 010105 FUEL CAMSHAFT AND GOVERNOR SHAFT 100A0267 010200 IDLE APPARATUS 100A0267 010201 STOP SOLENOID 100A0267 010202 INJECTION PUMP 100A0267 010204 GOVERNOR 100A0267 010205 SPEED CONTROL PLATE 100A0267 010206 NOZZLE HOLDER AND GLOW PLUG 100A0267 010207 NOZZLE HOLDER [COMPONENT PARTS] 100A0267 010305 FUEL PUMP COVER 100A0267 010400 DYNAMO AND PULLEY 100A0267 010401 DYNAMO (COMPONENT PARTS) 100A0267 010404 STARTER 100A0267 010405 STARTER [COMPONENT PARTS] 100A0267 010406 OIL SWITCH AND PLUG 100A0267 010500 WATER FLANGE AND THERMOSTAT 100A0267 010501 WATER PUMP 100A0267 010503 WATER PIPE 100A0267 010504 FAN 100A0267 010600 VALVE AND ROCKER ARM 100A0267 010601 INLET MANIFOLD 100A0267 010602 EXHAUST MANIFOLD 100A0267 020603 AIR CLEANER 100A0267 020605 MUFFLER 100A0267 010903 PISTON KIT [OPTION] 100A0267 010906 UPPER GASKET KIT [OPTION] 100A0267 010907 LOWER GASKET KIT [OPTION] 100A0267 FUEL SYSTEM 02A010 ACCELERATOR LEVER 100A0267 02A100 FUEL TANK 100A0267 COOLING WATER SYSTEM 02A210 WATER PIPE 100A0267 02A220 RADIATOR 100A0267 ELECTRICAL SYSTEM 02B010 BATTERY 100A0267 02B100 ELECTRICAL PARTS 100A0267 TRANSMISSION 02C400 HST 100A0267 02C40501 HST [COMPONENT PARTS] 100A0267 02C40502 HST [COMPONENT PARTS] 100A0267 02C420 UNIVERSAL JOINT/HST FAN 100A0267 REAR TIRE 02D200 REAR WHEEL 100A0267 BRAKE 02D510 BRAKE 100A0267 02D525 PARKING BRAKE LEVER 100A0267 02D530 BRAKE ROD 100A0267 SPEED CHANGE 02D700 SPEED CHANGE PEDAL 100A0267 02D730 PTO CLUTCH CONTROL LEVER/WIRE 100A0267 FRONT AXLE 02E010 FRONT AXLE 100A0267 FRONT TIRE 02E100 FRONT WHEEL 100A0267 CHASSIS 02E500 MAIN FRAME/STEERING SUPPORT 100A0267 ENGINE 02E550 ENGINE SUPPORT 100A0267 STEERING 02E700 POWER STEERING/STEERING HANDLE 100A0267

Ref. GR2100 Page 25001 Item Part No. Description Book PUMP/MOTOR SYSTEM 02F010 CONTROL VALVE 100A0267 02F300 HYDRAULIC LIFT CYLINDER 100A0267 02F350 LIFT LINK 100A0267 HOOD/BONNET 02G001 HOOD(BONNET) 100A0267 02G010 PANEL 100A0267 02G030 FENDER 100A0267 02G040 SEAT 100A0267 LABELS 02G100 LABEL 100A0267 ACCESSORIES 02P001 ACCESSORIES AND SERVICE PARTS 100A0267

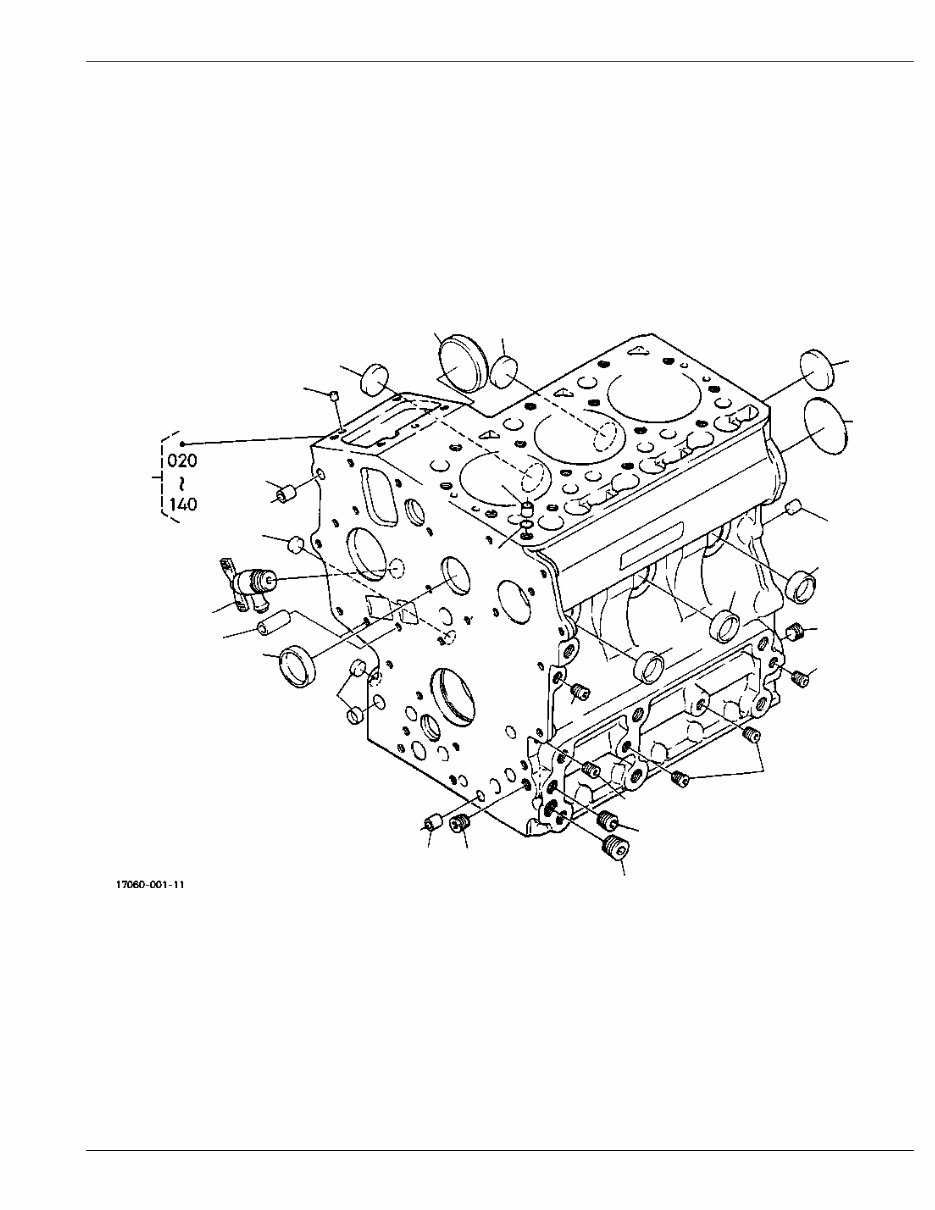

CRANKCASE Reference: 010001 Page: 1 010 020 020 030 030 030 030 030 040 040 050 050 050 050 060 060 060 070 080 090 100 110 120 120 130 140 150 160

CRANKCASE Reference: 010001 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 1E051-01015 COMP.CRANKCASE 1 15 33 020 16851-96260 CAP SEALING 3 0.005 0.011 030 16851-96270 CAP SEALING 5 0.005 0.011 040 15451-96270 CAP SEALING 2 0.001 0.0022 050 15261-96010 PLUG 5 0.002 0.0044 060 15521-96020 PLUG 3 0.003 0.0066 070 15521-96030 PLUG 1 0.007 0.0154 080 15261-96160 PLUG EXPANSION 1 0.02 0.044 090 05012-00508 PIN STRAIGHT 2 0.001 0.0022 100 05012-00814 PIN STRAIGHT 2 0.006 0.0132 110 15221-33650 PIN PIPE 1 0.004 0.0088 120 15231-33960 PIN PIPE 2 0.001 0.0022 130 17331-59190 PIN PIPE 2 0.02 0.044 140 16851-16212 COVER FUEL CAMSHAFT 1 0.03 0.066 150 15221-33700 O RING 1 0.001 0.0022 160 15841-73020 ASSY COCK DRAIN 1 0.03 0.066

OIL PAN Reference: 010002 Page: 2 010 020 030 040 050 060 070

OIL PAN Reference: 010002 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 1G004-01500 COMP.OIL PAN 1 0 0 020 01023-50614 BOLT 22 0.005 0.011 030 16326-33750 PLUG DRAIN 1 0.025 0.055 040 6C090-58960 GASKET 1 0.002 0.0044 050 16851-32110 FILTER OIL 1 0.11 0.242 060 04814-00160 O RING 1 0.001 0.0022 070 01123-60814 BOLT 1 0.01 0.022

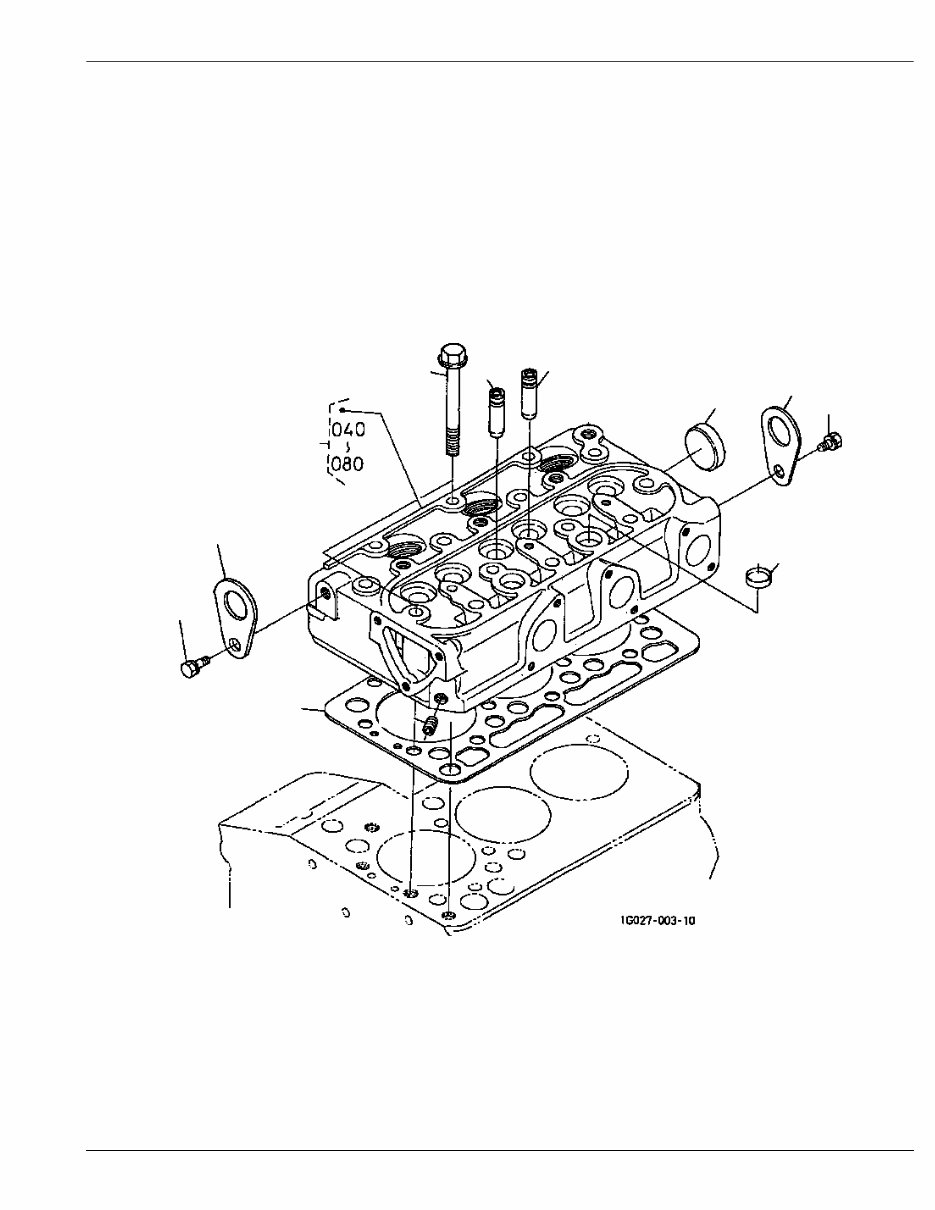

CYLINDER HEAD Reference: 010003 Page: 3 010 010 020 020 030 040 050 060 070 080 090 100
