Kubota G1900S Lawnmower Illustrated Master Parts List Manual

Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

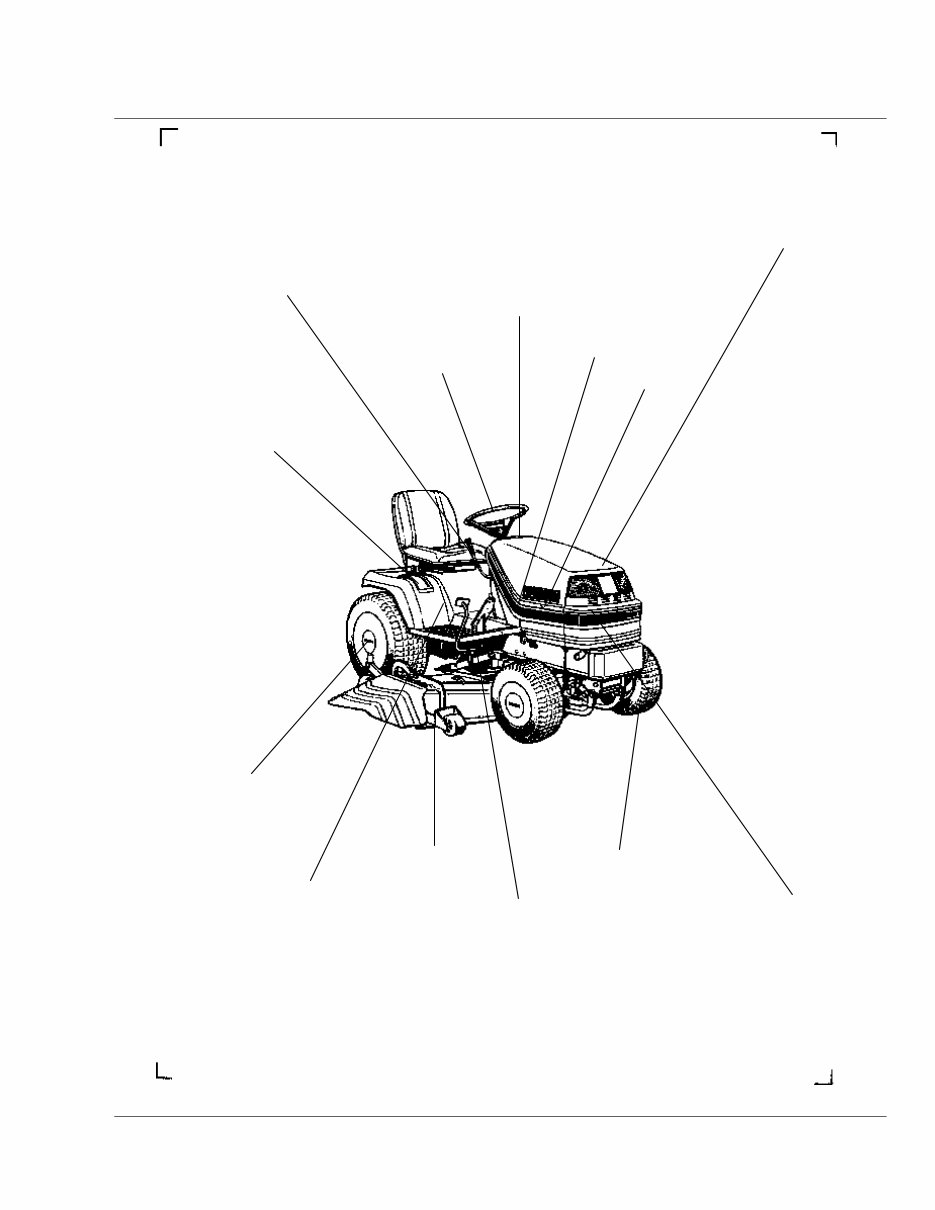

|ALL PRODUCT INDEX G1900-S Ref. G1900-S Page 22005 ENGINE FUEL SYSTEM COOLING WATER SYSTEM ELECTRICAL SYSTEM TRANSMISSION SPEED CHANGE REAR AXLE BRAKE FRONT AXLE STEERING HYDRAULIC SYSTEM BONNET/HOOD/CHASSIS LABELS MOWER ACCESSORIES

Ref. G1900-S Page 22005 Item Part No. Description Book ENGINE 01G001 CRANKCASE 100K0182 01G002 OIL PAN 100K0182 01G003 PISTON/CRANKSHAFT 100K0182 01G004 MAIN BEARING CASE 100K0182 01G005 FLYWHEEL 100K0182 01G006 CYLINDER HEAD 100K0182 01G007 VALVE/ROCKER ARM 100K0182 01G008 NOZZLE HOLDER/GLOW PLUG 100K0182 01G009 NOZZLE HOLDER [COMPONENT PARTS] 100K0182 01G010 HEAD COVER 100K0182 01G011 INLET MANIFOLD 100K0182 01G013 EXHAUST MANIFOLD 100K0182 01G015 CAMSHAFT 100K0182 01G016 GEAR CASE 100K0182 01G017 WATER PUMP 100K0182 01G018 WATER FLANGE/THERMOSTAT 100K0182 01G019 INJECTION PUMP 100K0182 01G020 INJECTION PUMP [COMPONENT PARTS] 100K0182 01G021 SPEED CONTROL PLATE 100K0182 01G022 GOVERNOR 100K0182 01G023 STOP SOLENOID 100K0182 01G024 UPPER GASKET KIT 100K0182 01G025 LOWER GASKET KIT 100K0182 02G012 AIR CLEANER 100K0182 02G014 MUFFLER 100K0182 02G026 ACCELERATOR LEVER 100K0182 FUEL SYSTEM 02G052 FUEL TANK 100K0182 02G053 FUEL PIPE 100K0182 COOLING WATER SYSTEM 02G055 RADIATOR 100K0182 02G056 FAN 100K0182 ELECTRICAL SYSTEM 02G057 DYNAMO 100K0182 02G058 DYNAMO [COMPONENT PARTS] 100K0182 02G059 STARTER [COMPONENT PARTS] 100K0182 02G060 STARTER [COMPONENT PARTS] 100K0182 02G062 BATTERY 100K0182 02G064 LIGHT 100K0182 02G065 DASHBOARD 100K0182 02G066 DASHBOARD 100K0182 02G068 WIRE HARNESS 100K0182 TRANSMISSION 02G070 TRANSMISSION CASE 100K0182 02G071 HST 100K0182 02G072 HST [COMPONENT PARTS] 100K0182 02G073 UNIVERSAL JOINT/HST FAN 100K0182 02G074 UNIVERSAL JOINT/HST FAN 100K0182 02G075 PTO SHAFT 100K0182 02G076 TENSION PULLEY 100K0182 02G077 BELT RETAINER 100K0182 02G078 REAR PTO 100K0182 02G079 REAR PTO [COMPONENT PARTS] 100K0182 SPEED CHANGE 02G080 CRUISE CONTROL PLATE 100K0182 02G081 CRUISE CONTROL LEVER 100K0182 02G082 SPEED CONTROL PEDAL 100K0182 REAR AXLE 02G083 REAR DIFFERENTIAL 100K0182 02G084 REAR AXLE CASE 100K0182 02G087 REAR AXLE [4WS] 100K0182 02G088 REAR AXLE JOINT [4WS] 100K0182 02G089 KNUCKLE ARM [4WS] 100K0182

Ref. G1900-S Page 22005 Item Part No. Description Book REAR AXLE 02G090 TIE ROD [4WS] 100K0182 02G091 DRAG LINK [4WS] 100K0182 02G092 REAR WHEEL (23 X 8.50-12) [4WS] 100K0182 BRAKE 02G093 PTO BRAKE 100K0182 02G094 BRAKE SHAFT 100K0182 02G095 BRAKE 100K0182 02G096 BRAKE ROD 100K0182 02G097 BRAKE PEDAL 100K0182 FRONT AXLE 02G098 FRONT AXLE/KNUCKLE ARM 100K0182 02G099 TIE ROD/DRAG LINK 100K0182 02G100 FRONT WHEEL (16 X 6.50-8) 100K0182 02G101 FRAME 100K0182 STEERING 02G102 STEERING GEAR CASE 100K0182 02G103 STEERING WHEEL 100K0182 HYDRAULIC SYSTEM 02G104 CONTROL VALVE 100K0182 02G105 CONTROL VALVE [COMPONENT PARTS] 100K0182 02G106 HYDRAULIC PIPE 1 100K0182 02G107 HYDRAULIC PIPE 2 100K0182 02G108 LIFT CYLINDER 100K0182 02G109 HYDRAULIC OUTLET [OLD TYPE] [OPTION] 100K0182 02G110 HYDRAULIC OUTLET [NEW TYPE] [OPTION] 100K0182 02G111 3-POINT LINKAGE [OPTION] 100K0182 02G112 MOWER ASSIST SPRING [OPTION] 100K0182 02G113 MOWER SWING STOPPER [OPTION] 100K0182 BONNET/HOOD/CHASSIS 02G114 HOOD (BONNET) 100K0182 02G115 PANEL 100K0182 02G116 FENDER 100K0182 02G117 SEAT [A] [CA] 100K0182 02G118 SEAT [AU] [NZ] 100K0182 LABELS 02G119 LABEL 100K0182 ACCESSORIES 02G145 ACCESSORIES AND SERVICE PARTS 100K0182

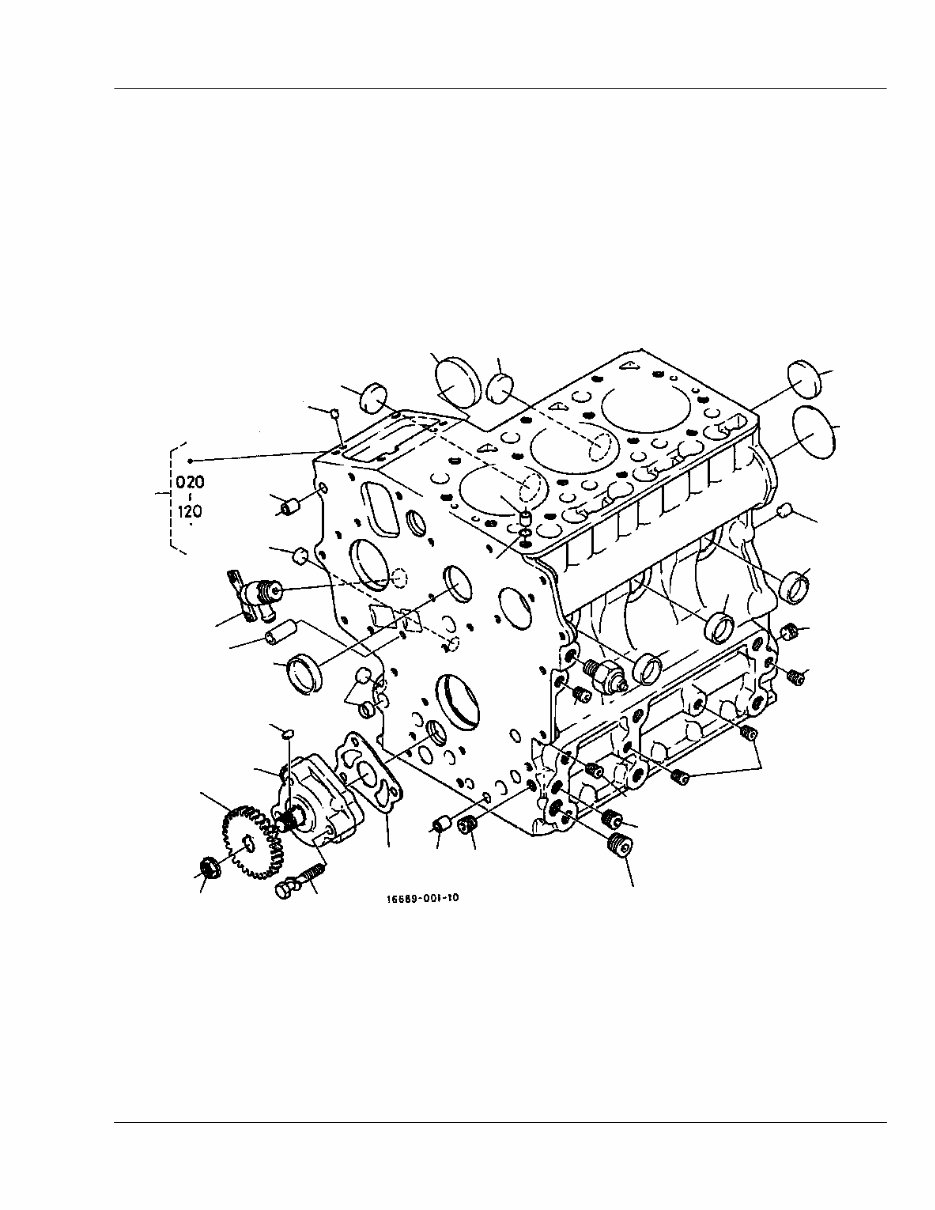

CRANKCASE Reference: 01G001 Page: 1 010 020 020 030 030 030 030 030 040 040 050 050 050 050 060 060 060 070 080 090 100 110 120 120 130 140 150 160 170 180 190 200 210 230 240 240

CRANKCASE Reference: 01G001 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 16861-01010 COMP.CRANKCASE 1 <=183560 0 0 010 16861-01012 COMP.CRANKCASE 1 >=183561 ← 22.8 50.16 020 16851-96260 CAP SEALING 3 0.005 0.011 030 16851-96270 CAP SEALING 5 0.005 0.011 040 15451-96270 CAP SEALING 2 0.012 0.0264 050 15261-96010 PLUG 5 0.002 0.0044 060 15521-96020 PLUG 3 0.003 0.0066 070 15521-96030 PLUG 1 0.007 0.0154 080 15261-96160 PLUG EXPANSION 1 0.02 0.044 090 05012-00508 PIN STRAIGHT 2 0.001 0.0022 100 05012-00814 PIN STRAIGHT 2 0.006 0.0132 110 15221-33650 PIN PIPE 1 0.004 0.0088 120 15231-33960 PIN PIPE 2 0.001 0.0022 130 16851-16210 COVER FUEL CAMSHAFT 1 <=746723 0 0 130 16851-16212 COVER FUEL CAMSHAFT 1 >=746724 ← 0.03 0.066 140 15221-33700 O RING 1 0.001 0.0022 150 15841-73020 ASSY COCK DRAIN 1 0.03 0.066 160 16851-35010 ASSY PUMP OIL 1 0.24 0.528 170 15862-35152 GASKET OIL PUMP 1 <=752018 0.001 0.0022 170 16851-35152 GASKET OIL PUMP 1 >=752019 ← 0.001 0.0022 180 15841-91050 BOLT 3 0.01 0.022 190 15841-35660 GEAR OIL PUMP DRIVE 1 0.113 0.2486 200 05712-00408 KEY FEATHER 1 0.001 0.0022 210 02783-50100 NUT FLANGE 1 0.01 0.022 230 15531-39010 SWITCH OIL 1 0.032 0.0704 240 17331-59190 PIN PIPE 2 0.02 0.044

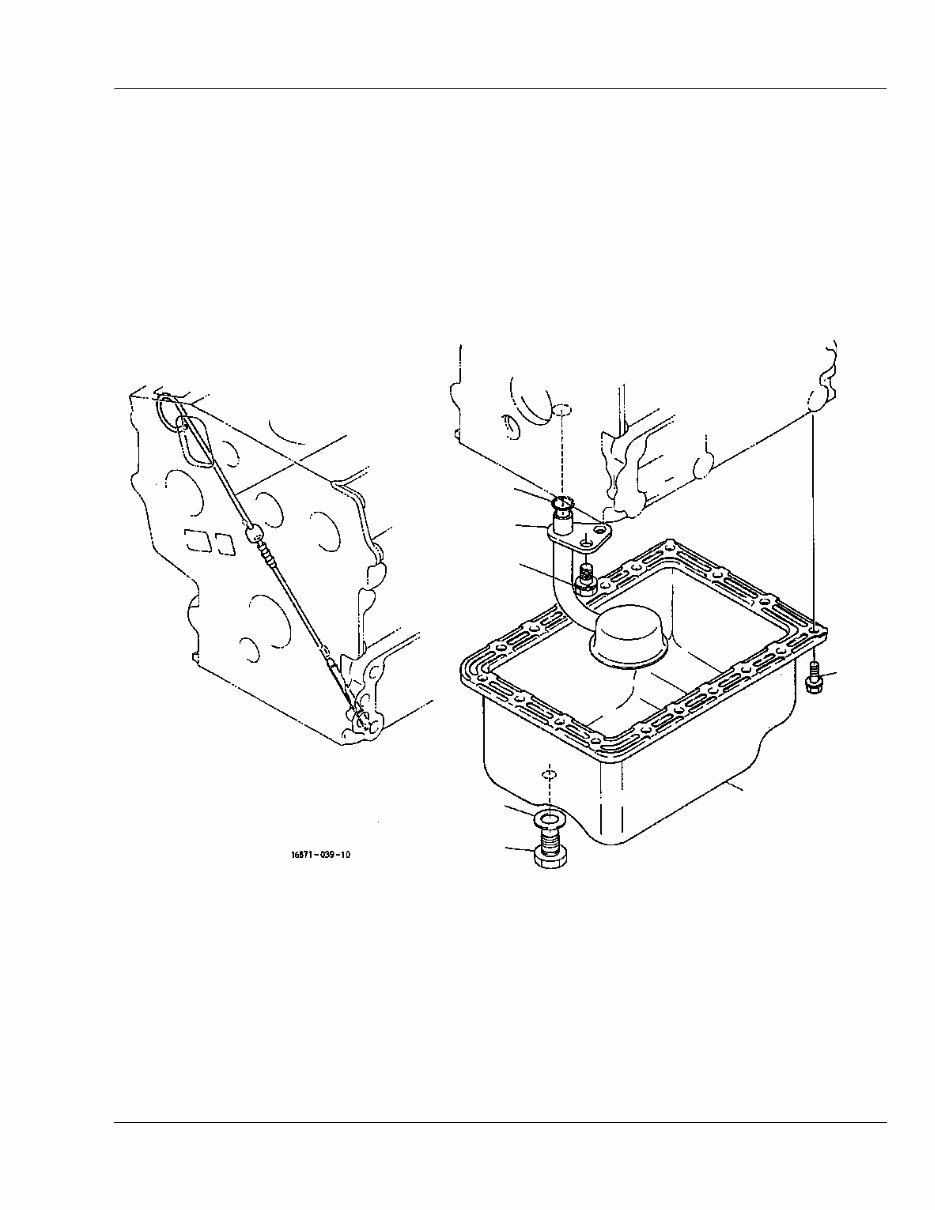

OIL PAN Reference: 01G002 Page: 2 010 030 040 050 060 070 080 090

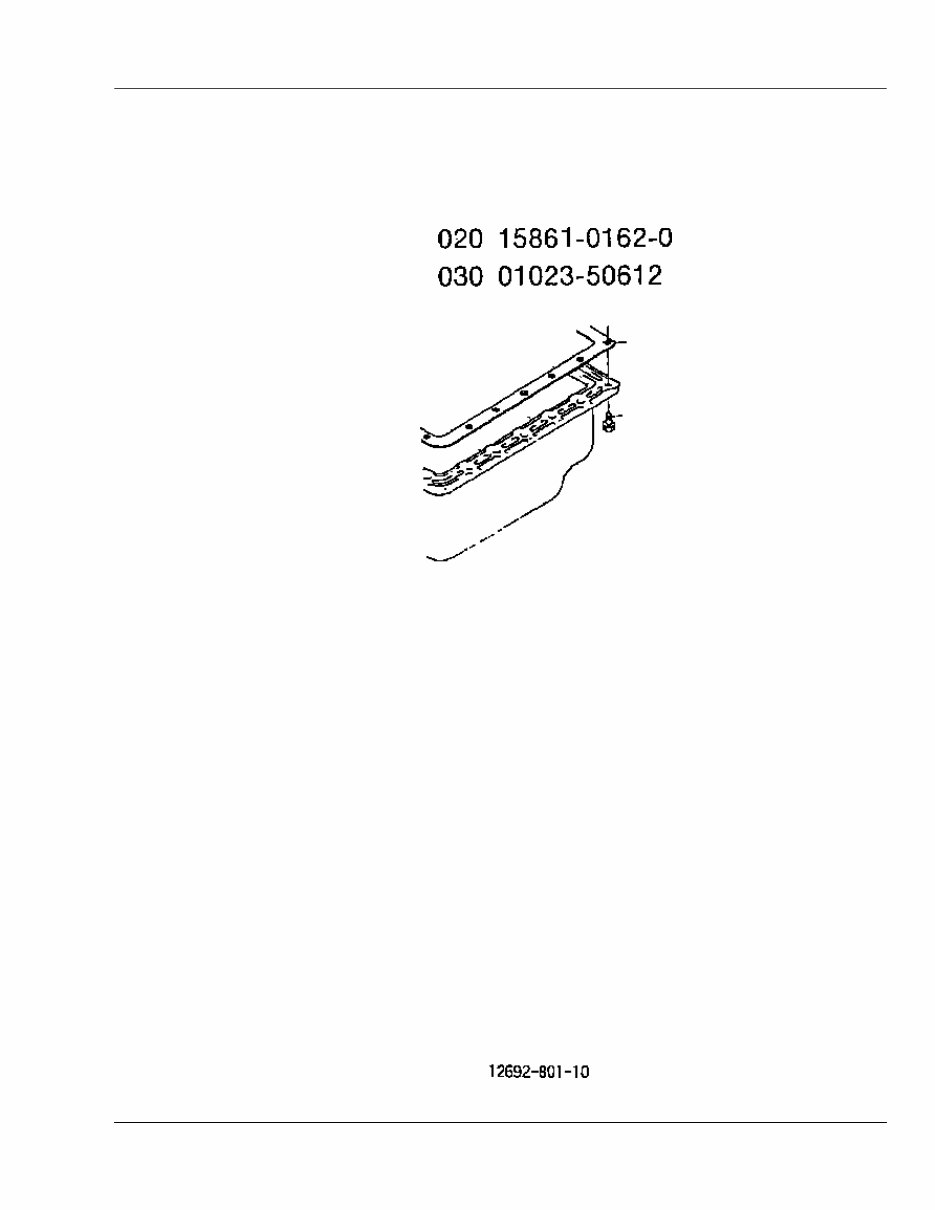

OIL PAN Reference: 01G002 Page: 2 020 030

OIL PAN Reference: 01G002 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 15862-01500 COMP.OIL PAN 1 1.11 2.442 020 15861-01620 GASKET OIL PAN 1 <=169246 0 0 030 01023-50612 BOLT 18 <=169246 0.005 0.011 030 01754-50610 BOLT FLANGE 18 >=169247 ≠ 0.006 0.0132 040 15221-33750 PLUG 1 0.032 0.0704 050 15109-33660 GASKET 1 0.001 0.0022 060 16851-32110 FILTER OIL 1 0.11 0.242 070 04811-00160 O RING 1 0.001 0.0022 080 01123-60814 BOLT 1 0.008 0.0176 090 16851-36410 GAUGE OIL 1 0.03 0.066

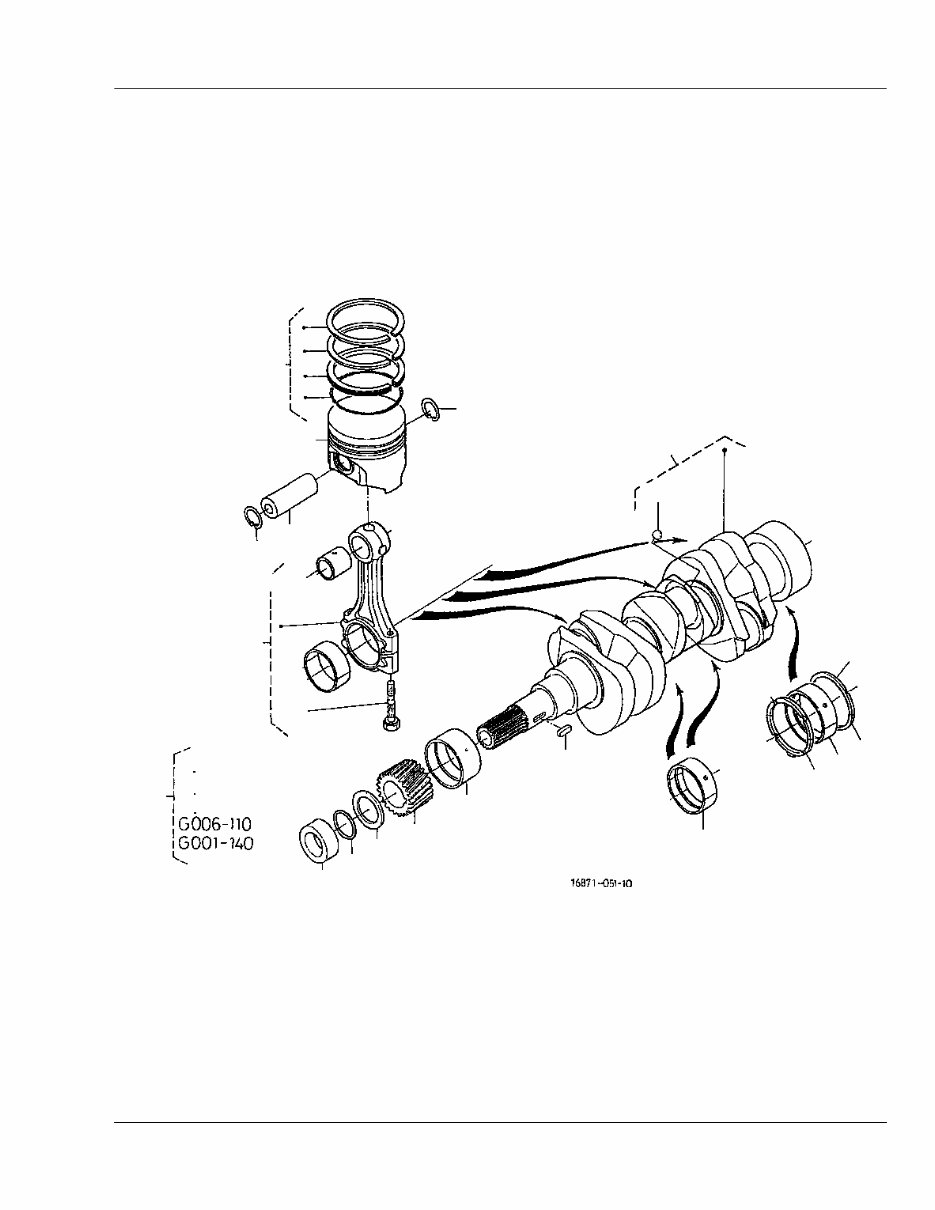

PISTON/CRANKSHAFT Reference: 01G003 Page: 3 010 010 020 020 030 040 040 040 050 060 070 080 090 100 110 120 130 140 150 160 160 170 170 180 190 200 210
