Instructions for Parts Books The heading at the top of the page will be the same for the picture of the parts at it is for the page with the part numbers. Definition of column headings on part number pages: REF.No  The number refering to the part on the picture page of the parts book. Part No.  The number assigned to this part at the time of printing the parts book. Description  Discription of part. Q'ty  Quanity of part used on that page. S.No.  Serial number range of the equipment that this part will fit. >= Your serial number should be greater than or equal to the number shown. <= Your serial number should be lesser than or equal to the serial number shown. I/C  Interchangeability of part shown.  The part shown will work for the older and later serial number. # The part shown is not interchangable with the other serial number.  new for old  old for new Remarks  Notes about this particulart part. Sometimes this may say except [FR] or [CA] Note about Country Codes: The parts books we use in the United States of America may also contain information about a part that would be different in another country. It is important that you are aware of the country codes in some instances. Symbol Country A United States of America CA Canada FR France GR Greece PO Portugal AU Australia If the remarks column says for example EXCEPT [FR] this part works in all countries except France. That means it will work here in the USA.

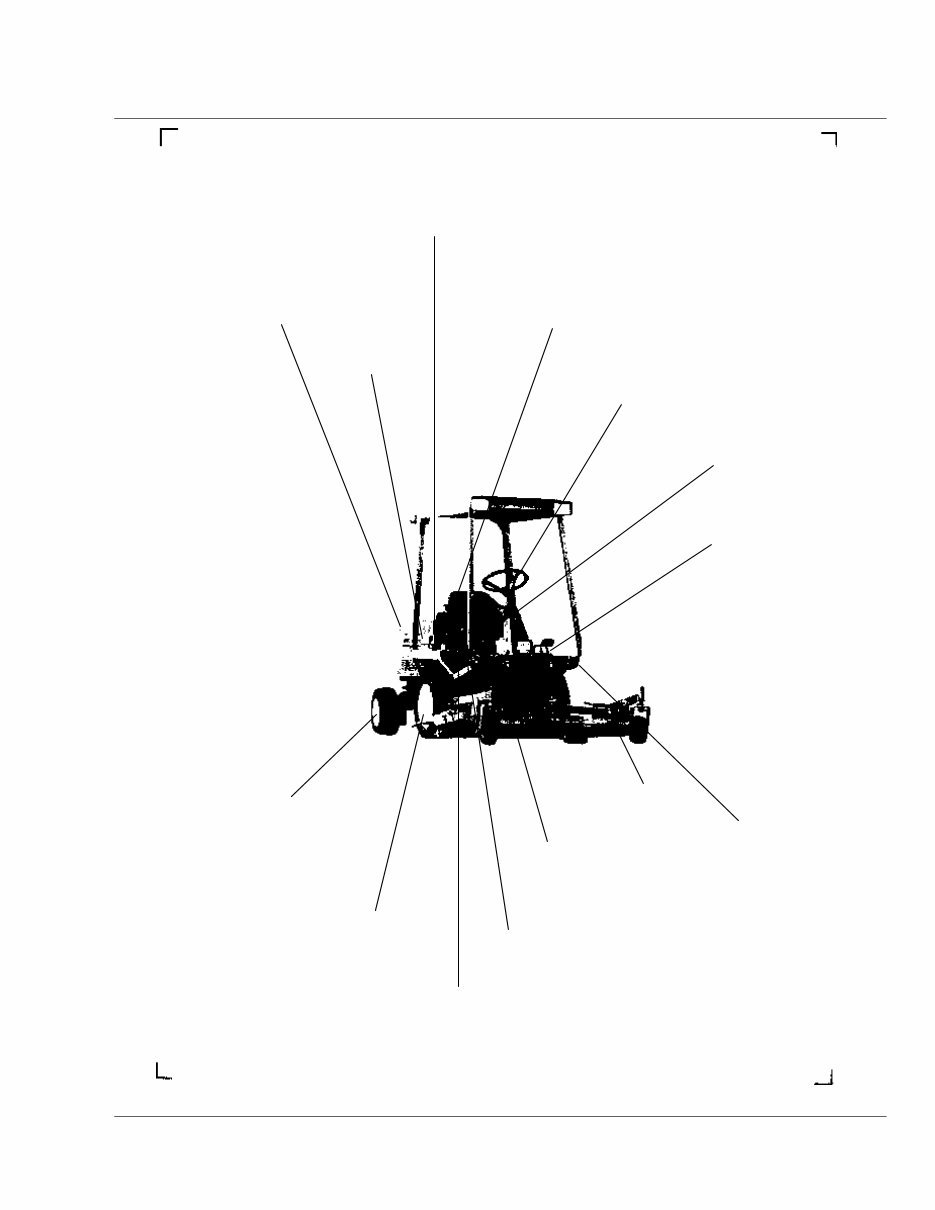

|ALL PRODUCT INDEX F2400 Ref. F2400 Page 23007 ENGINE FUEL SYSTEM COOLING WATER SYSTEM ELECTRICAL SYSTEM CLUTCH TRANSMISSION SPEED CHANGE LEVER FRONT AXLE/FRONT WHEEL BRAKE REAR AXLE/REAR WHEEL STEERING HYDRAULIC SYSTEM LINK HOOD (BONNET)/CHASSIS LABELS ACCESSORIES

Ref. F2400 Page 23007 Item Part No. Description Book ENGINE 01G001 CRANKCASE 100K0516 01G002 OIL PAN 100K0516 01G003 PISTON/CRANKSHAFT 100K0516 01G004 MAIN BEARING CASE 100K0516 01G005 FLYWHEEL 100K0516 01G006 CYLINDER HEAD 100K0516 01G007 VALVE/ROCKER ARM 100K0516 01G008 NOZZLE HOLDER 100K0516 01G00901 NOZZLE HOLDER [COMPONENT PARTS] 100K0516 01G00902 NOZZLE HOLDER [COMPONENT PARTS] 100K0516 01G010 HEAD COVER 100K0516 01G011 INLET MANIFOLD 100K0516 01G014 CAMSHAFT 100K0516 01G015 GEAR CASE 100K0516 01G016 WATER PUMP 100K0516 01G017 WATER FLANGE 100K0516 01G018 FUEL CAMSHAFT 100K0516 01G019 INJECTION PUMP 100K0516 01G02001 INJECTION PUMP [COMPONENT PARTS] 100K0516 01G02002 INJECTION PUMP [COMPONENT PARTS] 100K0516 01G021 ENGINE STOP LEVER 100K0516 01G02201 SPEED CONTROL PLATE 100K0516 01G02202 SPEED CONTROL PLATE 100K0516 01G023 GOVERNOR 100K0516 01G024 UPPER GASKET KIT 100K0516 01G025 LOWER GASKET KIT 100K0516 COOLING WATER SYSTEM 01G05601 FAN 100K0516 ELECTRICAL SYSTEM 01G05901 ALTERNATOR 100K0516 01G06001 ALTERNATOR [COMPONENT PARTS] 100K0516 CLUTCH 01G06601 CLUTCH 100K0516 HYDRAULIC SYSTEM 01G10501 HYDRAULIC PUMP 100K0516 01G10601 HYDRAULIC PUMP [COMPONENT PARTS] 100K0516 ENGINE 02G012 AIR CLEANER [F2400] 100K0516 02G013 MUFFLER [F2400] 100K0516 02G052 ACCELERATOR LEVER 100K0516 FUEL SYSTEM 02G053 FUEL TANK 100K0516 02G05401 FUEL PIPE [F2400] 100K0516 02G05501 FUEL FILTER [F2400] [COMPONENT PARTS] 100K0516 COOLING WATER SYSTEM 02G05701 RADIATOR [F2400] 100K0516 02G05801 DUSTPROOF PLATE [F2400] 100K0516 ELECTRICAL SYSTEM 02G06101 STARTER [F2400] 100K0516 02G06201 STARTER [F2400] [COMPONENT PARTS] 100K0516 02G063 ELECTRICAL SYSTEM 1 100K0516 02G064 ELECTRICAL SYSTEM 2 100K0516 02G065 LIGHT KIT [OPTION] 100K0516 CLUTCH 02G067 PROPELLER SHAFT 100K0516 02G068 DIFF.LOCK/CLUTCH ROD 100K0516 02G069 CLUTCH ROD 100K0516 02G070 CLUTCH HOUSING FRAME 100K0516 TRANSMISSION 02G071 TRANSMISSION CASE 100K0516 02G072 TRANSMISSION CASE COVER 100K0516 02G07301 HST [F2400] 100K0516 02G074 HST [COMPONENT PARTS] 100K0516 02G075 SECOND SHAFT 100K0516 02G076 THIRD/FIFTH SHAFT 100K0516 02G077 FOURTH SHAFT 100K0516 SPEED CHANGE LEVER 02G078 SPEED CHANGE FORK AND PTO LEVER 100K0516

Ref. F2400 Page 23007 Item Part No. Description Book SPEED CHANGE LEVER 02G079 AUX.SPEED CHANGE AND REAR DRIVE LEVER 100K0516 02G080 SPEED CHANGE 1 100K0516 02G08101 SPEED CHANGE 2 100K0516 02G08102 SPEED CHANGE 2 100K0516 02G08201 SPEED CHANGE 3 100K0516 02G08202 SPEED CHANGE 3 100K0516 FRONT AXLE/FRONT WHEEL 02G083 DIFFERENTIAL 100K0516 02G084 AXLE CASE 100K0516 02G085 FRONT AXLE 100K0516 02G086 FRONT WHEEL (23 X 10.5-12) 100K0516 BRAKE 02G087 BRAKE 100K0516 02G088 PEDAL 100K0516 02G089 BRAKE ROD 100K0516 REAR AXLE/REAR WHEEL 02G090 WHEEL HUB 100K0516 02G091 REAR AXLE CASE 100K0516 02G092 REAR AXLE ARM 100K0516 02G093 DRIVE SHAFT 100K0516 02G094 DIFFERENTIAL 100K0516 02G095 MID CASE 100K0516 02G09601 UNIVERSAL JOINT 100K0516 02G09602 UNIVERSAL JOINT 100K0516 02G09603 UNIVERSAL JOINT 100K0516 02G097 REAR WHEEL (16 X 6.50-8) 100K0516 02G09801 REAR AXLE FRAME [F2400] 100K0516 STEERING 02G099 KNUCKLE ARM 100K0516 02G100 STEERING 100K0516 02G101 HANDRE POST 100K0516 HYDRAULIC SYSTEM 02G102 POWER STEERING 100K0516 02G103 POWER STEERING [COMPONENT PARTS] 100K0516 02G104 POWER CYLINDER [COMPONENT PARTS] 100K0516 02G10701 HYDRAULIC PIPE [F2400] 100K0516 02G10801 OIL COOLER [F2400] 100K0516 02G109 CONTROL VALVE 100K0516 02G110 CONTROL VALVE [COMPONENT PARTS] 100K0516 02G111 LIFT CYLINDER [COMPONENT PARTS] 100K0516 02G112 CONTROL VALVE KIT [OPTION] 100K0516 02G113 CONTROL VALVE 2 [COMPONENT PARTS] 100K0516 LINK 02G114 LINK 100K0516 02G115 LINK ARM 100K0516 HOOD (BONNET)/CHASSIS 02G116 HOOD (BONNET) 100K0516 02G117 FENDER 100K0516 02G118 FRONT FRAME 100K0516 02G119 SEAT 100K0516 02G12001 SEAT [COMPONENT PARTS] 100K0516 02G12002 SEAT [COMPONENT PARTS] 100K0516 02G121 ROPS [A][CA] 100K0516 LABELS 02G122 LABEL 100K0516 ACCESSORIES 02G123 ACCESSORIESAND SERVICE PARTS 100K0516

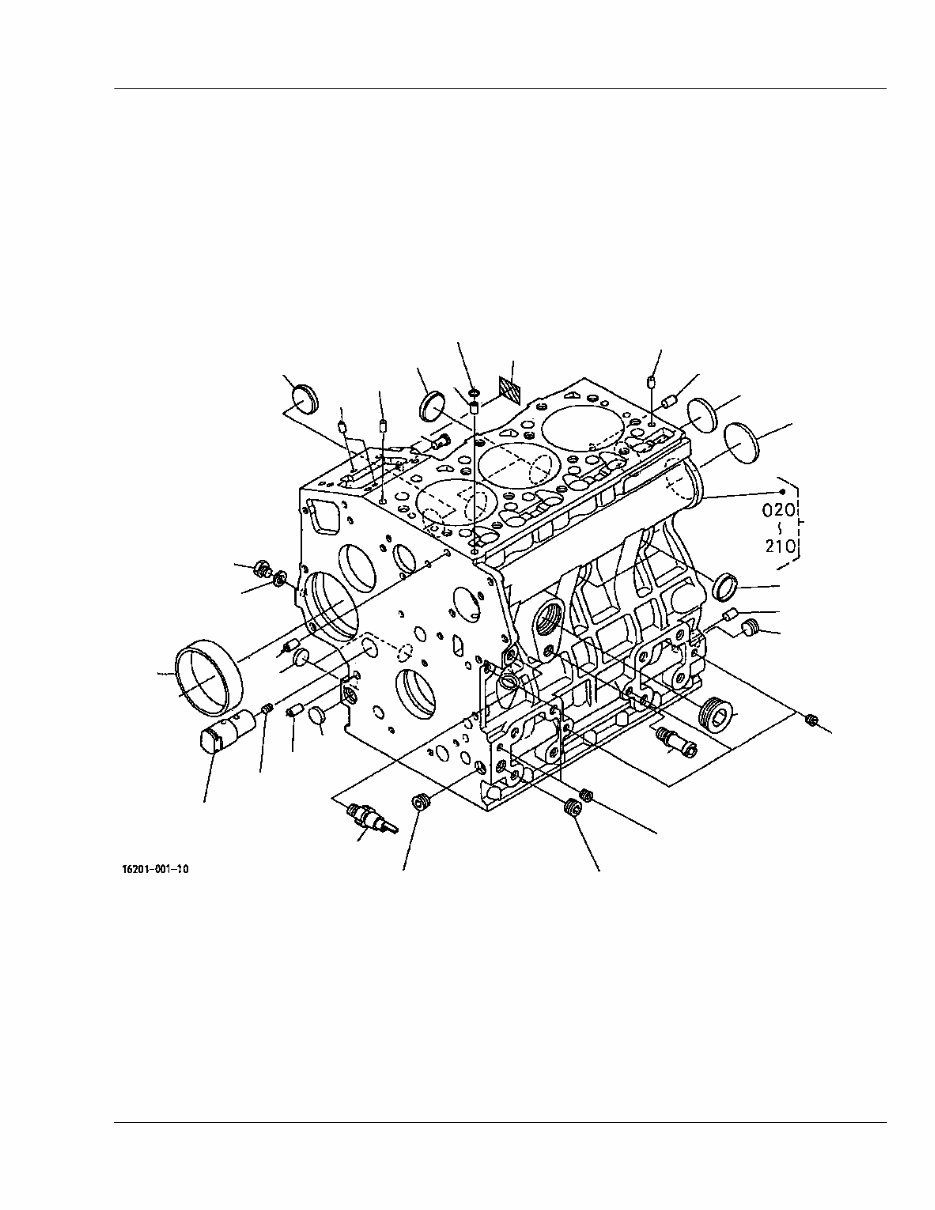

CRANKCASE Reference: 01G001 Page: 1 010 020 020 030 040 050 060 060 060 070 080 080 090 100 110 110 120 120 130 130 140 150 160 170 180 190 200 210 220 230 240 250

CRANKCASE Reference: 01G001 Page: 1 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 16261-01010 COMP.CRANKCASE 1 <=197819 0 0 010 16261-01012 COMP.CRANKCASE 1 >=197820 ← 0 0 010 16261-01013 COMP.CRANKCASE 1 >=384780 ← 0 0 010 16261-01014 COMP.CRANKCASE 1 >=431831 ← 32 70.4 010 16266-01010 COMP.CRANKCASE 1 >=559356 ← 31.39 69.058 020 15451-96270 CAP SEALING 4 0.012 0.0264 030 15221-03490 CAP SEALING 1 0.02 0.044 040 15261-96010 PLUG 3 0.002 0.0044 050 16271-96020 PLUG 1 <=559355 0 0 050 16683-96020 PLUG 1 >=559356 ← 0.47 1.034 060 16241-96010 PLUG 3 0.007 0.0154 070 15521-96020 PLUG 2 0.003 0.0066 080 06311-75018 PLUG 3 <=308554 0.004 0.0088 080 17391-96160 PLUG 3 >=308555 ← 0.003 0.0066 090 06311-75045 PLUG 1 <=112012 0.026 0.0572 090 16271-96160 PLUG 1 >=112013 ↔ 0.025 0.055 100 05012-00508 PIN STRAIGHT 2 0.001 0.0022 110 05012-00814 PIN STRAIGHT 2 0.006 0.0132 120 05012-00610 PIN STRAIGHT 2 0.003 0.0066 130 15231-33960 PIN PIPE 2 0.001 0.0022 140 16241-33650 PIN PIPE 1 0.002 0.0044 150 16241-96260 PLUG 1 <=49889 0 0 150 16241-96262 PLUG 1 >=49890 ← 0.007 0.0154 160 16261-56280 PIN START SPRING 1 0.004 0.0088 170 16241-24260 SHAFT IDLE GEAR 1 0.2 0.44 180 15521-93610 SCREW SET 1 0.002 0.0044 190 16271-55350 BUSH GOVERNOR GEAR 1 0.06 0.132 200 15221-33610 PLUG 1 0.009 0.0198 210 15021-33660 GASKET 1 0.001 0.0022 220 15221-33700 O RING 1 0.001 0.0022 230 15321-73340 PIPE WATER RETURN 1 0.016 0.0352 240 15372-87230 LABEL CAUTION 1 0.001 0.0022 250 15531-39010 SWITCH OIL 1 0.032 0.0704

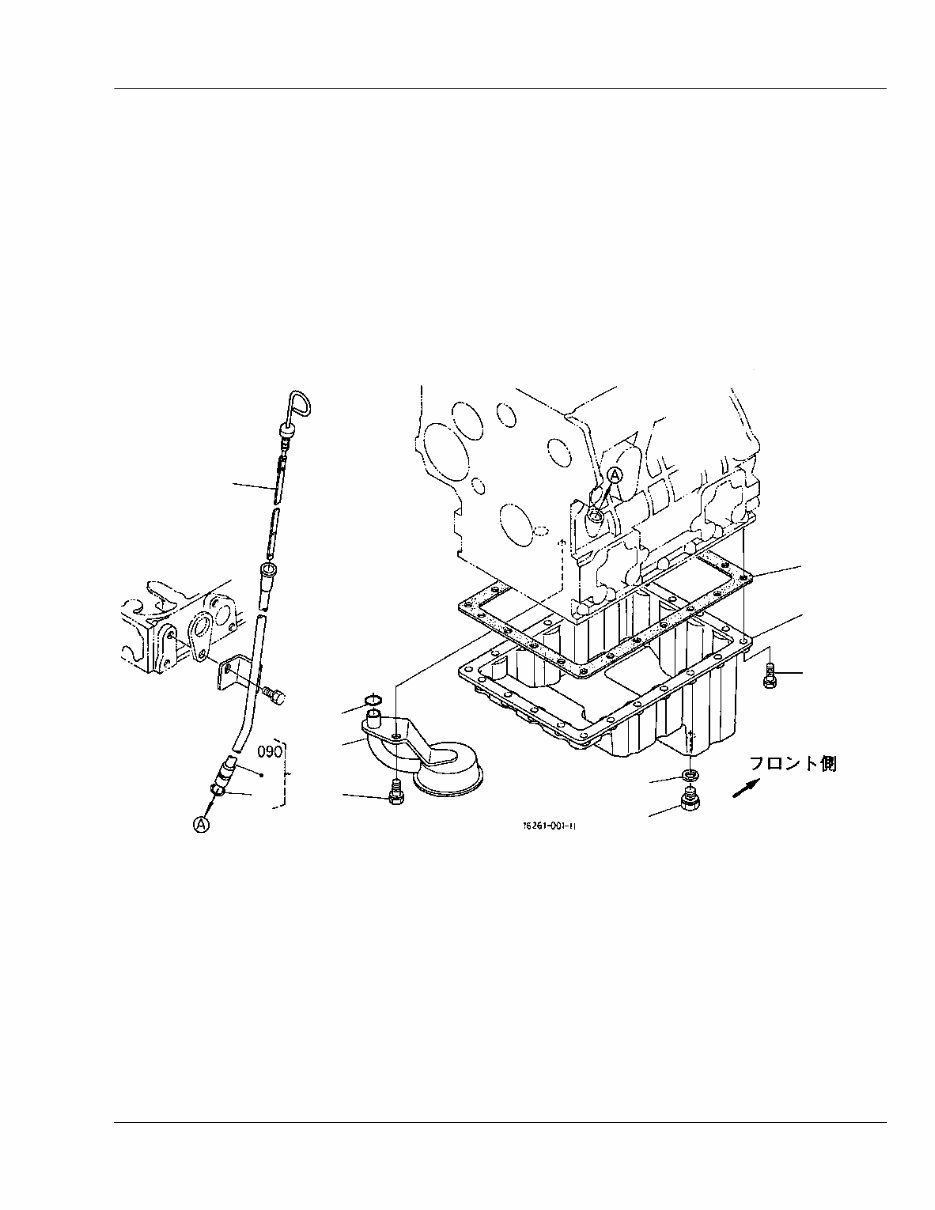

OIL PAN Reference: 01G002 Page: 2 010 020 030 040 050 060 070 080 090 100 110

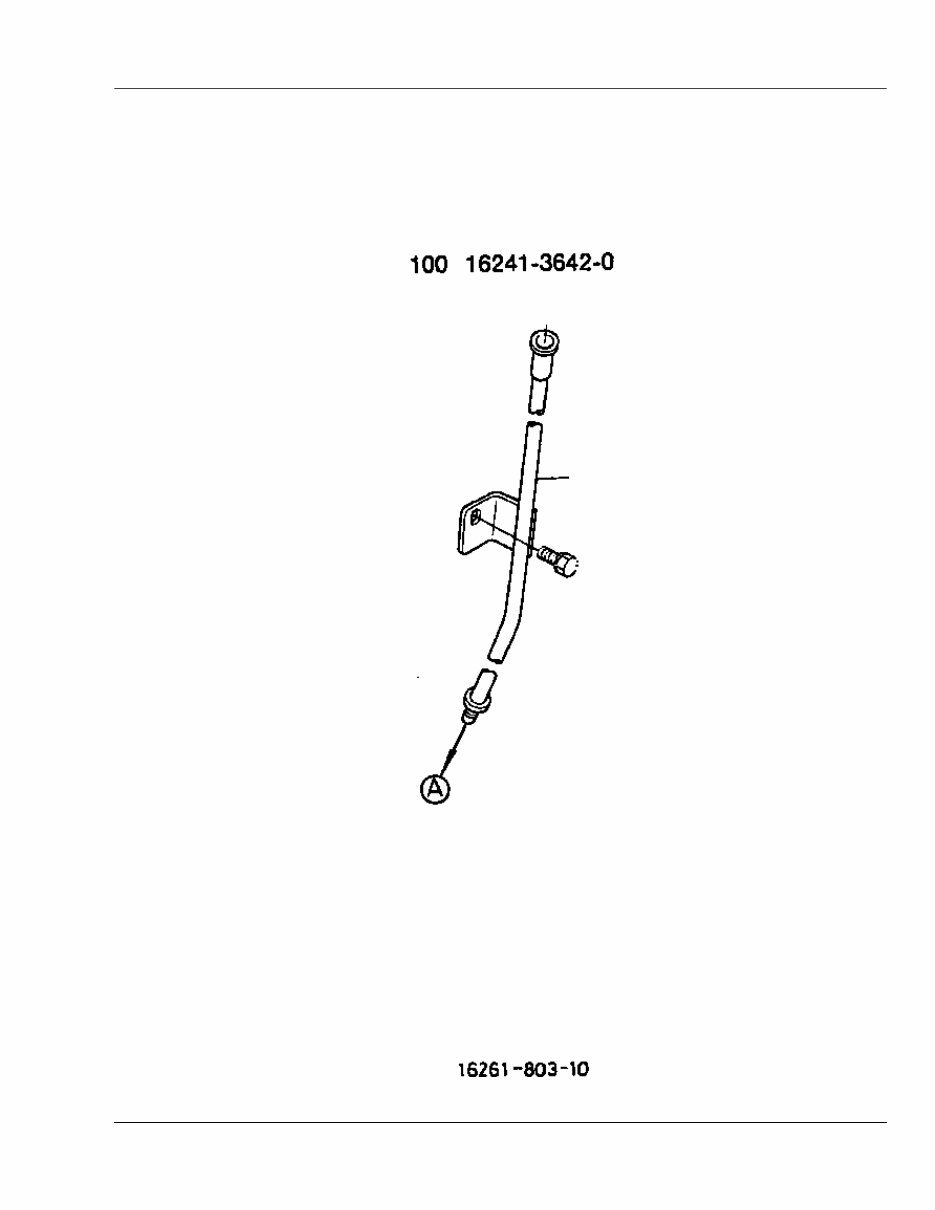

OIL PAN Reference: 01G002 Page: 2 100

OIL PAN Reference: 01G002 Page: 2 REF.No Part No. Description Q'ty S.No. I/C REMARKS Weight (kgf) Weight (lb) 010 16261-01610 OIL PAN 1 4.6 10.12 020 16261-01630 GASKET OIL PAN 1 0.001 0.0022 030 01023-50618 BOLT 22 0.006 0.0132 040 15221-33750 PLUG 1 0.032 0.0704 050 15109-33660 GASKET 1 0.001 0.0022 060 16261-32110 FILTER OIL 1 <=25928 0 0 060 16261-32112 FILTER OIL 1 >=25929 ← 0 0 070 01123-60816 BOLT 1 0.01 0.022 080 04811-00160 O RING 1 0.001 0.0022 090 16261-36410 GAUGE OIL 1 0.036 0.0792 100 16241-36420 GUIDE OIL GAUGE 1 <=425160 0.14 0.308 100 16241-36500 ASSY GUIDE OIL GAUGE 1 >=425161 ≠ 0.14 0.308 110 04814-00090 O RING 1 >=425161 0.001 0.0022

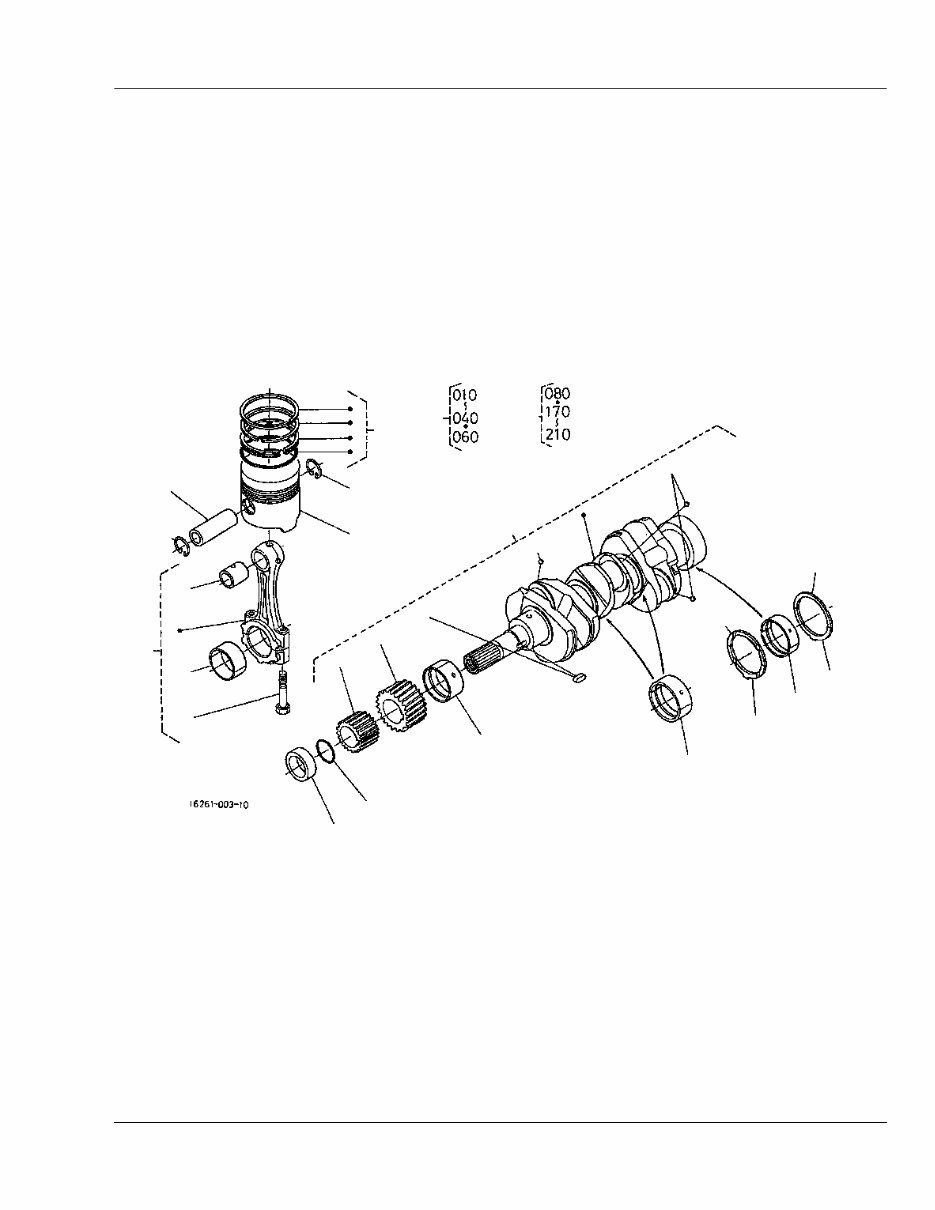

PISTON/CRANKSHAFT Reference: 01G003 Page: 3 010 020 030 040 040 050 060 070 080 090 110 110 120 130 140 150 160 170 180 190 200 200 210 210 220 230
