TECHNICAL MANUAL Litho in U.S.A John Deere Worldwide Commercial and Consumer Equipment Division GT242, GT262, and GT275 Lawn and Garden Tractors TM1582 (15JUL97) Replaces TM1582 (22DEC94) and TM1515 (01SEPT92)

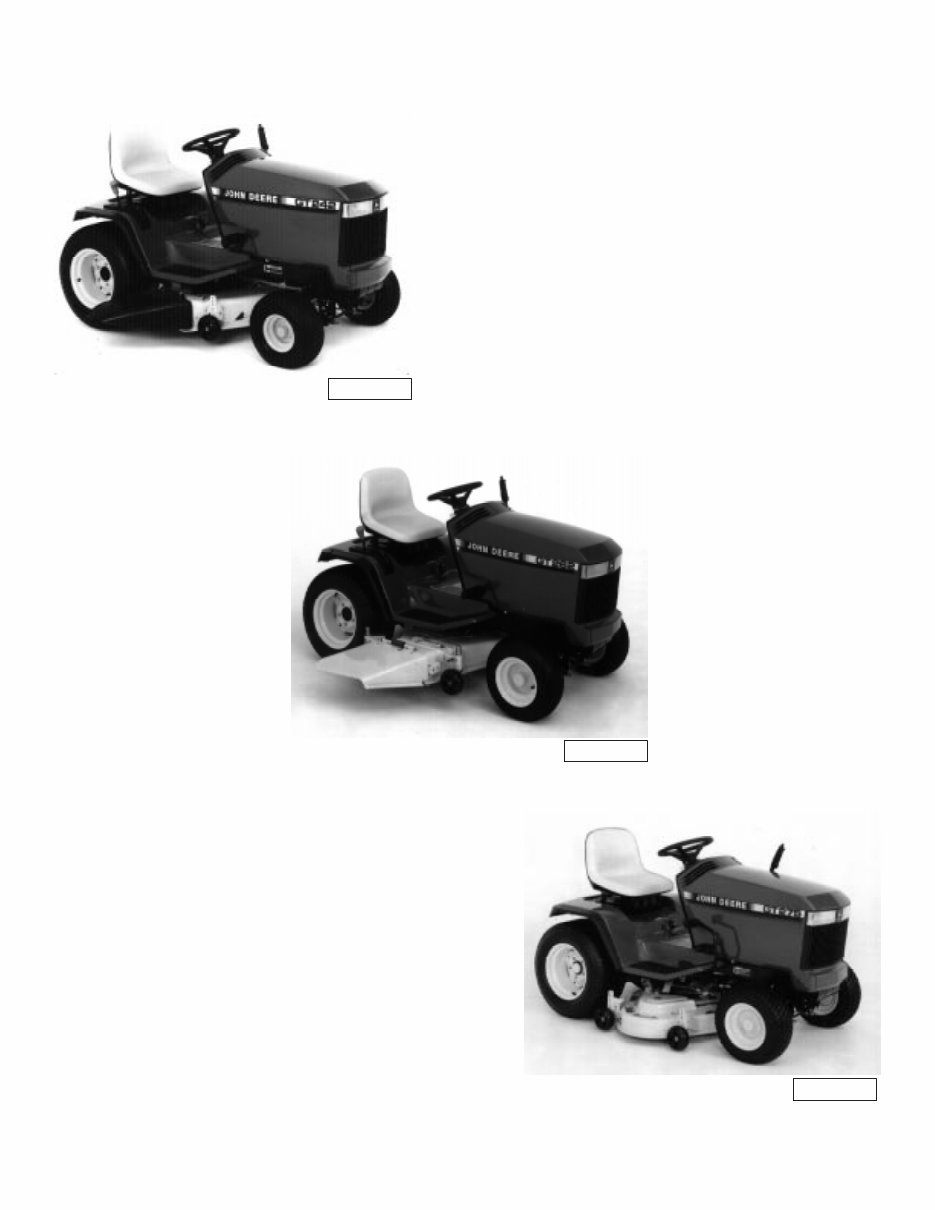

M85683 M85682 M85684 Model GT242 Model GT262 Model GT275

INTRODUCTION 7/17/97 1-1 This technical manual is written for an experienced tech- nician and contains sections that are specifically for this product. It is a part of a total product support program. The manual is organized so that all the information on a particular system is kept together. The order of grouping is as follows: • Table of Contents • General Diagnostic Information • Specifications • Electrical Wiring Harness Legend • Component Location • System Schematic • Wiring Harness • Troubleshooting Chart • Theory of Operation • Diagnostics • Tests & Adjustments • Repair NOTE: Depending on the particular section or system being covered, not all of the above groups may be used. Each section will be identified with a symbol rather than a number. The groups and pages within a section will be consecutively numbered. We appreciate your input on this manual. To help, there are postage paid post cards included at the back. If you find any errors or want to comment on the layout of the manual please fill out one of the cards and mail it back to us. All information, illustrations and specifications in this manual are based on the latest information available at the time of publication. The right is reserved to make changes at any time without notice. COPYRIGHT© 1997 Deere & Co. John Deere Worldwide Commercial and Consumer Equipment Division Horicon, WI All rights reserved Previous Editions COPYRIGHT© 1996, 1995, 1994, 1992, 1991, 1990, 1989, and 1988 Information Specifications and Engine (FV420V, FV540V) Electrical Hydrostatic Power Train Steering Brakes Safety Miscellaneous Gear Power Train Attachments

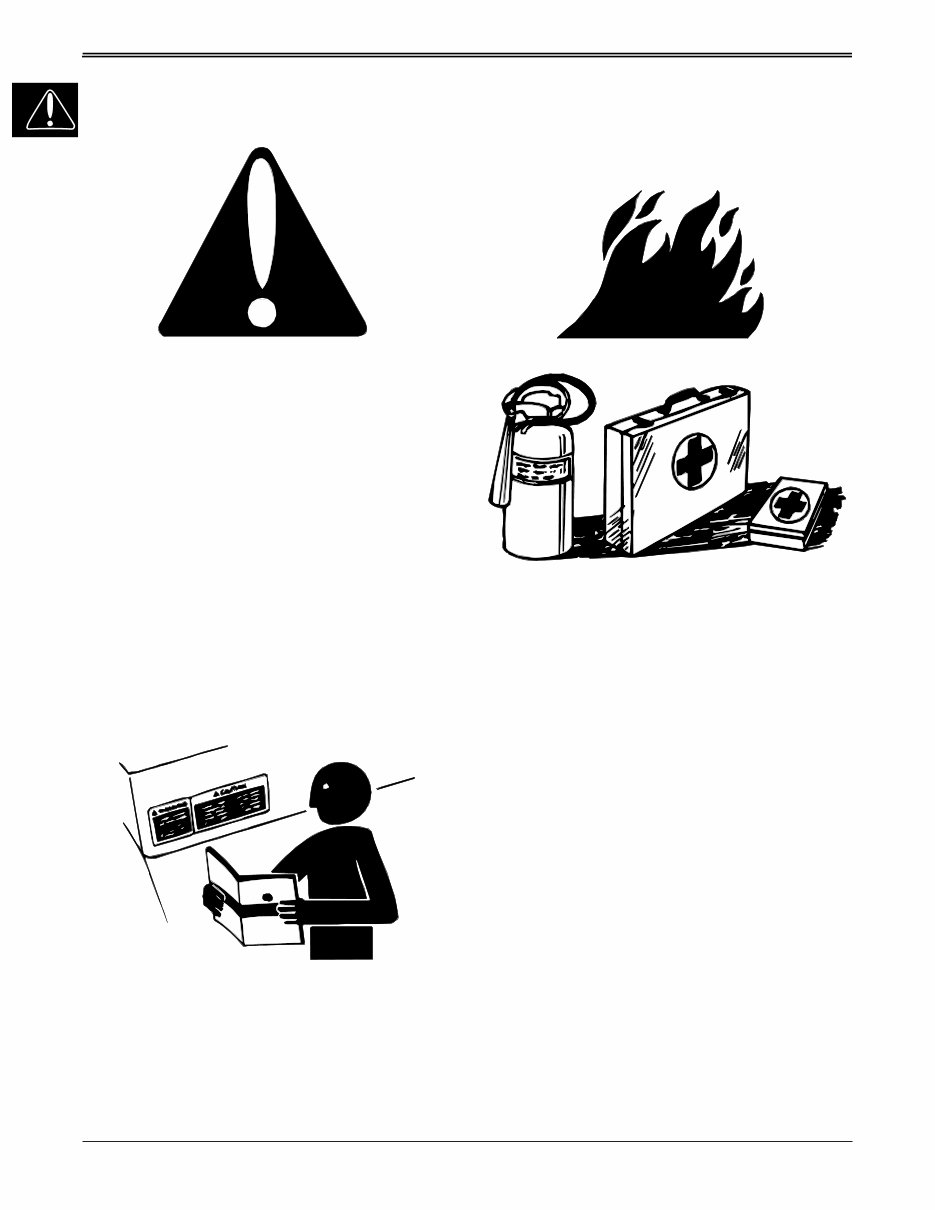

SAFETY 1-2 7/17/97 RECOGNIZE SAFETY INFORMATION This is the safety-alert symbol. When you see this symbol on your machine or in this manual, be alert to the po- tential for personal injury. Follow recommended precautions and safe servicing practices. Understand Signal Words A signal word—DANGER, WARNING, or CAUTION—is used with the safety-alert symbol. DANGER identifies the most serious hazards. DANGER or WARNING safety signs are located near specific hazards. General precautions are listed on CAUTION safety signs. CAUTION also calls attention to safety messages in this manual. REPLACE SAFETY SIGNS Replace missing or damaged safety signs. See the machine operator’s manual for correct safety sign place- ment. HANDLE FLUIDS SAFELY-AVOID FIRES Be Prepared For Emergencies When you work around fuel, do not smoke or work near heaters or other fire hazards. Store flammable fluids away from fire hazards. Do not incinerate or puncture pressurized containers. Make sure machine is clean of trash, grease, and de- bris. Do not store oily rags; they can ignite and burn sponta- neously. Be prepared if a fire starts. Keep a first aid kit and fire extinguisher handy. Keep emergency numbers for doctors, ambulance service, hospital, and fire department near your telephone.

SAFETY 7/17/97 1-3 USE CARE IN HANDLING AND SERVICING BATTERIES Prevent Battery Explosions • Keep sparks, lighted matches, and open flame away from the top of battery. Battery gas can explode. • Never check battery charge by placing a metal object across the posts. Use a volt-meter or hydrometer. • Do not charge a frozen battery; it may explode. Warm battery to 16°C (60°F). Prevent Acid Burns • Sulfuric acid in battery electrolyte is poisonous. It is strong enough to burn skin, eat holes in clothing, and cause blindness if splashed into eyes. • Avoid acid burns by: 1. Filling batteries in a well-ventilated area. 2. Wearing eye protection and rubber gloves. 3. Avoiding breathing fumes when electrolyte is added. 4. Avoiding spilling or dripping electrolyte. 5. Use proper jump start procedure. • If you spill acid on yourself: 1. Flush your skin with water. 2. Apply baking soda or lime to help neutralize the acid. 3. Flush your eyes with water for 10–15 minutes. 4. Get medical attention immediately. • If acid is swallowed: 1. Drink large amounts of water or milk. 2. Then drink milk of magnesia, beaten eggs, or vegetable oil. 3. Get medical attention immediately. USE SAFE SERVICE PROCEDURES Wear Protective Clothing Wear close fitting clothing and safety equipment appropriate to the job. Prolonged exposure to loud noise can cause impair- ment or loss of hearing. Wear a suitable hearing protective device such as earmuffs or earplugs to protect against objectionable or uncomfortable loud noises. Operating equipment safely requires the full attention of the operator. Do not wear radio or music headphones while operating machine. Service Machines Safely Tie long hair behind your head. Do not wear a necktie, scarf, loose clothing, or necklace when you work near machine tools or moving parts. If these items were to get caught, severe injury could result. Remove rings and other jewelry to prevent electrical shorts and entanglement in moving parts. Use Proper Tools Use tools appropriate to the work. Makeshift tools and procedures can create safety hazards. Use power tools only to loosen threaded parts and fasteners. For loosen- ing and tightening hardware, use the correct size tools. DO NOT use U.S. measurement tools on metric fasteners. Avoid bodily injury caused by slipping wrenches. Use only service parts meeting John Deere specifications.

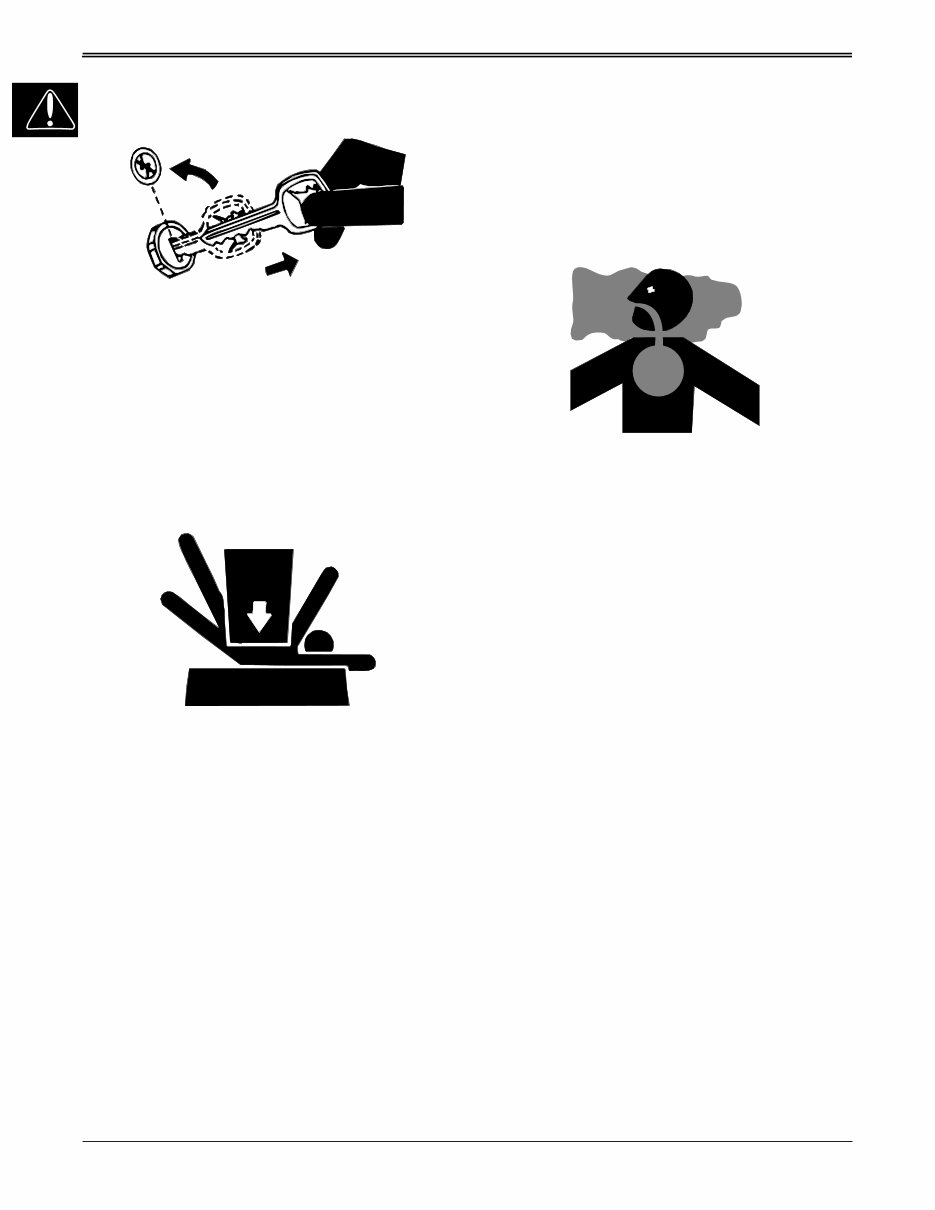

SAFETY 1-4 7/17/97 Park Machine Safely Before working on the machine: 1. Lower all equipment to the ground. 2. Stop the engine and remove the key. 3. Disconnect the battery ground strap. 4. Hang a “DO NOT OPERATE” tag in operator station. Support Machine Properly And Use Proper Lifting Equipment If you must work on a lifted machine or attachment, se- curely support the machine or attachment. Do not support the machine on cinder blocks, hollow tiles, or props that may crumble under continuous load. Do not work under a machine that is supported solely by a jack. Follow recommended procedures in this manual. Lifting heavy components incorrectly can cause severe injury or machine damage. Follow recommended procedure for removal and installation of components in the manual. Work In Clean Area Before starting a job: 1. Clean work area and machine. 2. Make sure you have all necessary tools to do your job. 3. Have the right parts on hand. 4. Read all instructions thoroughly; do not attempt shortcuts. Illuminate Work Area Safely Illuminate your work area adequately but safely. Use a portable safety light for working inside or under the machine. Make sure the bulb is enclosed by a wire cage. The hot filament of an accidentally broken bulb can ignite spilled fuel or oil. Work In Ventilated Area Engine exhaust fumes can cause sickness or death. If it is necessary to run an engine in an enclosed area, remove the exhaust fumes from the area with an exhaust pipe extension. If you do not have an exhaust pipe extension, open the doors and get outside air into the area. WARNING: California Proposition 65 Warning Gasoline engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Remove Paint Before Welding Or Heating Avoid potentially toxic fumes and dust. Hazardous fumes can be generated when paint is heated by welding, soldering, or using a torch. Do all work outside or in a well ventilated area. Dispose of paint and solvent properly. Remove paint before welding or heating: If you sand or grind paint, avoid breathing the dust. Wear an approved respirator. If you use solvent or paint stripper, remove stripper with soap and water before welding. Remove solvent or paint stripper containers and other flammable material from area. Allow fumes to disperse at least 15 minutes before welding or heating.

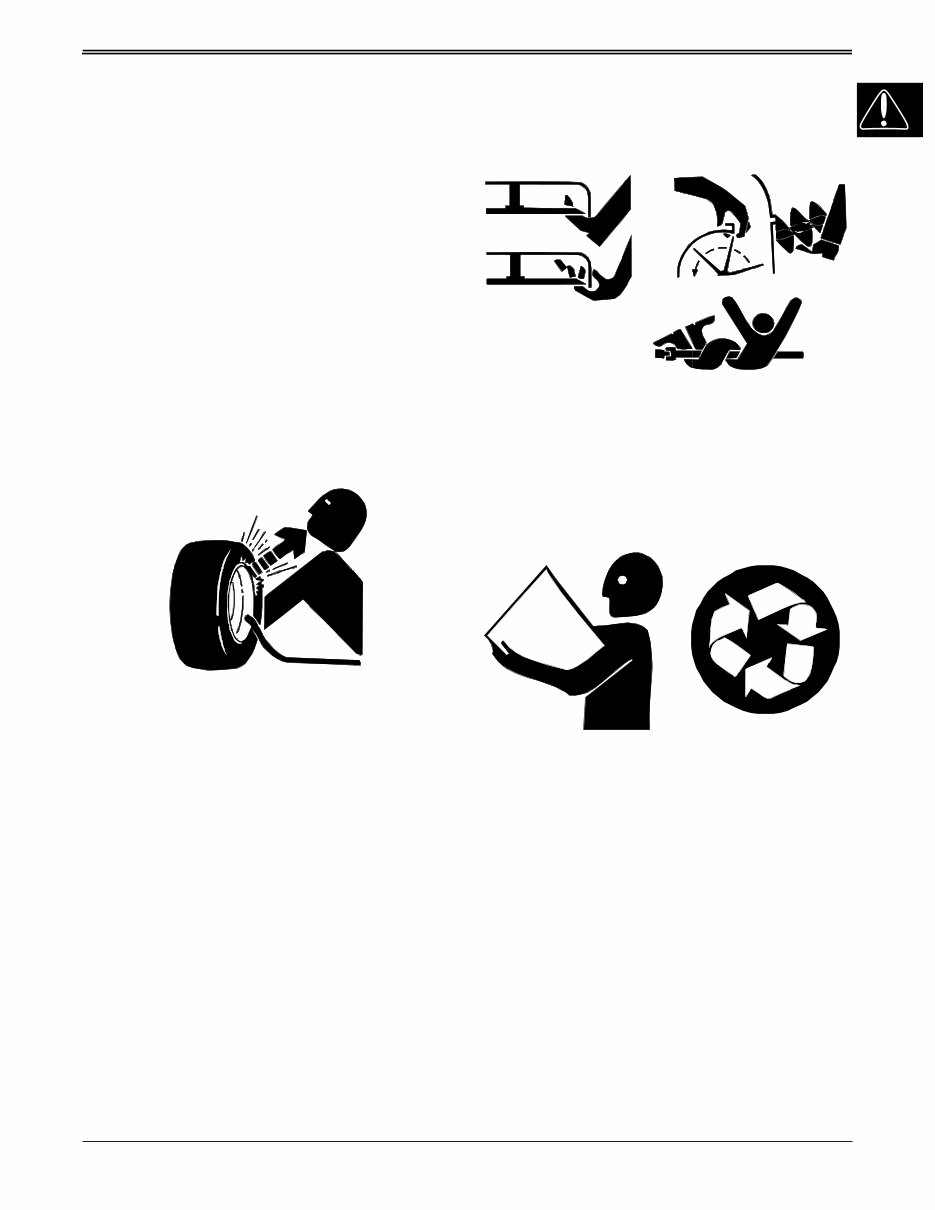

SAFETY 7/17/97 1-5 Avoid Harmful Asbestos Dust Avoid breathing dust that may be generated when handling components containing asbestos fibers. Inhaled asbestos fibers may cause lung cancer. Components in products that may contain asbestos fibers are brake pads, brake band and lining assemblies, clutch plates, and some gaskets. The asbestos used in these components is usually found in a resin or sealed in some way. Normal handling is not hazardous as long as airborne dust containing asbestos is not generated. Avoid creating dust. Never use compressed air for cleaning. Avoid brushing or grinding material containing asbestos. When servicing, wear an approved respirator. A special vacuum cleaner is recommended to clean asbestos. If not available, apply a mist of oil or water on the material containing asbestos. Keep bystanders away from the area. SERVICE TIRES SAFELY Explosive separation of a tire and rim parts can cause serious injury or death. Do not attempt to mount a tire unless you have the proper equipment and experience to perform the job. Always maintain the correct tire pressure. Do not inflate the tires above the recommended pressure. Never weld or heat a wheel and tire assembly. The heat can cause an in- crease in air pressure resulting in a tire explosion. Weld- ing can structurally weaken or deform the wheel. When inflating tires, use a clip-on chuck and extension hose long enough to allow you to stand to one side and NOT in front of or over the tire assembly. Use a safety cage if available. Check wheels for low pressure, cuts, bubbles, damaged rims or missing lug bolts and nuts. AVOID INJURY FROM ROTATING BLADES, AUGERS AND PTO SHAFTS Keep hands and feet away while machine is running. Shut off power to service, lubricate or remove mower blades, augers or PTO shafts. HANDLE CHEMICAL PRODUCTS SAFELY Direct exposure to hazardous chemicals can cause serious injury. Potentially hazardous chemicals used with John Deere equipment include such items as lubricants, coolants, paints, and adhesives. A Material Safety Data Sheet (MSDS) provides specific details on chemical products: physical and health hazards, safety procedures, and emergency response techniques. Check the MSDS before you start any job using a hazardous chemical. That way you will know ex- actly what the risks are and how to do the job safely. Then follow procedures and recommended equipment.

SAFETY 1-6 7/17/97 Dispose of Waste Properly Improperly disposing of waste can threaten the environ- ment and ecology. Potentially harmful waste used with John Deere equipment include such items as oil, fuel, coolant, brake fluid, filters, and batteries. Use leakproof containers when draining fluids. Do not use food or bev- erage containers that may mislead someone into drink- ing from them. Do not pour waste onto the ground, down a drain, or into any water source. Inquire on the proper way to recycle or dispose of waste from your lo- cal environmental or recycling center, or from your John Deere dealer. LIVE WITH SAFETY Before returning machine to customer, make sure machine is functioning properly, especially the safety sys- tems. Install all guards and shields.

SPECIFICATIONS AND INFORMATION Page CONTENTS 7/17/97 2-1 GENERAL VEHICLE SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . 2-2 TORQUE VALUES, NON-STANDARD FASTENERS . . . . . . . . . . . . . . . 2-7 ENGINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7 POWER TRAIN, GEAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8 POWER TRAIN, HYDROSTATIC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8 OTHER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8 METRIC FASTENER TORQUE VALUES . . . . . . . . . . . . . . . . . . . . . . . 2-10 METRIC FASTENER TORQUE VALUE – GRADE 7 . . . . . . . . . . . . . . 2-11 INCH FASTENER TORQUE VALUES . . . . . . . . . . . . . . . . . . . . . . . . . . 2-12 GASOLINE SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 4–CYCLE ENGINES – NORTH AMERICA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 GASOLINE STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-13 ENGINE OIL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14 4–CYCLE GASOLINE ENGINE OIL –NORTH AMERICA. . . . . . . . . . . . . . . . . . . 2-14 BREAK–IN 4-CYCLE GASOLINE ENGINE OIL – NORTH AMERICA . . . . . . . . . 2-15 HYDROSTATIC TRANSMISSION AND HYDRAULIC OIL . . . . . . . . . . 2-16 ANTI-CORROSION GREASE SPECIFICATIONS . . . . . . . . . . . . . . . . 2-17 GENERAL APPLICATION GREASE SPECIFICATIONS . . . . . . . . . . . 2-18 GREASE – NORTH AMERICA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18 ALTERNATIVE LUBRICANTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19 SYNTHETIC LUBRICANTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19 LUBRICANT STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19 MIXING OF LUBRICANTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19 OIL FILTERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19 SERIAL NUMBER LOCATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20 MACHINE IDENTIFICATION NUMBER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20 ENGINE SERIAL NUMBER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20 CARBURETOR SERIAL NUMBER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20 GEAR TRANSAXLE SERIAL NUMBER LOCATION . . . . . . . . . . . . . . . . . . . . . . . 2-20 HYDROSTATIC TRANSMISSION SERIAL NUMBER . . . . . . . . . . . . . . . . . . . . . . 2-20 MOWER DECK SERIAL NUMBER LOCATION . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21

2-2 7/17/97 GENERAL VEHICLE SPECIFICATIONS SPECIFICATIONS AND INFORMATION GENERAL VEHICLE SPECIFICATIONS Model: GT242 GT262 GT275 ENGINE Make John Deere “K” Series, John Deere “K” Series, John Deere “K” Series, Air Cooled Air Cooled Air Cooled Manufacturer Kawasaki Kawasaki Kawasaki Type Gasoline Gasoline Gasoline Model FC420V-ES10 FC540V-ES15 FV540V-KS00 Aspiration Natural Natural Natural Horsepower 10.4 kW (14 HP) 12.6 kW (17 HP) 12.6 kW (17 HP) Cylinders 1 1 1 Displacement 423 cm 3 (25.8 cu. in.) 535cm 3 (32.6 cu. in.) 535 cm 3 (32.6 cu. in.) Stroke/Cycle 4 Cycle 4 Cycle 4 Cycle Bore 89 mm (3.500 in.) 89 mm (3.500 in.) 89 mm (3.500 in.) Stroke 68 mm (2.58 in.) 86 mm (3.360 in.) 86 mm (3.360 in.) Compression Ratio 8.3:1 8.3:1 Slow Idle 1550 ± 75 rpm 1550 ± 75 rpm 1550 ± 75 rpm Fast Idle 3350 ± 50 rpm 3350 ± 50 rpm 3350 ± 50 rpm Valves Overhead Overhead Overhead Lubrication Pressurized Pressurized Pressurized Oil Filter Full Flow Filter Full Flow Filter Full Flow Filter Cooling System Air Cooled Air Cooled Air Cooled Air Cleaner Dual Stage Paper Air Dual Stage Paper Air Dual Stage Paper Air Filter and Foam Filter and Foam Filter and Foam Precleaner Precleaner Precleaner Muffler Horizontal Discharge Horizontal Discharge Horizontal Discharge Below Frame Below Frame Below Frame Engine Oil Capacity 1.5 L (3.2 pt.) 1.8 L (3.8 pt.) 1.8 L (3.8 pt.) (with filter)
