HUSQVARNA RIDER 16H RIDE on MOWER Full Service & Repair Manual

101 90 98-26 Rider 11, Rider 13 H, Rider 11 Bio, Rider 13 H Bio, Rider 14 Pro, Rider 16 H Workshop Manual For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

English – 1 Safety regulations ............................................... 2 General instructions ......................................... 2 Special instructions .......................................... 2 Special tools ........................................................ 3 Technical data ..................................................... 4 Dimensions ...................................................... 4 Engine .............................................................. 4 Gear box .......................................................... 4 Transmission .................................................... 4 Play .................................................................. 4 Tightening moments ......................................... 4 Mowing deck .................................................... 5 Control points ................................................... 5 Delivery and dealer service ................................ 6 Maintenance schedule ........................................ 8 Delivery measures ............................................ 10 Refilling battery acid .................................. 10 Fastening steering wheel .......................... 10 Fastening seat .......................................... 10 Fastening support wheels ......................... 10 Design and function .......................................... 11 General .......................................................... 11 Engine ............................................................ 12 Steering .......................................................... 13 Driving ............................................................ 14 Mowing deck .................................................. 15 Reparation instructions .................................... 16 Removing engine ........................................... 16 Replacing engine ........................................... 18 Changing engine oil ....................................... 21 Checking and adjusting steering wires .......... 21 Replacing steering wires ................................ 22 Removal/installation of steering axle ............. 22 Removal/installation of wire wheel ................. 23 Checking and adjusting brake wire ................ 24 Checking and adjusting gear control .............. 25 Checking and adjusting throttle control .......... 26 Checking and adjusting freewheel clutch ....... 26 Replacing articulated steering bearing ........... 27 Removal of swing axle ................................... 28 Replacing bushings ........................................ 29 Installation of swing axle ................................ 29 Removal/installation of gear box .................... 30 Removal/installation of hydrostatic transmission ................................................... 31 Replacing hydrostat. trans. axle seals ........... 33 Input axle .................................................. 33 Outgoing axles .......................................... 34 Replacing hydrostatic transmission wire ........ 35 Hydrostatic transmission brake ...................... 40 Removal of brake ...................................... 40 Installation of brake ................................... 40 Adjustment of brake .................................. 41 Bleeding hydrostatic transmission oil system 42 Adjustment of transmission neutral position .. 42 Transmission maintenance ............................ 43 Removal of belt .............................................. 44 Checking and adjusting cutting unit ground pressure ......................................................... 45 Checking and adjusting parallelism of the mowing deck .................................................. 45 Adjusting cutting height area .......................... 47 Adjusting cutting height .................................. 47 Removal of mowing deck ............................... 48 Replacing cutting unit belts ............................ 51 Belt replacement on Bio-unit ..................... 51 Belt replacement on mowing deck with side- or rear discharge .............................. 53 Removal of blades with bearings ................... 53 Grinding and balancing of blades .................. 55 Pulse air valve intake filter ............................. 55 Troubleshooting chart ...................................... 56 Electrical system ............................................... 57 Circuit diagram Rider 11/11 Bio ...................... 57 Circuit diagram Rider 13 H/13 H Bio/16 H ..... 58 Circuit diagram Rider 14 Pro .......................... 59 Workshop manual Rider 11, Rider 13 H Rider 11 Bio, Rider 13 H Bio Rider 14 Pro, Rider 16 H Contents For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

2 – English Safety regulations General instructions The workshop handbook is written for personnel who are assumed to have general ride-on mower reparation and service know-how. The workshop where the ride-on mower is repaired should be equipped with safety devices in accordance with local regulations. No-one should attempt to repair the ride-on mower without having first read and understood the contents of this handbook. The machine is tested for safety and approved only for equipment supplied or recommended by the manufacturer. The below-mentioned boxes are included in this workshop handbook, as is appropriate. Special instructions The fuel used in the ride-on mower has the following hazardous characteristics: • Toxic fluid and fumes • Can cause eye and skin complaints • Can cause breathing difficulties • Highly flammable When using compressed air, do not direct the compressed air stream towards your, or anybody else's, body. Air can be forced into the blood stream, thereby constituting a danger to life . Use hearing protectors when test driving. After test driving, do not touch the silencer before it has cooled down. Risk of burn injuries. This especially applies if the ride-on mower is equipped with a catalytic converter. If consumed, the lining on and in the catalytic converter element is dangerous to health. Use protective gloves when working with the catalytic converter/silencer. The blades are sharp and can cause cutting injuries. Always use protective gloves when you are handling the blades. Use protective glasses when working with the mowing deck. If the belt's tension spring comes off and flies upwards, this can cause injury to persons. Be extra careful when handling battery acid. Spilling acid on the skin can cause severe burn injuries. If acid is spilt on the skin, rinse immediately with water. If acid gets into the eyes, this can cause blindness. Contact a doctor. Be careful with the maintenance of the battery. Explosive gas is formed in the battery. Never handle the battery when smoking or in the vicinity of naked flames or sparks. Otherwise, the battery can explode and cause severe injuries. IMPORTANT INFORMATION This box indicates a risk of damage to the material if the instructions are not followed. WARNING! The warning box indicates a risk of injury to persons if the instructions are not followed. ! For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

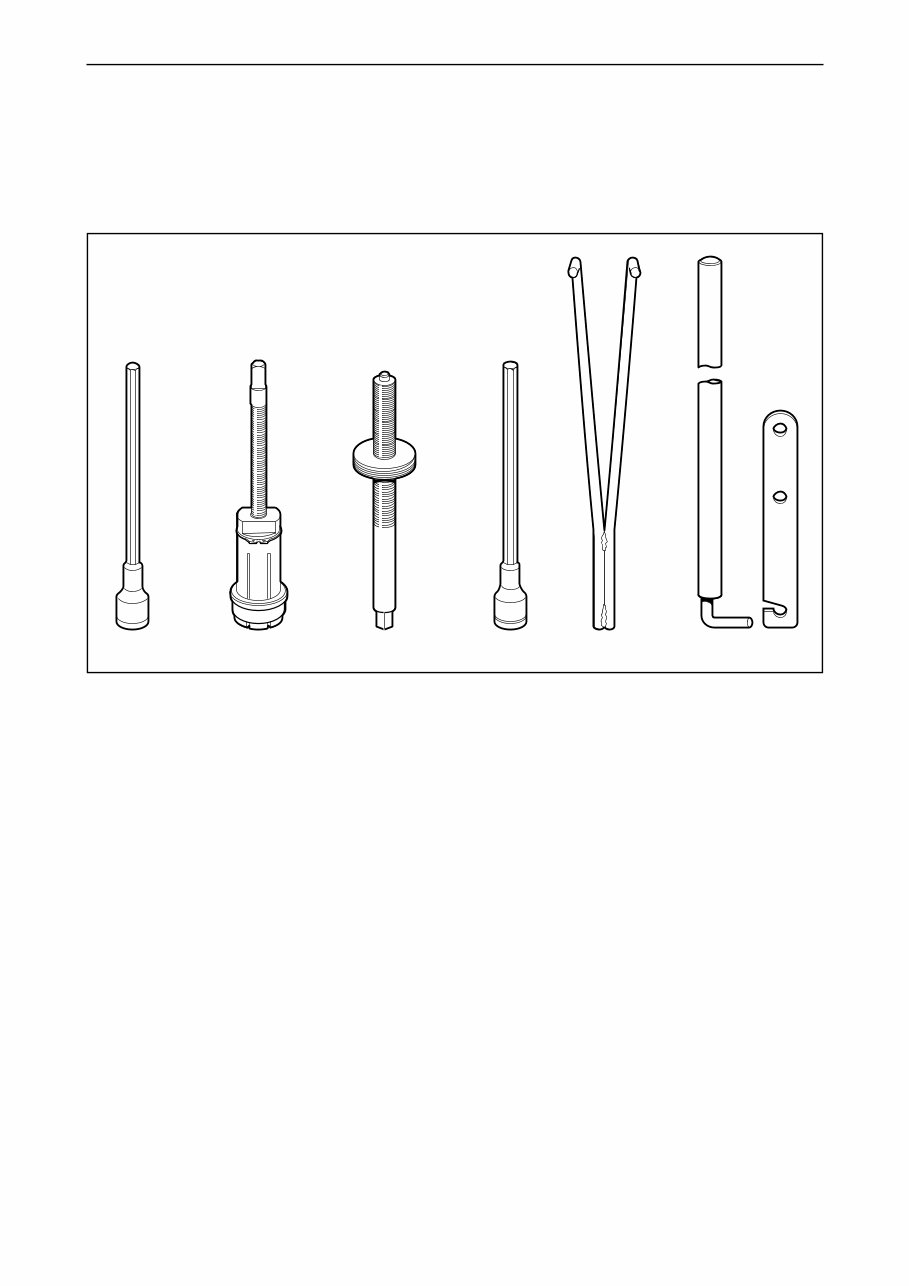

English – 3 Special tools The following special tools are used when working on the ride-on mower. 506 56 76-01 Ball-ended Allen key 5/16" to unscrew the engine pulley socket head cap screw (Kawazaki). 506 57 00-01 Wheel puller for Rider 11/11 Bio, Rider 13 H/13 H Bio and Rider 16 H. 506 66 48-01 Puller for engine pulley. 506 79 06-01 Ball-ended Allen key 3/8" to unscrew the engine pulley socket head cap screw (Briggs & Stratton). 506 89 92-01 Holder-on for engine pulley removal. 506 89 93-01 Tool for removing steer return spring. 506 66 48-01 506 79 06-01 506 57 00-01 506 89 92-01 506 56 76-01 506 89 93-01 For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

4 – English Technical data Tightening moments Carrier steering 5–10 Nm Pulley steering wire 20–30 Nm Belt wheel 35–40 Nm Blades 45–50 Nm Blade bearings 20–25 Nm Belt tensioner wheel 15–25 Nm Holder screws, engine 20–25 Nm Holder screws, gear box 20–25 Nm Brake drum bolts hydrostatic transmission 27 Nm Engine pulley 70–80 Nm Wheel axle nut 100–150 Nm Dimensions: Rider 11/11 Bio Rider 13 H/13 H Bio Length 2 090 mm 2 150 mm Width 880 mm 880 mm Height (over steering wheel) 1 070 mm 1 070 m Weight 197 kg 197 kg Track front 720 mm 720 mm Track rear 620 mm 630 mm Wheel base 860 mm 850 mm Tyre size 16 x 6.50 x 8 16 x 6.50 x 8 Air pressure 60 kPa 60 kPa Max. gradient 15° 15° Engine: Rider 11/11 Bio Rider 13 H/13 H Bio Manufacture Briggs & Stratton Briggs & Stratton model 28N707 model 286707 Power 7,7/10,5 kW/hp 9,2/12,5 kW/hp Displacement 362 cm 3 465 cm 3 Fuel min. 85 octane unleaded min. 85 octane unleaded Tank capacity 7 litres 7 litres Oil SAE 30 or SAE 10W/30 SAE 30 or SAE 10W/30 class CD–F class CD–SF Oil capacity 1,4 litres 1,4 litres Start Electric start Electric start Gearbox: Rider 11/11 Bio Rider 13 H/13 H Bio Manufacture Peerless MST 205 Tuff Torq K55 Oil SAE 10W/30 class CD-SF Oil capacity 2,2 litres Gears, forwards 5 Gears, reverse 1 Electrical system Rider 11/11 Bio Rider 13 H/13 H Bio Type 12 V, negative earth 12 V, negative earth Battery 12 V, 24 Ah 12 V, 24 Ah Spark plug Champion CJ8 or J8 Champion CJ8 or J8 Spark plug gap 0,7 - 0,8 mm 0,7 - 0,8 mm Play Clutch wire: 8–10 mm Brake control lever against stop bolt: 0–1 mm Brake control lever: 7–9 mm Brake wire hydrostatic transmission: 0 mm For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

English – 5 Technical data Control points Mowing deck parallelism with cutting height in pos. 1: ± 2 mm Cutting height control in pos. 1: Rider 11= 37 ± 2 mm Bio = 45 ± 2 mm Other = 40 ± 2 mm Synchronous transmission belt tension Bio 103 at 10 N force, impression: 7 mm Synchronous transmission belt tension Bio 90 at 7 N force, impression: 8 mm Dist. between support plate and drive belt: 3–6 mm Distance belt tensioner control lever and belt guide, disengaged unit: 17 ± 5 mm Dimensions: Rider 14 Pro Rider 16 H Length 2 120 mm 2 080 mm Width 880 mm 880 mm Height (over steering wheel) 1 070 mm 1 070 mm Weight 234 kg 210 kg Track front 720 mm 720 mm Track rear 640 mm 630 mm Wheel base 860 mm 860 mm Tyre size 16 x 7.50 x 8 18 x 6.50 x 8 Air pressure 60 kPa 60 kPa Max. gradient 15° 15° Engine: Rider 14 Pro Rider 16 H Manufacture Briggs & Stratton Briggs & Stratton Vanguard V-Twin model 28N707 model 294777 Power 12/14 kW/hp 11,4/15,5 kW/hp Displacement 480 cm 3 465 cm 3 Fuel min 85 octane unleaded min 85 octane unleaded Tank capacity 7 litres 7 litres Oil SAE 30 or 10W/30 SAE 30 or 10W/30 class CD-CF class CD-CF Oil capacity 1,5 litres 1,2 litres Start Electric start Electric start Gearbox: Rider 14 Pro Rider 16 H Manufacture Tuff Torq K 61 Tuff Torq K 55 Oil SAE 10W/30 SAE 10W/30 class CD-CF class CD-CF Oil capacity 3,3 litres 2,2 litres Electrical system Rider 14 Pro Rider 16 H Type 12 V, negative earth 12 V, negative earth Battery 12 V, 24 Ah 12 V, 24 Ah Spark plug Champion RC12YC Champion CJ8 or J8 Spark plug gap 0,7 - 0,8 mm 0,7 - 0,8 mm Mowing deck: Rear ejector 85 Rear ejector 97 Rear ejector 120 Bio 90 Bio 103 Cutting width 850 mm 970 mm 1 200 mm 900 mm 1 030 mm Cutting height 40-90 mm 40-90 mm 40-90 mm 45-95 mm 45-95 mm Blade length 350 mm 440 mm 440 mm 410 mm Noise level 100 dB(A) 100 dB(A) 100 dB(A) 100 dB(A) 100 dB(A) Weight 28,0 kg 40,0 kg 60,2 kg 38,0 kg 44,0 kg Overall width 950 mm 1 075 mm 1 305 mm 1 000 mm 1 115 mm For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

6 – English Delivery and dealer service Pre-delivery service 1. Top up battery with acid and recharge for four hours. 2. Fit steering wheel, seat and any optional equipment. 3. Fit cutting unit. 4. Adjust cutting unit: Adjust lift springs (effective weight of cutting unit should be 12–15 kg, or set to maximum lift if brush is to be fitted). Adjust cutting unit so that rear edge is about 2–4 mm higher than front edge. Adjust cutting unit height setting so that cutting height limit is 5 mm above the frame of the unit at the lowest cutting height. 5. Check that engine has correct amount of oil. 6. Check and adjust tyre pressure (60 kPa, 0.6 bar). 7. Connect battery. 8. Fill with fuel and start engine. 9. Check that machine does not move in neutral. 10. Check: Forward drive. Reverse drive. Operation of blades. Seat safety switch. Lift lever safety switch. Parking brake safety switch. 11. Check engine revs 3,000–3,100 rpm. 12. Tell customer about: Need and benefits of following the service schedule. Need and benefits of having machine serviced every 300 hours. Servicing and the influence of this journal on the second-hand value of the machine. Range of applications for BioClip. 13. Complete proof of sale, etc. After first 5 hours 1. Change engine oil. For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

English – 7 25 hour service 1. Change engine oil (50 hours). (25 hours if operating conditions severe). 2. Clean/replace air pre-filter or oil-foam element if fitted (25 hours). (more regularly in dusty working conditions) 3. Clean/replace air filter cartridge (25 hours, 100 hours if pre-filter fitted). (more regularly in dusty working conditions) 4. Clean engine cooling air intake. 50 hour service 1. Change engine oil. 2. Clean/replace air pre-filter or oil-foam element if fitted. 3. Clean/replace air filter cartridge (25 hours, 100 hours if pre-filter fitted) (more regularly in dusty working conditions) 4. Clean engine cooling air intake. 5. Check/adjust cutting height setting. 6. Check/adjust parking brake. 7. Inspect flame guard/spark arrestor (optional equipment) 100 hour service 1. Change engine oil. 2. Clean/replace air pre-filter or oil-foam element if fitted. 3. Clean/replace air filter cartridge (25 hours, 100 hours if pre-filter fitted). (more regularly in dusty working conditions) 4. Check/adjust cutting height setting. 5. Check/adjust parking brake. 6. Inspect flame guard/spark arrestor (optional equipment) 7. Replace engine oil filter. 8. Clean/replace spark plug. 9. Replace fuel filter in fuel line. 10. Clean pulse-air filter. 11. Clean cooling system. 12. Check engine valve clearance. 300 hour service 1. Change engine oil. 2. Replace air filter (pre-filter). 3. Replace air filter (paper). 4. Check/adjust cutting height setting. 5. Check/adjust parking brake. 6. Inspect flame guard/spark arrestor (optional equipment) 7. Replace engine oil filter. 8. Clean/replace spark plug. 9. Replace fuel filter in fuel line. 10. Clean pulse-air filter. 11. Clean cooling system. 12. Check engine valve clearance. 13. Carry out 300 hour service at authorised dealer. At least once a season 1. Change engine oil (50 hours). (25 hours in severe operating conditions). 2. Clean/replace air pre-filter or oil-foam element if fitted (25 hours). (more regularly in dusty working conditions) 3. Clean/replace air filter cartridge (25 hours, 100 hours if pre-filter fitted). (more regularly in dusty working conditions) 4. Check/adjust cutting height setting. 5. Check/adjust parking brake. 6. Inspect flame guard/spark arrestor, optional equipment (50 hours). 7. Replace engine oil filter (100 hours). 8. Clean/replace spark plug (100 hours). 9. Replace fuel filter in fuel line (100 hours). 10. Clean pulse-air filter. 11. Clean cooling system (100 hours). (more regularly in dusty working conditions) 12. Check engine valve clearance (100 hours). 13. Carry out 300 hour service at authorised dealer. Delivery and dealer service For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

8 – English Maintenance schedule Maintenance interval in hours Daily maintenance before after Weekly 3) maintenance At least once a year Check for fuel and oil leakage - ❍ Check the parking brake 23 ● Check the engine oil level (when you refuel) 20 ● Check the fuel pump air filter 21 ● Check the seat safety switch 23 ● Check the lift lever safety switch 23 ● Check the parking brake safety switch 23 ● Check/clean the engine cooling air intake 20 ● Check the cutting unit: 27 ● • blades are secure 29 ● • condition of blades (sharpness, shape, etc.) 29 ● • blade synchronisation (90° between BioClip) 29 ● Check steering wires (for play, etc.) 22 ● Check fasteners (screws, nuts, etc.) - ❍ Start engine and blades, listen for noise - ❍ Clean underside of cutting unit 29 ● Clean transmission air intake 21 ● Check battery acid level 23 ● Check transmission oil level 21 ● Check condition of V-belts, pulleys, etc. - ❍ Check for damage - ❍ Check tyre pressures (60 kPa) 39 ● Check for damage to wire guide at articulated joint - ❍ Clean thoroughly around engine - ❍ Clean air filter (pre-filter) 24 ● Clean thoroughly around transmission - ❍ Clean all belts, pulleys, etc. - ❍ Lubricate pivot (nipple) 37 ● Lubricate belt tensioner (nipple) 37 ● Lubricate triangle link (nipple) 37 ● Lubricate seat suspension - ❍ Lubricate all wires 37 ● Lubricate safety lock on cutting unit 28 ● Lubricate inner stud on cutting unit 28 ● Lubricate slot for cutting unit tool frame 28 ● Lubricate bearing surfaces on cutting unit 28 ● Clean inside frame tunnel - ❍ Lubricate pedal mechanism inside frame tunnel - ❍ 25 50 100 300 Page Maintenance The following is a list of the maintenance which should be conducted on the machine. Most of the points that are not covered by this workshop manual are covered by the operator’s manual. For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

English – 9 1) First change after 5 hours. 2) When driving with a heavy load or when the ambient temperature is high, replace every 25 hours. Clean every 25 hours if pre-filter is not fitted. Clean and replace the filter more often in dusty conditions. 3) For daily use of the machine lubrication should be conducted twice a week. 4) Conducted by authorised service workshop. ! WARNING! No service procedures must be conducted on the engine or cutting unit unless: ● = Covered by this workshop manual. ❍ = Not covered by this workshop manual. Maintenance interval in hours Daily maintenance before after Weekly 3) maintenance At least once a year 25 50 100 300 Page Maintenance Lubricate throttle control - ❍ Lubricate choke control - ❍ Smörj styrkedja i ramtunnel. - ❍ Lubricate steering chain inside frame tunnel - ❍ Clean engine cooling air intake 20 ● ● Clean pre-filter or oil-foam element, if fitted 24 ● ● Clean air filter cartridge 2) 24 ● ● ● Change engine oil 1) 36 ● ● Check/adjust cutting height setting 27 ● ● Check/adjust parking brake 23 ● ● Inspect flame guard/spark arrestor (optional equipment) - ❍ ❍ Replace engine oil filter 37 ● ● Clean/replace spark plugs - ❍ ❍ Replace fuel filter in pipe 39 ● ● Clean pulse-air filter 39 ● ● Clean cooling system - ❍ ❍ Check engine valve clearance 4) - ❍ ❍ Replace air filter (pre-filter) 2) 24 ● ● Replace air filter (paper filter) 2) 24 ● ● Carry out 300 hour service 4) - ❍ ❍ • The engine is switched off. • The ignition key is removed. • The ignition cables are removed from the plugs. • The parking brake is applied. • The cutting unit is disengaged. Maintenance schedule For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com
