Husqvarna Clearing Saw 165R Workshop Manual

Workshop manual Clearing Saw Model 101 88 04-26 165R For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

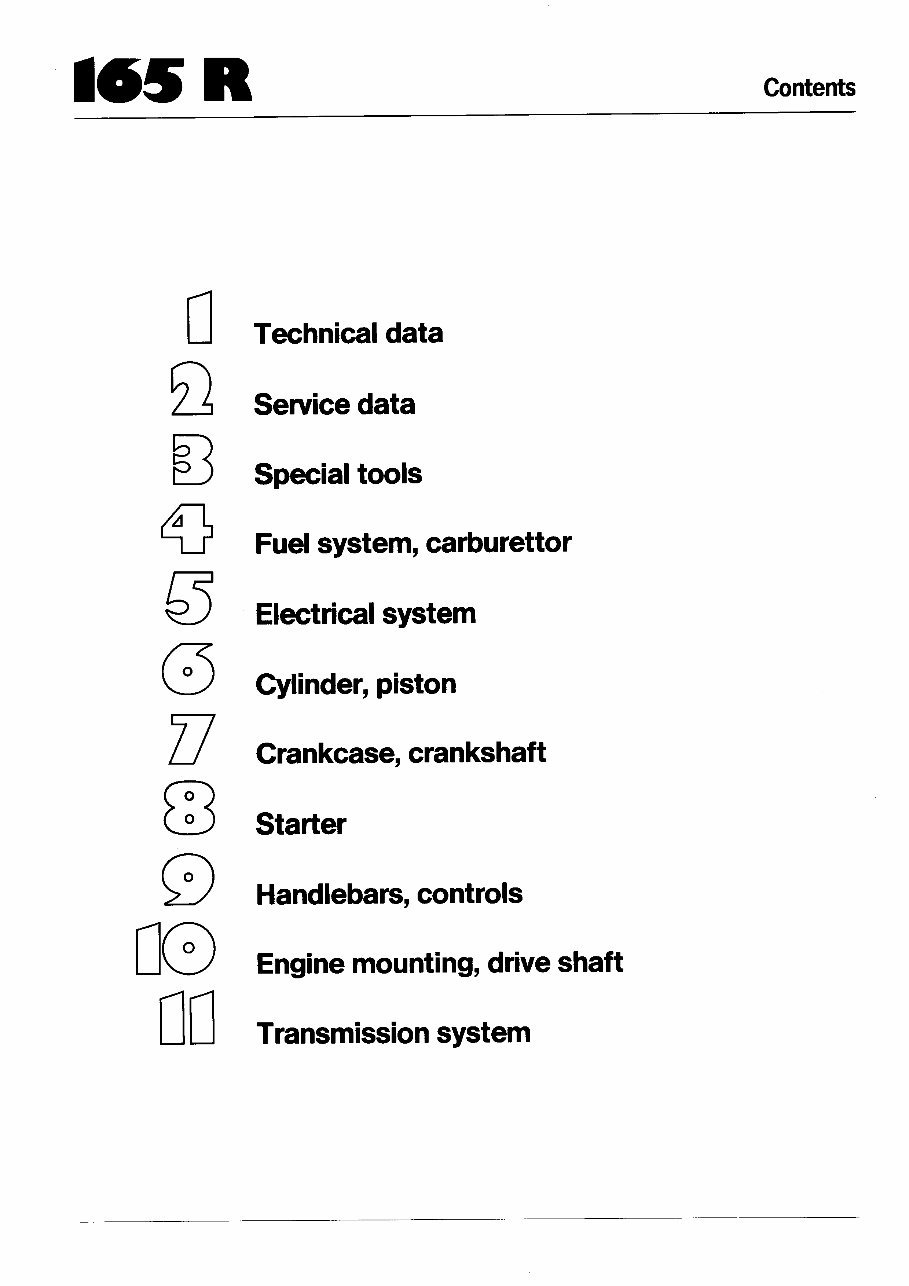

165R Contents Technicaldata Servicedata Specialtools Fuelsystem,carburetor Electricalsystem Cylinder,piston Crankcase,crankshaft Starter Handlebars,controls Enginemounting,driveshaft Transmissionsystem For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

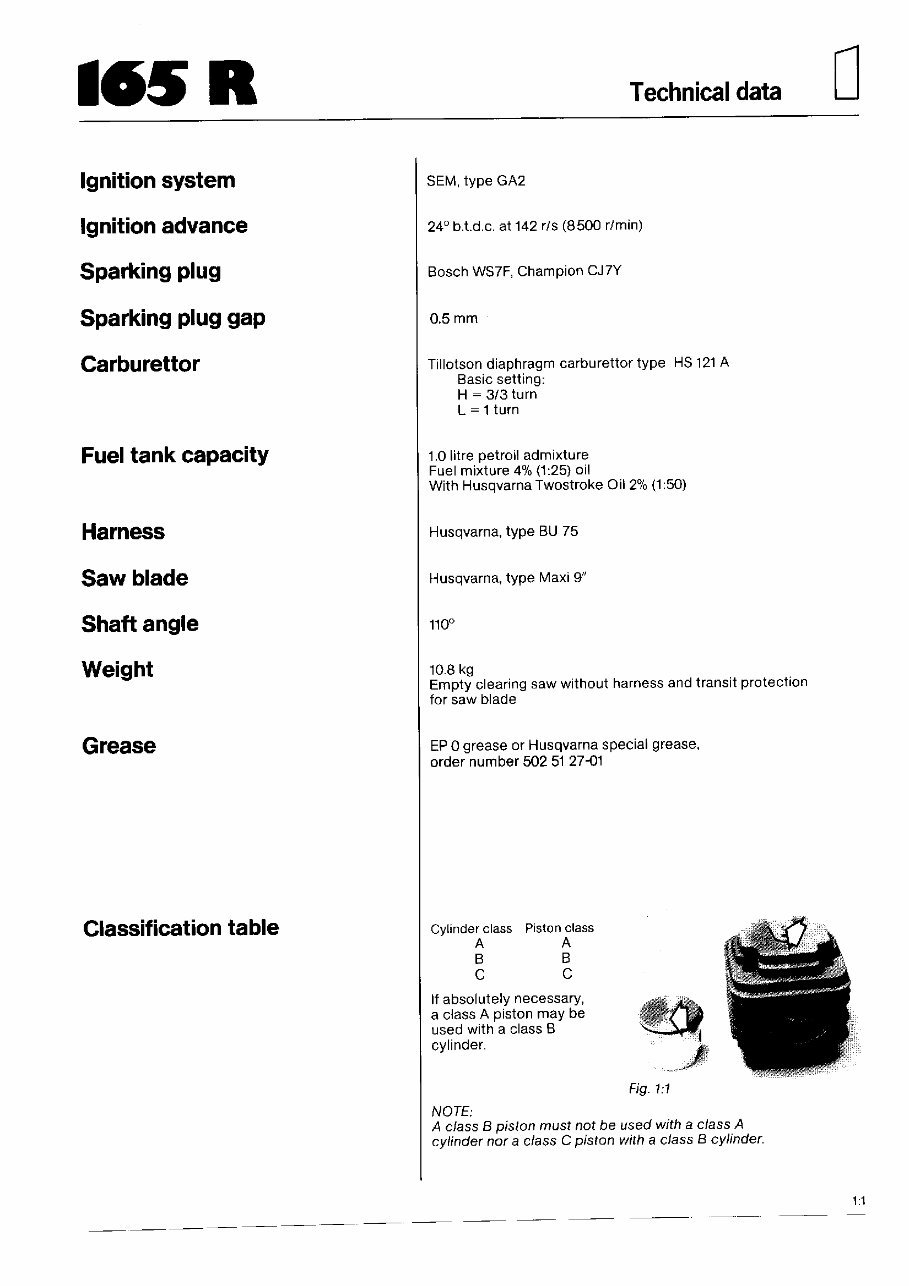

165 R Technicaldata o Ignitionsystem Ignitionadvance Sparkingplug Sparkingpluggap Carburetor Fueltank capacity Harness Saw blade Shaft angle Weight Grease Classificationtable SEM, type GA2 24° b.t.d.c. at 142 r/s (8500 r/rein) Bosch WS7F, Champion CJ7Y 0.5 mm Tillotson diaphragm carburetor type HS 121A Basic setting: H = 3/3 turn L = 1turn 1,0 Iitre petroil admixture Fuel mixture 40/.(1:25) oil With Husqvarna Twostroke Oil 2% (1:50) Husqvarna, type BU 75 Husqvarna, type Maxi 9“ 110° 10.8 kg Empty clearing saw without harness and transit protection for saw blade EP Ogrease or Husqvarna special grease, order number 5025127-01 Cylinder class Pistonclass A A B B c c If absolutely necessary, a class A piston may be used with a class B cylinder. Fig. 1:1 NOTE: A class B piston must not be used with a class A cylinder nor a class C piston with a class B cylinder. 1:1 —— For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

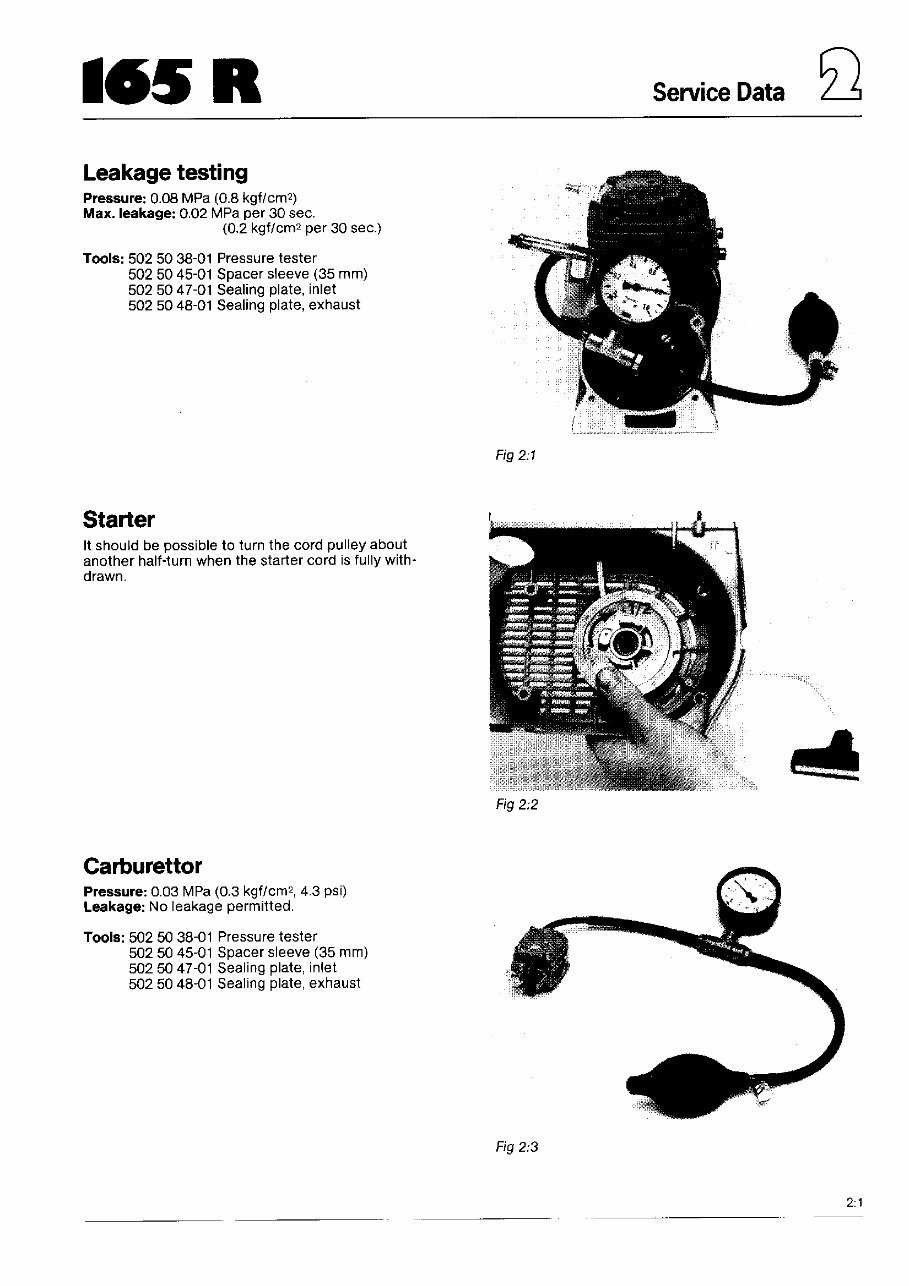

165 R ServiceData u Leakage testing Pressure: 0.08 MPa (0.8 kgf/cmz) Max. leakage: 0.02 MPa per 30 sec. (0.2 kgf/cmz per 30 sec.) Tools: 5025038-01 Pressure tester 5025045-01 Spacer sleeve (35 mm) 5025047-01 Sealing plate, inlet 5025048-01 Sealing plate, exhaust Fig 2:1 Starter It should be possible to turn the cord pulley about another half-turn when the starter cord is fully with- drawn. Fig 2:2 Carburetor Pressure: 0.03 MPa (0.3 kgf/cmz, 4.3 psi) Leakage: No leakage permitted. Tools: 5025038-01 Pressure tester 5025045-01 Spacer sleeve (35 mm) 5025047-01 Sealing plate, inlet 5025048-01 Sealing plate, exhaust Fig 2:3 2:1 For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

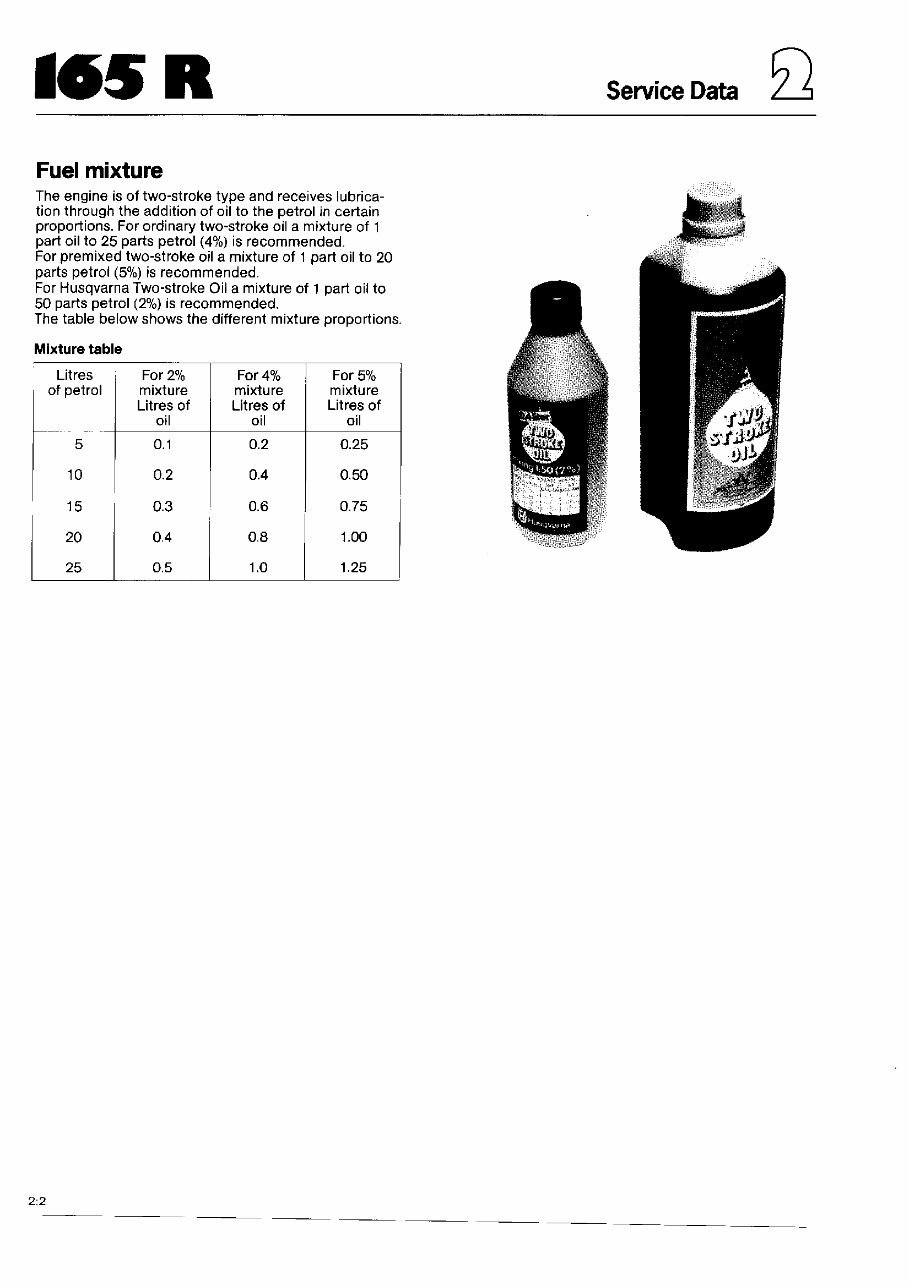

ServiceData !2 Fuelmixture The engine is of two-stroke type and receives lubrica- tion through the addition of oil to the petrol in certain proportions. For ordinary two-stroke oil a mixture of 1 part Oil to 25 pWLS petrol (4’’/.) k recommended. For premixed two-stroke oil a mixture of 1 part oil to 20 PWk PdrOi (5Yo) k recommended. For Husqvarna Two-stroke Oil a mixture of 1 part oil to 50 parts petrol (2Yo) is recommended. The table below shows the different mixture proportions. Mixture table Litres For 2Y0 For hyo For 5Y0 of petrol mixture mixture mixture Litres of Litres of Litres of oil oil oil 5 0.1 0.2 0.25 10 0.2 0.4 0.50 15 0.3 0.6 0.75 20 0.4 0.8 1.00 25 0.5 1.0 1.25 2:2 For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

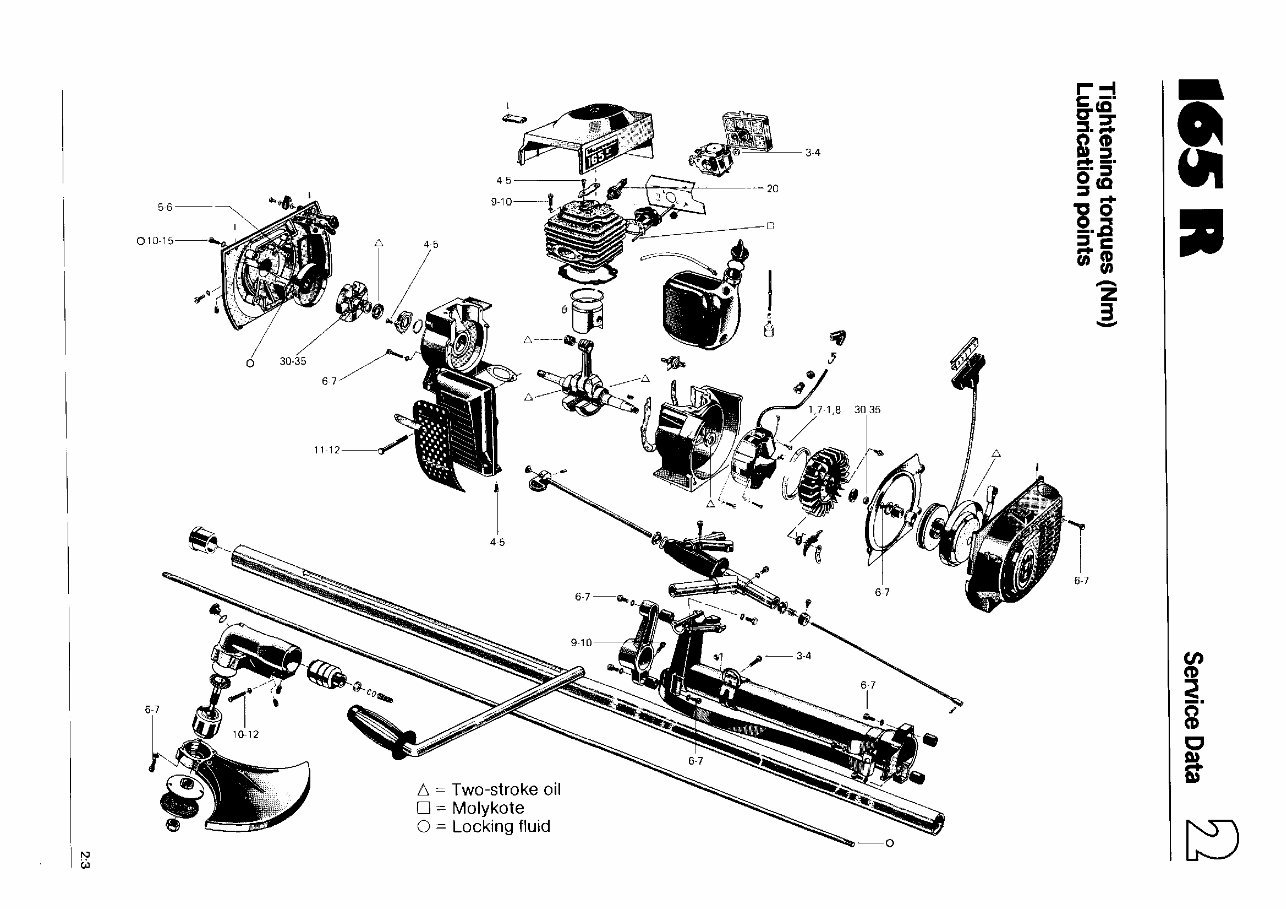

165R ServiceData Q Tighteningtorques(Nm) Lubricationpoints II II II aclo 2:3 For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

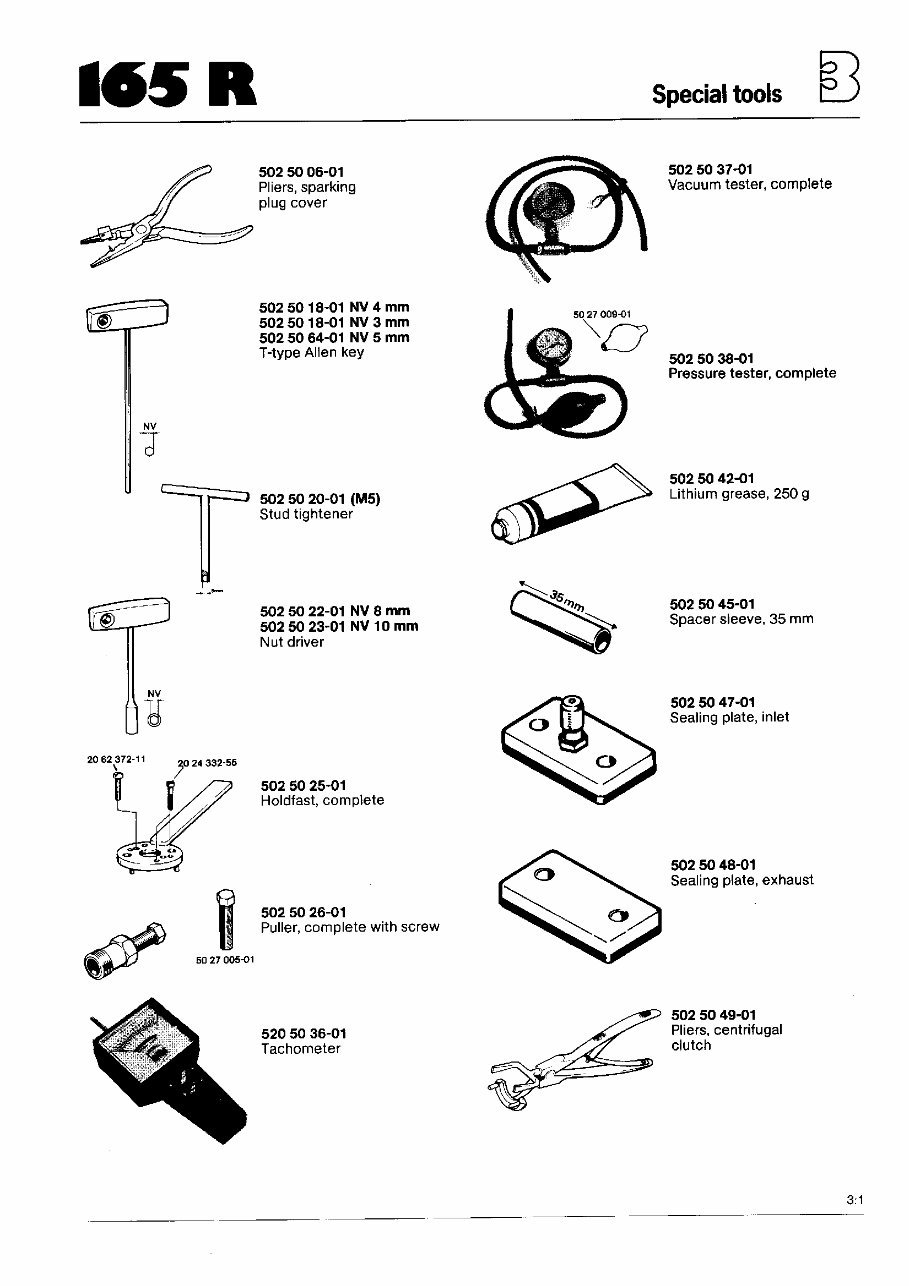

165R Specialtools w & 5025006-01 Pliers, sparking plug cover o ./ P 149 5025018-01 NV 4 mm 5025018-01 NV 3 mm 5025064-01 NV 5 mm T-type Allen key NV IT ‘T 5025020-01 (M5) T I@ NV 13 20 62(372-11 J 024332-55 Y II .—- -“a Stud tightener 5025022-01 NV 8 mm 5025023-01 NV 10 mm Nut driver 5025025-01 Holdfast, complete Ill 5025026-01 @ Puller, complete with screw B 5027005-01 6is- Q 0 \ 0 \/ 5025037-01 Vacuum tester, complete 5025038-01 Pressure tester, complete 5025042-01 Lithium grease, 250 g 5025045-01 Spacer sleeve, 35 mm 5025047-01 Sealing plate, inlet 5025048-01 Sealing plate, exhaust 5025049-01 Pliers, centrifugal clutch 3:1 For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

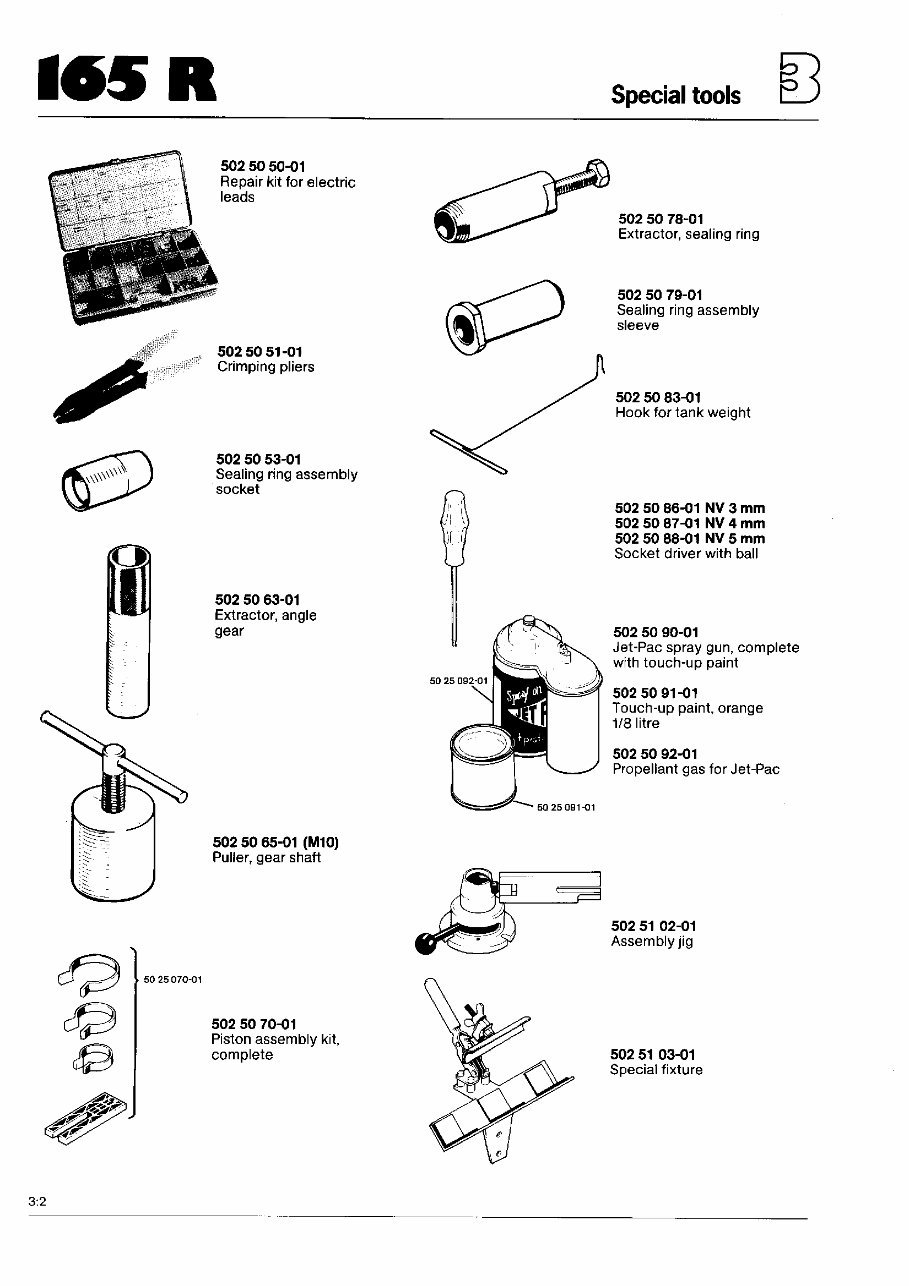

165 R Specialtools B @ ““ . 5025051-01 / Crimping pliers o \,\\\\\\\’ 5025053-01 Sealing ring assembly socket 5025063-01 Extractor, angle gear 502 ~50250WJl 5025065-01 (M1O) Puller, gear shaft a 5025070-01 n 5025070-01 Piston assembly kit, complete 1 I I . ( . 5025078-01 Extractor, sealing ring 5025079-01 Sealing ring assembly sleeve 5025083-01 Hook for tank weight 5025086-01 NV 3 mm 5025087-01 NV 4 mm 5025088-01 NV 5 mm Socket driver with ball 5025090-01 Jet-Pac spray gun, complete with touch-up paint 5025091-01 Touch-up paint, orange 1/8 Iitre 5025092-01 Propellant gas for Jet-Pac 5025102-01 Assembly jig 5025103-01 Special fixture 3:2 For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

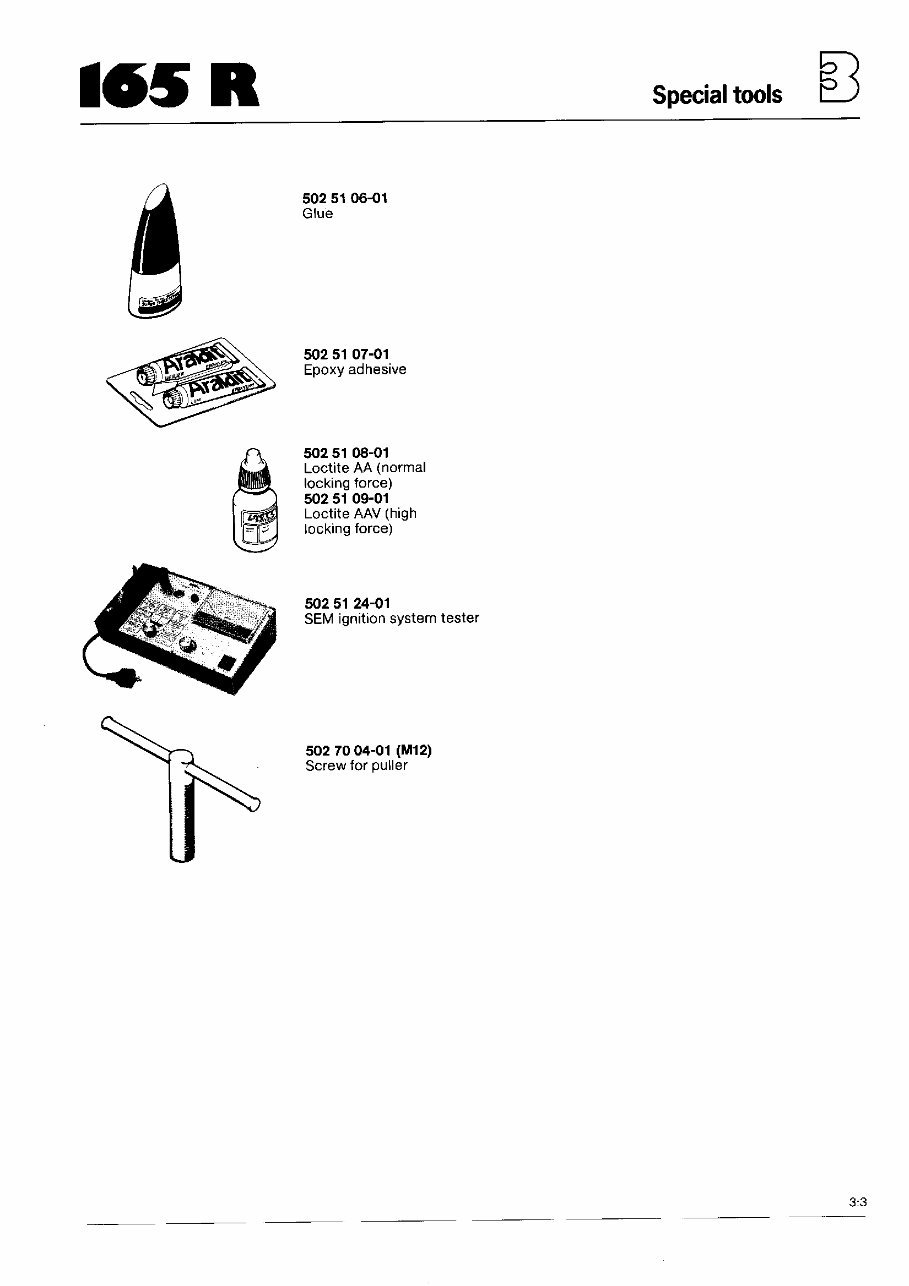

165 R Specialtools B 5025106-01 Glue 5025107-01 Epoxy adhesive 5025108-01 Loctite AA (normal locking force) 5025109-01 Loctite AAV (high locking force) 1 5027004-01 (M12) Screw for puller 3:3 For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com

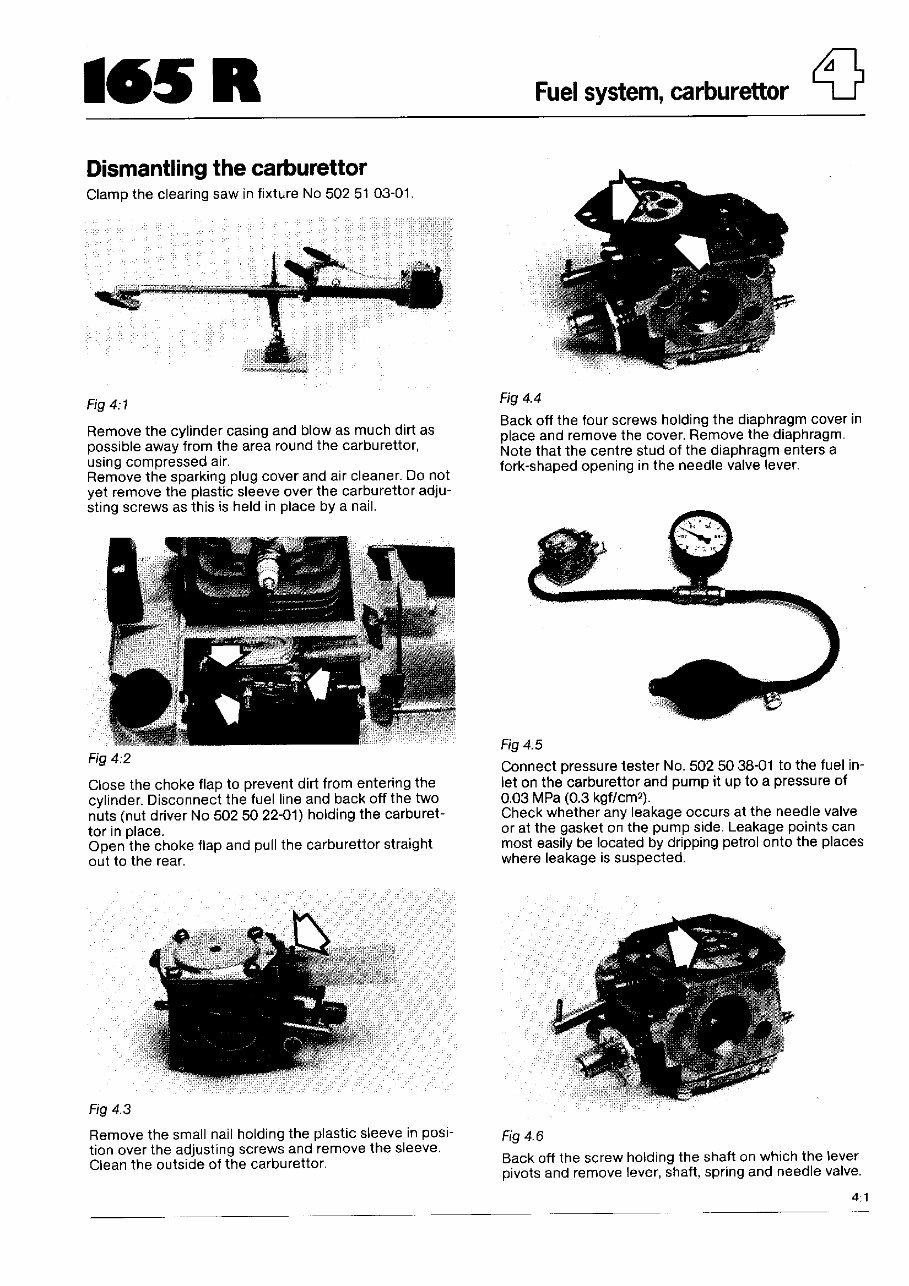

165R c’ A Fuelsystem,carburetor Dismantlingthe carburetor Clamp the clearing saw in fixture No 5025103-01. Remove the cylinder casing and blow as much dirt as possible away from the area round the carburetor, using compressed air. Remove the sparking plug cover and air cleaner. Do not yet remove the plastic sleeve over the carburetor adjusting screws as this is held in place by a nail. Fig 4:2 Close the choke flap to prevent dirt from entering the cylinder. Disconnect the fuel line and back off the two nuts (nut driver No 50250 22-01) holding the carburet- or in place. Open the choke flap and pull the carburetor straight out to the rear. Fig 4.3 Remove the small nail holding the plastic sleeve in posi- tion over the adjusting screws and remove the sleeve. Clean the outside of the carburetor. Fig 4.4 Back off the four screws holding the diaphragm cover in place and remove the cover. Remove the diaphragm. Note that the centre stud of the diaphragm enters a fork-shaped opening in the needle valve lever. Fig 4.5 Connect pressure tester No. 5025038-01 to the fuel inlet on the carburetor and pump it up to a pressure of 0.03 MPa (0.3 kgf/cmq). Check whether any leakage occurs at the needle valve or at the gasket on the pump side. Leakage points can most easily be located by dripping petrol onto the places where leakage is suspected. Fig 4.6 Back off the screw holding the shaft on which the lever pivots and remove lever, shaft, spring and needle valve. 4:1 For Husqvarna Parts Call 606-678-9623 or 606-561-4983 www.mymowerparts.com
