WINNEBAGO MINNIE 300 Series Parts Manual Catalog

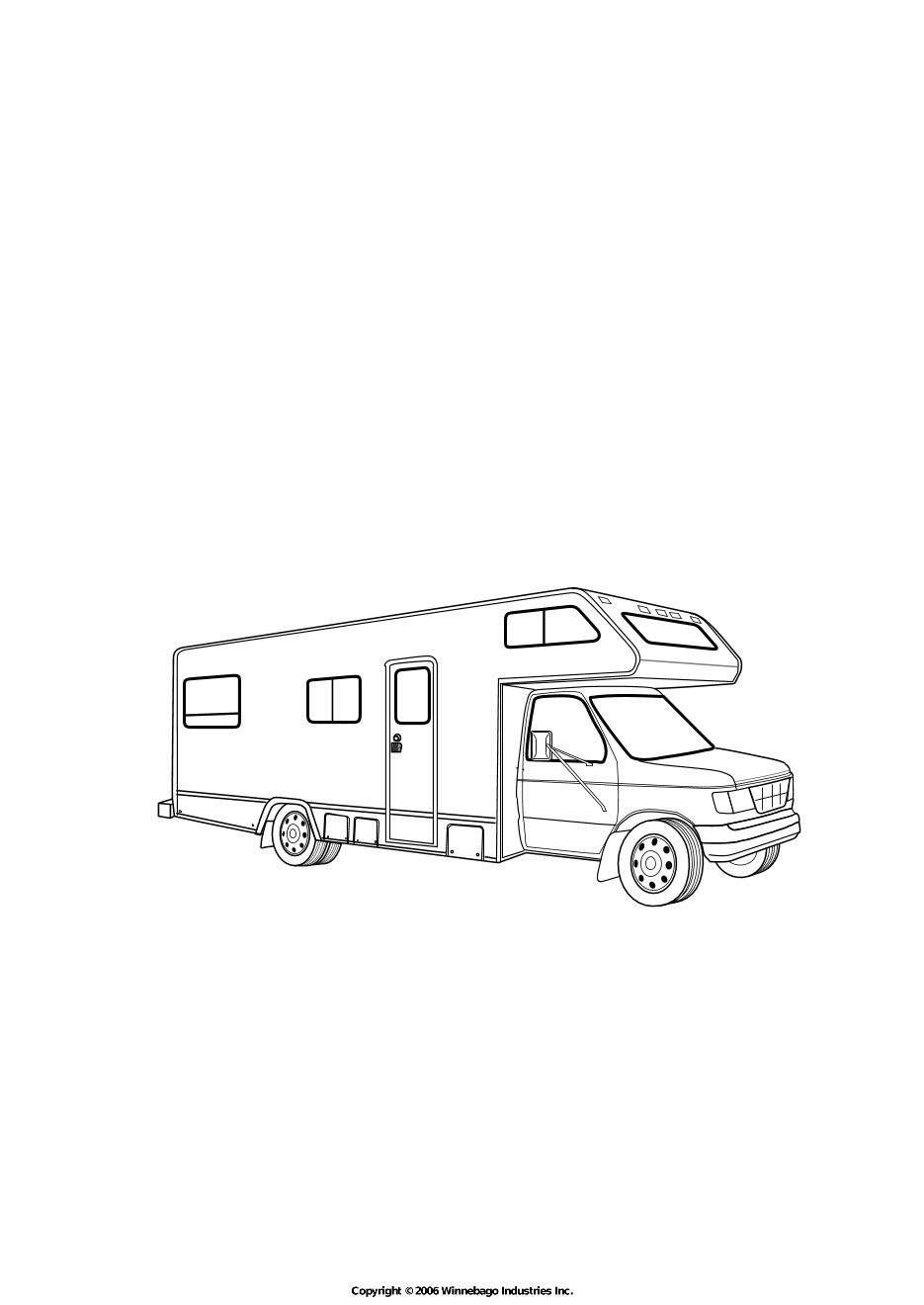

2001 MINNIE 300 SERIES PORTSMOUTH OAK M01 SPRING MIST - TEAL M02 BLUEBONNET - BLUE M03 BAROQUE BOUQUET - BEIGE M34 SEA MIST - TEAL

2001 WF322E FLOORPLAN Couch/Bed 40" x 76" Dinette 42" x 70" TV Cabinet Overhead Bed 57" x 80" Refrig Curtain Ward- robe Shower Door Pantry Step Well WINNEBAGO Minnie Standard Vinyl Floorcovering Note: Dimensions shown are for sleeping space only and dashed lines denote overhead storage areas.

CONTENTS FLOORPLAN .................................................................................................................................................. 2 ACCESSORIES GROUP ................................................................................................................................ 7 OPERATORS MANUAL ........................................................................................................................................................................................... 7 APPLIANCE GROUP ..................................................................................................................................... 8 APPLIANCES ........................................................................................................................................................................................................... 8 COMPONENT PARTS FOR APPLIANCE .............................................................................................................................................................. 10 112881-02-03A ....................................................................................................................................................................................................... 10 121568-03-01A ....................................................................................................................................................................................................... 12 121568-04-01A ....................................................................................................................................................................................................... 12 134940-01-01A ....................................................................................................................................................................................................... 20 134940-02-01A ....................................................................................................................................................................................................... 21 136354-01-01A ....................................................................................................................................................................................................... 22 136354-02-01A ....................................................................................................................................................................................................... 22 136354-03-01A ....................................................................................................................................................................................................... 23 136354-04-01A ....................................................................................................................................................................................................... 24 AUDIO VIDEO GROUP ................................................................................................................................. 25 RADIO SYSTEM ..................................................................................................................................................................................................... 25 TV & VCR ................................................................................................................................................................................................................ 25 COMPONENT PARTS FOR TV & VCR .................................................................................................................................................................. 26 076319-23-000 ....................................................................................................................................................................................................... 26 076319-25-000 ....................................................................................................................................................................................................... 27 086231-10-000 ....................................................................................................................................................................................................... 28 094487-05-000 ....................................................................................................................................................................................................... 28 120233-04-000 ....................................................................................................................................................................................................... 29 126696-03-000 ....................................................................................................................................................................................................... 30 126697-03-000 ....................................................................................................................................................................................................... 30 126697-05-000 ....................................................................................................................................................................................................... 30 126697-06-000 ....................................................................................................................................................................................................... 30 137135-01-000 ....................................................................................................................................................................................................... 31 EXTERIOR ENTERTAINMENT .............................................................................................................................................................................. 33 BATH GROUP ............................................................................................................................................... 34 CABINETS .............................................................................................................................................................................................................. 34 SHOWER ................................................................................................................................................................................................................ 35 COMPONENT PARTS FOR SHOWER .................................................................................................................................................................. 36 135615-01, -02, -03 & 04-01A ................................................................................................................................................................................ 36 CHASSIS GROUP ........................................................................................................................................ 38 FRAME ................................................................................................................................................................................................................... 38 EXHAUST ............................................................................................................................................................................................................... 39 HITCH ..................................................................................................................................................................................................................... 41 REAR BUMPER ..................................................................................................................................................................................................... 41 FUEL ....................................................................................................................................................................................................................... 42 SPARE TIRE ........................................................................................................................................................................................................... 44 SUSPENSION ......................................................................................................................................................................................................... 45 COMPONENT PARTS FOR SUSPENSION ........................................................................................................................................................... 46 135674-01-000 ....................................................................................................................................................................................................... 46 WHEEL, TIRE, COVERS &/OR LINERS ................................................................................................................................................................ 47 COMPONENT PARTS FOR WHEEL, TIRE, COVERS &/OR LINERS ................................................................................................................... 48 091209-05-000 ....................................................................................................................................................................................................... 48 109443-05-000 ....................................................................................................................................................................................................... 48 110435-13-000 ....................................................................................................................................................................................................... 48

CONTENTS (CONTINUED) CURTAIN & CUSHION GROUP ................................................................................................................... 49 NOTICE ................................................................................................................................................................................................................... 49 CUSHION LAYOUT ................................................................................................................................................................................................ 50 BUCKET SEATS .................................................................................................................................................................................................... 52 LOUNGE CHAIR .................................................................................................................................................................................................... 54 WINDOW TREATMENT .......................................................................................................................................................................................... 55 HARDWARE ........................................................................................................................................................................................................... 57 ACCESSORIES ...................................................................................................................................................................................................... 59 FABRICS ................................................................................................................................................................................................................ 59 DINETTE GROUP ......................................................................................................................................... 61 CABINETS .............................................................................................................................................................................................................. 61 TABLE .................................................................................................................................................................................................................... 63 DRIVERS COMPARTMENT GROUP ........................................................................................................... 64 DASH ...................................................................................................................................................................................................................... 64 FRONT INTERIOR .................................................................................................................................................................................................. 64 COMPONENT PARTS FOR FRONT INTERIOR .................................................................................................................................................... 65 106025-02-01A ....................................................................................................................................................................................................... 65 ELECTRICAL GROUP ................................................................................................................................. 66 12V BODY WIRING ................................................................................................................................................................................................ 66 FRONT END WIRING ............................................................................................................................................................................................. 69 COMPONENT PARTS FOR LIGHTS & SWITCHES .............................................................................................................................................. 70 008089-02-000 ....................................................................................................................................................................................................... 70 081638-01-000 ....................................................................................................................................................................................................... 70 086280-01-000 ....................................................................................................................................................................................................... 70 087202-01-000 ....................................................................................................................................................................................................... 70 087202-02-000 ....................................................................................................................................................................................................... 70 087694-01-000 ....................................................................................................................................................................................................... 70 091937-05-000 ....................................................................................................................................................................................................... 70 093575-06-01A ....................................................................................................................................................................................................... 70 097917-01-06A ....................................................................................................................................................................................................... 70 098024-01-03A ....................................................................................................................................................................................................... 70 098024-03-02A ....................................................................................................................................................................................................... 70 098024-05-02A ....................................................................................................................................................................................................... 70 098024-06-02A ....................................................................................................................................................................................................... 70 106071-04-000 ....................................................................................................................................................................................................... 71 108354-01-01A ....................................................................................................................................................................................................... 71 110235-01-01A ....................................................................................................................................................................................................... 71 110235-02-01A ....................................................................................................................................................................................................... 71 119258-02-01A ....................................................................................................................................................................................................... 71 121935-01-01A ....................................................................................................................................................................................................... 71 123774-01-01A ....................................................................................................................................................................................................... 71 123775-01-01A ....................................................................................................................................................................................................... 71 CIRCUIT BREAKERS & FUSES ............................................................................................................................................................................ 72 CONVERTER, INVERTER, LOAD CENTERS ........................................................................................................................................................ 72 110V WIRING .......................................................................................................................................................................................................... 73 ENTERTAINMENT WIRING .................................................................................................................................................................................... 74 BOXES & CORDS .................................................................................................................................................................................................. 75 WIRE ASSEMBLIES .............................................................................................................................................................................................. 75 CONNECTORS & CONDUIT .................................................................................................................................................................................. 75 BOOTS, SOLENOIDS, RELAYS & MISCELLANEOUS ......................................................................................................................................... 76

CONTENTS (CONTINUED) EXTERIOR BODY GROUP ........................................................................................................................... 77 GRAPHICS & PAINT .............................................................................................................................................................................................. 77 PANELS .................................................................................................................................................................................................................. 78 TRIMS ..................................................................................................................................................................................................................... 79 LADDER ................................................................................................................................................................................................................. 81 RUNNING BOARDS ............................................................................................................................................................................................... 81 COMPONENT PARTS FOR RUNNING BOARDS ................................................................................................................................................. 82 072884-27-000 ....................................................................................................................................................................................................... 82 072884-28-000 ....................................................................................................................................................................................................... 82 MIRRORS ............................................................................................................................................................................................................... 83 COMPONENT PARTS FOR MIRRORS .................................................................................................................................................................. 84 133908-01-01A ....................................................................................................................................................................................................... 84 133908-02-01A ....................................................................................................................................................................................................... 84 133908-03-02A ....................................................................................................................................................................................................... 84 133908-04-02A ....................................................................................................................................................................................................... 84 133908-05-01A ....................................................................................................................................................................................................... 84 133908-06-01A ....................................................................................................................................................................................................... 84 133908-07-01A ....................................................................................................................................................................................................... 84 133908-08-01A ....................................................................................................................................................................................................... 84 133908-09-01A ....................................................................................................................................................................................................... 84 STRUCTURAL COMPONENTS ............................................................................................................................................................................. 85 AWNINGS ............................................................................................................................................................................................................... 85 COMPONENT PARTS FOR AWNINGS ................................................................................................................................................................. 86 113874-01-02A ....................................................................................................................................................................................................... 86 EXTERIOR DOORS & COMPARTMENTS GROUP ..................................................................................... 87 DOOR & COMPARTMENT LAYOUT ...................................................................................................................................................................... 87 COMPONENT PARTS FOR DOOR & COMPARTMENT LAYOUT ........................................................................................................................ 88 084103-08-000 ....................................................................................................................................................................................................... 88 094708-03-01A ....................................................................................................................................................................................................... 88 COMPARTMENT DOOR PIECE PARTS ................................................................................................................................................................ 89 ENTRY .................................................................................................................................................................................................................... 91 COMPONENT PARTS FOR ENTRY ..................................................................................................................................................................... 93 129676-01-000 - 129676-10-000 ............................................................................................................................................................................ 93 SCREEN DOOR ..................................................................................................................................................................................................... 94 LATCH - ENTRY ..................................................................................................................................................................................................... 95 GALLEY GROUP .......................................................................................................................................... 96 CABINETS .............................................................................................................................................................................................................. 96 GENERATOR GROUP .................................................................................................................................. 97 HEATING & A/C GROUP .............................................................................................................................. 98 FURNACE ............................................................................................................................................................................................................... 98 COMPONENT PARTS FOR FURNACE ................................................................................................................................................................. 99 098668-19-000 ....................................................................................................................................................................................................... 99 098668-20-000 ..................................................................................................................................................................................................... 101 139980-01-000 ..................................................................................................................................................................................................... 103 139980-02-000 ..................................................................................................................................................................................................... 105 ROOF .................................................................................................................................................................................................................... 107 COMPONENT PARTS FOR ROOF ...................................................................................................................................................................... 108 131184-03-01A ..................................................................................................................................................................................................... 108 131185-01-01A ..................................................................................................................................................................................................... 109 131188-01-01A ..................................................................................................................................................................................................... 110 INTERIOR FINISH GROUP ........................................................................................................................ 111 MOLDINGS& TRIMS ............................................................................................................................................................................................ 111 PANELING & LAMINATES ................................................................................................................................................................................... 117 ACCESSORIES .................................................................................................................................................................................................... 118 COMPONENT PARTS FOR ACCESSORIES ...................................................................................................................................................... 119 094499-02-000 ..................................................................................................................................................................................................... 119 FLOOR COVERINGS ........................................................................................................................................................................................... 120 HARDWARE ......................................................................................................................................................................................................... 121

CONTENTS (CONTINUED) LABELS GROUP ........................................................................................................................................ 130 LP GROUP .................................................................................................................................................. 157 LP SYSTEM .......................................................................................................................................................................................................... 157 COMPONENT PARTS FOR LP SYSTEM ............................................................................................................................................................ 158 080450-01-000 ..................................................................................................................................................................................................... 158 097821-03-000 ..................................................................................................................................................................................................... 158 LOUNGE GROUP ....................................................................................................................................... 159 CABINETS ............................................................................................................................................................................................................ 159 SEALANTS & FASTENERS GROUP ......................................................................................................... 160 SEALANTS & ADHESIVES ................................................................................................................................................................................. 160 BOLTS, NUTS AND WASHERS ........................................................................................................................................................................... 161 SCREWS .............................................................................................................................................................................................................. 164 CLAMPS, CLIPS, GROMMETS, RIVETS & PLUGS ............................................................................................................................................ 168 MISCELLANEOUS FASTENERS ........................................................................................................................................................................ 169 WATER & SEWAGE GROUP ..................................................................................................................... 170 DRAINAGE SYSTEM ........................................................................................................................................................................................... 170 COMPONENT PARTS FOR DRAINAGE SYSTEM .............................................................................................................................................. 172 131932-02-02A ..................................................................................................................................................................................................... 172 062415-01-000 ..................................................................................................................................................................................................... 172 096927-01-02A ..................................................................................................................................................................................................... 172 WATER SYSTEM .................................................................................................................................................................................................. 174 COMPONENT PARTS FOR WATER SYSTEM .................................................................................................................................................... 179 051391-03-000 ..................................................................................................................................................................................................... 180 098607-01-000 ..................................................................................................................................................................................................... 181 110506-59-000 - 110506-59-009 .......................................................................................................................................................................... 181 WINDOW & VENTS GROUP ...................................................................................................................... 182 WINDOW & VENT LAYOUT ................................................................................................................................................................................. 182 COMPONENT PARTS FOR WINDOWS & VENT LAYOUT .................................................................................................................................. 184 098647-27-02A ..................................................................................................................................................................................................... 184 098647-28-02A ..................................................................................................................................................................................................... 185 098647-31-02A ..................................................................................................................................................................................................... 185 098647-32-02A ..................................................................................................................................................................................................... 185 112795-68-01A ..................................................................................................................................................................................................... 186 112795-69-01A ..................................................................................................................................................................................................... 187 112795-72-01A ..................................................................................................................................................................................................... 187 112795-73-01A ..................................................................................................................................................................................................... 187 113733-10-01A ..................................................................................................................................................................................................... 188 113733-11-01A ..................................................................................................................................................................................................... 188 115630-03-01A ..................................................................................................................................................................................................... 188 122882-01-01A ..................................................................................................................................................................................................... 188 122882-02-01A ..................................................................................................................................................................................................... 188 122882-03-01A ..................................................................................................................................................................................................... 188

ACCESSORIES GROUP OPERATORS MANUAL KEY PART NUMBER U/M DESCRIPTION 132000-03-001 EA MANUAL/OWNER - MINNIE - 2001 129079-01-01A EA CASE - VINYL/BLACK-EXPANDABLE ACCORDION SIDES-7"WX9"HX14"L 134613-01-000 EA TOP LEVEL-C,2001

APPLIANCES KEY PART NUMBER U/M DESCRIPTION * 112881-02-03A EA RANGE - 16" - 3 BURNER - FRONT HI-OUTPUT BRNR - BLK TOP/DR 105458-03-000 EA BRACKET - STOVE TIEDOWN - RIGHT HAND - 322R, 324V, 327P, 329N, 331C, 331T 105458-04-000 EA BRACKET - STOVE TIEDOWN - LEFT HAND - 322R, 324V, 327P, 329N, 331C, 331T 116884-01-01B EA BRACKET - TIE DOWN - 322E 116884-02-01B EA BRACKET - TIE DOWN - 322E * 121568-03-01A EA REFRIGERATOR-SMALL DBL DR/RH-52.8"HX23.5"WX14"D-2-WAY BLK - 322E, 322R, 324V, 331C, 331T * 121568-04-01A EA REFRIGERATOR - SMALL DOUBLE DOOR/LEFT HAND - 2-WAY - BLACK - 327P, 329N 128527-06-000 EA OVEN - MICROWAVE W/TRIM KIT- 1 CU.FT.- NON CONVECTION 128642-03-000 EA TRIM KIT W/VENT- MICROWAVE .9 CU.FT. - SAMSUNG - 2.1" HIGH 094750-10-000 EA BRACKET - MICROWAVE - 89 DEGREE - 322R, 324V, 327P, 329N, 331T 094750-11-000 EA BRACKET - MICROWAVE - 89 DEGREE - 322E, 331C 116843-03-02B EA BRACKET - MICROWAVE - 322E 128711-01-02B EA BRACKET - MICROWAVE - 322E 098916-24-02B EA BRACE - MICROWAVE CABINET - LEFT HAND - 3227P, 329N, 331T 098916-25-02B EA BRACE - MICROWAVE CABINET - RIGHT HAND - E-COATED - 327P, 329N, 331T 098916-26-02B EA BRACE - MICROWAVE CABINET - LEFT HAND - 322R, 324V 098916-27-02B EA BRACE - MICROWAVE CABINET - RIGHT HAND - E-COATED - 322R, 324V 098916-28-02B EA BRACE - MICROWAVE CABINET - LEFT HAND - 322E 098916-29-02B EA BRACE - MICROWAVE CABINET - RIGHT HAND - E-COATED - 322E * 134940-01-01A EA PANEL - MONITOR - 2 TANK - W/GENERATOR SWITCH/HOUR METER * 134940-02-01A EA PANEL - MONITOR - 2 TANK - W/O GENERATOR SWITCH/HOUR METER 133713-08-08A EA SPACER - MONITOR - VINYL - PORTSMOUTH OAK FROM: 00-00-00 THRU: 07-10-00 * 136354-01-01A EA HOOD - RANGE - W/LITE/FAN - US/VENTED - TEXTURED BLK - 322R, 324V, 327P, 329N, 331C, 331T * 136354-02-01A EA HOOD - RANGE - W/LITE/FAN - CSA/VENTED - TEXTURED BLK - 322R, 324V, 327P, 329N, 331C, 331T * 136354-03-01A EA HOOD - RANGE - W/LITE/FAN - US/NON VENTED - CHARCOAL - 322E * 136354-04-01A EA HOOD - RANGE - W/LITE/FAN - CSA/NON VENTED - CHARCOAL - 322E 100258-10-01A EA GAUGE - HOUR METER W/SWITCH - LCD - SCREW ON STYLE - 329N, 331T *COMPONENT PARTS LISTED LATER IN THIS GROUP APPLIANCE GROUP

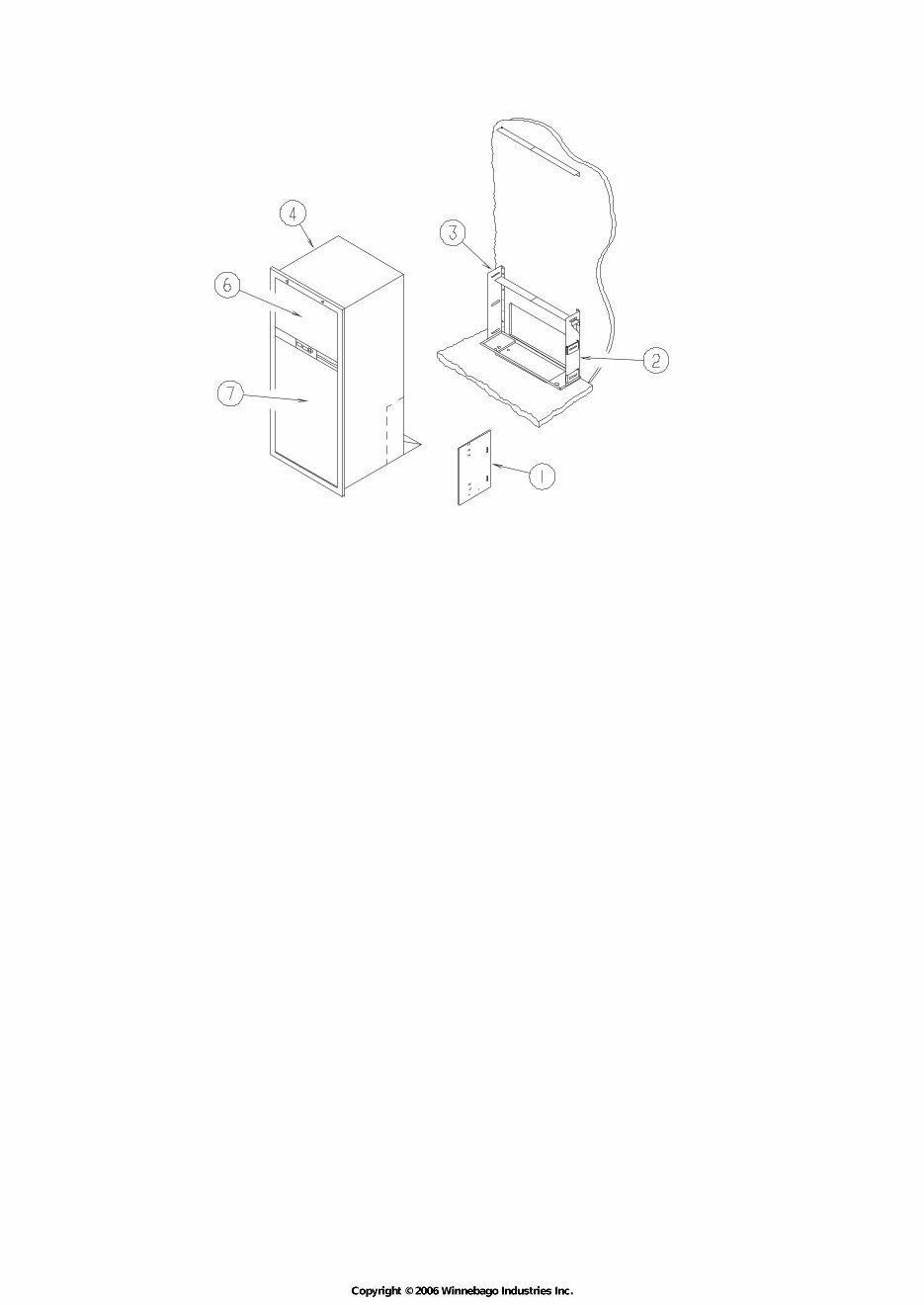

KEY PART NUMBER U/M DESCRIPTION 1 065225-04-000 EA PLATE - TIEDOWN/REFRIGERATOR 2 093646-01-000 EA BRACKET - TIEDOWN/REFRIGERATOR - RIGHT HAND 3 093646-02-000 EA BRACKET - TIEDOWN/REFRIGERATOR - LEFT HAND 4* 121568-03-01A EA REFRIG-SML DBL DR/RH-52.8"HX23.5"WX14"D-2-WAY BLK - 322E, 322R, 324V, 329N, 331C, 331T 4* 121568-04-01A EA REFRIGERATOR - SMALL DOUBLE DOOR/LEFT HAND - 2-WAY - BLACK - 327P 6 NOT USED IN THIS UNIT 7 NOT USED IN THIS UNIT 090329-01-000 FT SEAL/T - REFRIGERATOR CABINET 054450-01-000 EA LEVEL - REFRIGERATOR 116751-01-01A EA TRAY - REFRIGERATOR - BLACK - 322E, 322R, 324V, 331T 116751-02-01A EA TRAY - REFRIGERATOR - BLACK - 329N, 331C 116751-05-01A EA TRAY - REFRIGERATOR - BLACK - 327P *COMPONENT PARTS LISTED LATER IN THIS GROUP APPLIANCE GROUP (CONTINUED) APPLIANCE (CONTINUED)

1 2 3 25 10 11 12 13 14 15 20 17 18 19 21 23 22 4 5 24 6 7 9 8 16 112881-02-03A APPLIANCE GROUP (CONTINUED) COMPONENT PARTS FOR APPLIANCE
