VX500_600XTCRA
A1

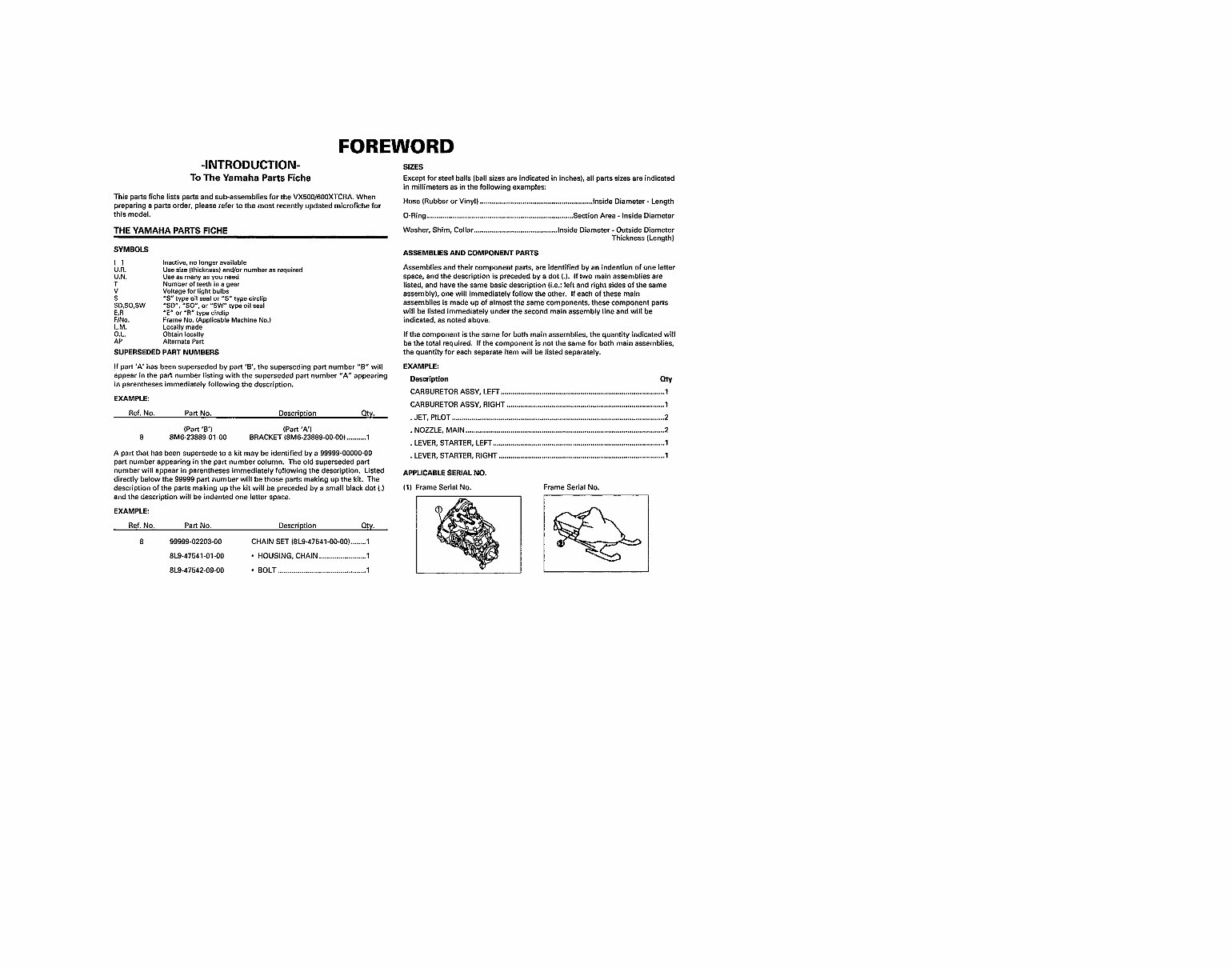

VX500_600XTCRA
A2
VX500_600XTCRA
A3
VX500_600XTCRA
A4

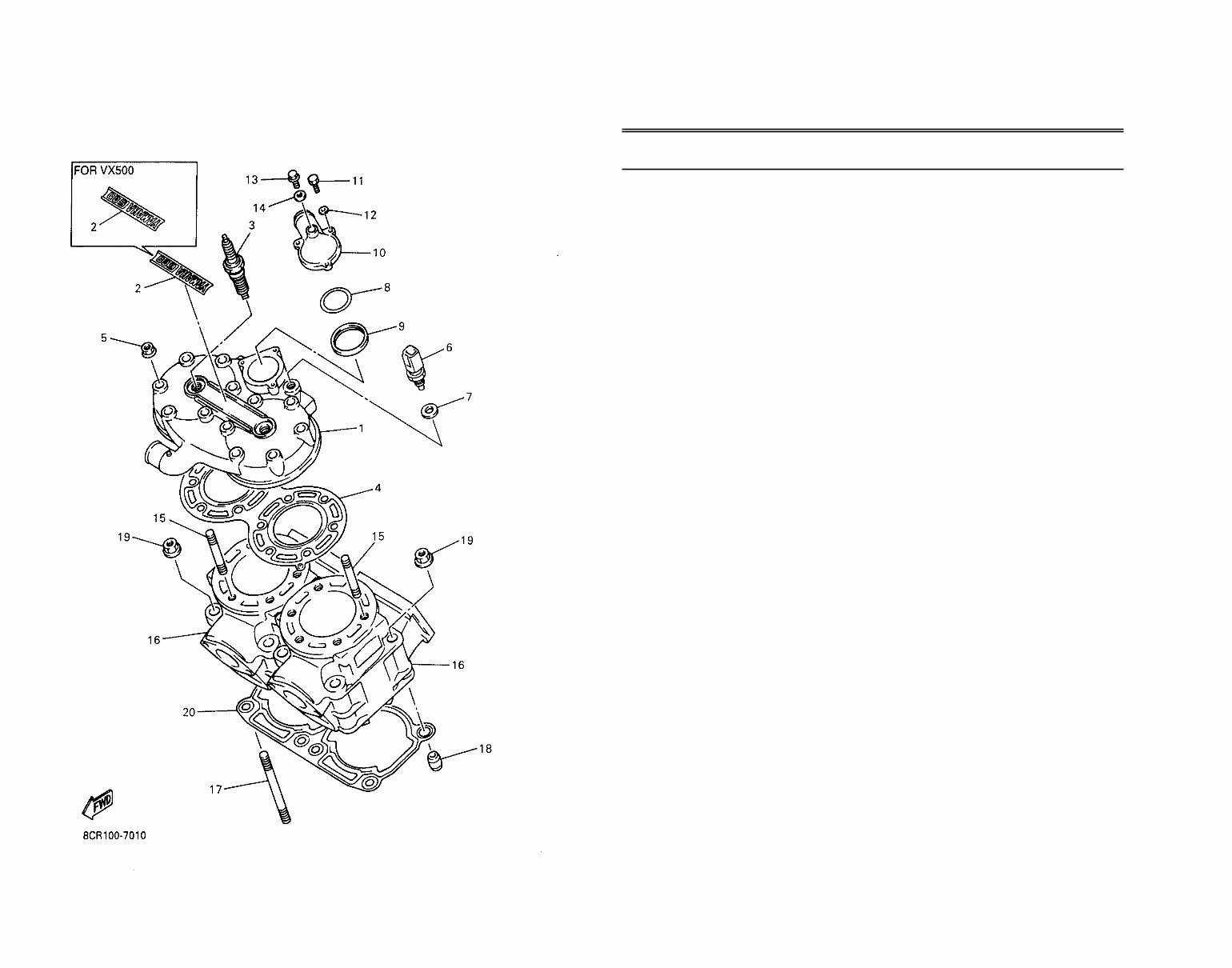

1 8CJ-11111-00-00 HEAD, CYLINDER 1 . . . . . . . . . 1 UR VX500
8CR-11111-00-00 HEAD, CYLINDER 1 . . . . . . . . . 1 UR VX600
2 8CJ-1111K-00-00 EMBLEM . . . . . . . . . . . . . . . . . 1 UR VX500
8CR-1111K-00-00 EMBLEM . . . . . . . . . . . . . . . . . 1 UR VX600
3 NGK-BR9ES-01-PC PLUG, SPARK (NGK BR9ES) . . 2
4 8AB-11181-00-00 GASKET, CYLINDER HEAD 1 . 1 UR VX500
8CA-11181-10-00 GASKET, CYLINDER HEAD 1 . 1 UR VX600
5 95707-08500-00 NUT, FLANGE . . . . . . . . . . . . . 12
6 8CC-85790-00-00 THERMOSENSOR ASSY . . . . . 1
7 90201-12790-00 WASHER, PLATE . . . . . . . . . . . 1
8 90201-345G2-00 WASHER, PLATE . . . . . . . . . . . 1
9 8A7-12412-01-00 SEAL, THERMOSTAT . . . . . . . 1
10 82M-12413-00-00 COVER, THERMOSTAT . . . . . . 1
11 97017-06020-00 BOLT . . . . . . . . . . . . . . . . . . . . 3
12 92907-06600-00 WASHER, PLATE . . . . . . . . . . . 3
13 95817-06012-00 BOLT, FLANGE . . . . . . . . . . . . 1
14 90430-06166-00 GASKET . . . . . . . . . . . . . . . . . 1
15 90116-08392-00 BOLT, STUD . . . . . . . . . . . . . . 12
16 8CJ-11311-00-00 CYLINDER 1 . . . . . . . . . . . . . . 2 UR VX500
8CR-11311-00-00 CYLINDER 1 . . . . . . . . . . . . . . 2 UR VX600
17 90116-10574-00 BOLT, STUD . . . . . . . . . . . . . . 8
18 99530-14016-00 PIN, DOWEL . . . . . . . . . . . . . . 4
19 95707-10500-00 NUT, FLANGE . . . . . . . . . . . . . 8
20 8CR-11351-00-00 GASKET, CYLINDER . . . . . . . . 1
CYLINDER HEAD
Ref. Part
No. Number Description Qty Remarks
A5
VX500_600XTCRA

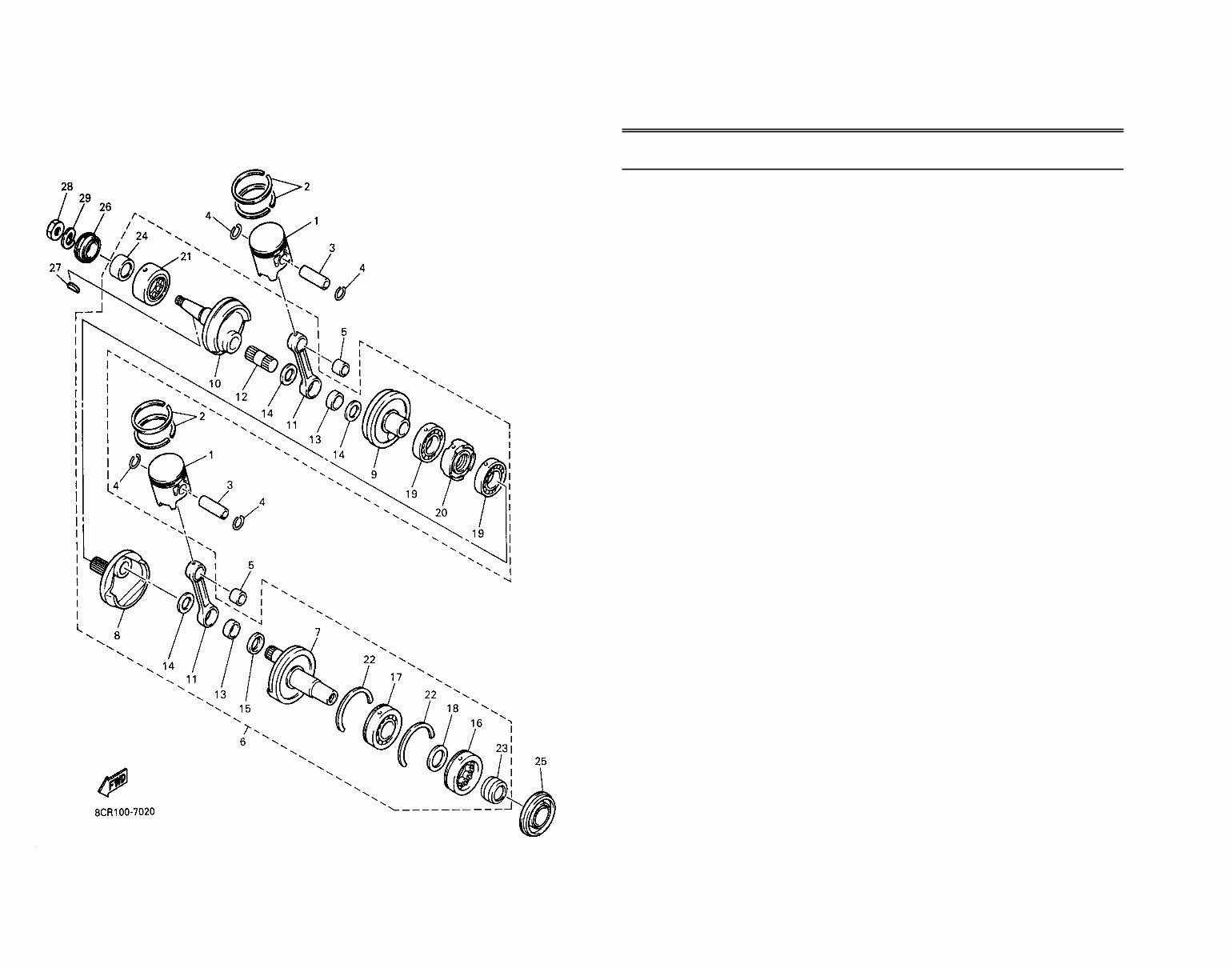

1 8CJ-11631-00-A0 PISTON (STD) . . . . . . . . . . . . . 2 UR VX500
8CR-11631-00-A0 PISTON (STD) . . . . . . . . . . . . . 2 UR VX600
2 8AB-11603-01-00 PISTON RING SET (STD) . . . . . 2 UR VX500
8CR-11603-00-00 PISTON RING SET (STD) . . . . . 2 UR VX600
3 8CA-11633-00-00 PIN, PISTON . . . . . . . . . . . . . . 2 UR VX600
8H8-11633-00-00 PIN, PISTON . . . . . . . . . . . . . . 2 UR VX500
4 93450-21053-00 CIRCLIP . . . . . . . . . . . . . . . . . . 4
5 93310-320G0-00 BEARING . . . . . . . . . . . . . . . . . 2
6 8CR-11400-00-00 CRANKSHAFT ASSEMBLY . . . 1
7 82M-11412-02-00 . CRANK 1 . . . . . . . . . . . . . . . . 1
8 82M-11422-00-00 . CRANK 2 . . . . . . . . . . . . . . . . 1
9 82M-11432-00-00 . CRANK 3 . . . . . . . . . . . . . . . . 1
10 82M-11442-00-00 . CRANK 4 . . . . . . . . . . . . . . . . 1
11 82M-11651-00-00 . ROD, CONNECTING . . . . . . . . 2
12 82M-11681-00-00 . PIN, CRANK 1 . . . . . . . . . . . . 1
13 93310-525S1-00 . BEARING . . . . . . . . . . . . . . . . 2
14 90209-25325-00 . WASHER . . . . . . . . . . . . . . . . 3
15 8AY-11685-00-00 . WASHER, CRANK PIN . . . . . . 1
16 93399-99944-00 . BEARING . . . . . . . . . . . . . . . . 1
17 93306-30720-00 . BEARING . . . . . . . . . . . . . . . . 1
18 90201-357E4-00 . WASHER, PLATE . . . . . . . . . . 1
19 93306-20712-00 . BEARING . . . . . . . . . . . . . . . . 2
20 82M-11515-00-00 . SEAL, LABYRINTH 1 . . . . . . . 1
21 93399-99945-00 . BEARING . . . . . . . . . . . . . . . . 1
22 93440-80023-00 . CIRCLIP . . . . . . . . . . . . . . . . . 2
23 8CR-11428-00-00 . BEARING 1 . . . . . . . . . . . . . . 1
24 8CR-11429-00-00 . BEARING 2 . . . . . . . . . . . . . . 1
25 93103-35176-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
26 93103-32153-00 OIL SEAL . . . . . . . . . . . . . . . . . 1
CONTINUED ON NEXT FRAME ➤
CRANKSHAFT PISTON
Ref. Part
No. Number Description Qty Remarks
A6
VX500_600XTCRA
27 90280-05033-00 KEY, WOODRUFF . . . . . . . . . . 1
28 90170-16182-00 NUT, HEXAGON . . . . . . . . . . . . 1
29 92907-16600-00 WASHER . . . . . . . . . . . . . . . . . 1
CRANKSHAFT PISTON
Ref. Part
No. Number Description Qty Remarks
A7
VX500_600XTCRA

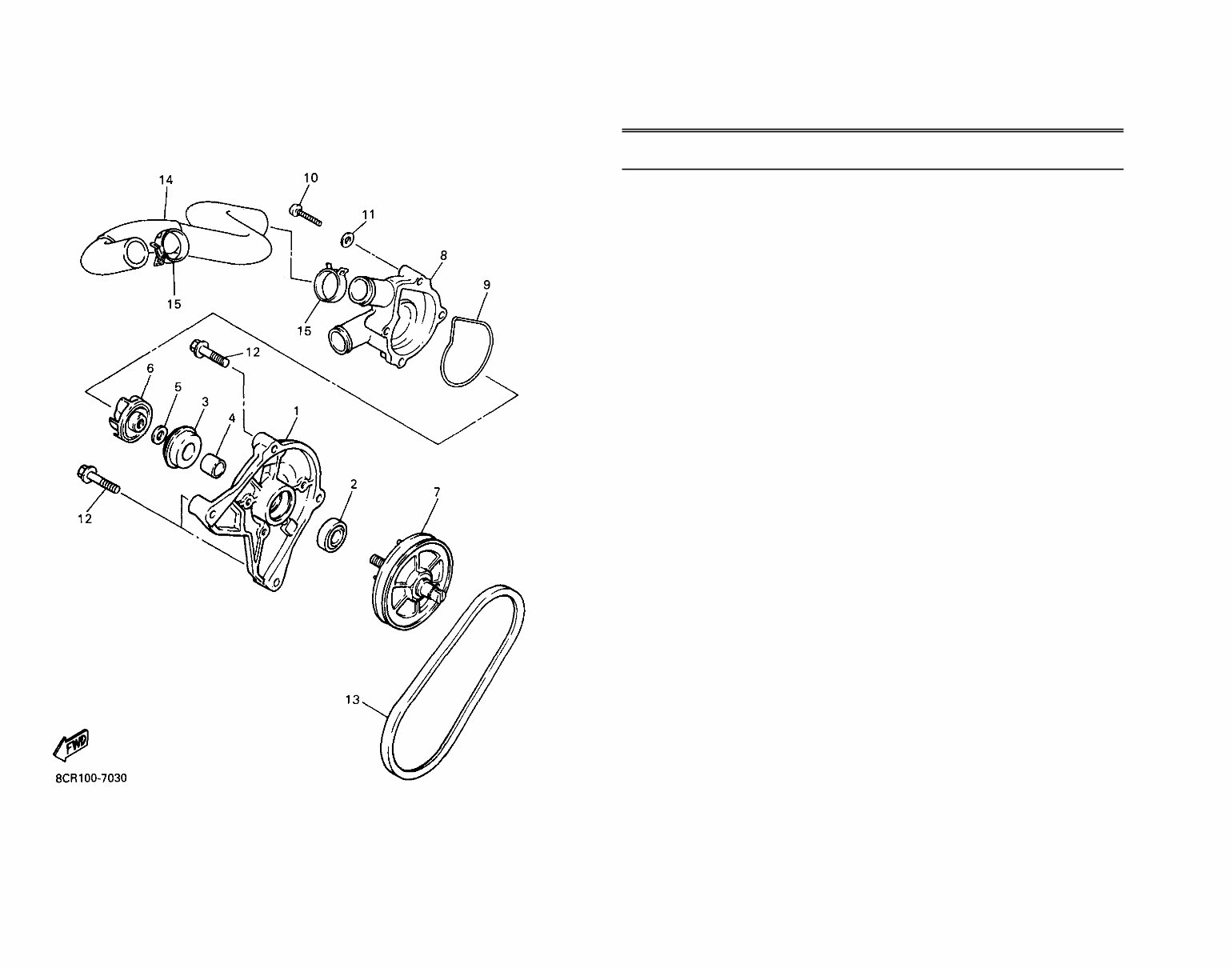

1 8CR-12421-00-00 HOUSING, WATER PUMP . . . . 1
2 93306-20117-00 BEARING . . . . . . . . . . . . . . . . . 1
3 82M-12438-00-00 SEAL, MECHANICAL . . . . . . . . 1
4 82M-12437-00-00 STOPPER . . . . . . . . . . . . . . . . 1
5 90201-08088-00 WASHER, PLATE . . . . . . . . . . . 1
6 82M-12451-00-00 IMPELLER, WATER PUMP . . . . 1
7 8CR-12450-00-00 IMPELLER SHAFT ASSY . . . . . 1
8 8CR-12422-00-00 COVER, HOUSING . . . . . . . . . . 1
9 8CR-12439-00-00 O-RING . . . . . . . . . . . . . . . . . . 1
10 98507-06035-00 SCREW, PAN HEAD . . . . . . . . 4
11 92907-06600-00 WASHER, PLATE . . . . . . . . . . . 4
12 95817-08035-00 BOLT, FLANGE . . . . . . . . . . . . 4
13 82M-12444-00-00 BELT 1 . . . . . . . . . . . . . . . . . . 1
14 8CR-12481-00-00 PIPE 1 . . . . . . . . . . . . . . . . . . . 1
15 90467-28046-00 CLIP . . . . . . . . . . . . . . . . . . . . 2
WATER PUMP
Ref. Part
No. Number Description Qty Remarks
A8
VX500_600XTCRA
1 8CR-12482-00-00 PIPE 2 . . . . . . . . . . . . . . . . . . . 1
2 4FL-12462-00-00 CAP, RADIATOR
(22W-12462-00-00) . . . . . . . . . . 1
3 8CR-12591-00-00 SUPT, FILLER NECK . . . . . . . . 1
4 8CR-12483-00-00 PIPE 3 . . . . . . . . . . . . . . . . . . . 1
5 8CR-12491-00-00 CLAMP 1 . . . . . . . . . . . . . . . . . 1
6 95807-06014-00 BOLT, FLANGE . . . . . . . . . . . . 1
7 8CR-12484-00-00 PIPE 4 . . . . . . . . . . . . . . . . . . . 2
8 8CR-12485-00-00 PIPE 5 . . . . . . . . . . . . . . . . . . . 1
9 8CR-12476-00-00 PIPE 6 . . . . . . . . . . . . . . . . . . . 1
10 90501-120K6-00 SPRING, COMPRESSION . . . . . 1
11 90467-28046-00 CLIP . . . . . . . . . . . . . . . . . . . . 4
12 90467-23067-00 CLIP . . . . . . . . . . . . . . . . . . . . 8
13 8CR-1240E-00-00 HEAT EXCHANGER . . . . . . . . . 1
14 8CR-1240F-00-00 HEAT EXCHANGER . . . . . . . . . 1
15 90267-48169-00 RIVET, BLIND . . . . . . . . . . . . . 40
16 8CR-1241A-00-00 HEAT EXCHANGER
ASSEMBLY 4 . . . . . . . . . . . . . . 1
17 90430-06166-00 . GASKET . . . . . . . . . . . . . . . . 1
18 95817-06010-00 . BOLT, FLANGE . . . . . . . . . . . 1
19 90267-48095-00 RIVET, BLIND . . . . . . . . . . . . . 4
RADIATOR HOSE
Ref. Part
No. Number Description Qty Remarks
A9
VX500_600XTCRA

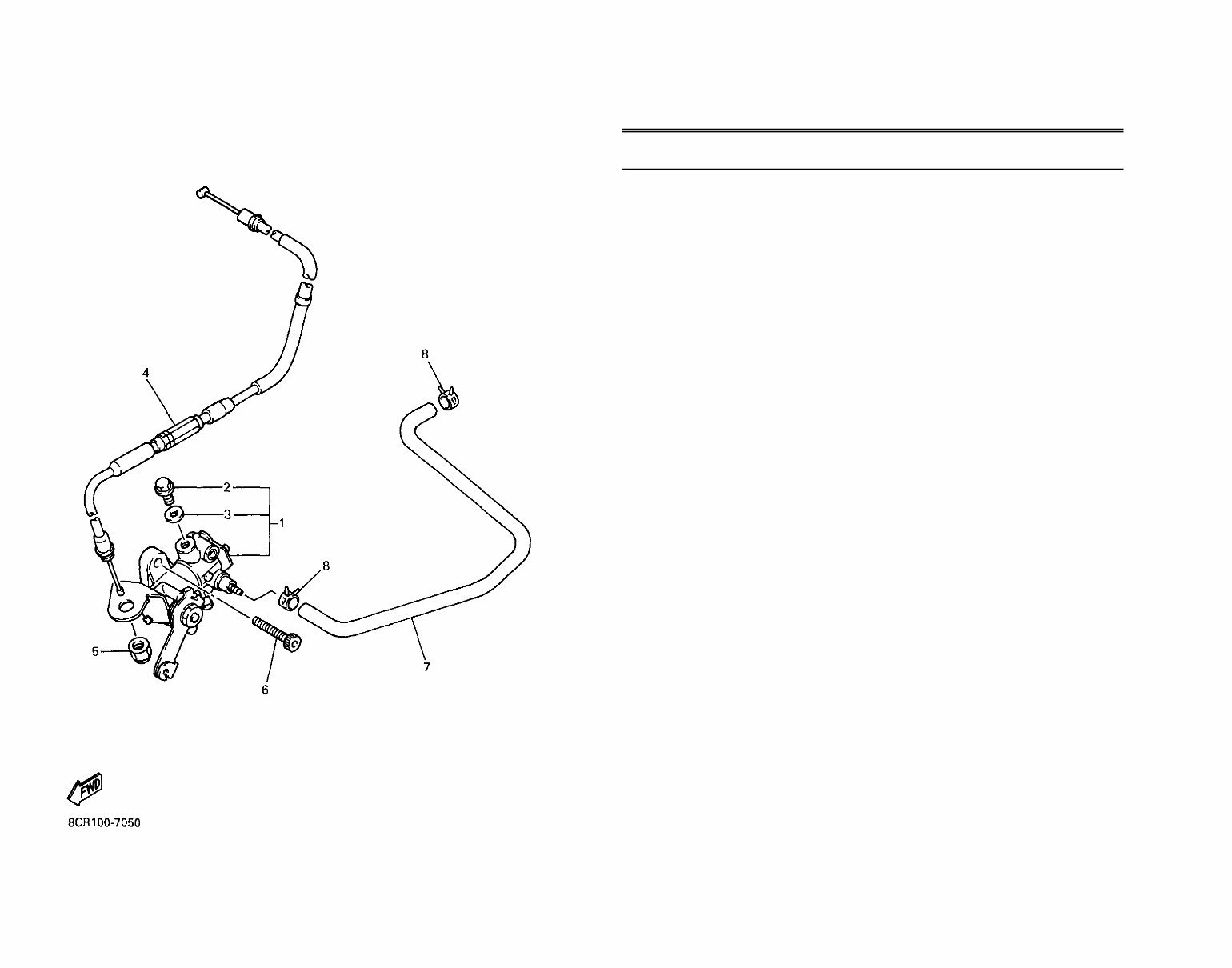

1 8AB-13100-01-00 OIL PUMP ASSEMBLY . . . . . . . 1 UR VX500
8CR-13100-00-00 OIL PUMP ASSEMBLY . . . . . . . 1 UR VX600
2 89A-13185-00-00 . BOLT, BREATHER . . . . . . . . . 1
3 89A-13187-00-00 . GASKET, BREATHER BOLT . 1
4 8CR-26320-00-00 PUMP CABLE ASSEMBLY . . . . 1
5 95717-08300-00 NUT, FLANGE . . . . . . . . . . . . . 1
6 91317-05016-00 BOLT . . . . . . . . . . . . . . . . . . . . 2
7 91A30-03039-00 TUBE, FLEXIBLE VINYL . . . . . 1
8 90468-02025-00 CLIP . . . . . . . . . . . . . . . . . . . . 2
OIL PUMP
Ref. Part
No. Number Description Qty Remarks
A10
VX500_600XTCRA
