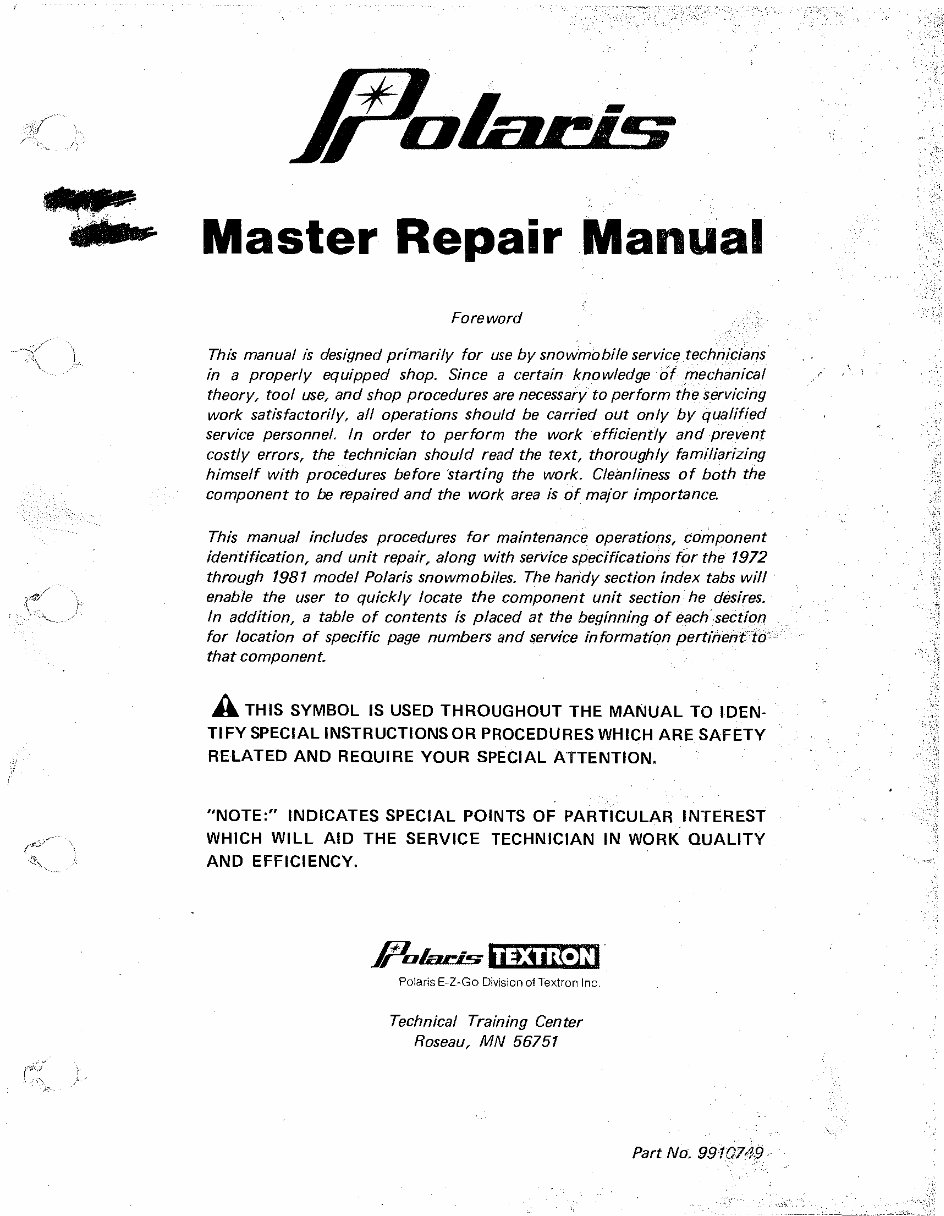

Master Repair Manual Foreword This manual is designed primarily for use by snowmobile servicetechniciens in a properly equipped shop. Since a certain knowledge a/mechanical theory, tool use, and shop procedures are necessary to perform the servicing work satisfactorily, all operations should be carried out only by qualified service personnel. In order to perform the work efficiently and prevent costly errors, the technician should read the text, thoroughly familiarizing himself with procedures before starting the work. Cleanliness of both the component to be repaired and the work area is of major importance. This manual includes procedures for maintenance operations, Component identification, and unit repair, along with service specifications for the 1972 through 1981 model Polaris snowmobiles. The handy section index tabs will . enable the user to quickly locate the component unit section he desires. In addition, a table of contents is placed at the beginning of each section for location of specific page numbers and service in formation pertinent.to: that component. A THIS SYMBOL IS USED THROUGHOUT THE MAI\IUAL TO IDEN- TIFY SPECIAL INSTRUCTIONS OR PROCEDURES WHICH ARE SAFETY RELATED AND REQUIRE YOUR SPECIAL ATTENTION. "NOTE:" INDICATES SPECIAL POINTS OF PARTICULAR INTEREST WHICH WILL AID THE SERVICE TECHNICIAN IN WORK QUALITY AND EFFICIENCY. HI ~. Jrnlari5"~ Polaris E-Z"Go Division of Textron Inc. Technical Training Center Roseau, MN 56751 Part No. 9910749

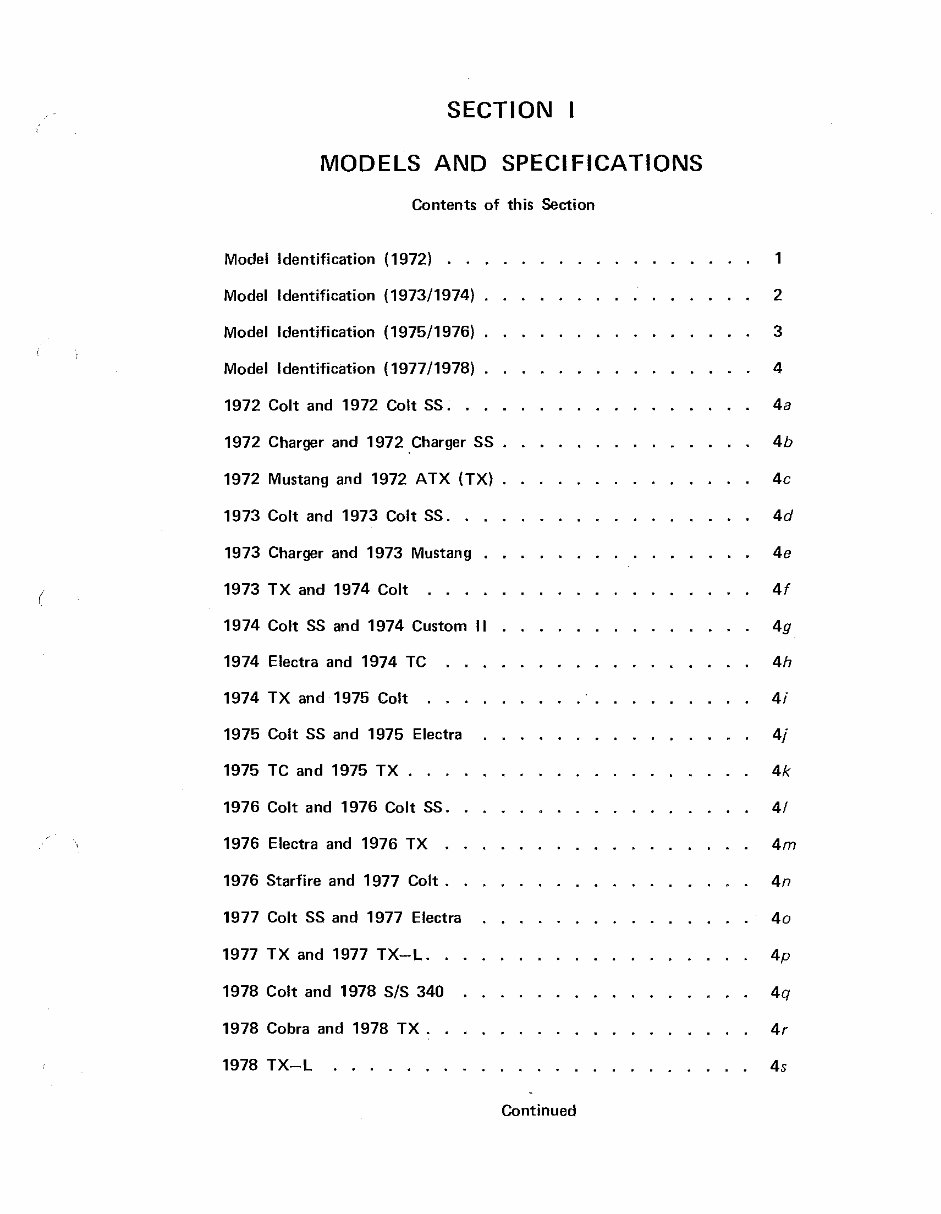

( SECTION I MODELS AND SPECIFICATIONS Contents of this Section Model Identification (1972) . . Model Identification (1973/1974) Model Identification (1975/1976) Model Identification (1977/1978) 1972 Colt and 1972 Colt 55. . 1972 Charger and 1972 Charger 55 . 1972 Mustang and 1972 ATX (TX) . 1973 Colt and 1973 Colt 55. . 1973 Charger and 1973 Mustang 1973 TX and 1974 Colt . . . 1974 Colt 55 and 1974 Custom II 1974 Electra and 1974 TC 1974 TX and 1975 Colt . 1975 Colt 55 and 1975 Electra 1975 TC and 1975 TX. . . 1976 Colt and 1976 Colt 55. 1976 Electra and 1976 TX . 1976 Starfire and 1977 Colt. 1977 Colt 55 and 1977 Electra 1977 TX and 1977 TX-L. . 1978 Colt and 1978 5/5 340 1978 Cobra and 1978 TX . 1978 TX-L Continued 1 2 3 4 4a 4b 4c 4d 4e 4f 4g 4h 4/ 4j 4k 4/ 4m 4n 40 4p 4q 4r 4s

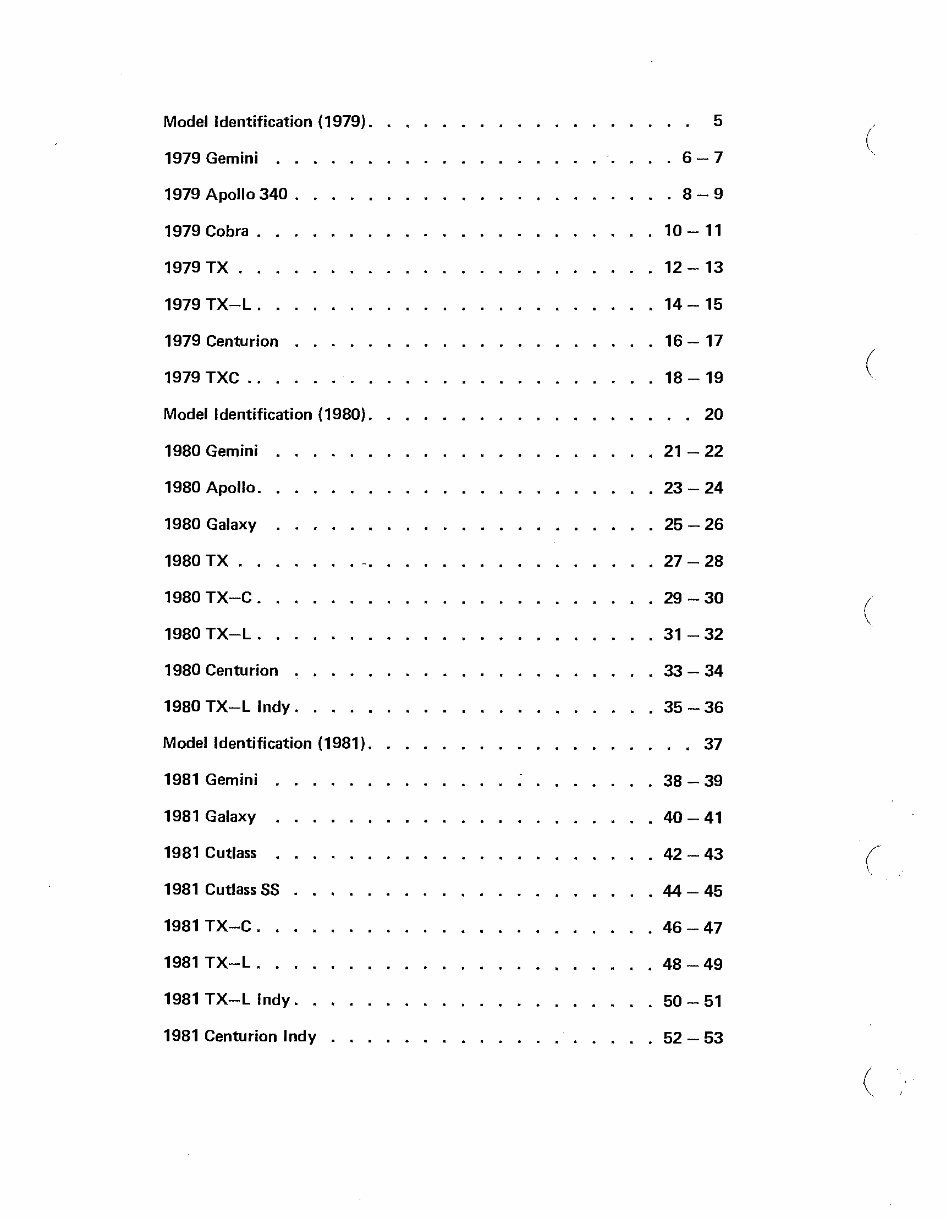

Model Identification (1979). 5 ( 1979 Gemini 6-7 1979 Apollo 340 . 8-9 1979 Cobra. 10 - 11 1979 TX . 12 -13 1979 TX-L. 14 -15 1979 Centurion 16-17 1979 TXC " 18 -19 ( Model Identification (1980). 20 1980 Gemini 21- 22 1980 Apollo. 23 -24 1980 Galaxy 25-26 1980 TX . 27 - 28 1980 TX-C. 29 -30 ( \ 1980 TX-L. 31-32 1980 Centurion 33- 34 1980 TX-L Indy. 35 -36 Model Identification (1981). 37 1981 Gemini 38 -39 1981 Galaxy 40-41 1981 Cutlass 42 -43 ( 1981 Cutlass SS 44-45 1981 TX-C. 46-47 1981 TX-L. 48 -49 1981 TX-L Indy. 50-51 1981 Centurion Indy 52-53 (

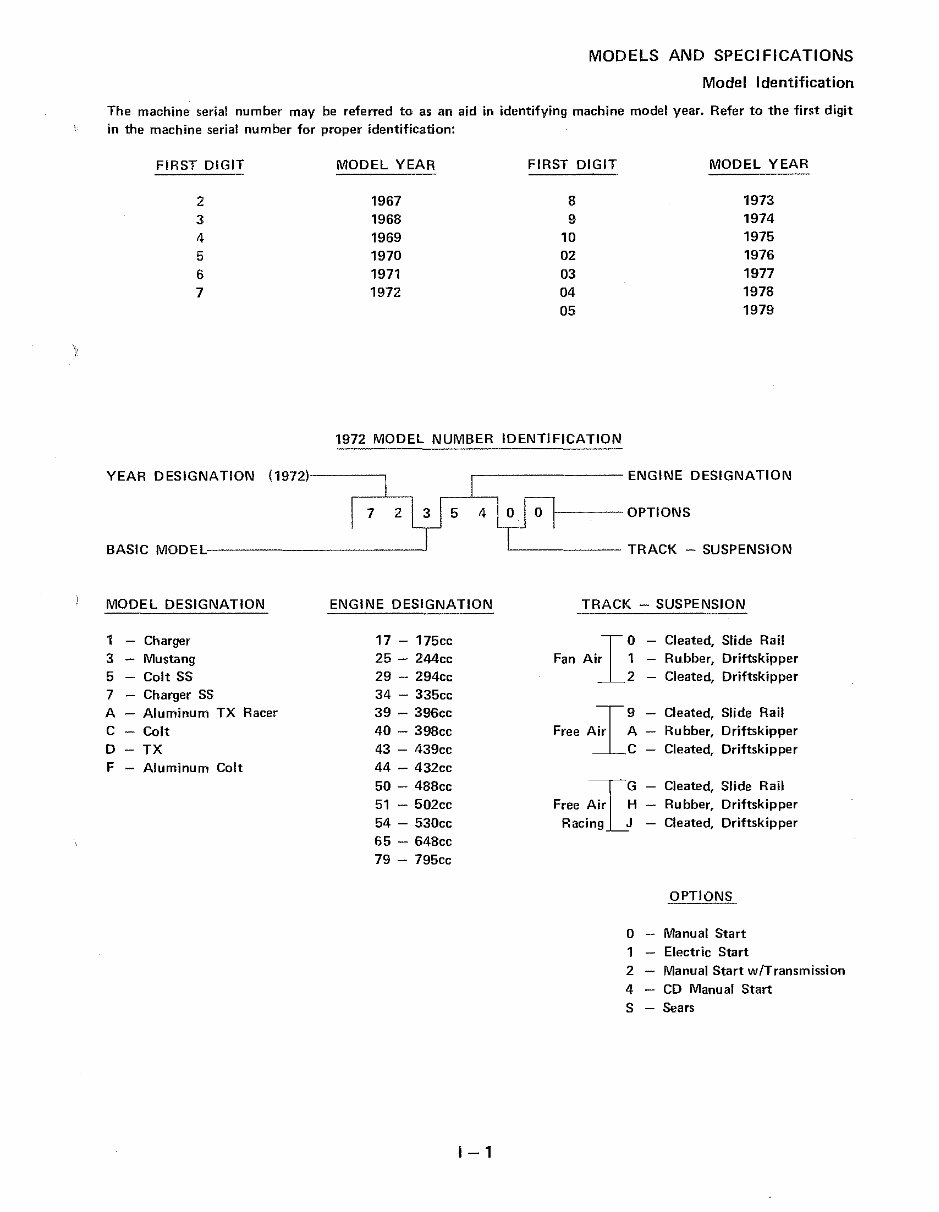

YEAR DESIGNATION (1972) MODELS AND SPECIFICATIONS Model Identification The machine serial number may be referred to as an aid in identifying machine model year. Refer to the first digit in the machine serial number tor proper identification: FIRST DIGIT MODEL YEAR FIRST DIGIT MODEL YEAR 2 1967 8 1973 3 1968 9 1974 4 1969 10 1975 5 1970 02 1976 6 1971 03 1977 7 1972 04 1978 05 1979 " 1972 MODEL NUMBER IDENTIFICATION ~. ENGINE DESIGNATION 7 2 3 5 4 0 fl-- OPTIONS BASIC MODEL----------- ------TRACK - SUSPENSION MODEL DESIGNATION ENGINE DESIGNATION TRACK - SUSPENSION 1 Charger 3 Mustang 5 Colt SS 7 Charger SS A - Aluminum TX Racer C - Colt D TX F - Aluminum Colt 17 - 175cc 25 - 244cc 29 - 294cc 34 - 335cc 39 - 396cc 40 - 398cc 43 - 439cc 44 - 432cc 50 - 488cc 51 - 502cc 54 - 530cc 65 - 64Bcc 79 - 795cc Free AI~ Free :r~ Raci~~L Cleated, Slide Rail Rubber, Driftskipper Cleated, Drittskipper Cleated, Slide Rail Rubber, Driftskipper Cleated, Drittskipper Cleated, Slide Rail Rubber, Drittskipper Cleated, Driftskipper OPTIONS 1-1 o Manual Start 1 Electric Start 2 Manual Start w/Transmission 4 CD Manual Start S Sears

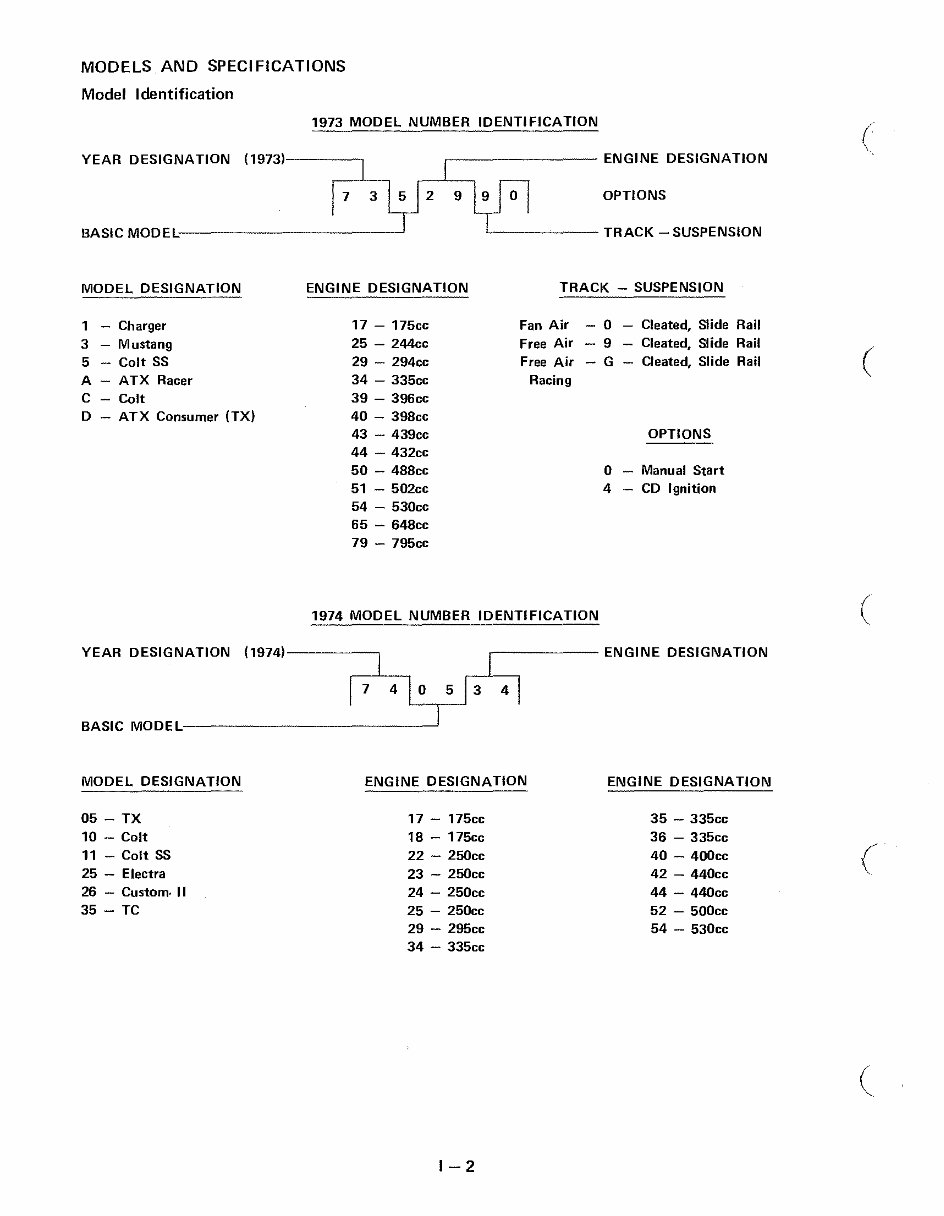

MODELS AND SPECIFICATIONS Model Identification 1973 MODEL NUMBER IDENTIFICATION YEAR DESIGNATION (1973)--- ENGINE DESIGNATION ~ , r;~_~__ OPTIONS BASICMODElC---------~- L - ~ ~___ TRACK-SUSPENSION ( MODEL DESIGNATION ENGINE DESIGNATION TRACK - SUSPENSION 1 - Charger 3 - Mustang 5 Colt SS A - ATX Racer C - Colt D - ATX Consumer (TX) 17 - 175cc 25 - 244cc 29 - 294cc 34 - 335cc 39 - 396cc 40 - 398cc 43 - 439cc 44 - 432cc 50 - 488cc 51 - 502cc 54 - 530cc 65 - 648cc 79 - 795cc Fan Air - 0 Free Air - 9 Free Air - G Racing o 4 Cleated, Slide Rail Cleated, Slide Rail Cleated, Slide Rail OPTIONS Manual Start CD Ignition ( 1974 MODEL NUMBER IDENTIFICATION YEAR DESIGNATION (1974)---- ----- ENGINE DESIGNATION _ ________ ~" "r; BASIC MODEL ~.> "I ( MODEL DESIGNATION 05 - TX 10 - Colt 11 - Colt SS 25 - Electra 26 - Custom- II 35 - TC ENGINE DESIGNATION 17 - 175cc 18 - 175cc 22 - 250cc 23 - 250cc 24 - 250cc 25 - 250cc 29 - 295cc 34 - 335cc 1-2 ENGINE DESIGNATION 35 - 335cc 36 - 335cc 40 - 400cc 42 - 440cc 44 - 440cc 52 - 500cc 54 - 530cc ( (

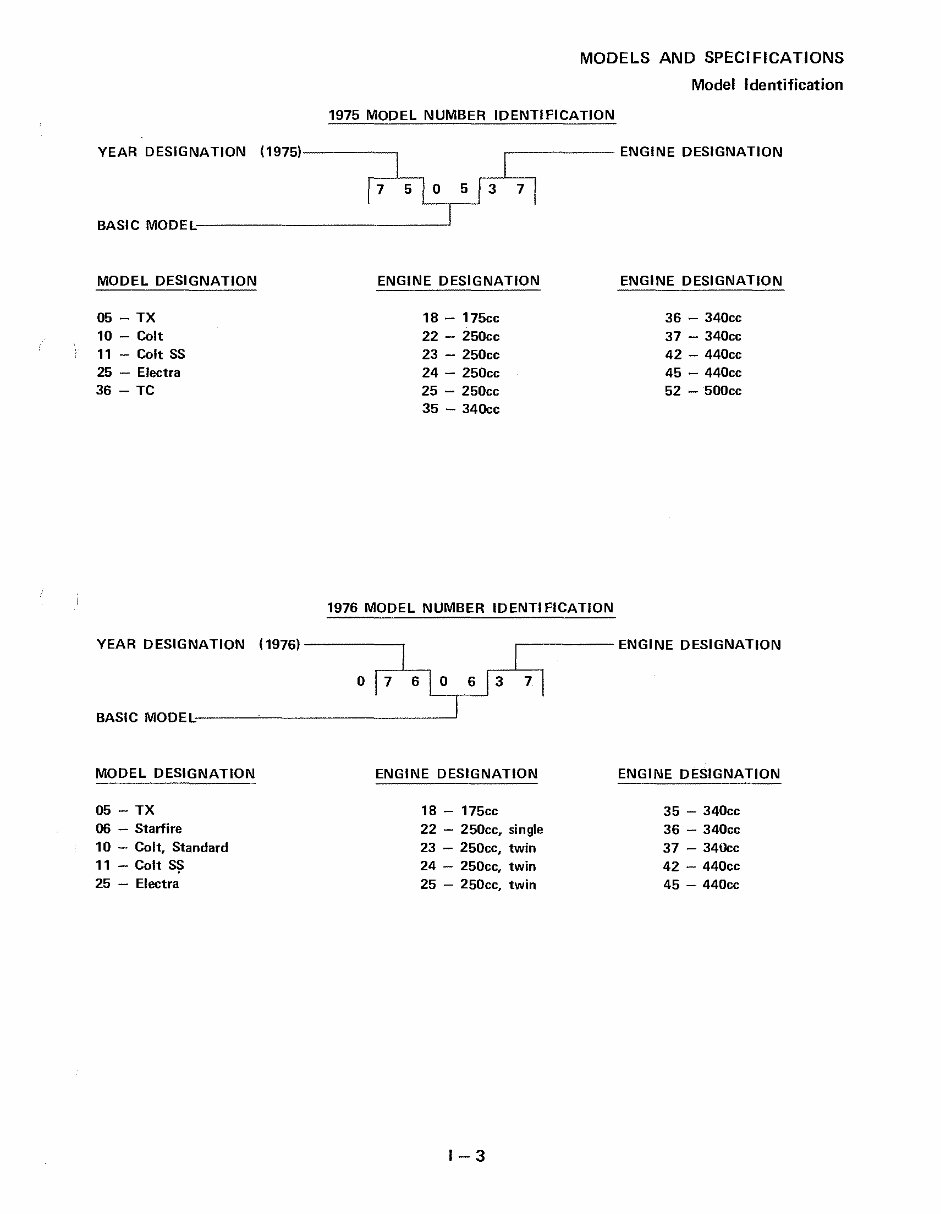

MODELS AND SPECIFICATIONS Model Identification 1975 MODEL NUMBER IDENTIFICATION YEAR DESIGNATION (1975)---- ---- ENGINE DESIGNATION _________ ;;:J." ,rh BASIC MODEL- ~ ~ 'I MODEL DESIGNATION 05 - TX 10 - Colt 11 - Colt SS 25 - Electra 36 - TC ENGINE DESIGNATION 18 - 175cc 22 - 250cc 23 - 250cc 24 - 250cc 25 - 250cc 35 - 340cc 1976 MODEL NUMBER IDENTIFICATION ENGINE DESIGNATION 36 - 340cc 37 - 340cc 42 - 440cc 45 - 440cc 52 - 500cc YEAR DESIGNATION (1976)----~~----ENGINE DESIGNATION ___~ 0__ 7_6_ 0 6 3 7 BASIC MODEl - MODEL DESIGNATION 05 - TX 06 - Starfire 10 - Colt, Standard 11 - Colt S~ 25 - Electra ENGINE DESIGNATION 18 - 175cc 22 - 250cc, single 23 - 250cc, twin 24 - 250cc, twin 25 - 250cc, twin 1-3 ENGINE DESIGNATION 35 - 340cc 36 - 340cc 37 - 340cc 42 - 440cc 45 - 440cc

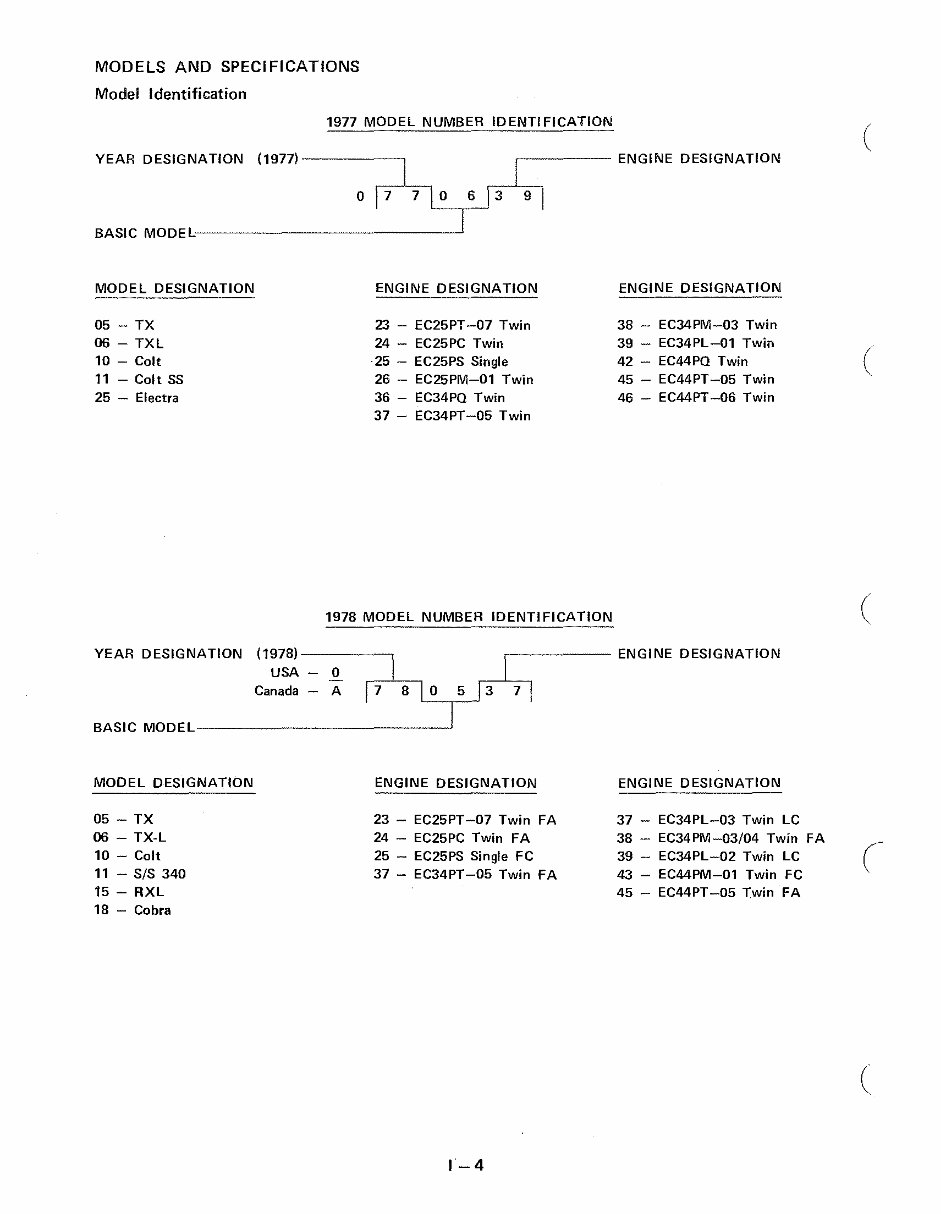

MODELS AND SPECIFICATIONS Model Identification 1977 MODEL NUMBER IDENTIFICATION YEAR DESIGNATION (1977)----~-' ----- ENGINE DESIGNATION o " o , , , BASIC MODEL----------- ( MODEL DESIGNATION ENGINE DESIGNATION ENGINE DESIGNATION 05 - TX 06 - TXL 10 - Colt 11 - Colt SS 25 - Electra 23 - EC25PT -07 Twin 24 - EC25PC Twin ·25 - EC25PS Single 26 - EC25PM-01 Twin 36 - EC34PQ Twin 37 - EC34PT -05 Twin 38 - EC34PM-03 Twin 39 - EC34PL-01 Twin 42 - EC44PQ Twin 45 - EC44PT -05 Twin 46 - EC44PT -06 Twin ( 1978 MODEL NUMBER IDENTIFICATION ( YEAR DESIGNATION (1978)---- USA Canada ---- ENGINE DESIGNATION _ _______ ~ __ h, ,,,l; BASIC MODEL ~ ~ • I MODEL DESIGNATION ENGINE DESIGNATION ENGINE DESIGNATION 05 - TX 06 - TX-L 10 - Colt 11 - SIS 340 15 - RXL 18 - Cobra 23 - EC25PT -07 Twin FA 24 - EC25PC Twin FA 25 - EC25PS Single FC 37 - EC34PT -05 Twin FA 37 - EC34PL-03 Twin LC 38 - EC34PM-03/04 Twin FA 39 - EC34PL-02 Twin LC 43 - EC44PM-01 Twin FC 45 - EC44PT -05 Twin FA ( ( 1-4

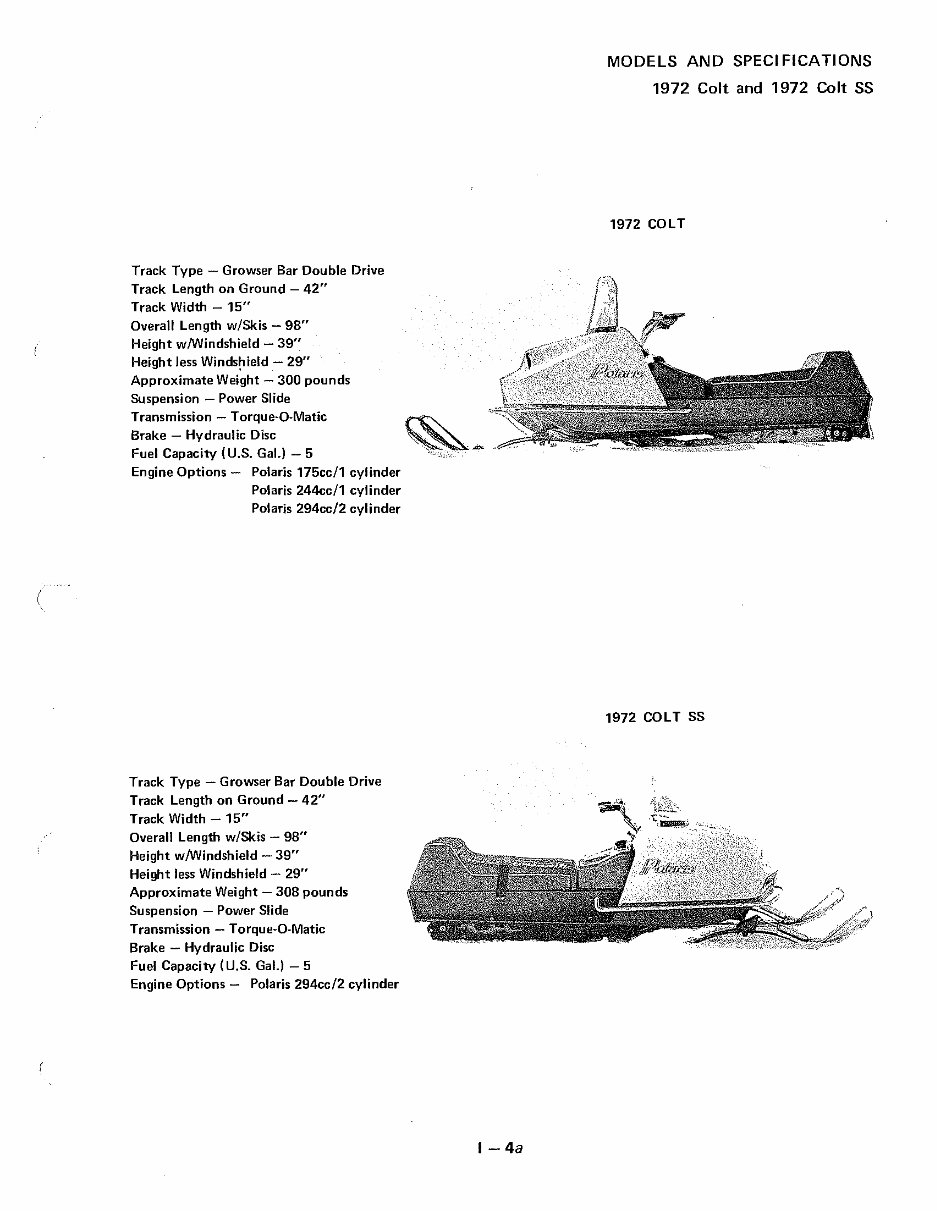

( Track Type - Growser Bar Double Drive Track Length on Ground - 42" Track Width - 15" Overall Length w/Skis - 98" Height wIWindshield - 39" Height Jess Winds~ ield - 29" Approximate Weight - 300 pounds Suspension - Power Slide Transmission - Torque-Odvlatic Brake - Hydraulic Disc Fuel Capacity (U.S. Gal.) - 5 Engine Options - Polaris 175cc/l cylinder Polaris 244<:c/1 cylinder Polaris 294cc/2 cylinder Track Type - Growser Bar Double Drive Track Length on Ground - 42" Track Width - 15" Overall Length w/Skis - 98" Height wIWindshield - 39" Height less Windshield - 29" Approximate Weight - 308 pounds Suspension - Power Slide Transmission - Torque-OiMatlc Brake - Hydraulic Disc Fuel Capacity (U.S. Gal.) - 5 Engine Options - Polaris 294cc/2 cylinder MODELS AND SPECIFICATIONS 1972 Colt and 1972 Colt SS 1972 COLT 1972 COLT SS 1-4a

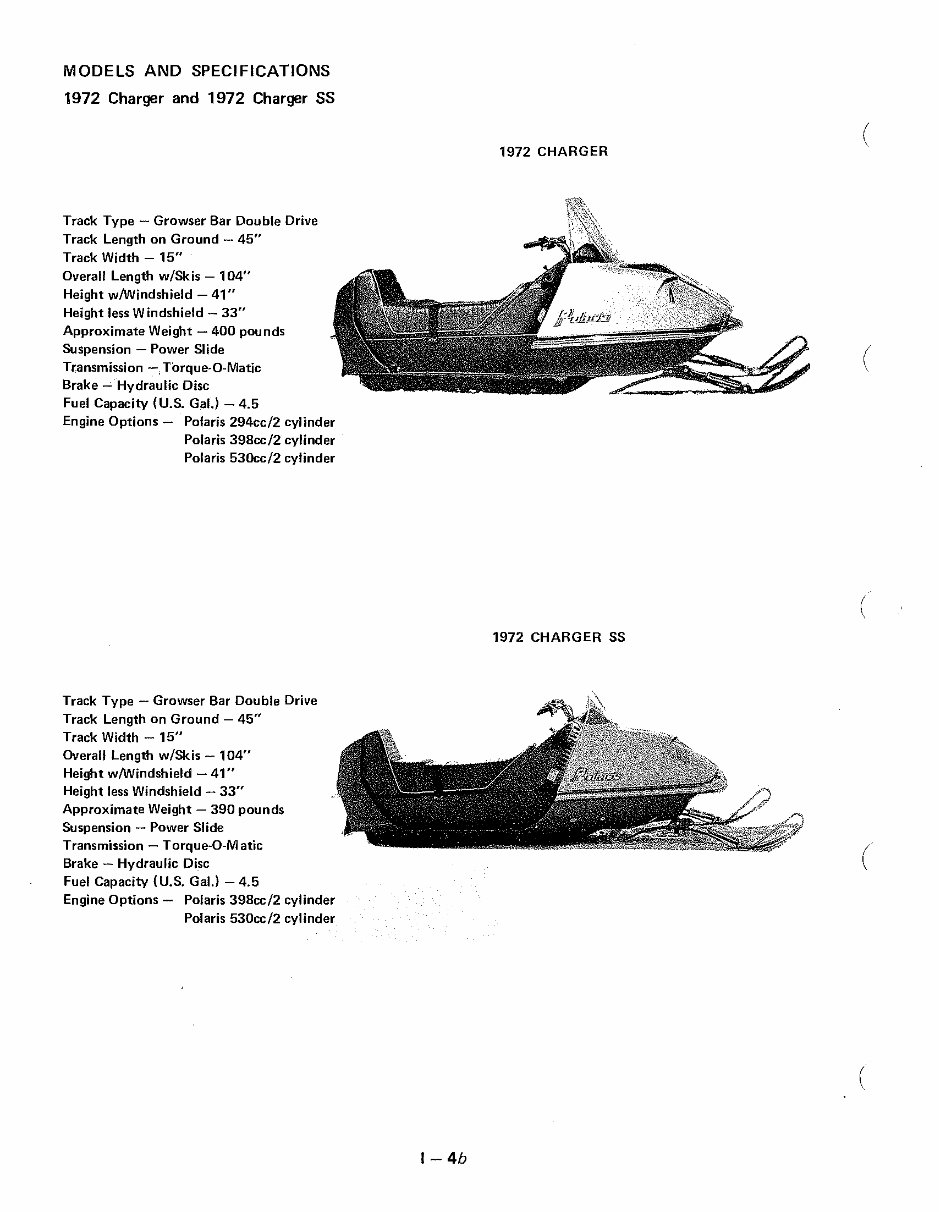

MODELS AND SPECIFICATIONS 1972 Charger and 1972 Charger SS Track Type - Growser Bar Double Drive Track Length on Ground - 45" Track Width - 15" Overall Length w/Skis - 104" Height w/Windshield - 41" Height less Windshield - 33" Approximate Weight - 400 pounds Suspension - Power Slide Transmission -, Torque-O'Matle Brake ""':'Hydraulic Disc Fuel Capacity (U.S. Gal.) - 4.5 Engine Options - Polaris 294cc/2 cylinder Polaris 398cc/2 cylinder Polaris 53Occ/2 cylinder Track Type - Growser Bar Double Drive Track Length on Ground - 45" Track Width - 15" Overall Length w/Skis - 104" Height w/Windshield - 41" Height less Windshield - 33" Approximate Weight - 390 pounds Suspension - Power Slide Transmission - Torque·O-Matic Brake Hydraulic Disc Fuel Capacity (U.S. Gat.) - 4.5 Engine Options - Polaris 398cc/2 cylinder Polaris 530cc/2 cylinder 1972 CHARGER 1972 CHARGER SS 1-4b ( ( ( ( (

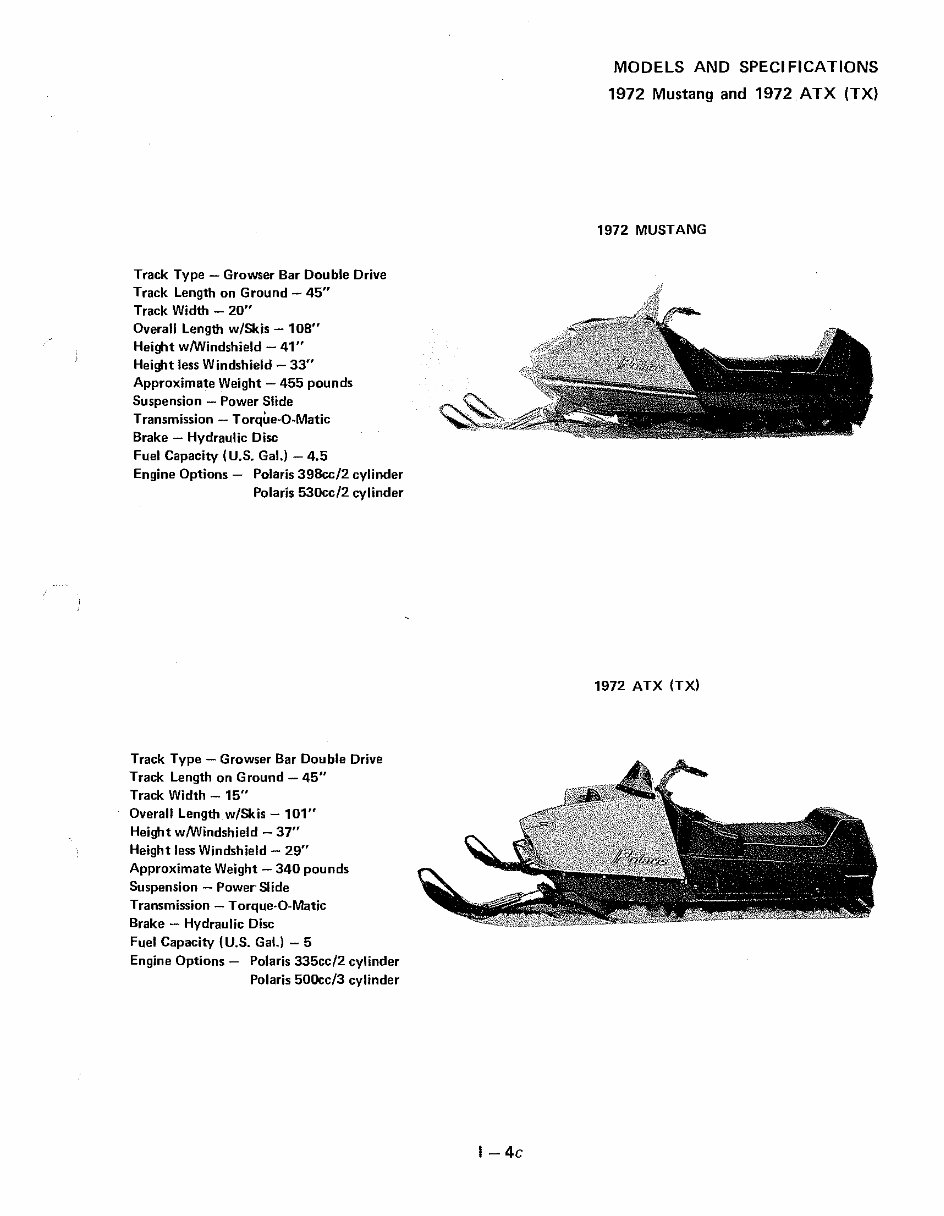

Track Type - Growser Bar Double Drive Track Length on Ground - 45" Track Width - 20" Overall Leng1h w/Skis - 10S" Height w/Windshield - 41" Height less Windshield - 33" Approximate Weight - 455 pounds Suspension - Power Slide Transmission - Torque~O~Matic Brake - Hydraulic Disc Fuel Capacity (U.S. Gal.) - 4.5 Engine Options - Polaris 398cc/2 cylinder Polaris 530cc/2 cylinder Track Type - Growser Bar Double Drive Track Length on Ground - 45" Track Width - 15" Overall Length w/Skis - 101" Height w/Windshield - 37" Height less Windshield - 29" Approximate Weight - 340 pounds Suspension - Power" Slide Transmission - T orque·O~Matic Brake - Hydraulic Disc Fuel Capacity (U.S. GaL) - 5 Engine Options - Polaris 335cc/2 cylinder Polaris 50Occ/3 cylinder MODELS AND SPECIFICATIONS 1972 Mustang and 1972 ATX (TX) 1972 MUSTANG 1972 ATX (TX) 1-4c
