FOREWORD
The information printed within this publication includes the latest product information at time of print. The most recent
version of this Service Manual is available in electronic format at www.polarisdealers.com.
This Service Manual is designed primarily for use by certified Polaris Master Service Dealer
®
technicians in a properly
equipped shop and should be kept available for reference. All references to left and right side of the vehicle are from
the operator's perspective when seated in a normal riding position.
Some procedures outlined in this manual require a sound knowledge of mechanical theory, tool use, and shop
procedures in order to perform the work safely and correctly. Technicians should read the text and be familiar with the
service procedures before starting any repair. Certain procedures require the use of special tools. Use only the proper
tools as specified. If you have any doubt as to your ability to perform any of the procedures outlined in this Service
Manual, contact an authorized dealer for service.
We value your input and appreciate any assistance you can provide in helping make these publications more useful.
Please provide any feedback you may have regarding this manual. Authorized dealers can submit feedback using 'Ask
Polaris'. Click on 'Ask Polaris', and then click on 'Service Manual / Service Literature Question'.
Consumers, please provide your feedback in writing to: Polaris Industries Inc. ATTN: Service Publications Department,
2100 Hwy 55, Medina, MN 55340.
Publication Printed March 2016 (PN 9926816 R06)
© Copyright 2016 Polaris Industries Inc. All information contained within this publication is based on the latest product information at the time of publication. Due to
constant improvements in the design and quality of production components, some minor discrepancies may result between the actual vehicle and the information
presented in this publication. Depictions and/or procedures in this publication are intended for reference use only. No liability can be accepted for omissions or
inaccuracies. Any reprinting or reuse of the depictions and/or procedures contained within, whether whole or in part, is expressly prohibited. Printed in U.S.A.
2014-2016 RZR XP 1000 / XP4 1000
Service Manual

UNDERSTANDING SAFETY LABELS AND DIRECTIONS
Throughout this manual, important information is brought to your attention by the following symbols:
WARNING
SAFETY ALERT WARNING indicates a potential hazard that may result in severe injury or death to the operator,
bystander or person(s) inspecting or servicing the vehicle.
CAUTION
SAFETY ALERT CAUTION indicates a potential hazard that may result in minor personal injury or damage to the
vehicle.
CAUTION
CAUTION indicates special precautions that must be taken to avoid vehicle damage or property damage.
NOTE
NOTE provides key information by clarifying instructions.
IMPORTANT
IMPORTANT provides key reminders during disassembly, assembly and inspection of components.

TRADEMARKS
POLARIS ACKNOWLEDGES THE FOLLOWING PRODUCTS MENTIONED IN THIS MANUAL:
Loctite, Registered Trademark of the Loctite Corporation
Nyogel, Trademark of Wm. F. Nye Co.
Fluke, Registered Trademark of John Fluke Mfg. Co.
Mity-Vac, Registered Trademark of Neward Enterprises, Inc.
Torx, Registered Trademark ofTextron
Hilliard, Trademark of the Hilliard Corporation
Warn, Trademark of Warn Industries
FOX, Registered Trademark of FOX RACING SHOX
RydeFX, Registered Trademark of ArvinMeritor
Some Polaris factory publications can be downloaded from www.polarisindustries.com, purchased from
www.purepolaris.com or by contacting the nearest Polaris dealer.
REVISION INDEX
REV DATE CHANGES
R01 08/14/2015 Initial release
R02
10/12/2015 Added XP4 High Lifter information
10/30/2015 Call out engine/trans centering tool as PU-50658-A
R03
11/11/2015
Front and Rear Hub Nut torque changed
11/17/2015 Updated shock spring adjustment procedure / table
11/17/2015
Added prop shaft support bearing service
R04 12/14/2015 Corrected spark plug information
R05 2/29/2016
Corrected wiring diagram for ECU wiring
Clarified CAN system testing
R06
3/10/2016 Updated CV Joint service
3/20/2016 Added information for MY16 Driven Clutch service


2014-2016 RZR XP 1000 / XP4 1000
Service Manual
Chapter Summary
CHAPTER 1: GENERAL INFORMATION
CHAPTER 2: MAINTENANCE
CHAPTER 3: ENGINE / COOLING SYSTEM
CHAPTER 4: FUEL SYSTEM
CHAPTER 5: PVT SYSTEM
CHAPTER 6: TRANSMISSION
CHAPTER 7: FINAL DRIVE
CHAPTER 8: STEERING / SUSPENSION
CHAPTER 9: BRAKE SYSTEM
CHAPTER 10: BODY / FRAME
CHAPTER 11: ELECTRICAL


1
9926816 R06 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
1.1
GENERAL INFORMATION
CHAPTER 1
GENERAL INFORMATION
VEHICLE IDENTIFICATION ............................................................................. 1.2
MODEL NUMBER DESIGNATION (2014 AND OLDER)................................................. 1.2
MODEL NUMBER DESIGNATION (2015 +) ............................................................ 1.2
VEHICLE IDENTIFICATION NUMBER ................................................................. 1.3
VEHICLE IDENTIFICATION NUMBER (VIN) DESIGNATION (2015+) ................................... 1.3
VEHICLE AND ENGINE SERIAL NUMBER LOCATION................................................. 1.4
REFERENCE INFORMATION ........................................................................... 1.5
REPLACEMENT KEYS ................................................................................ 1.5
PUBLICATION NUMBERS ............................................................................. 1.5
SPECIAL TOOLS ...................................................................................... 1.6
GENERAL SPECIFICATIONS .......................................................................... 1.10
2014-2016 RZR XP 1000 ............................................................................. 1.10
2014-2016 RZR XP 1000 CLUTCH CHART ........................................................... 1.11
2014-2016 RZR XP 4 1000............................................................................ 1.12
2014-2016 RZR XP4 1000 ............................................................................ 1.13
2015-2016 RZR XP 1000 HIGH LIFTER ............................................................... 1.14
2015–2016 RZR XP 1000 HIGH LIFTER CLUTCH CHART ............................................ 1.15
2016 RZR XP4 1000 HIGH LIFTER ................................................................... 1.16
2016 RZR XP4 1000 HIGH LIFTER CLUTCH CHART ................................................. 1.17
2015 RZR XP 1000 DESERT EDITION ................................................................ 1.18
2015 RZR XP 1000 DESERT EDITION CLUTCH CHART .............................................. 1.19
2015 RZR XP 1000 FOX EDITION .................................................................... 1.20
2015 RZR XP 1000 FOX CLUTCH CHART ............................................................ 1.21
MISC. SPECIFICATIONS AND CHARTS .............................................................. 1.22
MASTER TORQUE TABLE ........................................................................... 1.22
CONVERSION TABLE ................................................................................ 1.24
STANDARD BOLT TORQUE SPECIFICATION ........................................................ 1.25
METRIC BOLT TORQUE SPECIFICATION ............................................................ 1.25
SAE TAP / DRILL SIZES .............................................................................. 1.26
METRIC TAP / DRILL SIZES .......................................................................... 1.26
DECIMAL EQUIVALENTS ............................................................................ 1.27

1.2
9926816 R06 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
VEHICLE IDENTIFICATION
MODEL NUMBER DESIGNATION (2014 AND OLDER)
Example: Z14ST1EAL
GROUP
MODEL
YEAR
CHASSIS DRIVELINE ENGINE CATEGORY OPTION REGION
1st digit
2/3rd
digit
4th digit* 5th digit* 6th digit* 7th digit* 8th digit 9th digit** 10th digit
Z = RZR
11
12
13
14
15
J = RZR XP
V = RZR
X = Multi-
pass RZR
E = 4x4 Shaft / IRS
H = 4x4 Shaft / IRS
T = 4x4 Shaft /
Trailing Arm
Displacement in cc
divided by 10 and
rounded to two digits
(i.e. 50 = 498cc)
A = ORV
E = EU On-road
F = INT’L
M = Military
S=
Scandinavian
V = EU On-road
C = Calif.
- - OR - -
6 = 570
7 = 760
9 = 875
E = EPS
F=D+E
* = digits that would transfer to 17 digit VIN and are used in digits 4-8 respectively
** = 9th digit will be used on color/featured versions of models (not including the base)
First 3 digits and 9th digit are used in model number only. They are not used with the 17 digit VIN.
MODEL NUMBER DESIGNATION (2015 +)
Example: R15RUE57AC
GROUP MODEL YEAR MAKE / CHASSIS CODE ENGINE CODE REGION OPTION
1st 2nd 3rd 4th* 5th* 6th* 7th* 8th* 9th 10th**
R 1 5 R U E 5 7 A C
* = digits that would transfer to 17 digit VIN and are used in digits 4-8 respectively
** = 10th digit will be used on color/featured versions of models (not including the base)
First 3 digits and 10th digit are used in model number only. They are not used with the 17 digit VIN.
Digits 1 through 8 determine Digital Wrench calibration.
GENERAL INFORMATION

9926816 R06 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
1.3
VEHICLE IDENTIFICATION NUMBER
Example: 4XAKA09A0F3000000
WORLD MFG. ID
VEHICLE DESCRIPTORS VEHICLE IDENTIFIERS
CHASSIS
DRIVELINE
ENGINE SIZE
ENGINE
MODIFIER
CATEGORY
CHECK DIGIT
MODEL YEAR *
MFG. LOCATION
INDIVIDUAL SERIAL NO.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
4 X A K A 0 9 A 0 F 3 0 0 0 0 0 0
* Model Year: A = 2010; B = 2011; C = 2012; D = 2013; E = 2014; F = 2015
VEHICLE IDENTIFICATION NUMBER (VIN) DESIGNATION (2015+)
Example: 4XARUE573FG000000
WORLD MFG. ID
VEHICLE DESCRIPTORS VEHICLE IDENTIFIERS
CHASSIS
DRIVELINE
CHASSIS
MODIFIER
ENGINE SIZE
ENGINE MODIFIER
CHECK DIGIT
MODEL YEAR *
MFG. LOCATION
INDIVIDUAL SERIAL NO.
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
4 X A R U E 5 7 3 F G 0 0 0 0 0 0
* Model Year: A = 2010; B = 2011; C = 2012; D = 2013; E = 2014; F = 2015; G= 2016
GENERAL INFORMATION
1

1.4
9926816 R06 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
VEHICLE AND ENGINE SERIAL NUMBER LOCATION
Whenever corresponding about a Polaris ORV, refer to the vehicle identification number (VIN) and the engine serial
number.

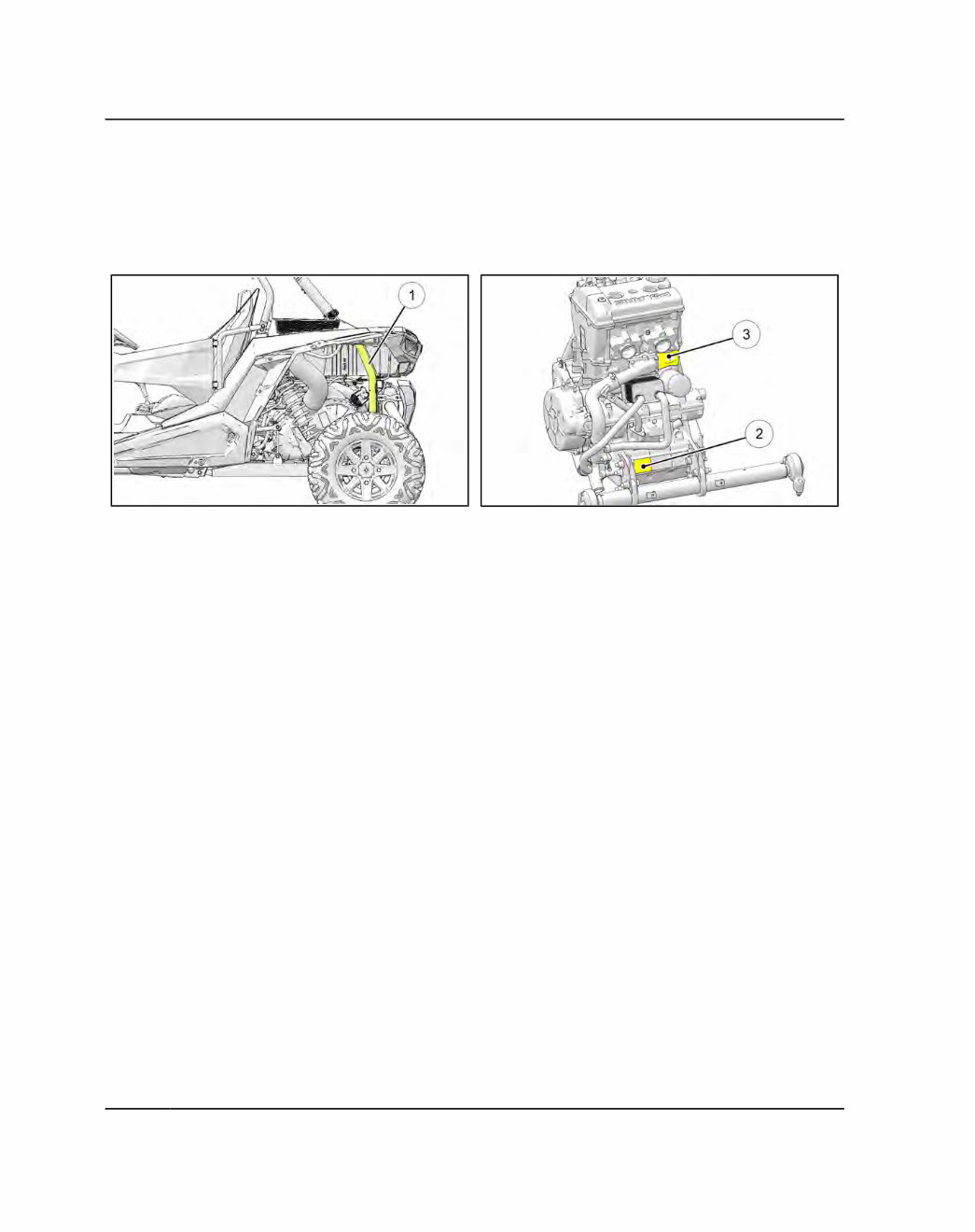

The VIN can be found stamped on a portion of the left rear frame upright q, behind the PVT cover.
The engine serial number can be found on a decal applied to the front of the engine crankcase w or stamped into the
crankcase on the PTO side of the engine e.
GENERAL INFORMATION
